Presentation Transcript

Topics l.jpg


Why Migrate?



Migrating Group Policies

Preparation Part 2

Migrating Groups

Migrating Users

Migrating Computers

Migrating Servers

Eliminating the Domain

Potential Problems

Why migrate l.jpg
Why Migrate?

  • Active Directory can “easily” handle over a million objects in a single domain

  • Child domains are not security boundaries

  • Just about everything you can do in a domain, you can do in an OU (CHFA only lost control of the password policy, which mostly matched the one used in AD-ITS)

  • Mac OS 10.5 (Leopard) disapproves of child domains

  • Eliminate excessive servers and their total cost

  • Remove AD roles from servers performing other roles

  • Really no reason not to

Overview l.jpg

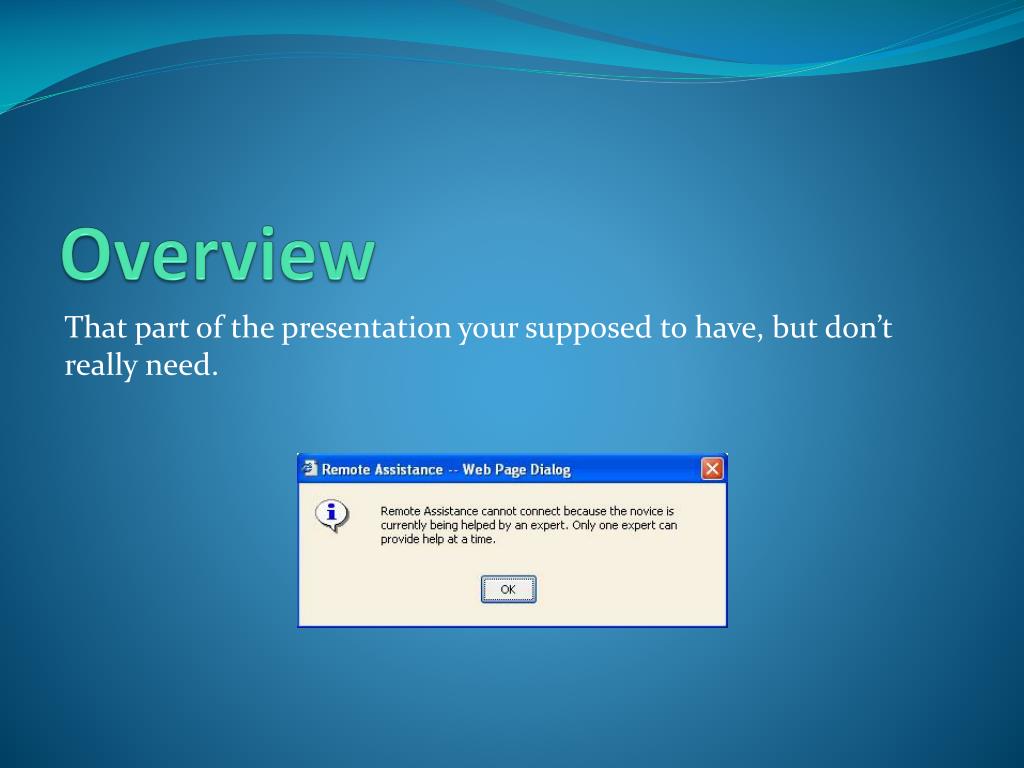

That part of the presentation your supposed to have, but don’t really need.

Overview5 l.jpg

  • Prepare

  • Notify users

  • Migrate Groups

  • Migrate Users

  • Migrate Computers

  • Migrate Servers

  • Fix Problems

  • Eliminate the Old Domain

Overview6 l.jpg

  • The ADMT tool is quite easy to use, like the Add Printer Wizard without the drivers and with that whole can-screw-everything-up part.

  • Only way to undo an ADMT object migration when working within a single forest is to use the tool again, reversing the source and destination domains.

  • As long as groups are set to universal, half your users and computers could be in one domain and the other half in another with virtually no problems.

  • The ADMT tool has a comprehensive command-line interface in addition to its GUI interface. I will focus on the GUI interface.

Overview7 l.jpg

  • CHFA completed the major migration tasks over winter break

  • Downtime to the typical CHFA user was about 2 hours for user migration, 2-4 hours for their computer migration (all GP software uninstalls and reinstalls), and 3 hours for server migration.

  • 2 machines (out of 312) failed severely enough to require reformatting, but both had experienced problems beforehand.

  • About 8 machines required manually binding to the AD-ITS domain.

  • A 3.2% failure rate on computers?

  • No users or groups failed to migrate successfully

Preparation l.jpg

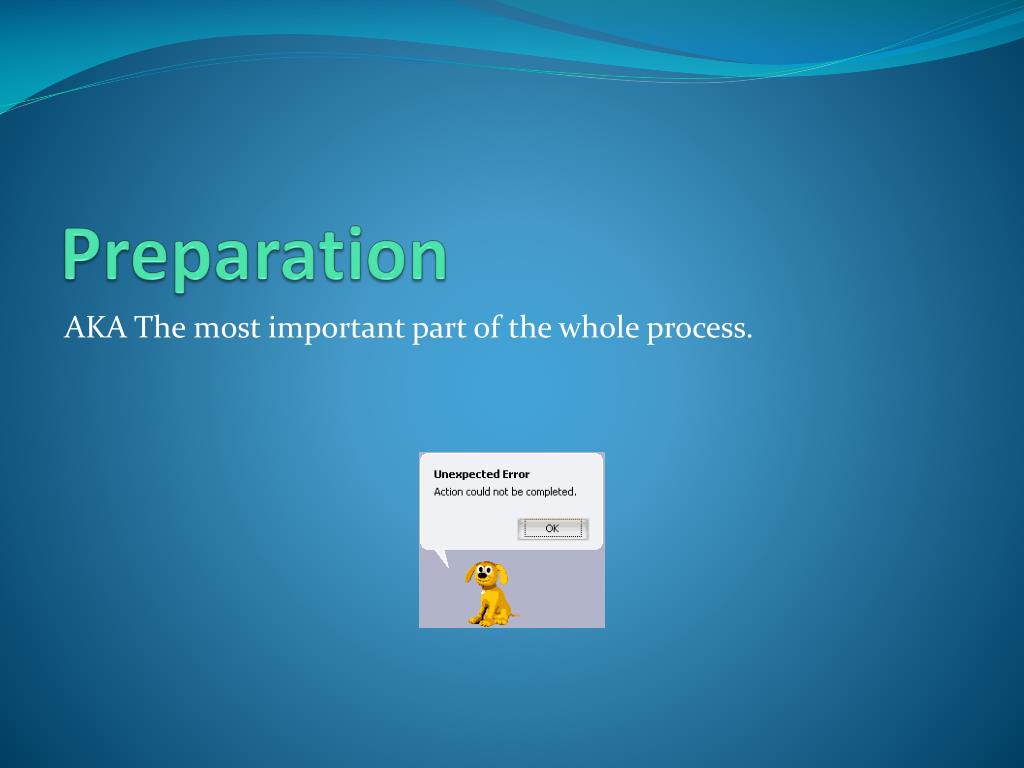

AKA The most important part of the whole process.

Preparation9 l.jpg

  • Create your new OU structure in the AD-ITS Domain (ask ITS-NS for initial setup)

  • Good opportunity to reorganize and clean up

  • Create new universal groups to represent the membership of various domain specific groups (like Domain Admins, or Domain Users). Add the users to these new groups before attempting any migration.

Preparation10 l.jpg

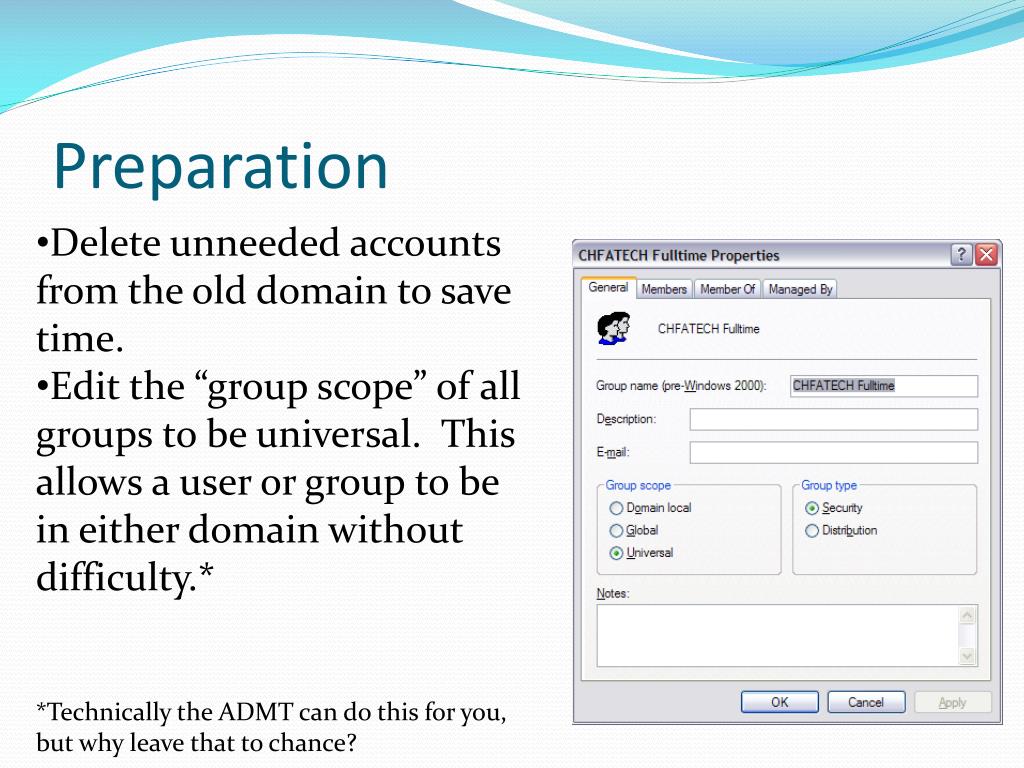

  • Delete unneeded accounts from the old domain to save time.

  • Edit the “group scope” of all groups to be universal. This allows a user or group to be in either domain without difficulty.*

*Technically the ADMT can do this for you, but why leave that to chance?

Preparation admt l.jpg
Preparation – ADMT

  • Install the Active Directory Migration Tool V3 on the server of your choice (probably a domain controller).

  • http://www.microsoft.com/downloads/details.aspx?FamilyID=6f86937b-533a-466d-a8e8-aff85ad3d212&displaylang=en

  • Download and read the ADMT V3 Migration Guide, especially pages after 224

  • http://www.microsoft.com/downloads/details.aspx?familyid=D99EF770-3BBB-4B9E-A8BC-01E9F7EF7342&displaylang=en

  • Also available from: \\mercury.chfa.uni.edu\Public\Interdisciplinary\Domain Migration

  • The ADMT guide is very detailed and covers most of the issues I will discuss in greater detail.

Migrating group policies l.jpg
Migrating Group Policies

The part the ADMT guide doesn’t talk about.

Group policy l.jpg
Group Policy

  • Again, this is the time to make major changes if you feel the need.

  • Simple “backup” and “import” process.

  • Can configure a table to act as an automatic “find and replace”

  • Move policies out of the default domain policy

Group policy step by step l.jpg
Group Policy – Step by Step

  • Have both the old domain and the AD-ITS domain open in two windows of Group Policy Management.

  • Create new policy in the AD-ITS domain (remember to name it beginning with your division name.)

  • Right-click old policy, choose “Backup.” Choose a location to backup to, and backup the policy.

  • Right-click new policy, choose “Import Settings.”

  • Choose the folder you backed up into, select the correct policy and work through the wizard.

Group policy step by step15 l.jpg
Group Policy – Step by Step

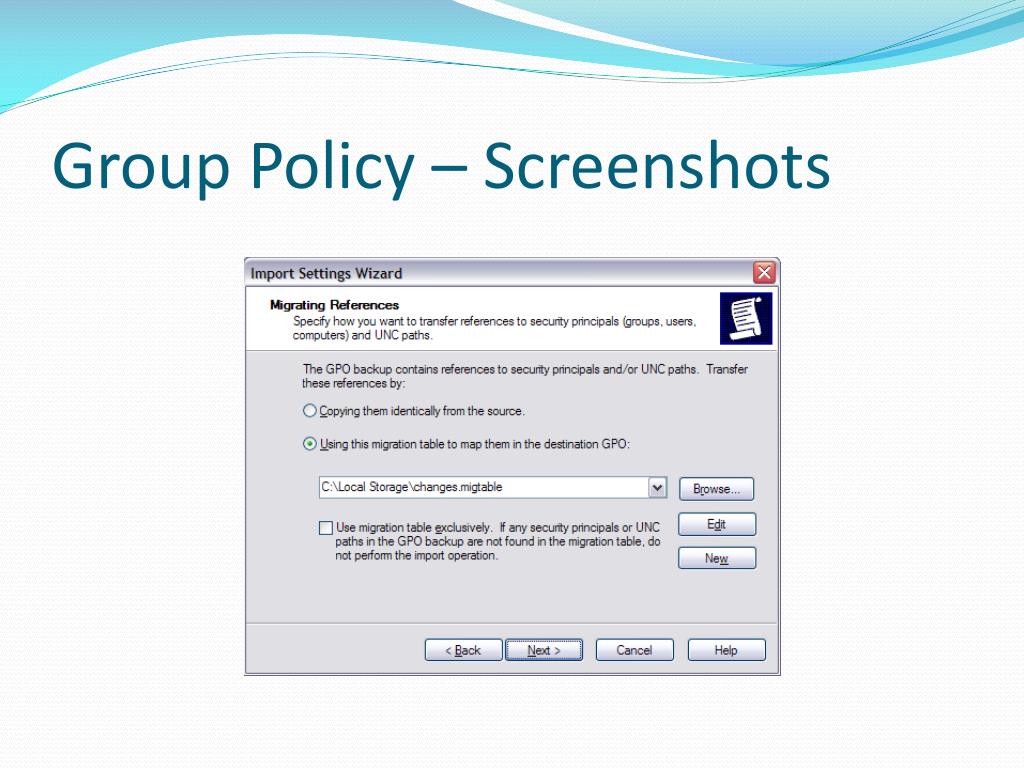

  • If desired, policies can be altered by a migration table, which is a fancy find and replace list.

  • The table can be auto-populated from the GPO, allowing you to choose which items you want to change.

Preperation part 2 l.jpg

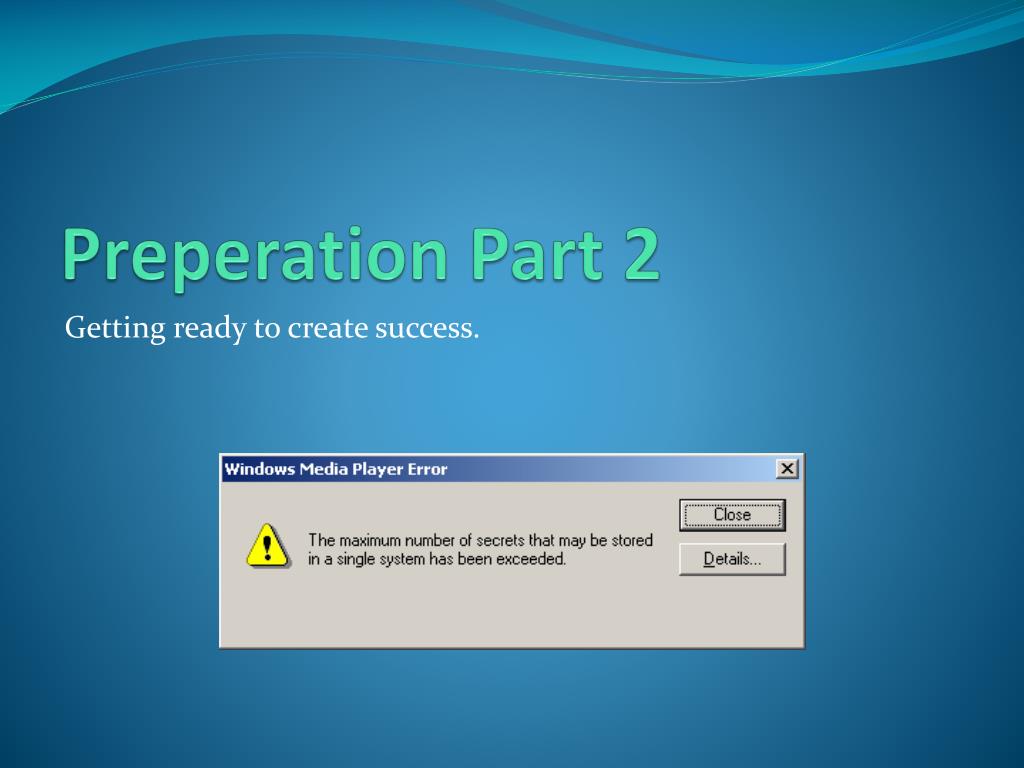

Preperation Part 2

Getting ready to create success.

Preparation service account migration wizard l.jpg
Preparation – Service Account Migration Wizard

  • Launch the ADMT tool and run the “Service Account Migration Wizard” on your servers.

  • “The Service Account Migration Wizard checks every service on a computer to identify services that run in the context of a user account.”

  • “When the accounts that the Service Account Migration Wizard identifies in the ADMT database as running in the context of a user account are migrated to the target domain, ADMT grants each account the right to log on as a service.”

Preparation service account migration wizard25 l.jpg
Preparation – Service Account Migration Wizard

  • “The wizard connects to the selected computers, and then sends an agent to check every service on the remote computers. The Service Account Information page lists the services that are running in the context of a user account and the name of that user account. ADMT notes in its database that these user accounts need to be migrated as service accounts.”

  • For instructions on running the Service Account Migration Wizard, see page 247 of the ADMT guide.

Preparation reporting wizard l.jpg
Preparation – Reporting Wizard

  • The ADMT tool comes with a reporting wizard to gather information

  • It can tell you about:

    • Already migrated user accounts

    • Already migrated computer accounts

    • Expired accounts

    • Account references

    • Account name conflicts

  • The account name conflict report should be run before attempting migrationso duplicate user or computer names can be resolved

Preparation develop strategy l.jpg
Preparation – Develop Strategy

  • Determine if you’re going all at once or going to go department by department

  • If migrating one department at a time, create lists that can be imported into the ADMT tool

  • Come up with a plan to notify users, no matter how much you do, somebody will miss the message

  • Make sure computers remain on, temporarily disable computer-power saving features.

Preparation develop strategy28 l.jpg
Preparation – Develop Strategy

  • Make sure your admin account in each domain has adequate rights to resources in the other domain

  • Be sure to move a few test users over well in advance to assure your procedure will work

Ideas to mitigate computer failures l.jpg
Ideas to Mitigate Computer Failures

  • Make sure the local Admin account is enabled and you know the password

  • If the machine is not nearby, make sure the local Admin account has RD rights to the machine or have a VNC-type software package in place. (For the machines that need to be bound manually)

  • Have a plan to recover data from hard drives of machines that don’t survive, the user’s data will most-likely be fine (BartPE, USB->IDE/SATA adapter)

Migrating groups l.jpg
Migrating Groups

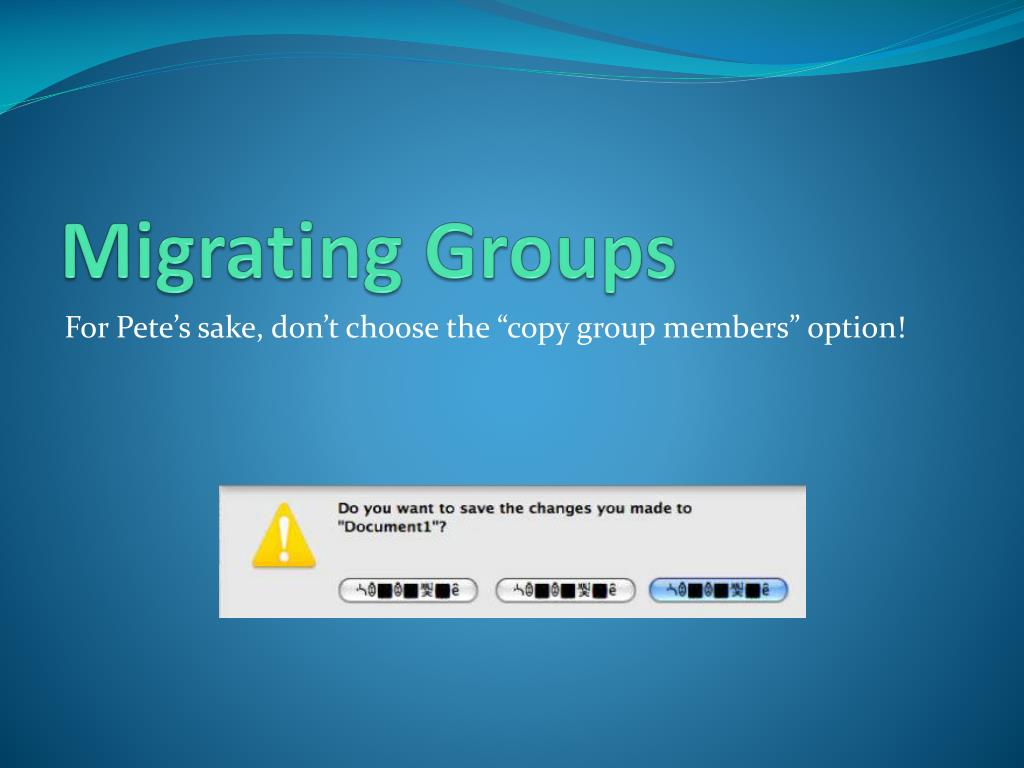

For Pete’s sake, don’t choose the “copy group members” option!

Migrating groups32 l.jpg
Migrating Groups

  • See page 253 of the ADMT guide

  • Launch the ADMT tool

  • Start the Group Account Migration Wizard

  • Choose the source and destination domains

  • Add the groups you wish to migrate to the list or choose a pre-populated list of groups if you have created one

  • Choose the OU in the target domain where you want the groups to appear

Migrating groups33 l.jpg
Migrating Groups

  • The “Migrate Group SIDs to target domain” and “Fix Group Membership” should be the only options selected besides “Do not migrate source object if a conflict is detected in the target domain.”

  • DO NOT CHOOSE THE “COPY GROUP MEMBERS” OPTION! It pulls every user that’s in any group or nested group over along with the group.

  • View the log for problems.

Migrating groups34 l.jpg
Migrating Groups

  • Users in the old domain will be able to use the migrated groups just as they were in the old domain, as the group’s SID is still recognized.

  • If you were to migrate a global group (remember, you changed them all to universal already), it will convert it to a universal group until all group members are moved to the target domain (see page 257 of the ADMT guide).

  • Standard groups, like domain users, domain computers, are handled automatically when you migrate those objects

Migrating users l.jpg
Migrating Users

Forced relocation just doesn’t have the same ring to it.

Migrating users36 l.jpg

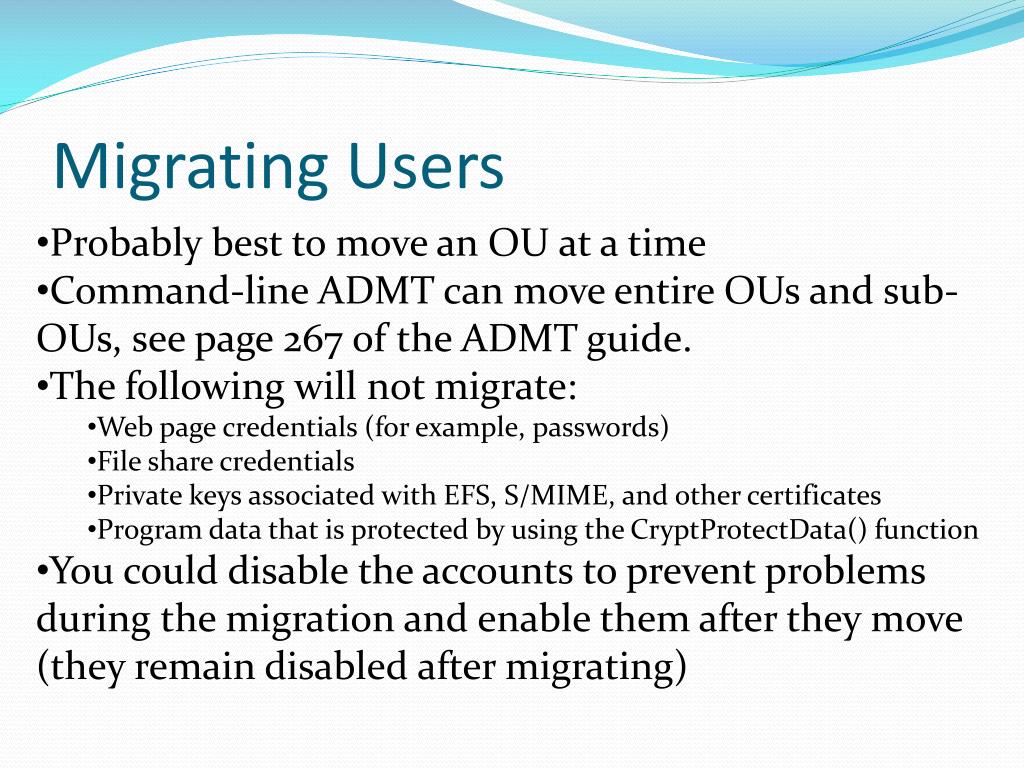

Migrating Users

  • Probably best to move an OU at a time

  • Command-line ADMT can move entire OUs and sub-OUs, see page 267 of the ADMT guide.

  • The following will not migrate:

    • Web page credentials (for example, passwords)

    • File share credentials

    • Private keys associated with EFS, S/MIME, and other certificates

    • Program data that is protected by using the CryptProtectData() function

  • You could disable the accounts to prevent problems during the migration and enable them after they move (they remain disabled after migrating)

Migrating users37 l.jpg
Migrating Users

  • When an account is migrated using ADMT, it receives a new SID and its SIDHistoryattribute is populated with the user's old SID.

  • Same basic procedure as migrating groups

  • Launch the ADMT tool

  • Start the User Account Migration Wizard

  • Choose the source and destination domains

  • Add the users you wish to migrate to the list or choose a pre-populated list of users if you have created one

  • Choose the OU in the target domain where you want the users to appear

Migrating users38 l.jpg
Migrating Users

  • Select the “Translate roaming profiles” check box.

  • Select the “Update user rights” check box.

  • Clear the “Migrate associated user groups” check box.*

  • Do not migrate source object if a conflict is detected in the target domain.

  • View the log for problems.

  • Immediately follow-up with a run of the Security Translation Wizard on your servers

  • All users will be flagged to change their passwords

*While equally evil to its sibling “Copy Group Members” option, your groups should already be migrated, right?

Security translation wizard l.jpg
Security Translation Wizard

  • Very similar to the computer migration wizard (which I discuss next), except this one doesn’t migrate anything, but rather fixes security permissions for objects that have been migrated.

  • Longest part of the user migration, as the group and user moves are very quick, this scans the servers for references to the old accounts and updates them.

Admodify net l.jpg

  • Bulk AD object modification tool

  • Used to undo the forced password change

  • Users get a freebie on the password age and get a fresh start on their 3 months

  • ADModify.net tool keeps an undo file for everything it does

  • Might prove useful for other AD needs

  • http://www.codeplex.com/admodify

  • MSI package in

  • \\mercury.chfa.uni.edu\Public\Interdisciplinary\Domain Migration

Migrating computers l.jpg
Migrating Computers

This is the part that might break things.

Migrating computers42 l.jpg
Migrating Computers

  • Again, similar process to migrating groups and users.

  • Migrated computers are disabled in source domain instead of being removed like users and groups

  • Launch the ADMT tool

  • Start the Computer Migration Wizard

  • Choose the source and destination domains

  • Add the computers you wish to migrate to the list or choose a pre-populated list of computers if you have created one

  • Choose the OU in the target domain where you want the users to appear

Migrating computers43 l.jpg
Migrating Computers

  • Choose all available translation options

  • Choose replace mode

  • Choose either 0 or 5 minutes for the computers to wait before restarting

  • Don’t exclude any properties

  • Do not migrate an object if there is a conflict

  • When prompted, run the pre-check and agent operation in the ADMT Agent dialog box

  • The ADMT Agent fixes references to the source domain on the computer

  • Check the logs for problems

Migrating computers61 l.jpg
Migrating Computers

  • You will have failures

  • Machines need to be on

  • Some will fail their post-check but will be fine

  • Some will need to be bound manually

  • There’ll probably be some that will need to be started over from scratch

  • Give the ADMT agent plenty of time to run.

  • Probably best to move no more than 20 or so computers at a time

Migrating servers l.jpg
Migrating Servers

Its not like they do anything important.

Migrating servers63 l.jpg
Migrating Servers

  • Just like migrating computers, except you’ve got a few extra things to watch for:

    • Service accounts (mentioned earlier)

    • Run the service account wizard if needed

    • Maybe generic user accounts used that have already migrated?

    • Anything that ties to AD needs to be updated

Chfa server migrations l.jpg
CHFA Server Migrations

  • CHFA Migrated via the ADMT:

    • One major file server

    • A VMware server

    • Several VMware guests, which are licensing servers

    • A file/RIS/print server

    • An SQL server

  • The ADMT agent did take a long time to run on a large number of files (about a million files on our main file server)

Eliminating the domain l.jpg
Eliminating the Domain

The fun part.

Eliminating the domain66 l.jpg
Eliminating the Domain

  • Run DCpromo on each domain controller and follow the on-screen prompts to remove AD from that server

  • Once you only have one DC left, check the wonderful box for it being the last DC in the domain

  • At this point, you’ll need an enterprise admin to come and enter their credentials to complete the process

  • After it completes, anything left in the domain is gone

Potential problems l.jpg
Potential Problems

If you aren’t scared yet…

Potential problems68 l.jpg
Potential Problems

  • Conflicts, computer name or user name exists in both domains. Resolve by renaming computers and determining why duplicate user accounts exist.

  • Saved passwords are usually lost.

  • Some programs don’t see the account as being the same (Dreamweaver for example) after its migrated, so “protected” settings are lost, see above.

  • Use of built-in groups for security permissions will still point to the old domain

  • Firewalls need to allow the ADMT agent into the system

Potential problems69 l.jpg
Potential Problems

  • Machines left off

  • Laptops that are somewhere

  • Users will always try to login during the migration process—even at 7 AM on Christmas Day

  • Software packages deployed via GP must uninstall/install successfully
