radio aids navigation ran 2204

RADIO AIDS & NAVIGATIONRAN 2204

LECTURE 2: RADIO COMMUNICATIONS

keywords
Keywords

Radio Wave

Wavelength

Amplitude

Frequency

Communication System

Transmission System

Receiver System

Signal

Electronic Equipment

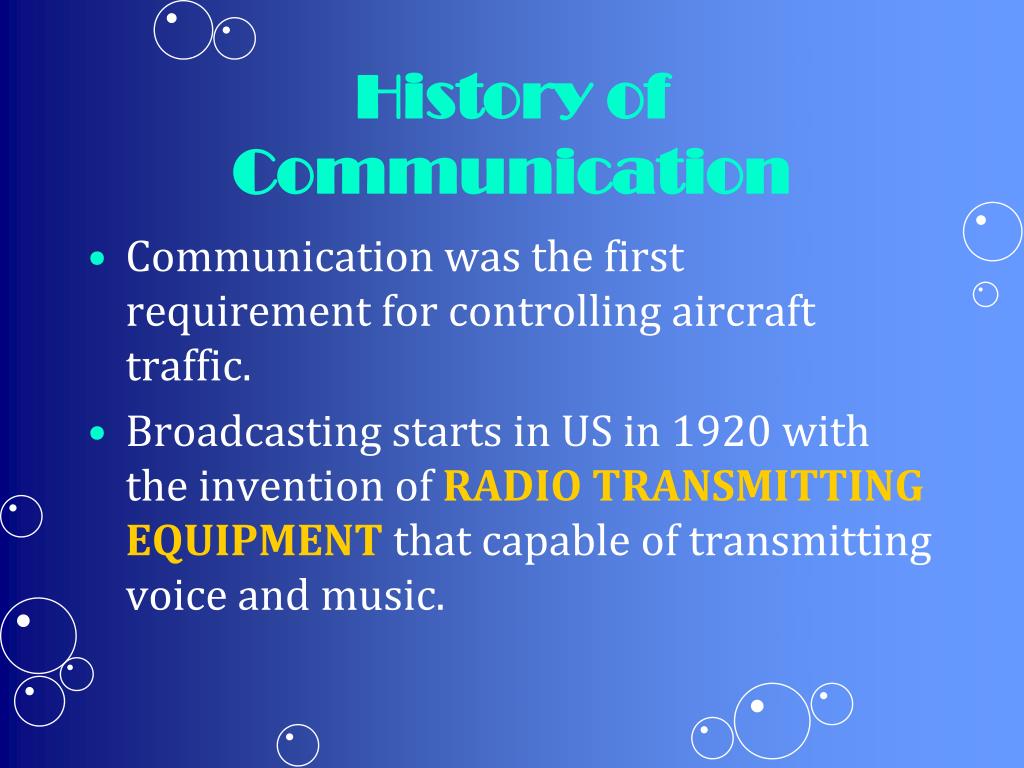

history of communication
History of Communication
  • Communication was the first requirement for controlling aircraft traffic.
  • Broadcasting starts in US in 1920 with the invention of RADIO TRANSMITTING EQUIPMENTthatcapable of transmitting voice and music.
radio transmitting equipment
Radio Transmitting Equipment
  • The transmitter is the device or installation used to generate and transmit ELECTROMAGNETIC WAVES carrying messages or signals, especially those of radio or television.
  • The receiver is the part that converts electrical signals into sounds. Example: receiver on radio or television converting broadcast signals into sound or images.
communication

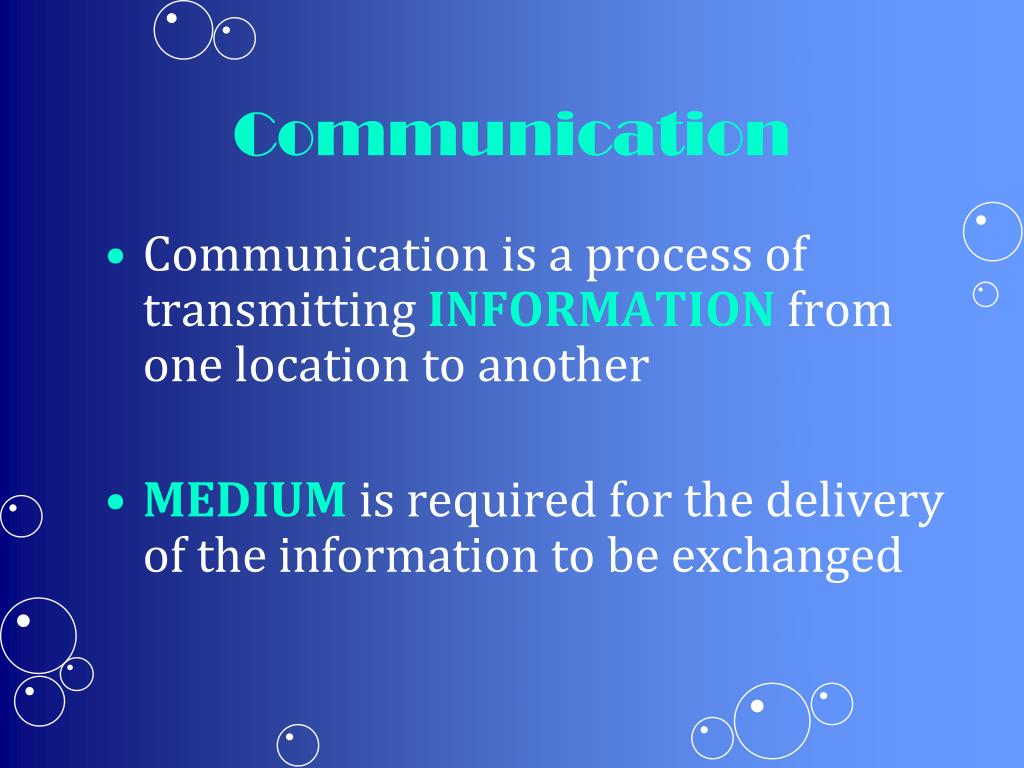

Communication
  • Communication is a process of transmitting INFORMATION from one location to another
  • MEDIUM is required for the delivery of the information to be exchanged
medium for communication
Medium for Communication
  • For example : telephone and cable television
    • Medium for transmission signal is cable and fibre optics
  • For aircraft or satellite
    • Medium transmission signal is AIR using ELECTROMAGNETIC WAVES
what is a wave
A wave is a disturbance that is produced repeatedly, & transfer energy. Often in the form of vibration & oscillation. What is a Wave
frequency f
Frequency, f
  • Frequency is the number of complete waves passing a given point per second. It is measured in Hertz.
  • Relationship between frequency, speed and wavelength.
  • Frequency f = c

l

l is wavelength, c is speed of light c = 3108 m/s in vacuum

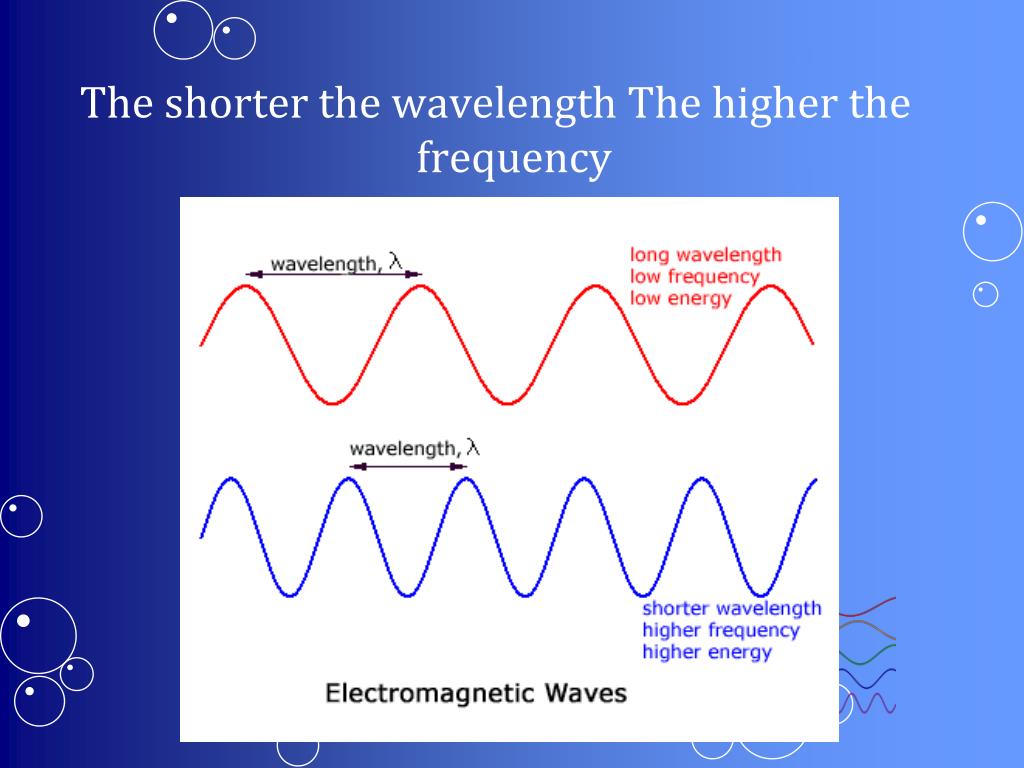

wavelength amplitude

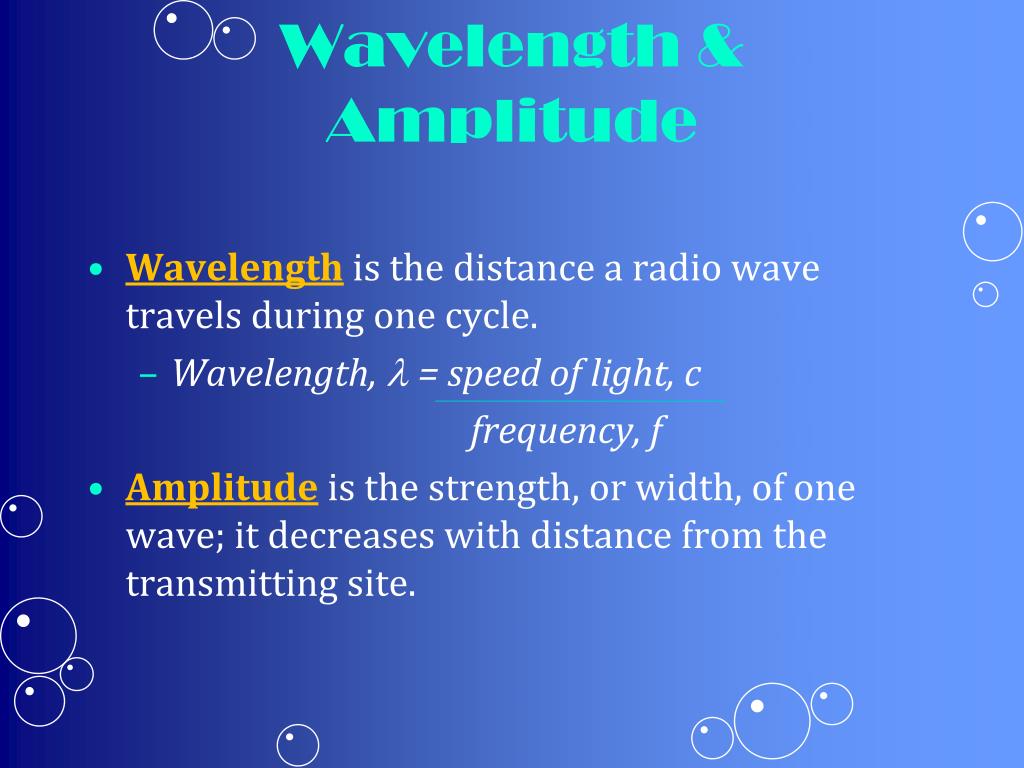

Wavelength & Amplitude
  • Wavelength is the distance a radio wave travels during one cycle.
    • Wavelength, l = speed of light, c

frequency, f

  • Amplitude is the strength, or width, of one wave; it decreases with distance from the transmitting site.
what is electromagnetic wave

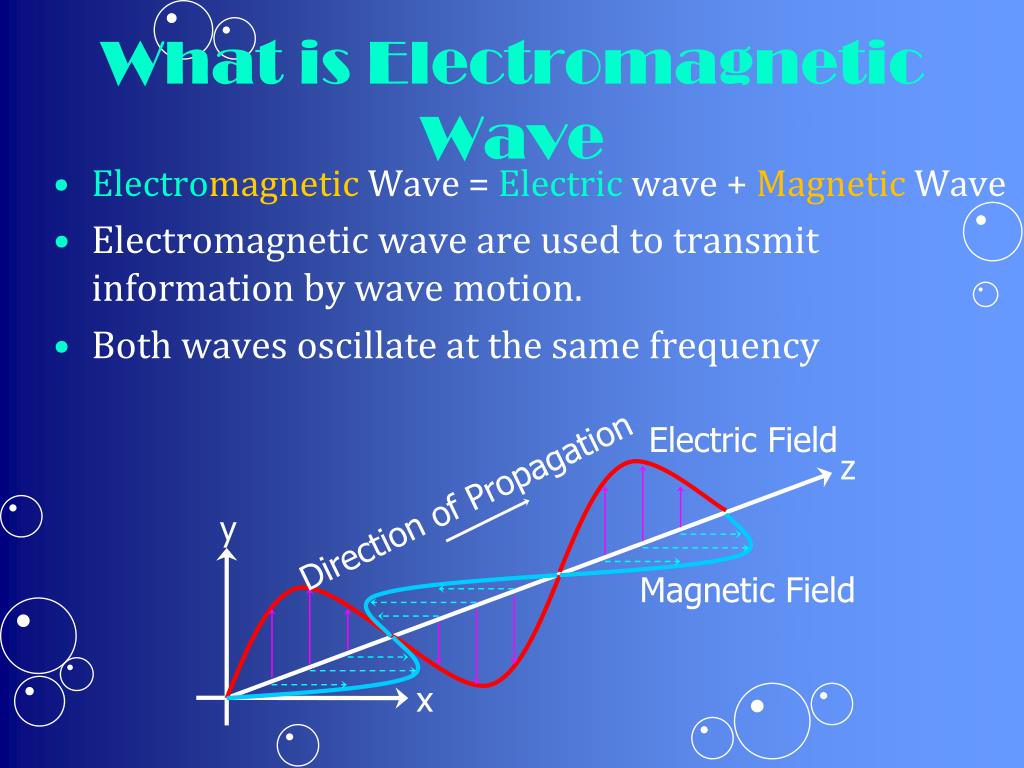

What is Electromagnetic Wave

Electromagnetic Wave = Electric wave + Magnetic Wave

Electromagnetic wave are used to transmit information by wave motion.

Both waves oscillate at the same frequency

Electric Field

z

Direction of Propagation

y

Magnetic Field

x

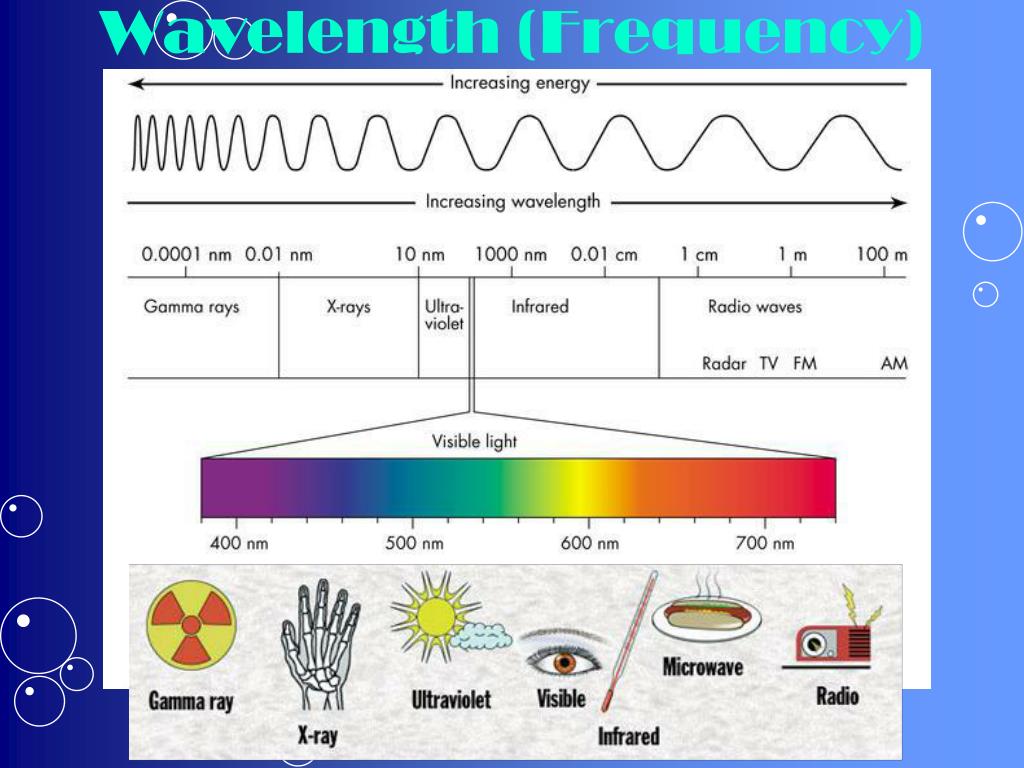

examples of electromagnetic wave

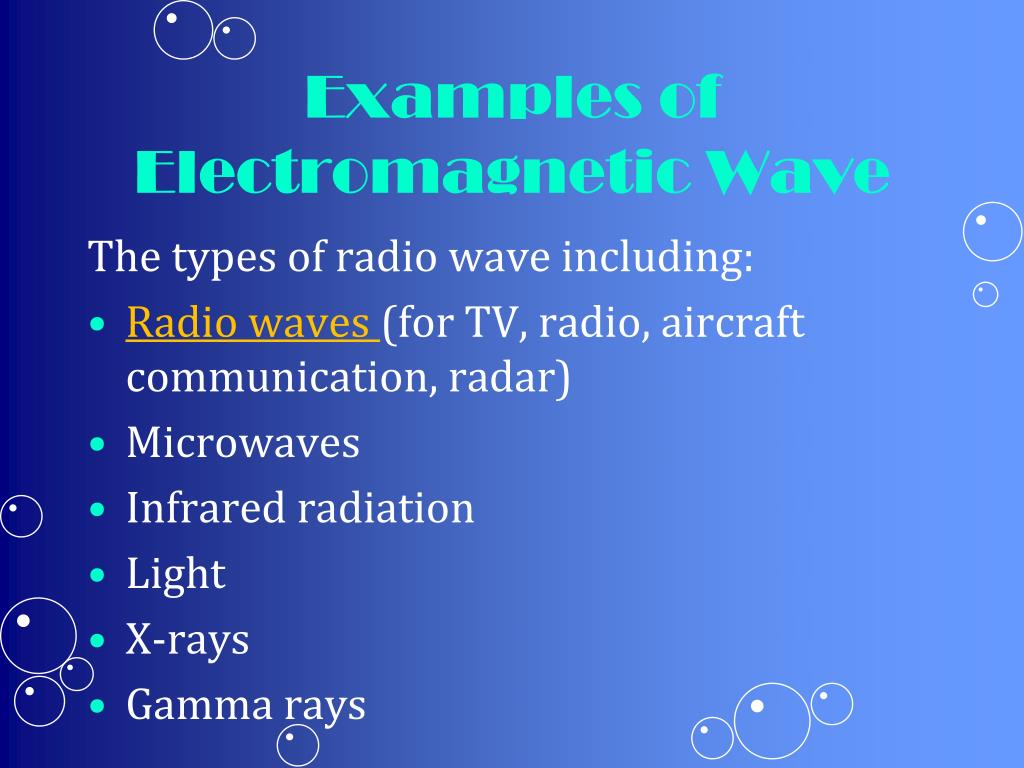

Examples of Electromagnetic Wave

The types of radio wave including:

  • Radio waves (for TV, radio, aircraft communication, radar)
  • Microwaves
  • Infrared radiation
  • Light
  • X-rays
  • Gamma rays
what is radio wave
What is RADIO WAVE
  • Radio generally works on AIR waves moving across the ATMOSPHERE.
  • Means that Radio Wave are everywhere. Radio waves are used to carry and to send message to each other .
  • Radio waves are radiated energy, in free space, they travel in straight lines at the speed of light.
  • Radio wave can reflect off of clouds or layers of the ionosphere, They also are relayed by satellites in space.
  • They are used in standard broadcast radio and television, short-wave radio, navigation and air-traffic control.
  • It is possible as Radio Wave can be sent over a very long distance .
atmosphere layers
Atmosphere Layers
  • Three of the atmosphere layers are:
    • Troposphere: earth’s surface to about 6.5 mi
    • Stratosphere: extends from the troposphere upwards for about 23 mi
    • Ionosphere: extends from the stratosphere upwards for about 250mi
    • Beyond this layer is free space
earth atmosphere
Earth Atmosphere
  • Earth can cause radio wave to take path other than straight line
  • Significant characteristics of earth
    • Conductor of electricity
    • Able to conduct low-frequency
  • Conductor is a material or device that conducts heat or electricity.
earth atmosphere1

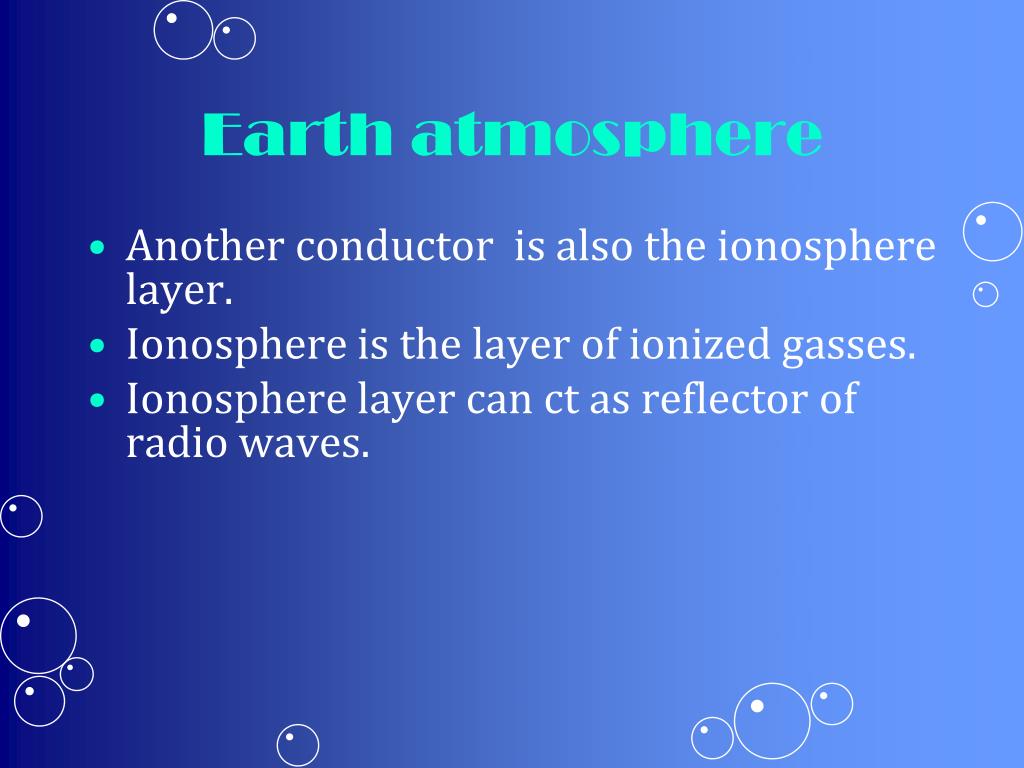

Earth atmosphere
  • Another conductor is also the ionosphere layer.
  • Ionosphere is the layer of ionized gasses.
  • Ionosphere layer can ct as reflector of radio waves.

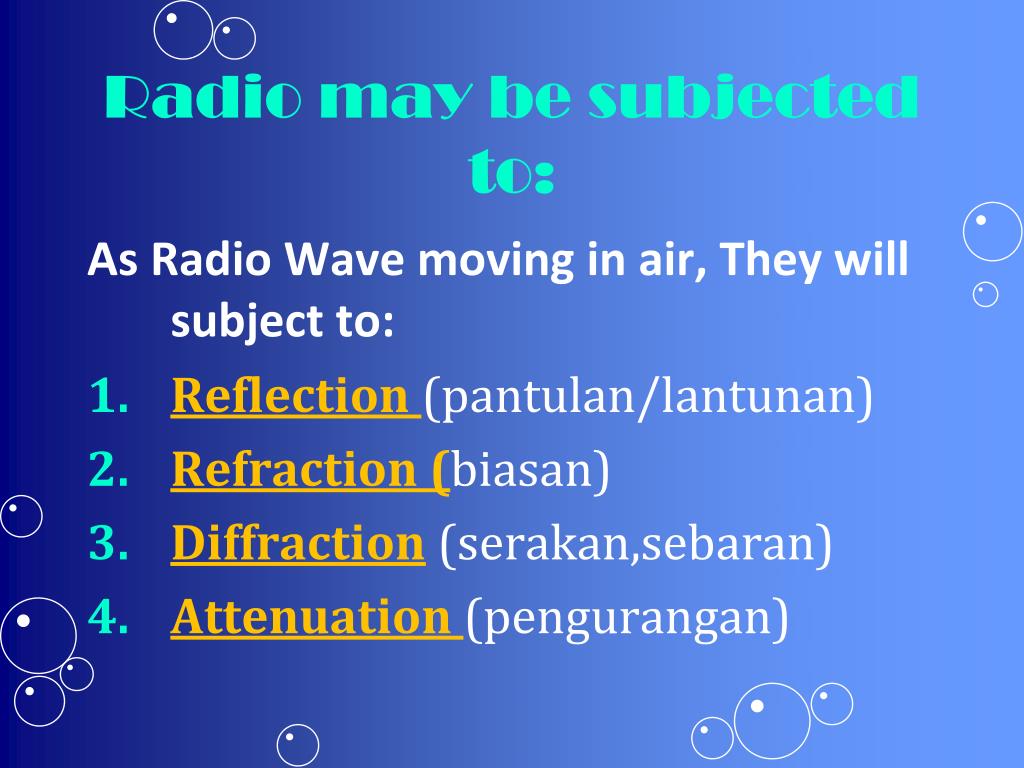

radio may be subjected to
Radio may be subjected to:

As Radio Wave moving in air, They will subject to:

  • Reflection (pantulan/lantunan)
  • Refraction (biasan)
  • Diffraction (serakan,sebaran)
  • Attenuation (pengurangan)

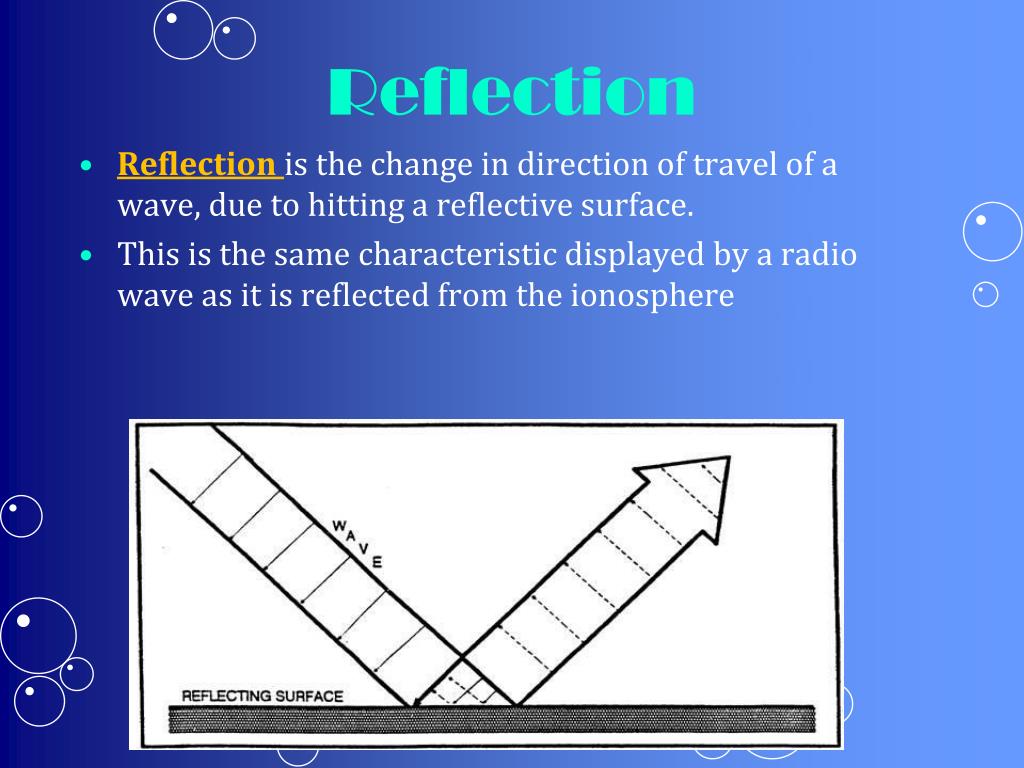

reflection
Reflection
  • Reflection is the change in direction of travel of a wave, due to hitting a reflective surface.
  • This is the same characteristic displayed by a radio wave as it is reflected from the ionosphere
refraction
Refraction
  • Refraction occurs when the radio waves go from one medium to another medium.
  • Refract means change the direction of radio propagation of by causing them to travel at different speeds and at different direction along the wave front.

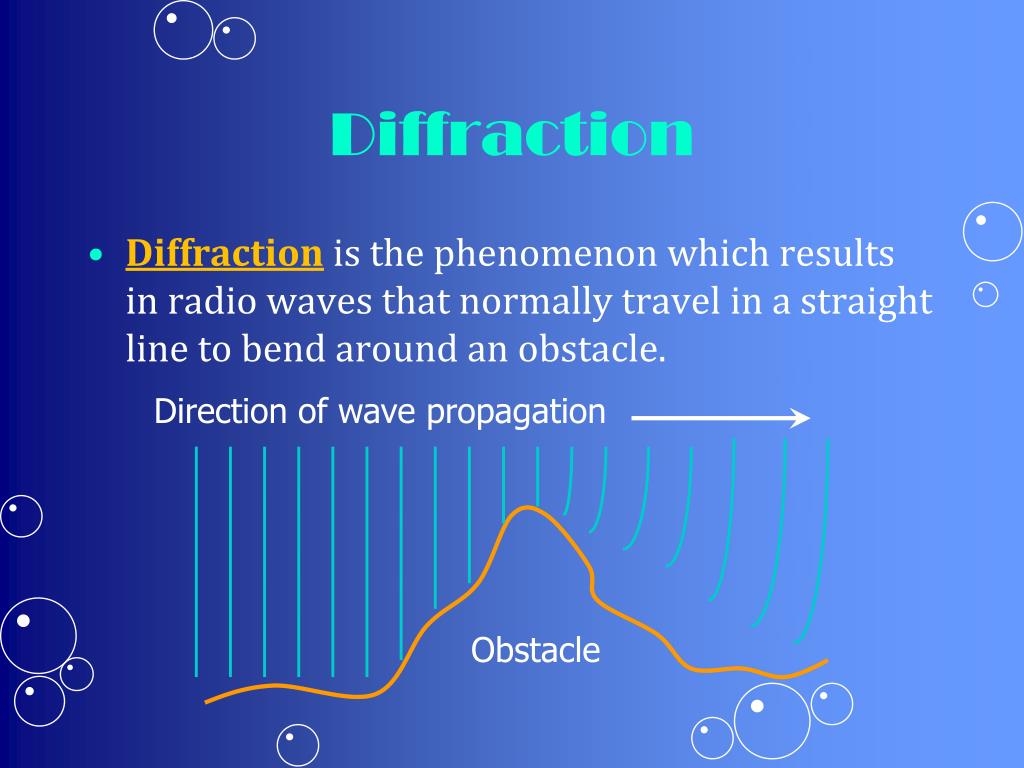

diffraction
Diffraction
  • Diffractionis the phenomenon which results in radio waves that normally travel in a straight line to bend around an obstacle.

Direction of wave propagation

Obstacle

attenuation
Attenuation
  • Attenuationis the loss of wave energy as it travels through a medium .
  • Or in short word the strength of the radio wave is reduced.

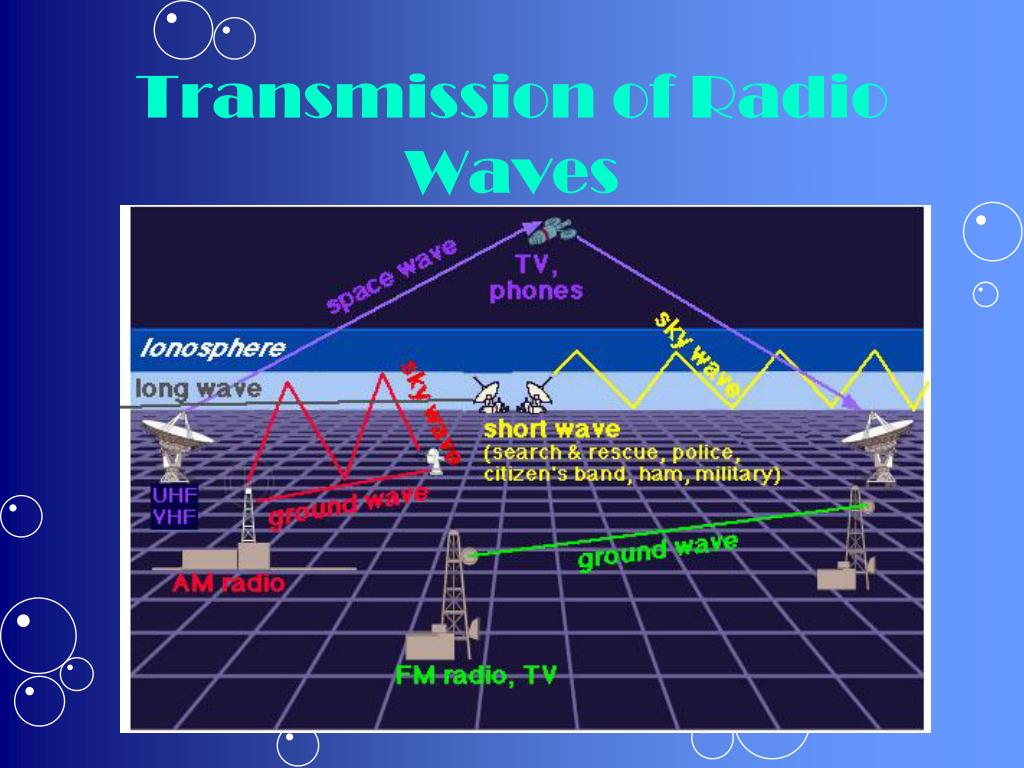

radio propagation

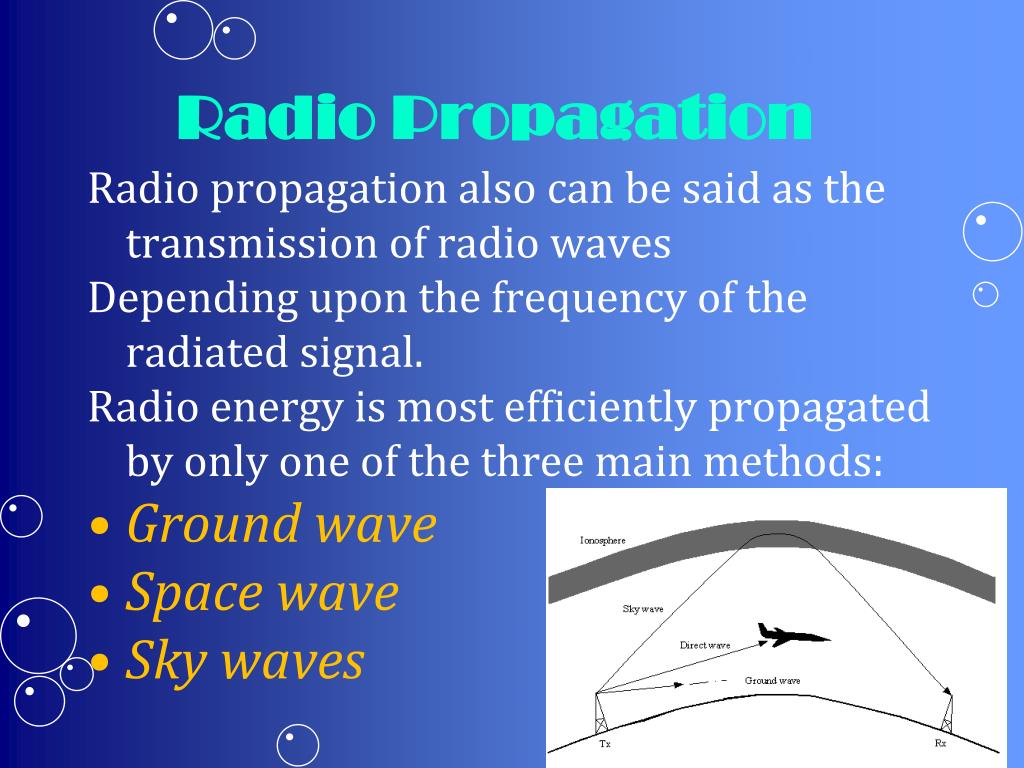

Radio Propagation

Radio propagation also can be said as the transmission of radio waves

Depending upon the frequency of the radiated signal.

Radio energy is most efficiently propagated by only one of the three main methods:

  • Ground wave
  • Space wave
  • Sky waves

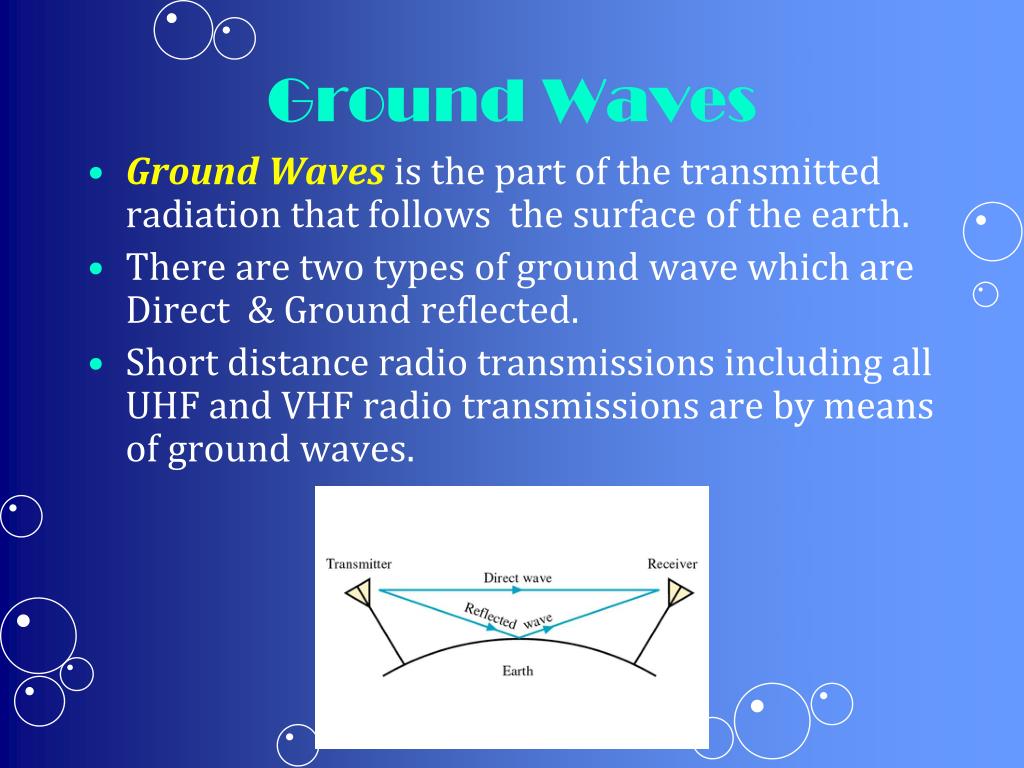

ground waves
Ground Waves
  • Ground Waves is the part of the transmitted radiation that follows the surface of the earth.
  • There are two types of ground wave which are Direct & Ground reflected.
  • Short distance radio transmissions including all UHF and VHF radio transmissions are by means of ground waves.

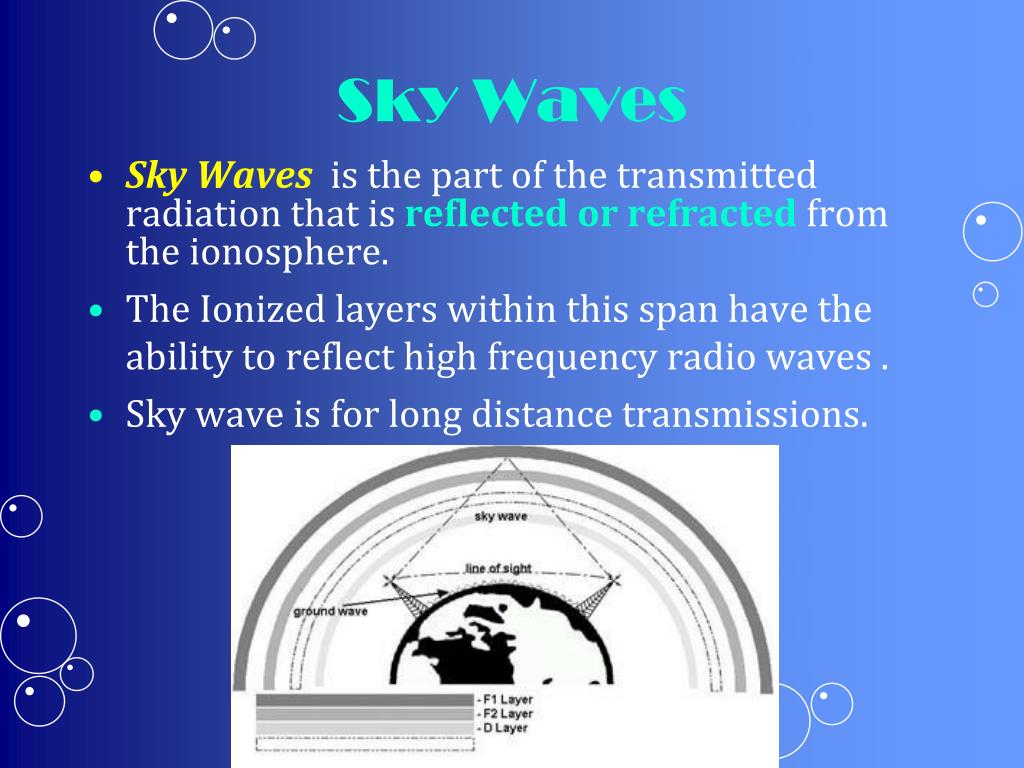

sky waves
Sky Waves
  • Sky Wavesis the part of the transmitted radiation that is reflected or refracted from the ionosphere.
  • The Ionized layers within this span have the ability to reflect high frequency radio waves .
  • Sky wave is for long distance transmissions.
space waves
Space Waves

Space Waves is the part of the transmitted radiation that does not follow the curvature of the earth.

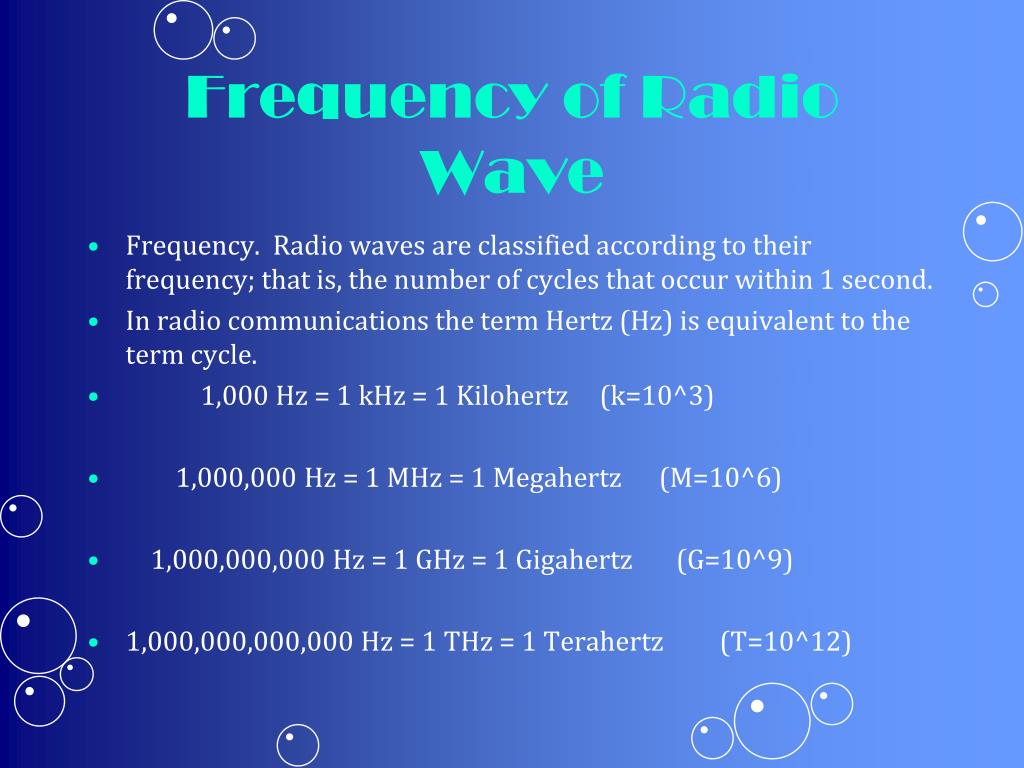

frequency of radio wave
Frequency of Radio Wave
  • Frequency. Radio waves are classified according to their frequency; that is, the number of cycles that occur within 1 second.
  • In radio communications the term Hertz (Hz) is equivalent to the term cycle.
  • 1,000 Hz = 1 kHz = 1 Kilohertz (k=10^3)
  • 1,000,000 Hz = 1 MHz = 1 Megahertz (M=10^6)
  • 1,000,000,000 Hz = 1 GHz = 1 Gigahertz (G=10^9)
  • 1,000,000,000,000 Hz = 1 THz = 1 Terahertz (T=10^12)
frequency bands
Frequency Bands
  • Allocation of frequencies is done by the International Telecommunications Union (ITU).

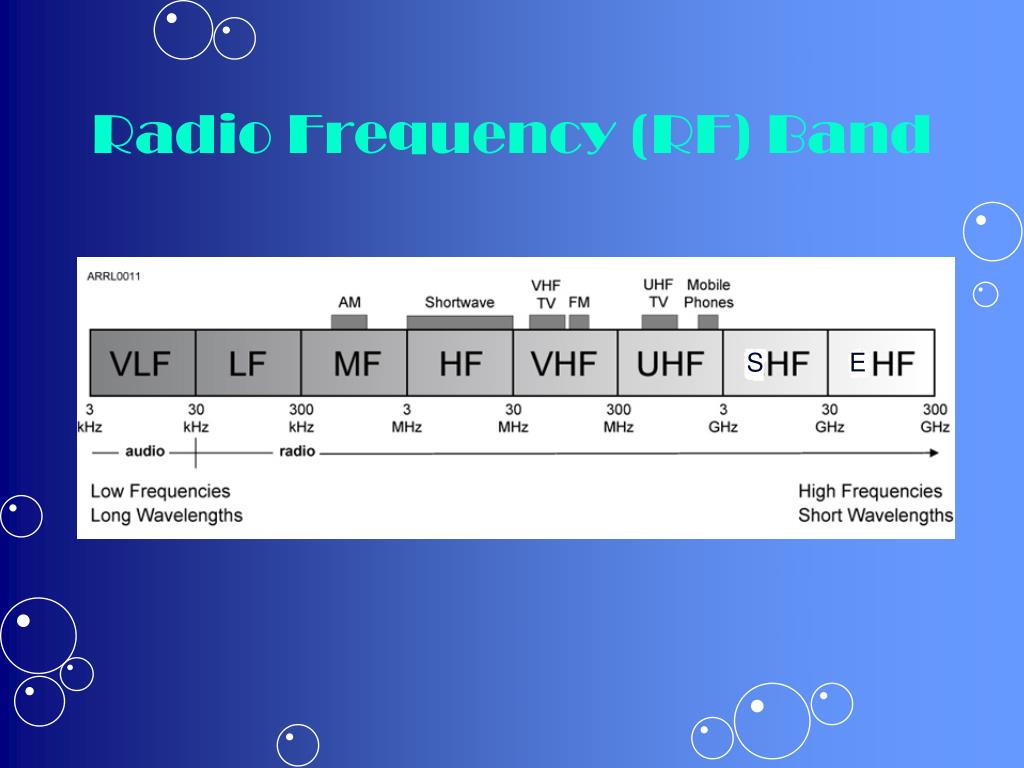

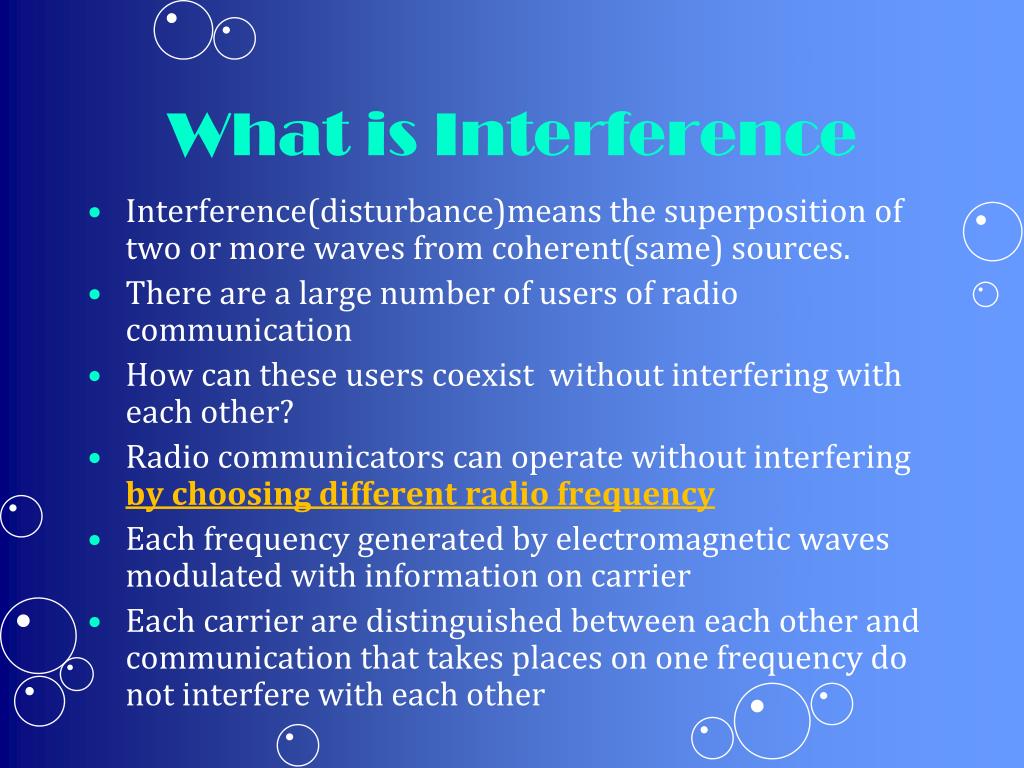

what is interference
What is Interference
  • Interference(disturbance)means the superposition of two or more waves from coherent(same) sources.
  • There are a large number of users of radio communication
  • How can these users coexist without interfering with each other?
  • Radio communicators can operate without interfering by choosing different radio frequency
  • Each frequency generated by electromagnetic waves modulated with information on carrier
  • Each carrier are distinguished between each other and communication that takes places on one frequency do not interfere with each other

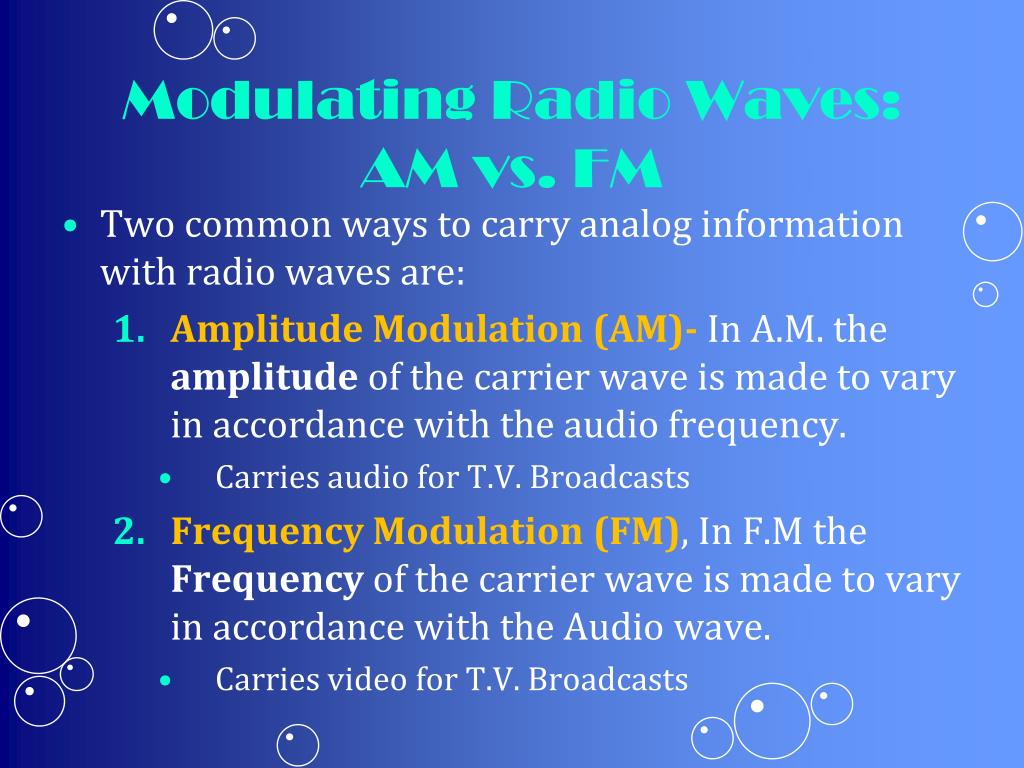

modulating radio waves am vs fm
Modulating Radio Waves: AM vs. FM
  • Two common ways to carry analog information with radio waves are:
    • Amplitude Modulation (AM)- In A.M. the amplitude of the carrier wave is made to vary in accordance with the audio frequency.
      • Carries audio for T.V. Broadcasts
    • Frequency Modulation (FM), In F.M the Frequency of the carrier wave is made to vary in accordance with the Audio wave.
      • Carries video for T.V. Broadcasts
