  1. An Illustrative Example

  2. Apple/Orange Sorter Neural Network Sensors Sorter Shape: {1 : round ; -1 : elliptical} Texture: {1 : smooth ; -1 : rough} Weight: {1 : > 1 lb. ; -1 : < 1 lb.} Apple Orange

  3. Prototype Vectors sensors: Shape: {1 : round ; -1 : elliptical} Texture: {1 : smooth ; -1 : rough} Weight: {1 : > 1 lb. ; -1 : < 1 lb.}

  4. Perceptron a = -1, n < 0 hardlims: a = 1, n ≧0

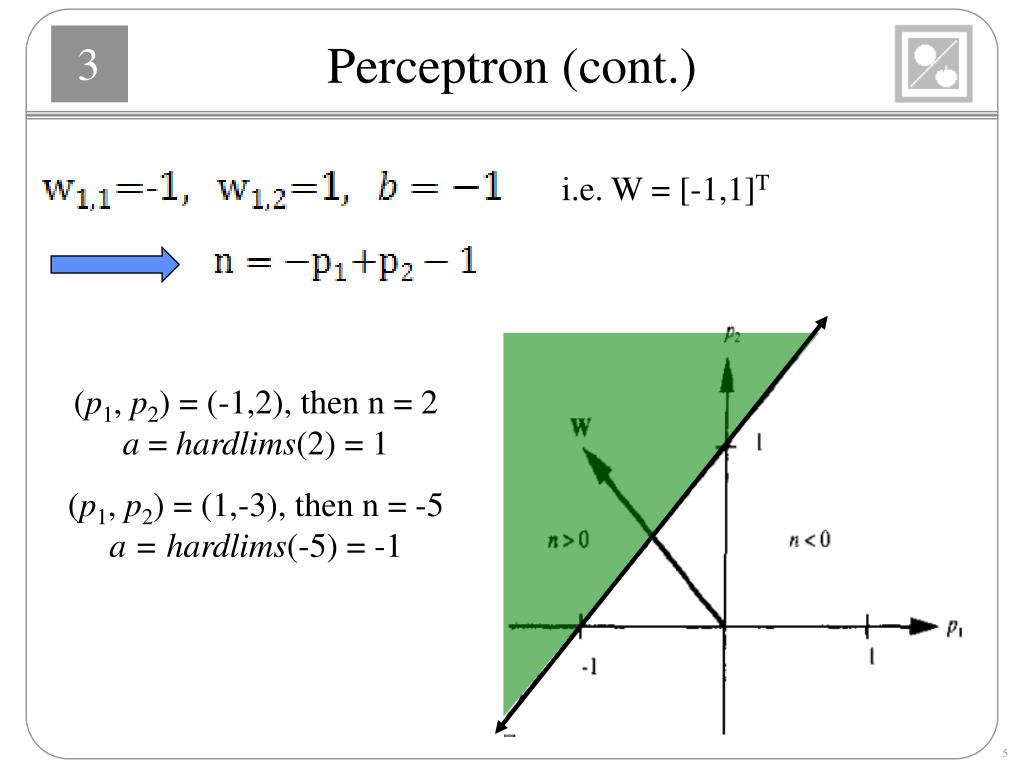

  5. Perceptron (cont.) i.e. W = [-1,1]T (p1, p2) = (-1,2), then n = 2a = hardlims(2) = 1 (p1, p2) = (1,-3), then n = -5a= hardlims(-5) = -1

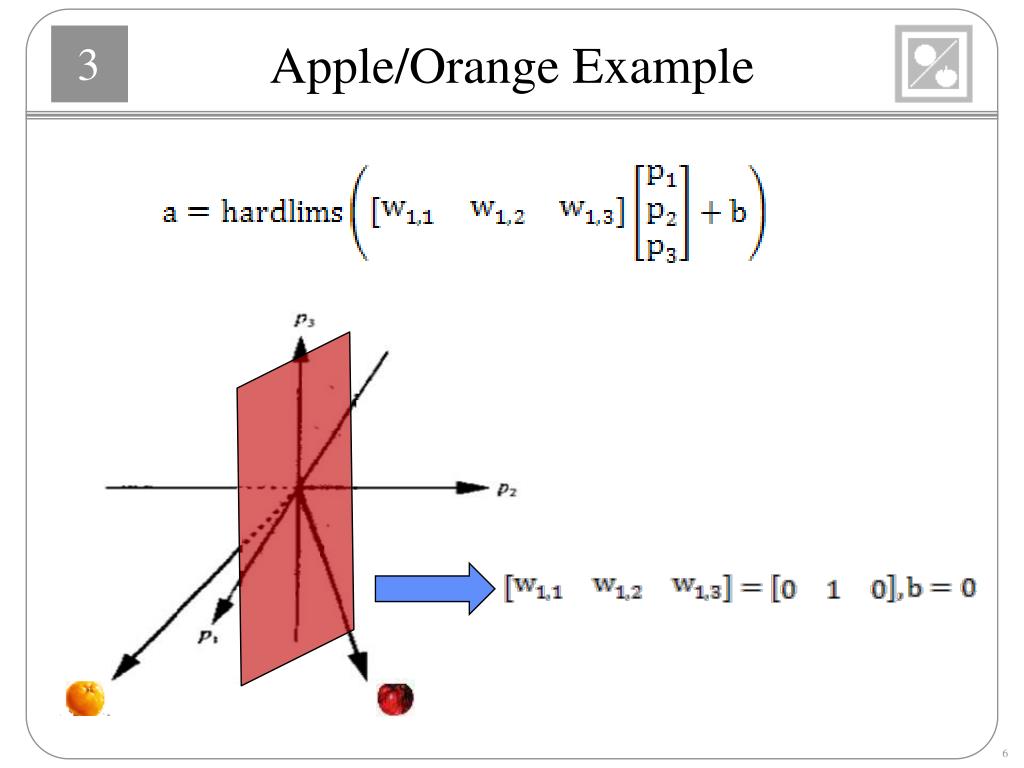

  6. Apple/Orange Example

  7. Apple/Orange Example 橘子

  8. Hamming Network

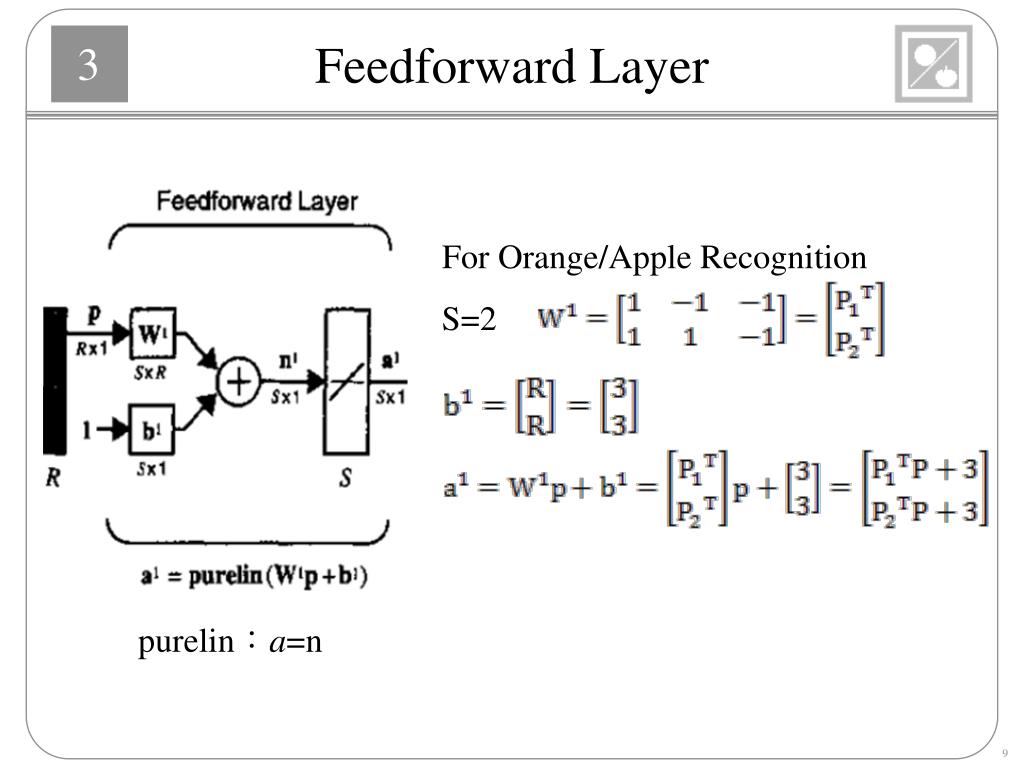

  9. Feedforward Layer For Orange/Apple Recognition S=2 purelin:a=n

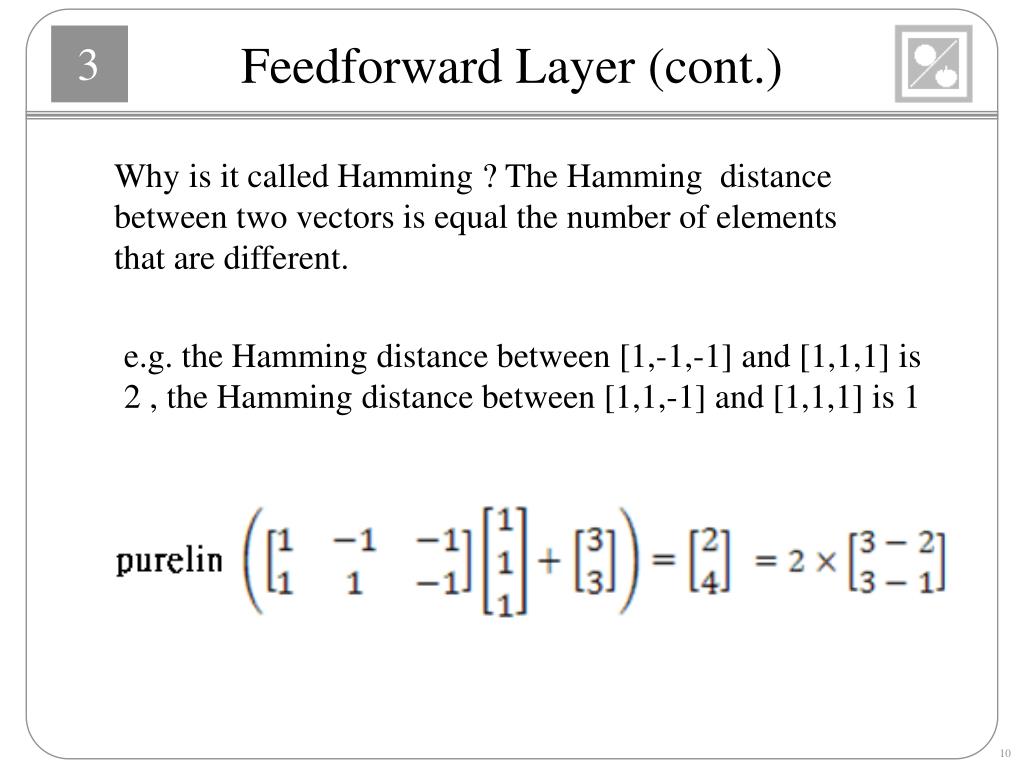

  10. Feedforward Layer (cont.) Why is it called Hamming ? The Hamming distance between two vectors is equal the number of elements that are different. e.g. the Hamming distance between [1,-1,-1] and [1,1,1] is 2 , the Hamming distance between [1,1,-1] and [1,1,1] is 1

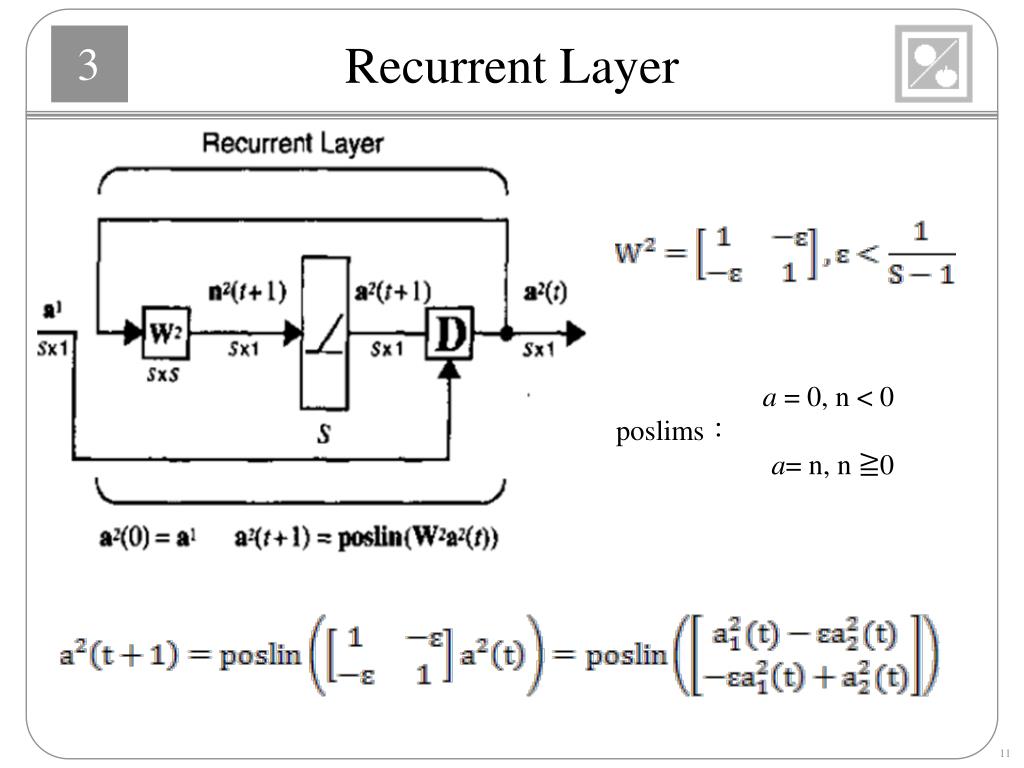

  11. Recurrent Layer a = 0, n < 0 poslims: a= n, n ≧0

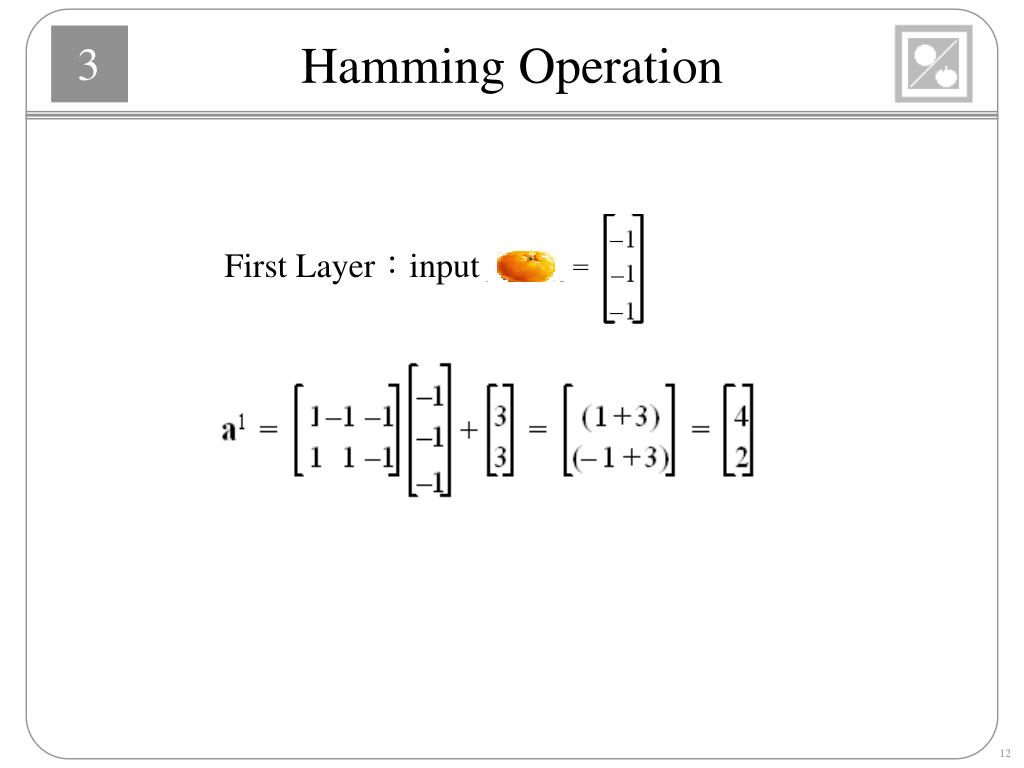

  12. Hamming Operation First Layer:input

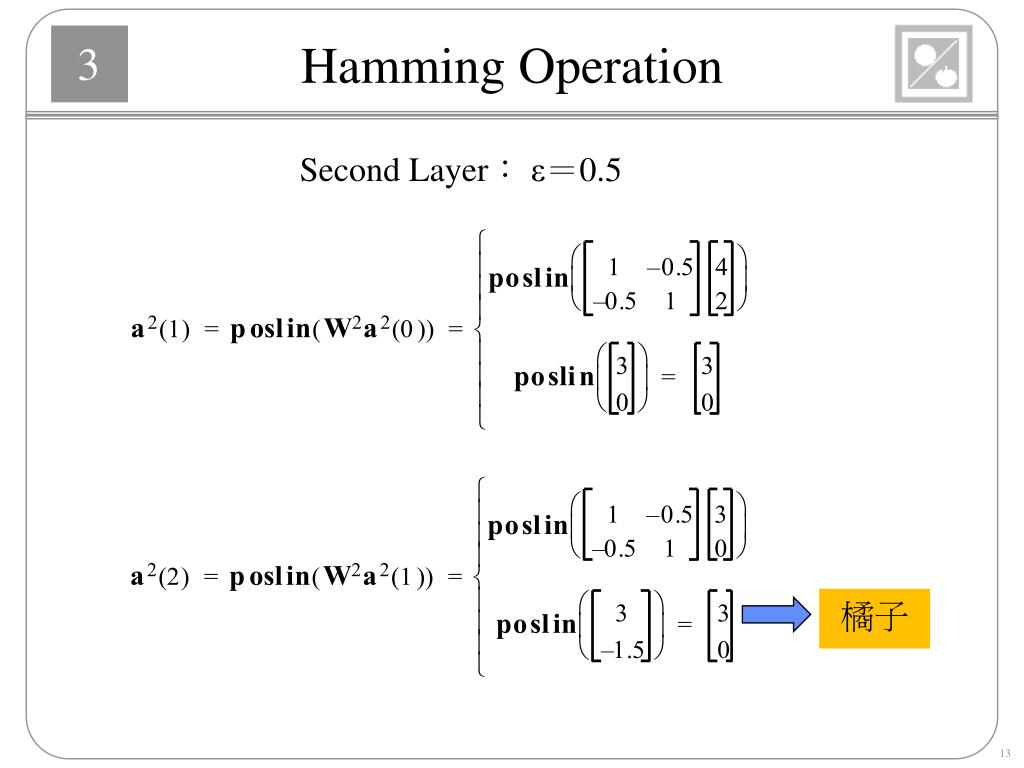

  13. Hamming Operation Second Layer: ε=0.5 橘子

  14. Hopfield Network

  15. Apple/Orange Problem a = -1, n <-1 satlins: a = n, -1≦n ≦1 a = 1, 1<n

  16. Apple/Orange Problem Test: 橘子

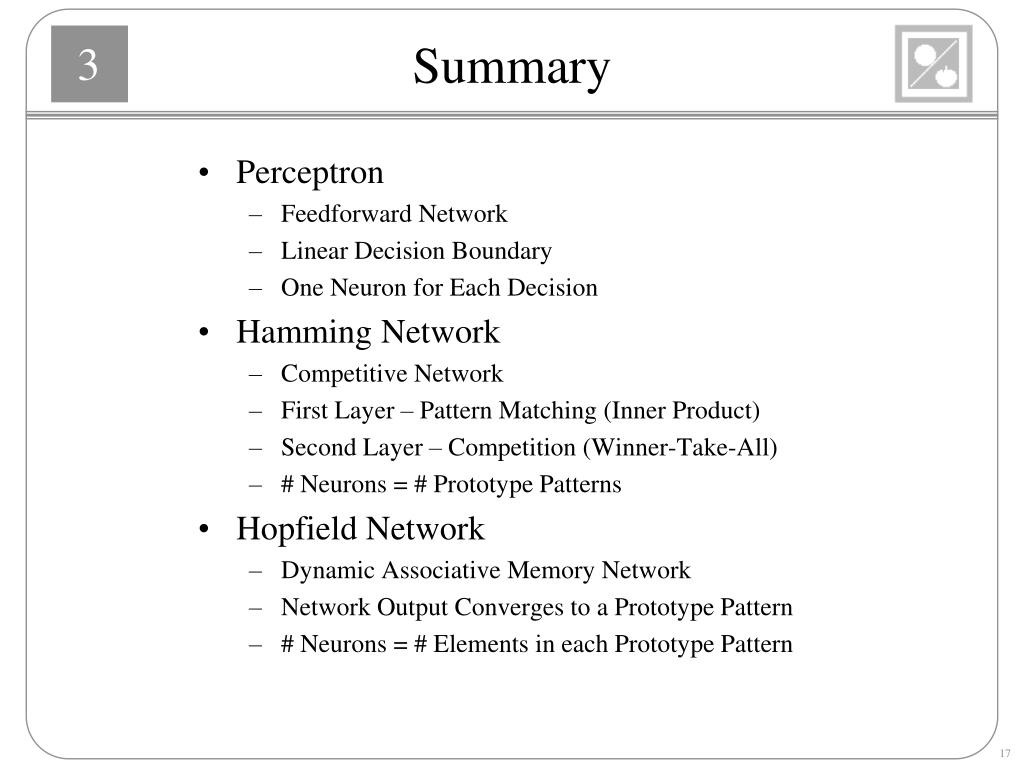

  17. Summary • Perceptron • Feedforward Network • Linear Decision Boundary • One Neuron for Each Decision • Hamming Network • Competitive Network • First Layer – Pattern Matching (Inner Product) • Second Layer – Competition (Winner-Take-All) • # Neurons = # Prototype Patterns • Hopfield Network • Dynamic Associative Memory Network • Network Output Converges to a Prototype Pattern • # Neurons = # Elements in each Prototype Pattern
