status ccc lda

Status: CCC, LDA

ATCalMZ

Montagsmeeting

29.04.2013

aida meeting

Vidyo-Meeting:

  • 11th April 10:30 o’clock
  • About the CCC and TLU upgrades
  • David Cussans will give us the TLU VHDL code, so “easy” implementing
  • Two possibilities:
  • Baseline software or fallback hardware(or switched)
  • Timeline July 2013

AIDA Meeting

7

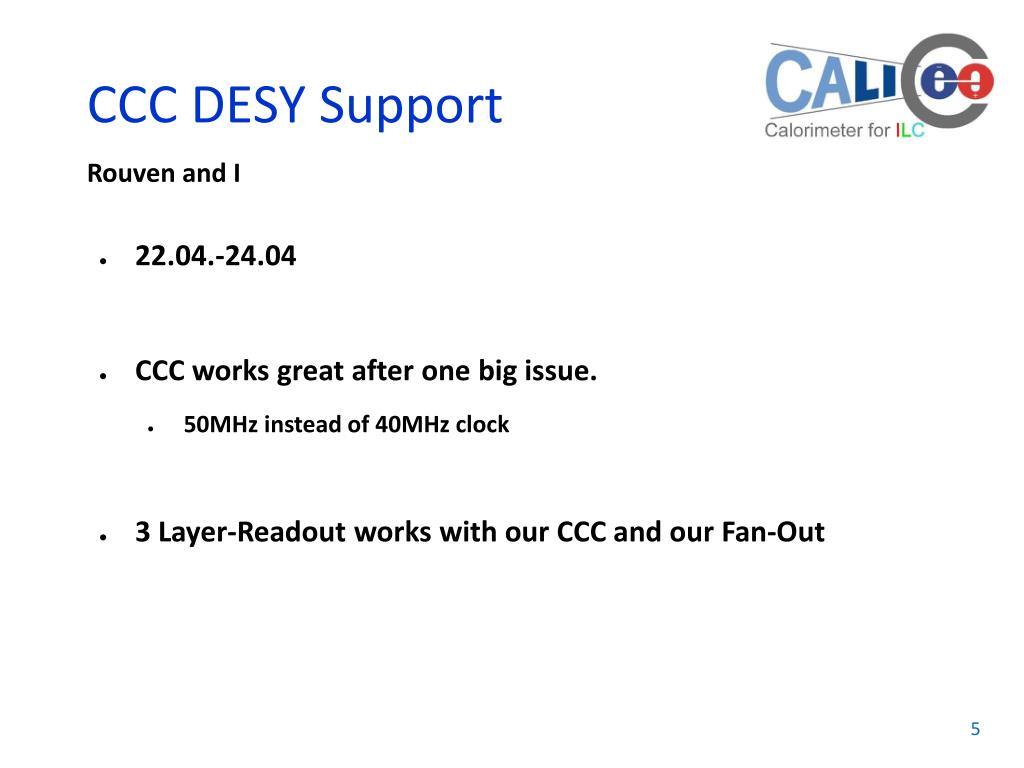

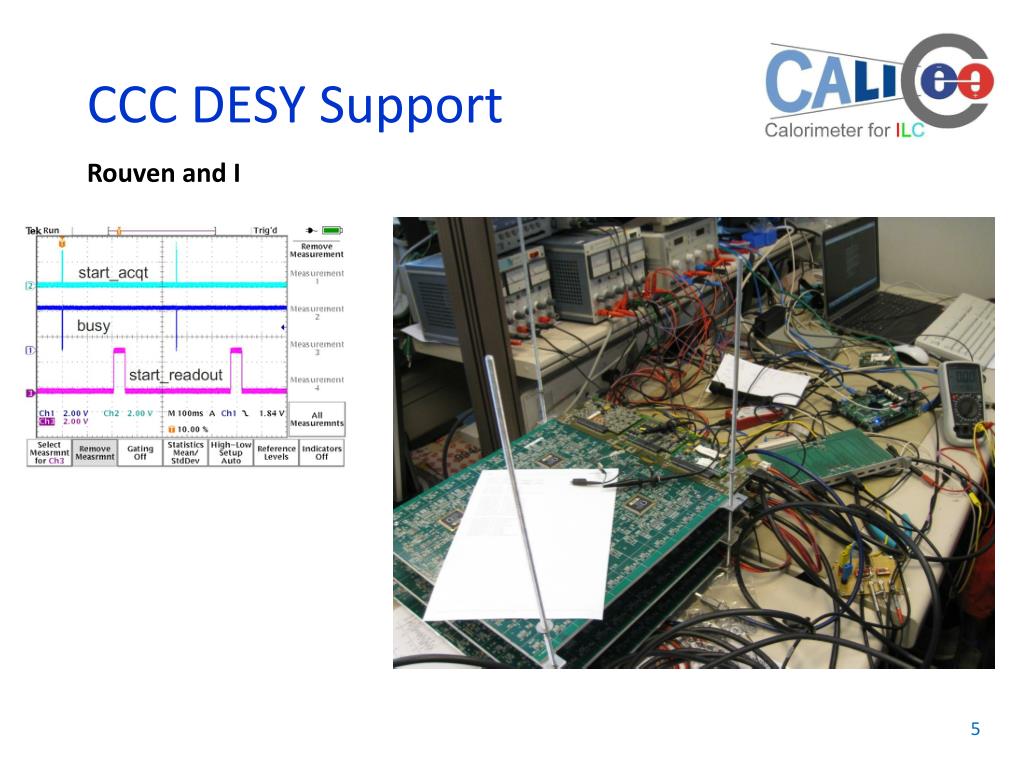

ccc desy support

Rouven and I

  • 22.04.-24.04
  • CCC worksgreat after onebigissue.
    • 50MHz insteadof 40MHz clock
  • 3 Layer-Readoutworkswithour CCC andour Fan-Out

CCC DESY Support

5

lda layout

Passive PCB:

1. Wing with 32 HDMI connectors (almostfinished):

LDA Layout

99mm

367,5mm

1

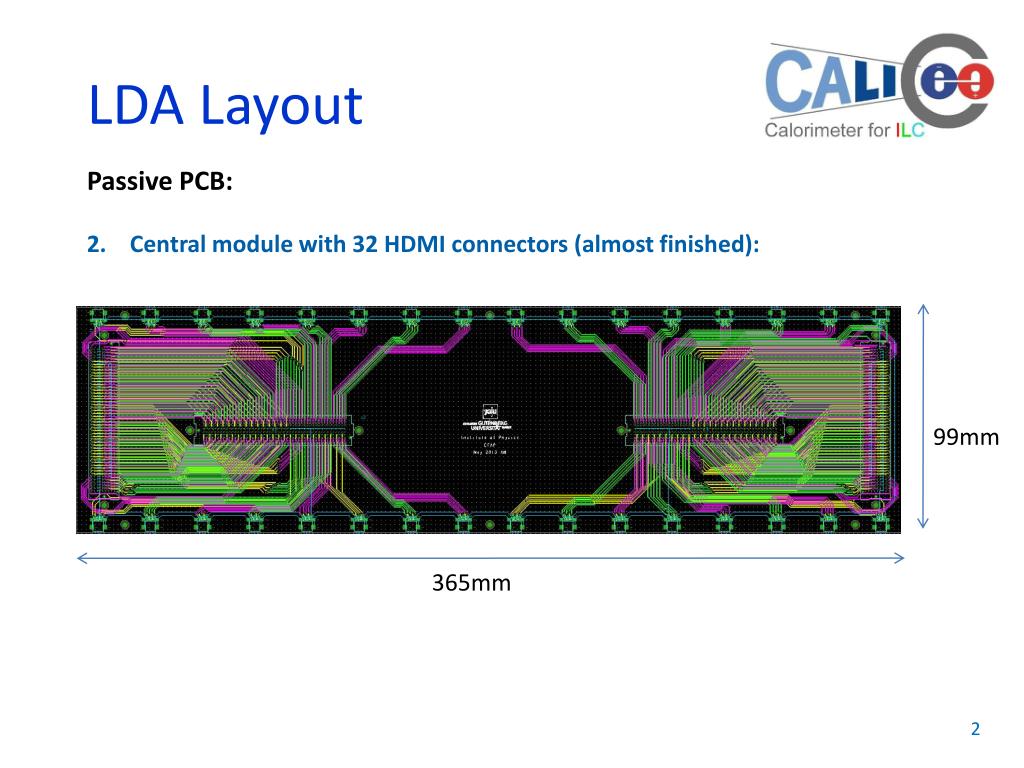

lda layout1

Passive PCB:

2. Central module with 32 HDMI connectors (almost finished):

LDA Layout

99mm

365mm

2

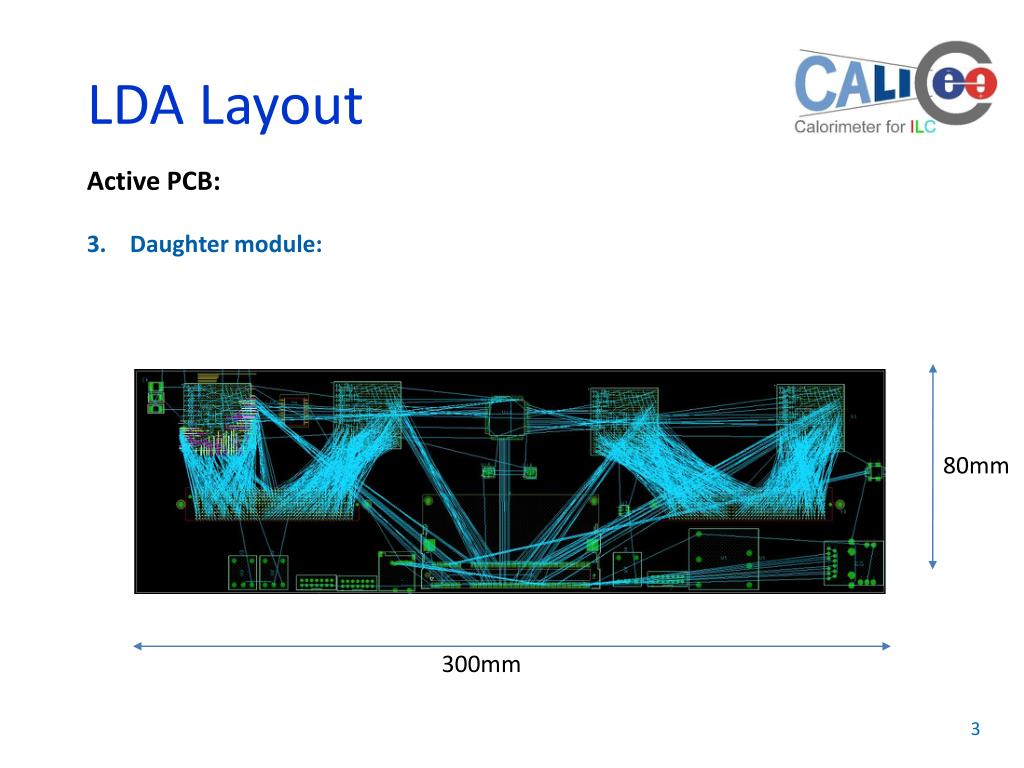

slide7

LDA Layout

Active PCB:

3. Daughter module:

FPGA

FPGA

FPGA

FPGA

RJ45

80mm

MARS

SD

HDMI-CCC

300mm

3
