  1. Lecture 4 Synchronization and Deadlocks

  2. Lecture Highlights • Introduction to Process Synchronization and Deadlock Handling • Synchronization Methods • Deadlocks • What are deadlocks • The four necessary conditions • Deadlock Handling

  3. Synchronization and Deadlock HandlingAn Introduction • Concurrent access to shared data can result in data inconsistency. • To ensure orderly execution of processes , the operating system provides mechanisms for job synchronization and communication. • A deadlock state is a state of indefinite wait by one or more processes for an event that can be triggered only by one of the waiting processes. • Operating system also provides mechanisms to ensure that jobs do not get stuck in a deadlock, forever waiting for each other.

  4. Process SynchronizationAn Example • Consider two processes P1 and P2: • Process P1 increments the counter • counter := counter + 1 • Process P2 decrements the counter • counter := counter – 1 If both are run one after the other, the final value of the counter (counter could be a memory location for example) should remain the same regardless of the order in which they are run. One increments it, the other decrements it. No change. The increment and decrement statements of P1 and P2 translate to machine code as shown on the following slide.

  5. Process SynchronizationAn Example • P1 (increment) • reg1 := counter • reg1 := reg1 +1 • counter := reg1 P2 (decrement) 4. reg2 := counter 5. reg2 := reg2 –1 6. counter := reg2

  6. Process SynchronizationAn Example • Now consider the two processes run concurrently. Consider the situation in which the statements are run in the following order: 1, 2, 4, 3, 5, 6. • The corresponding sequence of code thus, becomes: 1. reg1 := counter 2. reg1 := reg1 + 1 4. reg2 := counter 3. counter := reg1 5. reg2 := reg2 – 1 6. counter := reg2

  7. Process SynchronizationAn Example • If we start with the counter value as counter:=5, the above sequence of code with substituted values becomes: 1. reg1 := 5 2. reg1 := 5 + 1 4. reg2 := 5 3. counter := 6 5. reg2 := 5 – 1 6. counter := 4

  8. Process SynchronizationAn Example • Thus, we see from the preceding sequence of code that the counter will not be unchanged upon completion but will be rather decremented by 1. • The above stated problem arose because both sections of code constitute critical sections and these critical sections interleaved. The critical sections must be run atomically.

  9. Process SynchronizationCritical Section and Race Condition • A Critical Section is a part of a process that accesses shared resources. Two processes should not be allowed to enter their critical sections at the same time, thus preventing the above problem. • The situation where several processes access and manipulate the same data concurrently, and the outcome of the execution depends on the particular order in which the access takes place, is called a race condition.

  10. Process SynchronizationMore on Critical Section Important points to note about critical sections: • A critical section must be run atomically. • This means that the section is executed either as a whole or not at all. Once the critical section of a process begins, it must be completed or rolled back. • Mutual exclusion of more than one critical section must be ensured • Mutual exclusion is ensured by using pieces of code to block a process that attempts to run its critical section while the critical section of another process is being executed. The process is unblocked when the other process’s critical section completes execution. This is known as Sleep and Wakeup.

  11. Process SynchronizationSynchronization Methods There are three ways to implement Sleep and Wakeup in order to synchronize processes. The three synchronization methods are: • Semaphores • Monitors • Message Passing

  12. entry section entry section Critical Section 1 Critical Section 2 exit section exit section Synchronization MethodsSemaphores The use of Semaphore involves the use of a new variable which keeps track of whether or not a critical section is being executed. Before any process can enter a critical section, they must check this variable and if it determines that a critical section is being executed, the process is put into a sleep state until the variable is reset.

  13. Synchronization MethodsSemaphores Each critical section is appended by entry code and exit code (shown below): Entry Code: P(s) { while s<=0 { } // sleep (do noop) s = s-1; } Exit Code: V(s) { s = s + 1; }

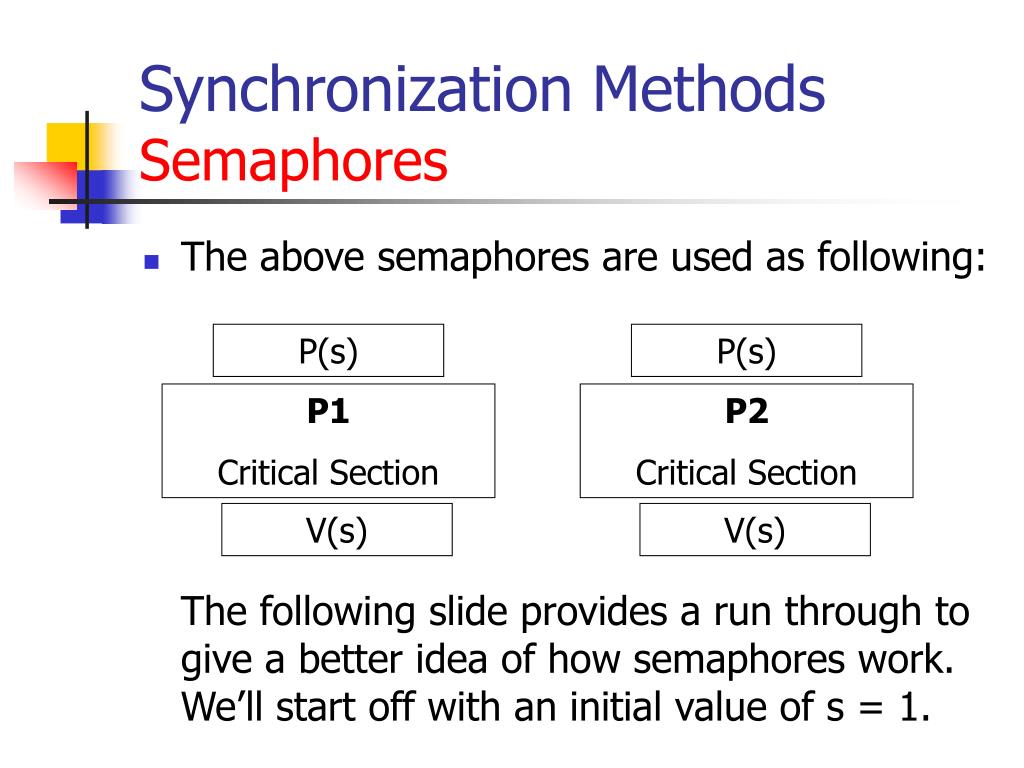

  14. P(s) P(s) P1 Critical Section P2 Critical Section V(s) V(s) Synchronization MethodsSemaphores • The above semaphores are used as following: The following slide provides a run through to give a better idea of how semaphores work. We’ll start off with an initial value of s = 1.

  15. Synchronization MethodsSemaphores – a sample run through • The sample run-through: • s = 1 • P1 begins execution – Entry code P(s) is called • s = 0 • While P1 is executing, P2 attempts to start execution – Entry code P(s) is called • Since s = 0, Entry code for P2 goes into a continuous loop, effectively blocking the critical section of P2 • P1 completes execution – Exit code V(s) is called • s = 1 • Entry code of P2 breaks out of it’s loop, decrements s and begins execution • s = 0

  16. SemaphoresPre-determining order: Some Examples • We can also employ the above semaphores to pre-determine an order in which certain processes will be executed. • For example, consider three processes P1, P2, P3 and we wish their critical sections to be run in the order P1, P2 and then P3. (1 2 3)

  17. s = 0, t = 0 { } P(s) P(t) P1 Critical Section P2 Critical Section P3 Critical Section V(s) V(t) { } SemaphoresPre-determining order– Example 1 The above set up implements the order of execution of critical sections in order of P1, P2 and then P3.

  18. s = 0 { } P(s) P(s) P1 Critical Section P2 Critical Section P3 Critical Section V(s) V(s) V(s) SemaphoresPre-determining order– Example 2 The following set up implements the situation where P1 executes first followed by P2 and P3 in no particular order 1 2 3

  19. s = 1, t = -1 P(s) P(s) P(t) P1 Critical Section P2 Critical Section P3 Critical Section V(s) V(t) V(s) V(t) { } SemaphoresPre-determining order– Example 3 The following set up implements the situation where P1 and P2 are to be executed before P3 without imposing a particular order on P1 and P2. 1 3 2

  20. Let’s try: 1 4 i.e. P1 executes first followed by P2 and P3 without imposing an order. When P1, P2 and P3 are done, P4 executes. 2 3 s = 0, t = -1 { } P(s) P(s) P(t) P1 Critical Section P2 Critical Section P3 Critical Section P4 Critical Section V(s) V(s) V(t) V(s) V(t) { } SemaphoresPre-determining order– Example 4

  21. s = 1, t = -1 P(s) P(s) P(t) P(t) P1 Critical Section P2 Critical Section P3 Critical Section P4 Critical Section V(s) V(t) V(s) V(t) V(t) V(t) SemaphoresPre-determining order– Example 5 Let’s try: i.e. P1 and P2 have to execute before P3 and P4 (without imposing an order within the two pairs). One possible implementation is shown below. 1 2 3 4

  22. Synchronization MethodsMonitors • Monitors offer a higher level solution that offer both synchronization and mutual exclusion where semaphores required use of low-level system calls (these involve risk of deadlock). • Many programming languages offer built-in structures that serve as monitors. Only one process may execute a function within a monitor at any given time. Hence all critical section are called from within a monitor thus allowing only one critical section to run at any given time.

  23. Synchronization MethodsDifference b/wSemaphores & Monitors • A monitor is different from a semaphore because it provides a kind of scheduling queue for critical sections that arrive to be processed. It not only blocks other critical sections while one is already being processed but also puts them in a wait state and processes them in the order in which they arrive.

  24. Synchronization MethodsMessage Passing • Message-passing is a technique whereby processes communicate. This technique involves moving packets of information between processes by the operating system. • Both synchronization and mutual exclusion can be achieved by this method.

  25. Implementation Synchroniza- tion Mutual Exclusion Advantages Disadvantages Semaphores   ·Low-level implementation ·Can cause deadlock Monitors   High level implementation · Message Passing   Synchronization MethodsComparison at a glance The following table shows a comparison between the three synchronization methods:

  26. DeadlocksWhat are deadlocks • A deadlock state is a state of indefinite wait by one or more processes for an event that can be triggered only by one of the waiting processes. • Such an event is commonly termed as a resource. • The resource could be tangible such as an I/O resource or intangible e.g. shared data.

  27. Deadlock ExamplesExample1: Deadlock due to semaphore usage The implementation of a semaphore may result in a deadlock situation where two or more processes are waiting indefinitely for an event that can be caused by only one of the waiting processes. In the scenario below, both P1 and P2 are accessing the two semaphores ‘s’ and ‘t’. Suppose that P1 executes P(s), and then P2 executes P(t). When it executes P(t), it must wait until P2 executes V(t). Similarly, when P2 executes P(s), it must wait until P1 executes V(s). Since these operations cannot be executed, P1 and P2 are deadlocked. S = 1, t = 1 P(s) P(t) P(t) P(s) P1 Critical Section P2 Critical Section V(s) V(t) V(t) V(s)

  28. Deadlock ExamplesExample2: Deadlock due to use of shared variables P1 request edge assignment edge Resource 1 Resource 2 P2 assignment edge request edge

  29. DeadlocksThe four necessary conditions The four necessary conditions for a deadlock to occur are: • Mutual exclusion of resources • Inability of a resource to be used by more than one process • Hold-and-wait • A process holds a resource while waiting for another one • No pre-emption • The system is incapable of grabbing a resource from a process • Circular Wait

  30. Deadlock HandlingFour methods for handling deadlocks The four method for dealing with the deadlock problem are: • Prevention • Detection and Recovery • Avoidance • Ignoring the condition • Ignoring deadlocks is by far the most widely used method (it will become obvious from the ensuing discussion why).

  31. Deadlock HandlingPrevention • Deadlock prevention is a set of methods for ensuring that atleast one of the necessary conditions cannot hold. • Mutual Exclusion – this cannot be stopped since it is the nature of the resource • Hold and Wait – this can be stopped by never assigning a resource to a process unless all the other needed resources are available. However, it suffers from possible starvation of processes. Moreover, resource utilization may be low, since many of the resources may be allocated but unused for a long period.

  32. Deadlock HandlingPrevention (contd.) • No preemption – If a process that is holding some resources requests another resource that cannot be immediately allocated to it, then all resources currently being held are preempted to stop this condition. As evident, it also suffers from potential starvation. • Circular Wait – One way to ensure that the circular-wait condition never holds is to impose a total ordering of all resource types, and to require that each process requests resources in an increasing order of enumeration. The example on the following slide illustrates the same.

  33. Deadlock HandlingPrevention (contd.) Let us assume that the set of resource types R includes tape drives, disk drives, and printers and the function F (for enumeration) is defined as follows: F(tape drive) = 1 F(disk drive) = 5 F(printer) = 12 If any one of the following protocols are used , the circular wait condition cannot hold. • Each process can request resources only in an increasing order of enumeration. For example, a process that wants to use the tape drive and printer at the same time must first request the tape drive and then the printer. • Whenever, a process requests an instance of resource type Rj, it has released any resources Ri such that F(Ri)  F(Rj).

  34. Deadlock HandlingDetection and Recovery In this environment, the system must provide: • An algorithm that examines the state of the system to determine whether a deadlock has occurred • An algorithm to recover from the deadlock However, it is important to realize that detection and recovery scheme requires overhead that includes not only the run-time costs of maintaining the necessary information and executing the detection algorithm, but also the potential losses inherent in recovering from deadlock.

  35. Deadlock HandlingDetection and Recovery – Steps A deadlock detection and recovery algorithm involves the following steps: • Reduce P-R graph to wait-for graph • Find cycles in the graph • Determine non-redundant cycles • Determine minimum number of preemptions The following example illustrates the above steps.

  36. Deadlock HandlingDetection and Recovery – Step 1 Reduce P-R graph to wait-for graph • We obtain the wait for graph from the resource allocation graph by removing the nodes of type resource and collapsing the appropriate edges. A cycle in the wait-for graph implies a deadlock state. • More precisely, an edge from Pi to Pj in a wait-for graph implies that process Pi is waiting for process Pj to release a resource that Pi needs. An edge Pi Pj exists in a wait-for graph if and only if the corresponding resource-allocation graph contains two edges Pi  Rq and Rq  Pj for some resource Rq. • The following slide shows a visual presentation of this step for an example.

  37. P1 P1 P3 P3 P2 P2 Deadlock HandlingDetection and Recovery – Step 1 Reduce P-R graph to wait-for graph R2 R1 R3

  38. Deadlock HandlingDetection and Recovery – Step 1 Complexity Suppose, we have • m resources • n processes For each ordered pair of the processes, we have to check if there exists a wait-for relationship for each resource. Here, the number of ordered pair of resources = nP2 = n!/(n-2)!  n2 I.e. for one resource the order of operations is O(n2)  for m resources the order of operations is O(mn2) Step 1 complexity is O(mn2)

  39. P1 P3 P2 Deadlock HandlingDetection and Recovery – Step 2 Find cycles in the wait-for graph Cycles in this graph are: 1231 2312 3123 121 212 131 313

  40. Deadlock HandlingDetection and Recovery – Step 2 Complexity The complexity of this step can be better understood by the tree diagram: The tree structure represents the wait-for graph. Each of the yellow nodes has a degree of n-1 where, n is the number of processes. The tree is traversed using the DFS algorithm. Consequently, all of the nodes are visited n times except for the leaf nodes which are visited only once. Thus the number of operation  n (n-1) = O(n2) Step 2 complexity is O(n2)

  41. Deadlock HandlingDetection and Recovery – Step 3 Determining non-redundant cycles 1231 2312 3123 121 212 131 313 123 12 13 Take out redundant strings

  42. Deadlock HandlingDetection and Recovery – Step 3 Complexity • This step can be implemented as part of Step2. In other words, while we are traversing the graph and finding cycles, we can also compare them with previously found cycles and finally take the cycles that are common to the maximum number of cycles. • Thus, the complexity of this step is built in to the step2 complexity of O(n2).

  43. P1 P3 P2 Deadlock HandlingDetection and Recovery – Step 4 Determine the minimum number of preemptions: Here, we need two preemptions. Preempting 12 and 13 will break all the cycles. 123 12 13

  44. Deadlock HandlingDetection & Recovery–Summary • As we have seen throughout the discussion, detection and recovery is a very expensive proposition in terms of time complexity. • Moreover, there is also the potential of incurring losses inherent in recovering from deadlock.

  45. Deadlock HandlingAvoidance • A deadlock avoidance algorithm dynamically examines the resource allocation state to ensure that there can never be a circular-wait condition. The resource allocation state is defined by the number of available and allocated resources, and the maximum demands of the processes.

  46. Deadlock HandlingAvoidance – Safe/Unsafe states • A state is safe is the system can allocate resources to each process in some order and still avoid a deadlock. More formally, a system is in a safe state only if there exists a safe sequence. • If no safe sequence exists, then the state is said to be unsafe. unsafe deadlock safe

  47. Deadlock HandlingAvoidance – An Example Consider a system with five processes P0 through P4 and three resource types A, B and C. Resource type A has 10 instances, B has 5 instances and C has 7 instances. Suppose that at time T0, the following snapshot of the system has been taken:

  48. Deadlock HandlingAvoidance – An Example Given the snapshot, the following matrix specifies the need of all the processes: Here, we can claim that the system is currently in a safe state. Indeed, the sequence <P1, P3, P4, P2, P0> satisfies the safety criteria. (The safety sequence basically implies that the resource needs of the processes can be satisfied in the specified sequence such that all resource needs of all the processes are met.)

  49. Deadlock HandlingAvoidance – An Example Suppose now that process P1 requests one additional instance of resource type A and two instances of resource type C, so Request1 = (1,0,2). To decide whether this request can be immediately granted, we first check that Request1  Available (I.e. (1,0,2) (3,3,2), which is true. We then pretend that this request has been fulfilled, and we arrive at the following new state:

  50. Deadlock HandlingAvoidance – An Example Now, we must determine whether this new state is safe. To do so, we execute our safety algorithm and find that the sequence <P1, P3, P4, P0, P2> satisfies the safety requirement. Hence, we can immediately grant the request of process P1. You should be able to see, however, that when the system is in this state, a request for (3,3,0) by P4 cannot be granted, since the resources are not available. A request for (0,2,0) by P0 cannot be granted, even though the resources are available, since the resulting state is unsafe.
