Presentation Transcript

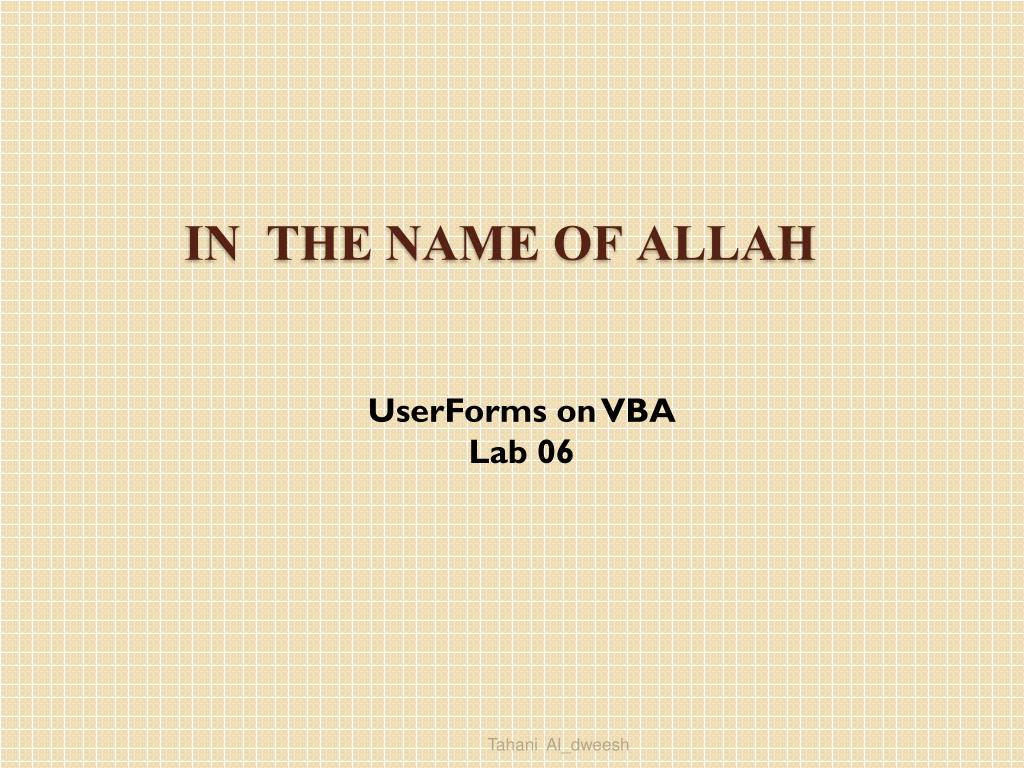

In the name of allah
In The Name Of Allah

UserForms on VBA

Lab 06


Objectives
Objectives

-Using offset() method.

-Work more with ranges.

-Example on UserForm.

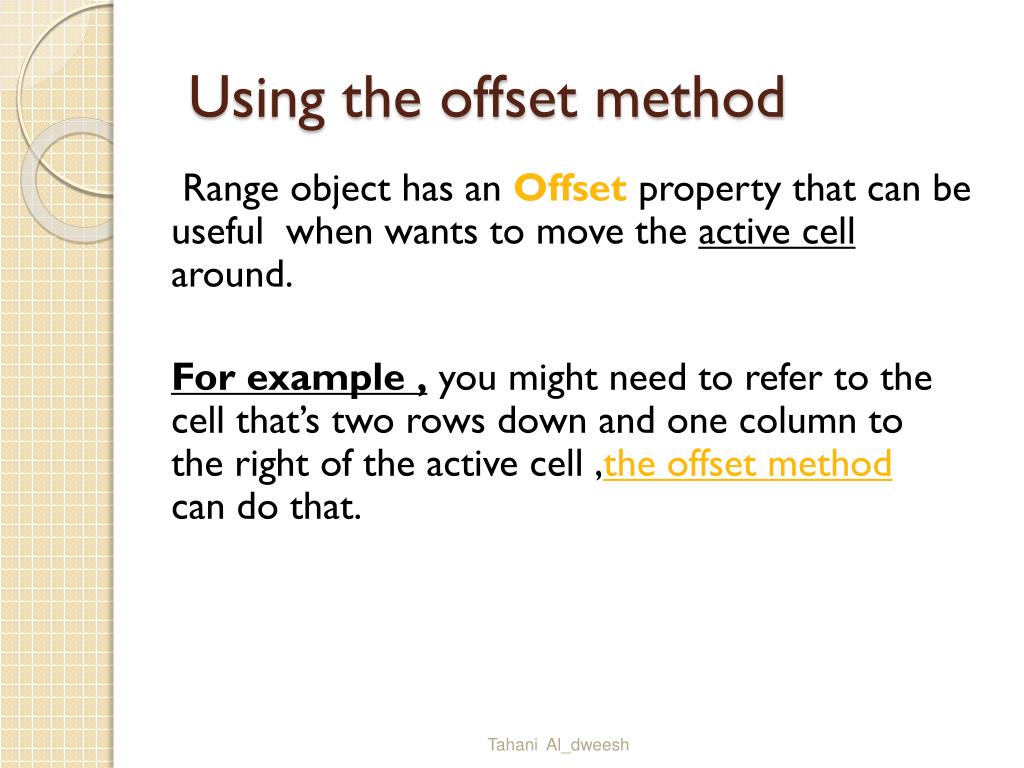

Using the offset method
Using the offset method

Range object has an Offsetproperty that can be useful when wants to move the active cell around.

For example , you might need to refer to the cell that’s two rows down and one column to the right of the active cell ,the offset method can do that.


In the name of allah

Range ( ) .offset (Rowoffset , Columnoffset)

Rowoffset : the number of rows to offset range ,use positive number to move down , negative number to move up.

Columnoffset: the number of columns to offset range , use positive number to move right , negative number to move left.


In the name of allah

ActiveCell.Offset (1,0) = 1

Place a "1" one row

under the

Active cell (E6)

Reham AlMukhallafi - IS 424

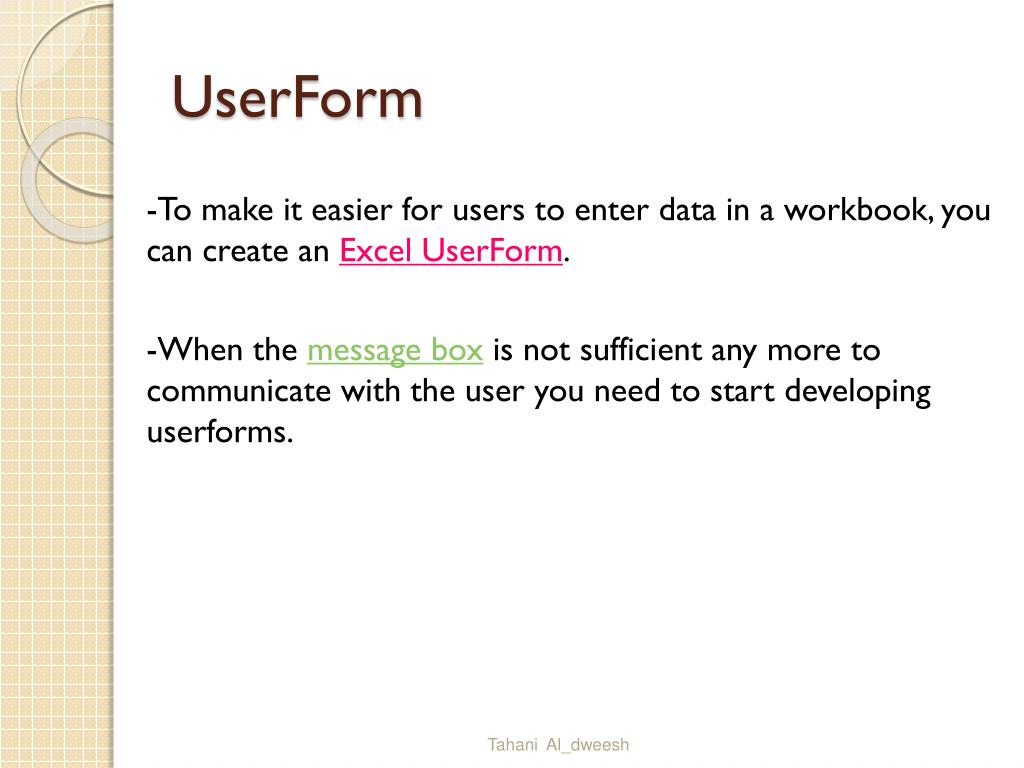

Userform
UserForm

-To make it easier for users to enter data in a workbook, you can create an Excel UserForm.

-When the message box is not sufficient any more to communicate with the user you need to start developing userforms.


In the name of allah

The form is used to require values, parameters and information from the user to feed the VBA procedure.

Different basic controls :

can be added to the userform they are called:

Label

TextBox

ComboBox

ListBox

CheckBox

OptionButton,

Frame,

CommandButton,

SpinButton



Set up the worksheet
Set up the worksheet

In this example:

User will enter data to fill information about his course, by opening the Excel UserForm, and filling the text box, and clicking a button.

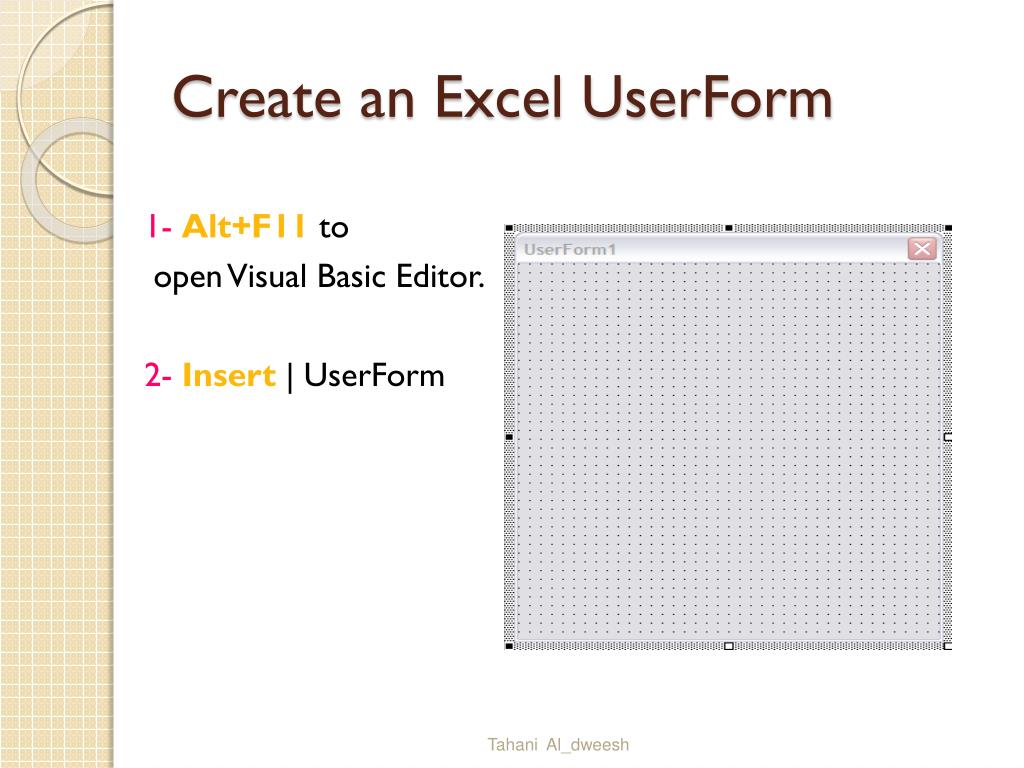

Create an excel userform
Create an Excel UserForm

1-Alt+F11 to

open Visual Basic Editor.

2- Insert | UserForm

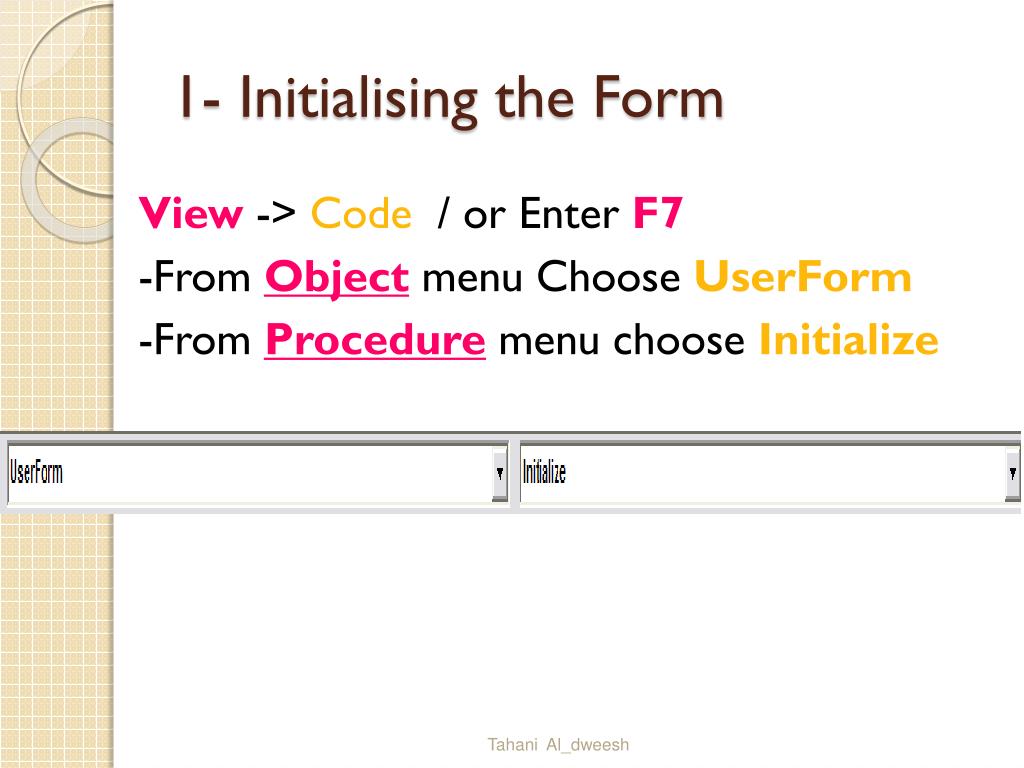

1 initialising the form
1- Initialising the Form

View-> Code / or Enter F7

-From Object menu Choose UserForm

-From Procedure menu choose Initialize


In the name of allah

Private Sub UserForm_Initialize()

txtName.Value = ""

txtPhone.Value = ""

WithcboDepartment

.AddItem "Sales"

.AddItem "Marketing"

.AddItem "Administration"

.AddItem "Design"

.AddItem "Advertising"

.AddItem "Transportation"

End With

cboDepartment.Value = ""

WithcboCourse

.AddItem "Access"

.AddItem "Excel"

.AddItem "PowerPoint"

.AddItem "Word"

.AddItem "FrontPage"

End With

cboCourse.Value = ""

chFullTime = False

End Sub


In the name of allah

Private SubcmdOK_Click()

Worksheets("Course Bookings").Activate

Range("A1").Select

Do

IfIsEmpty(ActiveCell) = False Then

ActiveCell.Offset(1, 0).Select

EndIf

Loop Until IsEmpty(ActiveCell) = True

ActiveCell.Value = txtName.Value

ActiveCell.Offset(0, 1) = txtPhone.Value

ActiveCell.Offset(0, 2) = cboDepartment.Value

ActiveCell.Offset(0, 3) = cboCourse.Value


In the name of allah

If optIntroduction = True Then

ActiveCell.Offset(0, 4).Value = "Intro"

Else IfoptIntermediate = True Then

ActiveCell.Offset(0, 4).Value = "Intermed"

Else

ActiveCell.Offset(0, 4).Value = "Adv"

End If

IffullTime = True Then

ActiveCell.Offset(0, 5).Value = "Yes"

Else

ActiveCell.Offset(0, 5).Value = "No"

End If

Range("A1").Select

End Sub

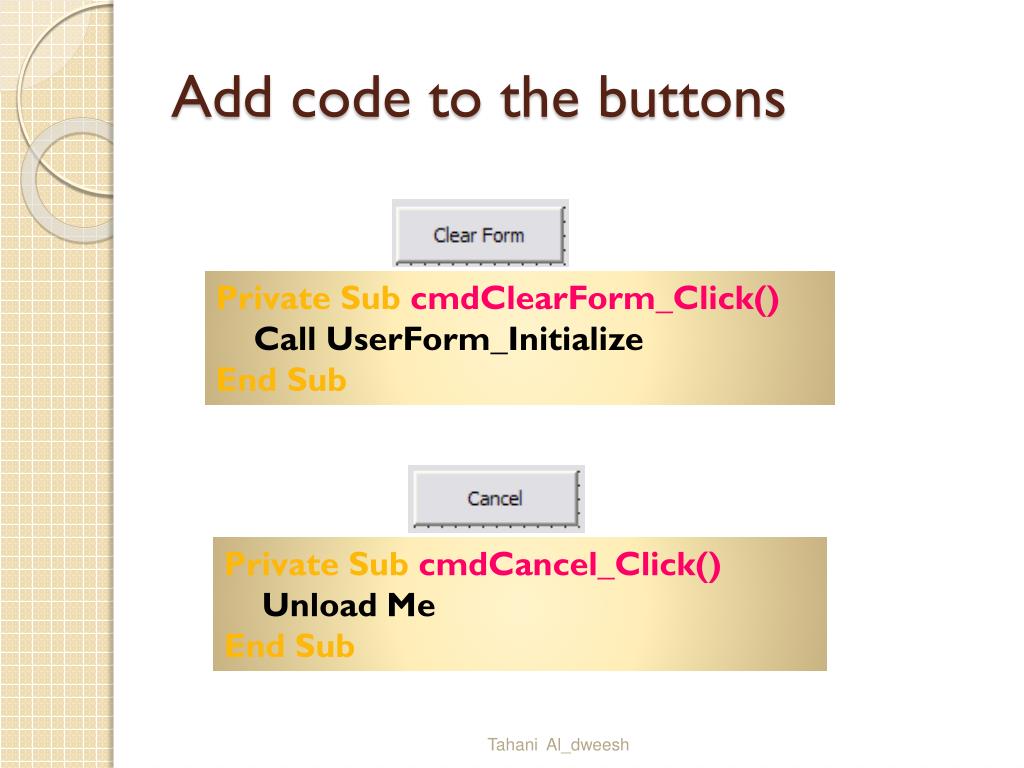

Add code to the buttons
Add code to the buttons

Private SubcmdClearForm_Click()

Call UserForm_Initialize

End Sub

Private SubcmdCancel_Click()

Unload Me

End Sub

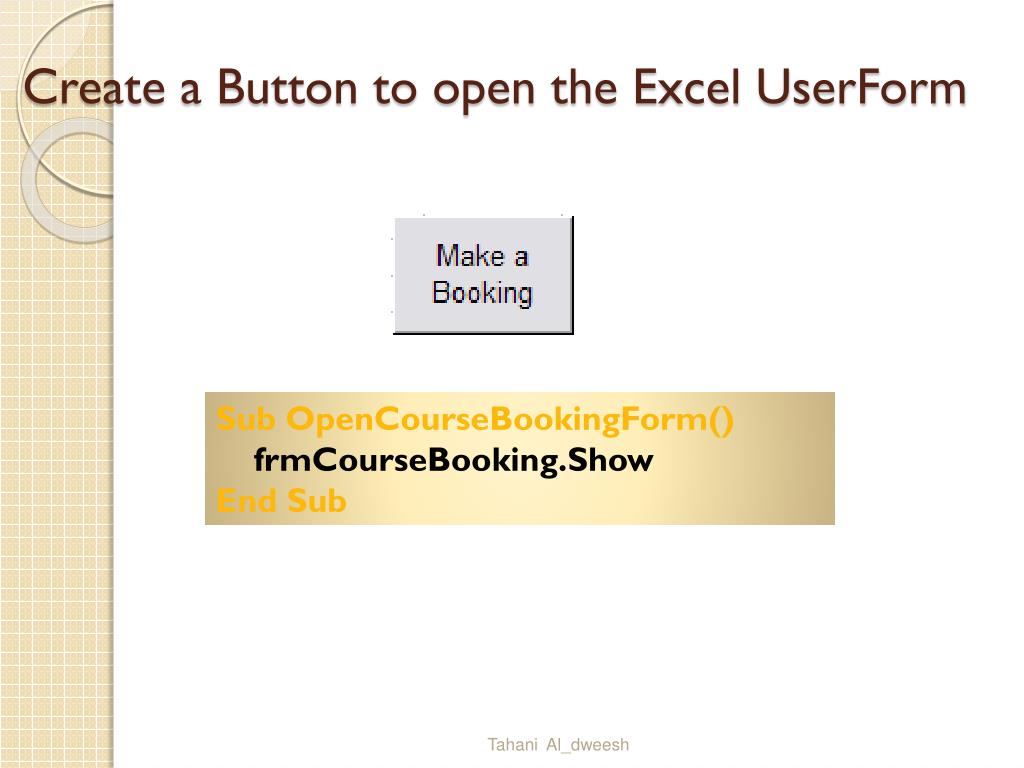

Create a button to open the excel userform
Create a Button to open the Excel UserForm

Sub OpenCourseBookingForm()

frmCourseBooking.Show

End Sub
