Presentation Transcript

How do MP3's Work?

By: T’quoia Boyd

Science 2005

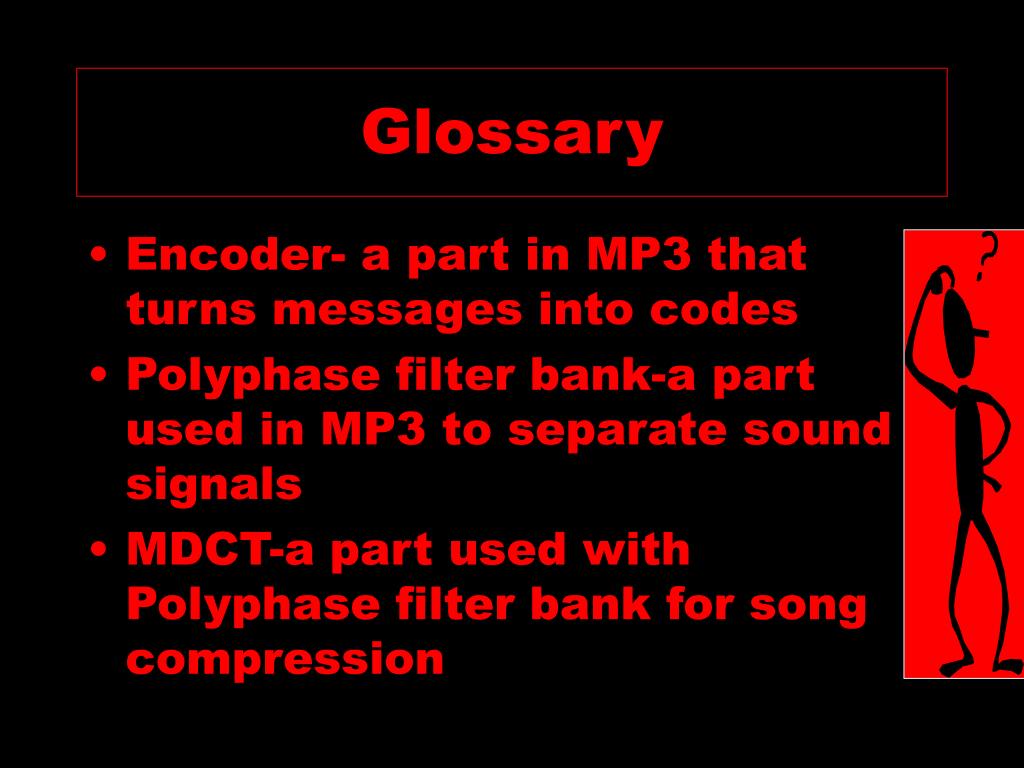

Glossary
Glossary

  • Encoder- a part in MP3 that turns messages into codes

  • Polyphase filter bank-a part used in MP3 to separate sound signals

  • MDCT-a part used with Polyphase filter bank for song compression


Glossary continued

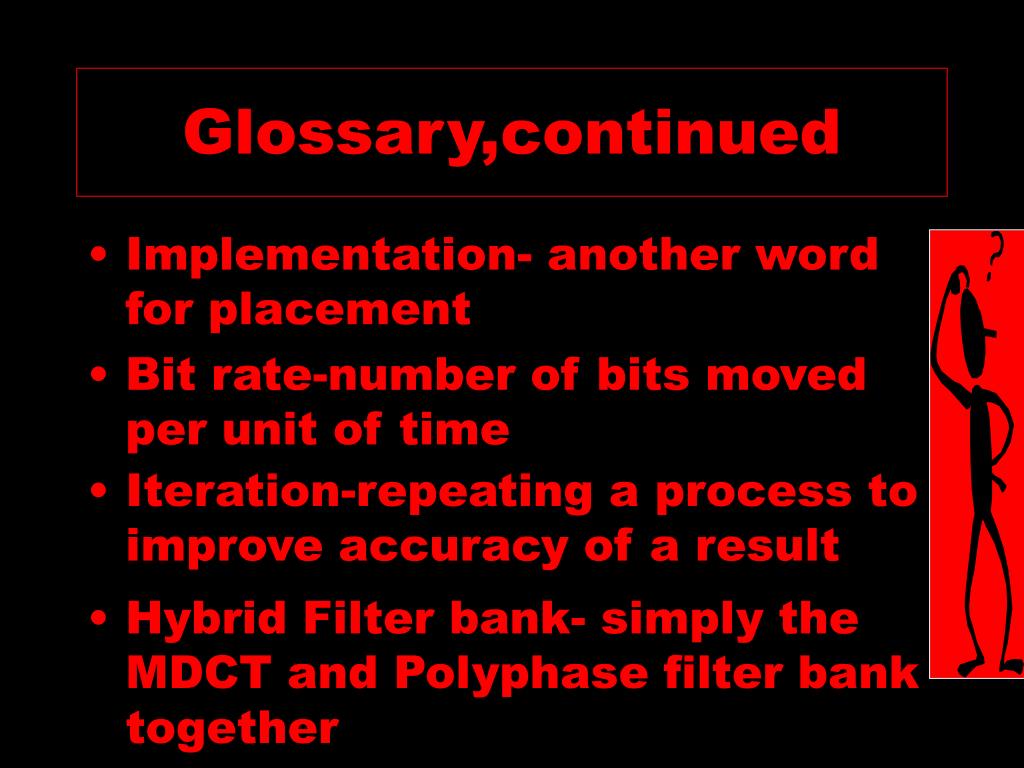

Glossary,continued

  • Implementation- another word for placement

  • Bit rate-number of bits moved per unit of time

  • Iteration-repeating a process to improve accuracy of a result

  • Hybrid Filter bank- simply the MDCT and Polyphase filter bank together


Glossary continued1
Glossary,continued

  • Quantization- sampling analog waves and changing them into digital data

  • Analog wave-continuous electrical [sound] waves that represent a number of values (carry sound through speakers)

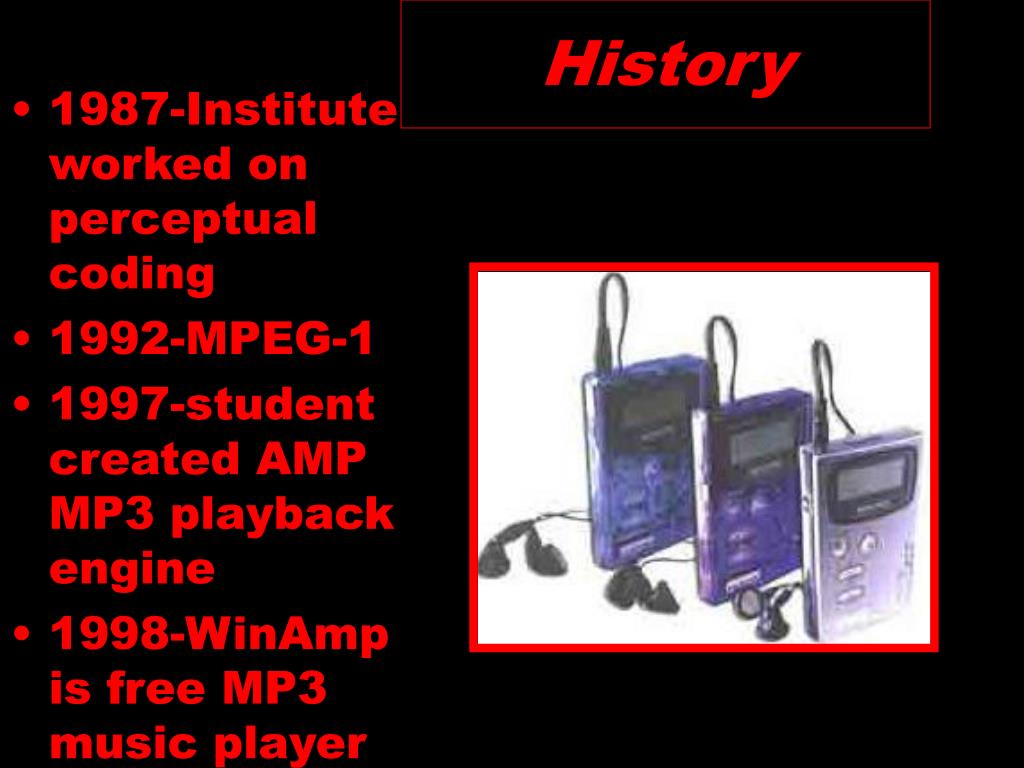

History
History

  • 1987-Institute worked on perceptual coding

  • 1992-MPEG-1

  • 1997-student created AMP MP3 playback engine

  • 1998-WinAmp is free MP3 music player

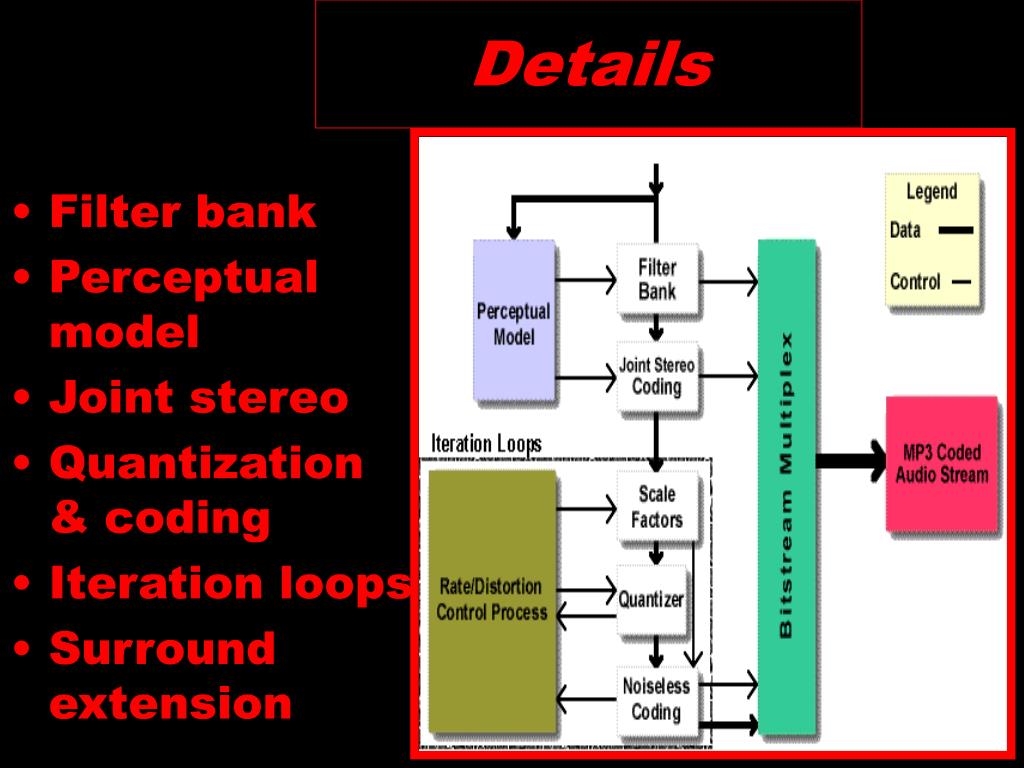

Details
Details

  • Filter bank

  • Perceptual model

  • Joint stereo

  • Quantization & coding

  • Iteration loops

  • Surround extension


1 filter bank

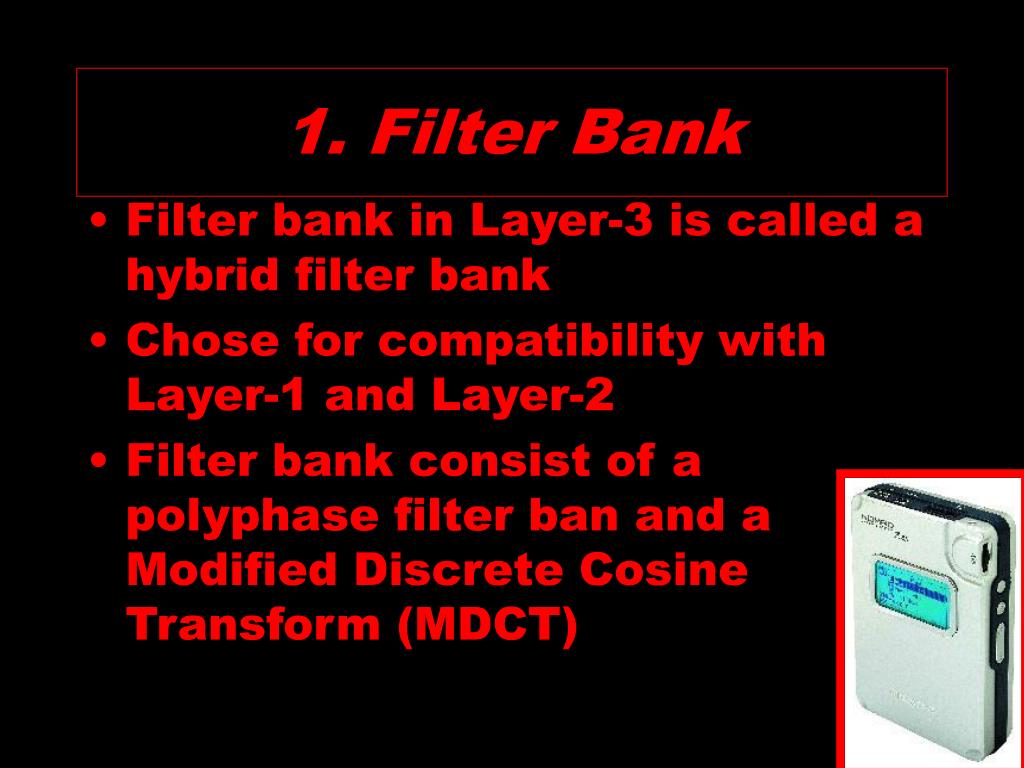

1. Filter Bank

  • Filter bank in Layer-3 is called a hybrid filter bank

  • Chose for compatibility with Layer-1 and Layer-2

  • Filter bank consist of a polyphase filter ban and a Modified Discrete Cosine Transform (MDCT)


2 perceptual model
2.Perceptual Model

  • Perceptual model determines quality of given encoder implementation

  • Uses either a separate filter bank or provided calculations


3 joint stereo

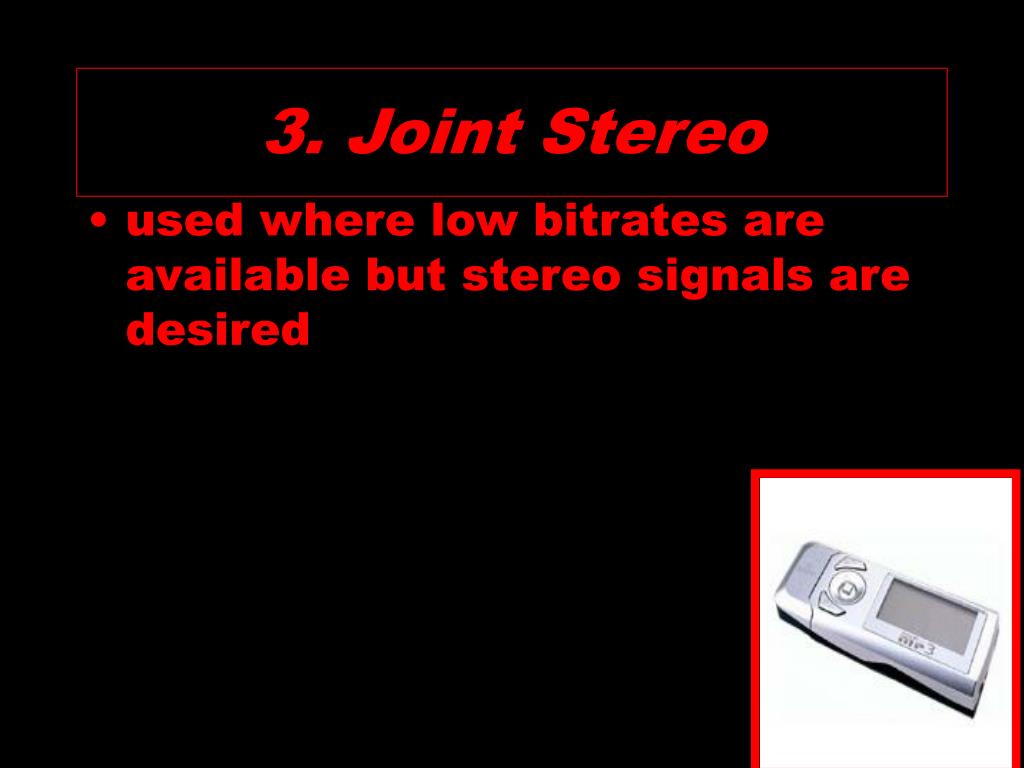

3. Joint Stereo

  • used where low bitrates are available but stereo signals are desired


4 quantization and coding

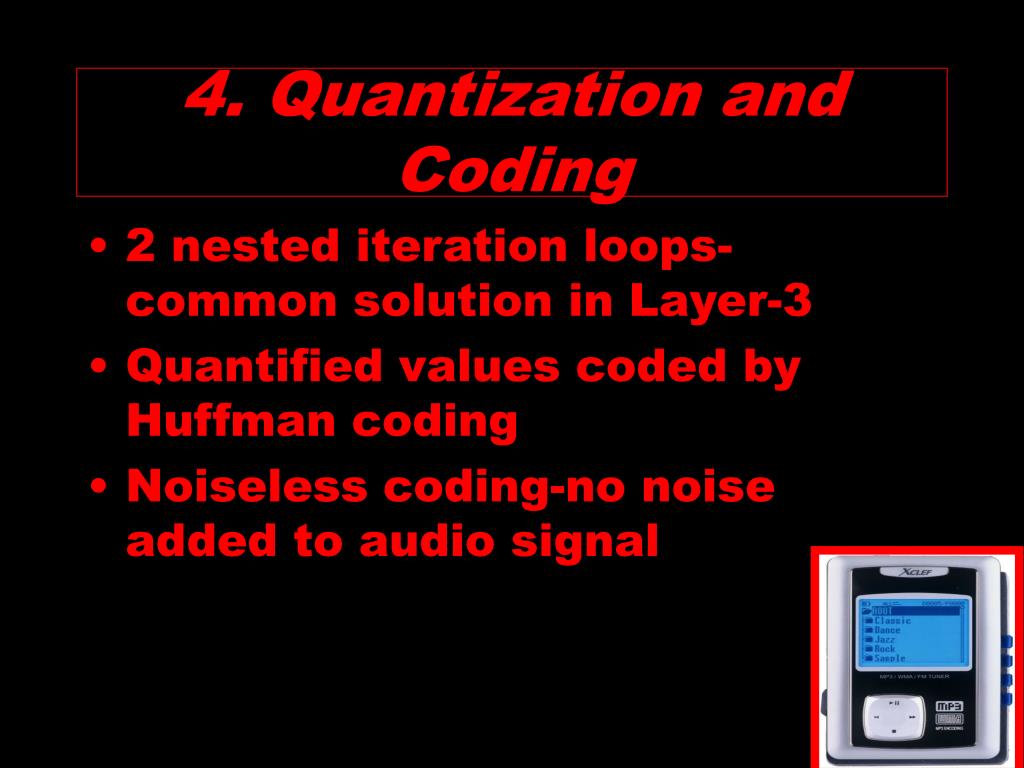

4. Quantization and Coding

  • 2 nested iteration loops- common solution in Layer-3

  • Quantified values coded by Huffman coding

  • Noiseless coding-no noise added to audio signal


5 iteration loops

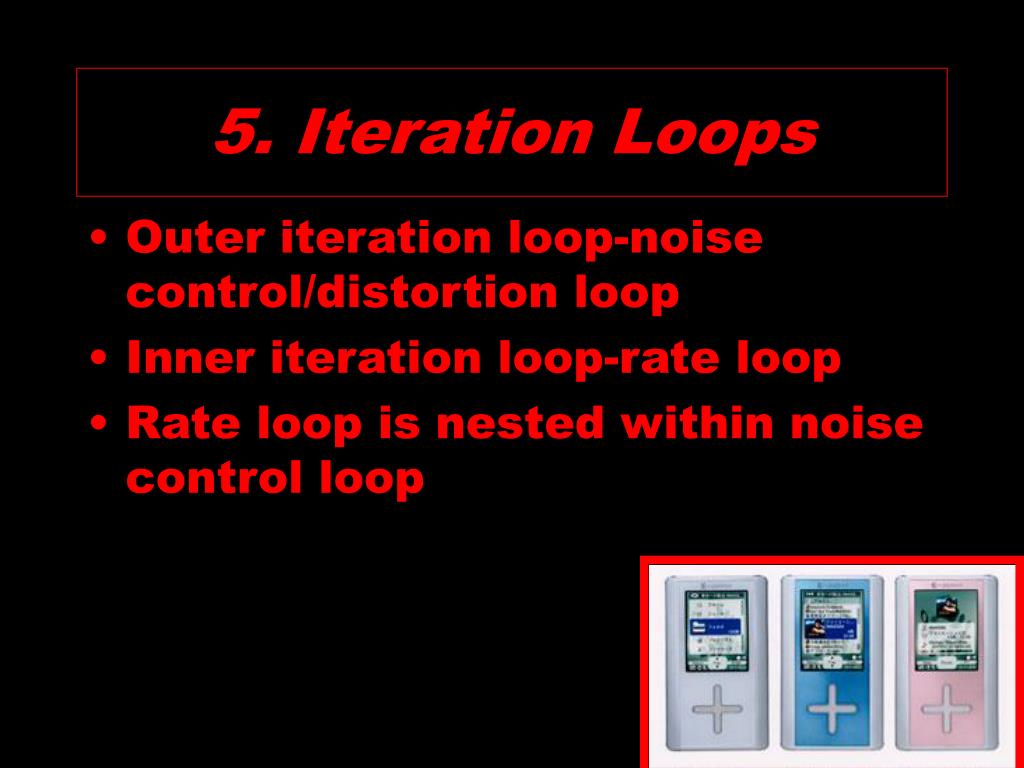

5. Iteration Loops

  • Outer iteration loop-noise control/distortion loop

  • Inner iteration loop-rate loop

  • Rate loop is nested within noise control loop


6 surround extension

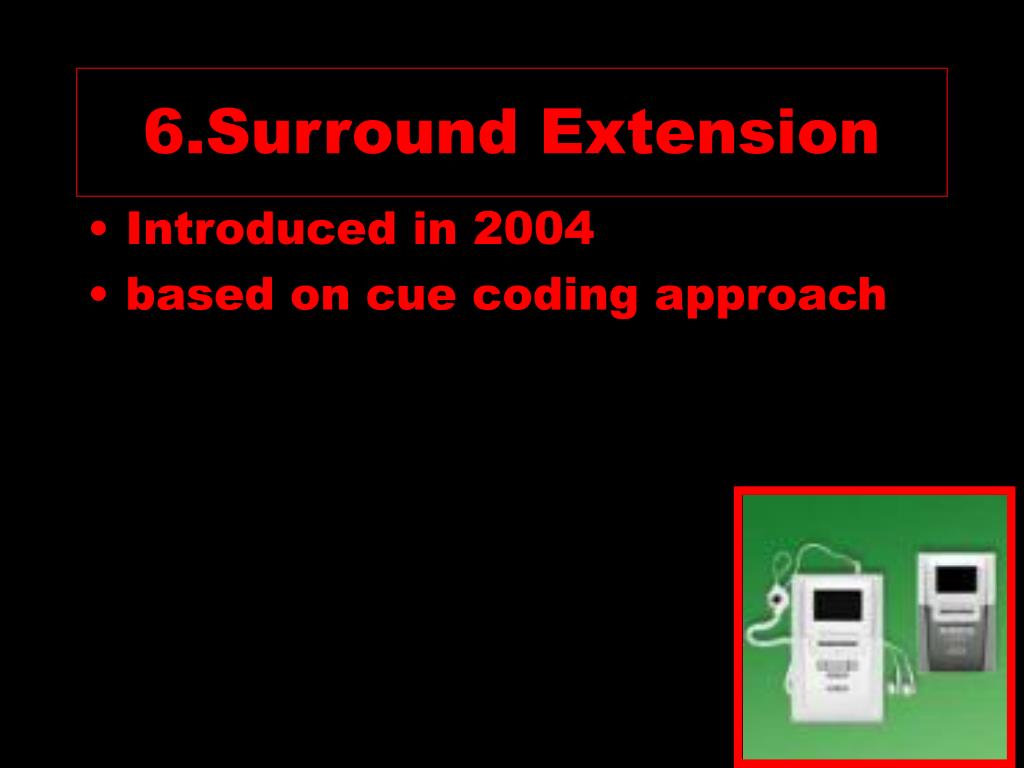

6.Surround Extension

  • Introduced in 2004

  • based on cue coding approach


Example of compression

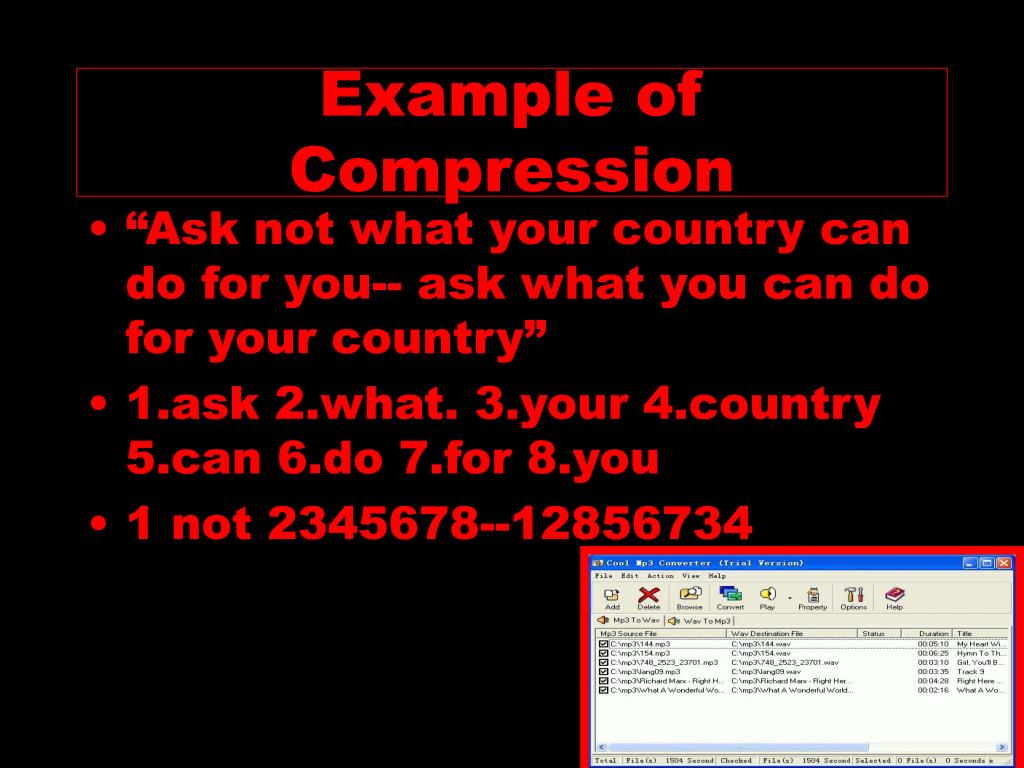

Example of Compression

  • “Ask not what your country can do for you-- ask what you can do for your country”

  • 1.ask 2.what. 3.your 4.country 5.can 6.do 7.for 8.you

  • 1 not 2345678--12856734

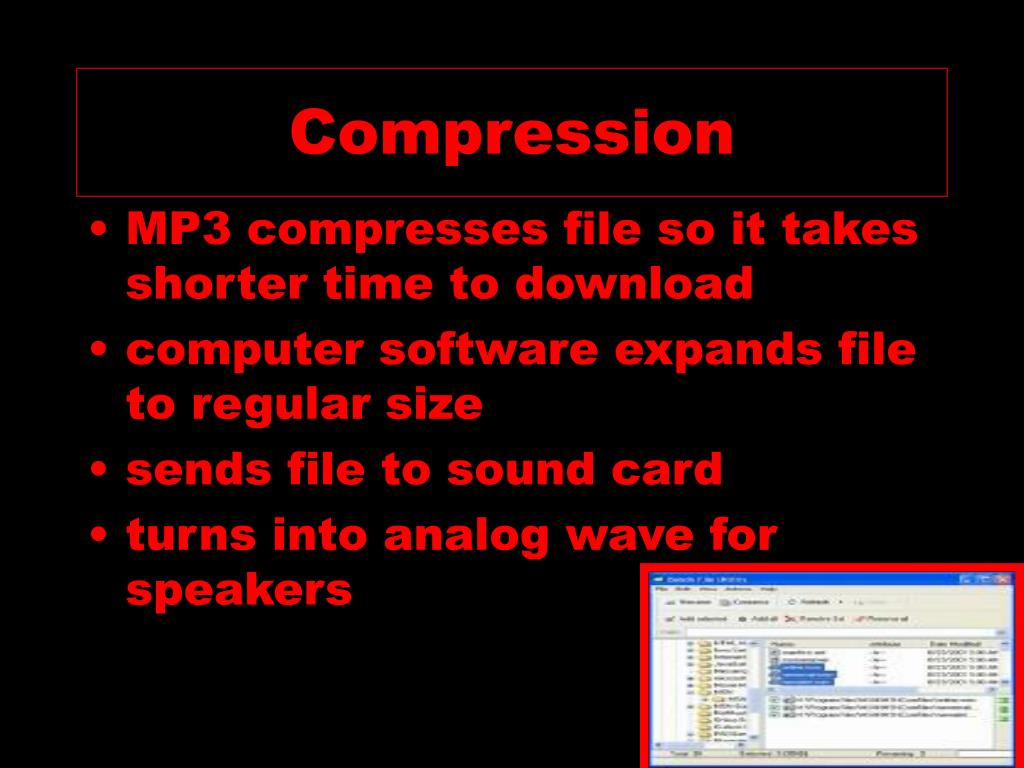

Compression
Compression

  • MP3 compresses file so it takes shorter time to download

  • computer software expands file to regular size

  • sends file to sound card

  • turns into analog wave for speakers


About the author
About the Author

  • My name is T’quoia Boyd. My birthday is on July 20, 1992. I like babysitting, drawing, Pepsi,cocoa, and Tigger.


The ipod
The iPod

The iPod is the coolest new MP3 player amongst us teens. Available in stores now!! Also try the new iPod Shuffle. The new small version of your favorite MP3 player!!


Bibliography
Bibliography

  • About MP3s. 26 Oct.Winamp.26 April.2005.<http://www.howstuffworks.com/mp3/>

  • Layer-3 Basics.2 June.2003.Turner Television Network.26 April.2005.<http://ftp.rge.com/pub/multimedia/mpeg-al3/13fag.html>


Bibliography continued
Bibliography,continued

  • MPEG Audio Layer-3. 17 Dec.2003.Purdue University.2 May.2005.<http://www.ii.fraunhofer.de/amm/technf/Layer3/>

  • Neudfeldt,Victoria ed.Webster’s New World School and Office Dictionary.New York, NY:Simon & Schuster,Inc..,1995
