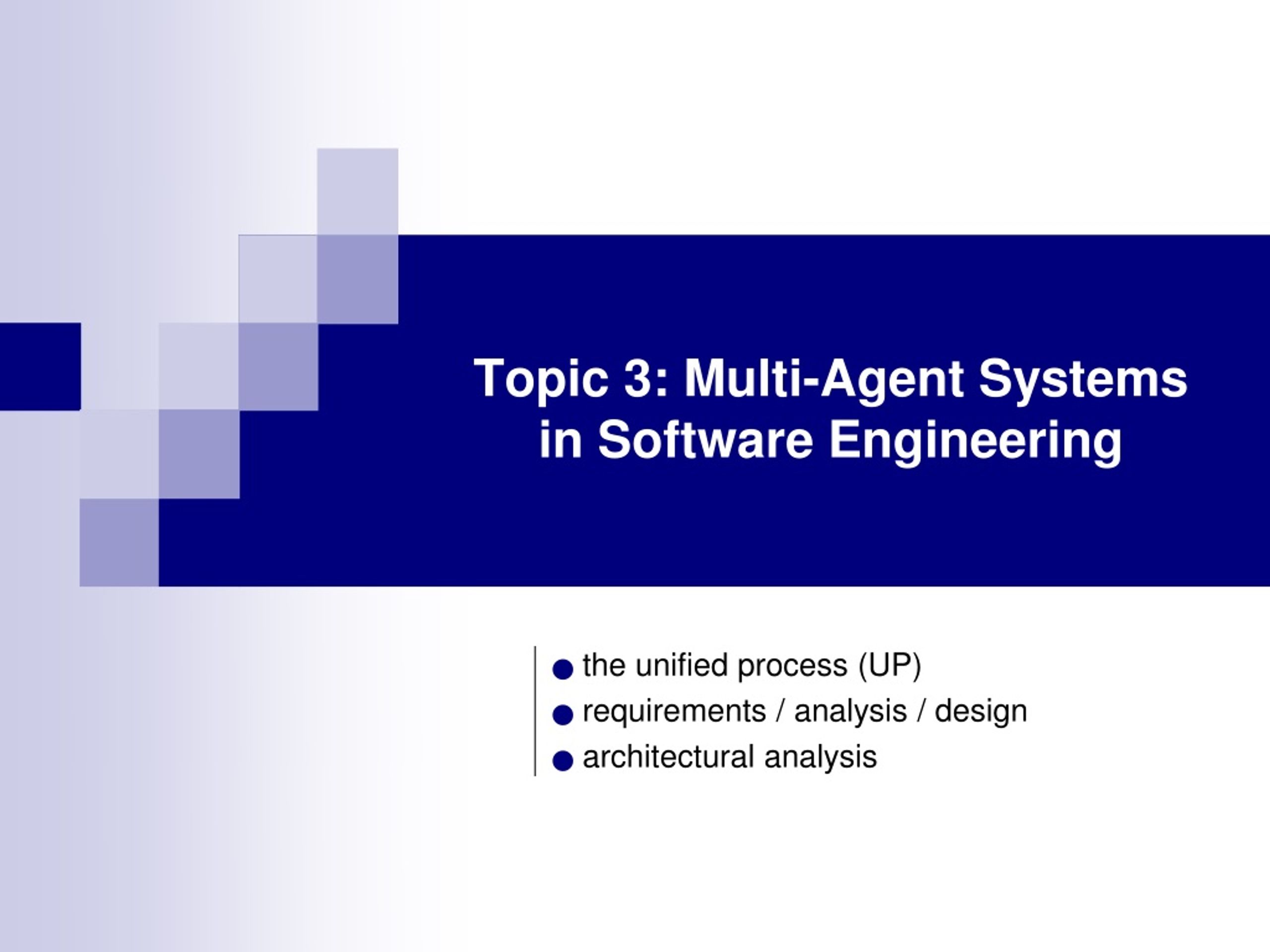

  1. Topic 3: Multi-Agent Systemsin Software Engineering the unified process (UP) requirements / analysis / design architectural analysis

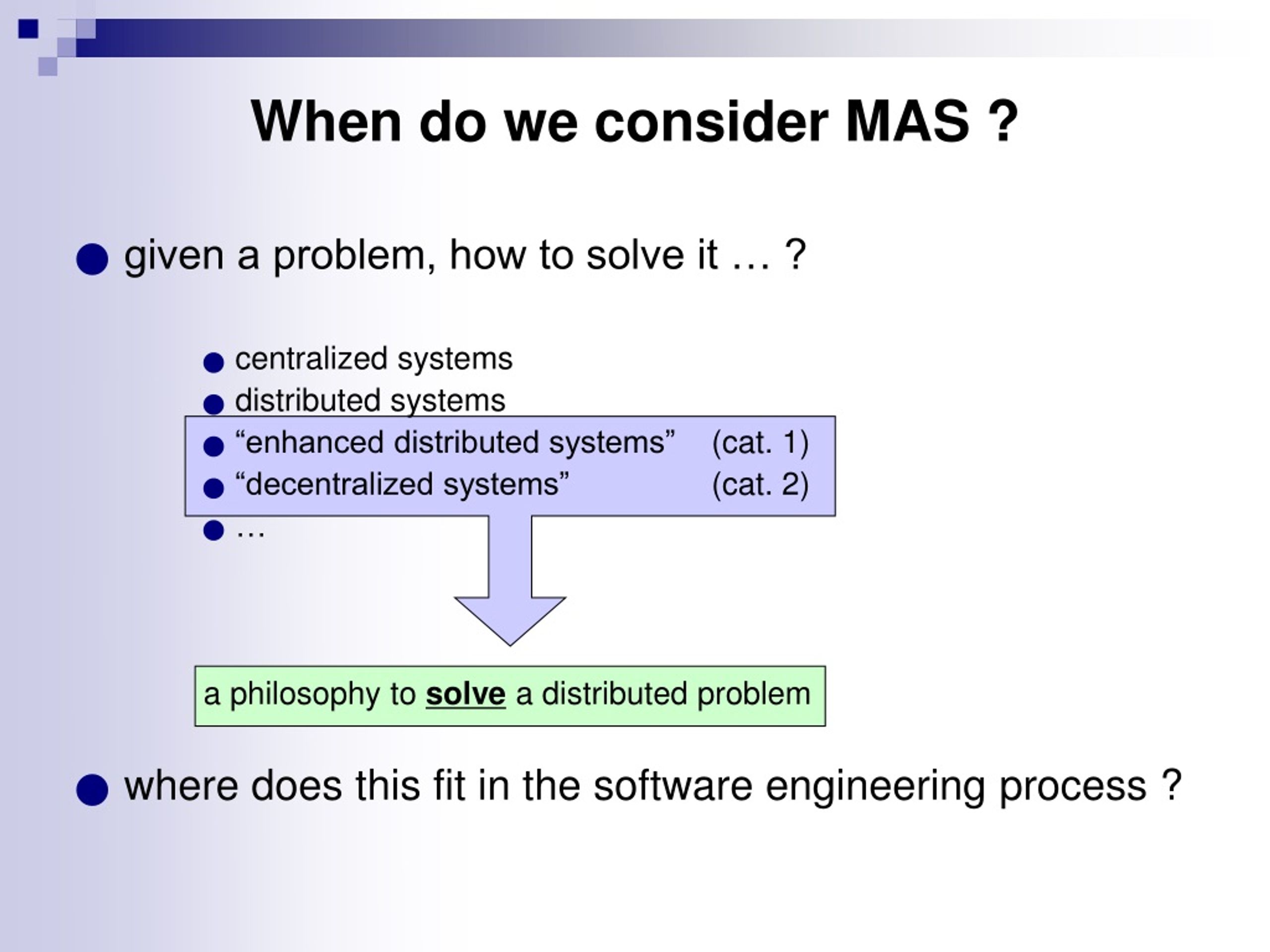

  2. When do we consider MAS ? • given a problem, how to solve it … ? • centralized systems • distributed systems • “enhanced distributed systems” (cat. 1) • “decentralized systems” (cat. 2) • … a philosophy to solve a distributed problem • where does this fit in the software engineering process ?

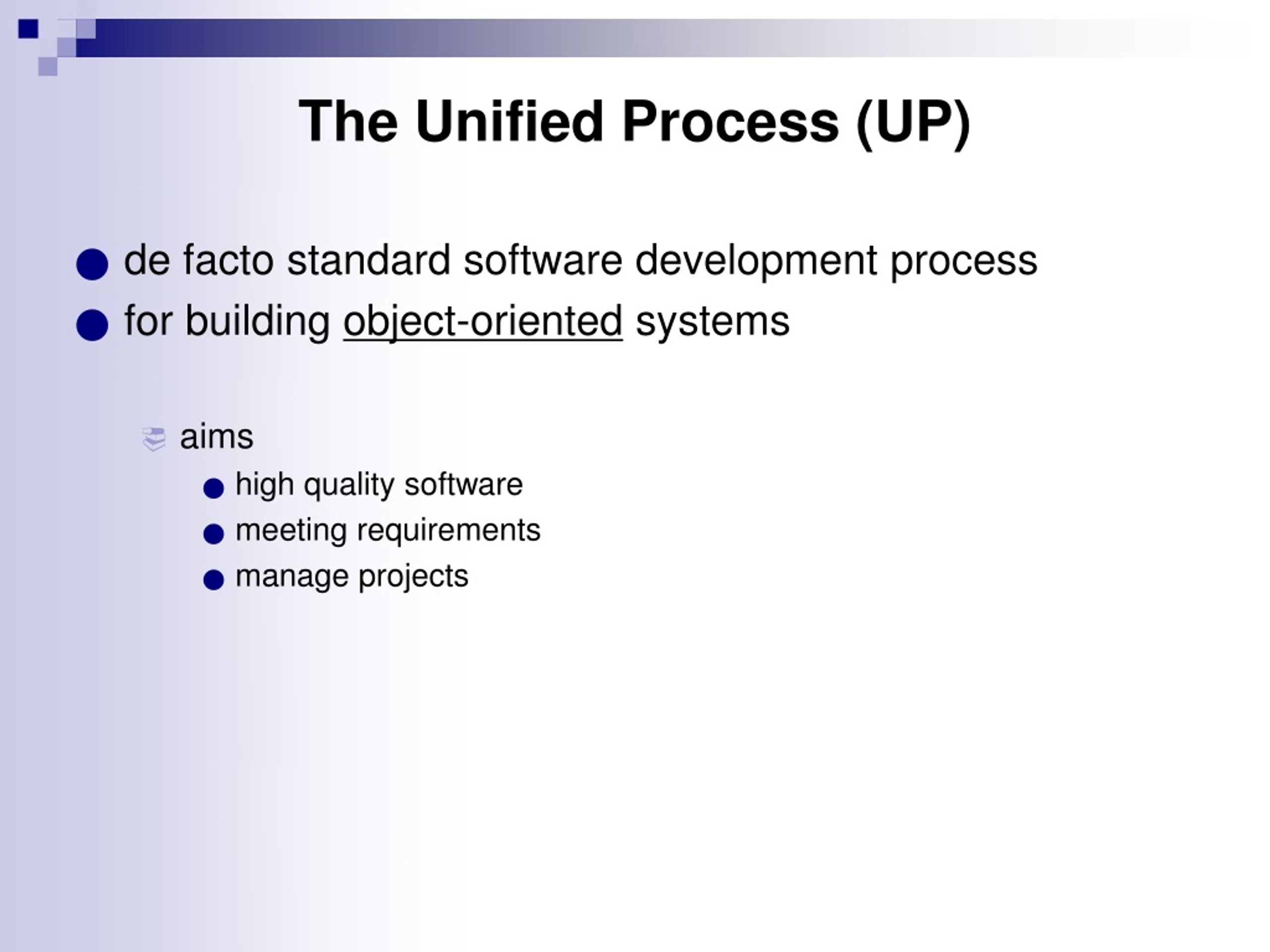

  3. The Unified Process (UP) • de facto standard software development process • for building object-oriented systems • aims • high quality software • meeting requirements • manage projects

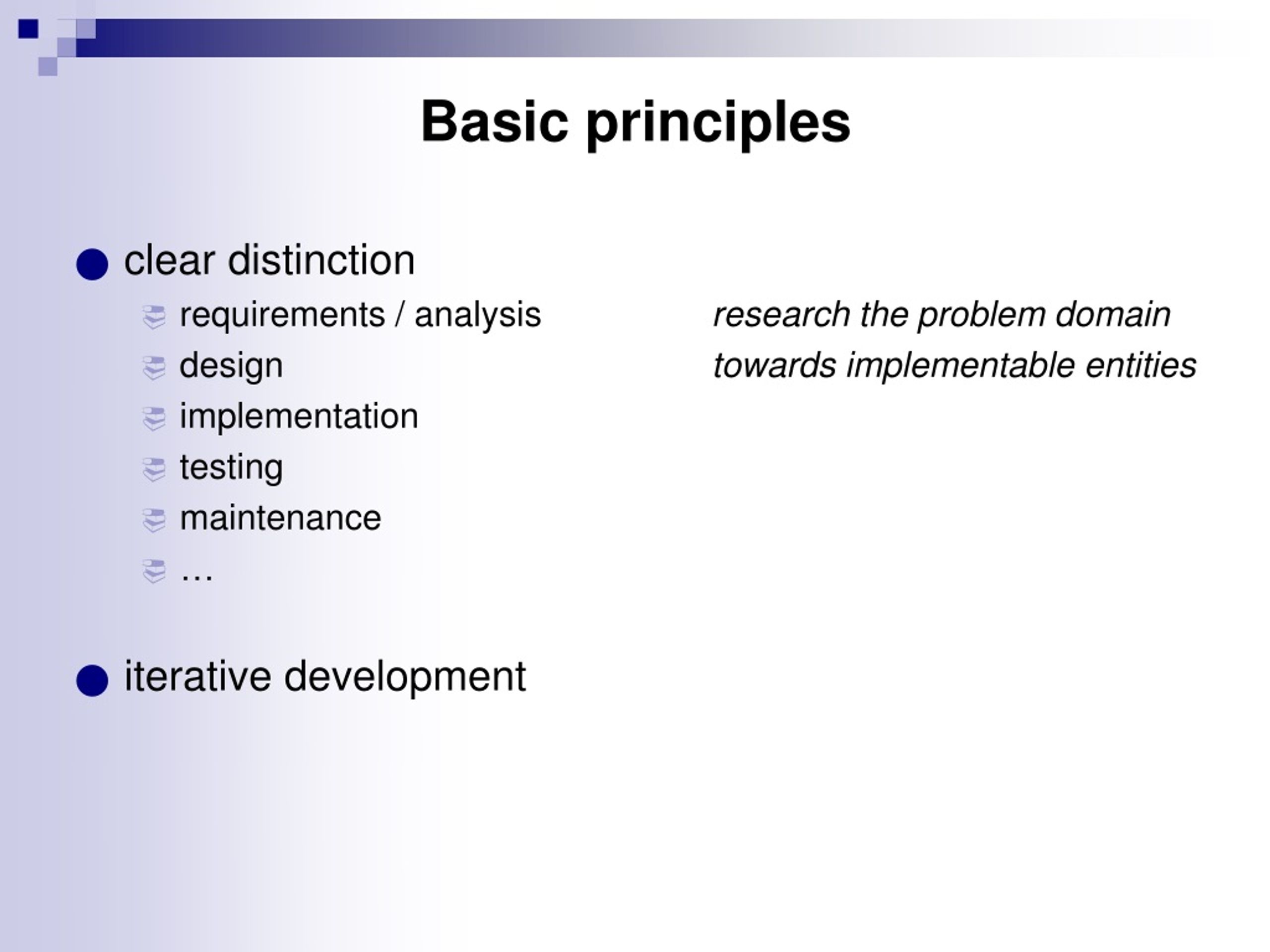

  4. Basic principles • clear distinction • requirements / analysis research the problem domain • design towards implementable entities • implementation • testing • maintenance • … • iterative development

  5. UP: Iterative development Development cycle = sequential waterfall life cycle • Requirements paralysis • Late feedback • Overwhelming complexity Requirements implementation Design Testing

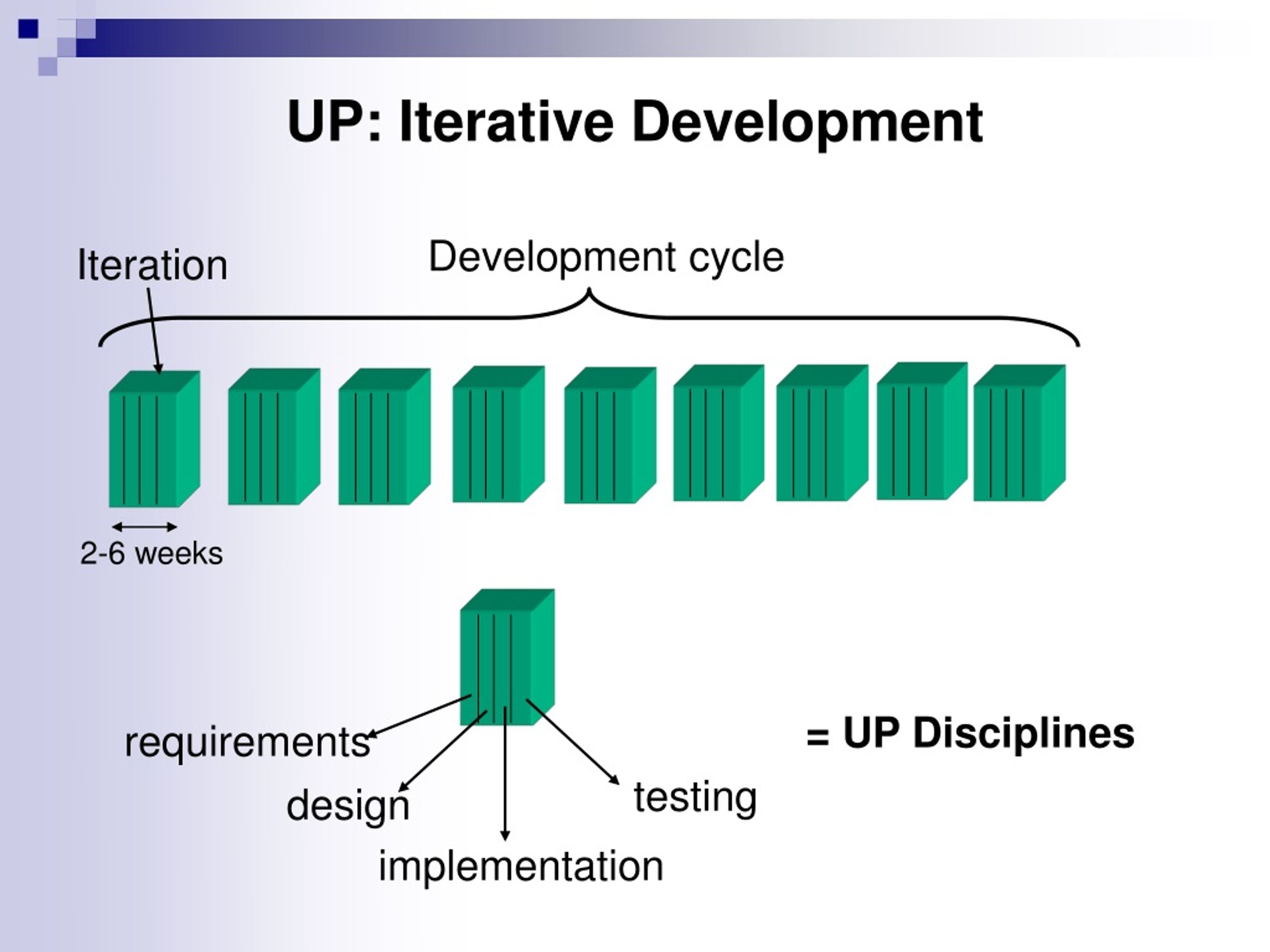

  6. UP: Iterative Development Development cycle Iteration 2-6 weeks = UP Disciplines requirements testing design implementation

  7. UP: Main Activities • requirements / analysis research the problem domain • domain modelling • requirements analysis • system sequence diagrams • … • design towards implementable artefacts • implementation • …

  8. Requirements / Analysis:Types of requirements • typical categorisation: • functional requirements • non-functional requirements • functional requirements • use case model • non-functional requirements • supplementary specifications

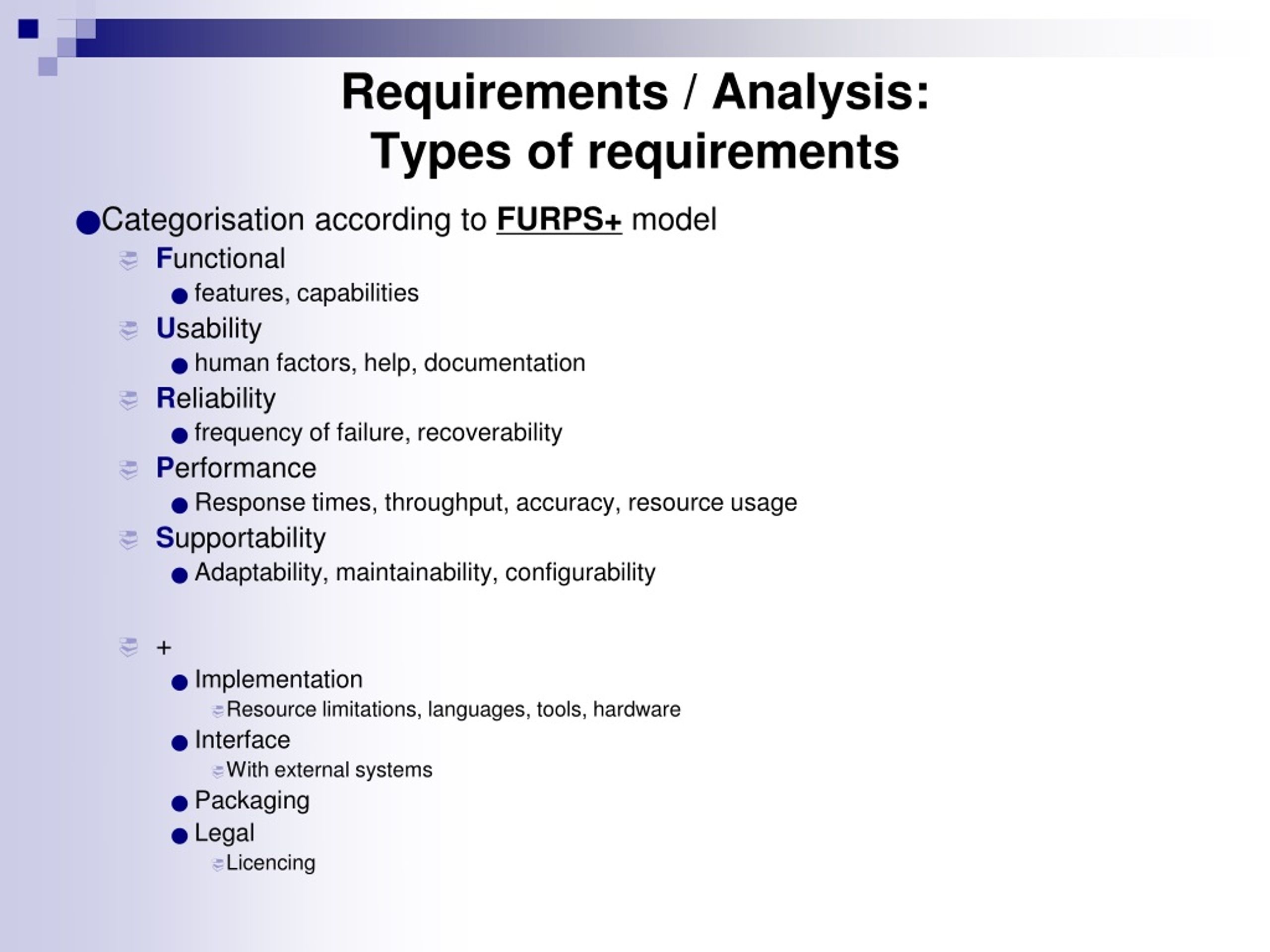

  9. Requirements / Analysis:Types of requirements • Categorisation according to FURPS+ model • Functional • features, capabilities • Usability • human factors, help, documentation • Reliability • frequency of failure, recoverability • Performance • Response times, throughput, accuracy, resource usage • Supportability • Adaptability, maintainability, configurability • + • Implementation • Resource limitations, languages, tools, hardware • Interface • With external systems • Packaging • Legal • Licencing

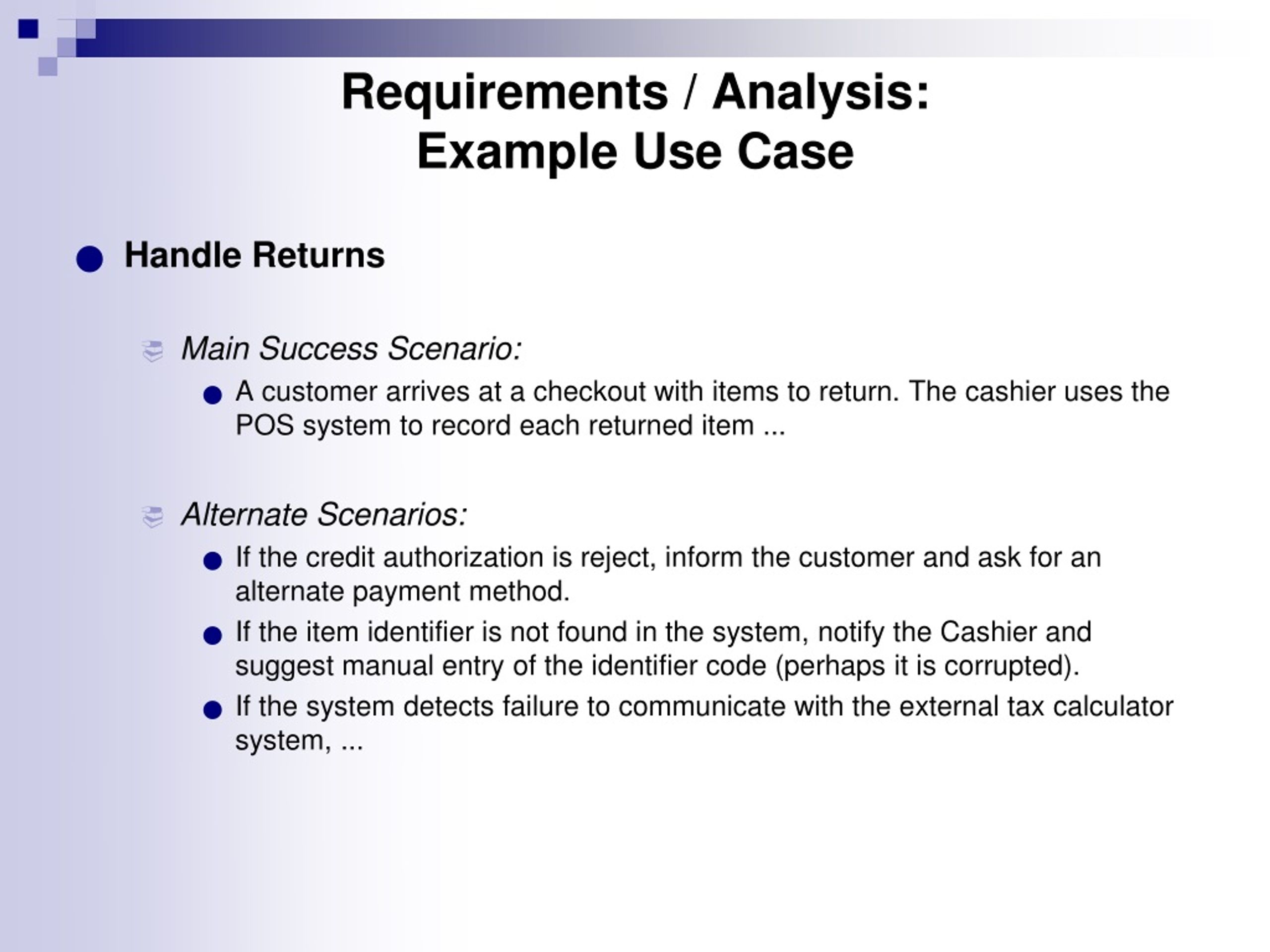

  10. Requirements / Analysis:Example Use Case • Handle Returns • Main Success Scenario: • A customer arrives at a checkout with items to return. The cashier uses the POS system to record each returned item ... • Alternate Scenarios: • If the credit authorization is reject, inform the customer and ask for an alternate payment method. • If the item identifier is not found in the system, notify the Cashier and suggest manual entry of the identifier code (perhaps it is corrupted). • If the system detects failure to communicate with the external tax calculator system, ...

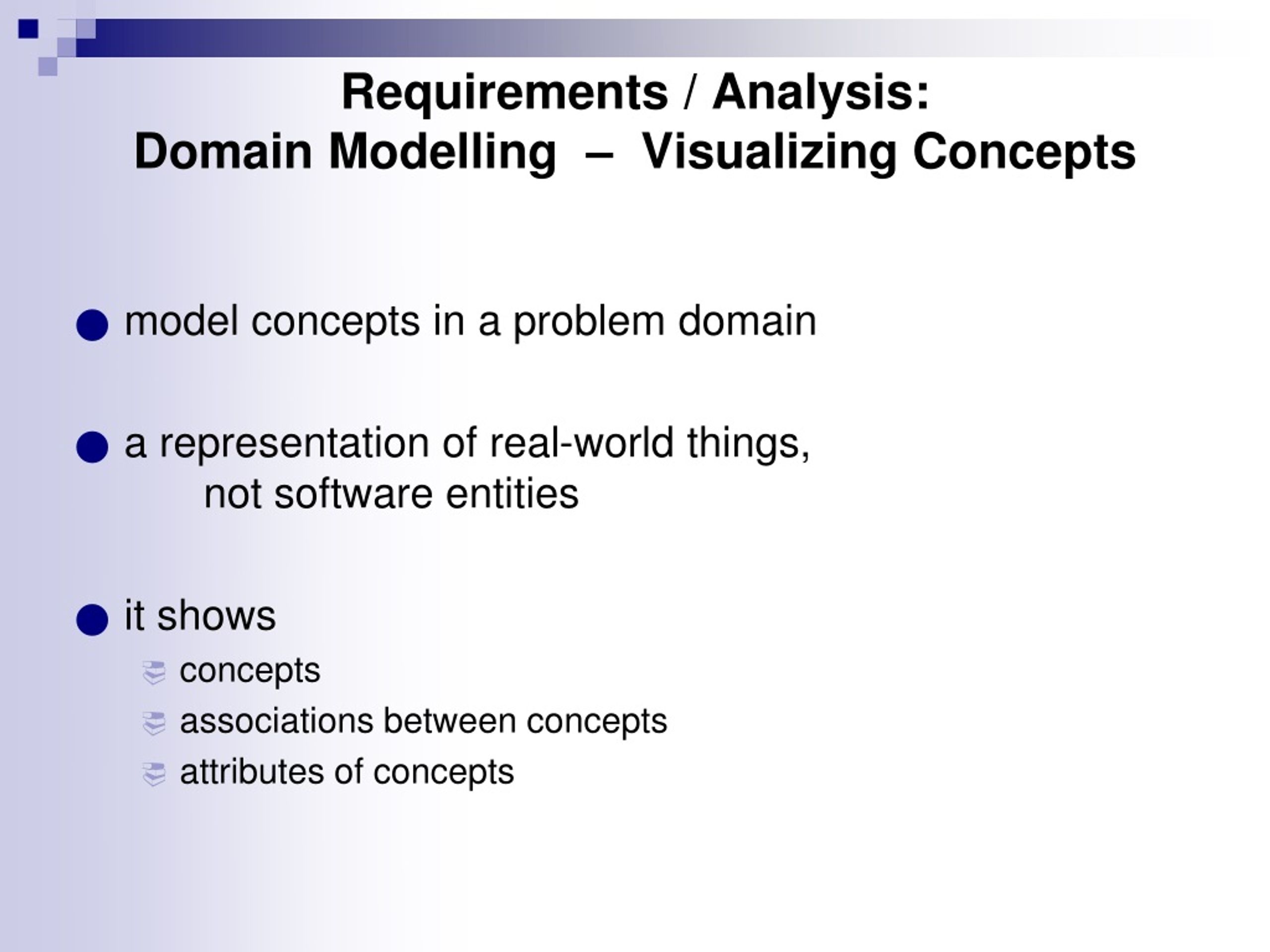

  11. Requirements / Analysis:Domain Modelling – Visualizing Concepts • model concepts in a problem domain • a representation of real-world things, not software entities • it shows • concepts • associations between concepts • attributes of concepts

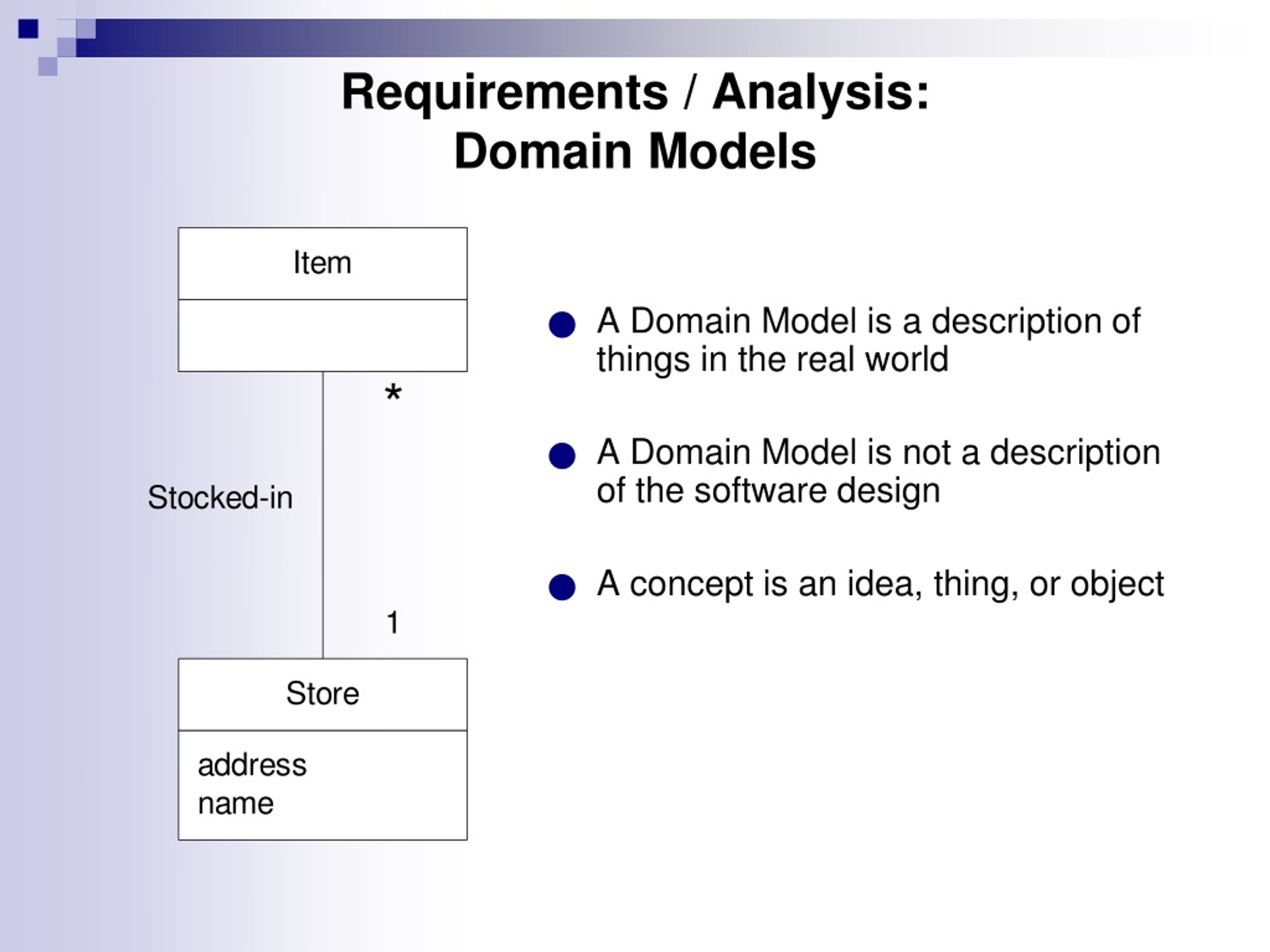

  12. Requirements / Analysis:Domain Models • A Domain Model is a description of things in the real world • A Domain Model is not a description of the software design • A concept is an idea, thing, or object

  13. UP: Main Activities • requirements / analysis research the problem domain • design towards implementable artefacts • design class diagram • interaction diagrams • design patterns • implementation • …

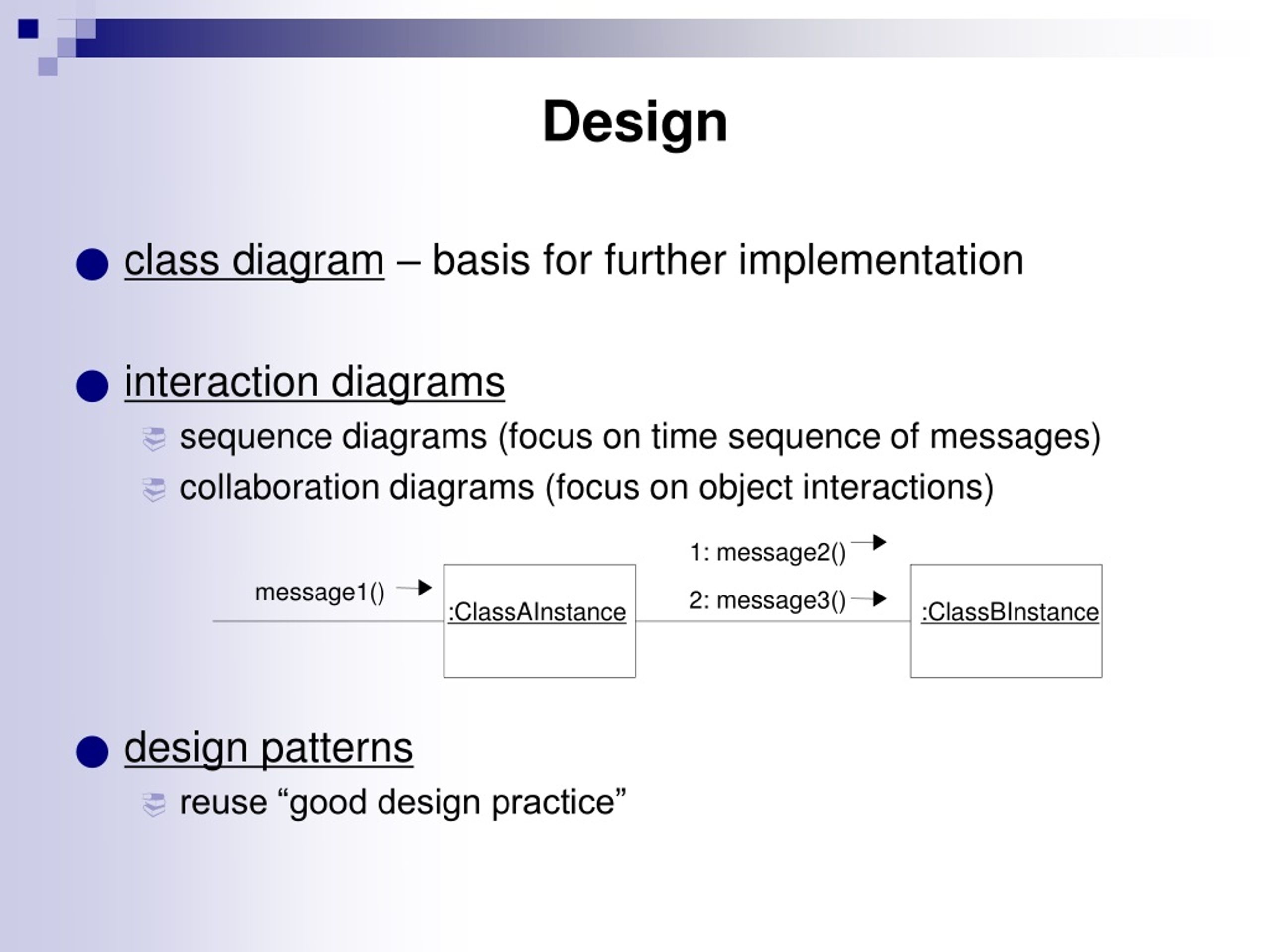

  14. Design • class diagram – basis for further implementation • interaction diagrams • sequence diagrams (focus on time sequence of messages) • collaboration diagrams (focus on object interactions) • design patterns • reuse “good design practice” 1: message2() message1() 2: message3() :ClassAInstance :ClassBInstance

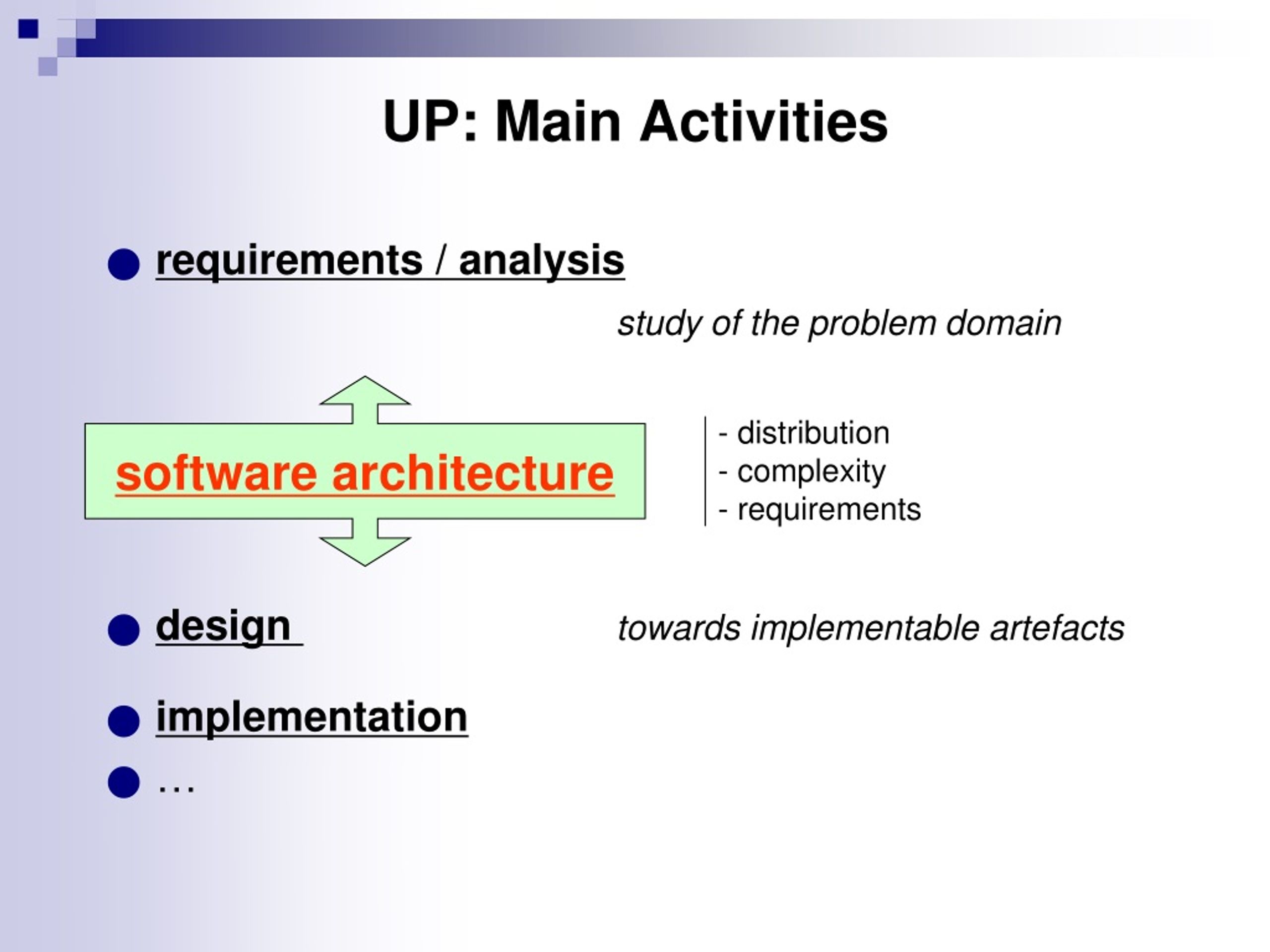

  15. - distribution - complexity - requirements UP: Main Activities • requirements / analysis study of the problem domain • design towards implementable artefacts • implementation • … software architecture

  16. Architectural Analysis

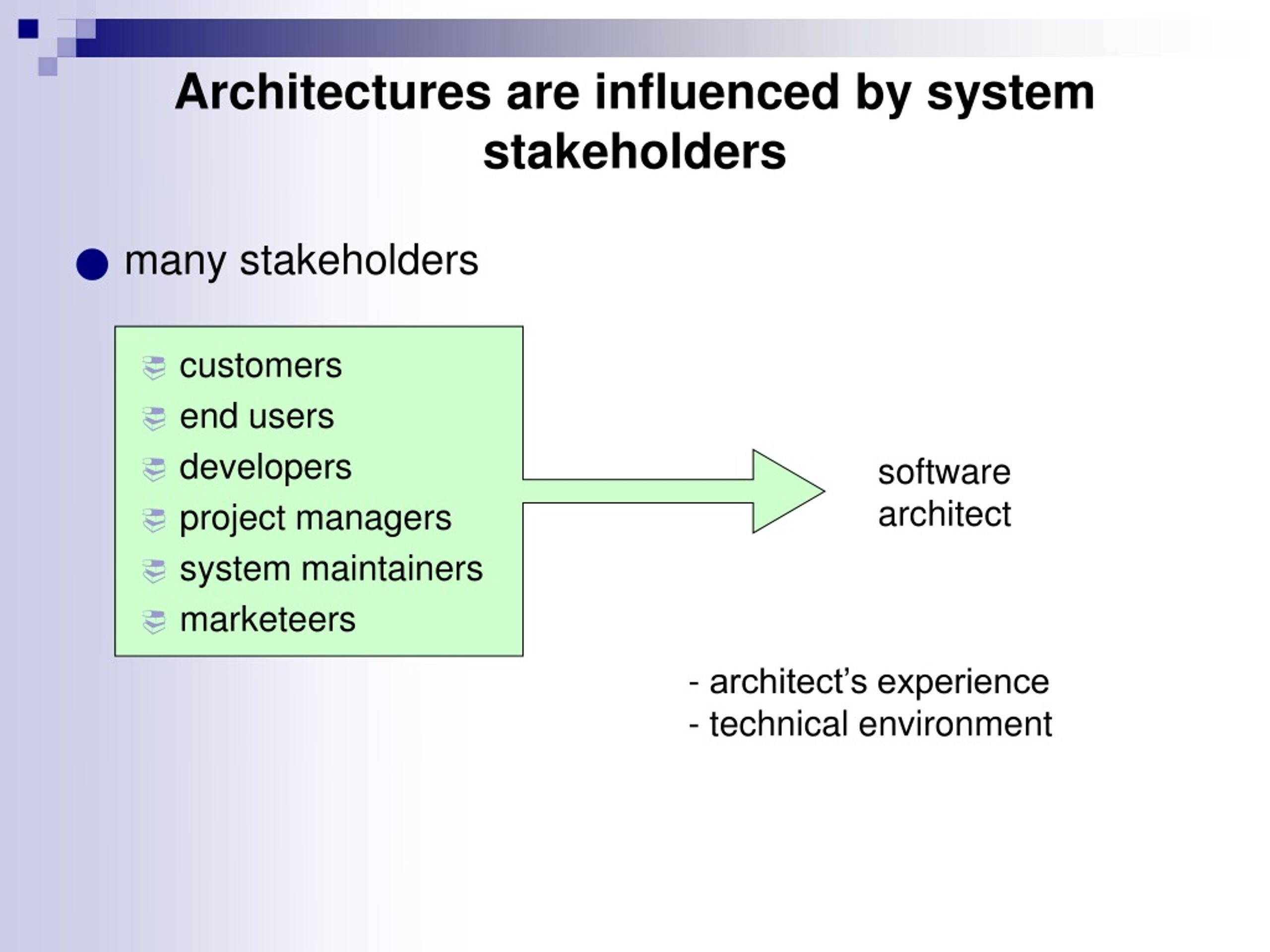

  17. Architectures are influenced by system stakeholders • many stakeholders • customers • end users • developers • project managers • system maintainers • marketeers software architect • architect’s experience • technical environment

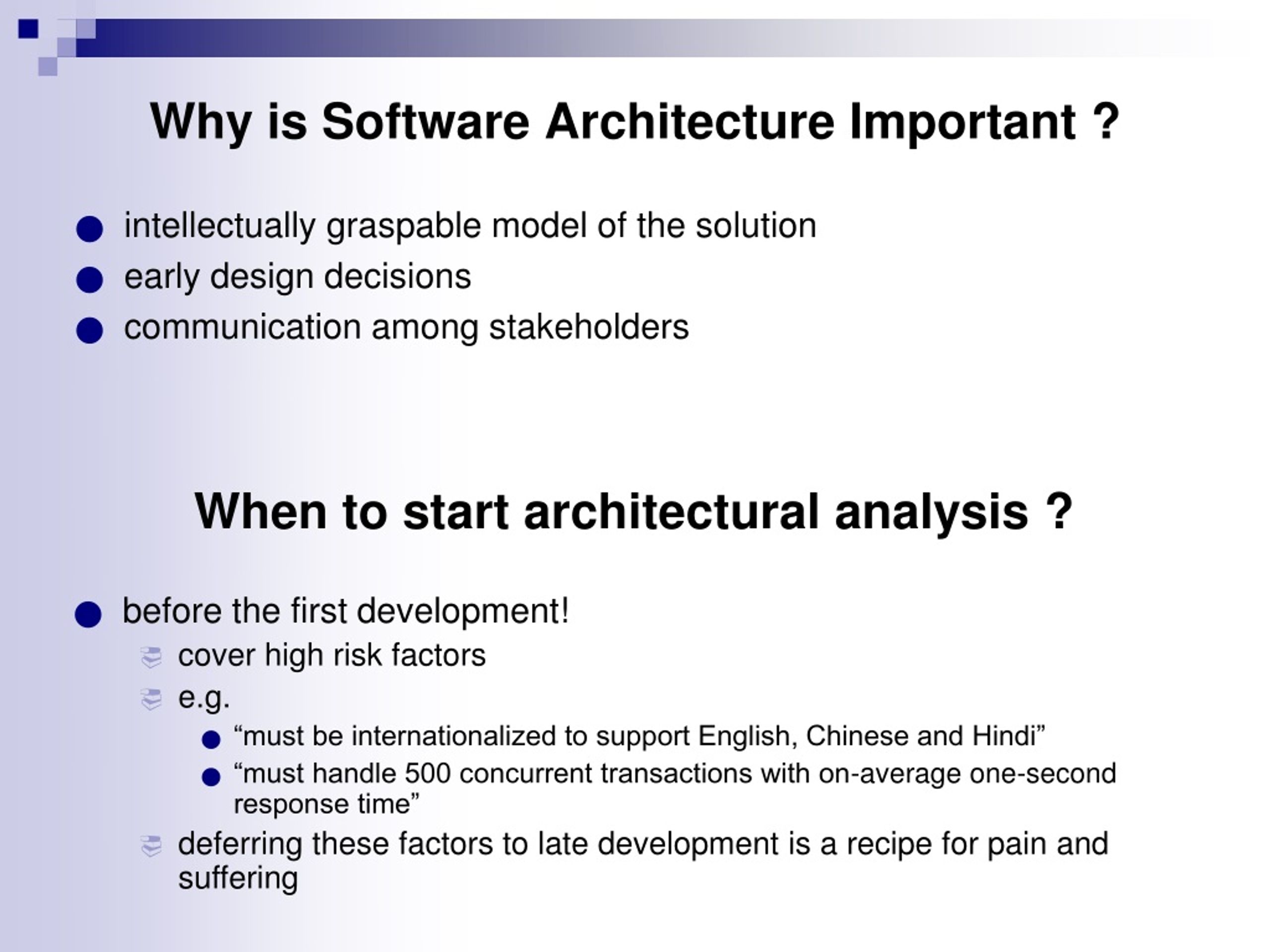

  18. Why is Software Architecture Important ? • intellectually graspable model of the solution • early design decisions • communication among stakeholders When to start architectural analysis ? • before the first development! • cover high risk factors • e.g. • “must be internationalized to support English, Chinese and Hindi” • “must handle 500 concurrent transactions with on-average one-second response time” • deferring these factors to late development is a recipe for pain and suffering

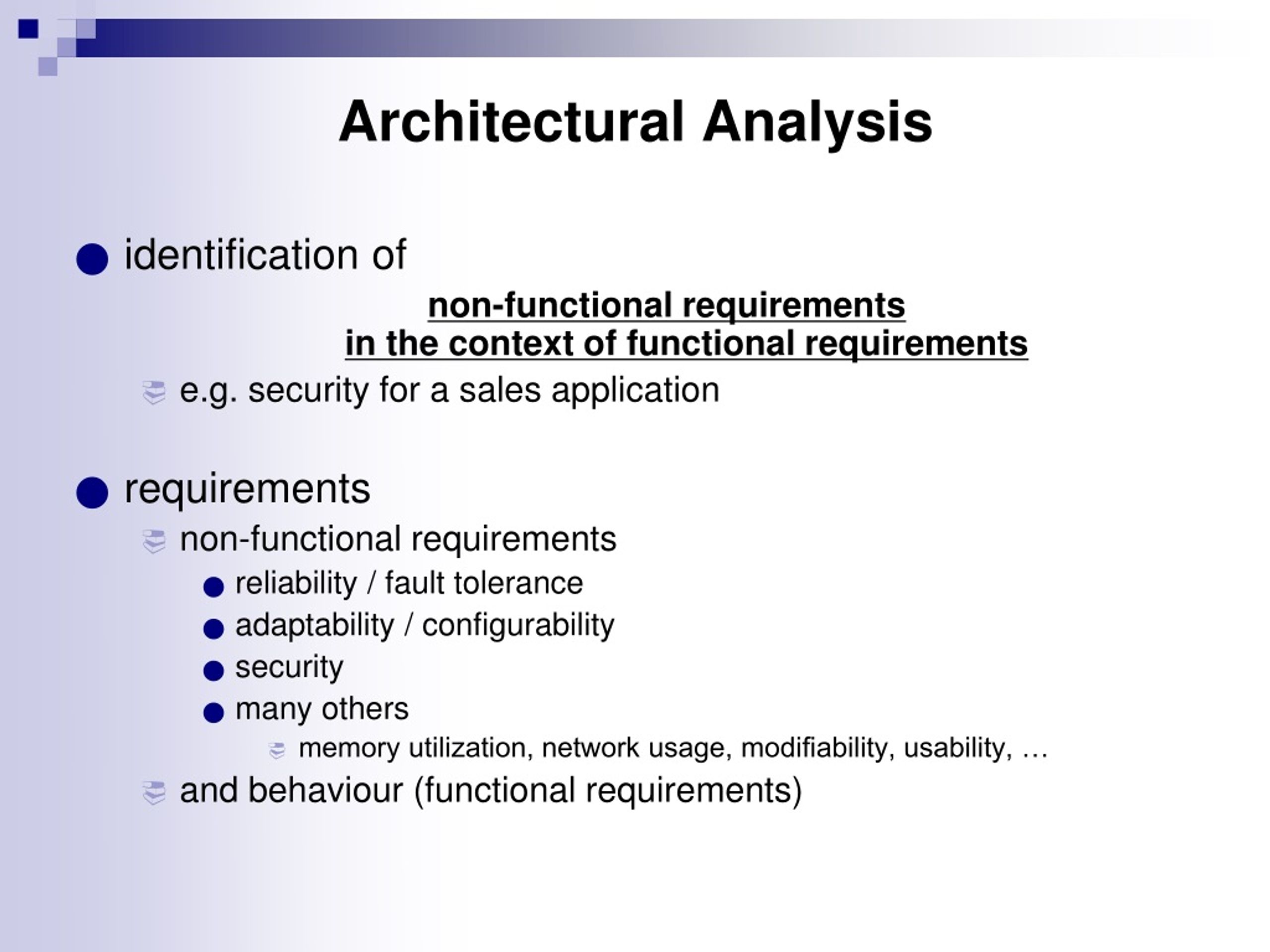

  19. Architectural Analysis • identification of non-functional requirementsin the context of functional requirements • e.g. security for a sales application • requirements • non-functional requirements • reliability / fault tolerance • adaptability / configurability • security • many others • memory utilization, network usage, modifiability, usability, … • and behaviour (functional requirements)

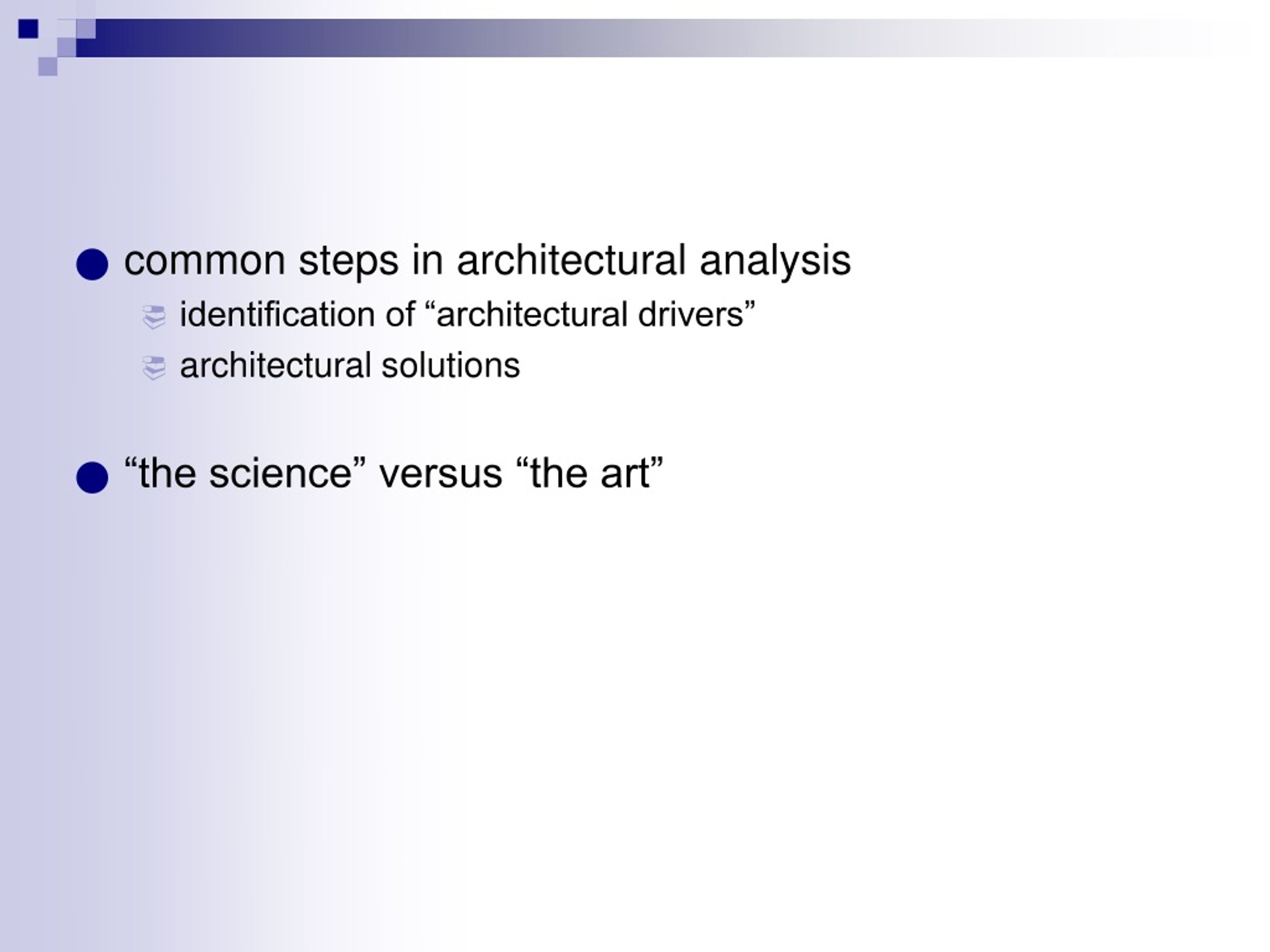

  20. common steps in architectural analysis • identification of “architectural drivers” • architectural solutions • “the science” versus “the art”

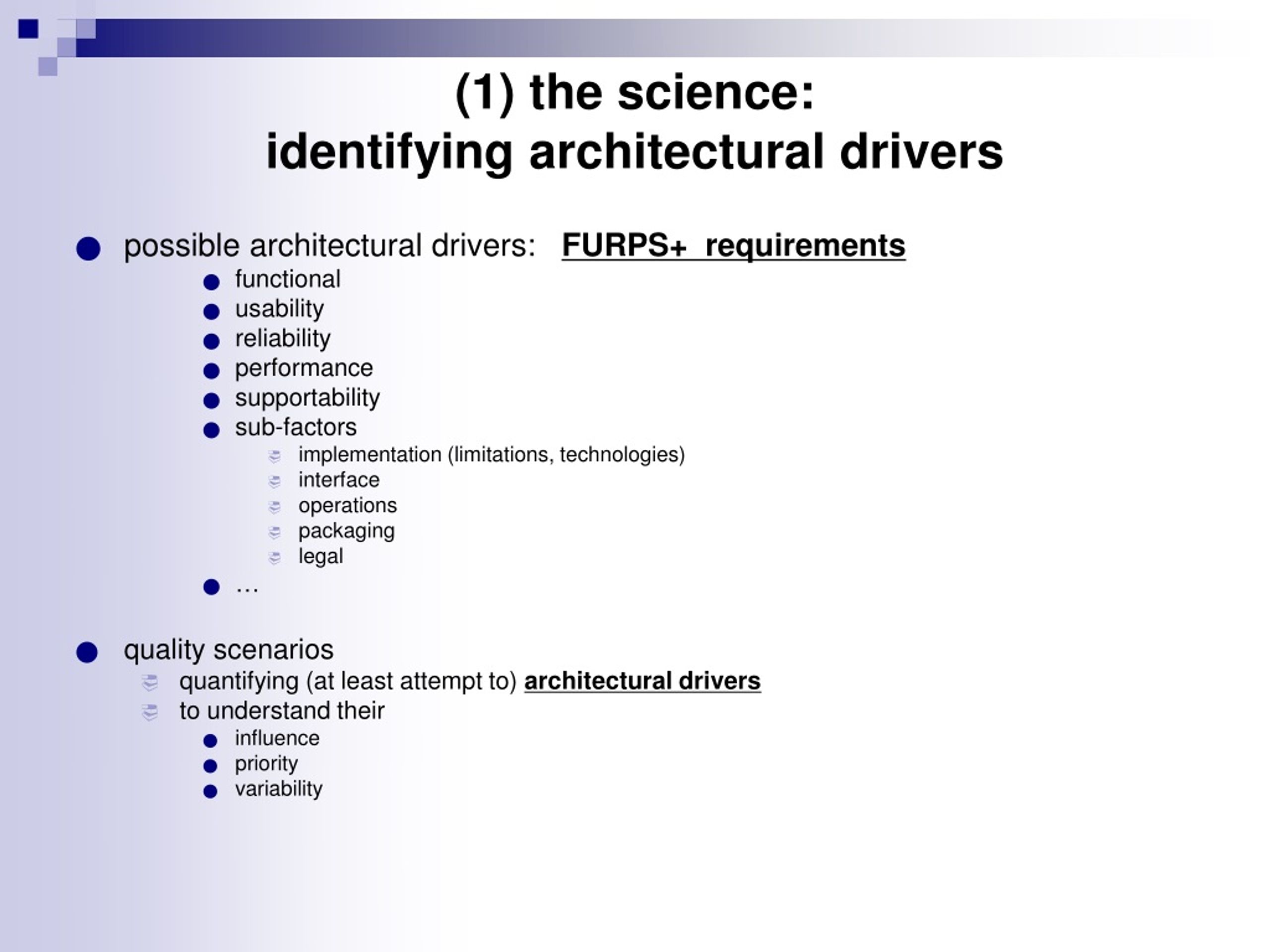

  21. (1) the science:identifying architectural drivers • possible architectural drivers: FURPS+ requirements • functional • usability • reliability • performance • supportability • sub-factors • implementation (limitations, technologies) • interface • operations • packaging • legal • … • quality scenarios • quantifying (at least attempt to) architectural drivers • to understand their • influence • priority • variability

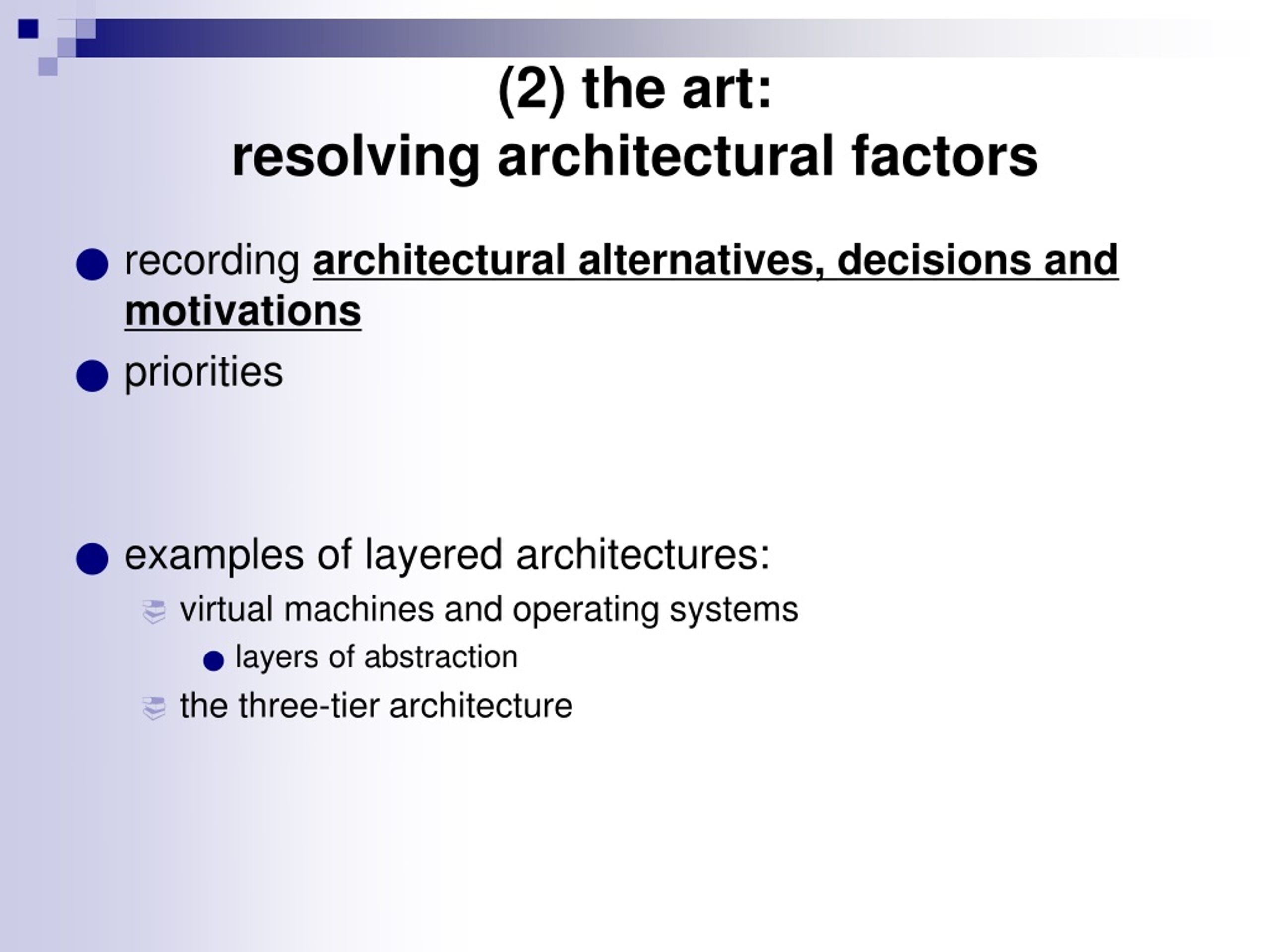

  22. (2) the art:resolving architectural factors • recording architectural alternatives, decisions and motivations • priorities • examples of layered architectures: • virtual machines and operating systems • layers of abstraction • the three-tier architecture

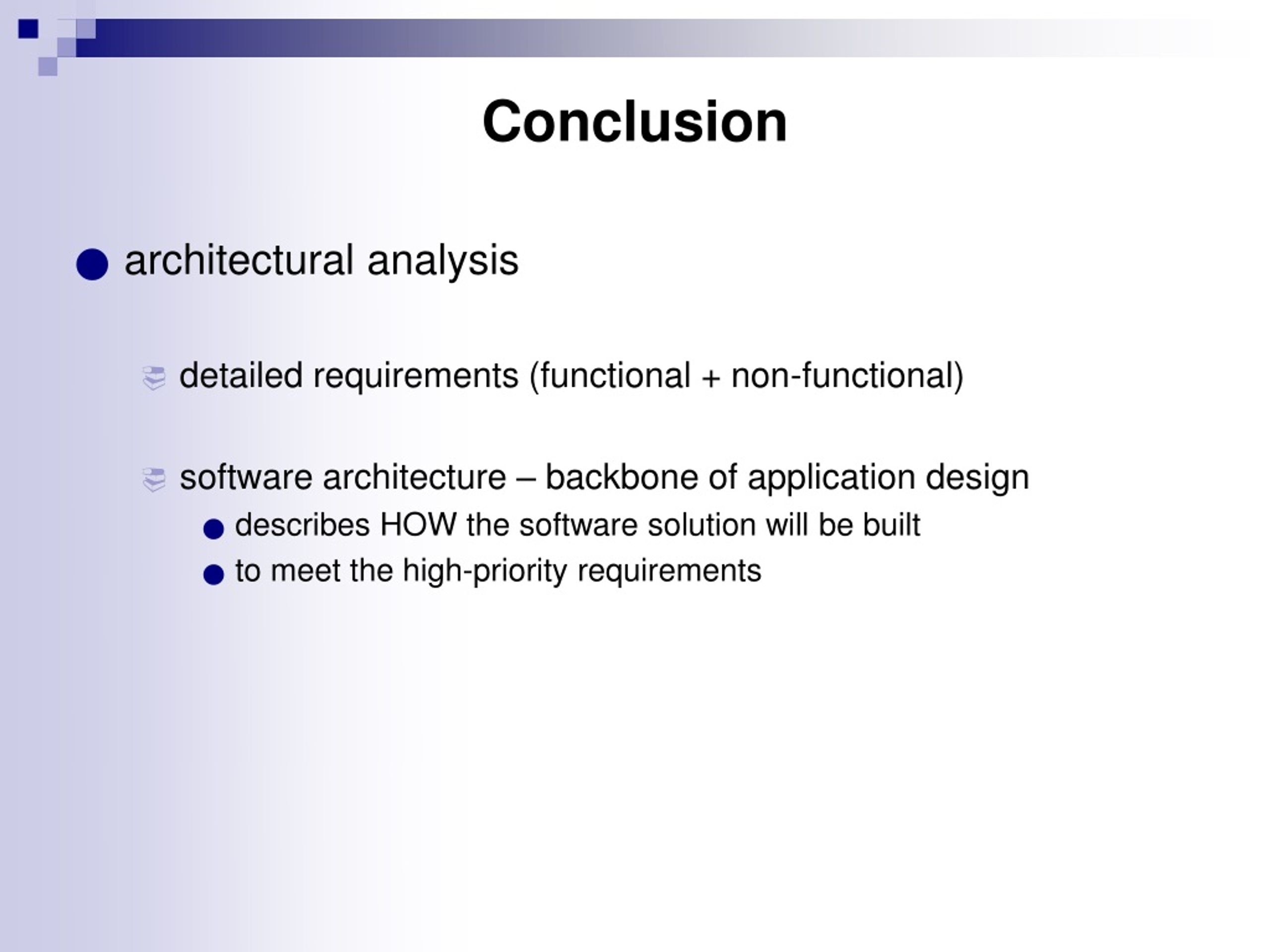

  23. Conclusion • architectural analysis • detailed requirements (functional + non-functional) • software architecture – backbone of application design • describes HOW the software solution will be built • to meet the high-priority requirements

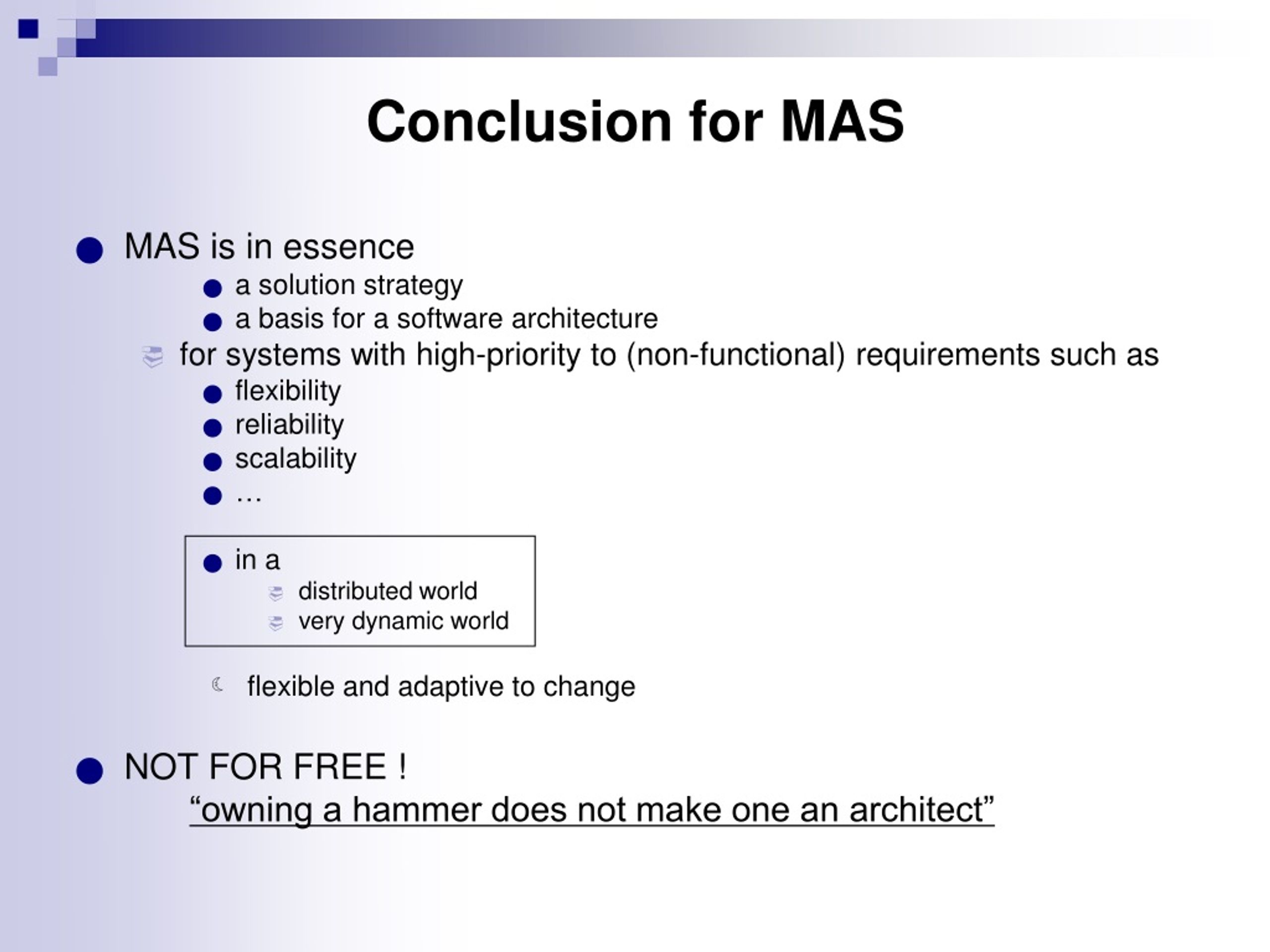

  24. Conclusion for MAS • MAS is in essence • a solution strategy • a basis for a software architecture • for systems with high-priority to (non-functional) requirements such as • flexibility • reliability • scalability • … • in a • distributed world • very dynamic world  flexible and adaptive to change • NOT FOR FREE ! “owning a hammer does not make one an architect”
