  1. COP 4620 / 5625Programming Language Translation /Compiler WritingFall 2003Lecture 10, 10/30/2003 Prof. Roy Levow

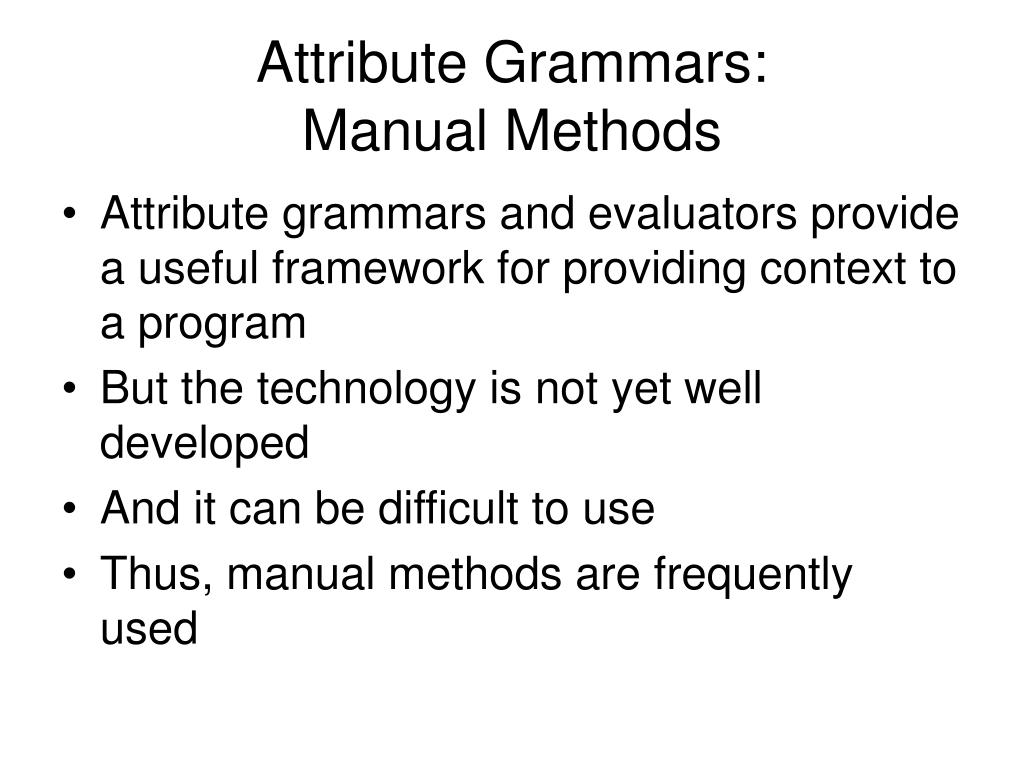

  2. Attribute Grammars:Manual Methods • Attribute grammars and evaluators provide a useful framework for providing context to a program • But the technology is not yet well developed • And it can be difficult to use • Thus, manual methods are frequently used

  3. Manual Methods.2 • Symbolic Interpretation • Uses interpreter approach on AST to compute attributes • Data-flow Equations • More general technique based on set equations to reveal relationships among attributes

  4. Symbolic Interpretation • Control flow graph can be constructed by threading nodes of AST • Possibly adding nodes for simplicity • A threading rule is provided for each kind of node • Then simulate run-time behavior of program • Requires wide compiler

  5. Flow Control & Threading

  6. Flow Control & Threading.2

  7. Flow Control & Threading.3

  8. Flow Control & Threading.4

  9. Symbolic Interpretation • Attach a stack representation to each arrow in the control flow graph indicating the items that might be on the stack at that time in program execution with relevant attributes • Cal also identify features such as uninitialized variables

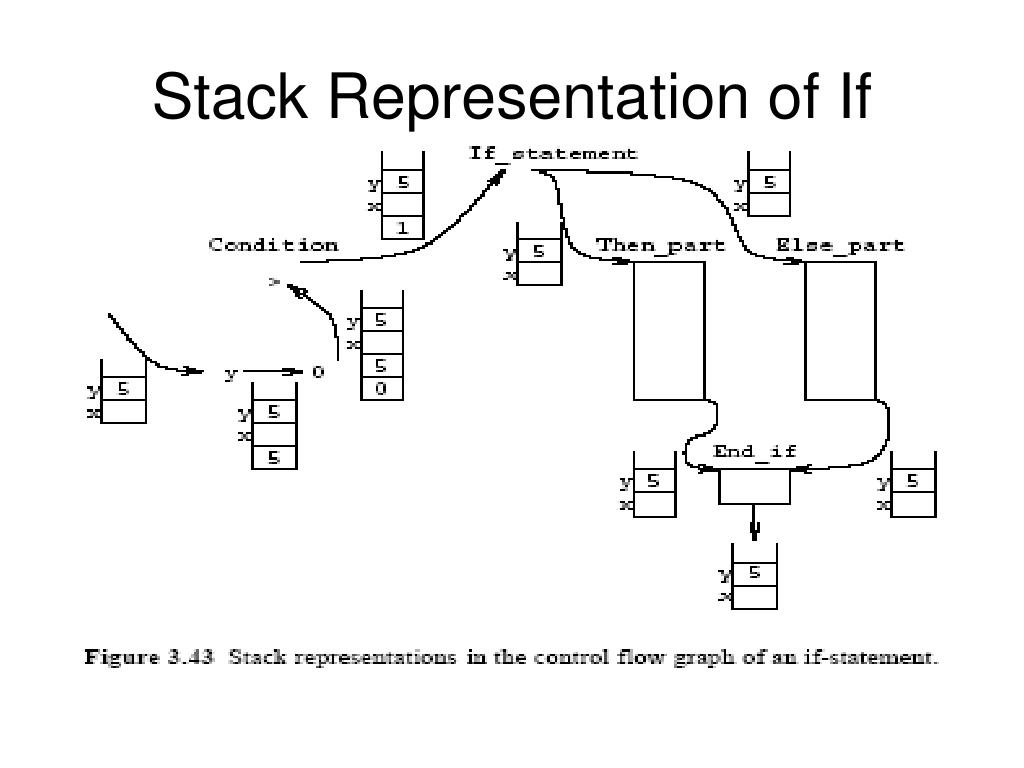

  10. Stack Representation of If

  11. Symbolic Interpretation of If

  12. Data Flow Equations • Data Flow Equations • Used on well-structured programs • Used to evaluate properties of data values across a program • Liveness (accessed later) • Initialized before use • Describe condition leaving block in terms of condition on entry and effects of block

  13. Data Flow Equations.2 • Example • Can be used to check for uninitialized variables • Solve by setting conditions for entry to initial block and compute closure

  14. Intermediate Code • Intermediate Code is usually tree structured like the AST • But may be linear or have other forms • Intermediate Code features • Expressions, including assignment • Routine class, Procedure headings, Returns • Conditional and unconditional jumps • Administrative activities

  15. Intermediate Code.2 • Assume wide compiler • Traverse AST replacing language context structures with intermediate code instructions • Produce is Intermediate Code Tree but is often still referred to as AST (Skipping 4.1 on Interpretation)

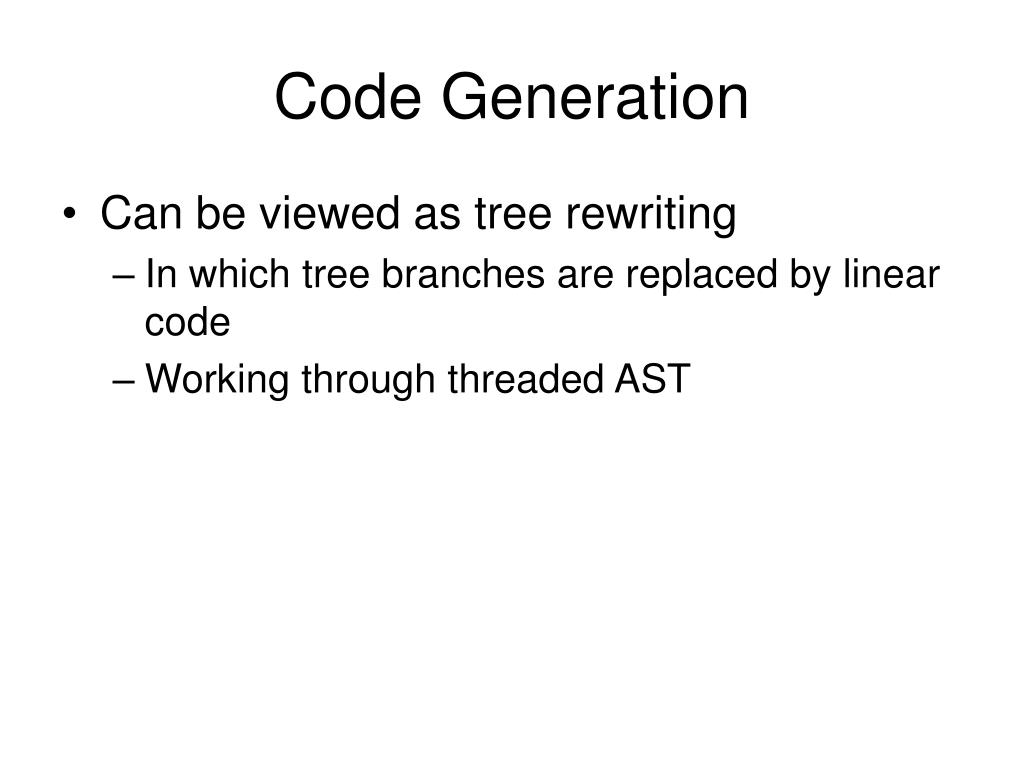

  16. Code Generation • Can be viewed as tree rewriting • In which tree branches are replaced by linear code • Working through threaded AST

  17. Simple Code GenerationStack Machine • Identify code for each node • Replace node with corresponding code • Emit code in bottom-up order

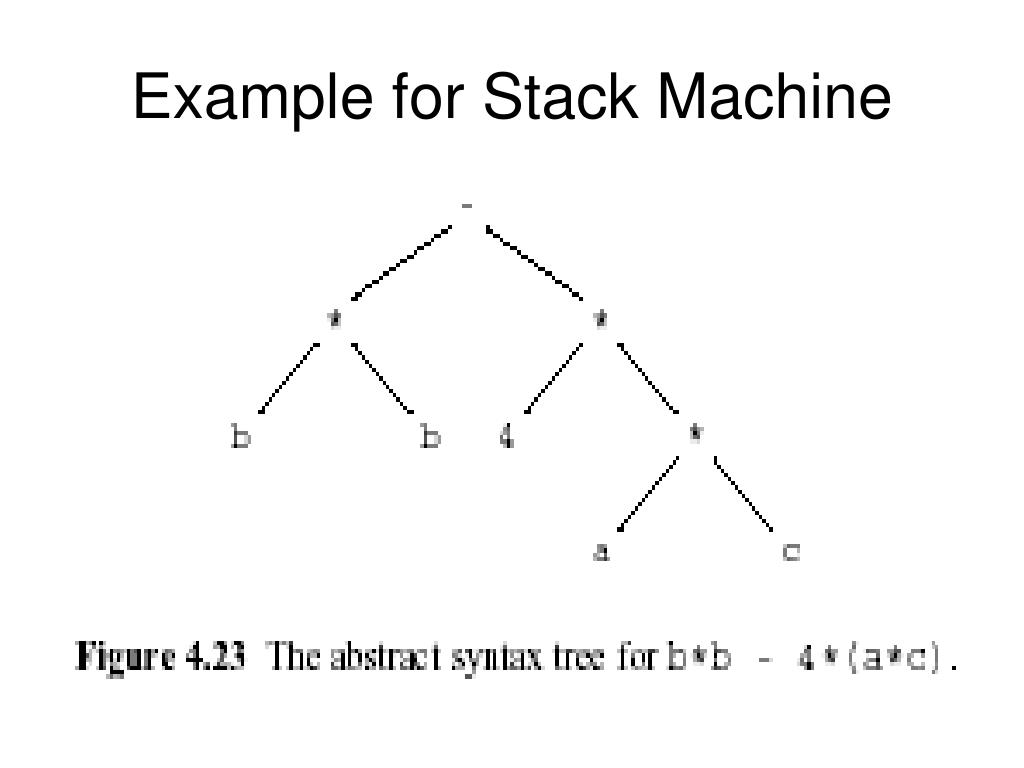

  18. Example for Stack Machine

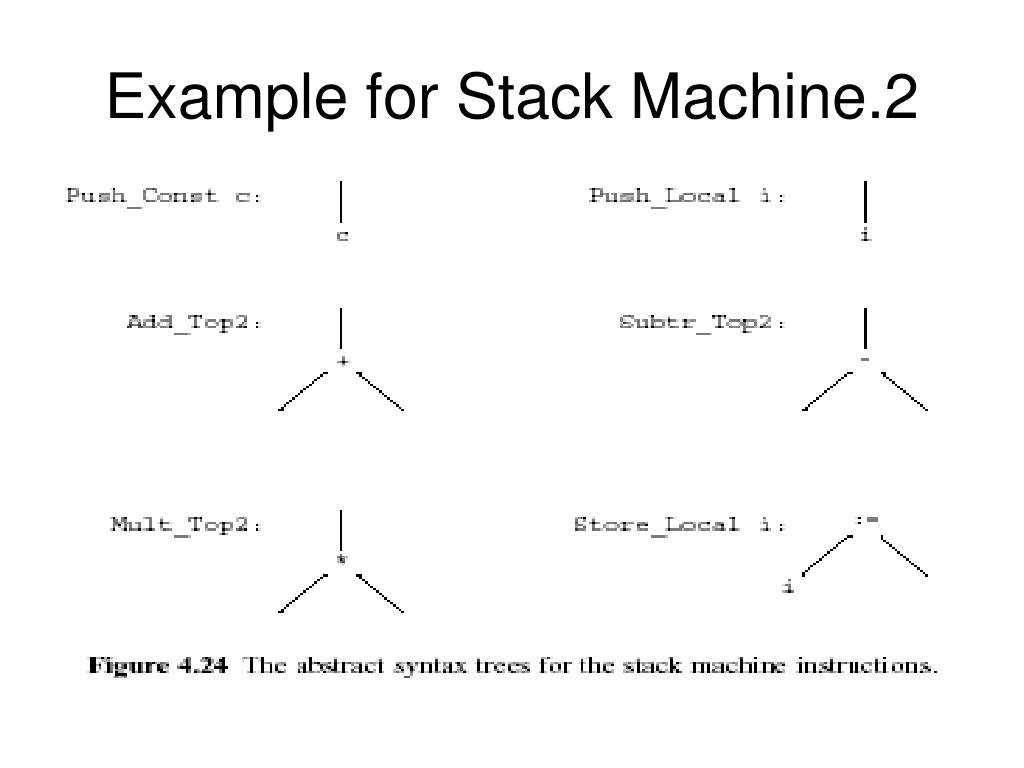

  19. Example for Stack Machine.2

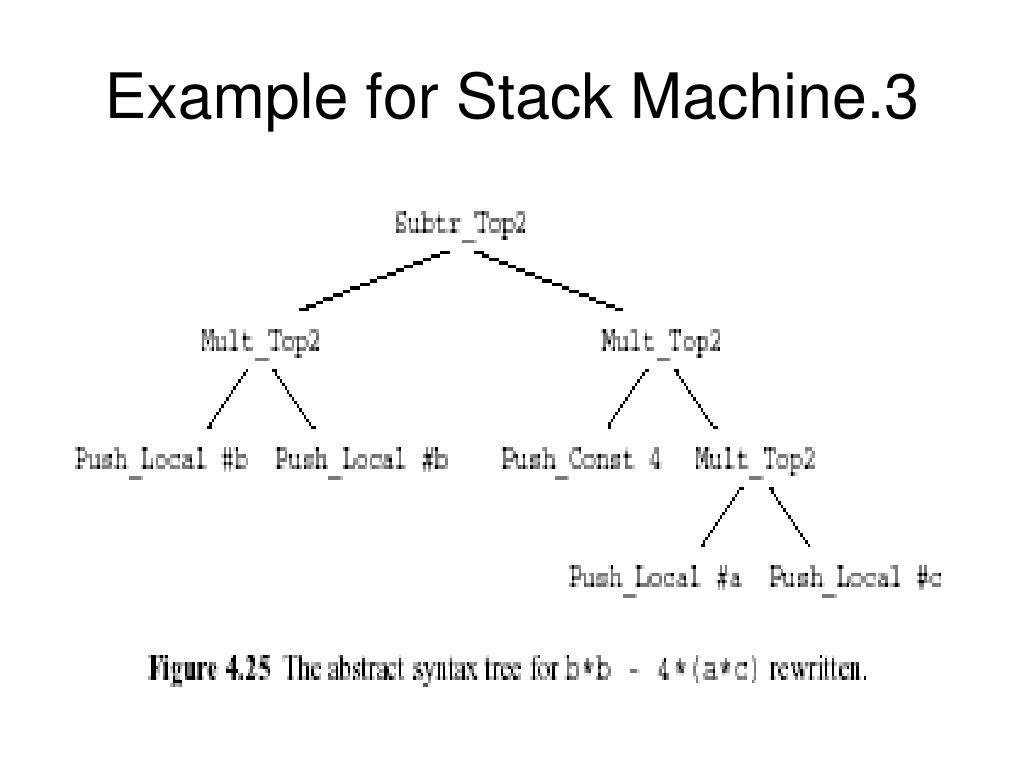

  20. Example for Stack Machine.3

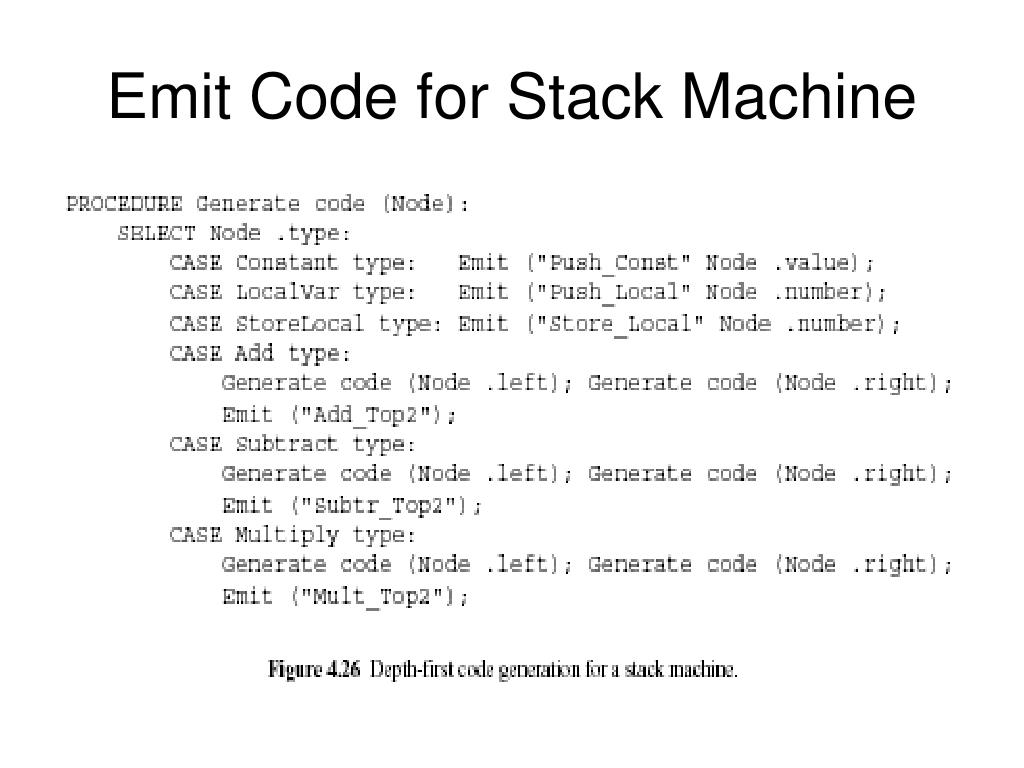

  21. Emit Code for Stack Machine

  22. Emitted Stack Machine Code Push_Local #b Push_Local #b Mult_Top2 Push_Cosnt 4 Push_Local #a Push_Local #c Mult_Top2 Mult_Top2 Subtr_Top2

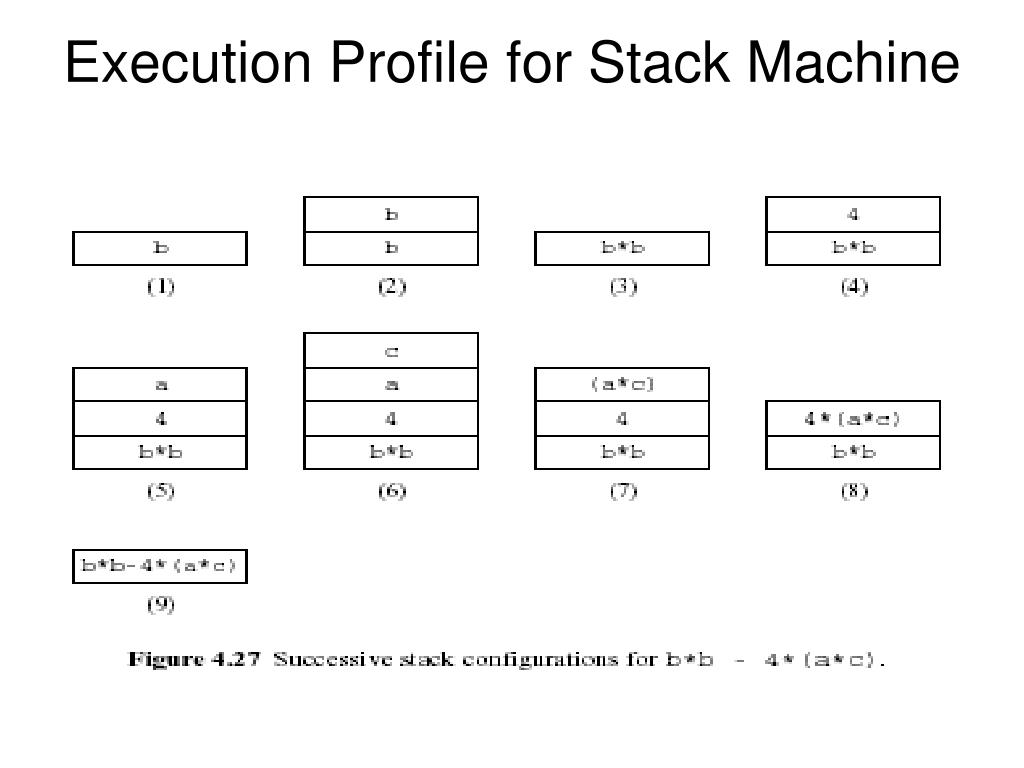

  23. Execution Profile for Stack Machine

  24. Simple Code GenerationRegister Machine • Need to assign computational values to registers • Normally start with unlimited number of registers in intermediate code and then handle actual limitations • Follow machine architecture for one or both operands in registers • May specify target register for result or not

  25. Register Code for AST Nodes

  26. Register Code Generationwith Register Numbering

  27. Generated Register Code

  28. Register Code Generation • When the number of registers is limited and more are needed than are available • Spill values from registers to memory • See example with 2 registers on next slide
