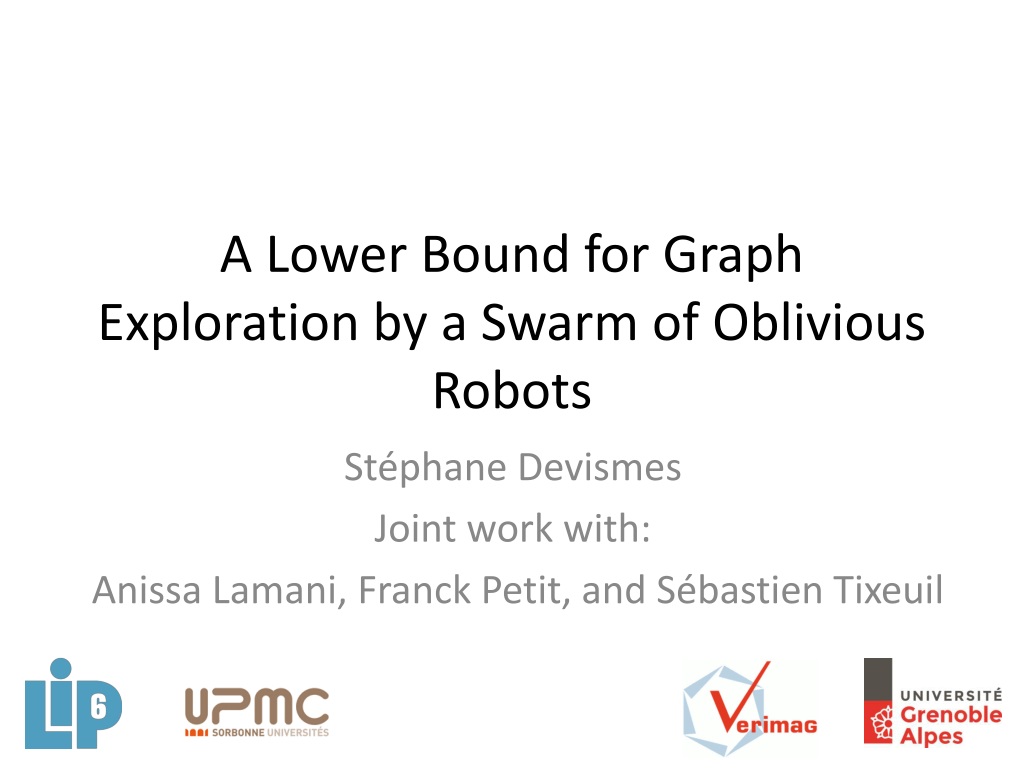

  1. A Lower Bound for Graph Exploration by a Swarm of Oblivious Robots Stéphane Devismes Joint work with: Anissa Lamani, Franck Petit, and Sébastien Tixeuil

  2. Roadmap • Models and Exploration problems • The lower bound • Application: lower bound for the ring case • Proof of the result • Optimal algorithm for the ring case GRASTA 2018, Berlin 2

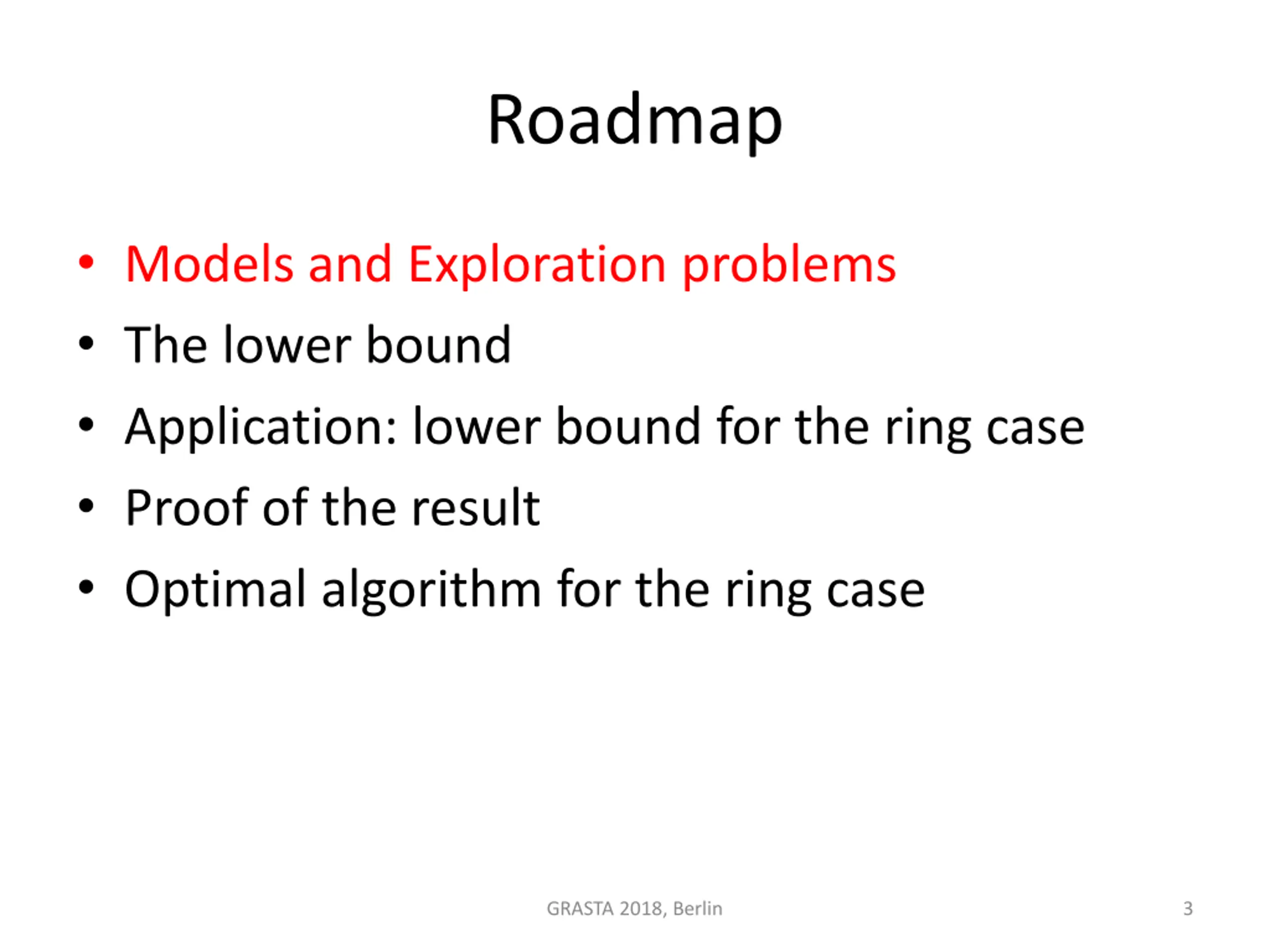

  3. Roadmap • Models and Exploration problems • The lower bound • Application: lower bound for the ring case • Proof of the result • Optimal algorithm for the ring case GRASTA 2018, Berlin 3

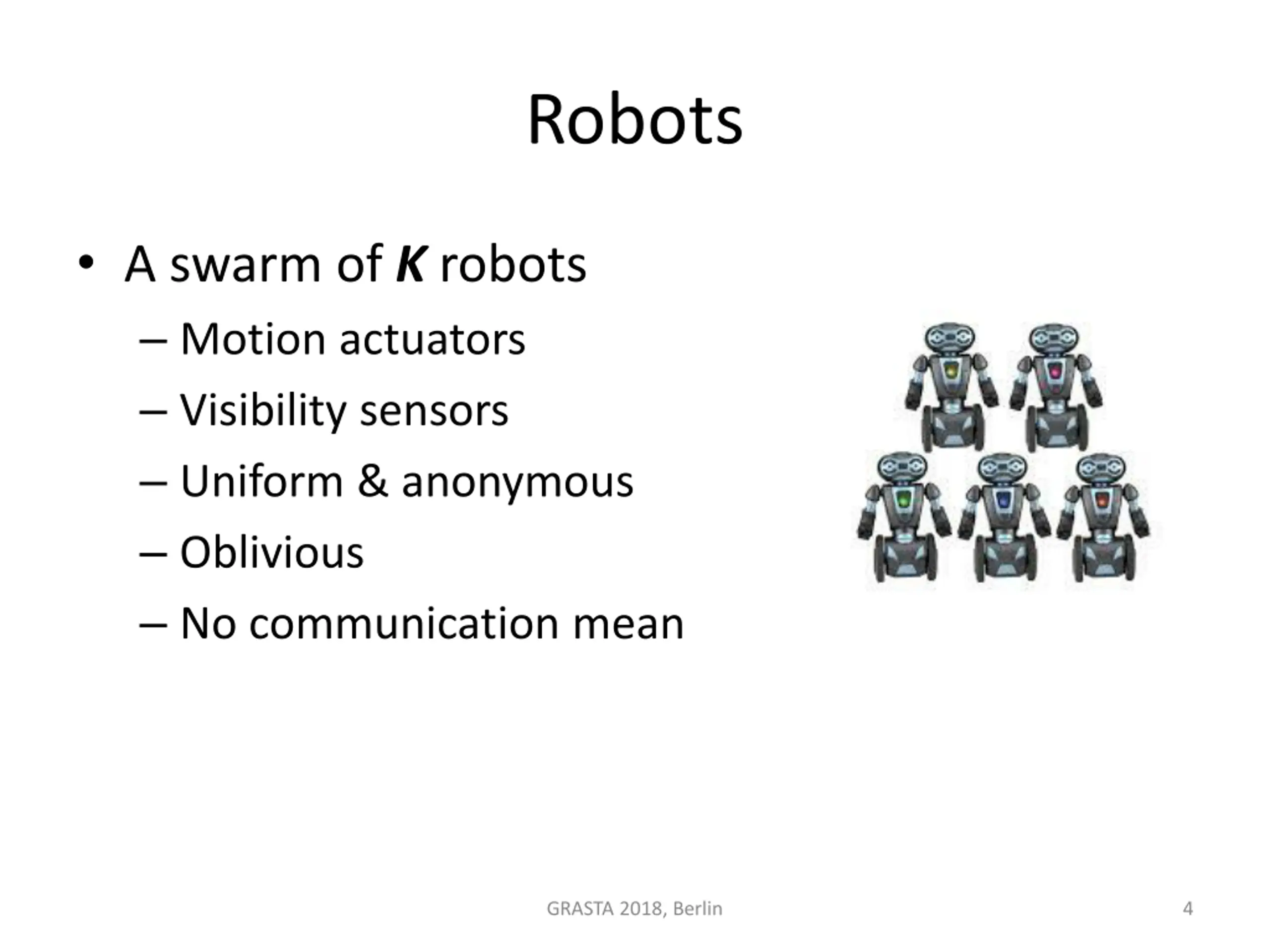

  4. Robots • A swarm of K robots – Motion actuators – Visibility sensors – Uniform & anonymous – Oblivious – No communication mean GRASTA 2018, Berlin 4

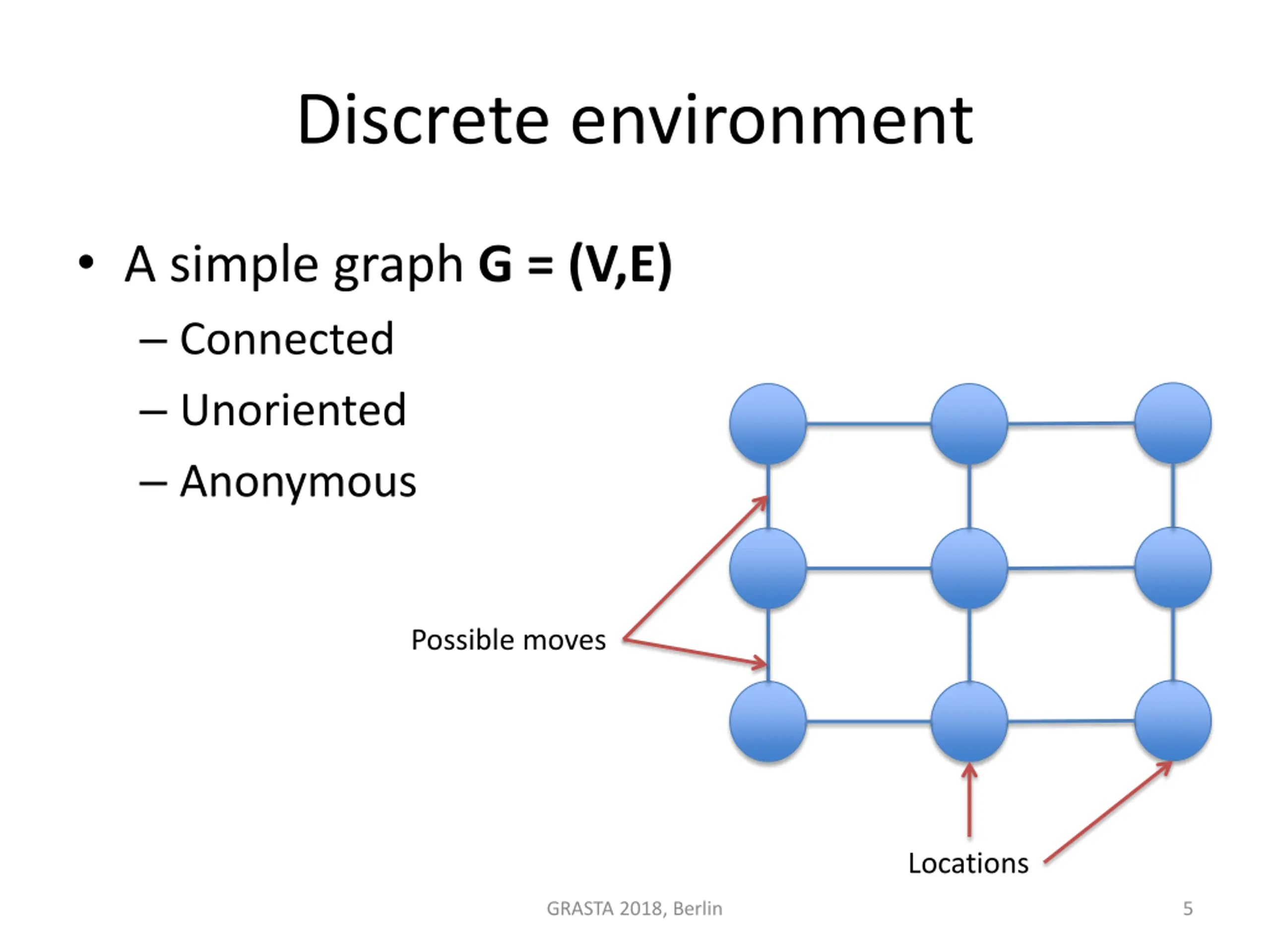

  5. Discrete environment • A simple graph G = (V,E) – Connected – Unoriented – Anonymous Possible moves Locations GRASTA 2018, Berlin 5

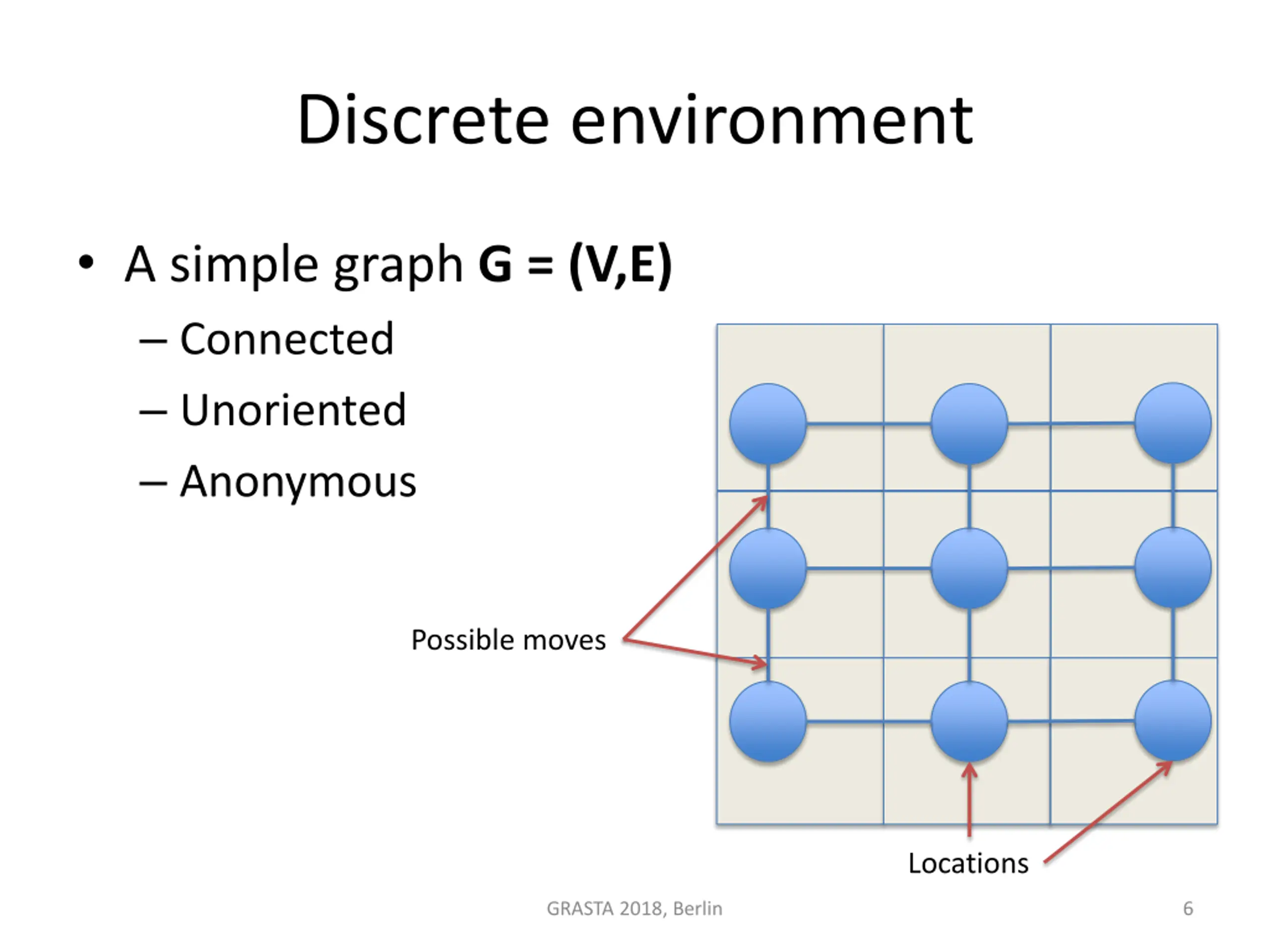

  6. Discrete environment • A simple graph G = (V,E) – Connected – Unoriented – Anonymous Possible moves Locations GRASTA 2018, Berlin 6

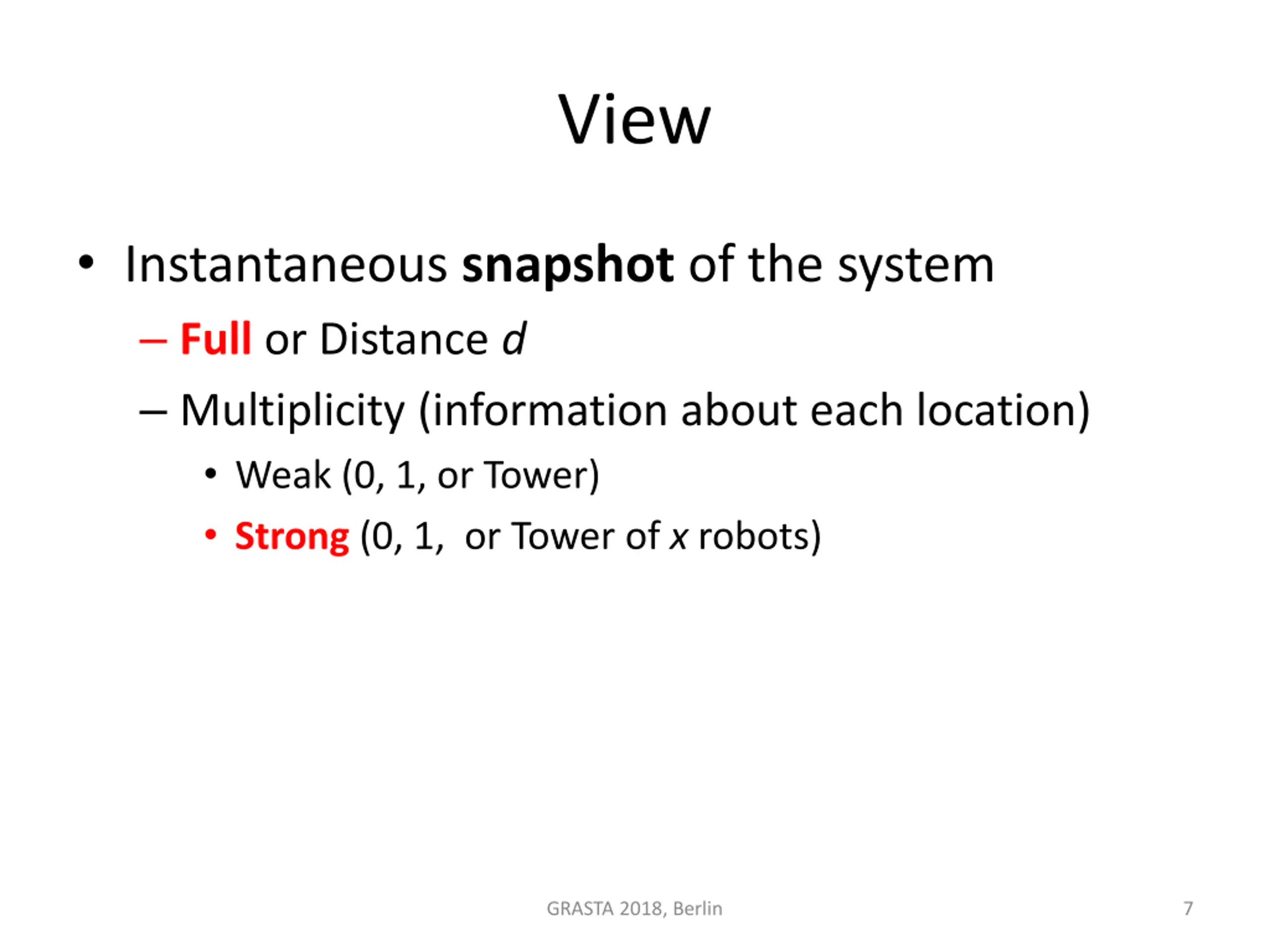

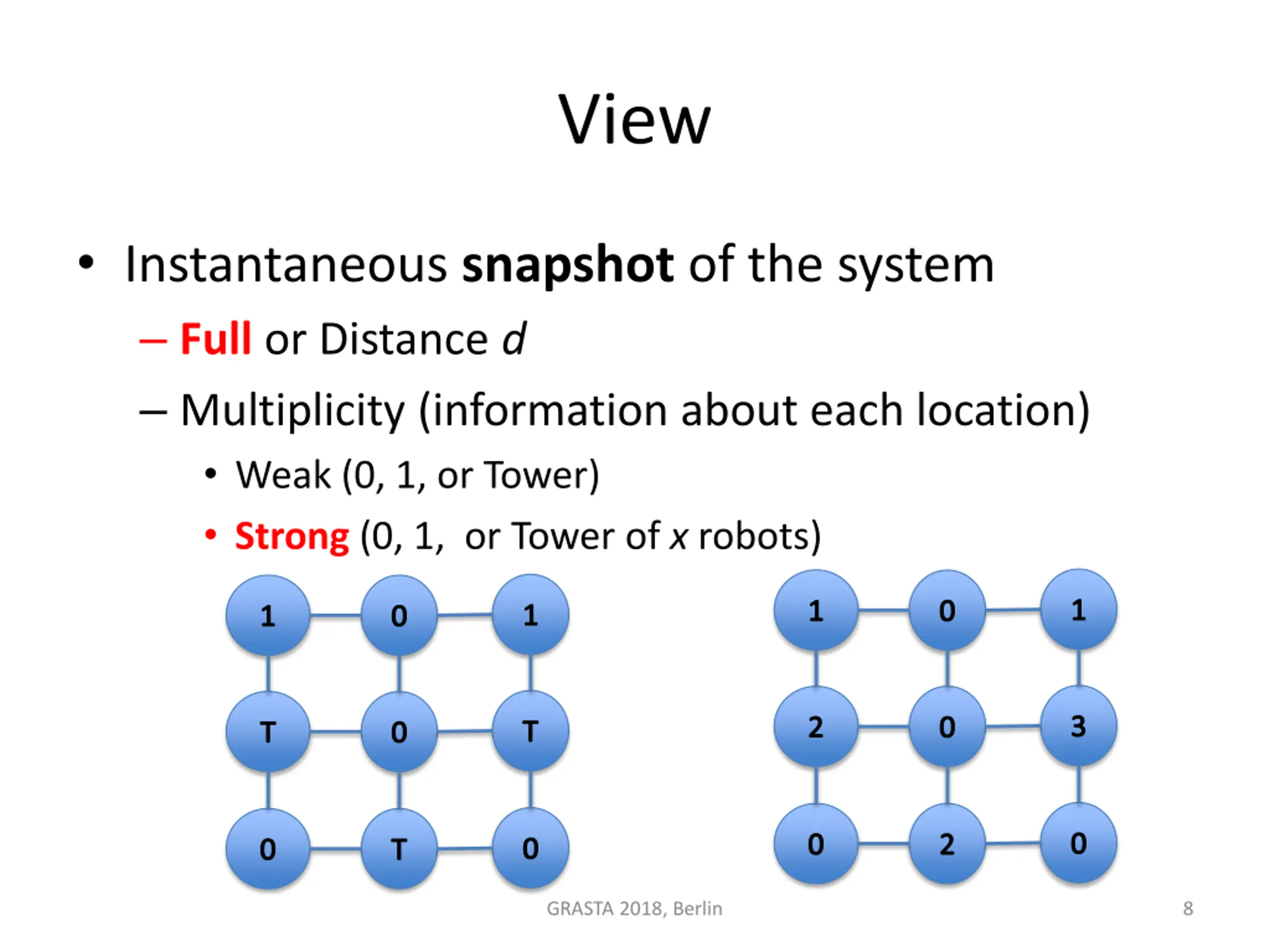

  7. View • Instantaneous snapshot of the system – Full or Distance d – Multiplicity (information about each location) • Weak (0, 1, or Tower) • Strong (0, 1, or Tower of x robots) GRASTA 2018, Berlin 7

  8. View • Instantaneous snapshot of the system – Full or Distance d – Multiplicity (information about each location) • Weak (0, 1, or Tower) • Strong (0, 1, or Tower of x robots) GRASTA 2018, Berlin 8

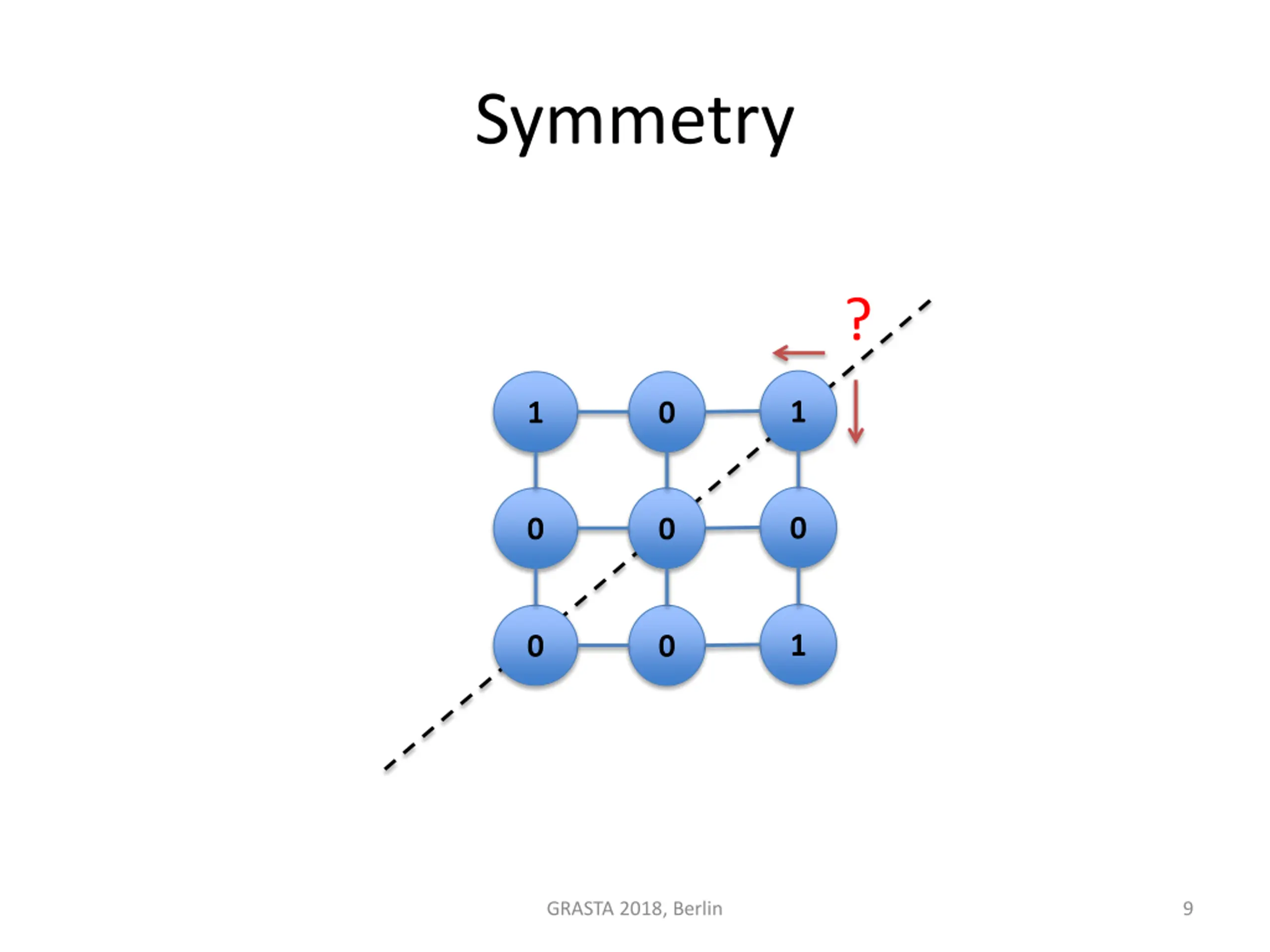

  9. Symmetry ? GRASTA 2018, Berlin 9

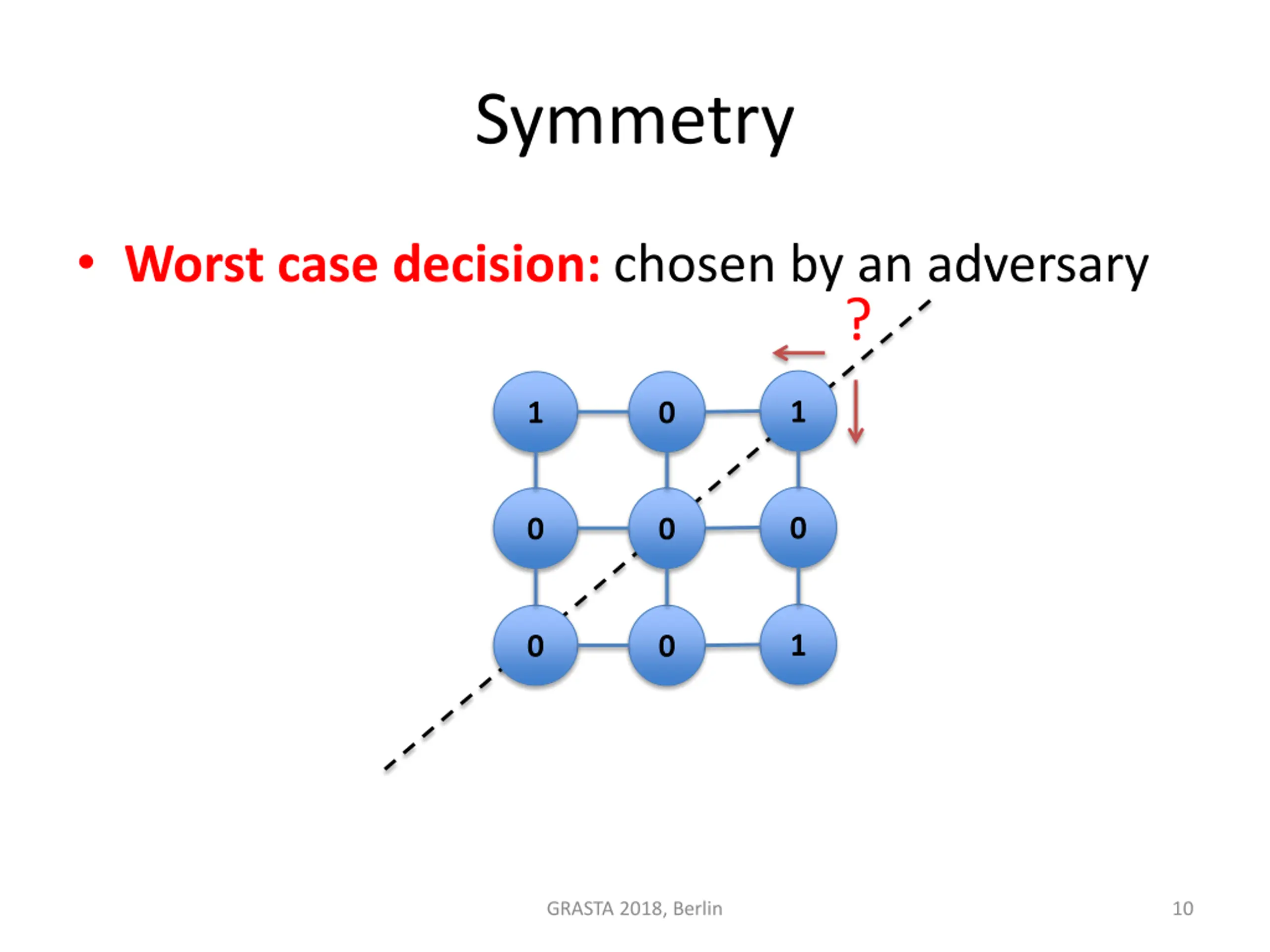

  10. Symmetry • Worst case decision: chosen by an adversary ? GRASTA 2018, Berlin 10

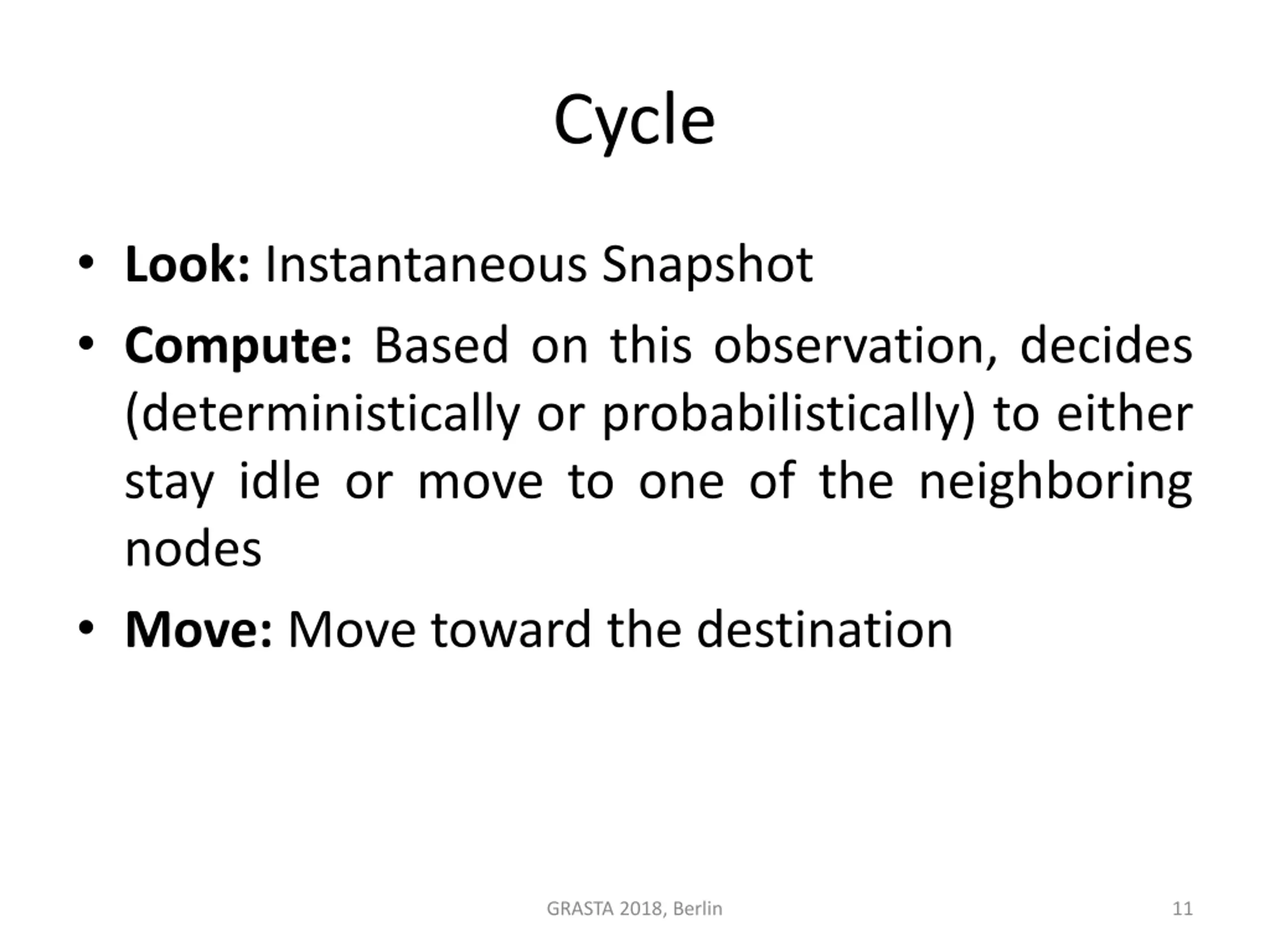

  11. Cycle • Look: Instantaneous Snapshot • Compute: Based on this observation, decides (deterministically or probabilistically) to either stay idle or move to one of the neighboring nodes • Move: Move toward the destination GRASTA 2018, Berlin 11

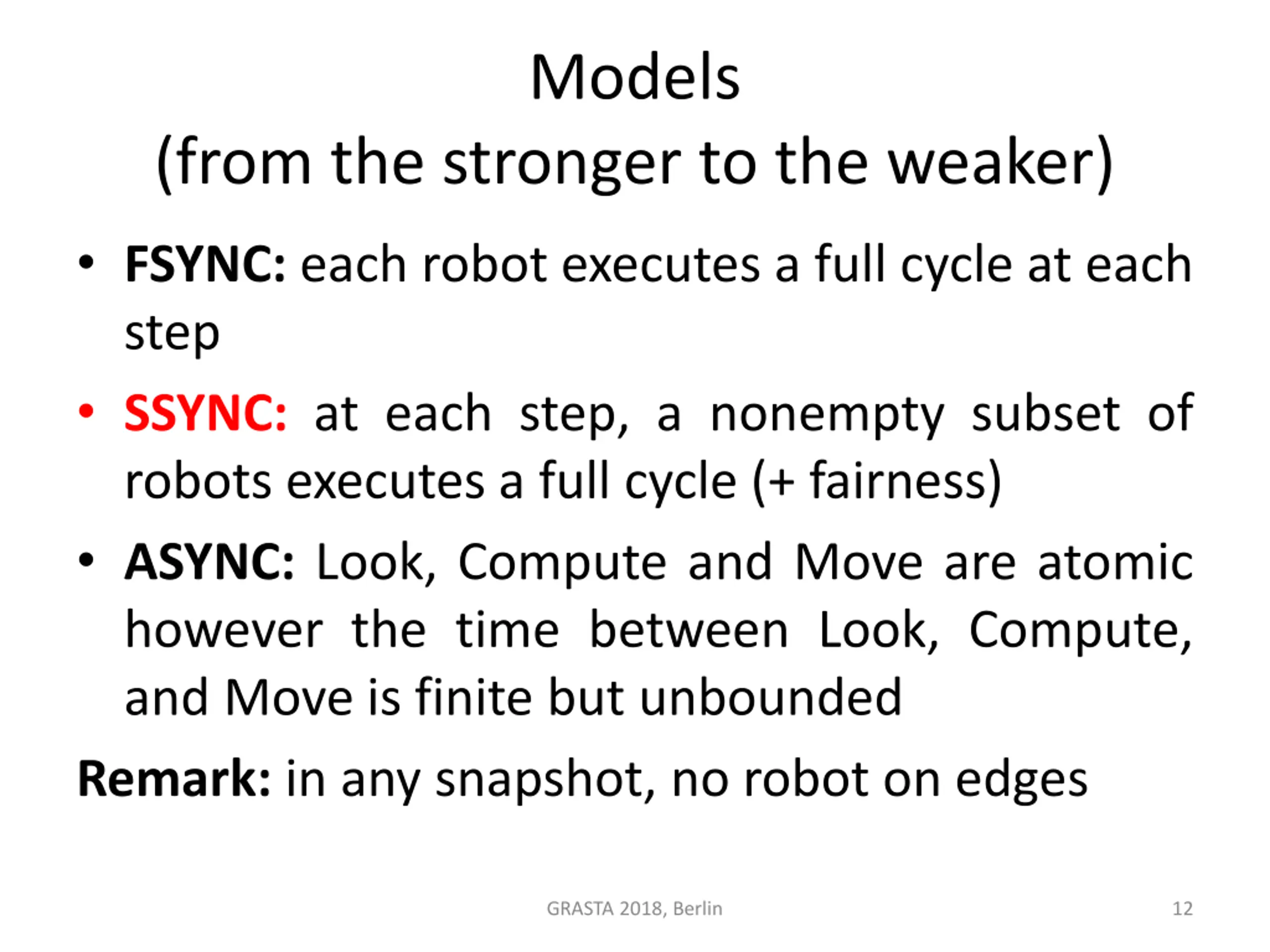

  12. Models (from the stronger to the weaker) • FSYNC: each robot executes a full cycle at each step • SSYNC: at each step, a nonempty subset of robots executes a full cycle (+ fairness) • ASYNC: Look, Compute and Move are atomic however the time between Look, Compute, and Move is finite but unbounded Remark: in any snapshot, no robot on edges GRASTA 2018, Berlin 12

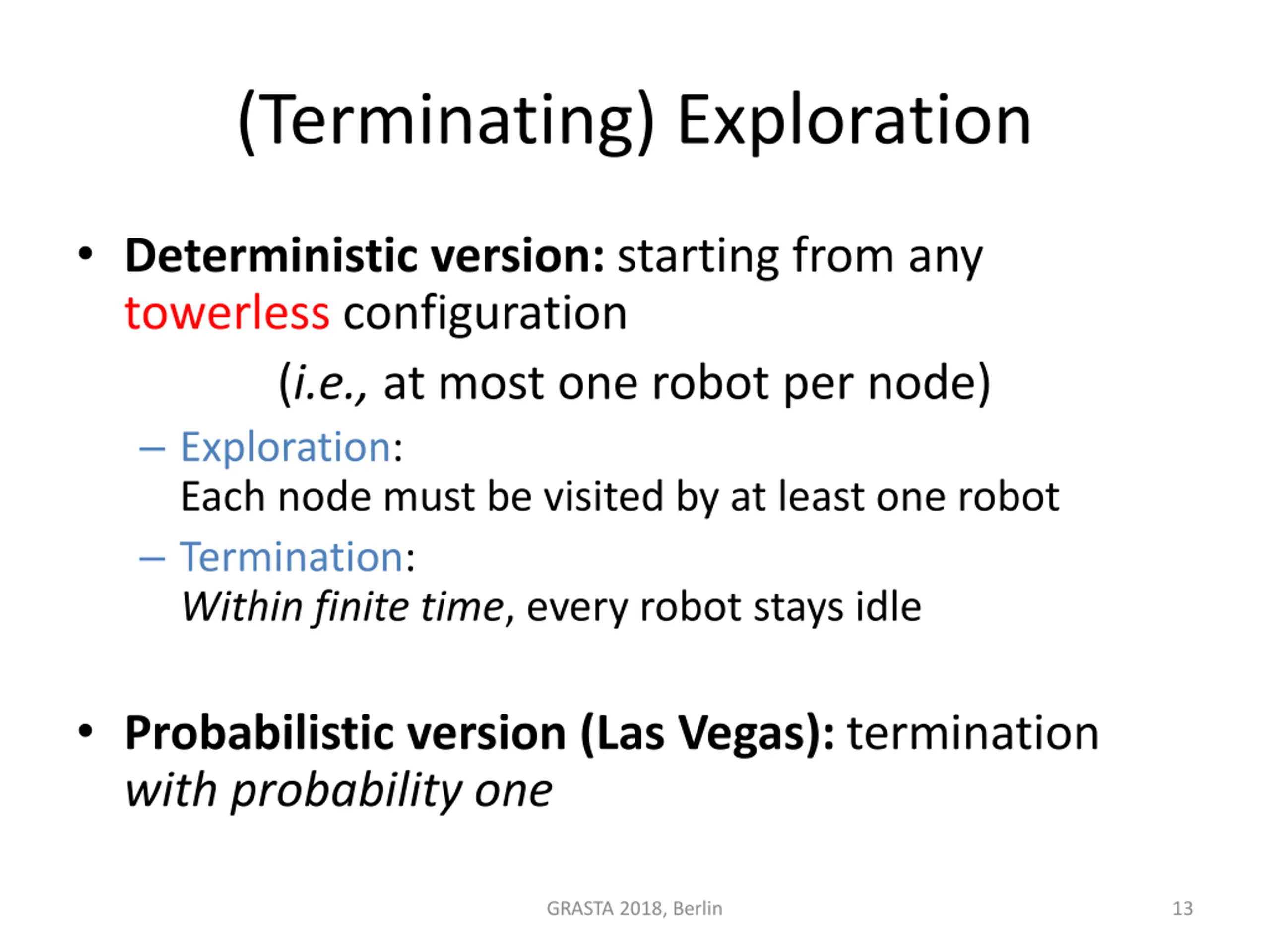

  13. (Terminating) Exploration • Deterministic version: starting from any towerless configuration (i.e., at most one robot per node) – Exploration: Each node must be visited by at least one robot – Termination: Within finite time, every robot stays idle • Probabilistic version (Las Vegas): termination with probability one GRASTA 2018, Berlin 13

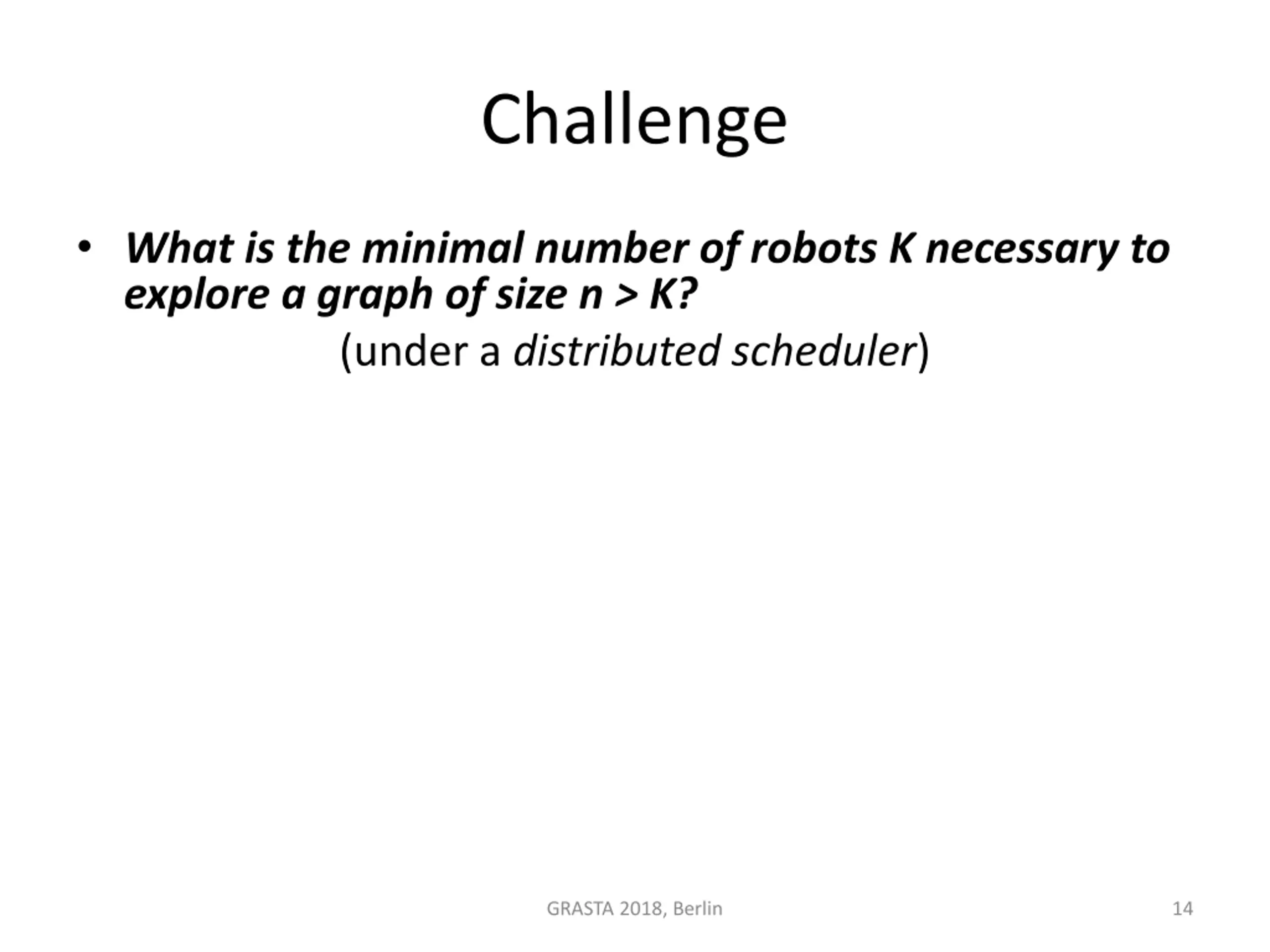

  14. Challenge • What is the minimal number of robots K necessary to explore a graph of size n > K? (under a distributed scheduler) GRASTA 2018, Berlin 14

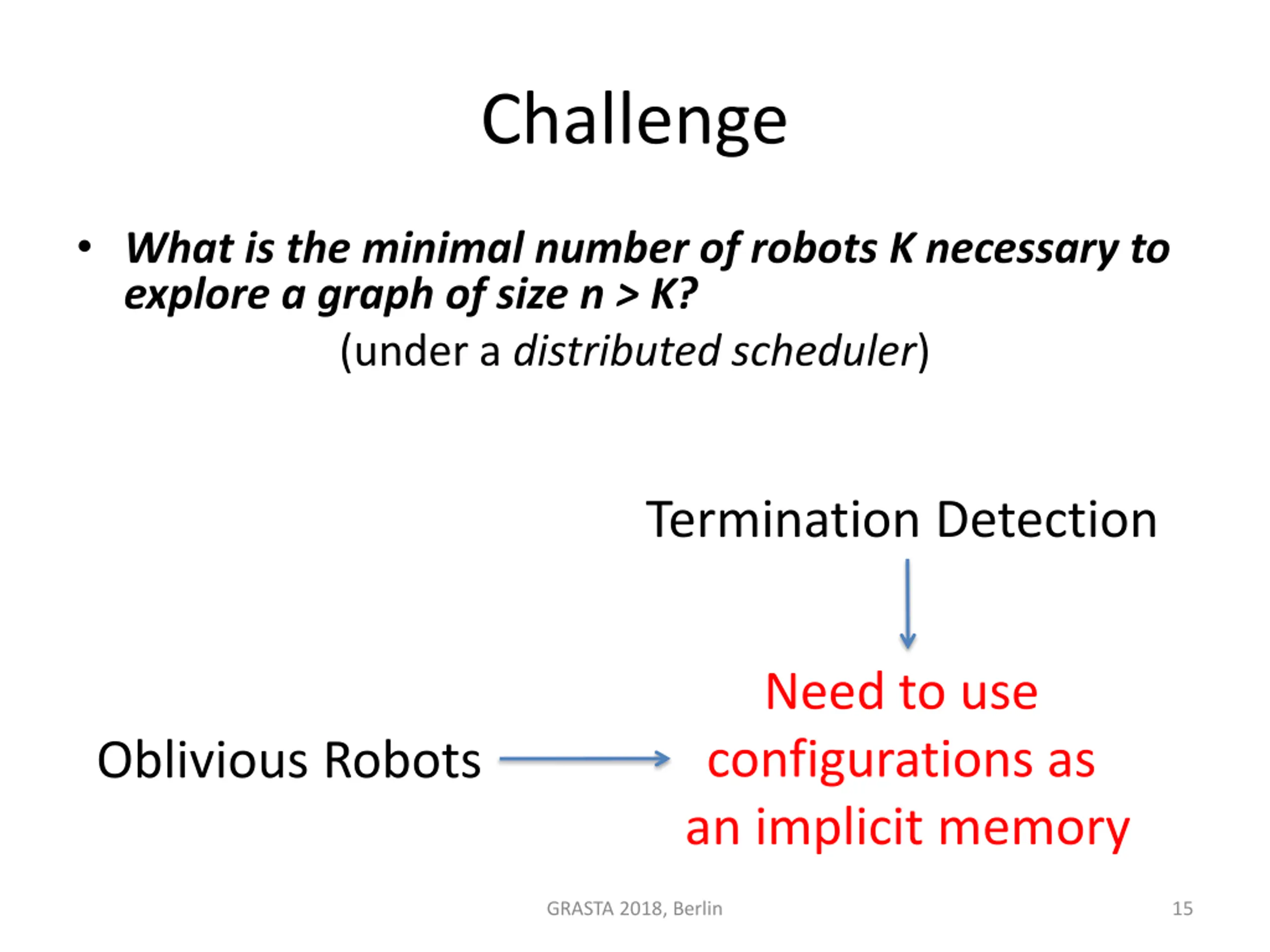

  15. Challenge • What is the minimal number of robots K necessary to explore a graph of size n > K? (under a distributed scheduler) Termination Detection Need to use configurations as an implicit memory Oblivious Robots GRASTA 2018, Berlin 15

  16. Roadmap • Models and Exploration problems • The lower bound • Application: lower bound for the ring case • Proof of the result • Optimal algorithm for the ring case GRASTA 2018, Berlin 16

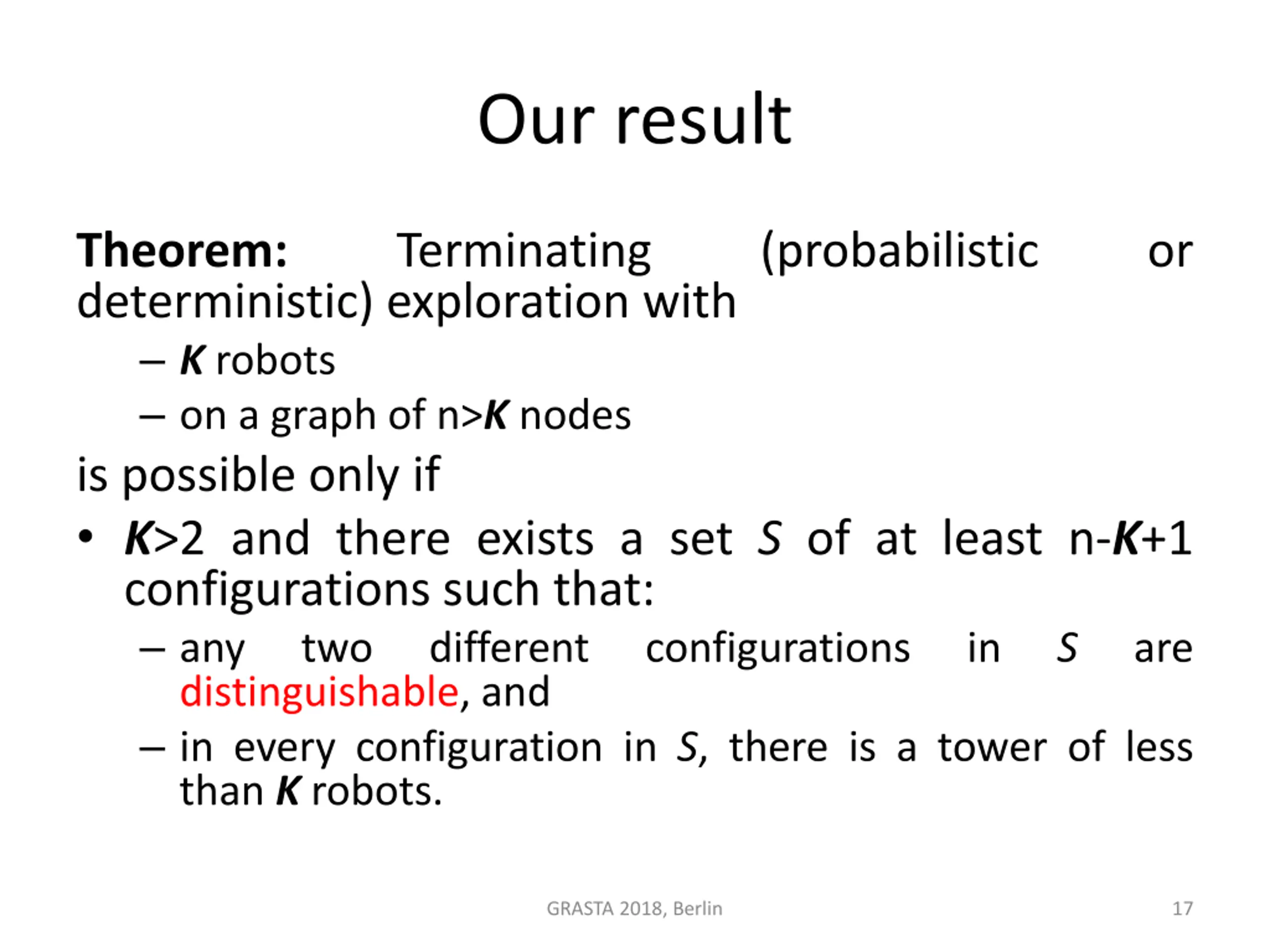

  17. Our result Theorem: deterministic) exploration with – K robots – on a graph of n>K nodes is possible only if • K>2 and there exists a set S of at least n-K+1 configurations such that: – any two different distinguishable, and – in every configuration in S, there is a tower of less than K robots. Terminating (probabilistic or configurations in S are GRASTA 2018, Berlin 17

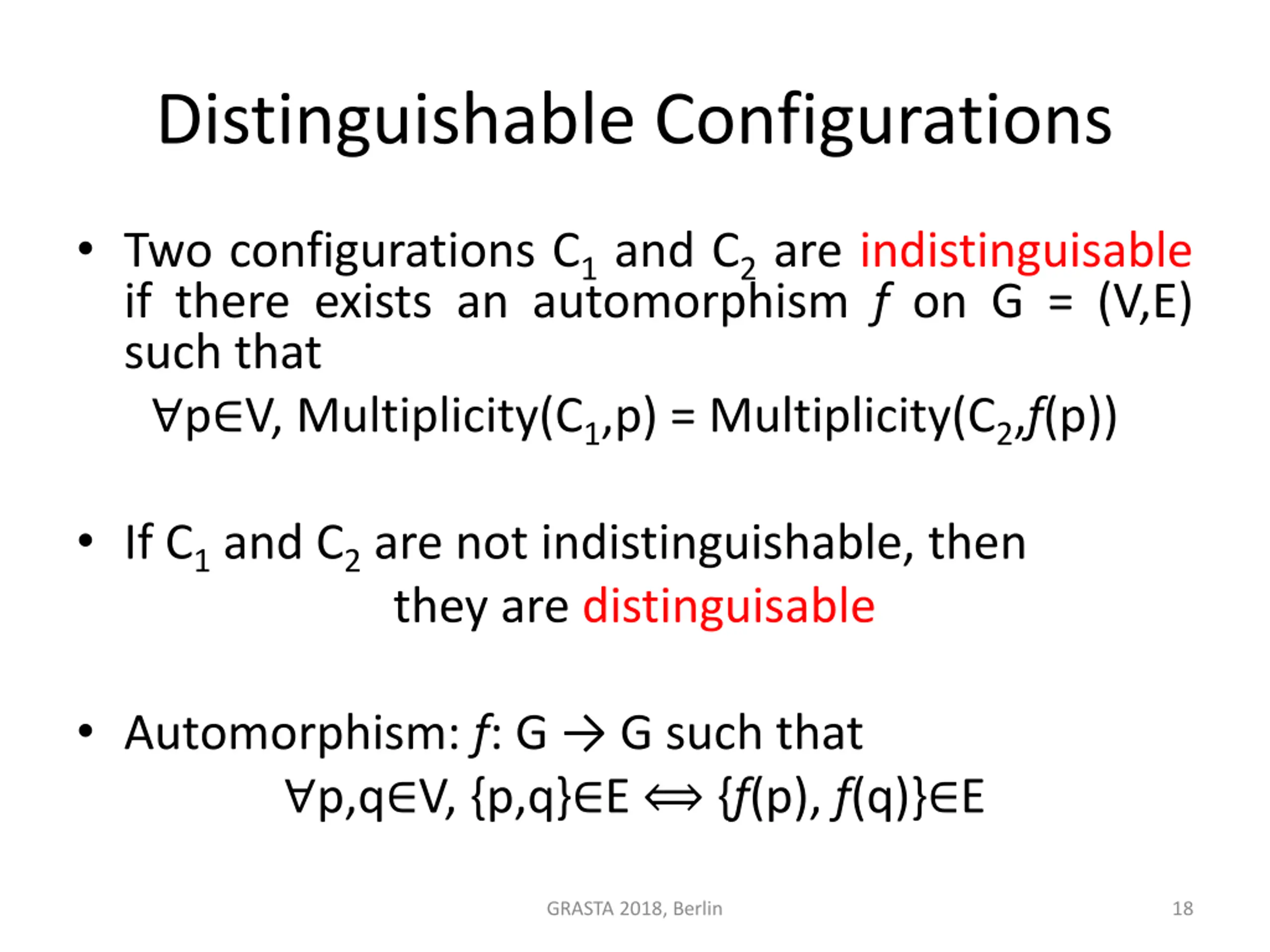

  18. Distinguishable Configurations • Two configurations C1and C2are indistinguisable if there exists an automorphism f on G = (V,E) such that ∀p∈V, Multiplicity(C1,p) = Multiplicity(C2,f(p)) • If C1and C2are not indistinguishable, then they are distinguisable • Automorphism: f: G → G such that ∀p,q∈V, {p,q}∈E ⟺ {f(p), f(q)}∈E GRASTA 2018, Berlin 18

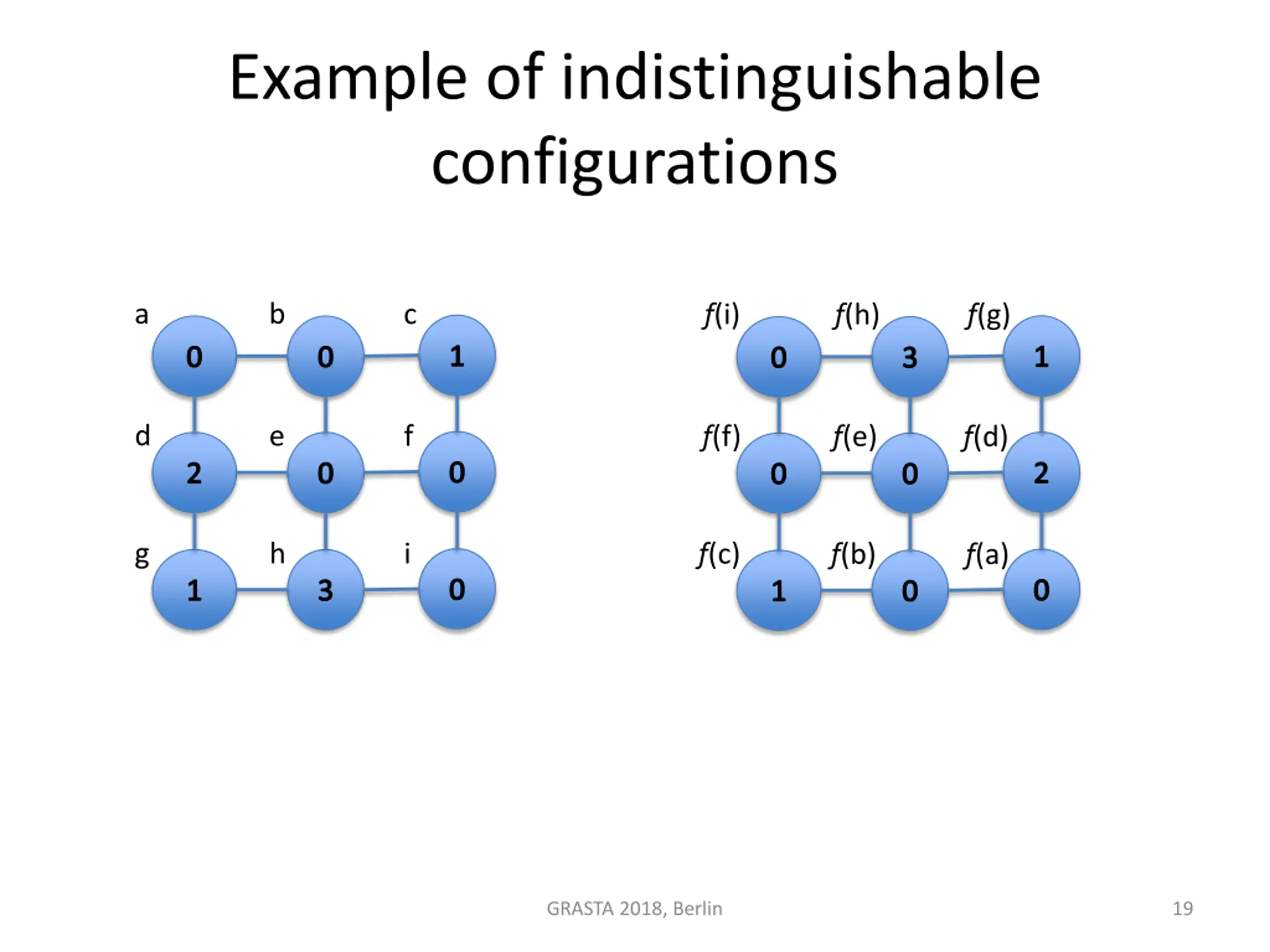

  19. Example of indistinguishable configurations a b c f(i) f(h) f(g) d e f f(f) f(e) f(d) g h i f(c) f(b) f(a) GRASTA 2018, Berlin 19

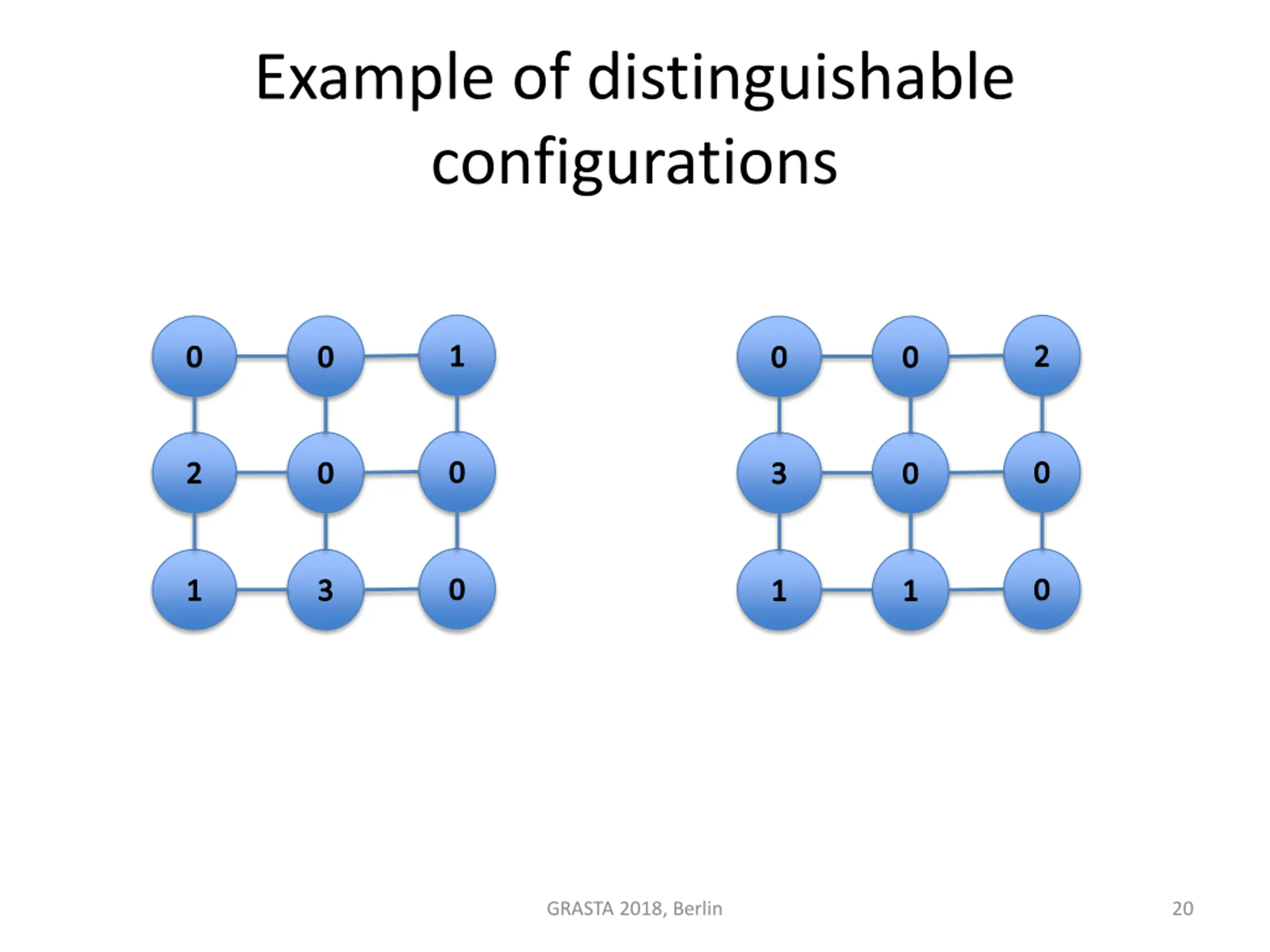

  20. Example of distinguishable configurations GRASTA 2018, Berlin 20

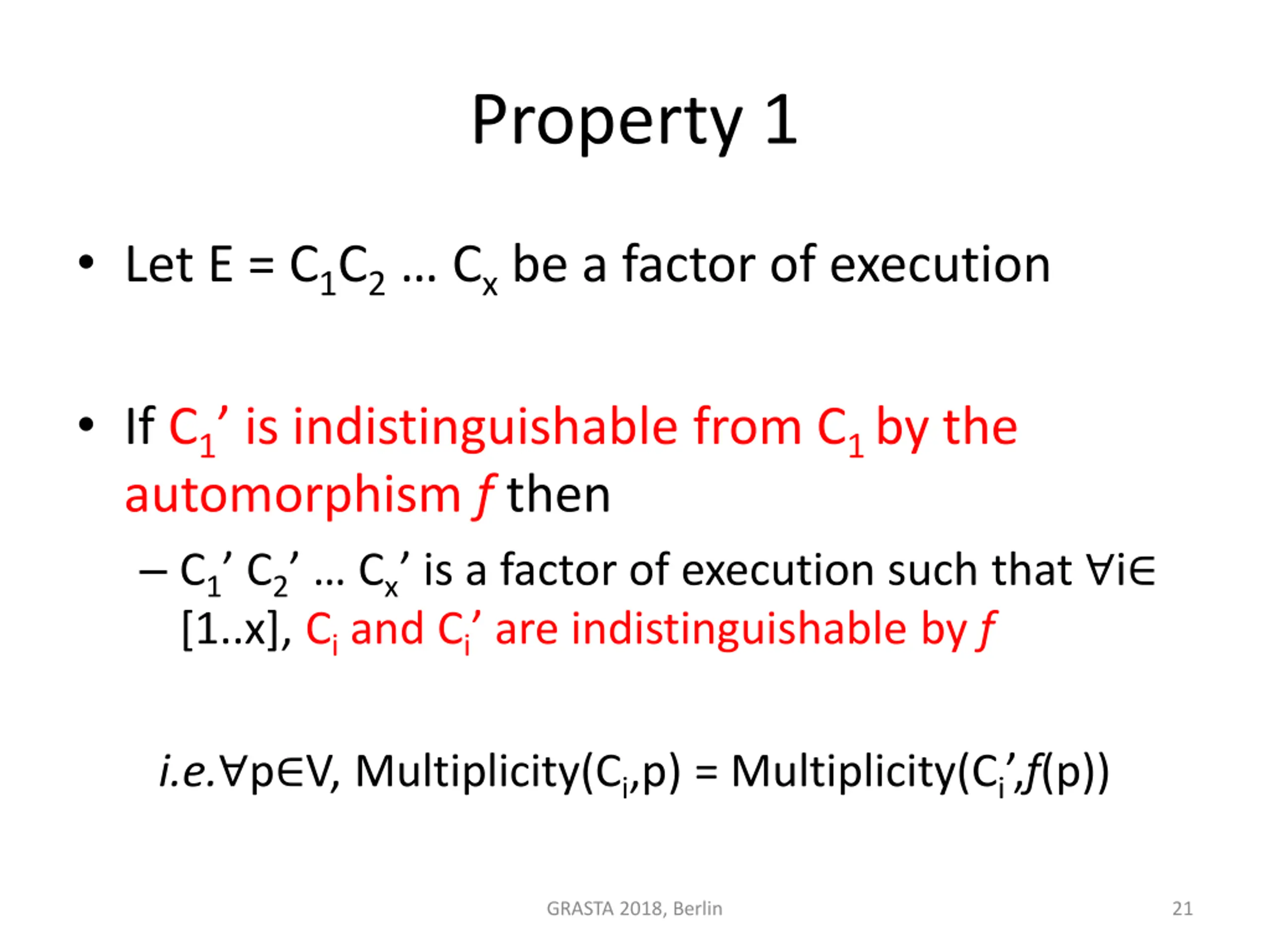

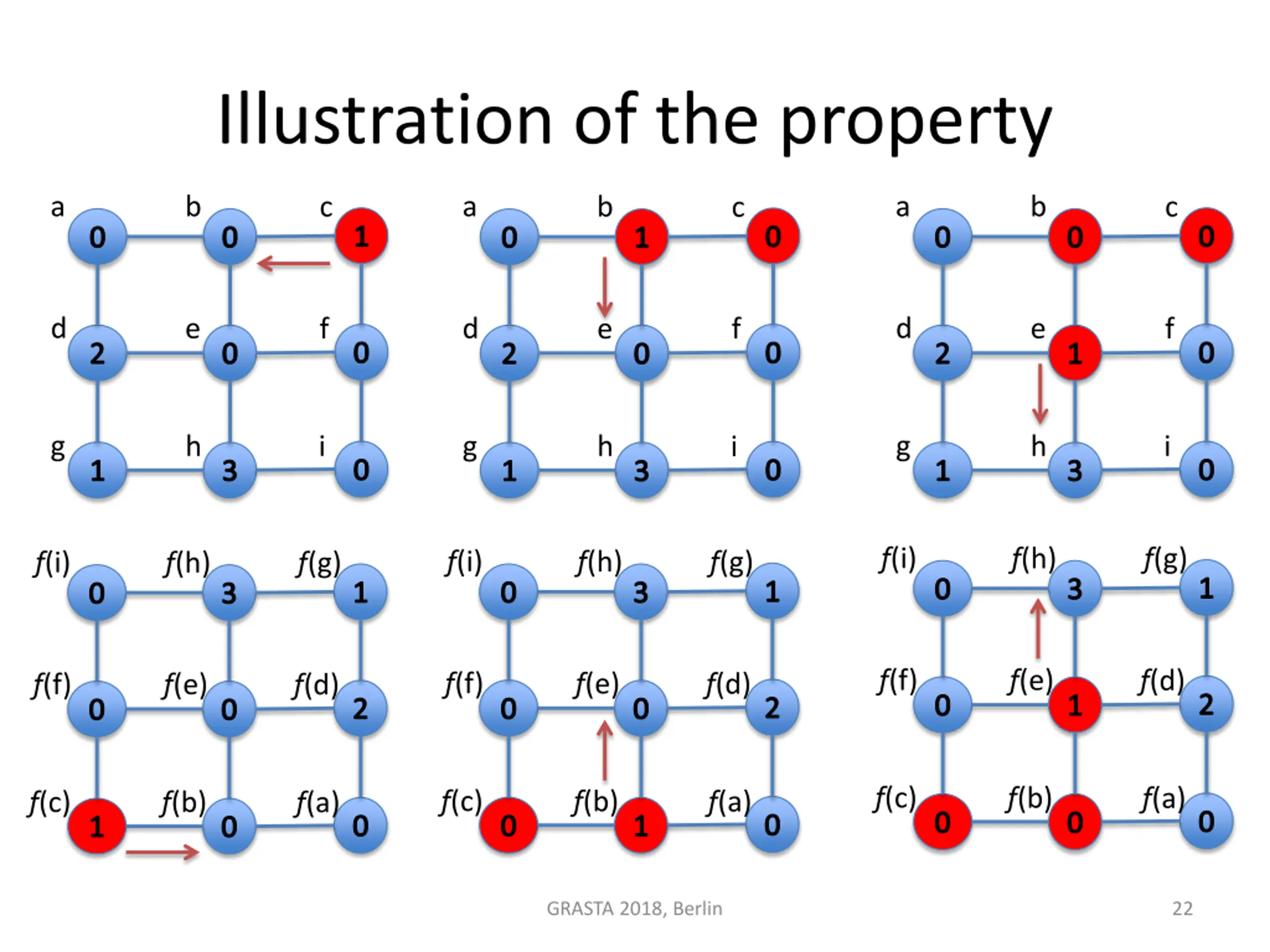

  21. Property 1 • Let E = C1C2… Cxbe a factor of execution • If C1’ is indistinguishable from C1 by the automorphism f then – C1’ C2’ … Cx’ is a factor of execution such that ∀i∈ [1..x], Ciand Ci’ are indistinguishable by f i.e.∀p∈V, Multiplicity(Ci,p) = Multiplicity(Ci’,f(p)) GRASTA 2018, Berlin 21

  22. Illustration of the property a a b a b c b c c d d e d e f e f f g g h g h i h i i f(i) f(h) f(g) f(i) f(h) f(g) f(i) f(h) f(g) f(f) f(e) f(d) f(f) f(e) f(d) f(f) f(e) f(d) f(c) f(b) f(a) f(c) f(b) f(a) f(c) f(b) f(a) GRASTA 2018, Berlin 22

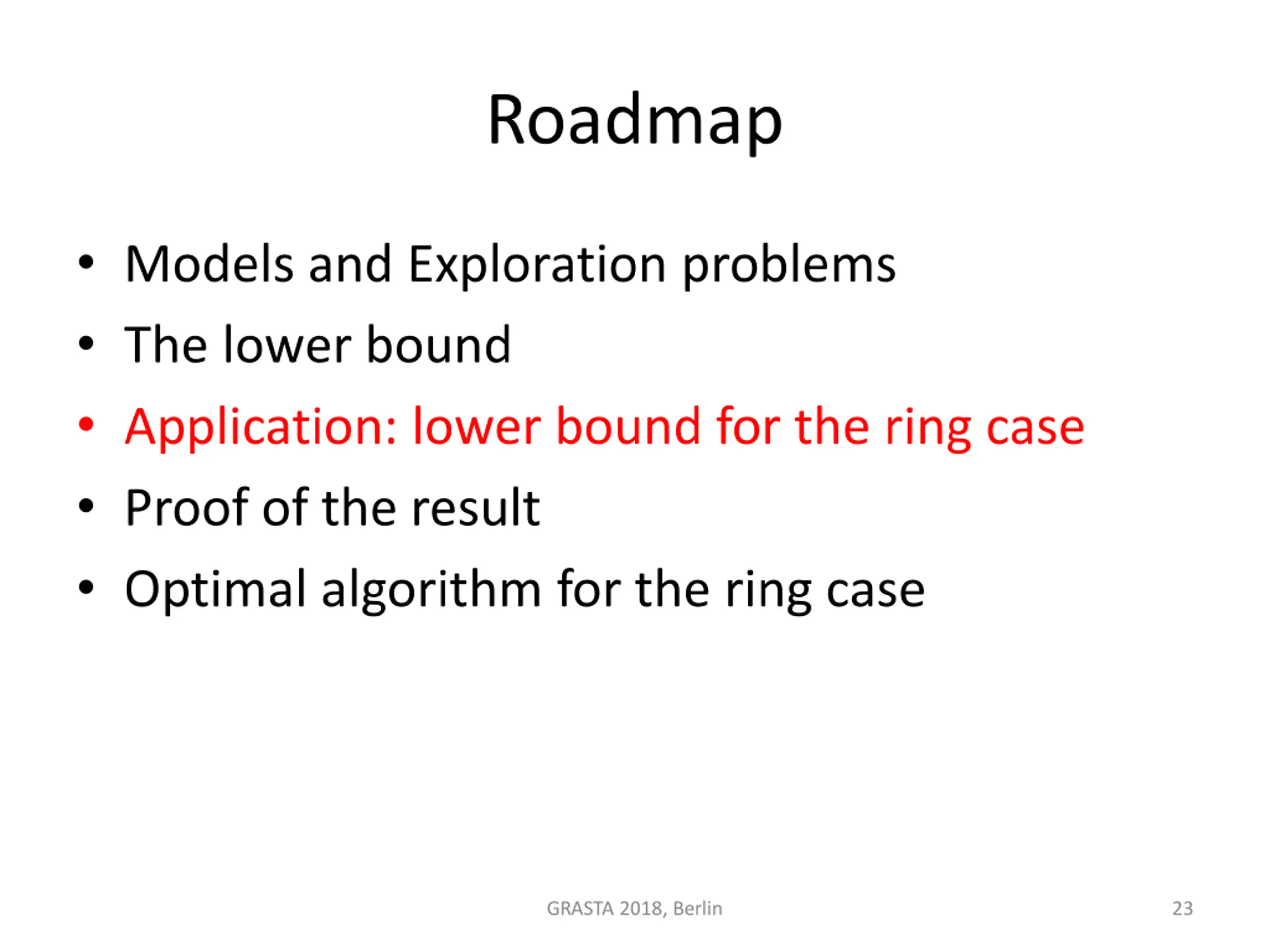

  23. Roadmap • Models and Exploration problems • The lower bound • Application: lower bound for the ring case • Proof of the result • Optimal algorithm for the ring case GRASTA 2018, Berlin 23

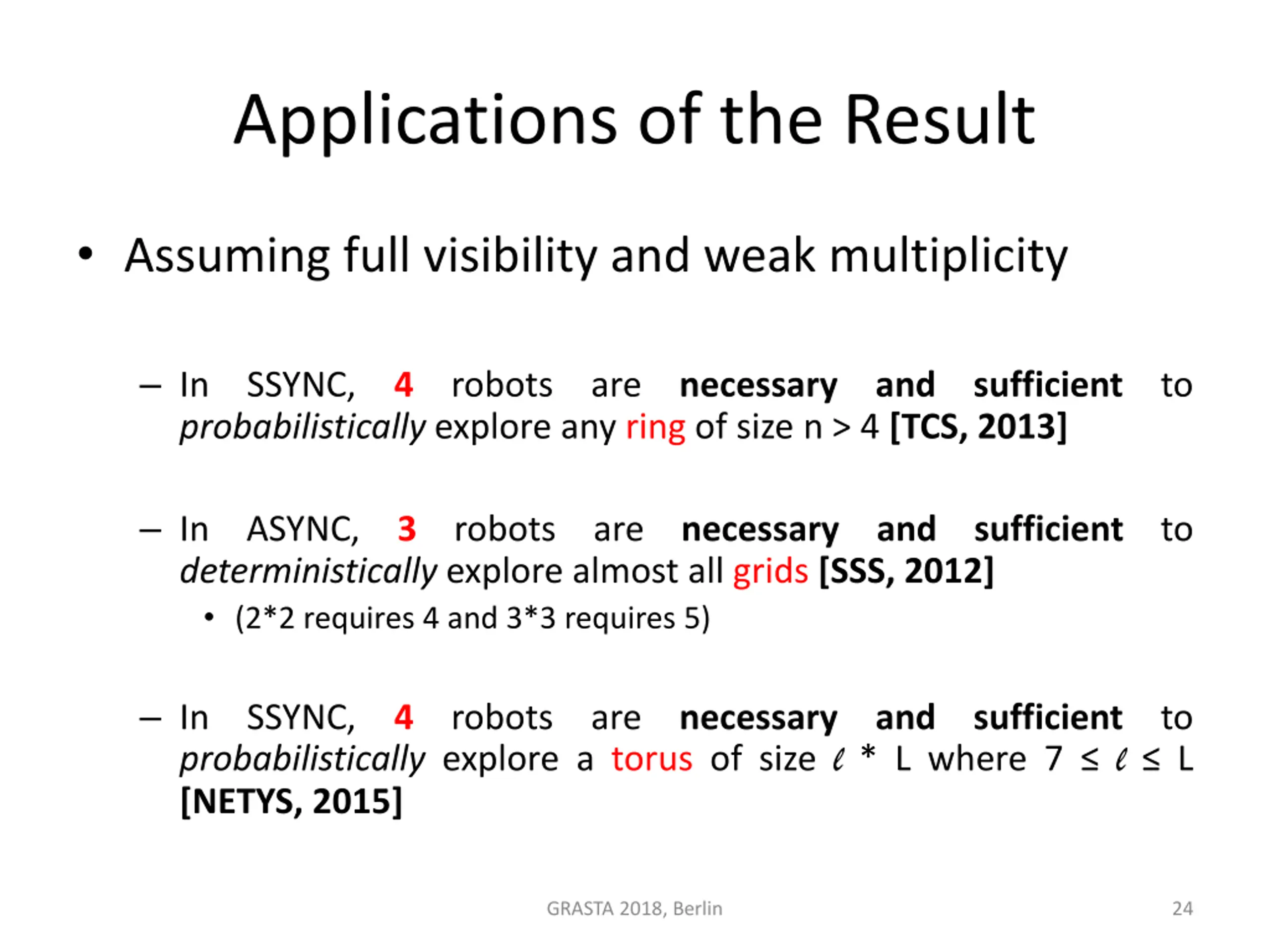

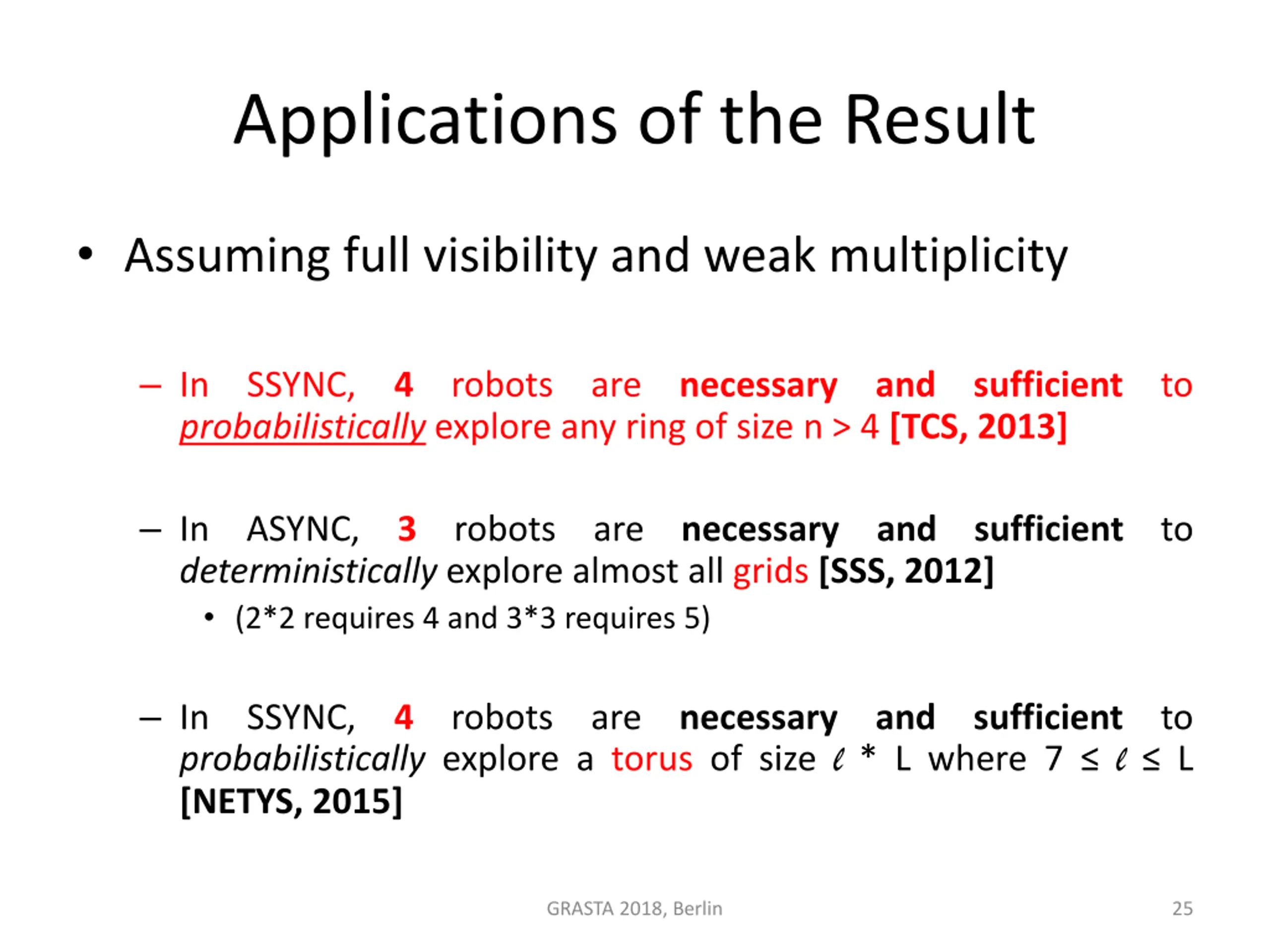

  24. Applications of the Result • Assuming full visibility and weak multiplicity – In SSYNC, 4 robots are necessary and sufficient to probabilistically explore any ring of size n > 4 [TCS, 2013] – In ASYNC, 3 robots are necessary and sufficient to deterministically explore almost all grids [SSS, 2012] • (2*2 requires 4 and 3*3 requires 5) – In SSYNC, 4 robots are necessary and sufficient to probabilistically explore a torus of size l * L where 7 ≤ l ≤ L [NETYS, 2015] GRASTA 2018, Berlin 24

  25. Applications of the Result • Assuming full visibility and weak multiplicity – In SSYNC, 4 robots are necessary and sufficient to probabilistically explore any ring of size n > 4 [TCS, 2013] – In ASYNC, 3 robots are necessary and sufficient to deterministically explore almost all grids [SSS, 2012] • (2*2 requires 4 and 3*3 requires 5) – In SSYNC, 4 robots are necessary and sufficient to probabilistically explore a torus of size l * L where 7 ≤ l ≤ L [NETYS, 2015] GRASTA 2018, Berlin 25

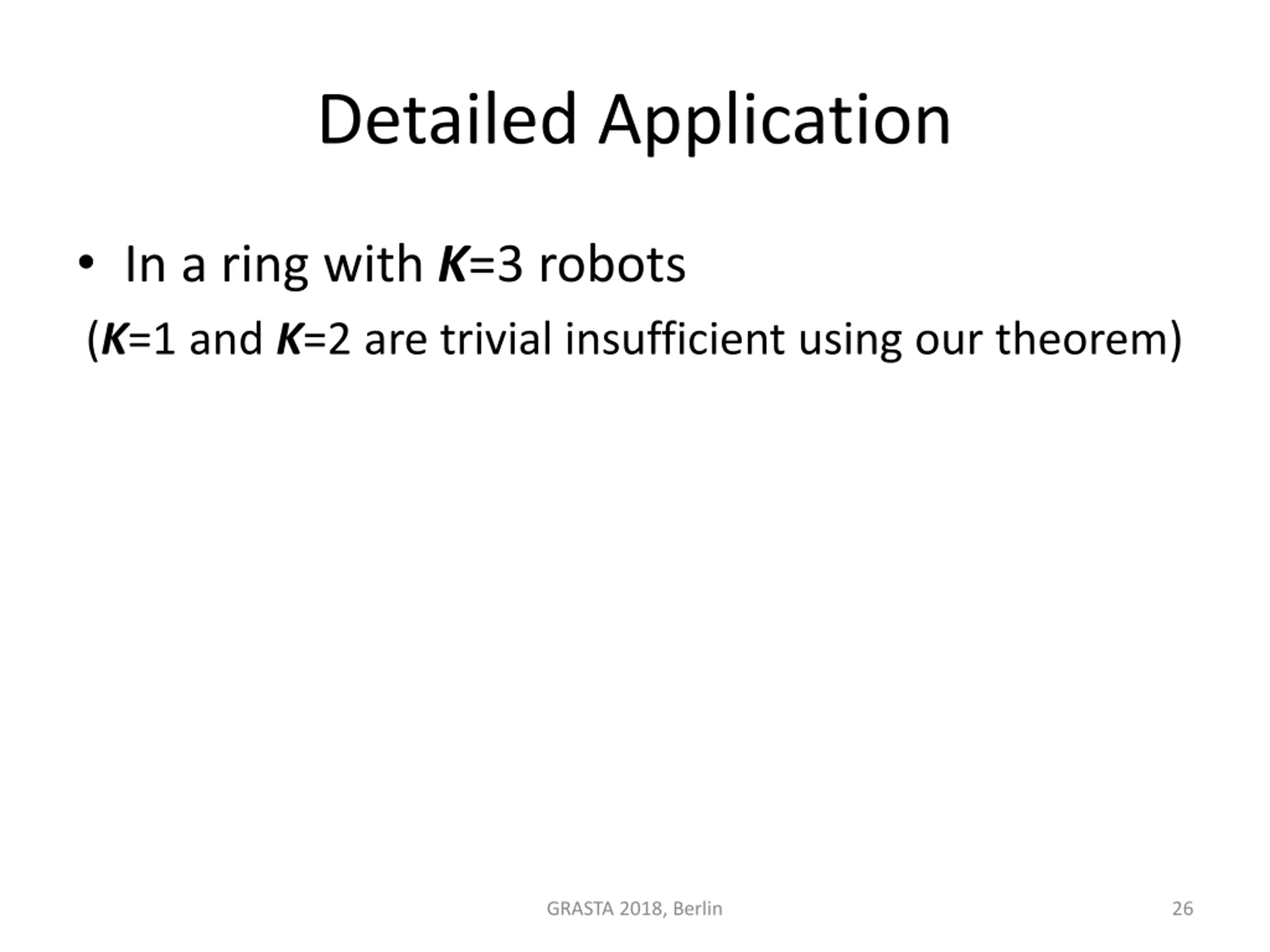

  26. Detailed Application • In a ring with K=3 robots (K=1 and K=2 are trivial insufficient using our theorem) GRASTA 2018, Berlin 26

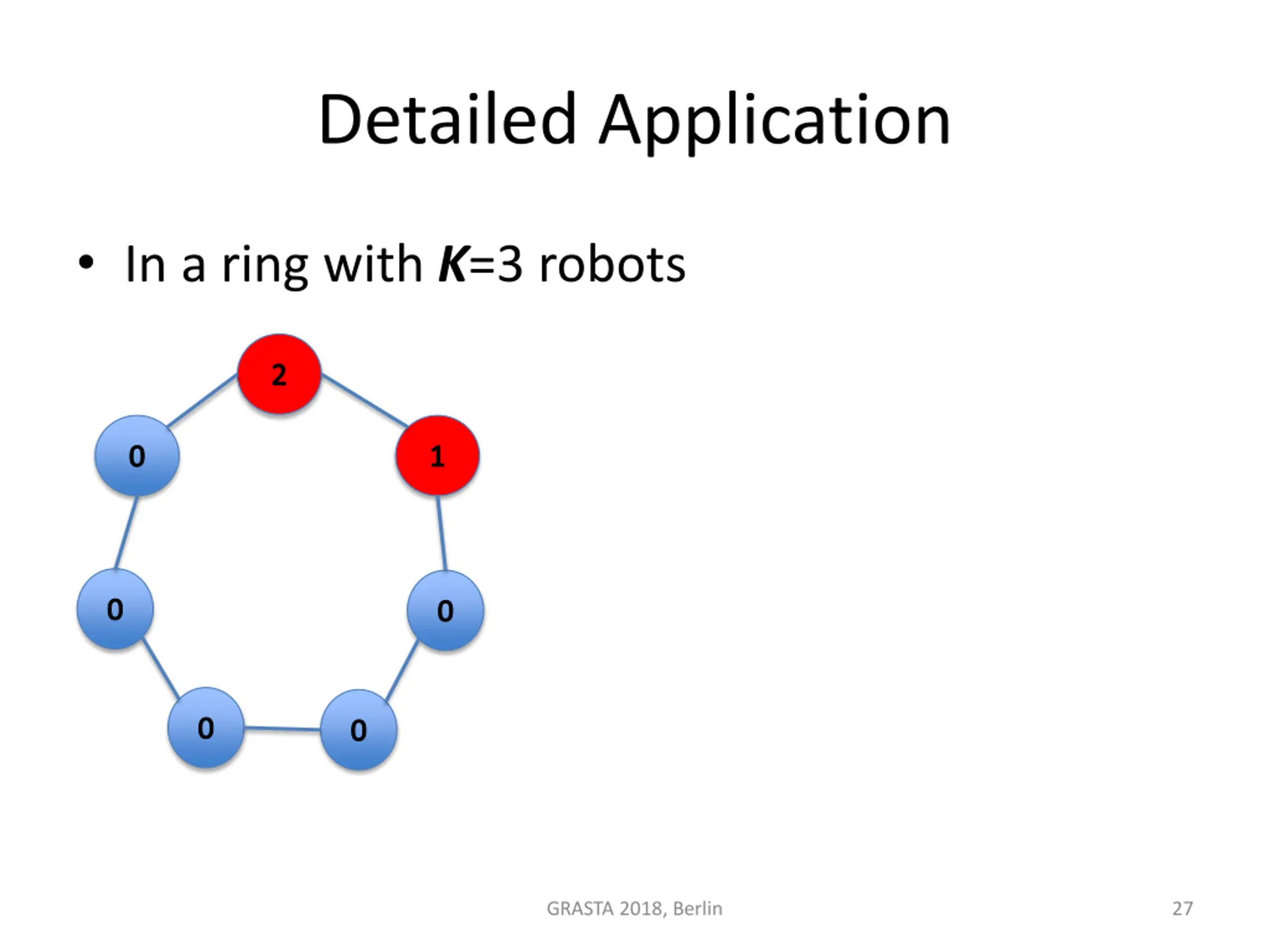

  27. Detailed Application • In a ring with K=3 robots GRASTA 2018, Berlin 27

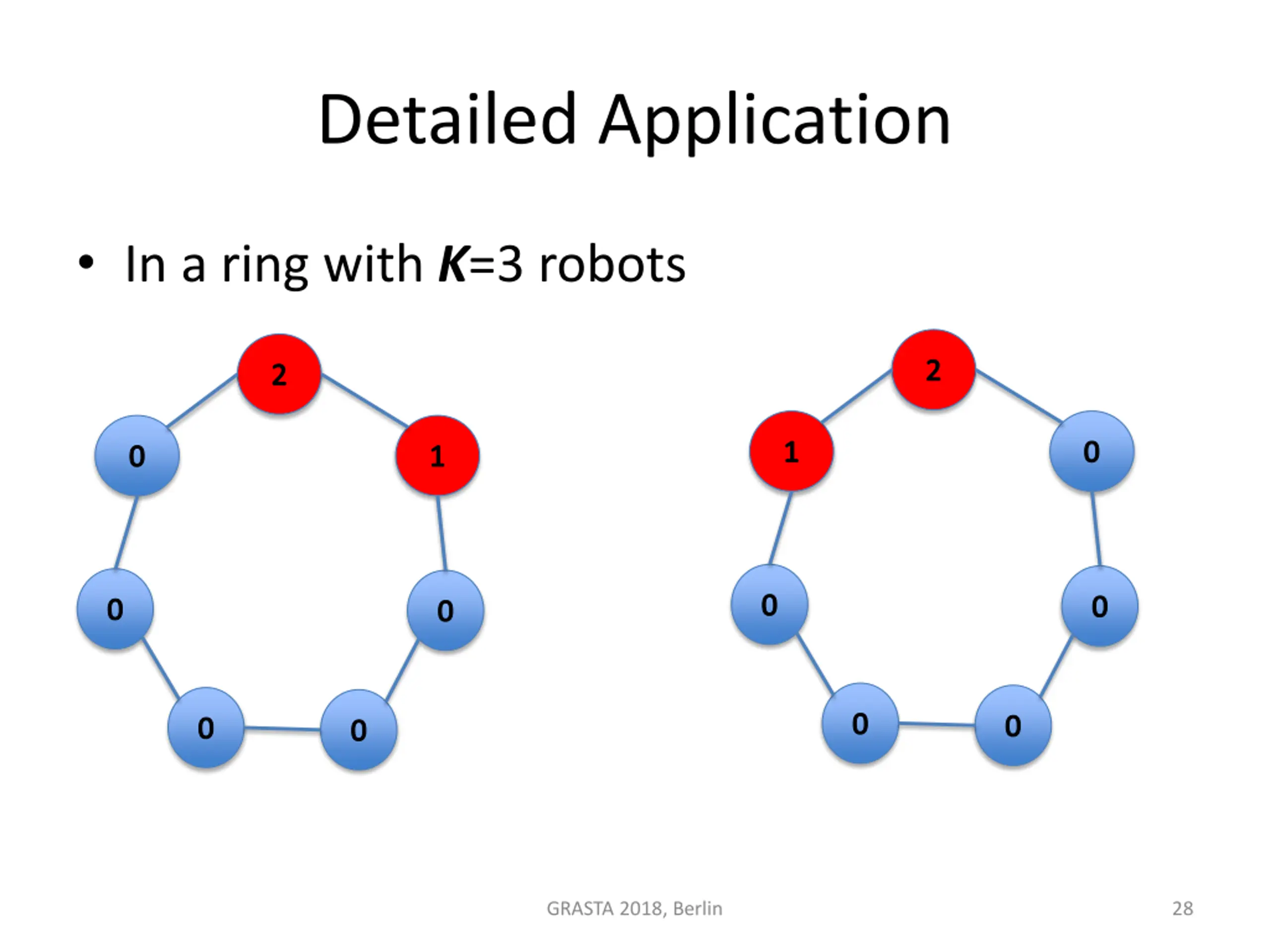

  28. Detailed Application • In a ring with K=3 robots GRASTA 2018, Berlin 28

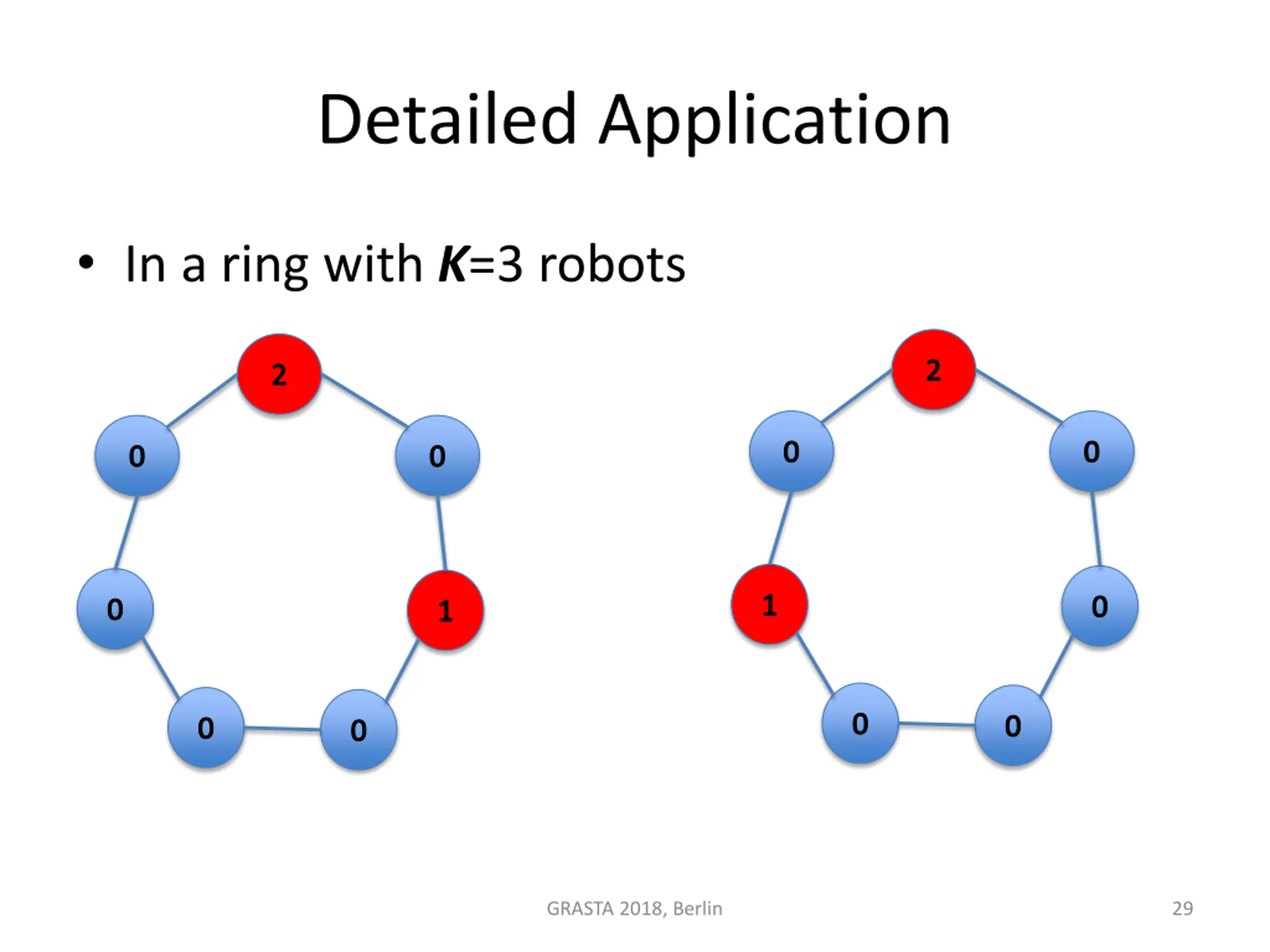

  29. Detailed Application • In a ring with K=3 robots GRASTA 2018, Berlin 29

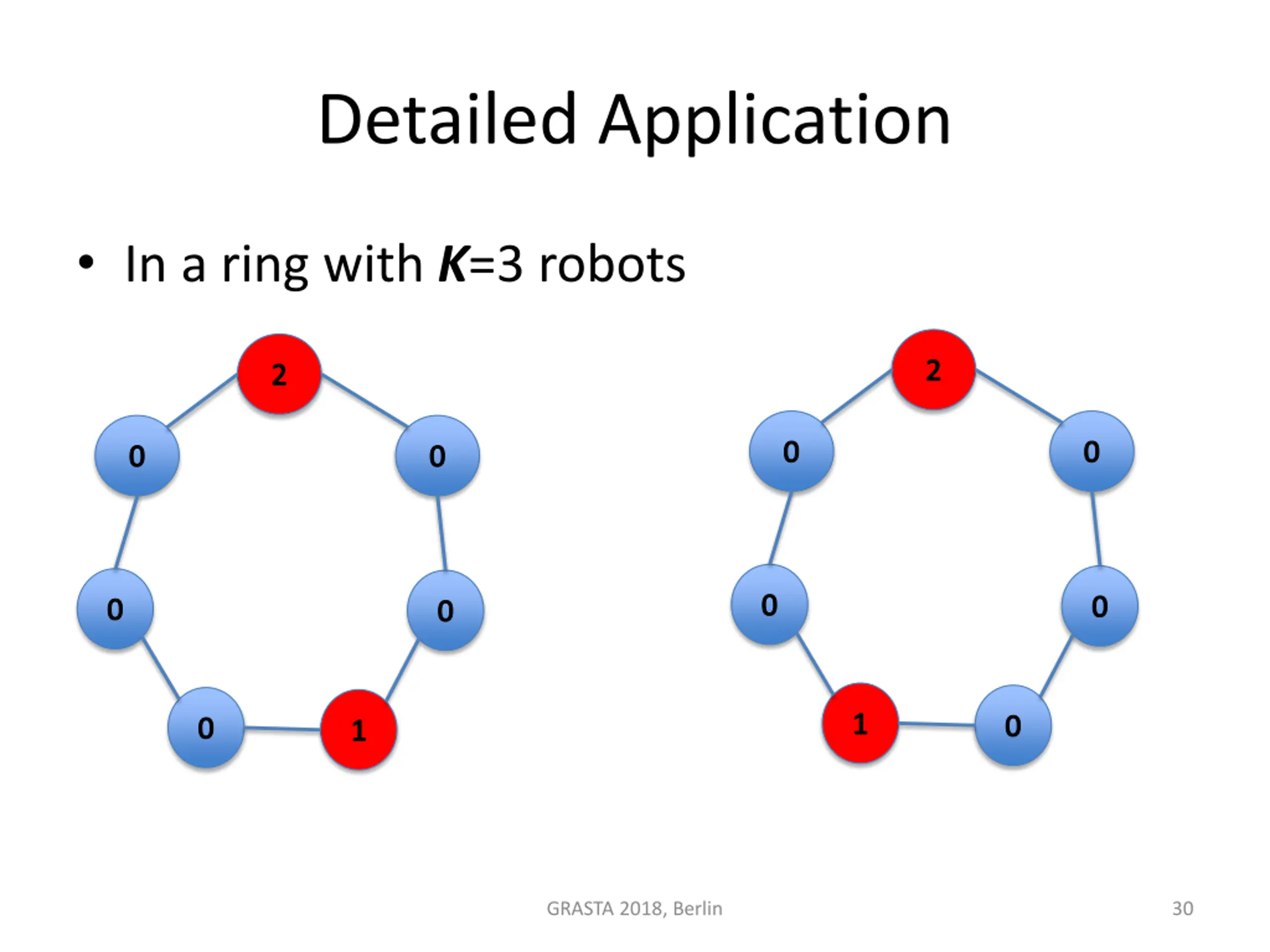

  30. Detailed Application • In a ring with K=3 robots GRASTA 2018, Berlin 30

  31. Detailed Application • In a ring with K=3 robots GRASTA 2018, Berlin 31

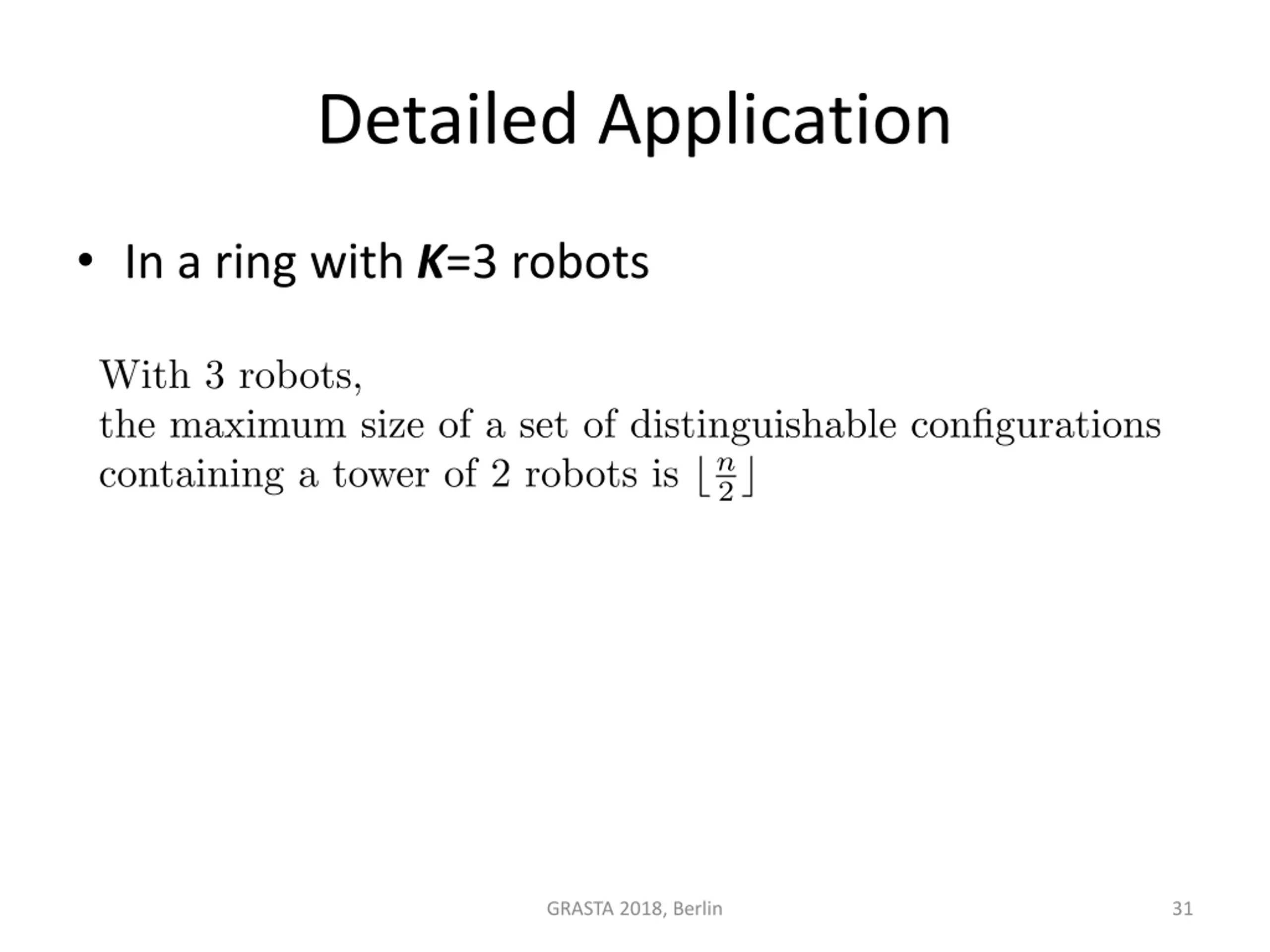

  32. Detailed Application • In a ring with K=3 robots GRASTA 2018, Berlin 32

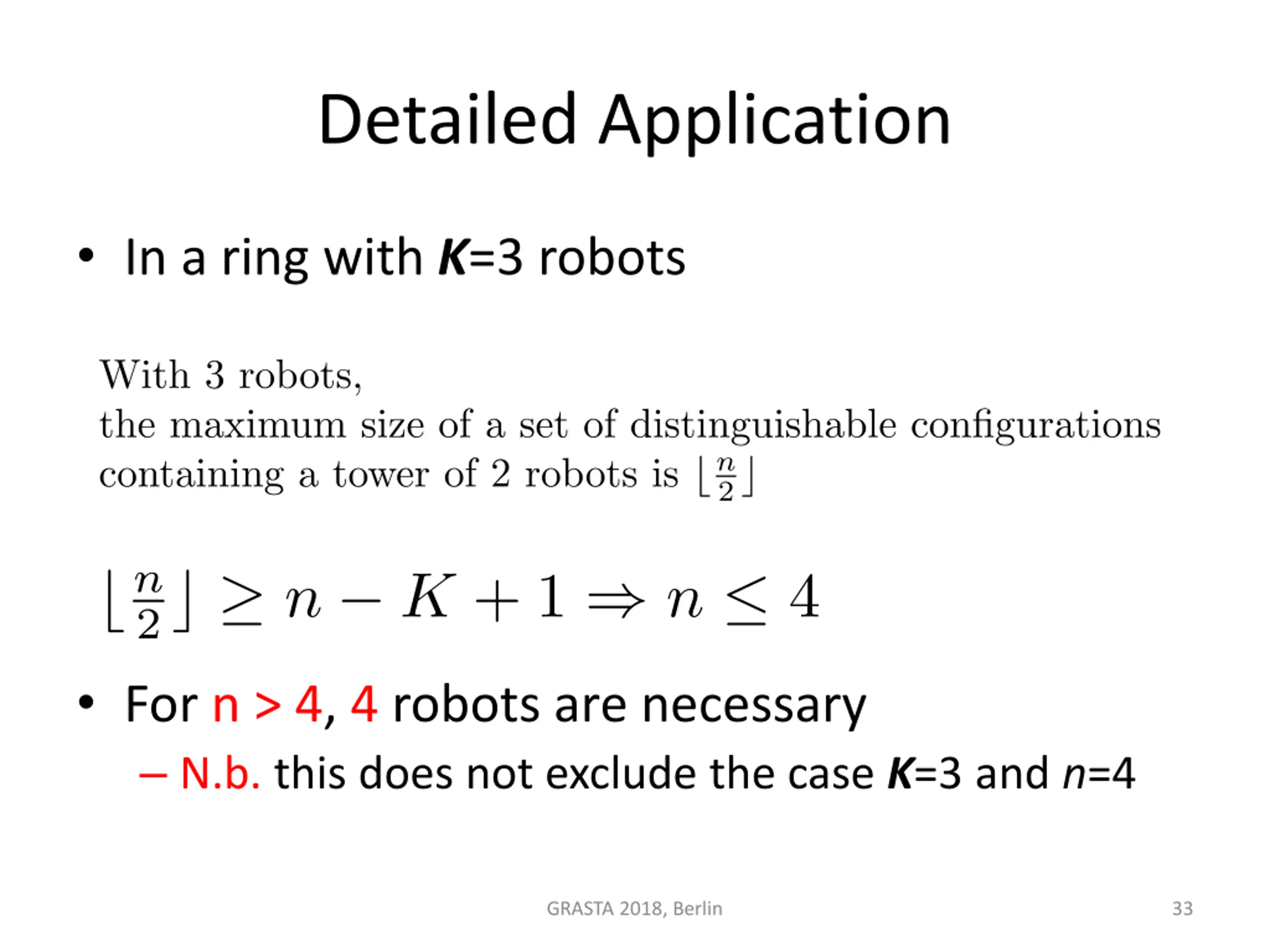

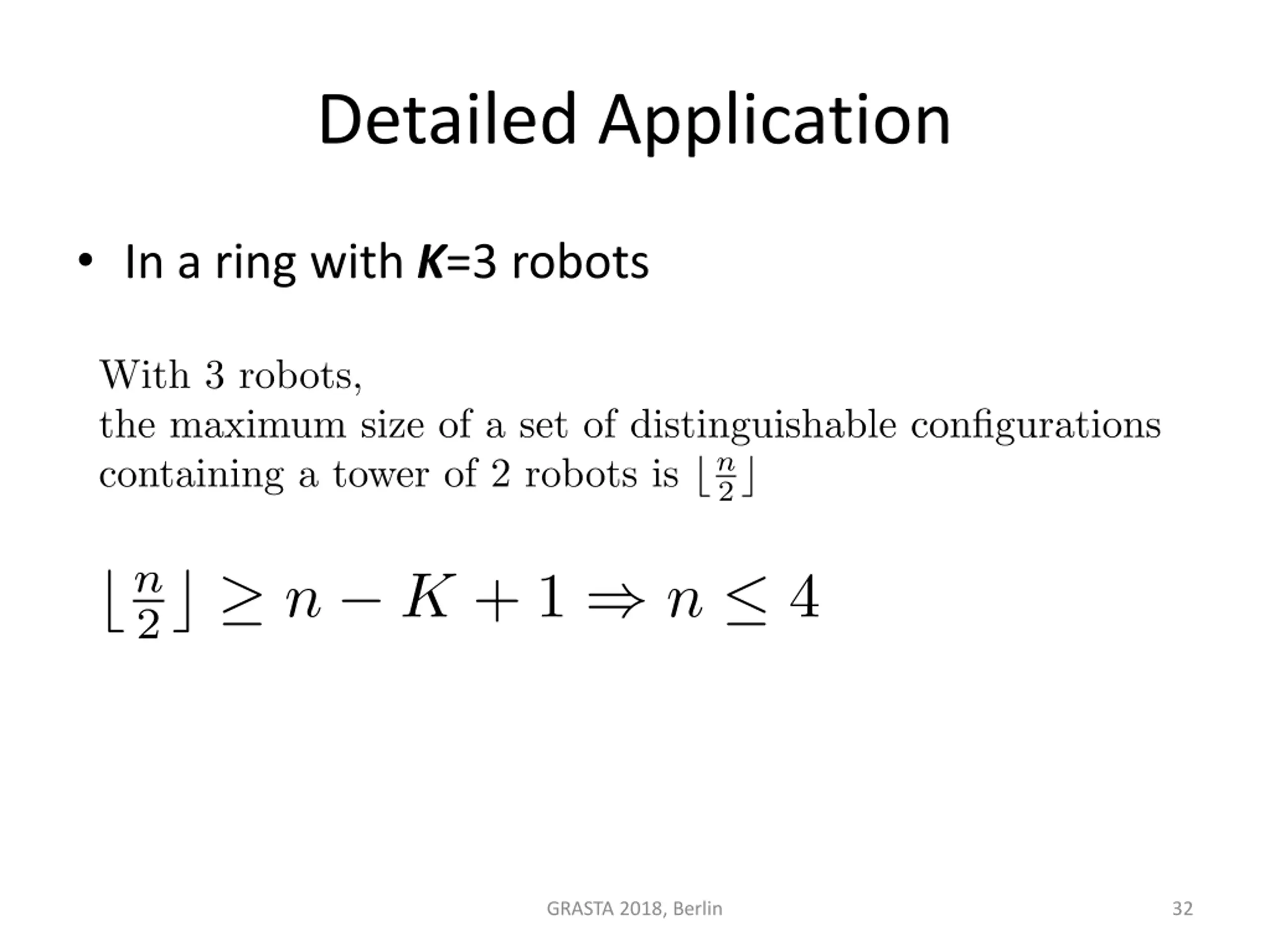

  33. Detailed Application • In a ring with K=3 robots • For n > 4, 4 robots are necessary – N.b. this does not exclude the case K=3 and n=4 GRASTA 2018, Berlin 33

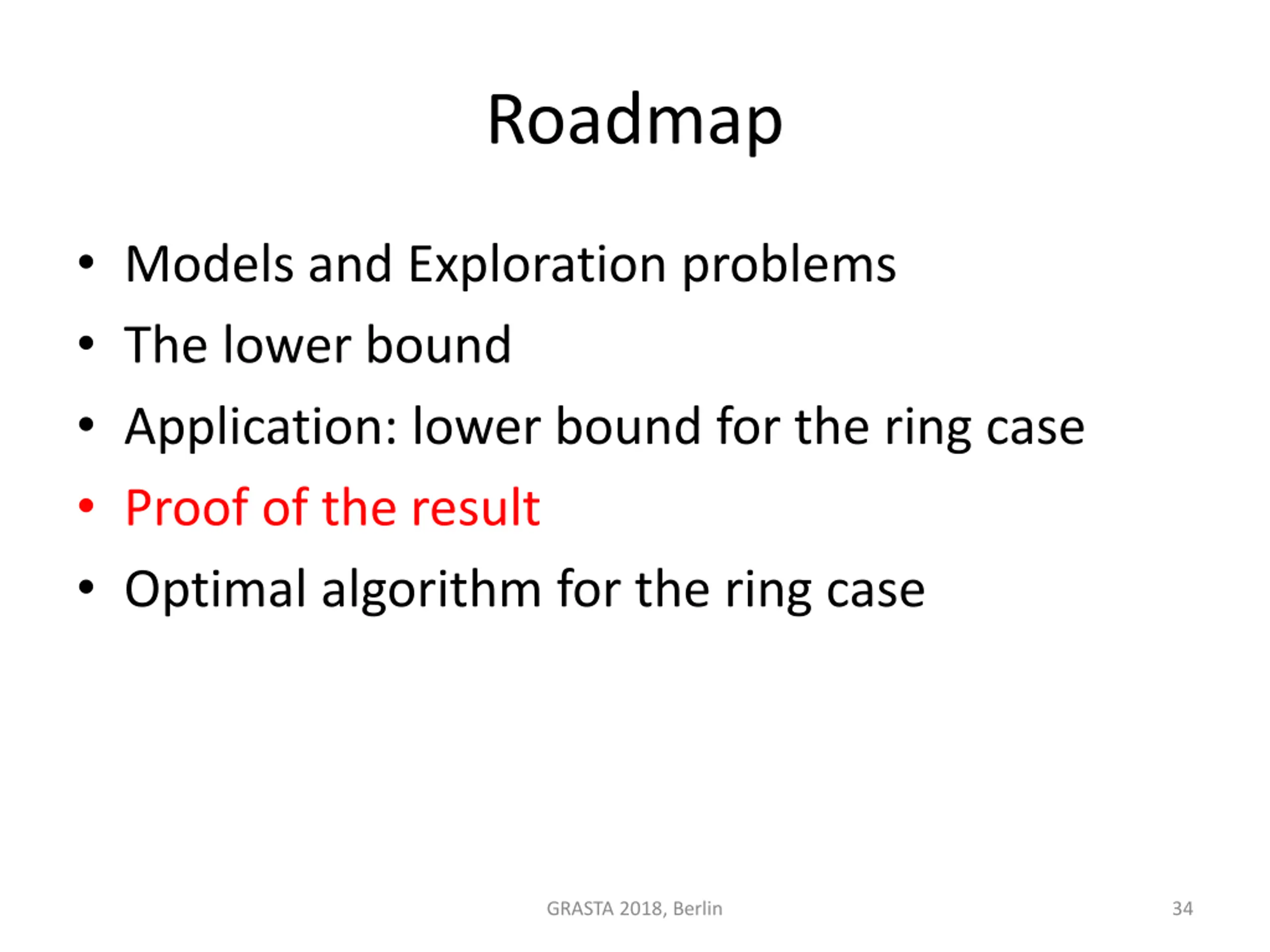

  34. Roadmap • Models and Exploration problems • The lower bound • Application: lower bound for the ring case • Proof of the result • Optimal algorithm for the ring case GRASTA 2018, Berlin 34

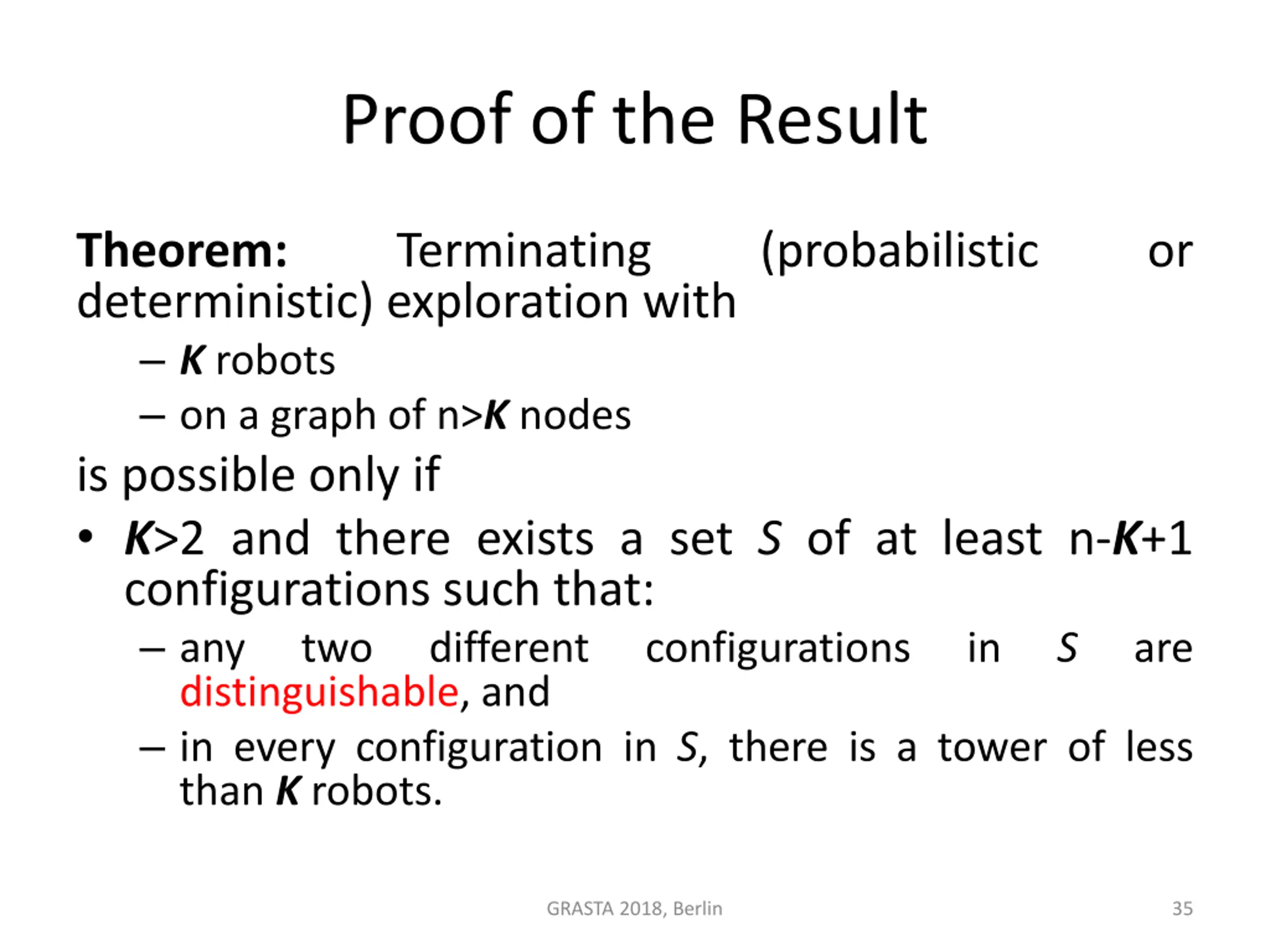

  35. Proof of the Result Theorem: deterministic) exploration with – K robots – on a graph of n>K nodes is possible only if • K>2 and there exists a set S of at least n-K+1 configurations such that: – any two different distinguishable, and – in every configuration in S, there is a tower of less than K robots. Terminating (probabilistic or configurations in S are GRASTA 2018, Berlin 35

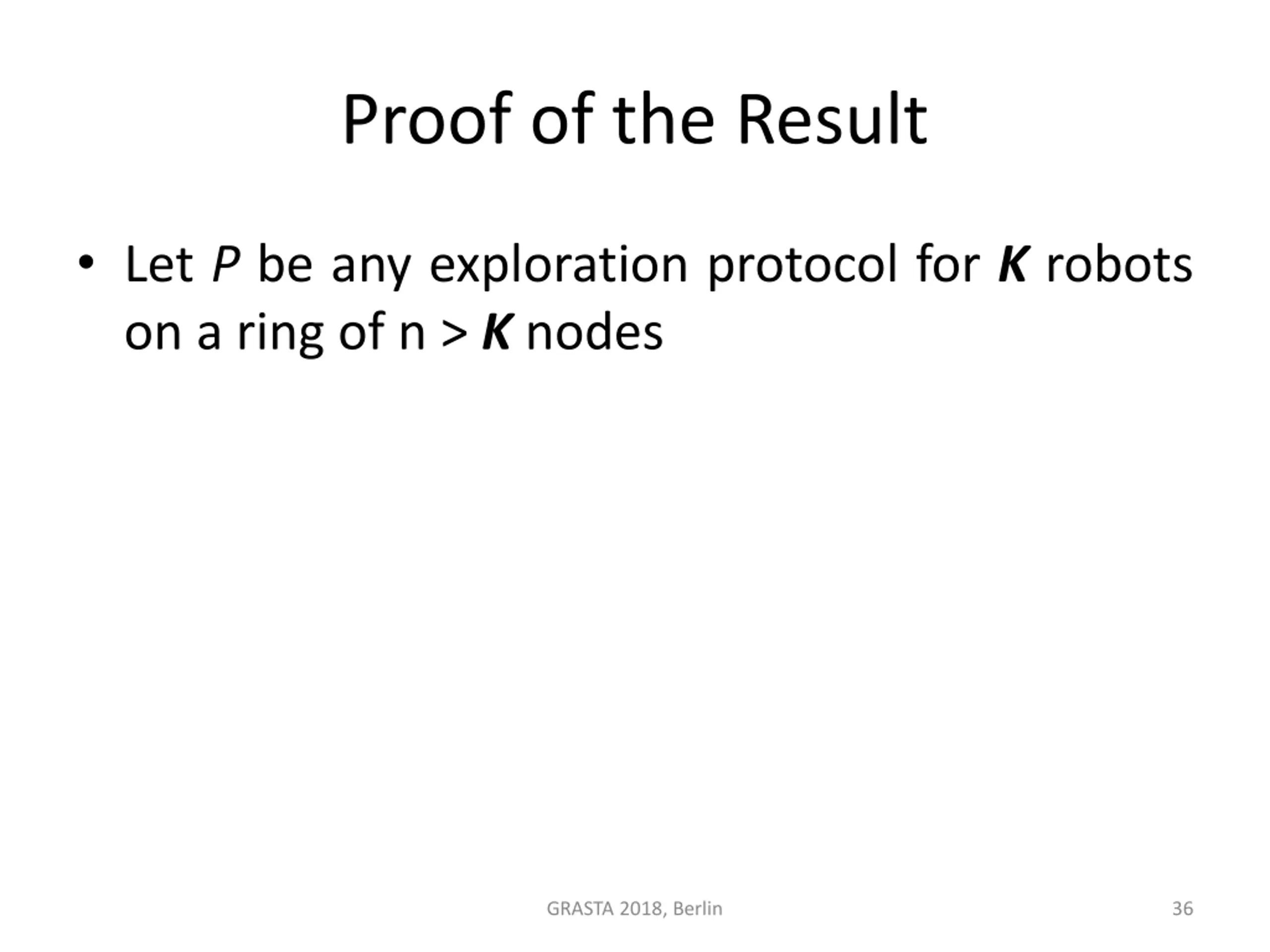

  36. Proof of the Result • Let P be any exploration protocol for K robots on a ring of n > K nodes GRASTA 2018, Berlin 36

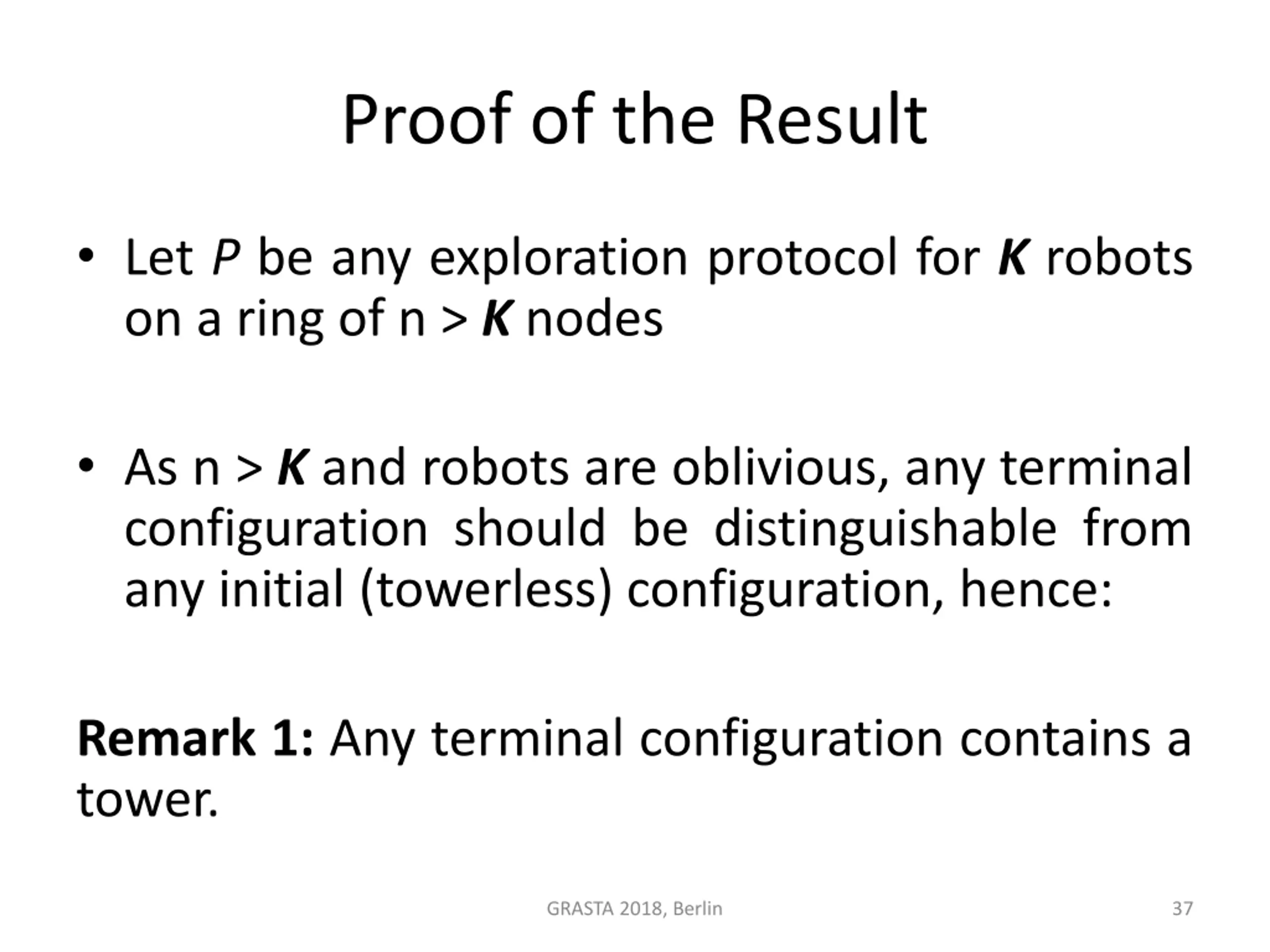

  37. Proof of the Result • Let P be any exploration protocol for K robots on a ring of n > K nodes • As n > K and robots are oblivious, any terminal configuration should be distinguishable from any initial (towerless) configuration, hence: Remark 1: Any terminal configuration contains a tower. GRASTA 2018, Berlin 37

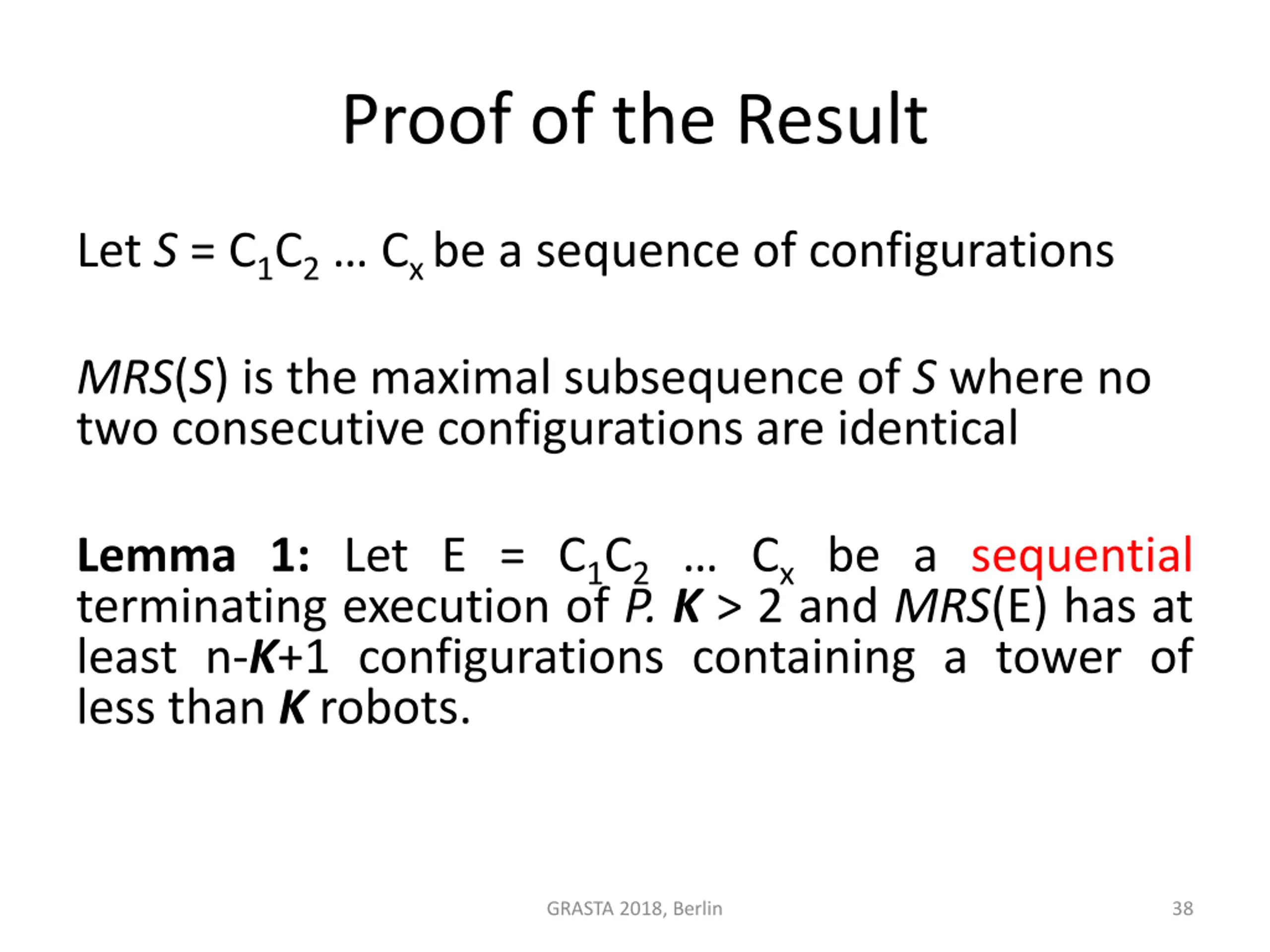

  38. Proof of the Result Let S = C1C2… Cxbe a sequence of configurations MRS(S) is the maximal subsequence of S where no two consecutive configurations are identical Lemma 1: Let E = C1C2… Cxbe a sequential terminating execution of P. K > 2 and MRS(E) has at least n-K+1 configurations containing a tower of less than K robots. GRASTA 2018, Berlin 38

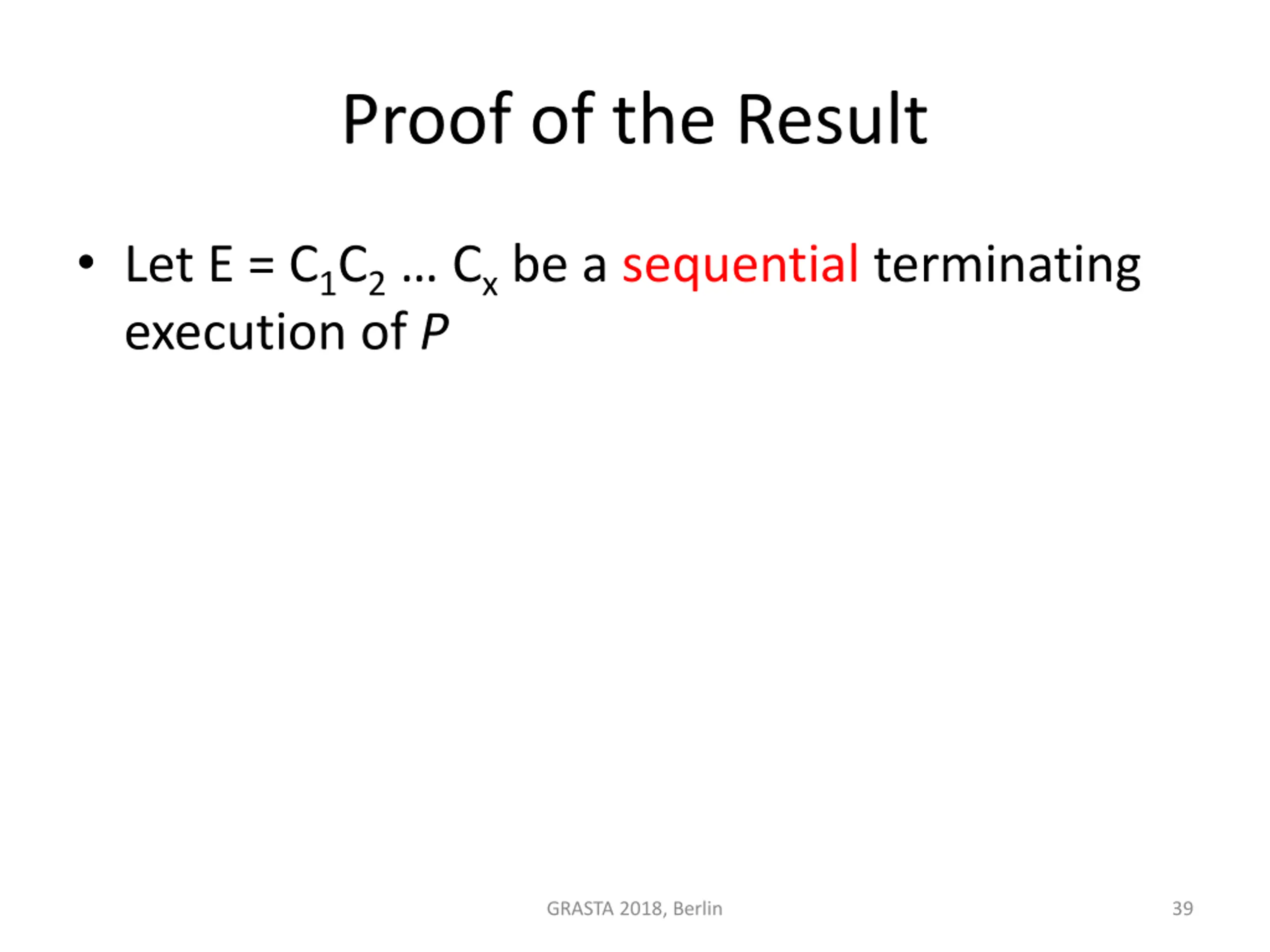

  39. Proof of the Result • Let E = C1C2… Cxbe a sequential terminating execution of P GRASTA 2018, Berlin 39

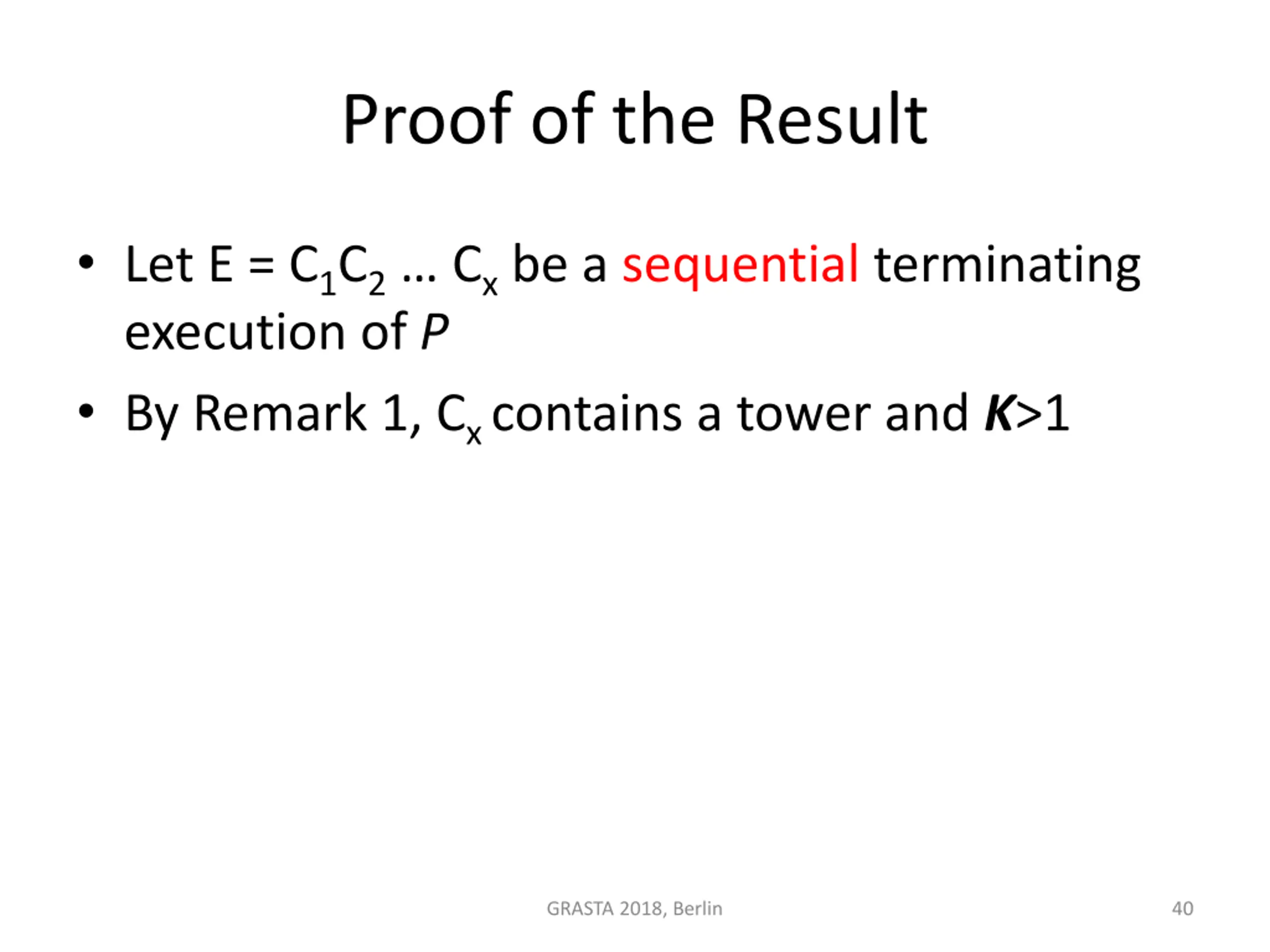

  40. Proof of the Result • Let E = C1C2… Cxbe a sequential terminating execution of P • By Remark 1, Cxcontains a tower and K>1 GRASTA 2018, Berlin 40

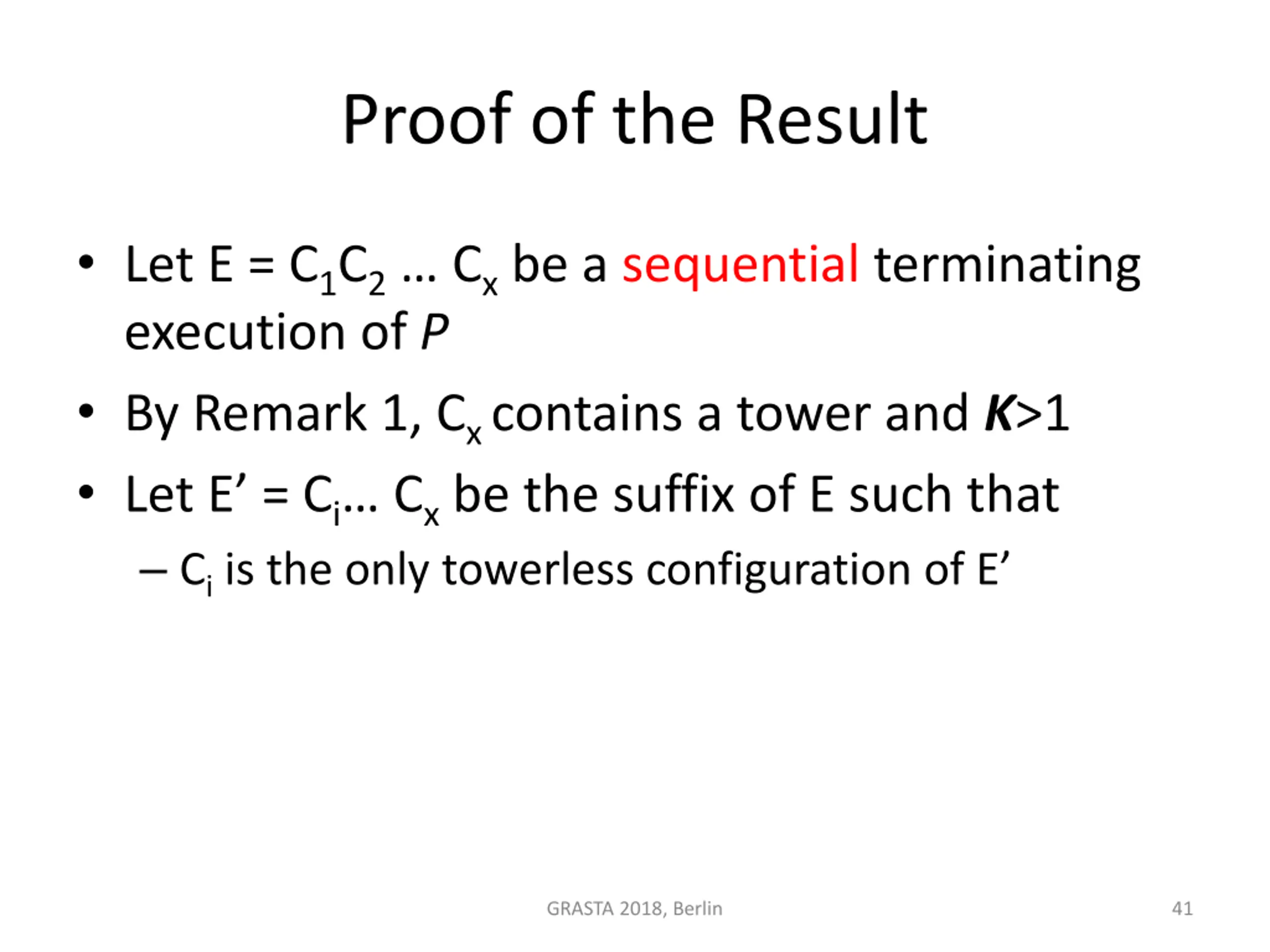

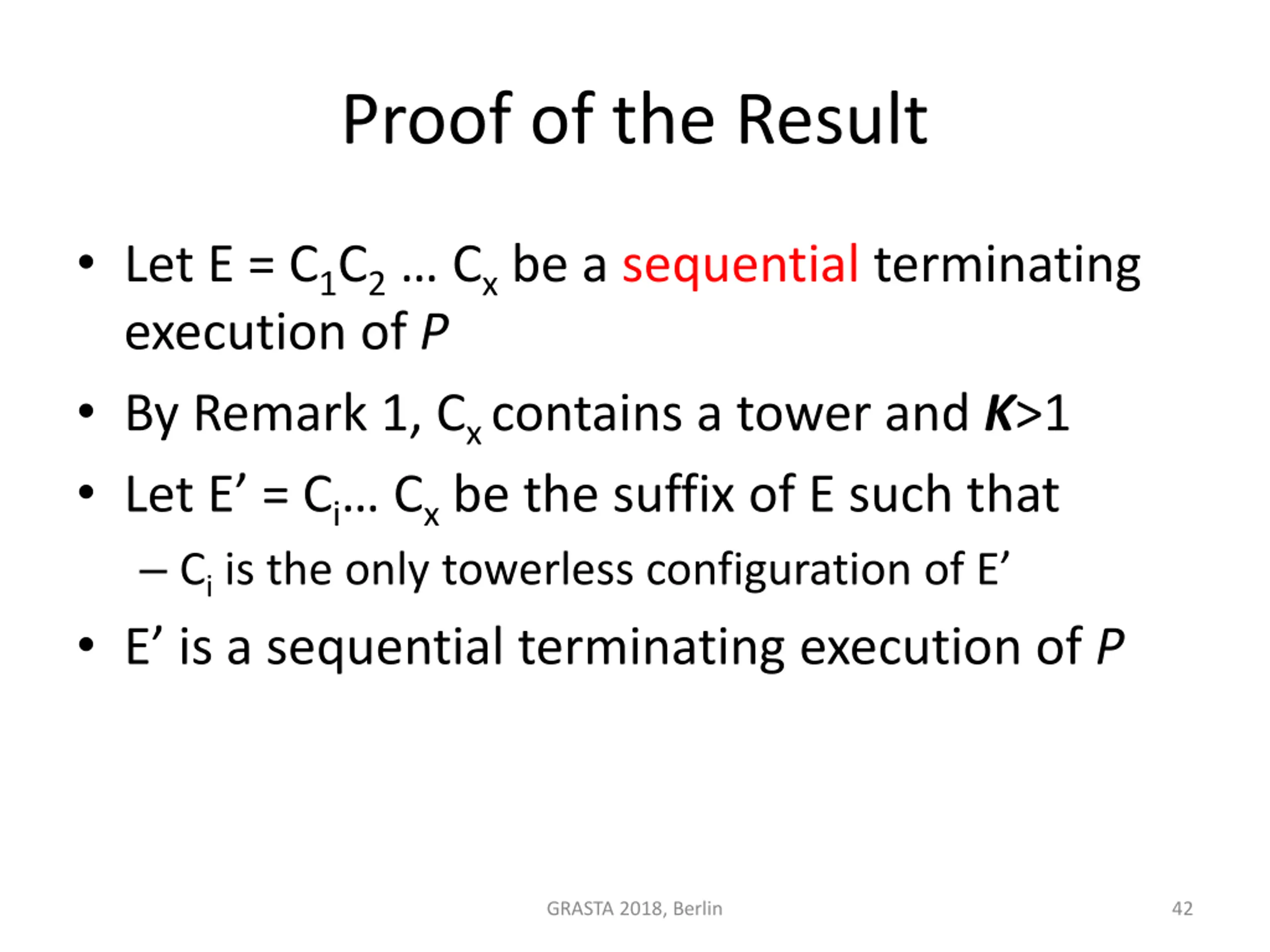

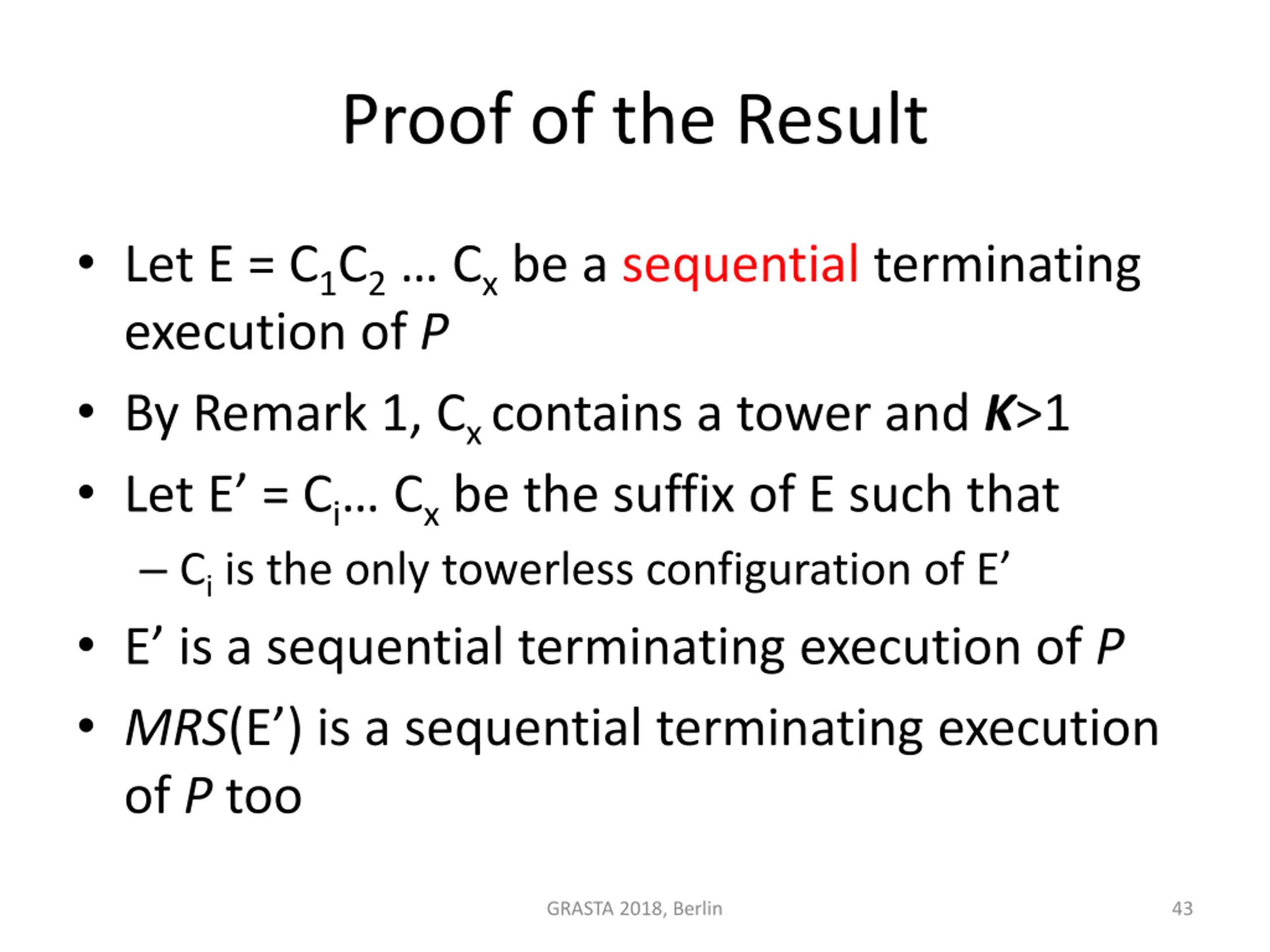

  41. Proof of the Result • Let E = C1C2… Cxbe a sequential terminating execution of P • By Remark 1, Cxcontains a tower and K>1 • Let E’ = Ci… Cxbe the suffix of E such that – Ciis the only towerless configuration of E’ GRASTA 2018, Berlin 41

  42. Proof of the Result • Let E = C1C2… Cxbe a sequential terminating execution of P • By Remark 1, Cxcontains a tower and K>1 • Let E’ = Ci… Cxbe the suffix of E such that – Ciis the only towerless configuration of E’ • E’ is a sequential terminating execution of P GRASTA 2018, Berlin 42

  43. Proof of the Result • Let E = C1C2… Cxbe a sequential terminating execution of P • By Remark 1, Cxcontains a tower and K>1 • Let E’ = Ci… Cxbe the suffix of E such that – Ciis the only towerless configuration of E’ • E’ is a sequential terminating execution of P • MRS(E’) is a sequential terminating execution of P too GRASTA 2018, Berlin 43

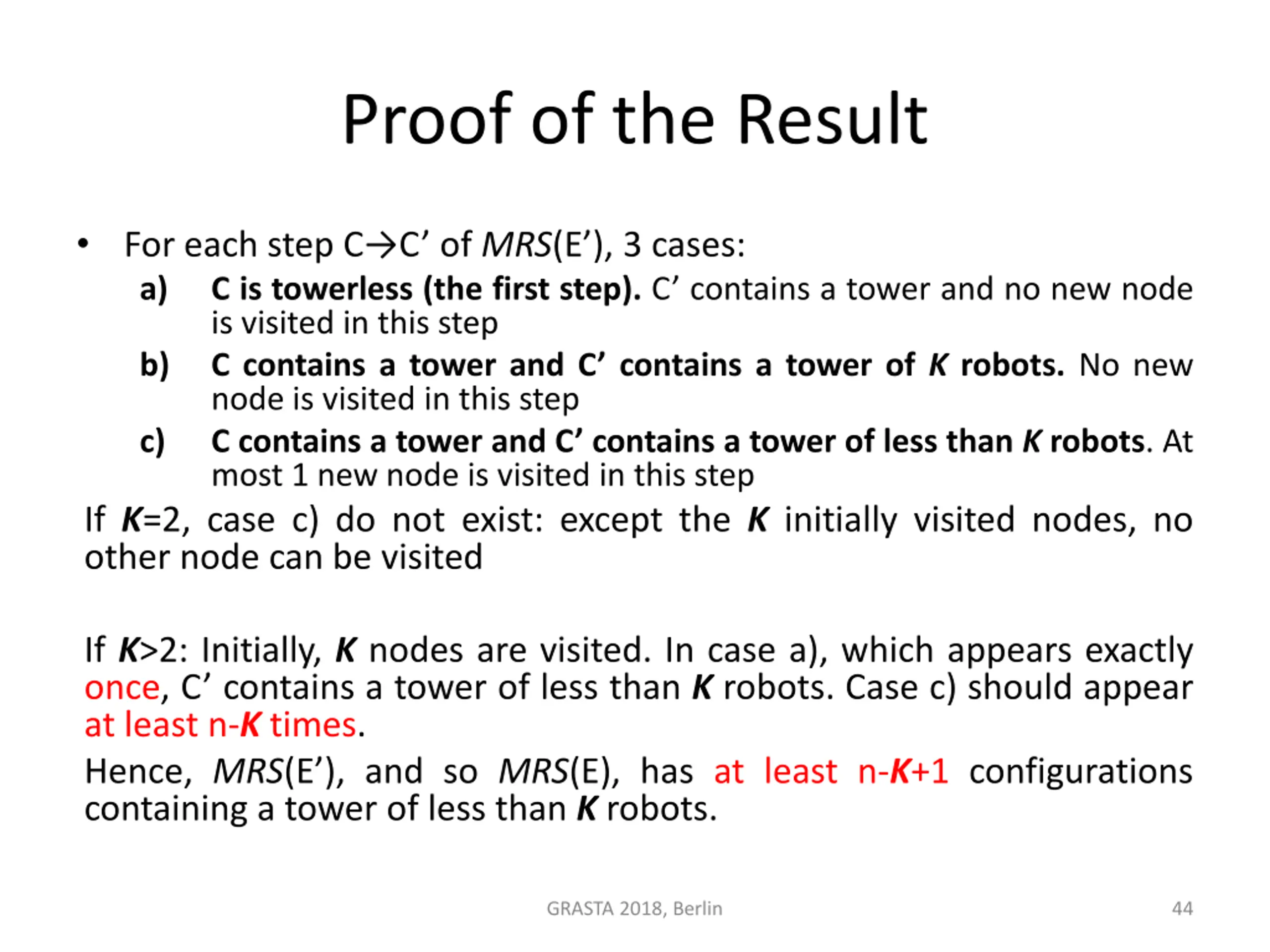

  44. Proof of the Result • For each step C→C’ of MRS(E’), 3 cases: a) C is towerless (the first step). C’ contains a tower and no new node is visited in this step b) C contains a tower and C’ contains a tower of K robots. No new node is visited in this step c) C contains a tower and C’ contains a tower of less than K robots. At most 1 new node is visited in this step If K=2, case c) do not exist: except the K initially visited nodes, no other node can be visited If K>2: Initially, K nodes are visited. In case a), which appears exactly once, C’ contains a tower of less than K robots. Case c) should appear at least n-K times. Hence, MRS(E’), and so MRS(E), has at least n-K+1 configurations containing a tower of less than K robots. GRASTA 2018, Berlin 44

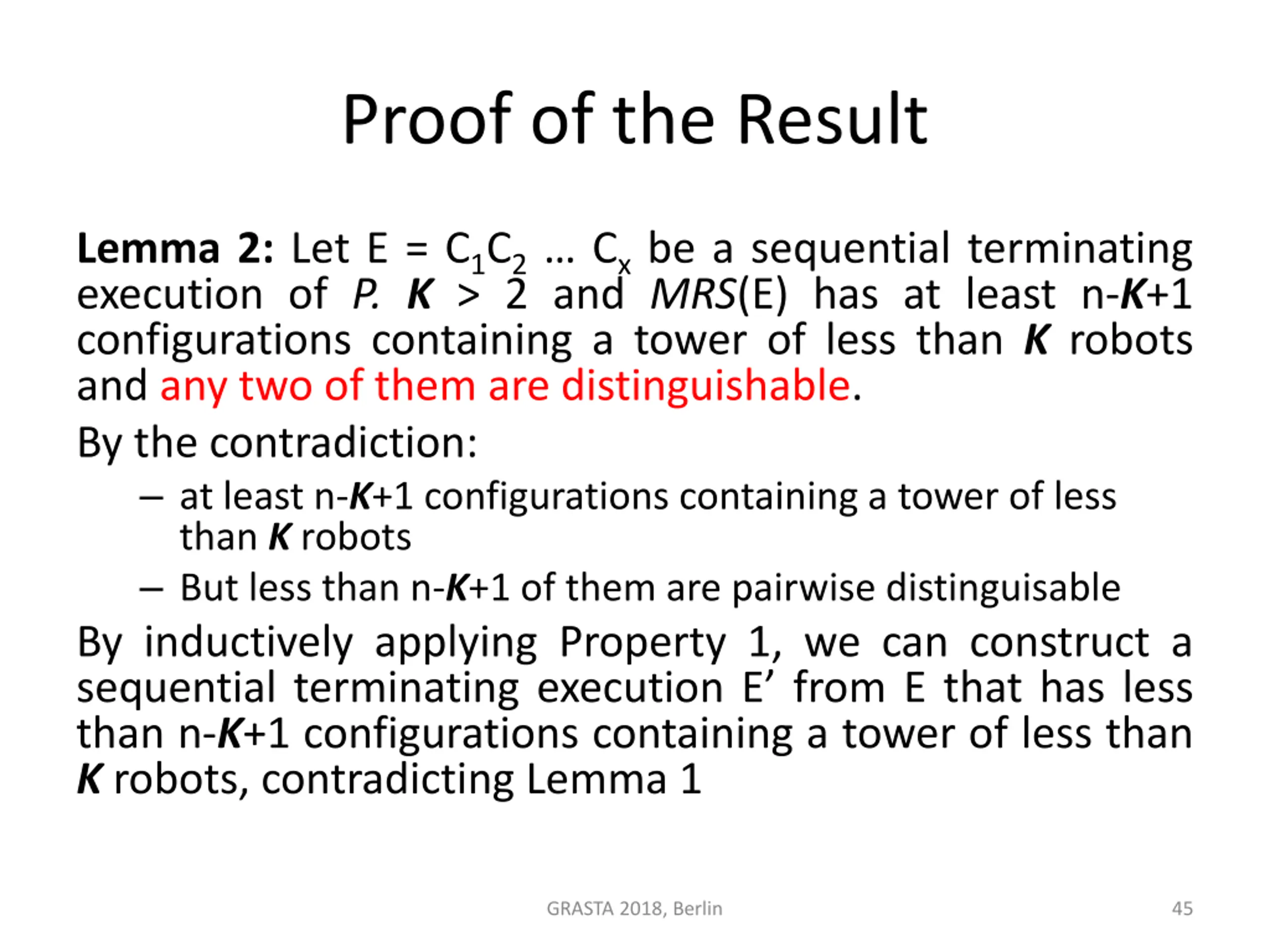

  45. Proof of the Result Lemma 2: Let E = C1C2… Cxbe a sequential terminating execution of P. K > 2 and MRS(E) has at least n-K+1 configurations containing a tower of less than K robots and any two of them are distinguishable. By the contradiction: – at least n-K+1 configurations containing a tower of less than K robots – But less than n-K+1 of them are pairwise distinguisable By inductively applying Property 1, we can construct a sequential terminating execution E’ from E that has less than n-K+1 configurations containing a tower of less than K robots, contradicting Lemma 1 GRASTA 2018, Berlin 45

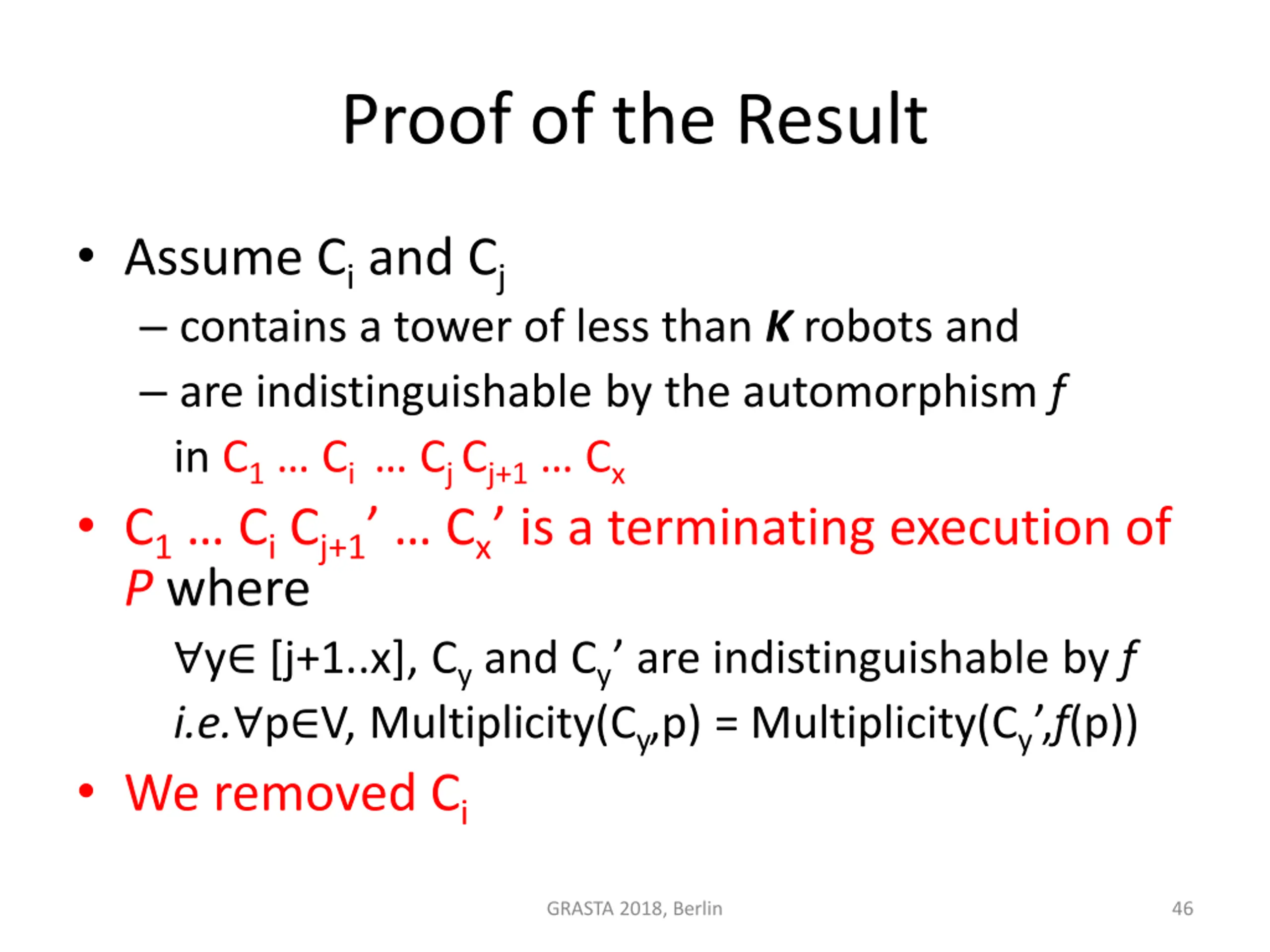

  46. Proof of the Result • Assume Ciand Cj – contains a tower of less than K robots and – are indistinguishable by the automorphism f in C1… Ci… CjCj+1… Cx • C1… CiCj+1’ … Cx’ is a terminating execution of P where ∀y∈ [j+1..x], Cyand Cy’ are indistinguishable by f i.e.∀p∈V, Multiplicity(Cy,p) = Multiplicity(Cy’,f(p)) • We removed Ci GRASTA 2018, Berlin 46

  47. Back to the case K=3 and n=4 • Our result only deals with of sequential solutions – (a particular case of the distributed scheduler) • So, the result on the ring does not exclude sequential solution for K=3 and n=4 GRASTA 2018, Berlin 47

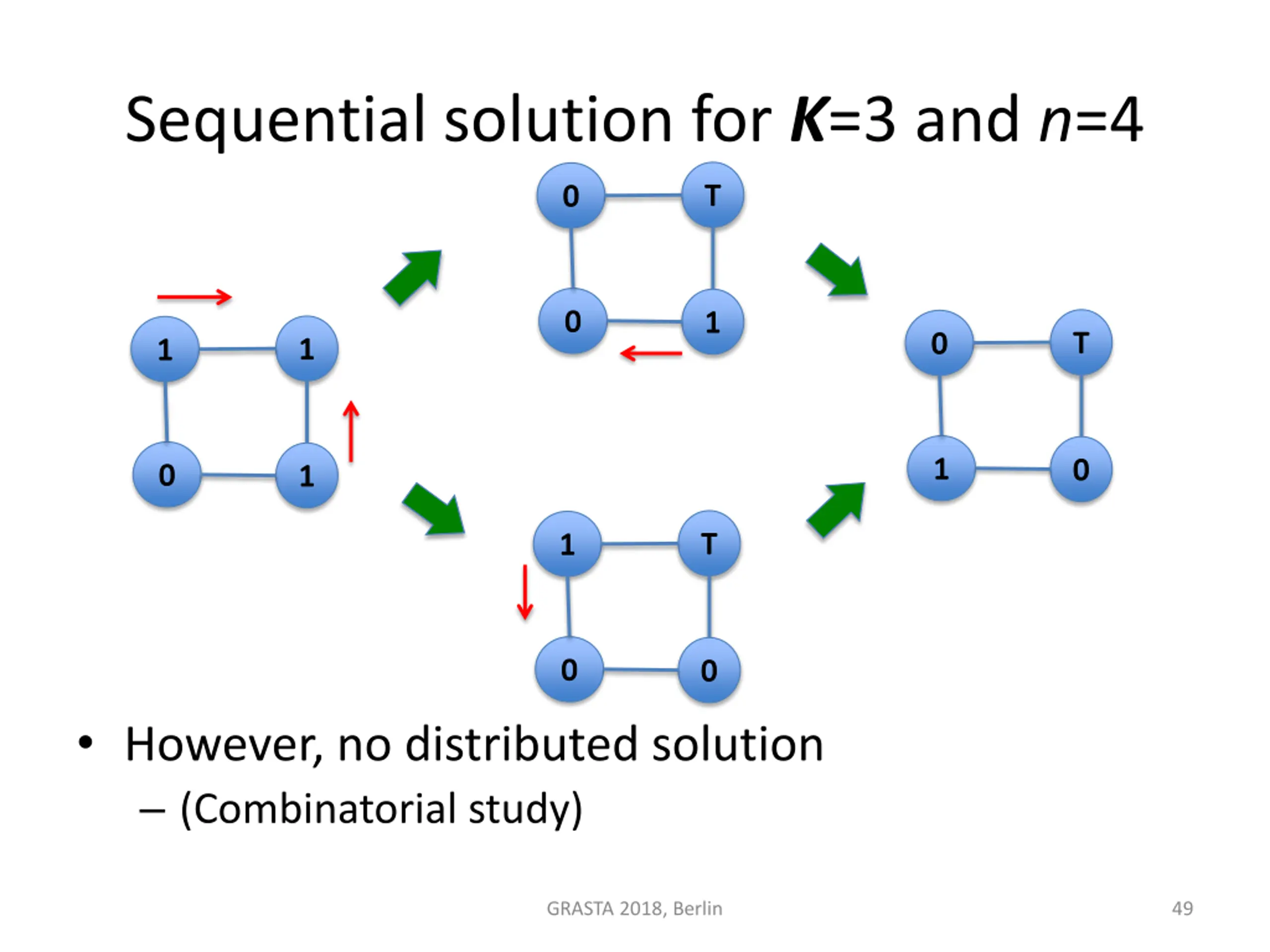

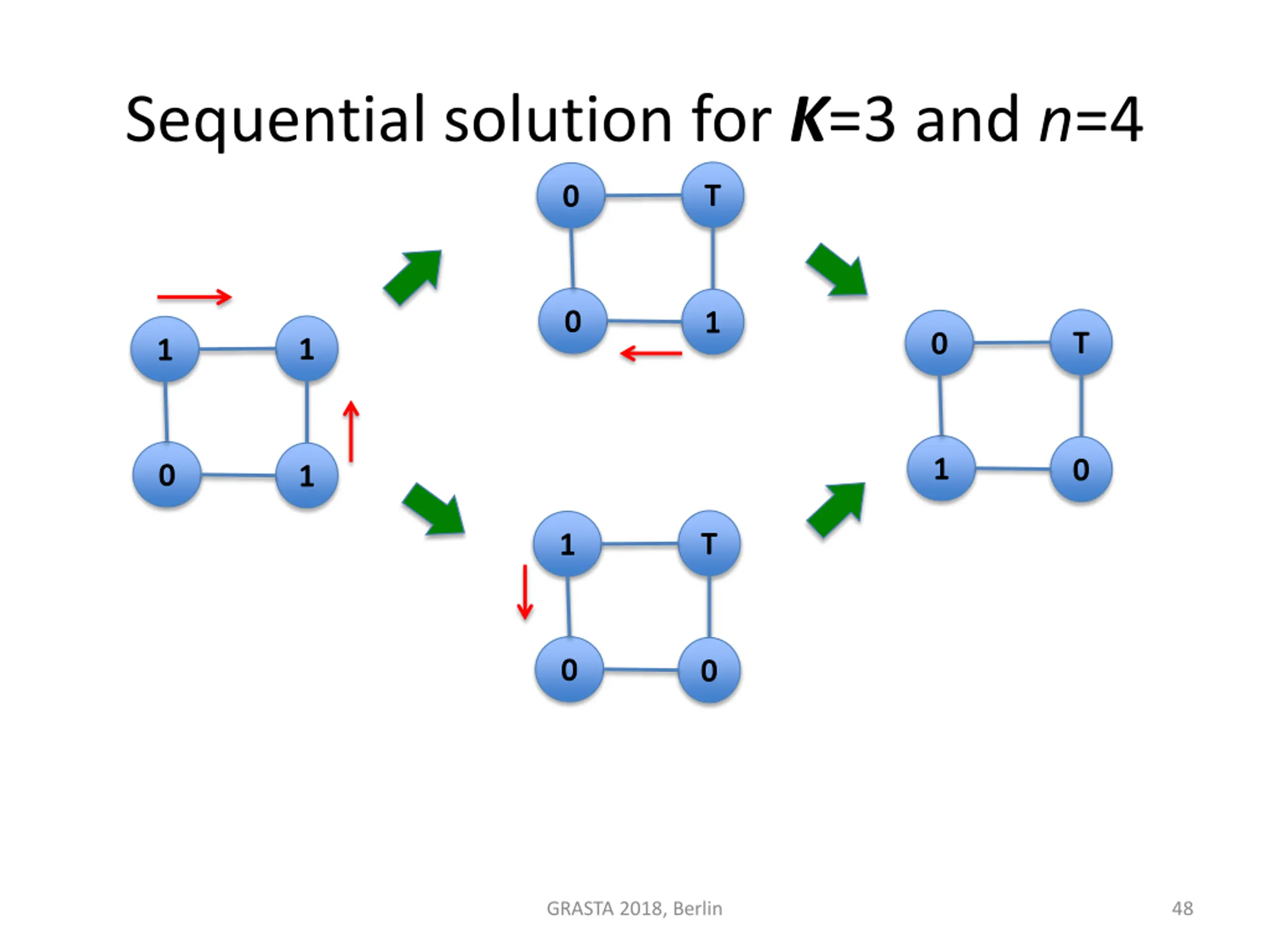

  48. Sequential solution for K=3 and n=4 GRASTA 2018, Berlin 48

  49. Sequential solution for K=3 and n=4 • However, no distributed solution – (Combinatorial study) GRASTA 2018, Berlin 49

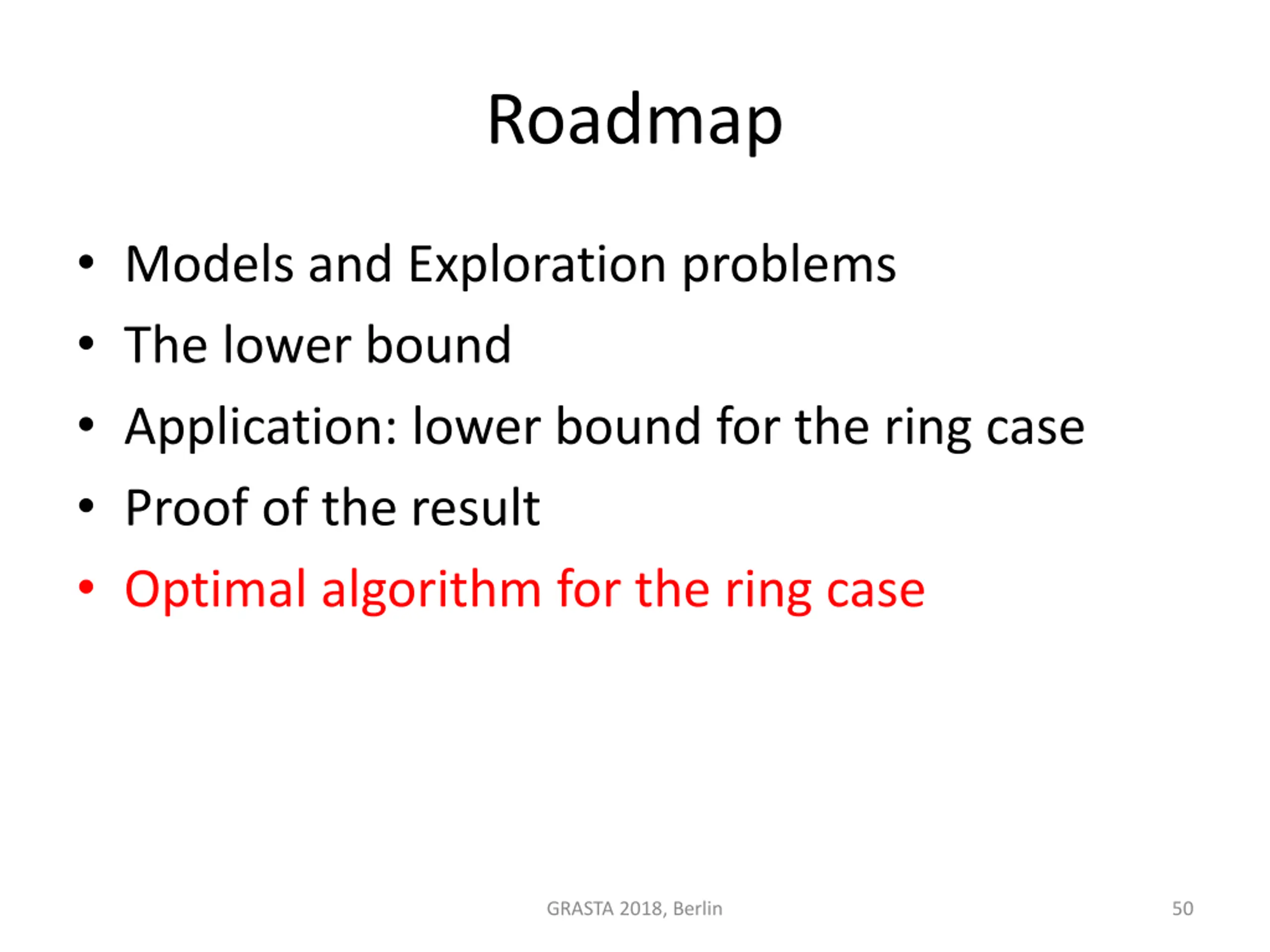

  50. Roadmap • Models and Exploration problems • The lower bound • Application: lower bound for the ring case • Proof of the result • Optimal algorithm for the ring case GRASTA 2018, Berlin 50
