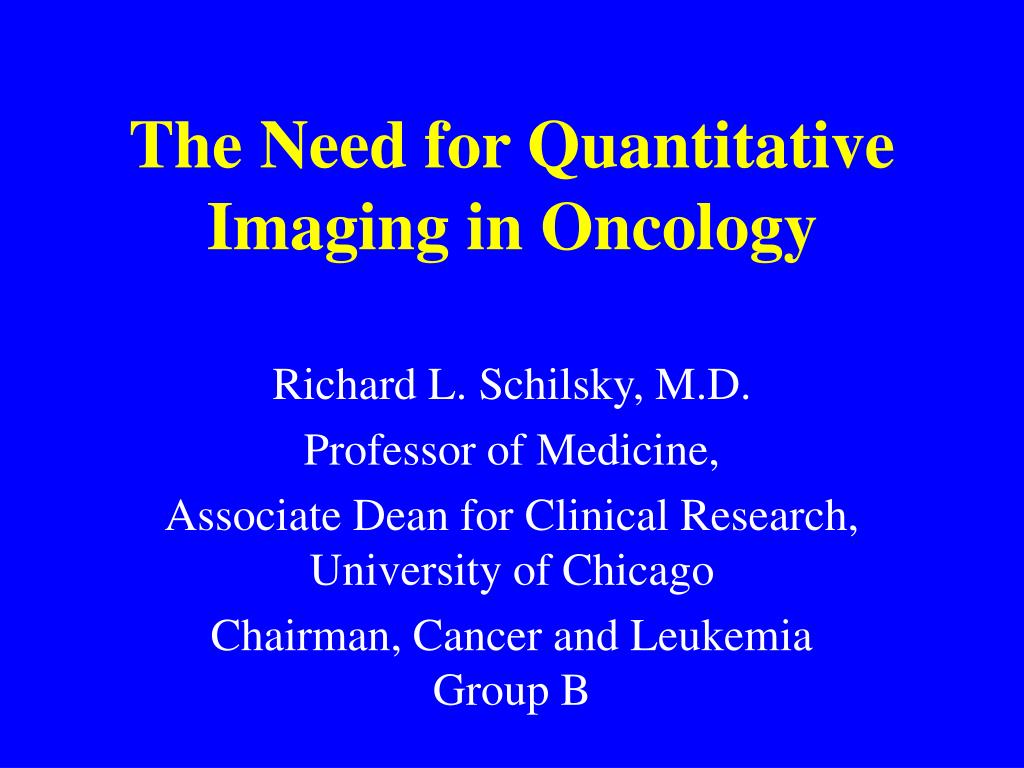

  1. The Need for Quantitative Imaging in Oncology Richard L. Schilsky, M.D. Professor of Medicine, Associate Dean for Clinical Research, University of Chicago Chairman, Cancer and Leukemia Group B

  2. The Role of Imaging in Oncology • Detection • Staging (assess prognosis) • Treatment planning • Assess response/progression (assess benefit) • Monitor recurrence

  3. The Role of Imaging in Oncology • Is a tumor present? • Where is it? • How big is it? • How deep is it? • What is it near? • Is it growing/shrinking/spreading?

  4. Clinical Practice vs. Clinical Research • Mostly a matter of precision • Practice setting: information that impacts clinical management of an individual, e.g., when to start/change/stop treatment; assess extent of disease and cause of symptoms • Research setting: information that assesses an intervention in a population, e.g., precise staging; accurate tumor dimensions; assessment of response/progression

  5. Clinical Benefit • Improved survival compared to no treatment or to a known effective therapy • Non-inferiority to a known effective therapy • Improvement in TTP compared to known effective treatment coupled with symptomatic improvement

  6. Activity vs. Benefit • Don’t confuse activity with benefit • Activity is the effect on a surrogate or clinical endpoint of administering the drug • Efficacy is the overall benefit (adjusted for risk) of prescribing the drug (for a specific indication) • Activity is necessary – but not sufficient – for efficacy

  7. Survival • Unambiguous endpoint that is not subject to investigator interpretation or bias from unblinded studies • Assessed easily, frequently • No tumor measurements required!!

  8. Response Rate • Treatment is “entirely” responsible for tumor reduction; unlikely due to natural history • Endpoint reached quickly • Response criteria arbitrary • %CR and duration of response important • Classical endpoint to screen for activity; accepted surrogate for clinical benefit

  9. Response Criteria • WHO: PR is > 50% decrease in the sum of the product of the perpendicular diameters of measurable lesions • RECIST: PR is > 30% decrease in the baseline sum of the longest diameters of target lesions • Each represents a 65% decrease in volume • Confirmation 4 weeks later required

  10. Criteria for Progression • WHO: PD is > 25% increase in the sum of the product of the perpendicular diameters of measurable lesions (40% increase in volume) • RECIST: PD is > 20% in the sum of the longest diameters of target lesions (73% increase in volume) • RECIST is biased toward stable disease

  11. What is Measurable? • Lesion measured in one dimension as > 20 mm with conventional techniques or > 10 mm with spiral CT (5 mm reconstruction) • All measurable lesions up to max. of 10 are considered “target” lesions • All of this is completely arbitrary and observer/technology-dependent!

  12. You have to see it before you can measure it!

  13. CT helps in the removal of most structure noise

  14. Vast Amount of Data lung nodule case ctn048, ctn008 - section 17 From S. Armato

  15. Measurable? Erasmus, J. J. et al. J Clin Oncol; 21:2574-2582 2003

  16. Measurable? Erasmus, J. J. et al. J Clin Oncol; 21:2574-2582 2003

  17. Is RR Predictive of Benefit? • For hematologic malignancies, CR generally associated with symptomatic improvement, reduced transfusion requirement, reduced infection rates • Buyse et. al. (Lancet, 2000): meta analysis of 25 CRC trials with fluoropyrimidines: tumor response a highly significant predictor of survival, independent of PS

  18. Is RR Predictive of Benefit? • Chen et. al. (JNCI, 2000): phase II response rates in patients with extensive SCLC did not correlate with median survival in phase III trials of same regimen • Irinotecan (15%); docetaxel (38%); capecitabine (18.5%); oxaliplatin (9%) all improved survival in randomized trials • In many other studies, a significant improvement in RR does not result in improved survival

  19. Is RR Predictive of Benefit? • RR is reasonably likely to predict clinical benefit, at least for certain diseases and certain drugs • Is there a minimum RR predictive of benefit and how is it best measured? • Is another surrogate predictive for drugs that do not cause regression?

  20. Continue BAY 43-9006 Continue BAY 43-9006 12 weeks % SD 24 weeks Placebo* 12 weeks Off study *Placebo pts with PD may cross over to BAY 43-9006 BAY 43-9006: RDTTrial Schema > 25% Tumorshrinkage BAY 43-9006 12 week run-in -25% to +25%Tumor stabilization > 25%Tumor growth

  21. BAY 43-9006: RDT Design • All patients initially receive BAY 43-9006 • Enrichment of randomized population for endpoint of interest • Distinguishes antiproliferative activity of drug vs. the natural history of disease • Requires less overall sample size compared to RCT • Design controls, in part, for heterogeneity in enrolled patients, as rapid progressors drop out

  22. BAY 43-9006 (sorafenib) Study RCC Bidimensional Tumor Measurements* at Week 12:Change from Baseline in Target Lesions (n=89) > 25% Growth< 25% to >-25% Change>-25% to -49% Shrinkage> -50% Shrinkage 7 45** 24 13 % Change in Tumor Measurement Number of Patients * Investigator assessed * * 7 of 45 patients not randomized

  23. Response vs. Stable Disease • The distinction between “minor responses” and partial responses is based on arbitrary criteria • The patient doesn’t care whether the tumor shrank by 40% (bidimensional) or 60% • So why should we?

  24. BAY 43-9006 (sorafenib) Study Progression-Free Survival in RCC Patients Continuing Beyond Initial 12 Weeks Open Label BAY (n=37)Median = 48 weeks(88% progression free at 24 weeks) Randomized (n=38) Median = 23 weeks(41% progression free at 24 weeks) 12 Weeks 24 Weeks * Responders at 12 week assessment with >25% tumor shrinkage

  25. Time to Progression • Includes all patients in analysis • Endpoint sooner than survival; no crossover effect • Definition of progression -death due to cancer -new lesions -increase in size of existing lesions (?) -?increase in tumor metabolism -? increase in plasma level of tumor marker -? decline in PS or increase in symptoms

  26. Time to Progression Measurement Considerations • Tumor assessment frequency should be the same across study arms even when cycles are of different lengths • Minimum interval between tumor assessments should be less than the expected treatment effect size

  27. Time to Progression • Precision depends on identification of all lesions at baseline and on frequency of evaluation • Always an estimate since actual progression occurs between observations • Requires control for rate of progression in absence of treatment effect • Unblinded studies subject to ascertainment bias

  28. Response Status Response Stable Disease Progressive Disease 80 70 PD at 6 wks PD at 18 wks 60 PD at 54 wks 50 Total Target Tumor Length (cm) 40 30 20 10 0 0 6 12 18 24 30 36 42 48 54 Time (weeks) TTP Better Categorizes Tumor Control Than Response Rate

  29. How Things Are Changing • Non invasive staging • Imaging targets for dose finding • Neoadjuvant chemotherapy to assess response • Early response assessment • Greater reliance on time to progression

  30. PET-CT Staging of Esophageal Cancer Enzinger, P. C. et al. N Engl J Med 2003;349:2241-2252

  31. PET-CT Staging of NSCLC Lardinois, D. et al. N Engl J Med 2003;348:2500-2507

  32. DCE MRI in CRC Patient Treated with PTK 787 BaselineDay 2 Ki dropped from 100% baseline to: 31% on day 2 34% at end cycle 1 15% at end cycle 2 Thomas et al. EORTC-NCI-AACR 2002.

  33. PTK/ZK: Changes in Ki Correlate With Changes in Size of Liver Metastases 60 50 40 30 P = .0001 20 10 Change in tumor size at day 52, % 0 40 0 20 80 100 120 140 160 60 – 10 – 20 – 30 – 40 Progressors – 50 Nonprogressors Mean Baseline MRI Ki, % Day 28

  34. 160 140 120 100 80 60 40 20 0 PTK/ZK: Ki Correlation With Clinical Outcome • Significant correlation between reduction in tumor blood flow and clinical outcome after treatment with PTK/ZK Progressors (n = 9) 1 60 P = .006 Nonprogressors (n = 12) 1 40 120 1 00 Mean Baseline MRI-Ki, % Mean Baseline MRI-Ki, % 8 0 60 4 0 2 0 0 Day 28 Day 2

  35. PTK/ZK: Optimal Dosing 160 Progressors 260 Day 28 240 Nonprogressors 140 220 200 120 180 100 160 140 AUC 0-24, hr•µM Mean Baseline MRI, % 80 120 100 60 80 40 60 40 20 20 0 0 0 0 800 200 400 600 20 40 60 80 180 100 120 140 160 200 1,000 1,200 1,400 1,600 1,800 2,000 2,200 AUC 0-24, hr•µM Dose, mg

  36. Estrogen receptor imaging using [18F]fluoroestradiol (FES) -PET scanning may predict breast cancer response to hormonal therapy Quon, A. et al. J Clin Oncol; 23:1664-1673 2005

  37. Early Response Assessment in GIST Dec 7, 2000 Jan 1, 2001 Before Gleevec™ After Gleevec™ Is quantitation necessary?

  38. FDG PET to Assess Response Weber, W. A. et al. J Clin Oncol; 21:2651-2657 2003

  39. PET Association with Clinical Benefit Weber, W. A. et al. J Clin Oncol; 21:2651-2657 2003

  40. Overall survival according to the standardized uptake value (SUV) for the primary tumor Sasaki, R. et al. J Clin Oncol; 23:1136-1143 2005

  41. Conclusions • Imaging is vitally important for staging and assessment of drug activity/tumor progression • Quantitative imaging provides information that can be a surrogate for clinical benefit but refinements are needed in response criteria • Functional imaging is increasingly useful for target assessment, dose-finding and early response assessment • Oncologists and imagers must work as partners in cancer care and research
