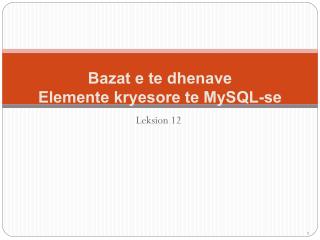

  1. Bazat e tedhenaveElementekryesorete MySQL-se Leksion 12 1

  2. Cfarejanetedhenat? • Te dhena (Data nga Datum) jane cdo informacion qe na duhet ta ruajme. • Emra te njerezve • Numra telefoni • Adresa • Etj.

  3. CfareeshtenjeBazetedhenash (Database)? Nje database eshte nje koleksion i organizuar informacioni, zakonisht ne forme dixhitale. Shembuj databazave qe mund te ndeshen ne jeten e perditeshme: • Nje numerator telefonik • Sistemi i rezervimit te avioneve • Sistemi i regjistrimit te automjeteve • Sistemi i kartave te baseball-it • Skedaret ne hard drive-n e kompjuterit tuaj. Cdo rekord ne nje databaze perbehet nga elemente te rendesishme te informacionit per nje artikull te vecante.

  4. Title ……………………. Title: MySQL/PHP Title …………………… Author ……………………. Author: Jay Greenspan, Brad Bulger Author ……………………. Source ……………………. Source: http://www.oreilly.com/ Source ……………………. Subject ……………………. Subject: Database Driven Web Sites Subject ……………………. Cfare eshte nje Baze te dhenash (Database)? DataBase ( a collection of records) Records(a collection of fields) Fields(individual elements of information)

  5. CfareeshtenjeSistemManaxhimiiBazavetetedhenave (Database Management System - DBMS)? • Ruan dhe nxjerr informacion nga nje Database (psh: roli i nje nepunesi te nje zyre). • Nje DBMS perfaqeson realitetin. Informacioni duhet te modelohet sipas jete reale. • Ne nje koleksion te kartave te baseball-it, informacioni ne nje karte eshte per nje lojtar. • Kartat grupohen ne Ekipe. • Ekipet grupohen ne Liga

  6. ProblemeqendeshenkurnukperdorenDatabazatrelacionale. • Te dhena te teperta, qe cojne ne paqendrueshmeri te te dhenave. • Sa me shume qe te shtoni te dhena te njejta , aq me shume mundesi keni per te bere gabime. • Nese nje e dhene ndryshon (psh: adrese e re) duhet te ndryshoni te dhenat ne shume vende.

  7. RregullatkryesoreteDatabazaveRelacionale • Databazat Relacionale permbajne me shume se nje tabele. • Tabelat jane grupime logjike te te dhenave te ngjashme. • Tabelat perbehen nga Rreshta(rekordet) dhe Kolona (fushat) • Te gjitha kolonat ne nje tabele lidhen me fushen celes.

  8. Arsyeja • Shumica e aplikacioneve kane shume tabela qe lidhen me tabelat e tjera, per te paraqitur informacionin ne menyre efikase. • Perdorimi i shume tabelave na lejon qe te manipulojme te dhenat ne menyre me efikase. • Nese keni shume tabela ju nevojiten celesa primare unike dhe celesa te jashtem.

  9. CelesatPrimaredheteJashtem • Celesat primare (Primary Key) dhe te jashtem (Foreign Key ) perdoren per te vendosur relacionet ndermjet tabelave. • Celesi Primar ne tabelen A duhet te jete Unik • Celesi Primar ne tabelen A lidhet me nje fushe ne tabelen B. • Celesi i Jashtem ne tabelen B nuk do te jete unik, pervec rastit kur kemi relacion NJE-ME-NJE

  10. Shembullicelesaveprimaredhetejashtem

  11. CfareeshteMySQL?

  12. CfareeshteMySQL? • Databaza open source me popullore: > Performance e larte >Besueshmeri e larte>Lehtesi ne perdorim • Perdoret ne shumicen e websiteve me te kerkuara ne bote > Yahoo, Google, YouTube, ... • Ekzekutohet ne te gjitha platformat OS

  13. Bazate SQL-se: KonceptedheTerminologji

  14. Cfareeshte SQL-ja? SQL (Structured Query Language) eshte nje gjuhe per te nxjerre dhe per te manipuluar te dhenat ne nje databaze > Data definition (DDL) > Data manipulation (DML) > Data control (DCL)

  15. Terminologji ne SQL • Tabele >Njebashkesirreshtash > Analog me nje “skedar” • Rresht > Analog me njerekord ne nje “skedar” • Kolone >Njekoloneeshteanaloge me njefushetenjerekordi >Cdokolone ne njerreshttedhene ka njevleretevetme • Celes Primar >Njeose me shumekolonaqekanevleraunikebrenda njetabeledhemundteperdoren per teidentifikuar njerreshtteasajtabele

  16. Bazate SQL-se: Databazat

  17. Krijimiinjedatabaze mysql> CREATE DATABASE mydb;Query OK, 1 row affected (0.01 sec)

  18. Caktimiinjedatabaze default mysql> USE mydb; Database changed 17

  19. Fshirja e njedatabaze mysql> DROP DATABASE temp_db;Query OK, 0 rows affected (0.01 sec) mysql> DROP DATABASE IF EXISTS temp_db; Query OK, 0 rows affected, 1 warning (0.00 sec) mysql> SHOW DATABASES; +--------------------+ | Database | +--------------------+ | information_schema | | mydb | | mysql | | test | +--------------------+ 4 rows in set (0.00 sec) 18

  20. SQLBasics: Bazate SQL-se: Tabelat

  21. Krijimiinjetabele mysql> CREATE TABLE person ( -> person_id SMALLINT UNSIGNED NOT NULL, -> first_name VARCHAR(45) NOT NULL, -> last_name VARCHAR(45) NOT NULL, -> PRIMARY KEY (person_id) -> ) ENGINE=InnoDB; Query OK, 0 rows affected (0.14 sec) mysql> SHOW TABLES; +----------------+ | Tables_in_mydb |+----------------+ | person | +----------------+ 1 row in set (0.00 sec) 20

  22. Fshirja e tabelave mysql> SHOW TABLES; +-------------------+ | Tables_in_temp_db |+-------------------+ | temp_table | +-------------------+ 1 row in set (0.00 sec) mysql> DROP TABLE temp_table; Query OK, 0 rows affected (0.06 sec) mysql> DROP TABLE IF EXISTS temp_table; Query OK, 0 rows affected, 1 warning (0.12 sec) mysql> SHOW TABLES; Empty set (0.00 sec) 24

  23. Bazate SQL-se: Fushat

  24. Perkufizimetefushave: • Cdo fushe ka • Emrin e fushes • Tipin e tedhenave • Modifikuesin e fushes –kushtezimin (constraint) 27

  25. Tipet e tedhenavetefushave - Integer • • TINYINT • > 1 byte, -128 to 127 (signed), 0 to 255 (unsigned) • • SMALLINT • > 2 bytes, -32768 to 32767 (signed), 0 to 65535 • (unsigned) • • MEDIUMINT • > 3 bytes • • INT • > 4 bytes • • BIGINT • >8 bytes 31

  26. Tipet e tedhenavetefushave • • TINYINT • > 1 byte, -128 to 127 (me shenje), 0 to 255 (pa shenje) • • FLOAT • > vlera me presjedhjetore me precision tethjeshte • •DOUBLE • >vlera me presjedhjetore me precision tedyfishte • •DECIMAL • >vlera decimal • • BIT • >vlera bit ( b'0101‘) 31

  27. Tipet e tedhenavetefushave • • CHAR • >Stringje me gjatesifiksederi ne 255 karaktere • • VARCHAR • >Stringje me gjatesivariabelderi ne 255 karaktere • • DATE, TIME, YEAR • • DATETIME, TIMESTAMP • • ENUM, SET • > Bashkesivlerashteparacaktuara 31

  28. Modifikuesit e fushes • NULL ose NOT NULL >Tregonnesefushamundteketevlere null apojo • DEFAULT >Caktonnjevlere default nesenukeshtespecifikuar ndonjevleregjateshtimitterekorditteri • AUTO_INCREMENT >MySQLgjeneronnjenumer ne menyreautomatike (duke by ishtuar 1 vleres se meparshme) >Perdoret per krijimin e celesitprimar • CHARACTER SET >Specifikonbashkesine e karaktereve per vlerat string 31

  29. Bazate SQL-se: INSERT/UPDATE/DELETE

  30. Shtimiinjerekorditevetem mysql> INSERT INTO person (person_id, first_name, last_name, age) -> VALUES (1, 'sang', 'shin', 88); Query OK, 1 row affected (0.10 sec) mysql> SELECT * FROM person; +-----------+------------+-----------+-----+ | person_id | first_name | last_name | age | +-----------+------------+-----------+-----+ | 1 | sang | shin | 88 | +-----------+------------+-----------+-----+ 1 row in set (0.00 sec)

  31. Shtimiidisarekordevenjeheresh mysql> INSERT INTO person (person_id, first_name, last_name, age) -> VALUES -> (2, 'kelly', 'jones', 22), -> (3, 'jack', 'kennedy', 56), -> (4, 'paul', 'kennedy', 34), -> (5, 'daniel', 'song', 24), -> (6, 'nichole', 'scott', 9); Query OK, 3 rows affected (0.05 sec)Records: 3 Duplicates: 0 Warnings: 0 34

  32. Fshirja e rekordeve mysql> DELETE FROM person WHERE age < 10;Query OK, 1 row affected (0.07 sec) 35

  33. Modifikimiirekordeve mysql> UPDATE person SET age = 88 -> WHERE age = 99 OR first_name = 'paul';Query OK, 1 row affected, 2 warnings (0.04 sec)Rows matched: 1 Changed: 1 Warnings: 2 mysql> SELECT * FROM person; +-----------+------------+-----------+-----+ | person_id | first_name | last_name | age |+-----------+------------+-----------+-----+ | 1 | sang | shin | 88 | | 2 | kelly | jones | 22 | | 3 | jack | kennedy | 56 | | 4 | paul | kennedy | 88 | +-----------+------------+-----------+-----+ 4 rows in set (0.00 sec) 36

  34. Bazate SQL-se: SELECT

  35. Nxjerrja e disafushave ne menyre selektive mysql> SELECT last_name, age FROM person; +-----------+-----+ | last_name | age | +-----------+-----+ | shin | 88 | | jones | 22 | | kennedy | 56 | | kennedy | 34 | | song | 24 | +-----------+-----+ 5 rows in set (0.00 sec)

  36. Nxjerrja e informacionit me WHERE mysql> SELECT first_name, age FROM person -> WHERE age > 50; +------------+-----+| first_name | age |+------------+-----+ | sang | 88 | | jack | 56 | +------------+-----+ 2 rows in set (0.00 sec) mysql> SELECT first_name, last_name, age FROM person -> WHERE age < 50 AND first_name LIKE '%niel';+------------+-----------+-----+ | first_name | last_name | age |+------------+-----------+-----+ | daniel | song | 24 | +------------+-----------+-----+ 1 row in set (0.00 sec) 39

  37. Nxjerrja e rekordevesipasrradhes mysql> SELECT last_name, age FROM person -> ORDER BY age ASC; +-----------+-----+ | last_name | age | +-----------+-----+ | jones | 22 | | song | 24 | | kennedy | 34 | | kennedy | 56 | | shin | 88 | +-----------+-----+ 5 rows in set (0.00 sec) mysql> SELECT * FROM person -> ORDER BY age DESC; +-----------+------------+-----------+-----+ | person_id | first_name | last_name | age | +-----------+------------+-----------+-----+ | 1 | sang | shin | 88 | | 3 | jack | kennedy | 56 | | 4 | paul | kennedy | 34 | | 5 | daniel | song | 24 | | 2 | kelly | jones | 22 |

  38. Nxjerrja e njenumritekufizuar rekordesh mysql> SELECT * from person -> ORDER BY age DESC -> LIMIT 3; +-----------+------------+-----------+-----+ | person_id | first_name | last_name | age | +-----------+------------+-----------+-----+ | 1 | sang | shin | 88 | | 3 | jack | kennedy | 56 | | 4 | paul | kennedy | 34 | +-----------+------------+-----------+-----+ 3 rows in set (0.00 sec)

  39. Komandabaze ne SQL: FunksionetAritmetike

  40. VeprimetAritmetike mysql> SELECT 3 + 6; +-------+ | 3 + 6 | +-------+ | 9 | +-------+ 1 row in set (0.00 sec) mysql> SELECT 45 * (1+2); +------------+ | 45 * (1+2) | +------------+ | 135 | +------------+ 1 row in set (0.00 sec)

  41. COUNT, AVG, SUM mysql> SELECT COUNT(age) FROM person;+------------+ | COUNT(age) |+------------+ | 5 | +------------+ 1 row in set (0.04 sec) mysql> SELECT AVG(age) from person;+----------+ | AVG(age) |+----------+ | 44.8000 | +----------+ 1 row in set (0.00 sec) mysql> SELECT SUM(age) FROM person;+----------+ | SUM(age) |+----------+ | 224 | +----------+ 1 row in set (0.00 sec) 44

  42. MIN, MAX mysql> SELECT MIN(age) FROM person;+----------+ | MIN(age) |+----------+ | 22 | +----------+ 1 row in set (0.00 sec) mysql> SELECT MAX(age) FROM person;+----------+ | MAX(age) |+----------+ | 88 | +----------+ 1 row in set (0.00 sec) 45

  43. Pyetje?
