  1. Pipelining - II Adapted from CS 152C (UC Berkeley) lectures notes of Spring 2002

  2. 30 40 40 40 40 20 A B C D Revisiting Pipelining Lessons 6 PM 7 8 9 Time • Pipelining doesn’t help latency of single task, it helps throughput of entire workload • Pipeline rate limited by slowest pipeline stage • Multiple tasks operating simultaneously using different resources • Potential speedup = Number pipe stages • Unbalanced lengths of pipe stages reduces speedup • Time to “fill” pipeline and time to “drain” it reduces speedup • Stall for Dependences T a s k O r d e r

  3. Revisiting Pipelining Hazards • Structural Hazards • Hardware design • Control Hazard • Decision based on results • Data Hazard • Data Dependency

  4. Control Signals for existing Datapath The Right to Left Control can lead to hazards

  5. Place registers between each step

  6. Example 10 lw r1, r2(35) 14 addI r2, r2, 3 20 sub r3, r4, r5 24 beq r6, r7, 100 30 ori r8, r9, 17 34 add r10, r11, r12 100 and r13, r14, 15

  7. Start: Fetch 10 A M S B = IF D Next PC 10 PC n n n n Inst. Mem Decode WB Ctrl Mem Ctrl IR im rs rt Reg. File Reg File Exec Mem Access Data Mem 10 lw r1, r2(35) 14 addI r2, r2, 3 20 sub r3, r4, r5 24 beq r6, r7, 100 30 ori r8, r9, 17 34 add r10, r11, r12 100 and r13, r14, 15

  8. Fetch 14, Decode 10 A M S B = ID D IF Next PC 14 PC n n n lw r1, r2(35) Inst. Mem Decode WB Ctrl Mem Ctrl IR im 2 rt Reg. File Reg File Exec Mem Access Data Mem 10 lw r1, r2(35) 14 addI r2, r2, 3 20 sub r3, r4, r5 24 beq r6, r7, 100 30 ori r8, r9, 17 34 add r10, r11, r12 100 and r13, r14, 15

  9. Fetch 20, Decode 14, Exec 10 M S B = D Next PC 20 PC n n addI r2, r2, 3 Inst. Mem Decode WB Ctrl lw r1 Mem Ctrl IR 35 2 rt Reg. File Reg File r2 Exec Mem Access Data Mem EX 10 lw r1, r2(35) 14 addI r2, r2, 3 20 sub r3, r4, r5 24 beq r6, r7, 100 30 ori r8, r9, 17 34 add r10, r11, r12 100 and r13, r14, 15

  10. Fetch 24, Decode 20, Exec 14, Mem 10 M B = D EX ID Next PC 24 IF PC n sub r3, r4, r5 addI r2, r2, 3 Inst. Mem Decode WB Ctrl lw r1 Mem Ctrl IR 3 4 5 Reg. File Reg File r2 r2+35 Exec Mem Access Data Mem M 10 lw r1, r2(35) 14 addI r2, r2, 3 20 sub r3, r4, r5 24 beq r6, r7, 100 30 ori r8, r9, 17 34 add r10, r11, r12 100 and r13, r14, 15

  11. Fetch 30, Dcd 24, Ex 20, Mem 14, WB 10 r5 = WB D M EX Next PC ID 30 IF PC beq r6, r7 100 Inst. Mem Decode WB Ctrl addI r2 lw r1 sub r3 Mem Ctrl IR 6 7 Reg. File Reg File M[r2+35] r4 r2+3 Exec Mem Access Data Mem 10 lw r1, r2(35) 14 addI r2, r2, 3 20 sub r3, r4, r5 24 beq r6, r7, 100 30 ori r8, r9, 17 34 add r10, r11, r12 100 and r13, r14, 15

  12. Fetch 100, Dcd 30, Ex 24, Mem 20, WB 14 r7 = D Next PC EX 100 ID PC IF ori r8, r9 17 Inst. Mem Decode WB Ctrl addI r2 sub r3 Mem Ctrl beq IR 9 xx 100 r1=M[r2+35] Reg. File Reg File r6 r2+3 r4-r5 Exec Mem Access Data Mem 10 lw r1, r2(35) 14 addI r2, r2, 3 20 sub r3, r4, r5 24 beq r6, r7, 100 30 ori r8, r9, 17 34 add r10, r11, r12 100 and r13, r14, 15 WB M

  13. 1st lw Ifetch Reg/Dec Exec Mem Wr Ifetch Reg/Dec Exec Mem Wr Ifetch Reg/Dec Exec Mem Wr Pipelining Load Instruction Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 Cycle 7 Clock 2nd lw 3rd lw • The five independent functional units in the pipeline datapath are: • Instruction Memory for the Ifetch stage • Register File’s Read ports (bus A and busB) for the Reg/Dec stage • ALU for the Exec stage • Data Memory for the Mem stage • Register File’s Write port (bus W) for the Wr stage

  14. Ifetch Reg/Dec Exec Wr Pipelining the R Instruction Cycle 1 Cycle 2 Cycle 3 Cycle 4 R-type • Ifetch: Instruction Fetch • Fetch the instruction from the Instruction Memory • Reg/Dec: Registers Fetch and Instruction Decode • Exec: • ALU operates on the two register operands • Update PC • Wr: Write the ALU output back to the register file

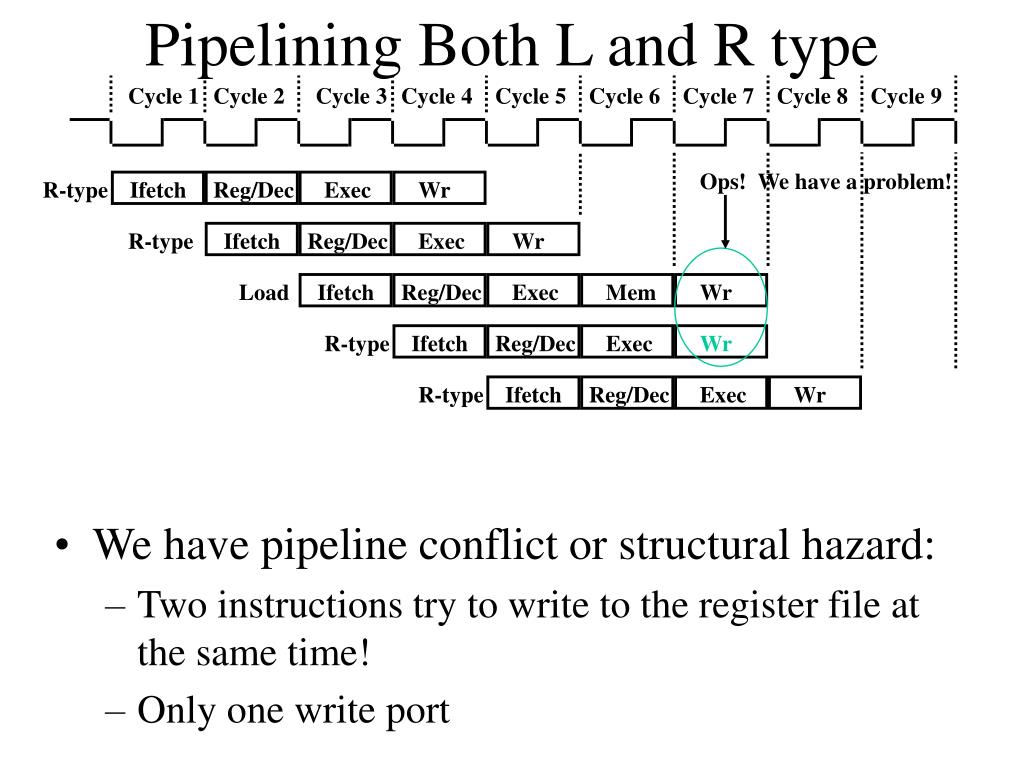

  15. Ifetch Reg/Dec Exec Wr Ifetch Reg/Dec Exec Wr Ifetch Reg/Dec Exec Mem Wr Ifetch Reg/Dec Exec Wr Ifetch Reg/Dec Exec Wr Pipelining Both L and R type Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 Cycle 7 Cycle 8 Cycle 9 Ops! We have a problem! R-type R-type Load R-type R-type • We have pipeline conflict or structural hazard: • Two instructions try to write to the register file at the same time! • Only one write port

  16. 1 2 3 4 5 Load Ifetch Reg/Dec Exec Mem Wr 1 2 3 4 R-type Ifetch Reg/Dec Exec Wr Important Observations • Each functional unit can only be used once per instruction • Each functional unit must be used at the same stage for all instructions: • Load uses Register File’s Write Port during its 5th stage • R-type uses Register File’s Write Port during its 4th stage

  17. Ifetch Reg/Dec Wr Ifetch Reg/Dec Exec Mem Wr Ifetch Reg/Dec Exec Mem Wr Ifetch Reg/Dec Exec Mem Wr Ifetch Reg/Dec Exec Mem Wr Ifetch Reg/Dec Exec Mem Wr Solution • Delay R-type’s register write by one cycle: • Now R-type instructions also use Reg File’s write port at Stage 5 • Mem stage is a NOOP stage: nothing is being done. 4 1 2 3 5 Exec Mem R-type Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 Cycle 7 Cycle 8 Cycle 9 R-type Load R-type R-type

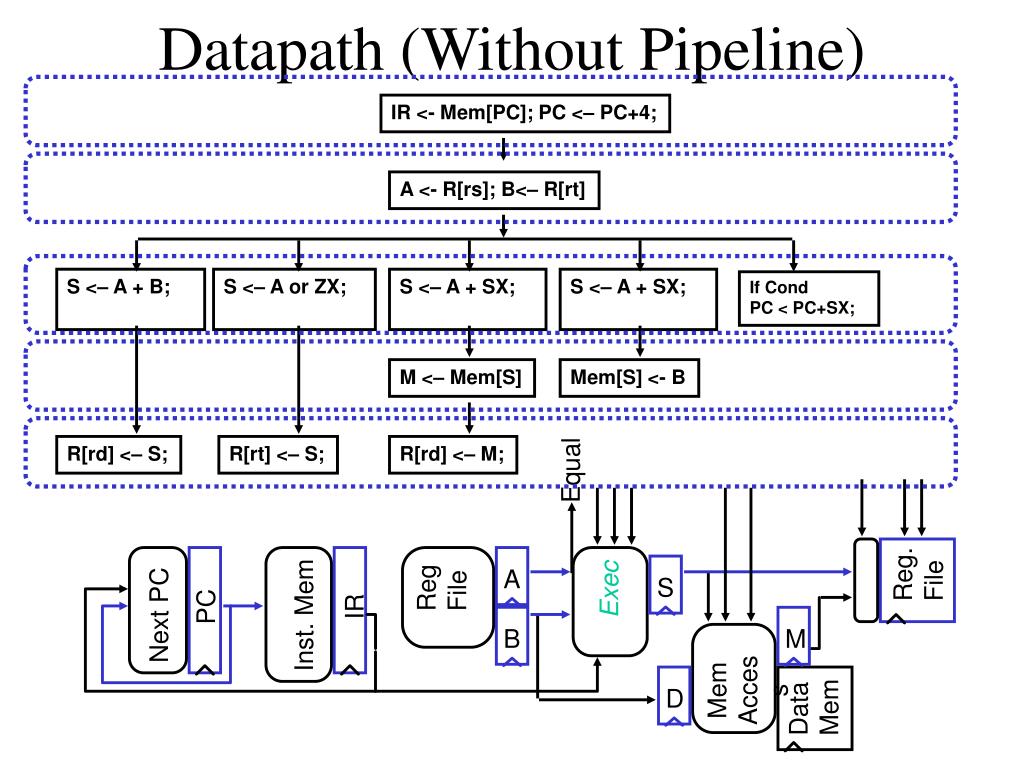

  18. A S B M D Datapath (Without Pipeline) IR <- Mem[PC]; PC <– PC+4; A <- R[rs]; B<– R[rt] S <– A + B; S <– A or ZX; S <– A + SX; S <– A + SX; If Cond PC < PC+SX; M <– Mem[S] Mem[S] <- B R[rd] <– S; R[rt] <– S; R[rd] <– M; Equal Reg. File Reg File Exec PC IR Next PC Inst. Mem Mem Access Data Mem

  19. Datapath (With Pipeline) A M B D IR <- Mem[PC]; PC <– PC+4; A <- R[rs]; B<– R[rt] S <– A + B; S <– A or ZX; S <– A + SX; S <– A + SX; if Cond PC < PC+SX; M <– S M <– Mem[S] Mem[S] <- B M <– S R[rd] <– M; R[rt] <– M; R[rd] <– M; Equal Reg. File Reg File S Exec PC IR Next PC Inst. Mem Mem Access Data Mem

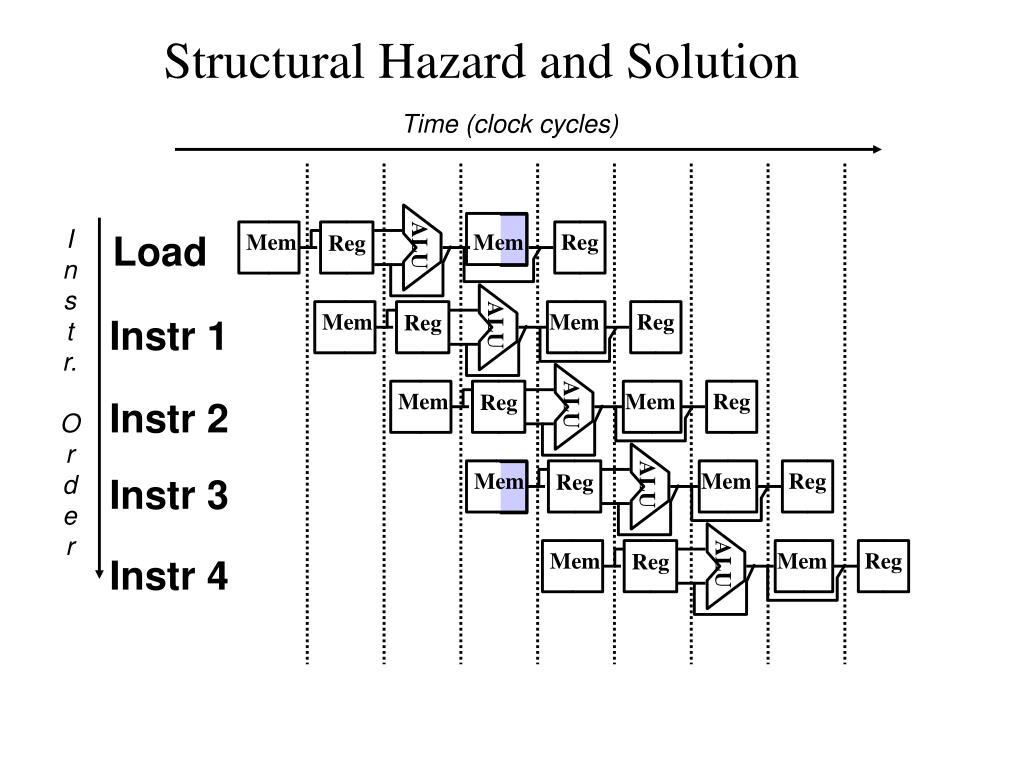

  20. Mem ALU Mem Mem Reg Reg ALU Mem Mem Reg Reg ALU ALU Mem Mem Reg Reg ALU Structural Hazard and Solution Time (clock cycles) I n s t r. O r d e r Load Mem Reg Reg Instr 1 Instr 2 Mem Mem Reg Reg Instr 3 Instr 4

  21. I n s t r. O r d e r Time (clock cycles) Mem Reg Reg Add Mem ALU Mem Reg Reg Beq Mem ALU Load Lost potential Mem Reg Reg Mem ALU Control Hazard - #1 Stall • Stall: wait until decision is clear • Impact: 2 lost cycles (i.e. 3 clock cycles per branch instruction) => slow

  22. I n s t r. O r d e r Time (clock cycles) Mem Reg Reg Add Mem Reg Reg Beq Mem ALU Load Mem Mem Reg Reg Mem ALU ALU Control Hazard – #2 Predict Predict: guess one direction then back up if wrong Impact: 0 lost cycles per branch instruction if right, 1 if wrong (right ­ 50% of time) More dynamic scheme: history of 1 branch

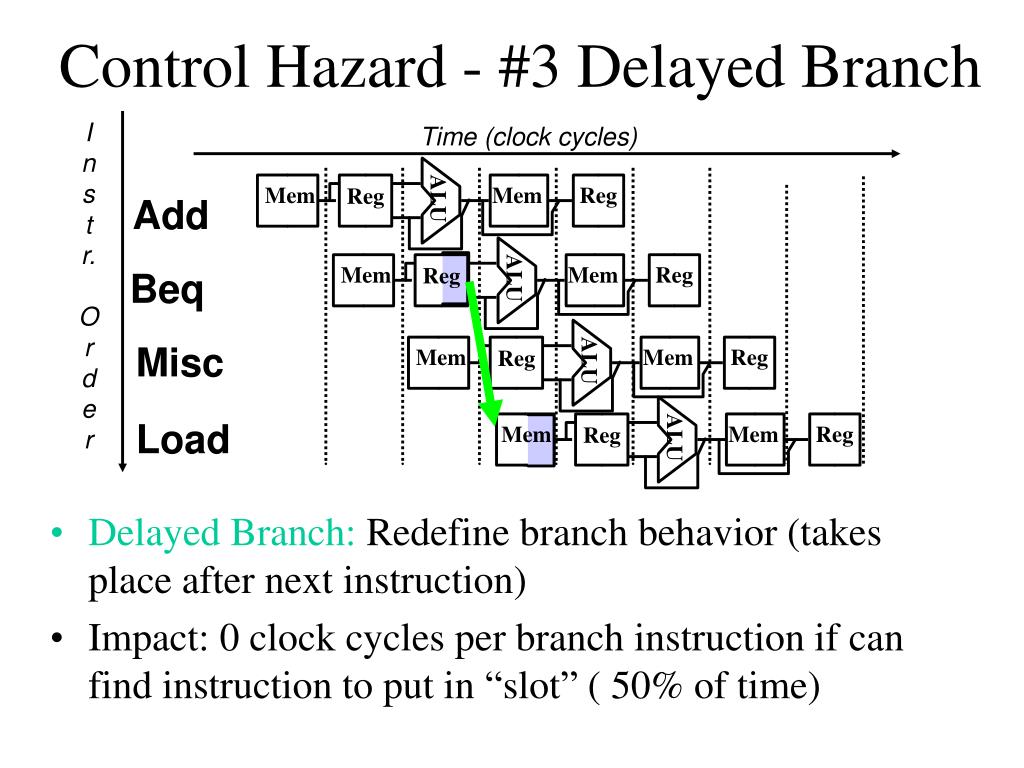

  23. I n s t r. O r d e r Time (clock cycles) Mem Reg Reg Add Mem ALU Mem Reg Reg Beq Mem ALU Misc Mem Mem Reg Reg ALU Load Mem Mem Reg Reg ALU Control Hazard - #3 Delayed Branch Delayed Branch: Redefine branch behavior (takes place after next instruction) Impact: 0 clock cycles per branch instruction if can find instruction to put in “slot” (­ 50% of time)

  24. Im ALU Im ALU Data Hazards (RAW) • Dependencies backwards in time are hazards Time (clock cycles) IF ID/RF EX MEM WB add r1,r2,r3 Reg Reg ALU Im Dm I n s t r. O r d e r sub r4,r1,r3 Dm Reg Reg Dm Reg Reg and r6,r1,r7 Im Dm Reg Reg or r8,r1,r9 ALU xor r10,r1,r11

  25. Im ALU Im ALU Im Dm Reg Reg ALU Data Hazards [contd…] • “Forward” result from one stage to another Time (clock cycles) IF ID/RF EX MEM WB add r1,r2,r3 Reg Reg ALU Im Dm I n s t r. O r d e r sub r4,r1,r3 Dm Reg Reg Dm Reg Reg and r6,r1,r7 Im Dm Reg Reg or r8,r1,r9 ALU xor r10,r1,r11

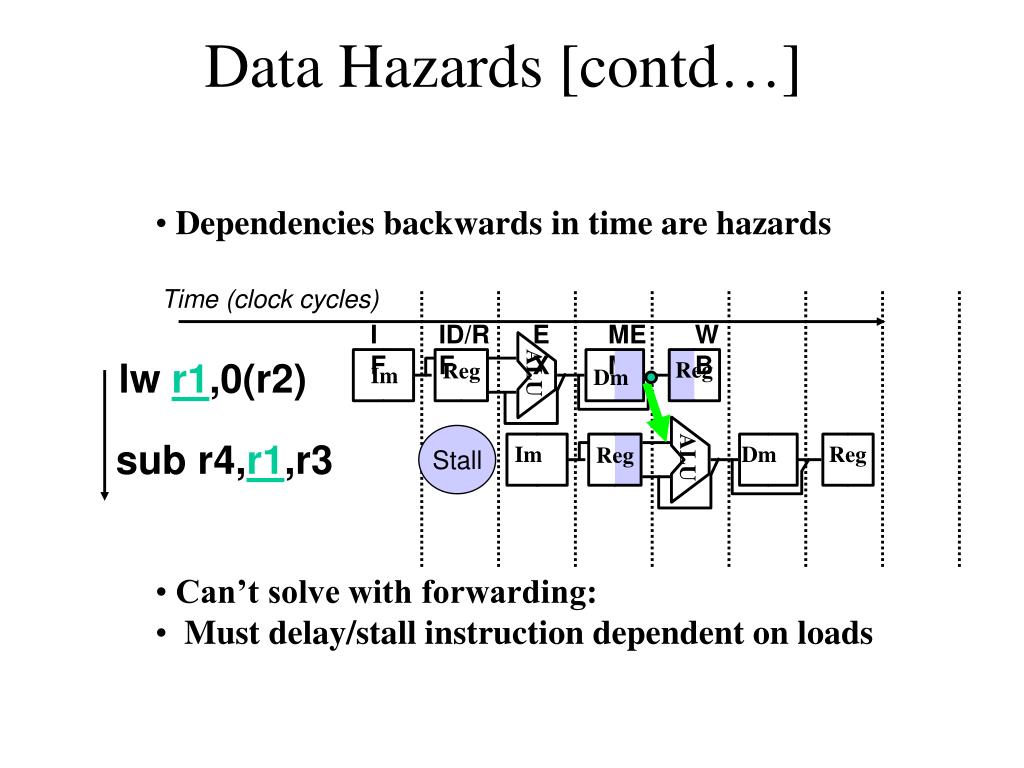

  26. Im Dm Reg Reg ALU Data Hazards [contd…] • Dependencies backwards in time are hazards • Can’t solve with forwarding: • Must delay/stall instruction dependent on loads Time (clock cycles) IF ID/RF EX MEM WB lw r1,0(r2) Reg Reg ALU Im Dm Stall sub r4,r1,r3

  27. Hazard Detection I-Fetch DCD MemOpFetch OpFetch Exec Store IFetch DCD ° ° ° Structural Hazard I-Fetch DCD OpFetch Jump Control Hazard IFetch DCD ° ° ° IF DCD EX Mem WB RAW (read after write) Data Hazard IF DCD EX Mem WB WAW Data Hazard (write after write) IF DCD EX Mem WB IF DCD OF Ex Mem IF DCD OF Ex RS WAR Data Hazard (write after read)

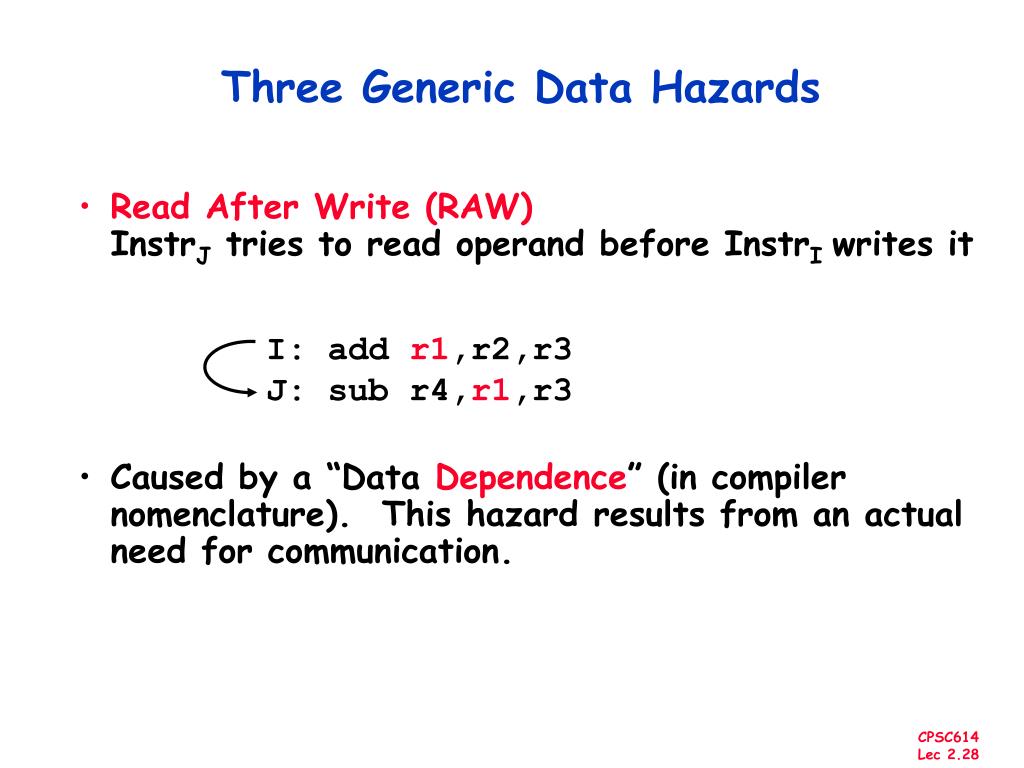

  28. Three Generic Data Hazards • Read After Write (RAW)InstrJ tries to read operand before InstrI writes it • Caused by a “Data Dependence” (in compiler nomenclature). This hazard results from an actual need for communication. I: add r1,r2,r3 J: sub r4,r1,r3

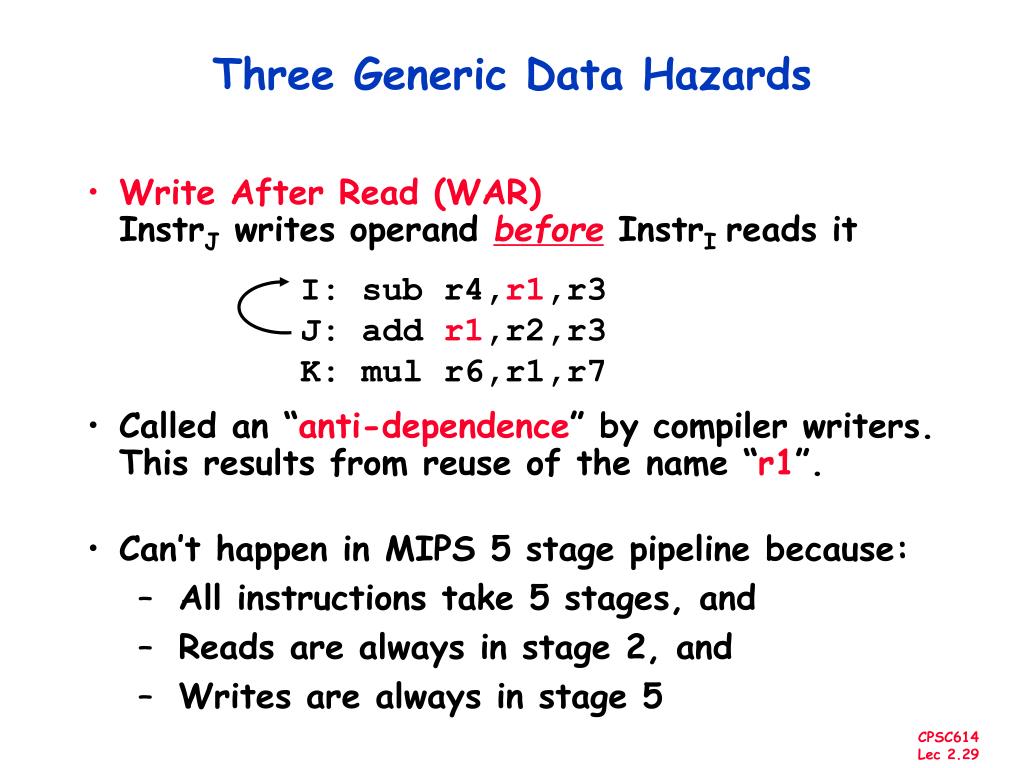

  29. I: sub r4,r1,r3 J: add r1,r2,r3 K: mul r6,r1,r7 Three Generic Data Hazards • Write After Read (WAR)InstrJ writes operand before InstrI reads it • Called an “anti-dependence” by compiler writers.This results from reuse of the name “r1”. • Can’t happen in MIPS 5 stage pipeline because: • All instructions take 5 stages, and • Reads are always in stage 2, and • Writes are always in stage 5

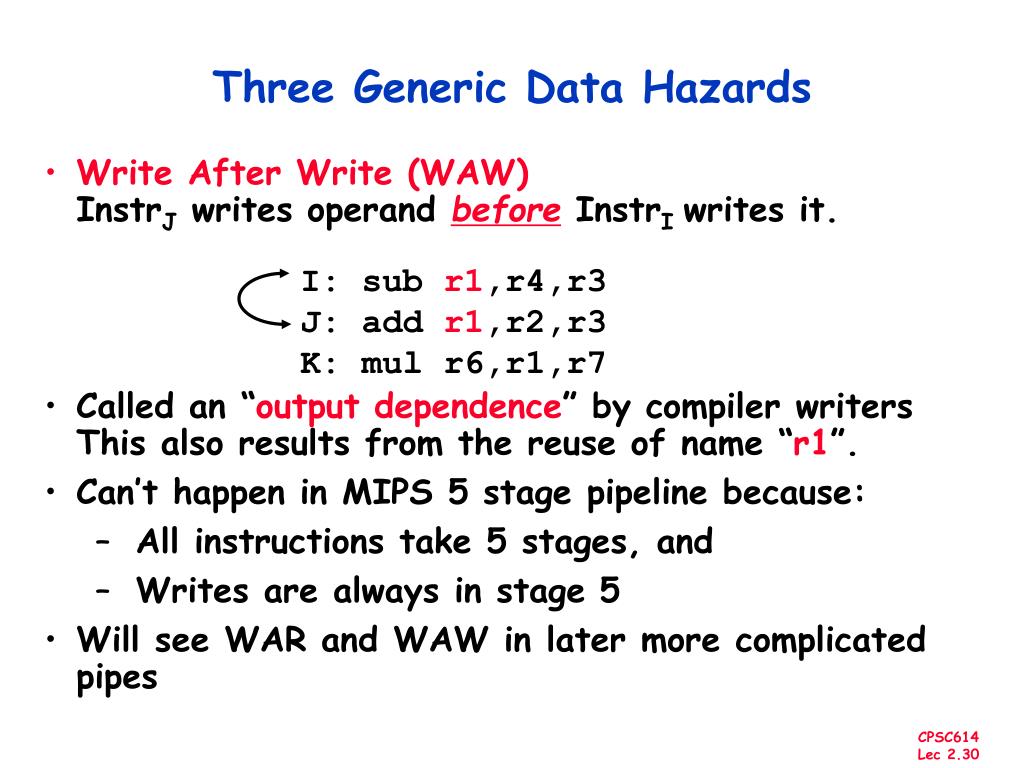

  30. I: sub r1,r4,r3 J: add r1,r2,r3 K: mul r6,r1,r7 Three Generic Data Hazards • Write After Write (WAW)InstrJ writes operand before InstrI writes it. • Called an “output dependence” by compiler writersThis also results from the reuse of name “r1”. • Can’t happen in MIPS 5 stage pipeline because: • All instructions take 5 stages, and • Writes are always in stage 5 • Will see WAR and WAW in later more complicated pipes

  31. New Inst Inst I Window on execution: Only pending instructions can cause hazards Instruction Movement: Inst J Hazard Detection Suppose instruction i is about to be issued and a predecessor instruction j is in the instruction pipeline. A RAW hazard exists on register if Rregs( i ) Wregs( j ) A WAW hazard exists on register if Wregs( i ) Wregs( j ) A WAR hazard exists on register if Wregs( i ) Rregs( j )

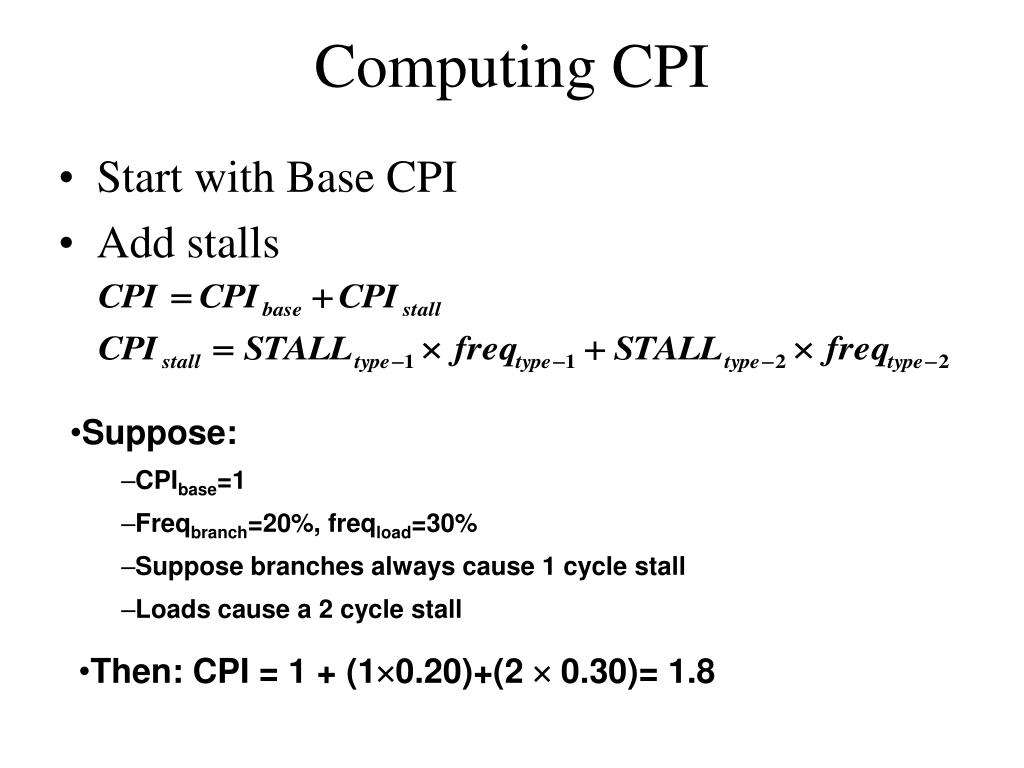

  32. Computing CPI • Start with Base CPI • Add stalls • Suppose: • CPIbase=1 • Freqbranch=20%, freqload=30% • Suppose branches always cause 1 cycle stall • Loads cause a 2 cycle stall Then: CPI = 1 + (10.20)+(2  0.30)= 1.8

  33. Summary • Control Signals need to be propagated • Insert Registers between every stage to “remember” and “propagate” values • Solutions to Control Hazard are Stall, Predict and Delayed Branch • Solutions to Data Hazard is “Forwarding” • Effective CPI = CPIideal + CPIstall
