  1. MAE 435 Progress Report 2/19/13

  2. MAE 435W Facebook/twitter Shop clean-up Marketing meetings Engineering/club open houses Printed and reviewed rule book

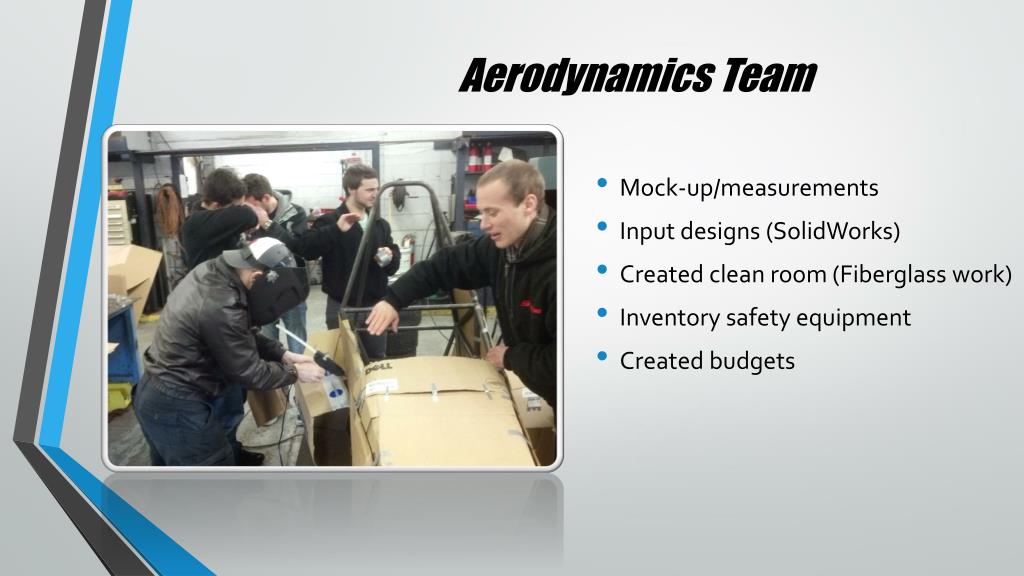

  3. Aerodynamics Team Mock-up/measurements Input designs (SolidWorks) Created clean room (Fiberglass work) Inventory safety equipment Created budgets

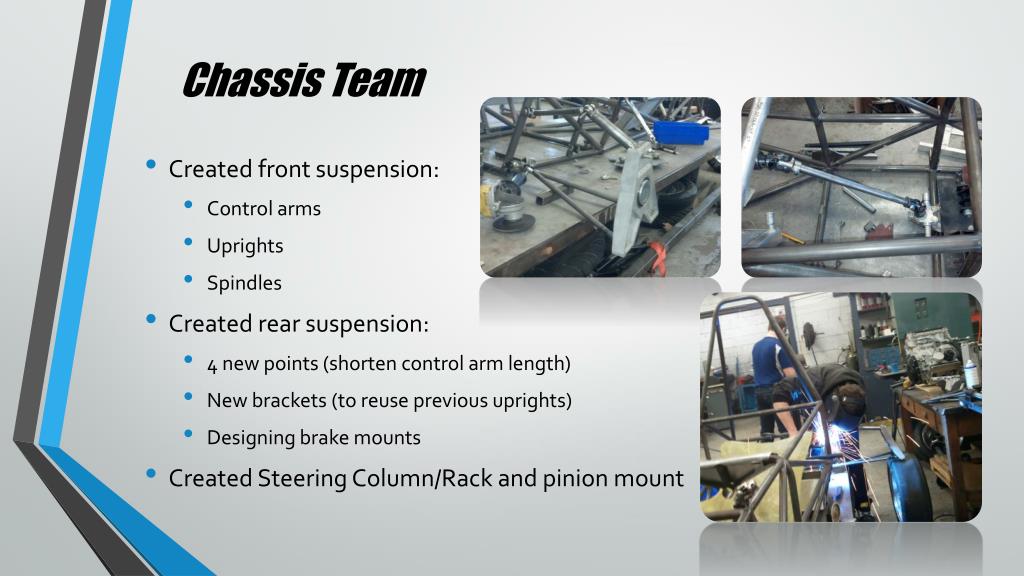

  4. Chassis Team • Created front suspension: • Control arms • Uprights • Spindles • Created rear suspension: • 4 new points (shorten control arm length) • New brackets (to reuse previous uprights) • Designing brake mounts • Created Steering Column/Rack and pinion mount

  5. Powertrain Team Engine mounting Oil pan design and fabrication Cooling system Differential mount Intake Fuel system
