  1. RAD’s Point-to-Multipoint Offering:Airmux-5000

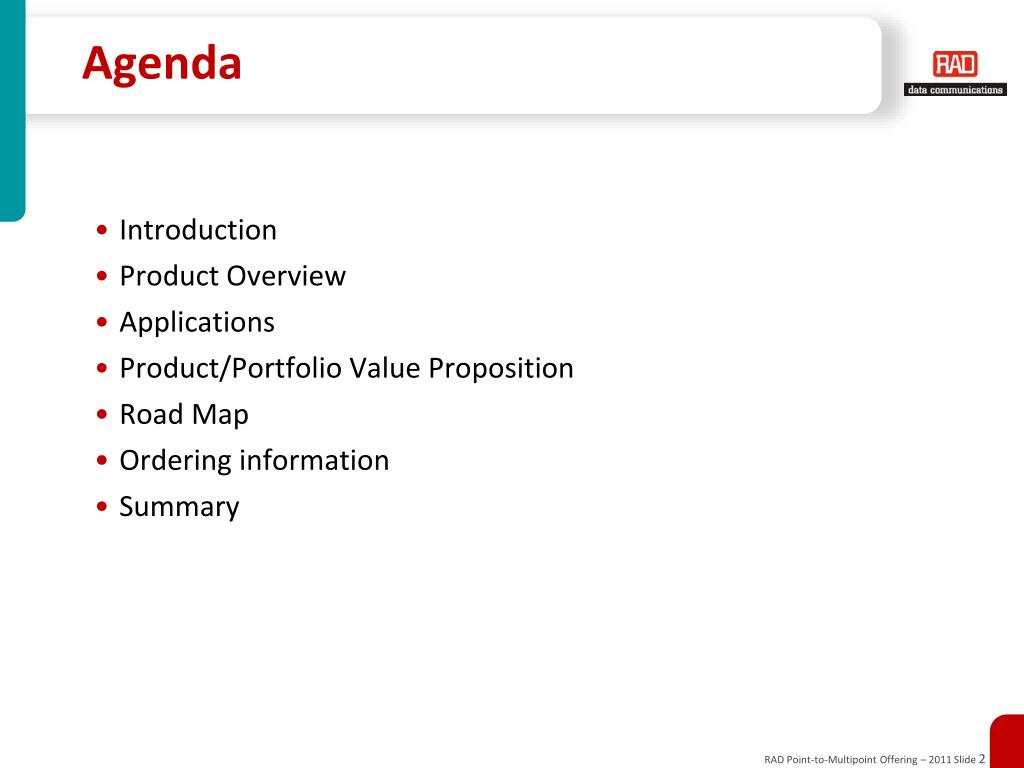

  2. Agenda • Introduction • Product Overview • Applications • Product/Portfolio Value Proposition • Road Map • Ordering information • Summary

  3. Airmux – Product Portfolio • Sub-6 GHz broadband wireless solutions • Deployments in over 130 countries • Offering backhaul and access (last mile) solutions • Market leading sub-6 GHz point-to-point/multipoint portfolio: • Airmux-200 – 18 Mbps full duplex Ethernet throughput; up to 4 x E1s/T1s • Airmux-400 – 200 Mbps net Ethernet throughput; up to 16 x E1s/T1s • Airmux-5000 HPMP – 200 Mbps Point to Multipoint solution • Target segments: Cellular Operators, Service Providers, Video Surveillance, and a variety of private network verticals

  4. Solutions Segmentation Capacity (Mbps) 200 • For Business and High end applications • MiMO / Diversity • Secure SLA • 200Mbps / sector Airmux 5000 • Native 802.11n • Nor QoS neither guaranteed SLA (Air interface is not scheduled ) • Available only in unlicensed 2.4, 5.x band • Address low end residnetial • Low cost BS & CPE but unstable performance as technology is for indoor 802.11.n • Built for business / high end residential • Includes basic QoS • Available in licensed & unlicensed band 5.x , 3.x • Low cost BS • Up to ~40Mbps / sector • Lack of MiMO/ Diversity • No guaranteed SLA • Built for residential mass market • Requires Licensed band only (3.x, 2.x) • 35 Mbps / sector, limited to 10 MHz • Mostly downlink capacity • complex Netwotk (ASN, AAA) • No Roadmap Proprietary Pre WiMAXPtMP 40 Residential Enterprise End user

  5. Airmux-5000 HPMP

  6. Airmux-5000 HPMP Solution Highlights • High capacity per sector • 200 Mbps aggregate throughput • Ethernet connectivity • High capacity end user equipment – 10, 20, 50 Mbps • Up to 16 SUs per sector • Guaranteed SLA and capacity per subscriber unit • Small and constant latency – 4 to 10 msec typical under full sector load • Wide range of frequency bands – 4.8 to 6 GHz, 3.3 to 3.8 GHz High capacity PtMP for bandwidth demanding applications and guaranteed SLA

  7. Market Segments • Airmux-5000 HPMP is a high capacity OFDM/MIMO • Point-to-Multipoint solution suitable for: • Carriers and ISPs targeting the Last Mile • enterprise connectivity • Wireless connectivity solution for private • networks looking to deploy broadband and mission • critical applications.

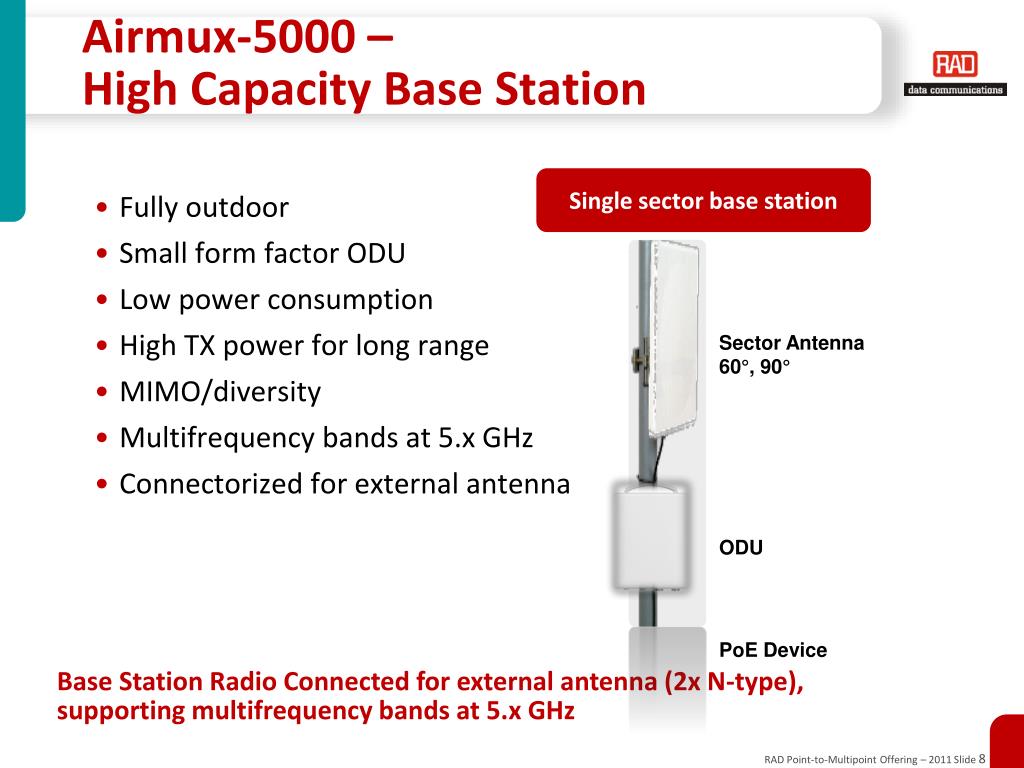

  8. Airmux-5000 – High Capacity Base Station Single sector base station • Fully outdoor • Small form factor ODU • Low power consumption • High TX power for long range • MIMO/diversity • Multifrequency bands at 5.x GHz • Connectorized for external antenna Sector Antenna 60°, 90° ODU PoE Device Base Station Radio Connected for external antenna (2x N-type), supporting multifrequency bands at 5.x GHz

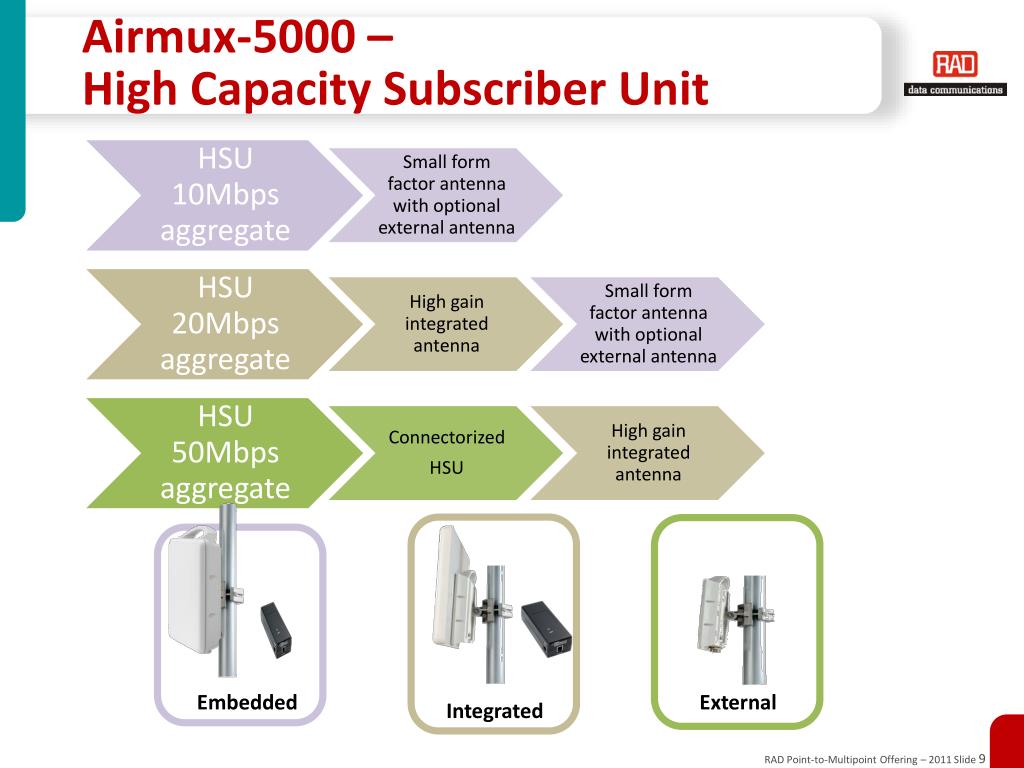

  9. Airmux-5000 – High Capacity Subscriber Unit Embedded External Integrated

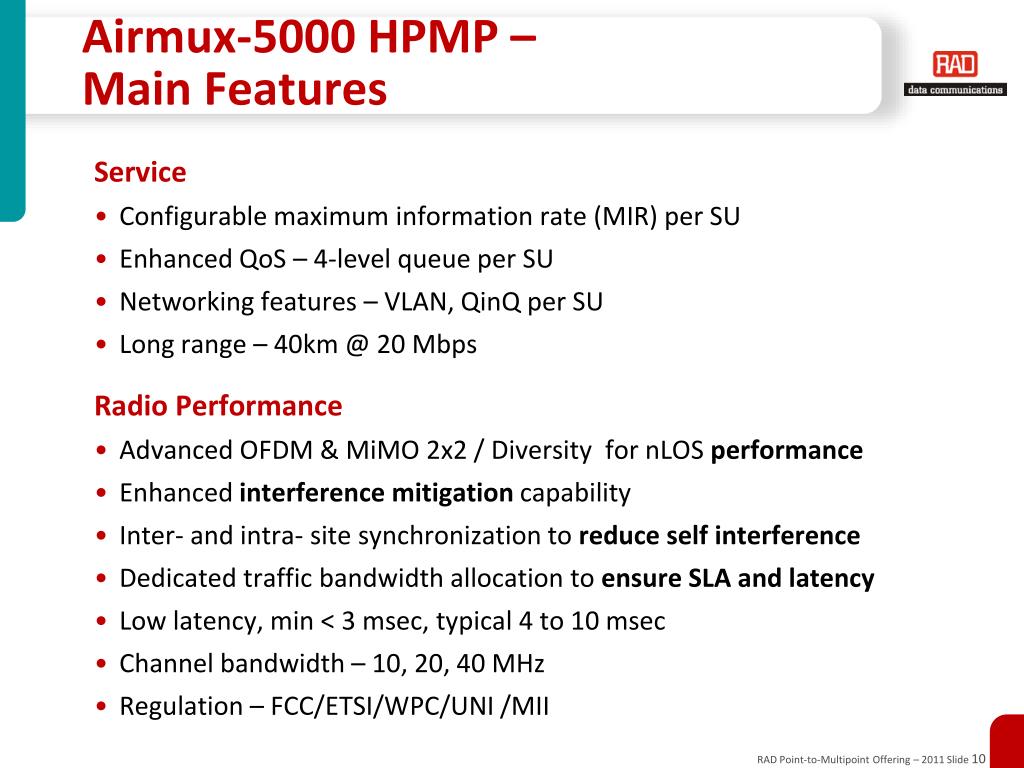

  10. Airmux-5000 HPMP – Main Features Service • Configurable maximum information rate (MIR) per SU • Enhanced QoS – 4-level queue per SU • Networking features – VLAN, QinQ per SU • Long range – 40km @ 20 Mbps Radio Performance • Advanced OFDM & MiMO 2x2 / Diversity for nLOS performance • Enhanced interference mitigation capability • Inter- and intra- site synchronization to reduce self interference • Dedicated traffic bandwidth allocation to ensure SLA and latency • Low latency, min < 3 msec, typical 4 to 10 msec • Channel bandwidth – 10, 20, 40 MHz • Regulation – FCC/ETSI/WPC/UNI /MII

  11. Airmux-5000 HPMP – Main Features Operational • Multiband base stations and SUs • Simple to deploy • Fully integrated with Airmux-legacy solutions: • Coexists with Airmux-200 / Airmux-400 • Single NMS – RADview platform

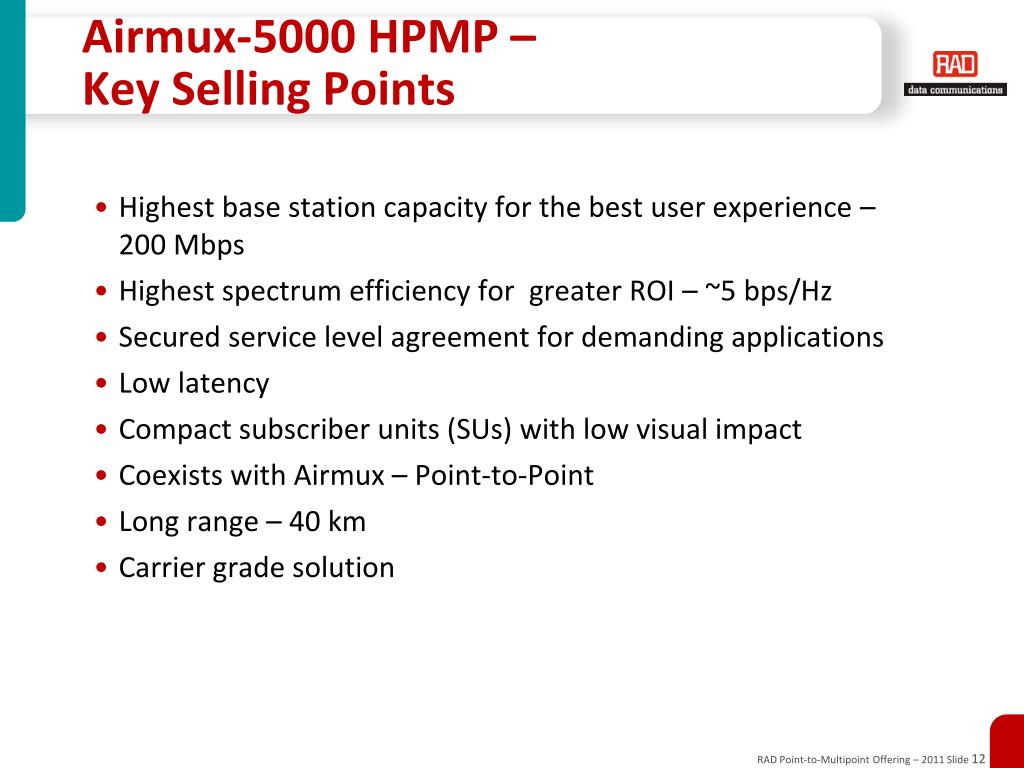

  12. Airmux-5000 HPMP – Key Selling Points • Highest base station capacity for the best user experience – 200 Mbps • Highest spectrum efficiency for greater ROI – ~5 bps/Hz • Secured service level agreement for demanding applications • Low latency • Compact subscriber units (SUs) with low visual impact • Coexists with Airmux – Point-to-Point • Long range – 40 km • Carrier grade solution

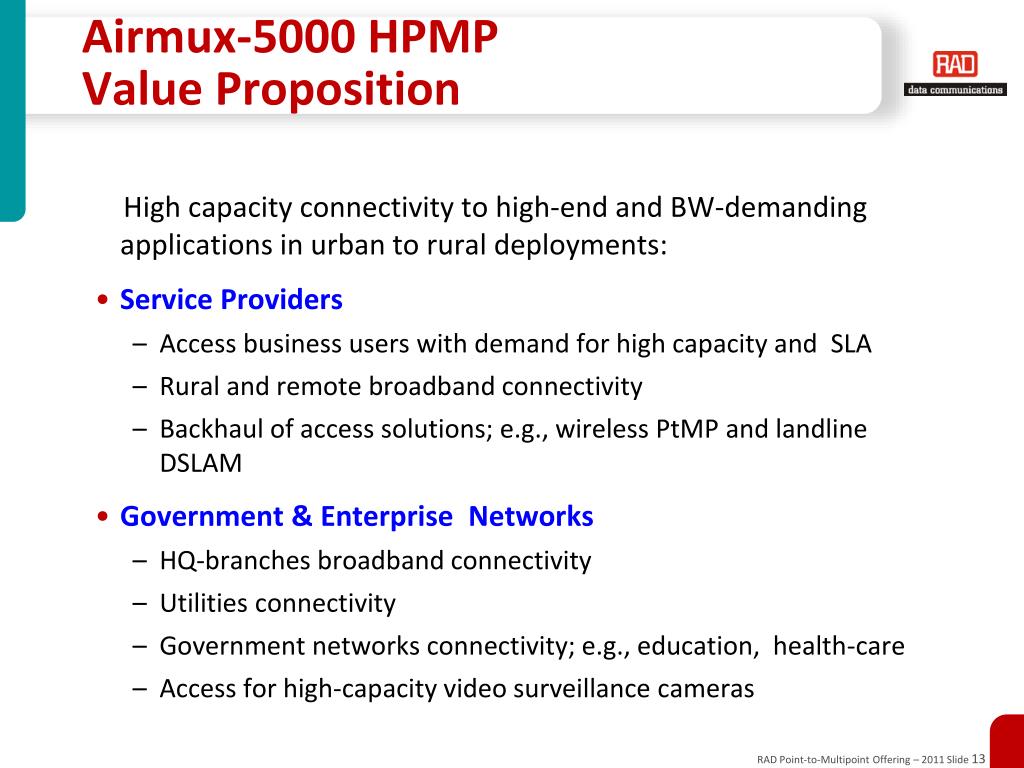

  13. Airmux-5000 HPMPValue Proposition High capacity connectivity to high-end and BW-demanding applications in urban to rural deployments: • Service Providers • Access business users with demand for high capacity and SLA • Rural and remote broadband connectivity • Backhaul of access solutions; e.g., wireless PtMP and landline DSLAM • Government & Enterprise Networks • HQ-branches broadband connectivity • Utilities connectivity • Government networks connectivity; e.g., education, health-care • Access for high-capacity video surveillance cameras

  14. Urban – High Capacity SLA Corporate Access HBS 5200 • SUs range 2 km @20 MHz Channel BW • Sector capacity – 92 Mbps • 7 clients @ 6 Mbps • 3 clients @ 10 Mbps • 1 client @ 20 Mbps • SUs range 6 km @20 MHz Channel BW • Sector capacity – 75 Mbps • 7 clients @ 5 Mbps • 2 clients @ 10 Mbps • 1 client @ 20 Mbps Service Provider Application HSUxx

  15. Service Providers Application for Urban – High Capacity Corporate Access • Multiple sectors can be backhauled with Airmux-400 HBS Airmux-400 Service Provider Premises Service Provider Network

  16. Service Provider Application for Medium Capacity Corporate Access – Self Backhaul • Built-in backhaul from BS site to the service provider premises • Assumes the provider premises are located within the served sector Service Provider Premises Corporate 10 Mbps BS Service Provider Network Corporate 20 MPs Corporate 20 MPs

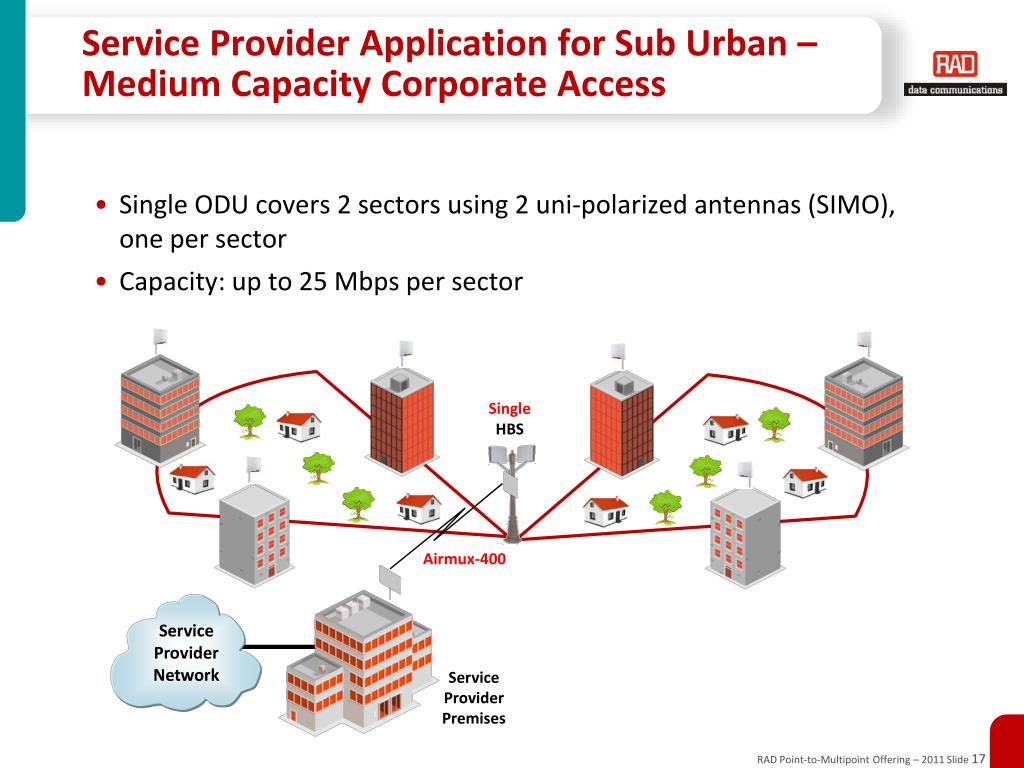

  17. Service Provider Application for Sub Urban – Medium Capacity Corporate Access • Single ODU covers 2 sectors using 2 uni-polarized antennas (SIMO), one per sector • Capacity: up to 25 Mbps per sector Single HBS Service Provider Network Airmux-400 Service Provider Premises

  18. Rural Broadband – Connecting Communities Broadband connection to remote communities • SUs range 20 km @20MHz Channel BW • Sector capacity – 48 Mbps • 8 villages @ 6 Mbps • SUs range 30km @20MHz Channel BW • Sector capacity – 30 Mbps • 5 villages @ 6 Mbps SU SU BS BS BS SU Airmux-400 SU Service Provider Network SU SU SU Service Provider Premises

  19. Private Network Application for Safe City – Video Surveillance • Access to high capacity cameras, collocated cameras • Backhaul of mesh WiFi cloud, carrying video surveillance • Customer needs: • Dedicated high-capacity BW per camera • Robust and high quality radio link • Flexible and scalable architecture • Simple to install and maintain • Affordable High Resolution Camera BS Airmux-400 Service Provider Network Collocated Cameras Service Provider Premises

  20. Private Network Application for High Capacity Inter-Office Connectivity • Two modes of operations: • WLAN – Traffic from branch to branch is switched back by the BS • “Access” – Higher network hierarchy switches the traffic HSUxx HBS HQ

  21. Dedicated Bandwidth • The HBS utilizes 16 Time Slots to handle up to 16 HSUs - HSU #16 HSU #1 HSU #15 HSU #2 HSU #3 HSU #14 HSU #4 HSU #13 13 HSU #12 HSU #5 11 HSU #11 HSU #6 HSU #10 HSU #7 HSU #9 HSU #8

  22. Dedicated Bandwidth • To gain the maximum capacity for a single HSU – we assign 8 Time Slots per HSU • In this example we can see 2 HSUs handled by the HBS: • HSU #1 • HSU #2

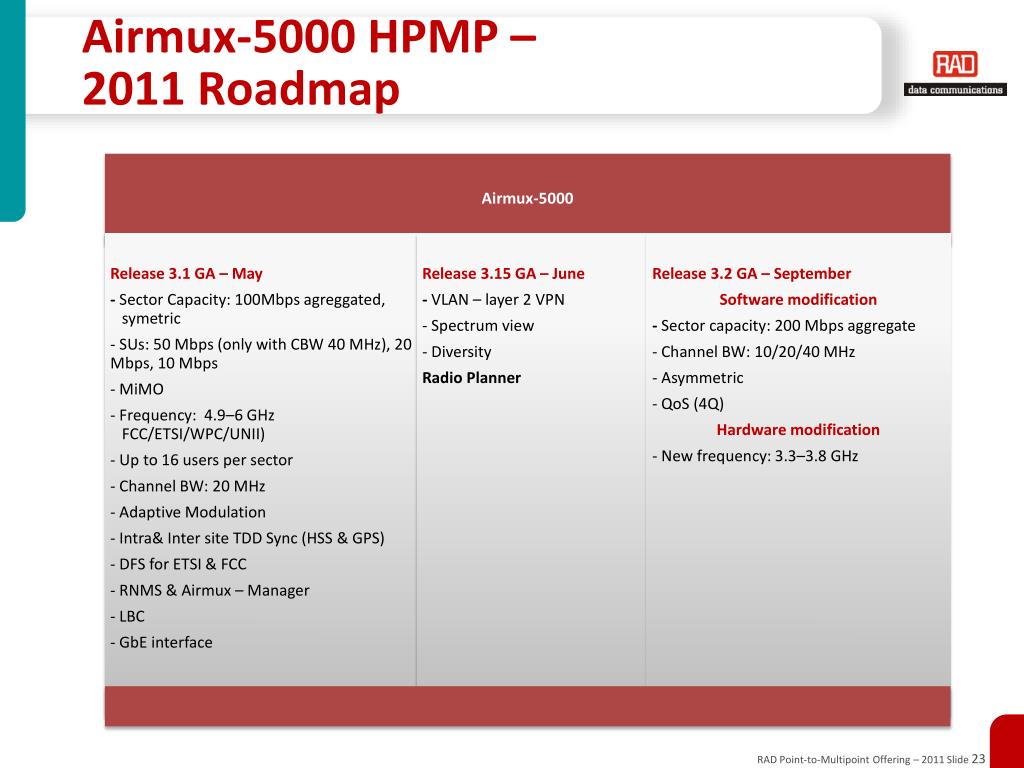

  23. Airmux-5000 HPMP – 2011 Roadmap

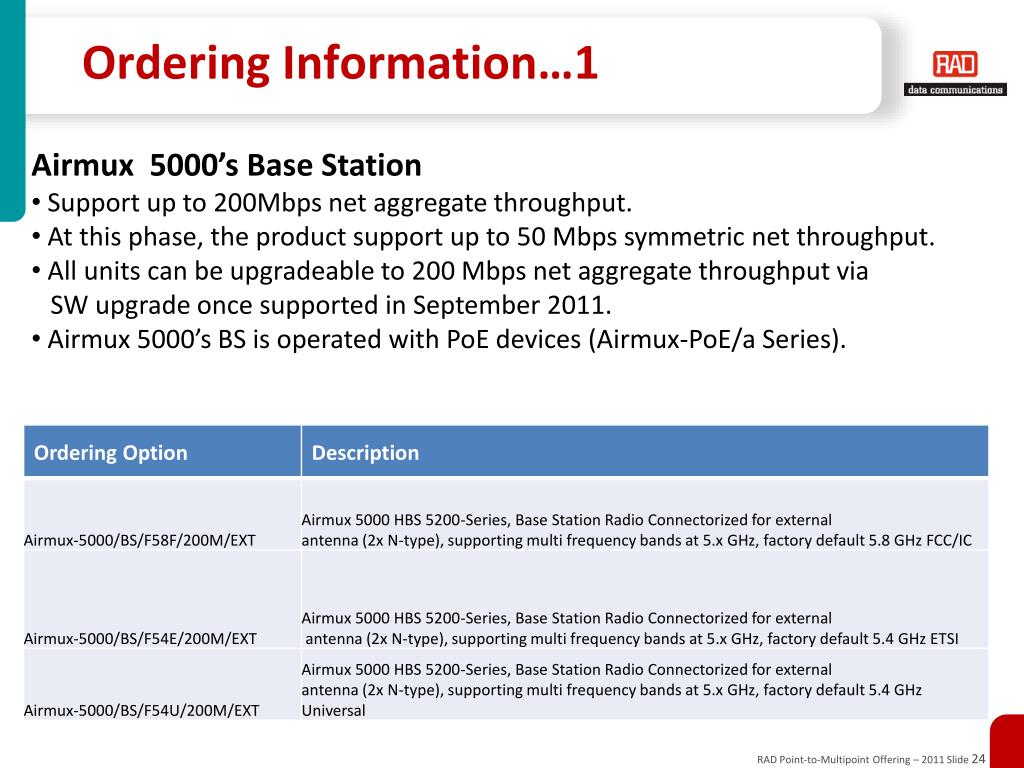

  24. Ordering Information…1 • Airmux 5000’s Base Station • Support up to 200Mbps net aggregate throughput. • At this phase, the product support up to 50 Mbps symmetric net throughput. • All units can be upgradeable to 200 Mbps net aggregate throughput via • SW upgrade once supported in September 2011. • Airmux 5000’s BS is operated with PoE devices (Airmux-PoE/a Series).

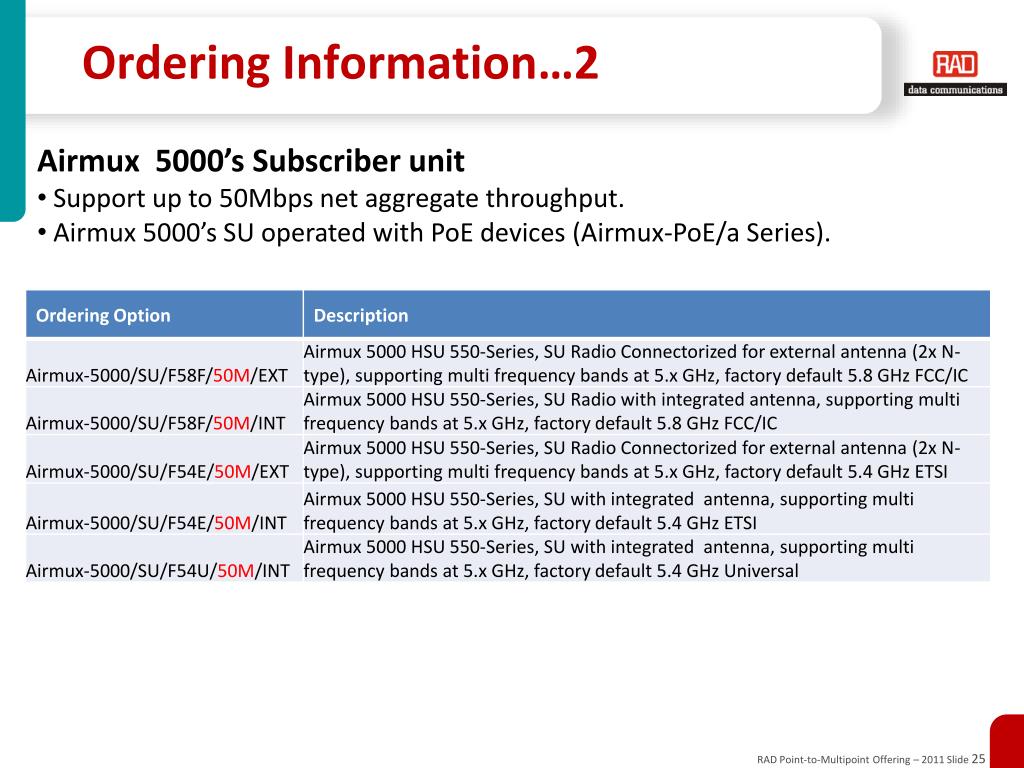

  25. Ordering Information…2 • Airmux 5000’s Subscriber unit • Support up to 50Mbps net aggregate throughput. • Airmux 5000’s SU operated with PoE devices (Airmux-PoE/a Series).

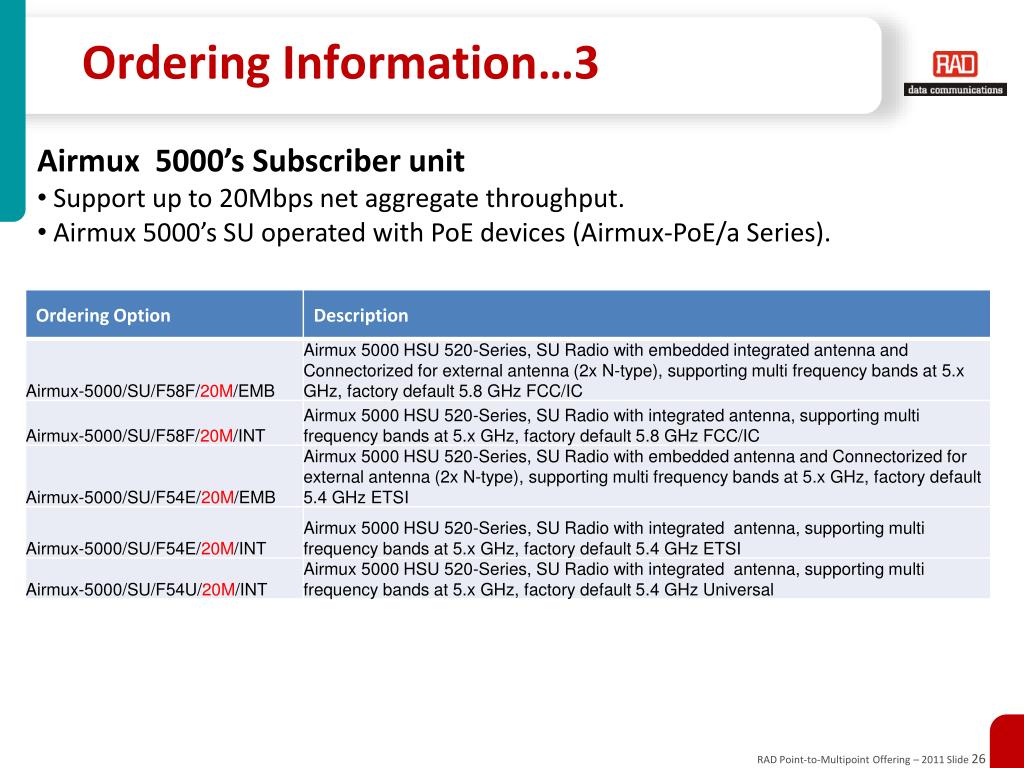

  26. Ordering Information…3 • Airmux 5000’s Subscriber unit • Support up to 20Mbps net aggregate throughput. • Airmux 5000’s SU operated with PoE devices (Airmux-PoE/a Series).

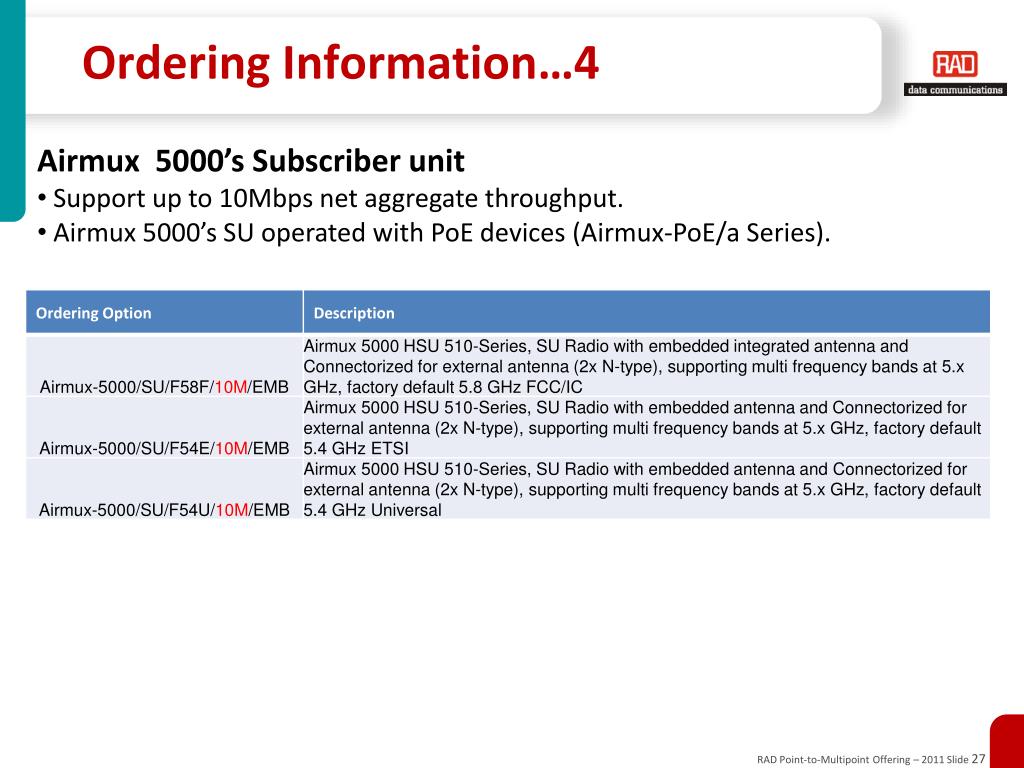

  27. Ordering Information…4 • Airmux 5000’s Subscriber unit • Support up to 10Mbps net aggregate throughput. • Airmux 5000’s SU operated with PoE devices (Airmux-PoE/a Series).

  28. Airmux-5000 – Summary Simple Reliable & Robust High Capacity Long Ranges Flexible & Scalable Cost Effective • OFDM / MIMO based technology enables nLOS / NLOS deployment scenario • Field proven interference mitigation

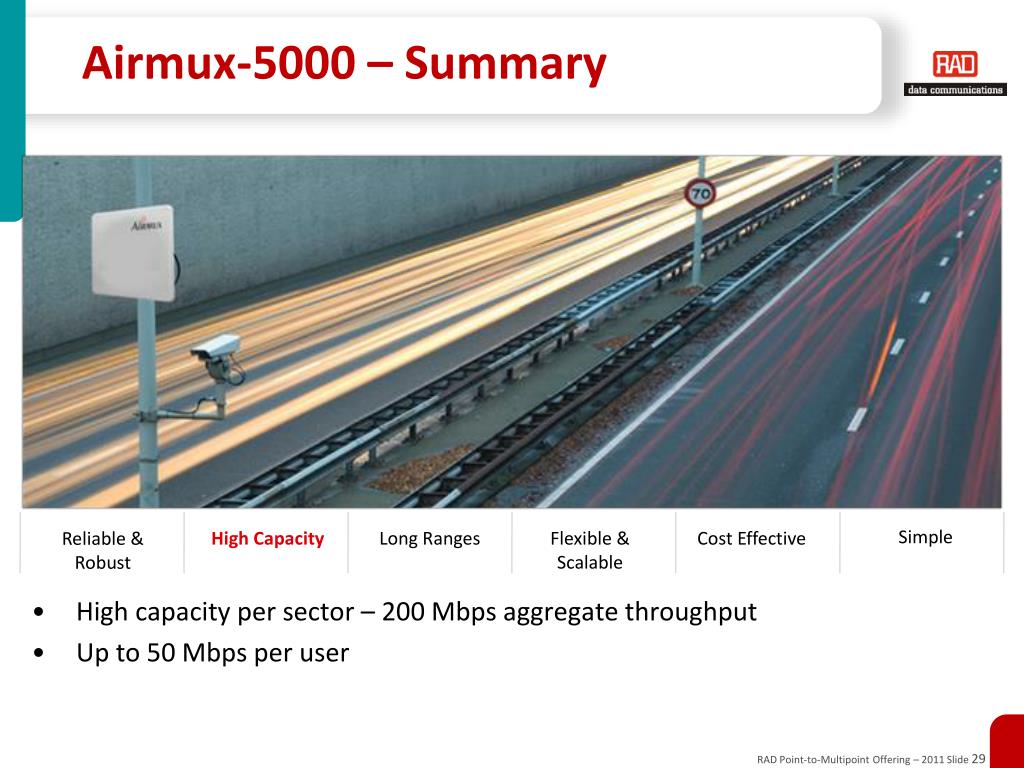

  29. Airmux-5000 – Summary Simple Reliable & Robust High Capacity Long Ranges Flexible & Scalable Cost Effective • High capacity per sector – 200 Mbps aggregate throughput • Up to 50 Mbps per user

  30. Airmux-5000 – Summary Simple Reliable & Robust High Capacity Long Ranges Flexible & Scalable Cost Effective • Long range – 40km @ 20 Mbps

  31. Airmux-5000 – Summary Simple Reliable & Robust High Capacity Long Ranges Flexible & Scalable Cost Effective • High capacity end user equipment – 10, 20 and 50 Mbps • Different SU configurations • Support of multifrequency band– 4.8 to 6 GHz, 3.3 to 3.8 GHz • TDD synchronization of multiple sectors in-site and between sites enables network scalability while ensuring performance

  32. Airmux-5000 – Summary Simple Reliable & Robust High Capacity Long Ranges Flexible & Scalable Cost Effective • Competitive cost structure • High capacity base station reduce the tower space needed • High spectrum efficiency – reduces spectrum fee and increase flexibility of frequency selection

  33. Airmux-5000 – Summary Simple Reliable & Robust High Capacity Long Ranges Flexible & Scalable Cost Effective • Simple radio planning, training, installation and maintenance

  34. Airmux-5000 HPMP – Summary • Delivers high capacity with secured SLA performance. • Best fit for sub-6 GHz broadband connectivity of high-end applications
