  1. Provisional Hydrogen System Control Sequence TW Bradshaw Y Ivanyushenkov D Baynham MJD Courthold

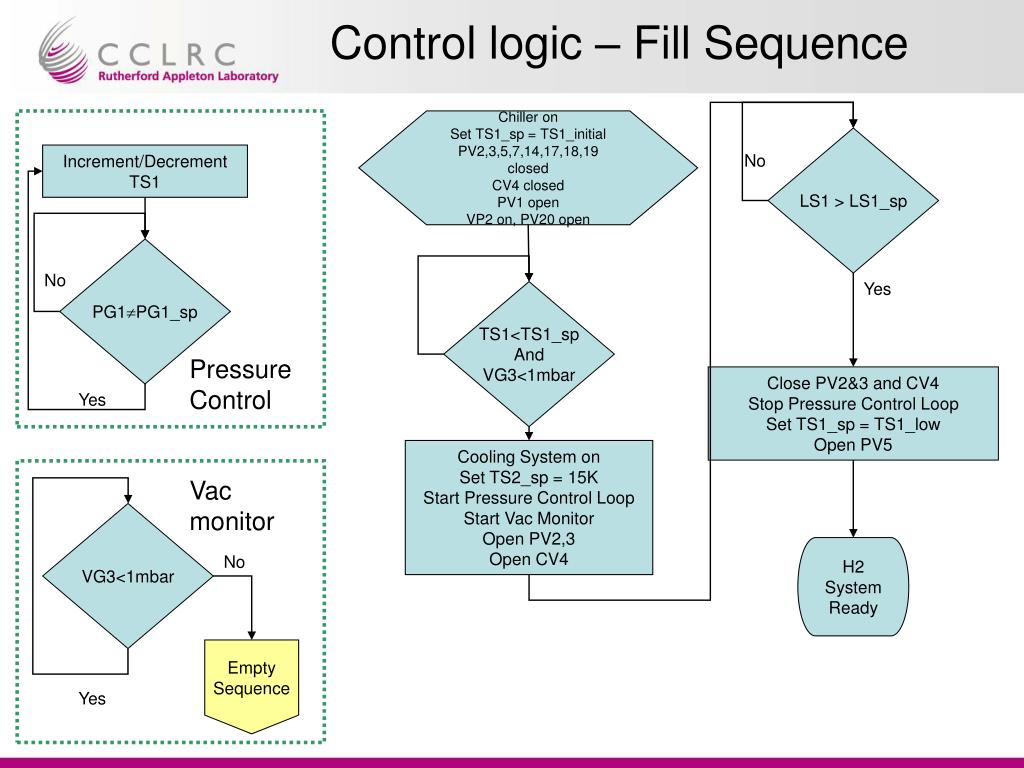

  2. Control logic – Fill Sequence Chiller on Set TS1_sp = TS1_initial PV2,3,5,7,14,17,18,19 closed CV4 closed PV1 open VP2 on, PV20 open LS1 > LS1_sp Increment/Decrement TS1 No PG1PG1_sp No Yes TS1<TS1_sp And VG3<1mbar Pressure Control Close PV2&3 and CV4 Stop Pressure Control Loop Set TS1_sp = TS1_low Open PV5 Yes Cooling System on Set TS2_sp = 15K Start Pressure Control Loop Start Vac Monitor Open PV2,3 Open CV4 Vac monitor VG3<1mbar H2 System Ready No Empty Sequence Yes

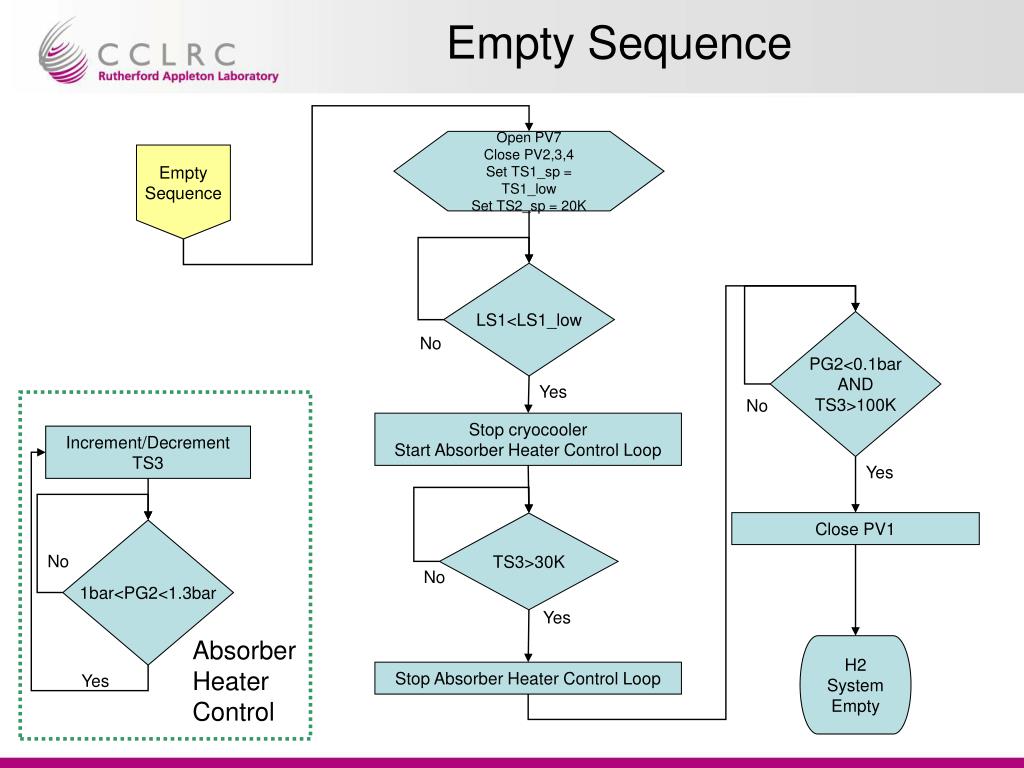

  3. Empty Sequence Open PV7 Close PV2,3,4 Set TS1_sp = TS1_low Set TS2_sp = 20K Empty Sequence LS1<LS1_low PG2<0.1bar AND TS3>100K No Yes No Stop cryocooler Start Absorber Heater Control Loop Increment/Decrement TS3 Yes Close PV1 TS3>30K 1bar<PG2<1.3bar No No Yes Absorber Heater Control H2 System Empty Stop Absorber Heater Control Loop Yes

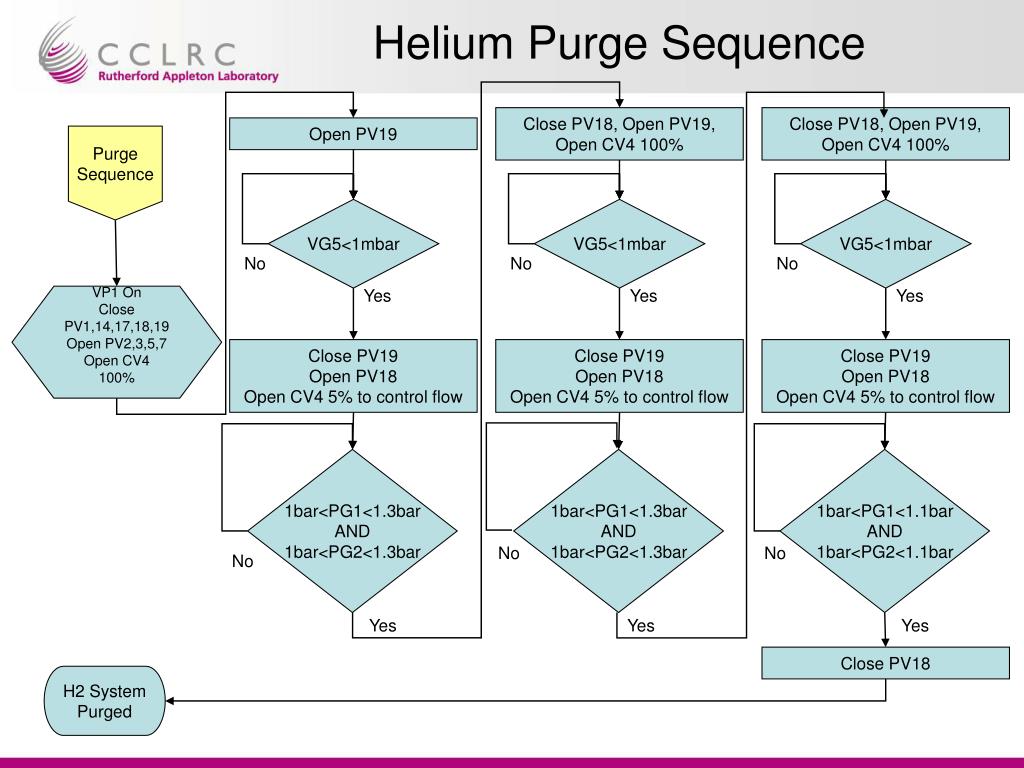

  4. Helium Purge Sequence Close PV18, Open PV19, Open CV4 100% Close PV18, Open PV19, Open CV4 100% Open PV19 Purge Sequence VG5<1mbar VG5<1mbar VG5<1mbar No No No Yes Yes Yes VP1 On Close PV1,14,17,18,19 Open PV2,3,5,7 Open CV4 100% Close PV19 Open PV18 Open CV4 5% to control flow Close PV19 Open PV18 Open CV4 5% to control flow Close PV19 Open PV18 Open CV4 5% to control flow 1bar<PG1<1.3bar AND 1bar<PG2<1.3bar 1bar<PG1<1.3bar AND 1bar<PG2<1.3bar 1bar<PG1<1.1bar AND 1bar<PG2<1.1bar No No No Yes Yes Yes Close PV18 H2 System Purged
