high speed and low power on chip global link using continuous time linear equalizer

High-Speed and Low-Power On-Chip Global Link Using Continuous-Time Linear Equalizer

Yulei Zhang1,James F. Buckwalter1, and Chung-Kuan Cheng2

1Dept. of ECE, 2Dept. of CSE, UC San Diego, La Jolla, CA

19th Conference on Electrical Performance of Electronic Packaging and Systems

Oct 25, 2010 Austin, USA

outline

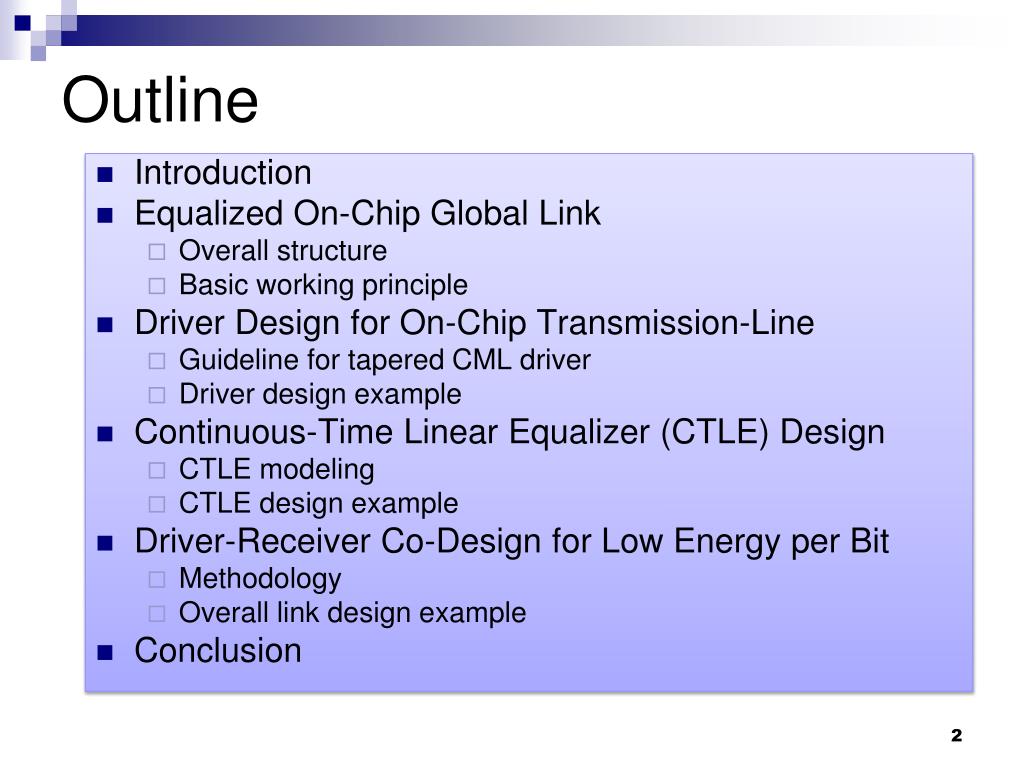

Outline
  • Introduction
  • Equalized On-Chip Global Link
    • Overall structure
    • Basic working principle
  • Driver Design for On-Chip Transmission-Line
    • Guideline for tapered CML driver
    • Driver design example
  • Continuous-Time Linear Equalizer (CTLE) Design
    • CTLE modeling
    • CTLE design example
  • Driver-Receiver Co-Design for Low Energy per Bit
    • Methodology
    • Overall link design example
  • Conclusion
research motivation
Research Motivation
  • Global interconnect planning becomes a challenge in ultra-deep sub-macron (UDSM) process
    • Performance gap between global wire and logic gates
    • Conventional buffer insertion brings in larger extra power overhead
  • Uninterrupted wire configurations are used to tackle the on-chip global communication issues
    • On-chip T-lines to reduce interconnect power
    • Equalization to improve the bandwidth
    • State-of-the-art[Kim2009]
      • 2Gb/s/um, < 1pJ/b, signaling over 10mm global wire in 90nm
our contributions
Our Contributions
  • Contributions
    • Build up a novel equalized on-chip T-line structure for global communication
      • Tapered CML driver + CTLE receiver
    • Accurate small-signal modeling on CTLE receiver to improve the optimization quality
    • A design methodology to achieve driver-wire-receiver co-optimization to reduce the total energy per bit
  • Results of our design
    • 20Gbps signaling over 10mm, 2.2um-pitch on-chip T-line
    • 11ps/mm latency and 0.2pJ/b energy per bit in 45nm
equalized on chip global link
Equalized On-Chip Global Link
  • Overall structure
    • Tapered current-mode logic (CML) drivers
    • Terminated differential on-chip T-line
    • Continuous-time linear equalizer (CTLE) receiver
    • Sense-amplifier based latch
basic working principle

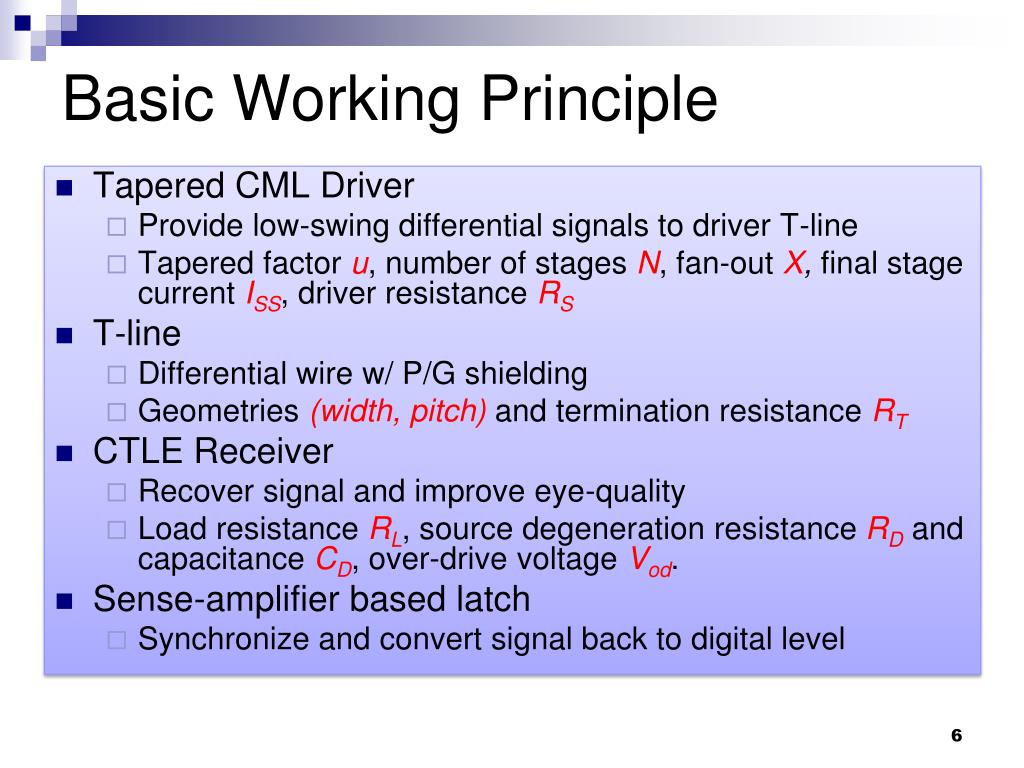

Basic Working Principle
  • Tapered CML Driver
    • Provide low-swing differential signals to driver T-line
    • Tapered factor u, number of stages N, fan-out X,final stage current ISS, driver resistance RS
  • T-line
    • Differential wire w/ P/G shielding
    • Geometries (width, pitch) and termination resistance RT
  • CTLE Receiver
    • Recover signal and improve eye-quality
    • Load resistance RL, source degeneration resistance RD and capacitance CD, over-drive voltage Vod.
  • Sense-amplifier based latch
    • Synchronize and convert signal back to digital level
tapered cml driver design

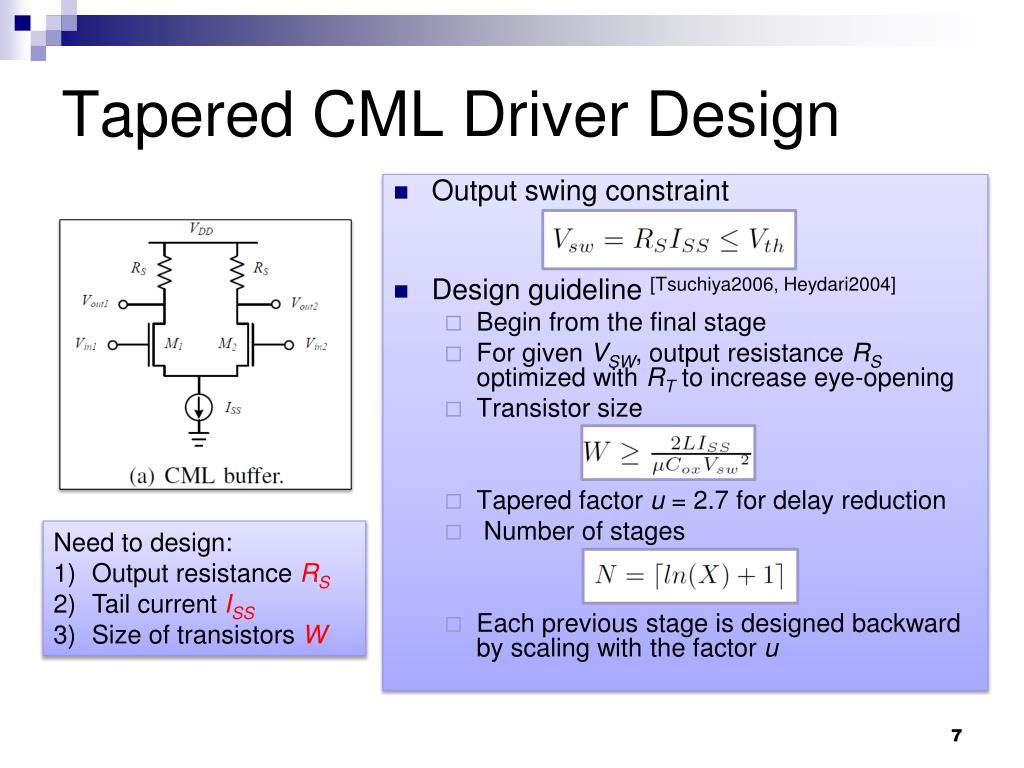

Tapered CML Driver Design

Need to design:

Output resistance RS

Tail current ISS

Size of transistors W

  • Output swing constraint
  • Design guideline [Tsuchiya2006, Heydari2004]
    • Begin from the final stage
    • For given VSW, output resistance RS optimized with RT to increase eye-opening
    • Transistor size
    • Tapered factor u = 2.7 for delay reduction
    • Number of stages
    • Each previous stage is designed backward by scaling with the factor u
cml driver study w loaded t line

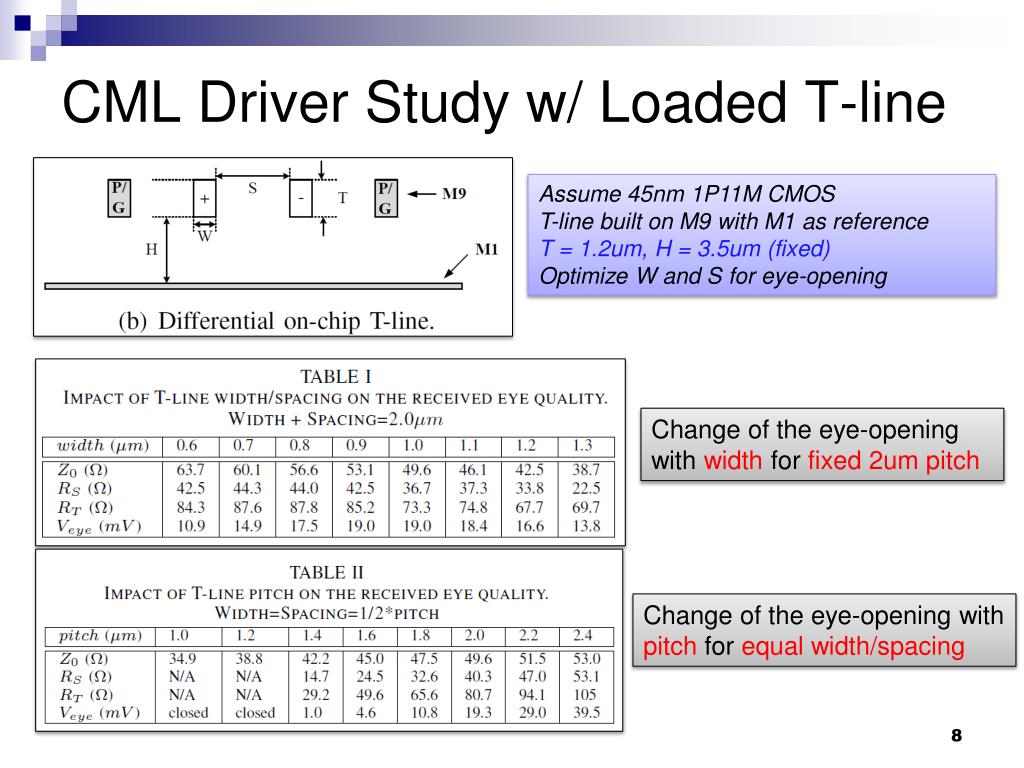

CML Driver Study w/ Loaded T-line

Assume 45nm 1P11M CMOS

T-line built on M9 with M1 as reference

T = 1.2um, H = 3.5um (fixed)

Optimize W and S for eye-opening

Change of the eye-opening with width for fixed 2um pitch

Change of the eye-opening with pitch for equal width/spacing

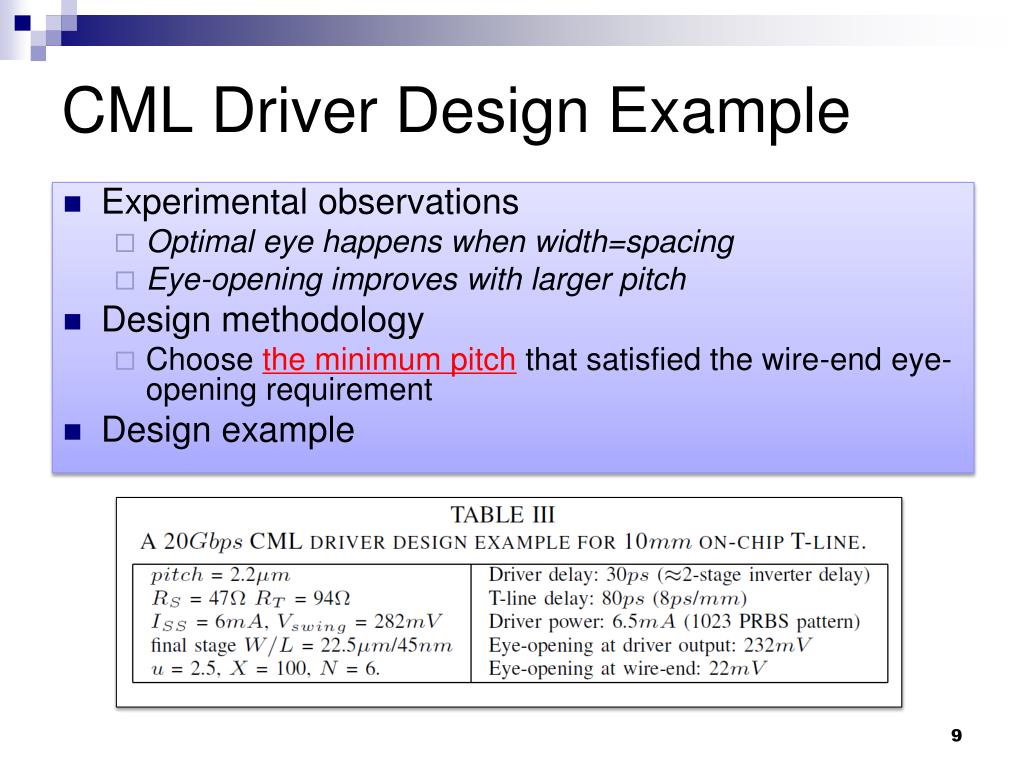

cml driver design example
CML Driver Design Example
  • Experimental observations
    • Optimal eye happens when width=spacing
    • Eye-opening improves with larger pitch
  • Design methodology
    • Choose the minimum pitch that satisfied the wire-end eye-opening requirement
  • Design example
accurate ctle modeling
Accurate CTLE Modeling

Design Variables: RL, RD, CD, Vod(Size)

[Hanumolu2005]

Small Signal Circuit to derive H(s):

ctle modeling validation

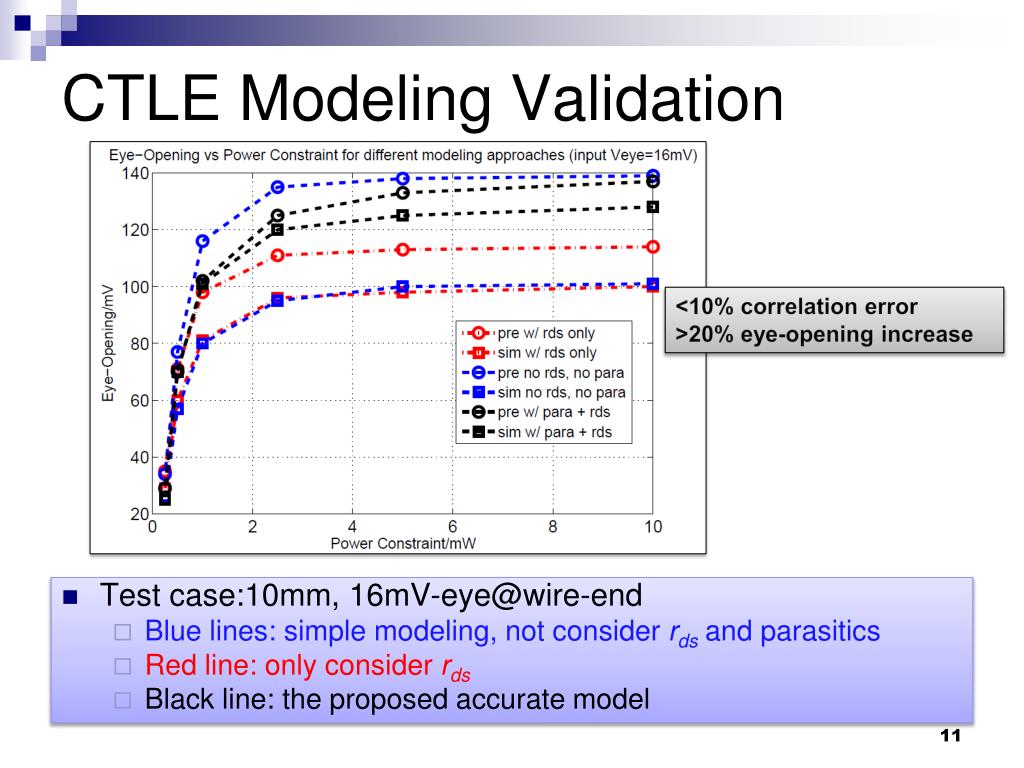

CTLE Modeling Validation

<10% correlation error

>20% eye-opening increase

  • Test case:10mm, 16mV-eye@wire-end
    • Blue lines: simple modeling, not consider rds and parasitics
    • Red line: only consider rds
    • Black line: the proposed accurate model
ctle design example

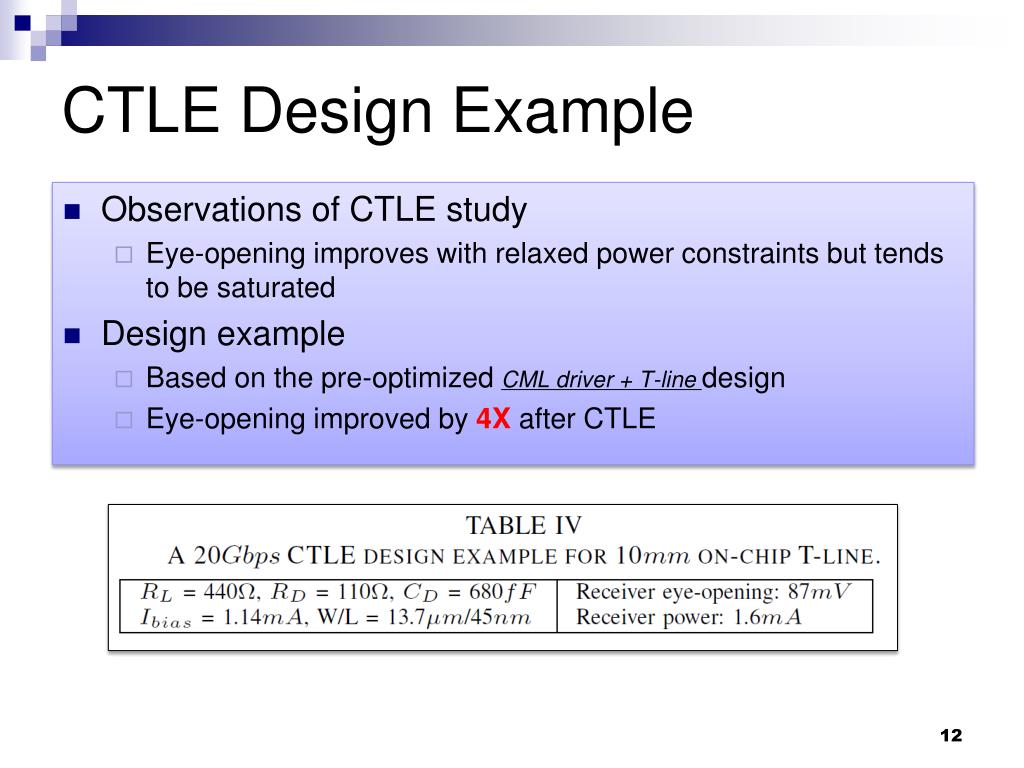

CTLE Design Example
  • Observations of CTLE study
    • Eye-opening improves with relaxed power constraints but tends to be saturated
  • Design example
    • Based on the pre-optimized CML driver + T-line design
    • Eye-opening improved by 4X after CTLE
driver receiver co design
Driver-Receiver Co-Design
  • Methodology
    • Optimize driver-wire-receiver together by setting Veye/Power as the cost function
    • Choose pre-designed CML/T-line/CTLE as initial solution
  • Optimization Flow
    • Driver-to-receiver step-response generation based on SPICE simulation and CTLE modeling
    • Eye-opening estimation based on step-response
    • SQP-based non-linear optimization
    • Variables: [ISS,RT,RL,RD,CD,Vod]
  • Performance Comparison
    • Option A:Driver/Receiver independent design
    • Option B:Low-power driver/receiver co-design
low energy per bit optimization flow

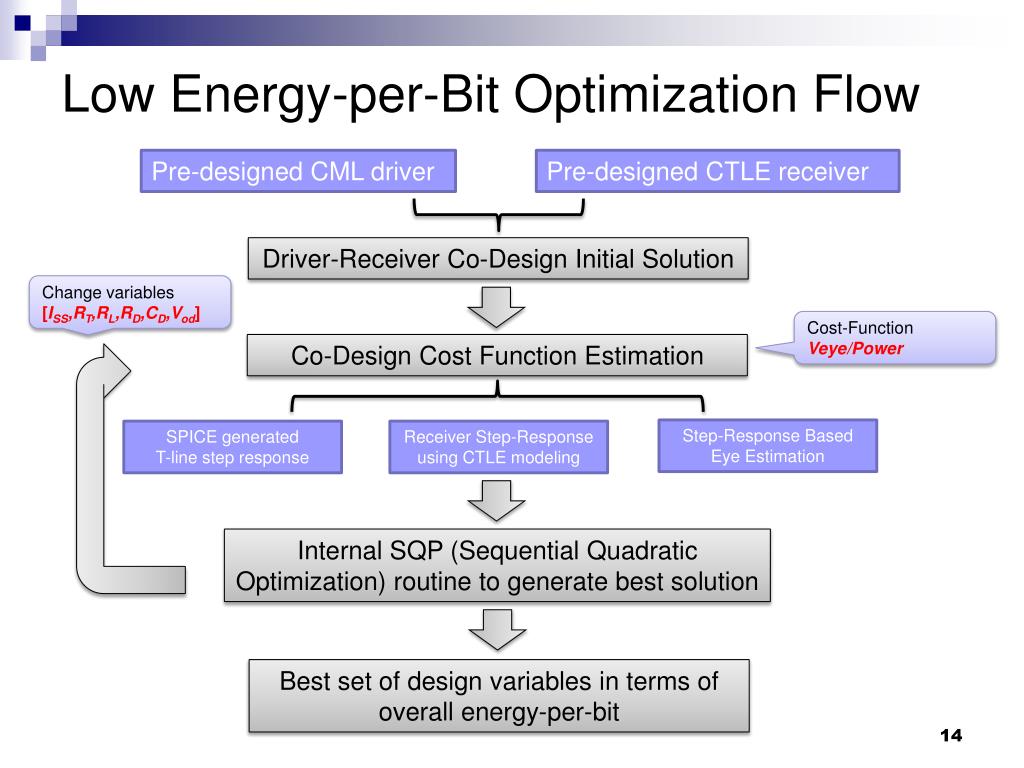

Low Energy-per-Bit Optimization Flow

Pre-designed CML driver

Pre-designed CTLE receiver

Driver-Receiver Co-Design Initial Solution

Change variables

  • [ISS,RT,RL,RD,CD,Vod]

Cost-Function

  • Veye/Power

Co-Design Cost Function Estimation

Step-Response Based Eye Estimation

SPICE generated

T-line step response

Receiver Step-Response using CTLE modeling

Internal SQP (Sequential Quadratic Optimization) routine to generate best solution

Best set of design variables in terms of overall energy-per-bit

simulated eye diagrams
Simulated Eye Diagrams

Methodology A: driver/receiver separate design

Methodology B: driver/receiver co-design for low-power

summary of performance comparison

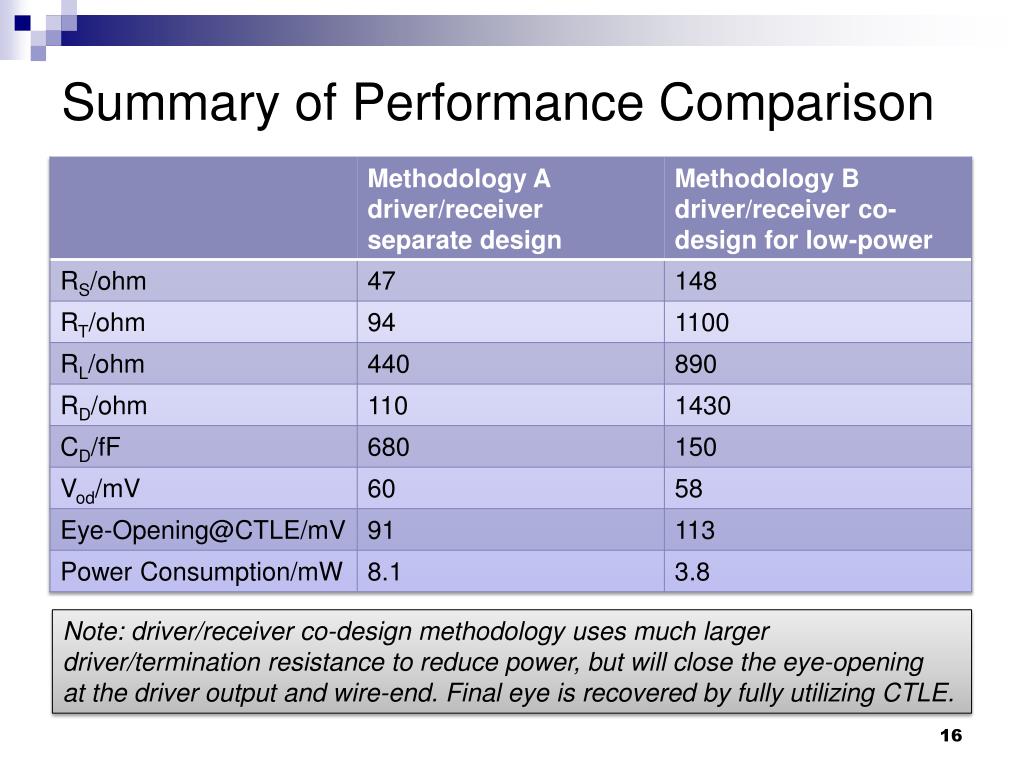

Summary of Performance Comparison

Note: driver/receiver co-design methodology uses much larger driver/termination resistance to reduce power, but will close the eye-opening

at the driver output and wire-end. Final eye is recovered by fully utilizing CTLE.

conclusion
Conclusion
  • We propose a novel equalized on-chip global link using CML driver and CTLE receiver
  • Accurate modeling for CTLE is provided to achieve <10% correlation error and will improve eye-opening optimization quality
  • Our design achieves
    • 20Gbps signaling over 10mm, 2.2um-pitch on-chip T-line
    • 11ps/mm latency and 0.2pJ/b energy
