Presentation Transcript
Cardiovascular pharmacology l.jpg

Cardiovascular Pharmacology

Review of Cardiovascular Form and Function

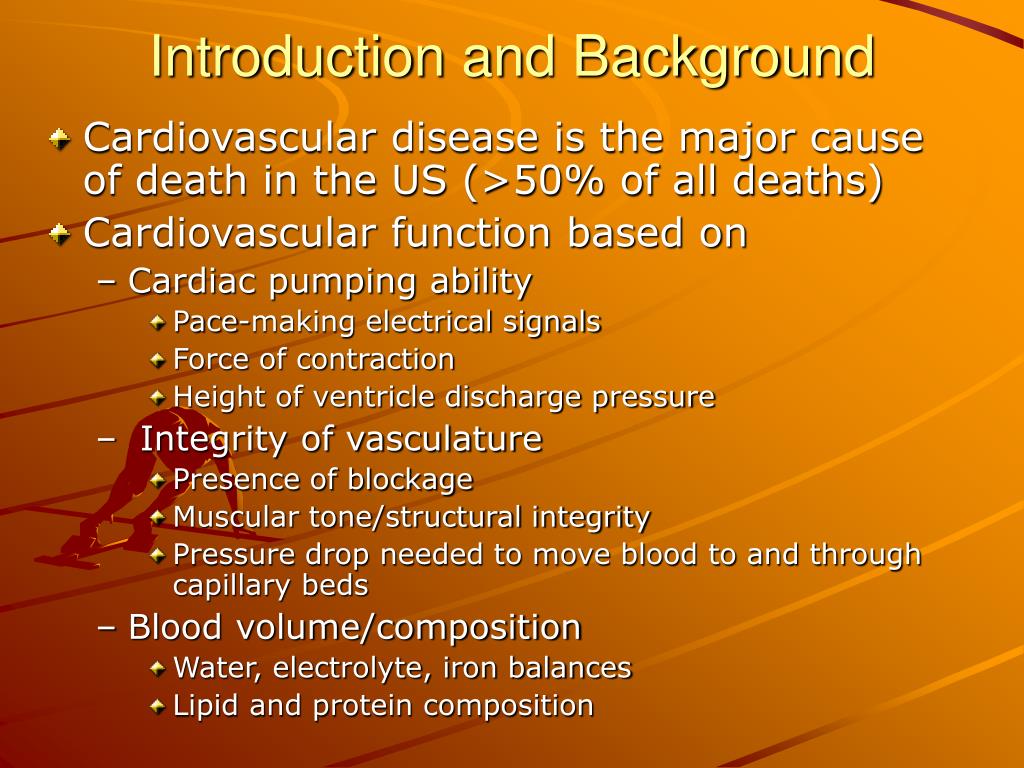

Introduction and background l.jpg
Introduction and Background

  • Cardiovascular disease is the major cause of death in the US (>50% of all deaths)

  • Cardiovascular function based on

    • Cardiac pumping ability

      • Pace-making electrical signals

      • Force of contraction

      • Height of ventricle discharge pressure

    • Integrity of vasculature

      • Presence of blockage

      • Muscular tone/structural integrity

      • Pressure drop needed to move blood to and through capillary beds

    • Blood volume/composition

      • Water, electrolyte, iron balances

      • Lipid and protein composition

Major cardiovascular pathologies requiring pharmacological intervention l.jpg
Major Cardiovascular Pathologies Requiring Pharmacological Intervention

  • Hypertension

  • Arrhythmia

  • Heart failure

  • Reduced vascular blood flow

I background to hypertension regulation of blood pressure l.jpg
I. Background to Hypertension - InterventionRegulation of Blood Pressure

  • Arterial blood pressure due to combination of cardiac output (CO) and total peripheral resistance (TPR)

  • CO – regulated by heart rate and stroke volume (CO = HR x SV)

  • TPR function of

    • Viscosity of blood (hematocrit)

    • Length of blood vessels

    • Blood vessel luminal diameter (especially precapillary arterioles)

Cardiac output l.jpg
Cardiac Output Intervention

  • Heart rate

    • Function of

      • sympathetic, vagal nervous activity

      • Neuro-hormonal substances

        • 1° angiotensin II

        • 2º vasopression (anti-diuretic hormone = ADH)

  • Stroke volume

    • Function of

      • Venous return (function of venous tone [contractile state] and circulating blood (vascular) volume)

        • Venous tone function of sympathetic activity (α1, α2 receptors)

        • Vascular volume depends on

          • Intake of fluids (thirst)

          • Output of fluids (urine, sweat, etc)

          • Distribution of fluids (Starling’s law)

      • Myocardial contractility (MC proportional to sympathetic tone [β1 receptors])

Characteristics of some adrenoceptors sympathetic nerves l.jpg
Characteristics of some adrenoceptors (sympathetic nerves) Intervention

Tissues and effects


Beat to beat modulation of blood pressure l.jpg
Beat-to-Beat Modulation of Blood Pressure Intervention

Controlled by baroreceptor reflex arch

  • Baroreceptors located in aortic arch

  • Increased stretching due to higher aortic arch pressure  increased vagal nerve activity  decreased heart rate decreased cardiac output  decreased blood pressure

  • Fast acting

Autonomic regulation of blood pressure l.jpg
Autonomic Regulation of Blood Pressure Intervention

  • Coordinates and integrates all regulators of cardiovascular function

  • Can regulate both cardiac output and blood vessel size via sympathetic and parasympathetic innervation of cardiovascular end-organs (heart, vasculature, kidneys, adrenal glands, etc)

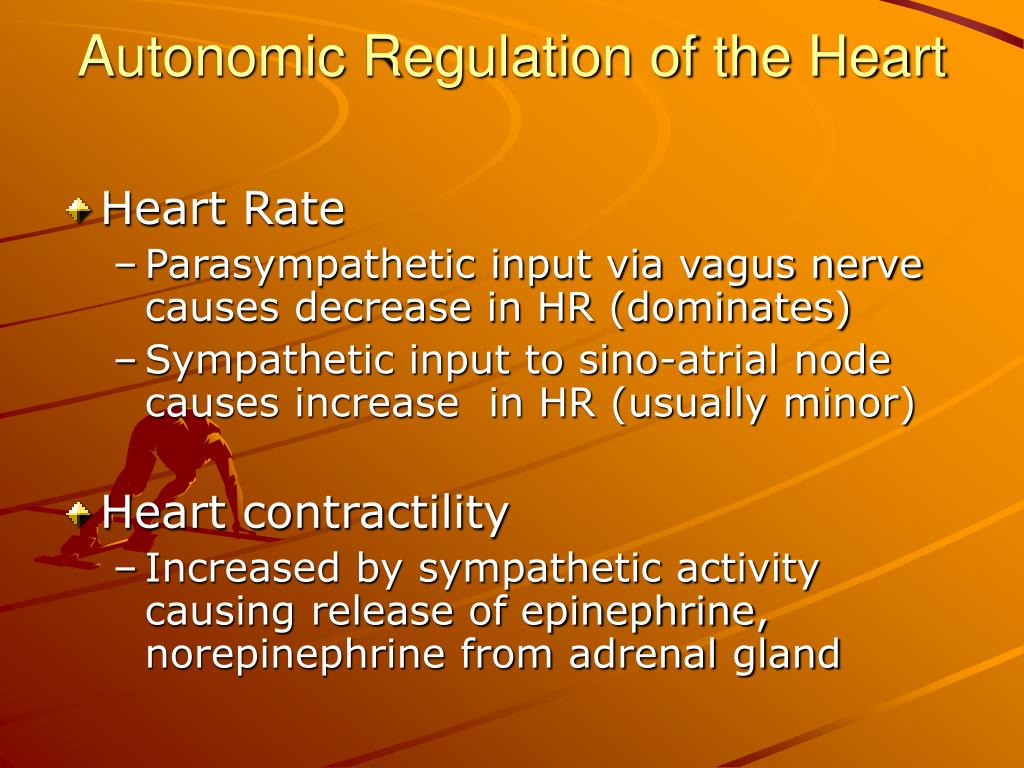

Autonomic regulation of the heart l.jpg
Autonomic Regulation of the Heart Intervention

  • Heart Rate

    • Parasympathetic input via vagus nerve causes decrease in HR (dominates)

    • Sympathetic input to sino-atrial node causes increase in HR (usually minor)

  • Heart contractility

    • Increased by sympathetic activity causing release of epinephrine, norepinephrine from adrenal gland

Ii background to arrhythmia rhythm of the heart l.jpg
II. Background to Arrhythmia - Rhythm of the Heart Intervention

  • Human heart is four-chambered

  • Chambers need to contract sequentially (atria, then ventricles) and in synchronicity

  • Also need relaxation between contractions to allow refilling of chambers

  • Above controlled electrically (Purkinje fibers allow rapid, organized spread of activation)

Regulation of heart rate l.jpg
Regulation of Heart Rate Intervention

  • Primarily accomplished by sinoatrial node (SA)

    • Located on right atrium

    • Receives autonomic input

    • When stimulated, SA signals atrial contractile fibers  atria depolarization and contraction (primes ventricles with blood)

  • Depolarization picked up by atrioventricular node (AV node)  depolarizes ventricles  blood discharged to pulmonary artery and dorsal aorta  eventually rest of body

Iii background to congestive heart failure maintenance of normal heart function l.jpg
III. Background to Congestive Heart Failure Intervention Maintenance of Normal Heart Function

  • Normal cardiac output needed to adequately perfuse peripheral organs

    • Provide O2, nutrients, etc

    • Remove CO2, metabolic wastes, etc

    • Maintain fluid flow from capillaries into interstitium and back into venous system  if flow reduced or pressure increased in venous system  build up of interstitial fluid = edema

  • Because CO is a function of

    • Heart Rate – determined by pacemaker cells in the sinoatrial node

    • Stroke volume – determined by fill rate and contractile force

    • Atrial/ventricular/valvular coordination

      Any negative change on above can lead to inadequate perfusion and development of the syndrome of heart failure

Iv background to reduced vascular blood flow blood vessel anatomy and function l.jpg
IV. Background to Reduced Vascular Blood Flow: Blood Vessel Anatomy and Function

  • Arterial blood vessels

    • Smooth muscle (slow, steady contraction)

    • elastic tissue (stretch on systole, recoil on diastole)

    • Contain about 10% of blood volume

    • Arterioles have sphincters which regulate 70% of blood pressure

  • Venous blood vessels

    • Highly distensible, some contractility

    • Contain over 50% of blood volume

  • Capillaries

    • Tiny but contain greatest cross-sectional area to allow high exchange rate

    • Contain precapillary sphincters to regulate blood flow

    • 5% of blood volume

      All vasculature under ANS and humeral control

Quantification of total peripheral resistance l.jpg
Quantification of Total Peripheral Resistance Anatomy and Function

TPR = _L · η_ for sum of all blood vessels

r4 (Poiseuille’s equation)

Where r = radius of blood vessel

L = length of blood vessel

η = viscosity of blood (function of hematocrit) hematocrit =

Therefore: change in blood vessel radius has greatest effect on TPR

Note: 70% of TPR produced/controlled by arterioles  target of drug treatment

Humeral regulation of blood pressure renin angiotensin aldosterone system l.jpg
Humeral Regulation of Blood Pressure: Renin-Angiotensin-Aldosterone System

  • Renin:secreted by the kidney in response to reduced blood pressure or blood volume

  • Angiotensin:Renin converts Angiotensinogen  Angiotensin I

  • Angiotensin Converting-Enzyme (ACE): converts Angiotensin I  Angiotensin II in lung

  • Angiotensin II:

    • Actions:

      • Intense vasoconstriction  increase TPR

      • Causes release of Aldosterone from adrenal gland  promotes Na+ and water reabsorption in kidney  cause increased blood volume.

      • Regulatory negative feedback on the release of Renin.

      • CNS: Stimulate thirst in hypothalamus, stimulate sympathetic outflow.

        - All above designed to bring arterial blood pressure back up to normal set-point

Autonomic regulation of the vasculature l.jpg
Autonomic regulation Renin-Angiotensin-Aldosterone Systemof the vasculature

  • Increased sympathetic activity  reduction in blood vessel opening (caliber)  increase in vascular resistance  etc.  etc  increase blood pressure

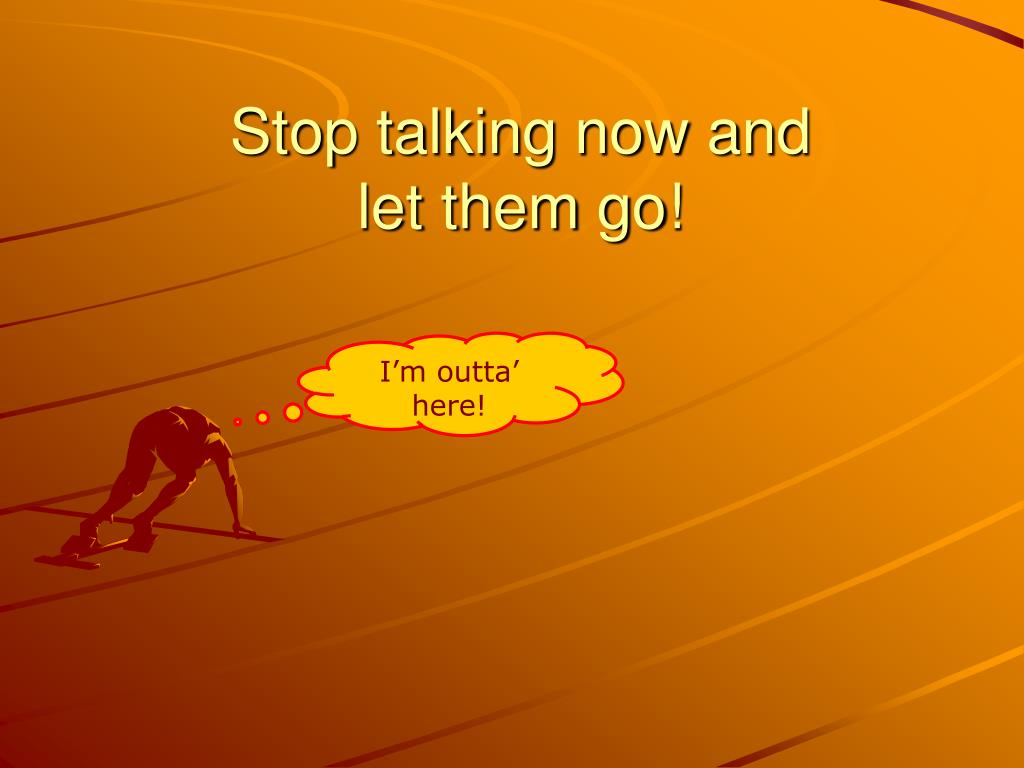

Stop talking now and let them go l.jpg
Stop talking now and Renin-Angiotensin-Aldosterone Systemlet them go!

I’m outta’ here!
