  1. Maintaining SP Relationships Efficiently, on-the-fly Jeremy Fineman

  2. The Problem • Fork-Join (e.g. Cilk) programs have threads that operate either in series or logically parallel. • Want to query relationship between two threads as the program runs. • For example, Nondeterminator uses relationship between two threads as basis for determinacy race.

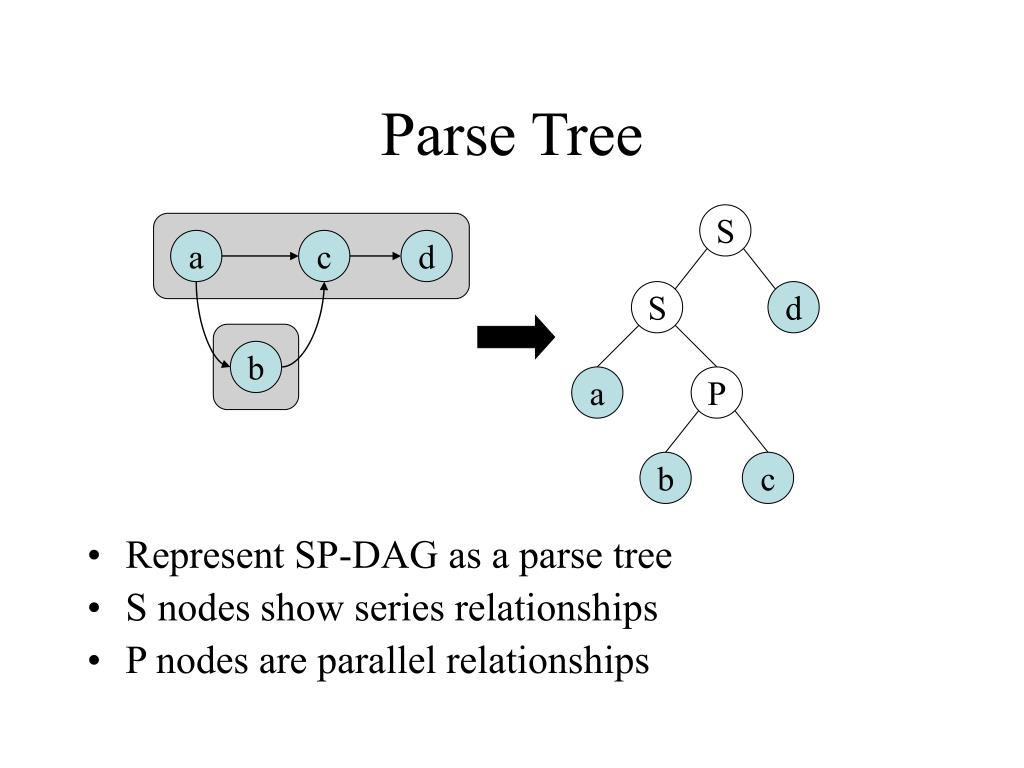

  3. Parse Tree S • Represent SP-DAG as a parse tree • S nodes show series relationships • P nodes are parallel relationships a c d S d b a P b c

  4. Least Common Ancestor S • SP-Bags uses LCA lookup. • LCA of b and d is an S-node • So b and d are in series • Cost is (v,v) per query (in Nondeterminator) S d a P b c

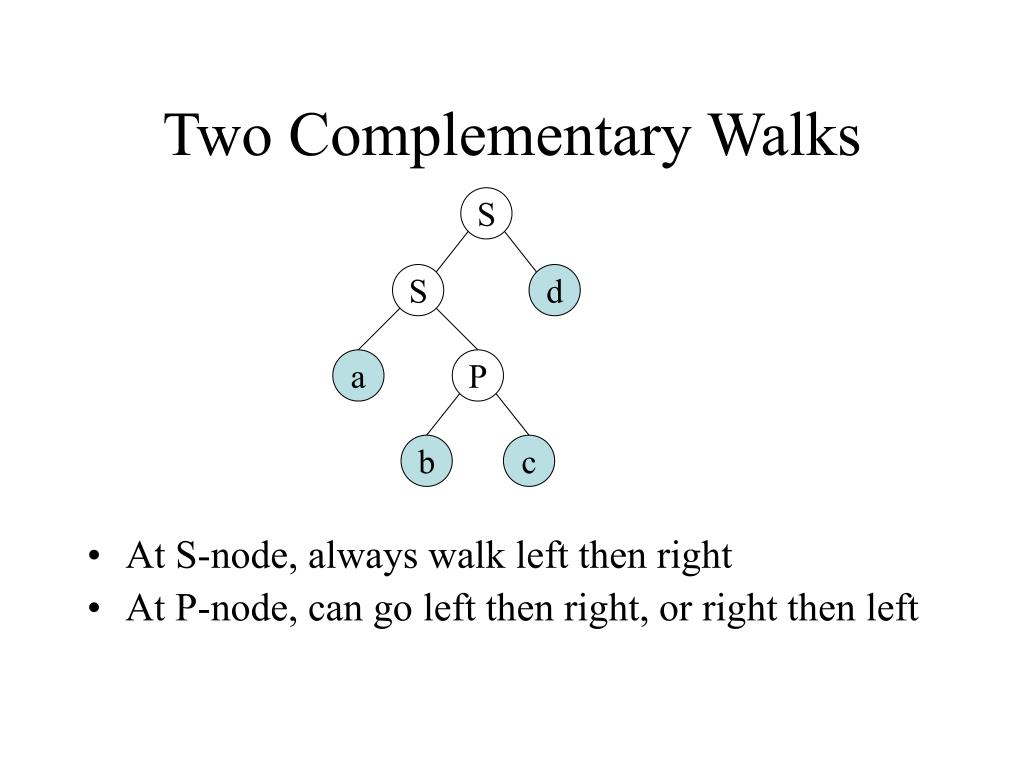

  5. Two Complementary Walks S • At S-node, always walk left then right • At P-node, can go left then right, or right then left S d a P b c

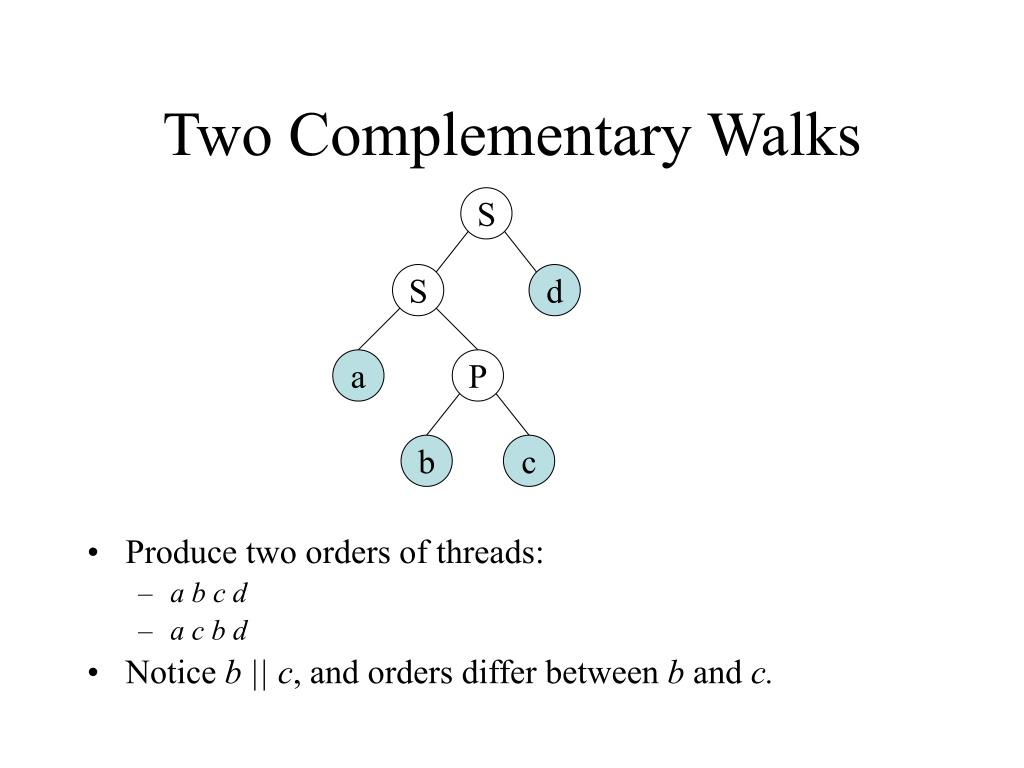

  6. Two Complementary Walks S • Produce two orders of threads: • ab c d • a c b d • Notice b || c, and orders differ between b and c. S d a P b c

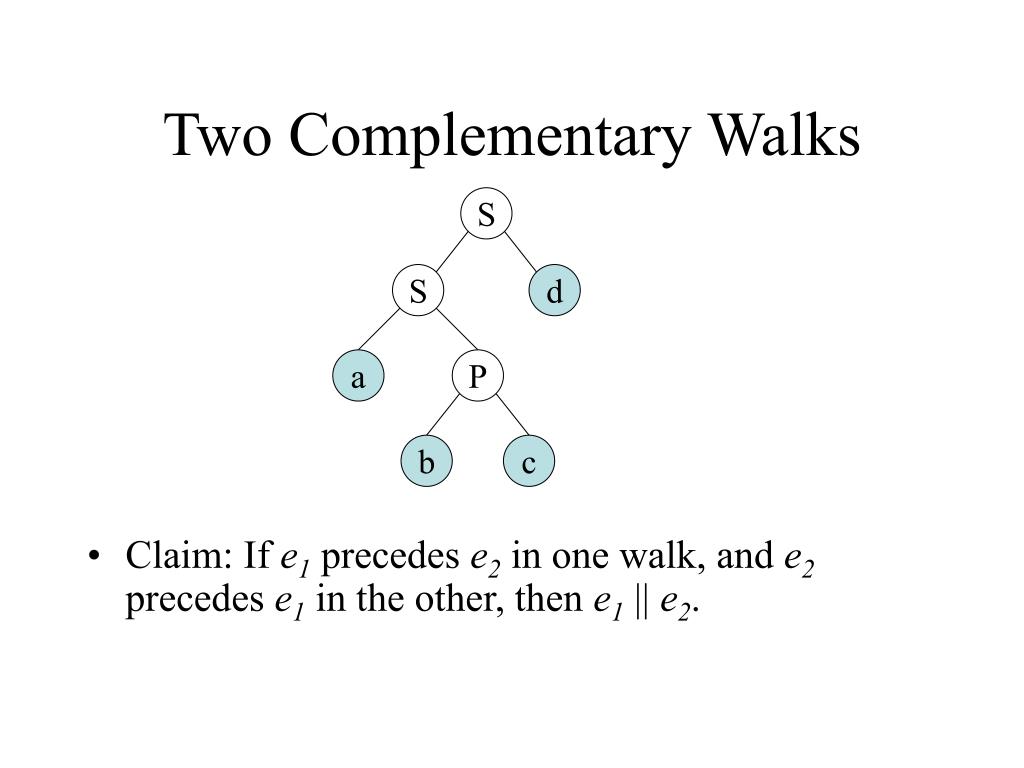

  7. Two Complementary Walks S • Claim: If e1 precedes e2 in one walk, and e2 precedes e1 in the other, then e1 || e2. S d a P b c

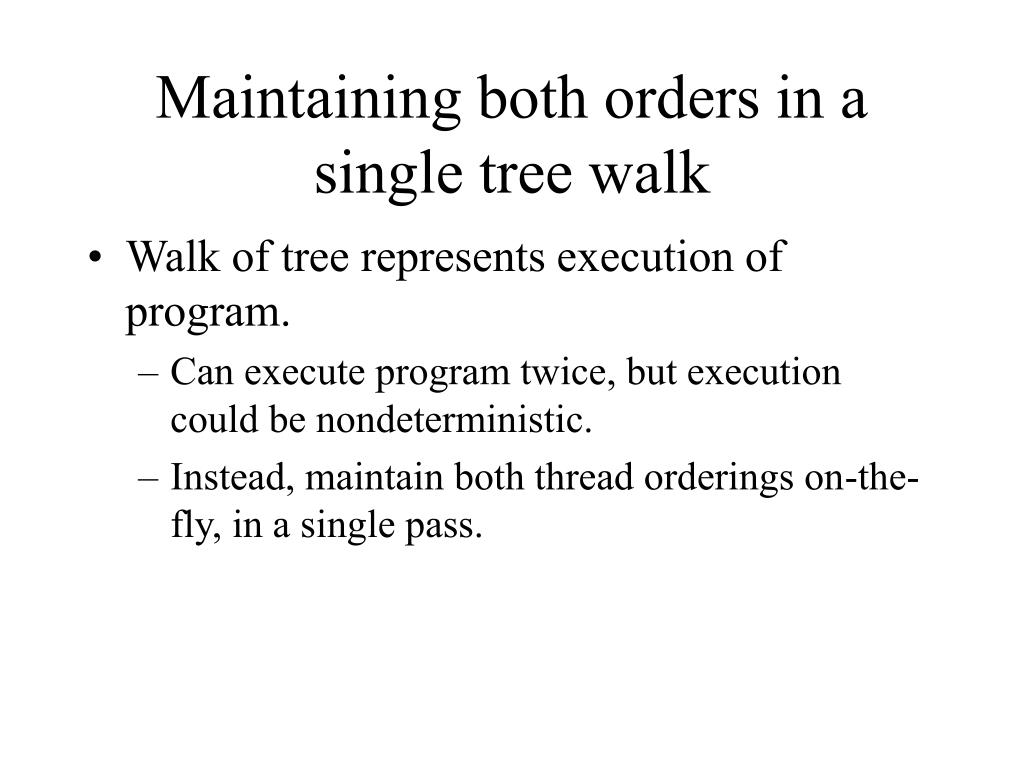

  8. Maintaining both orders in a single tree walk • Walk of tree represents execution of program. • Can execute program twice, but execution could be nondeterministic. • Instead, maintain both thread orderings on-the-fly, in a single pass.

  9. Order Maintenance Problem • We need a data structure which supports the following operations: • Insert(X,Y): Place Y after X in the list. • Precedes(X,Y): Does X come before Y?

  10. Naïve Order Maintenance Structure • Naïve Implementation is just a linked list

  11. Naïve Order Maintenance Insert • Insert(X,Y) does standard linked list insert X Y

  12. Naïve Order Maintenance Insert • Insert(X,Y) does standard linked list insert X Y

  13. Naïve Order Maintenance Insert • Insert(X,Y) does standard linked list insert X Y

  14. Naïve Order Maintenance Query • Precedes(X,Z) looks forward in list. X Z

  15. Naïve Order Maintenance Query • Precedes(X,Z) looks forward in list. X Z

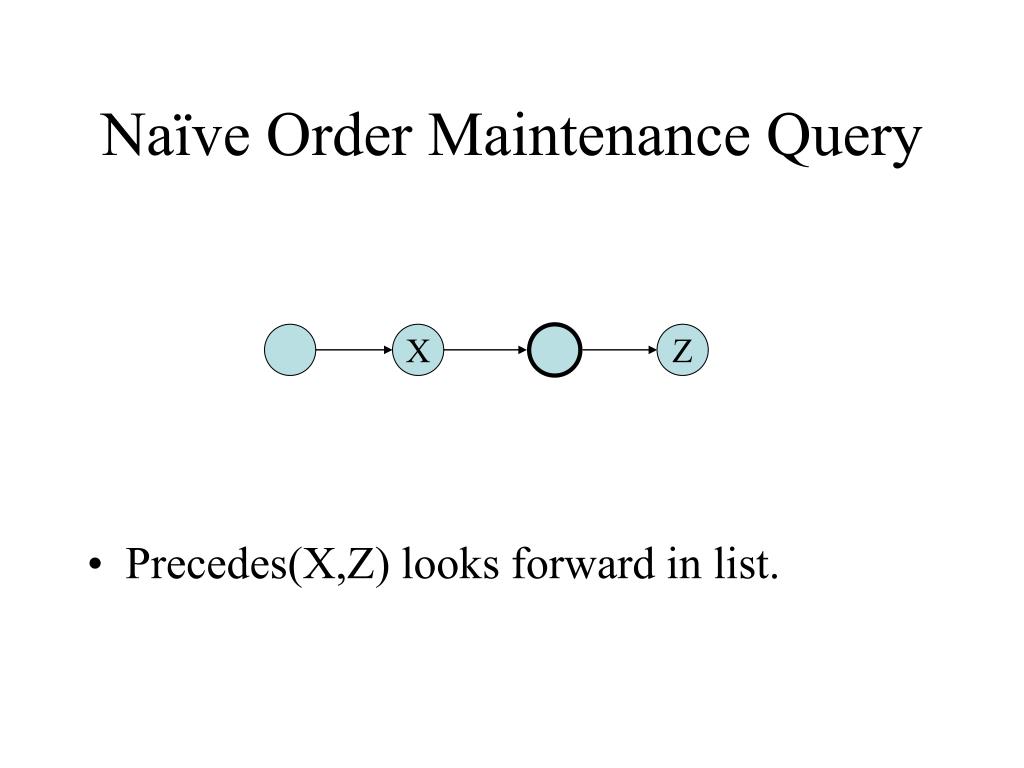

  16. Naïve Order Maintenance Query • Precedes(X,Z) looks forward in list. X Z

  17. Naïve Order Maintenance Query • Precedes(X,Z) looks forward in list. X Z

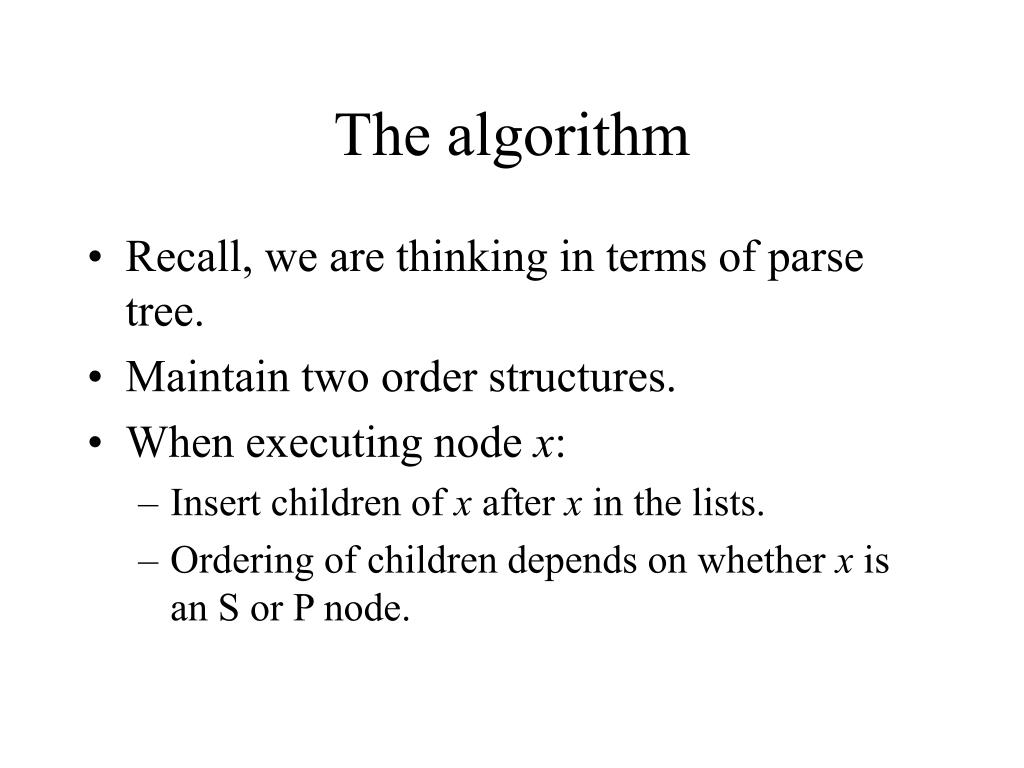

  18. The algorithm • Recall, we are thinking in terms of parse tree. • Maintain two order structures. • When executing node x: • Insert children of x after x in the lists. • Ordering of children depends on whether x is an S or P node.

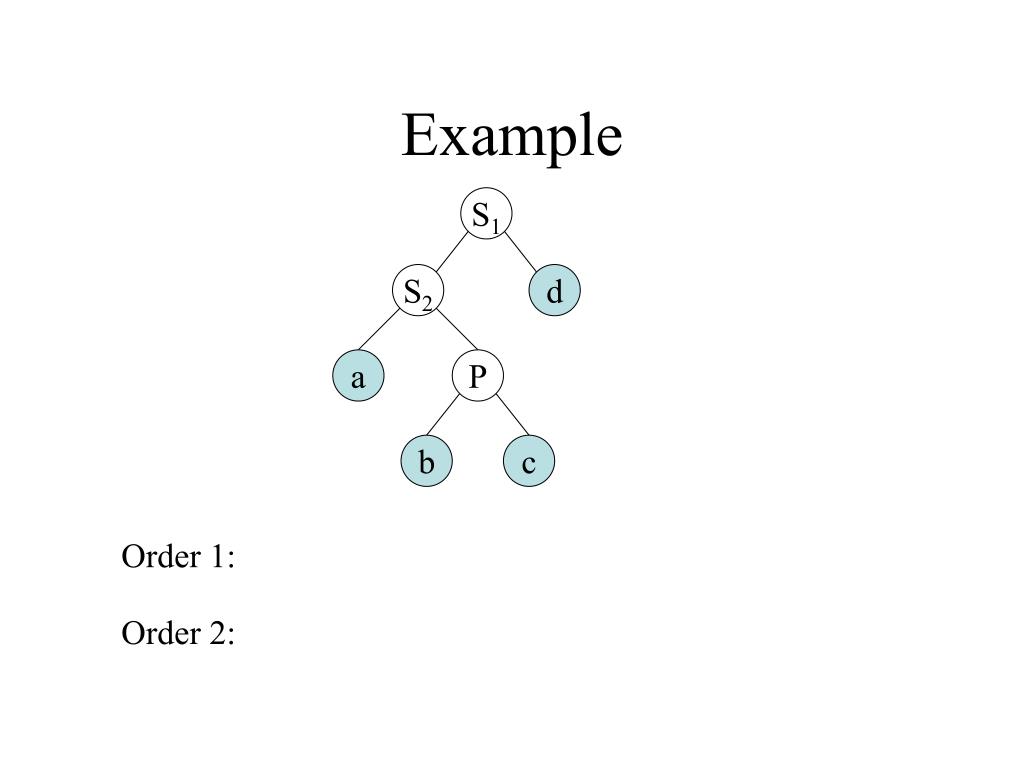

  19. Example S1 S2 d a P b c Order 1: Order 2:

  20. Example S1 S2 d a P b c S1 Order 1: S1 Order 2:

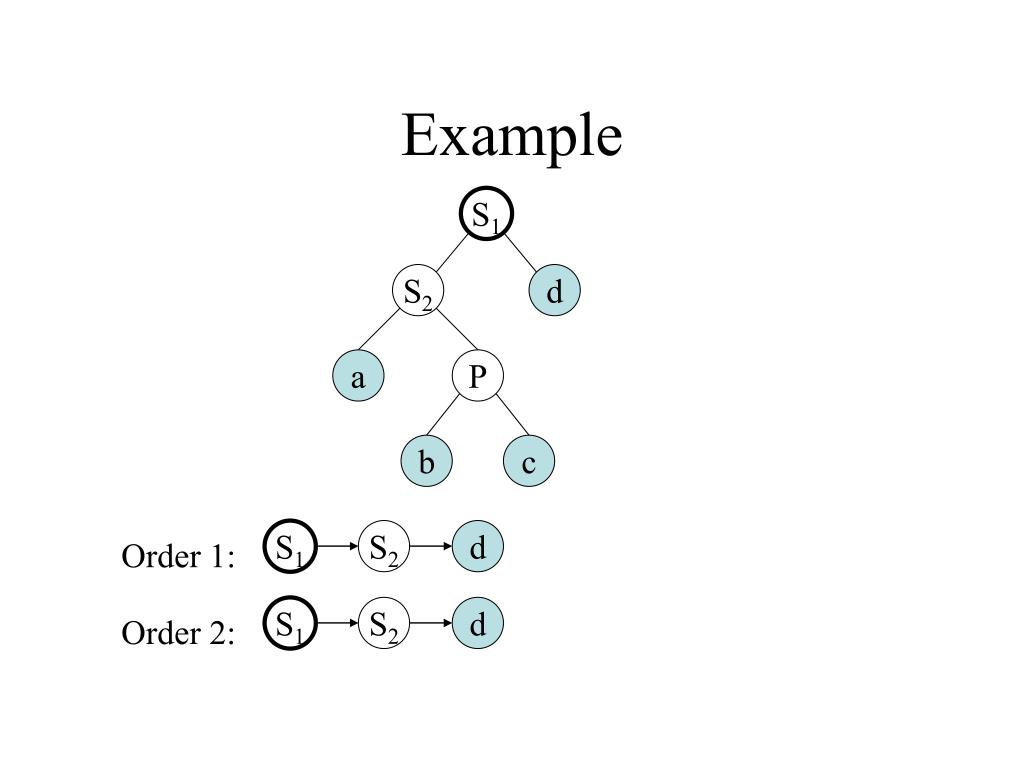

  21. Example S1 S2 d a P b c S1 S2 d Order 1: S1 S2 d Order 2:

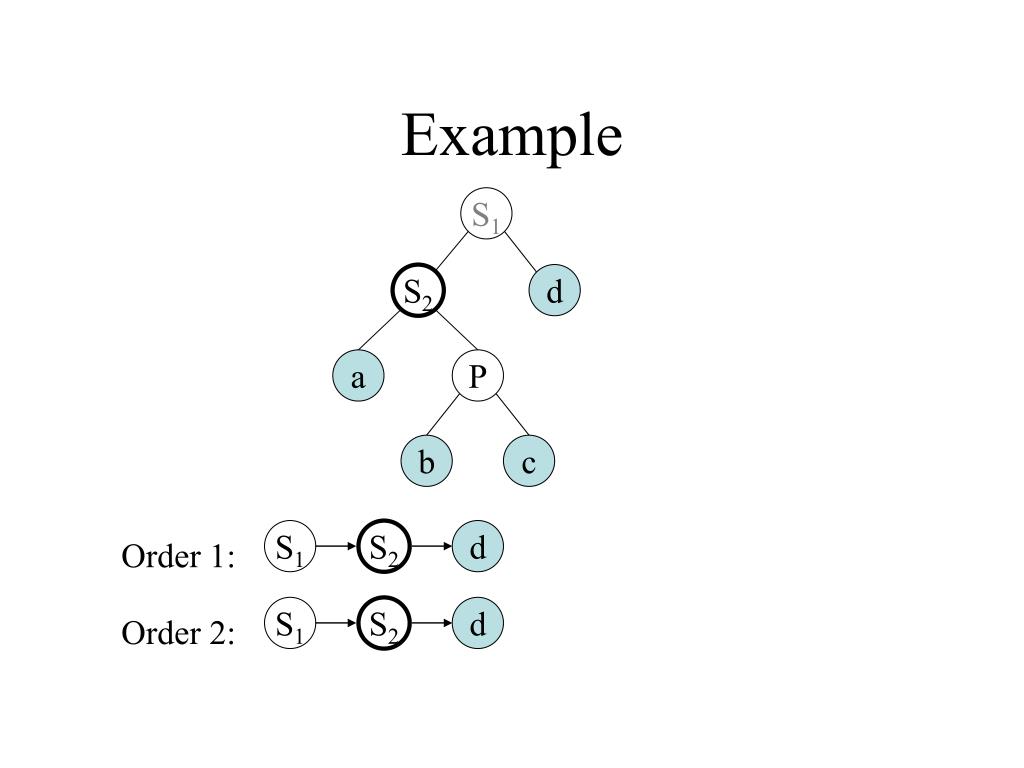

  22. Example S1 S2 d a P b c S1 S2 d Order 1: S1 S2 d Order 2:

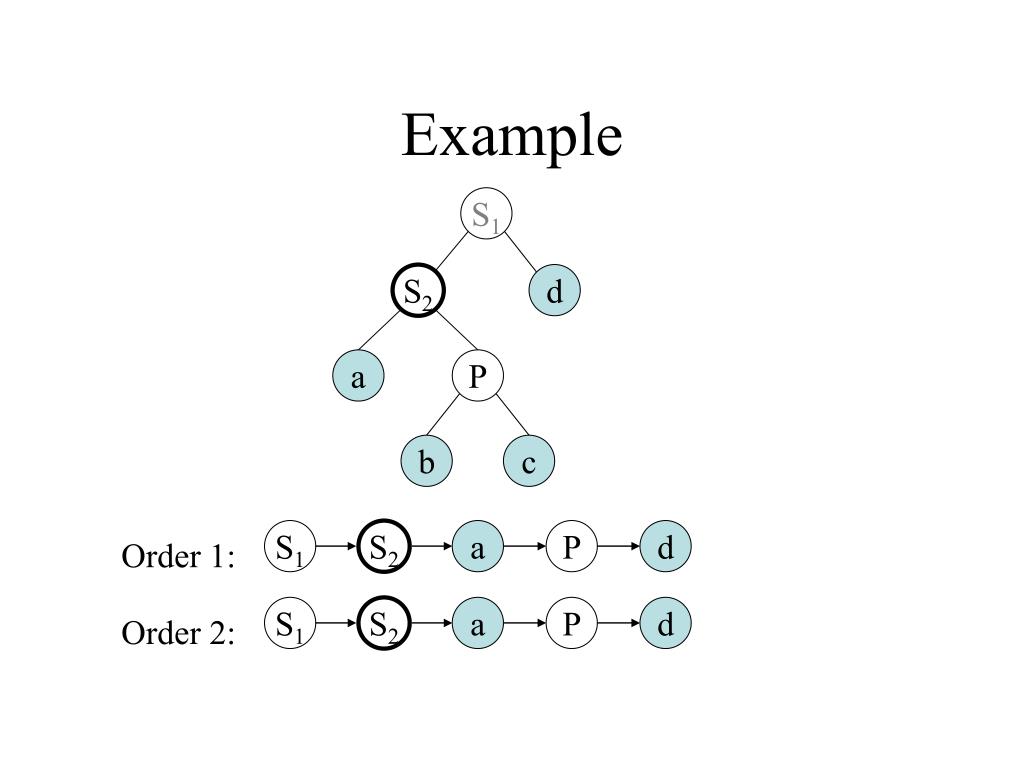

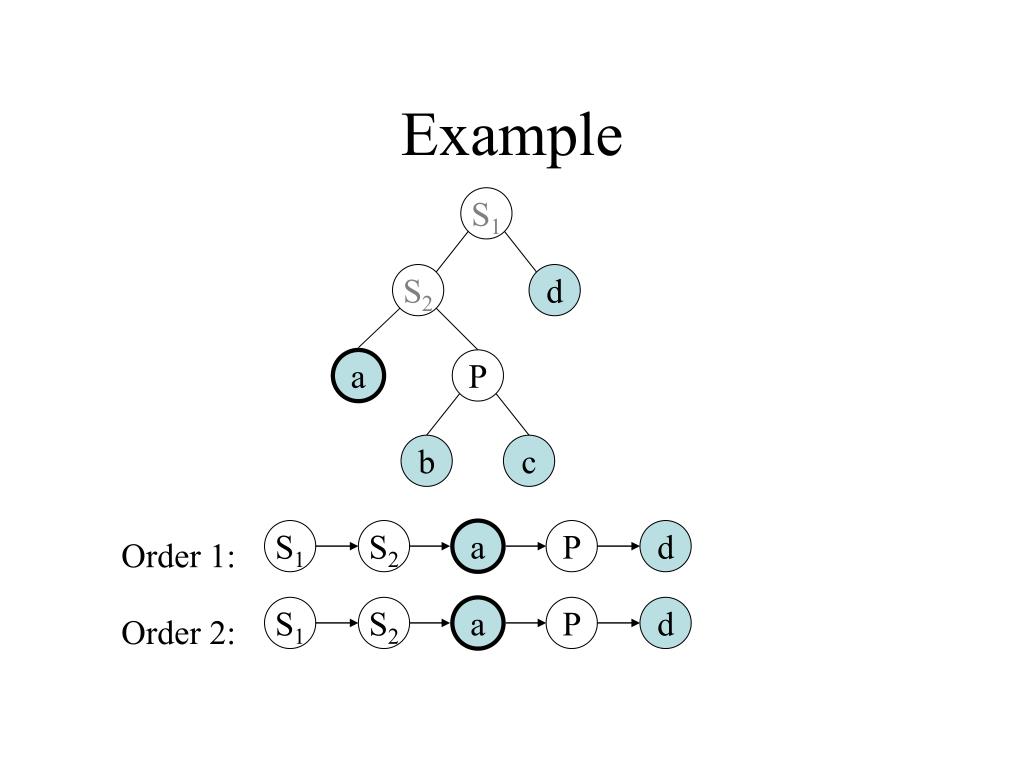

  23. Example S1 S2 d a P b c S1 S2 a P d Order 1: S1 S2 a P d Order 2:

  24. Example S1 S2 d a P b c S1 S2 a P d Order 1: S1 S2 a P d Order 2:

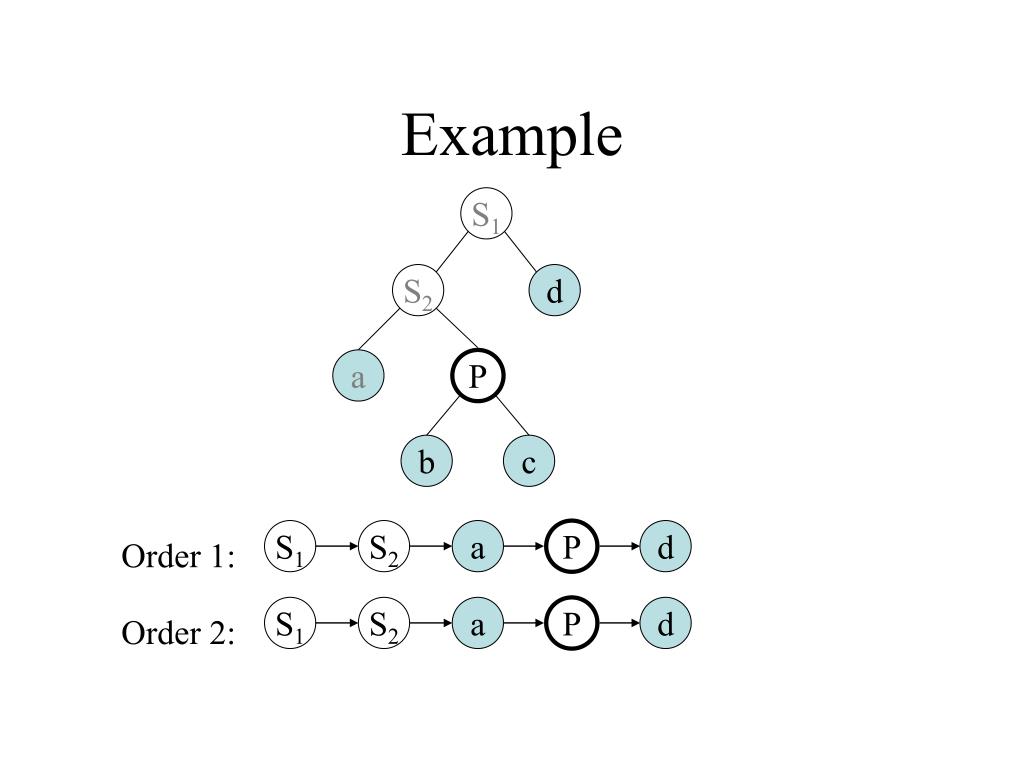

  25. Example S1 S2 d a P b c S1 S2 a P d Order 1: S1 S2 a P d Order 2:

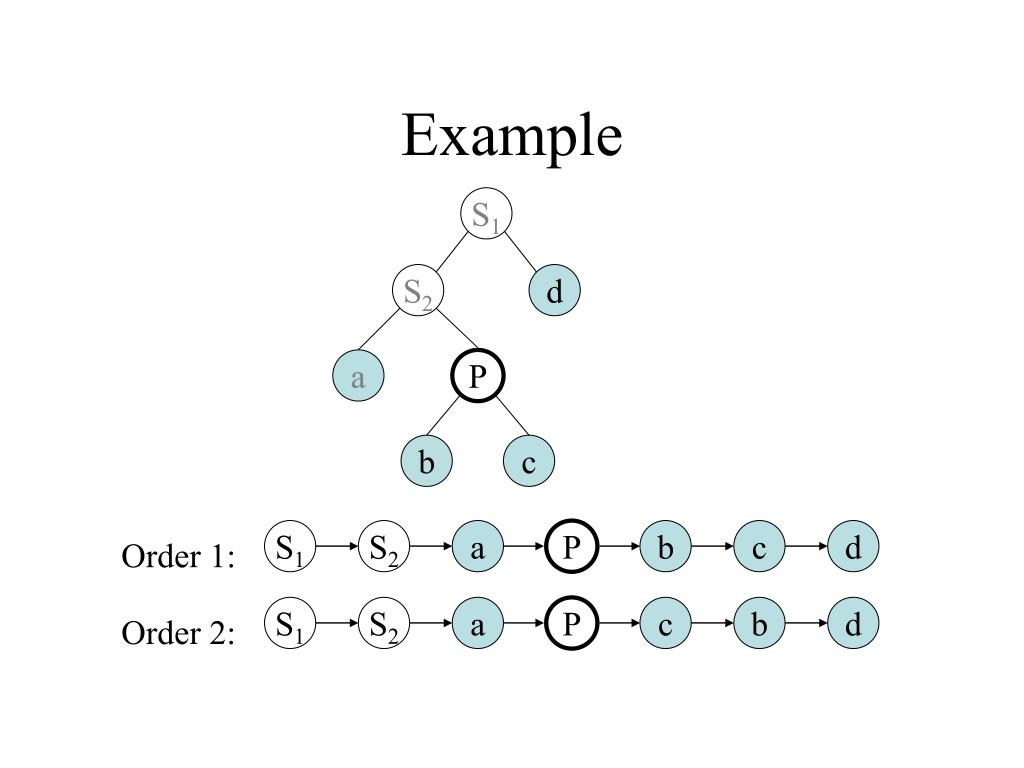

  26. Example S1 S2 d a P b c S1 S2 a P b c d Order 1: S1 S2 a P c b d Order 2:

  27. Example S1 S2 d a P b c S1 S2 a P b c d Order 1: S1 S2 a P c b d Order 2:

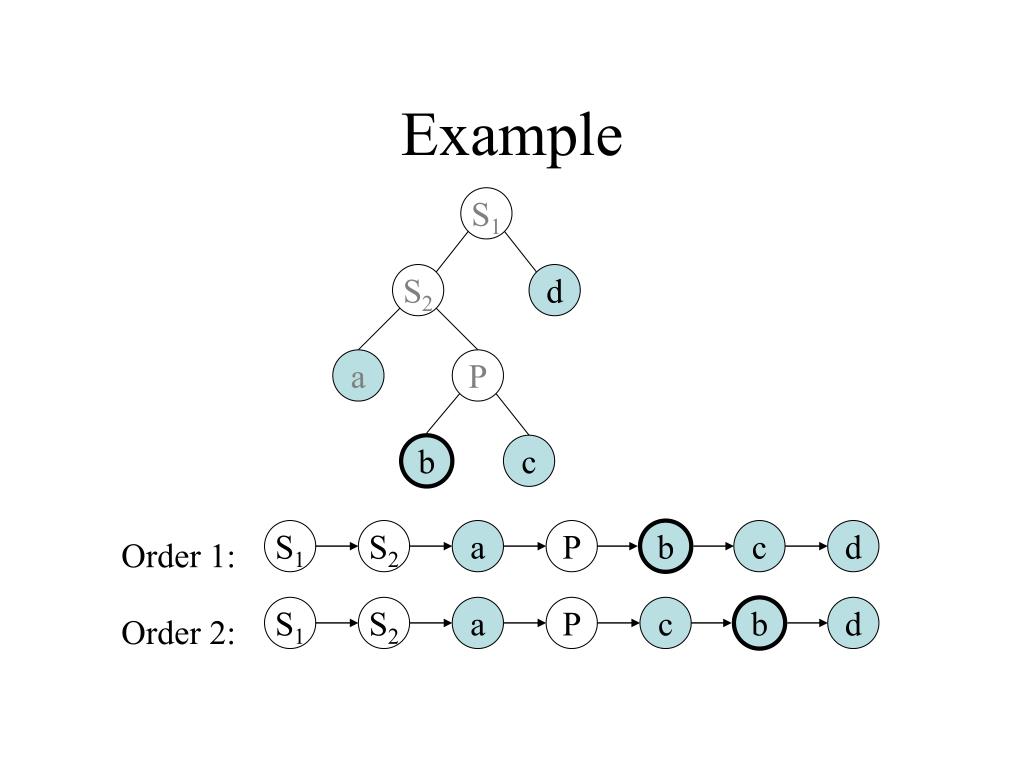

  28. Example S1 S2 d a P b c S1 S2 a P b c d Order 1: S1 S2 a P c b d Order 2:

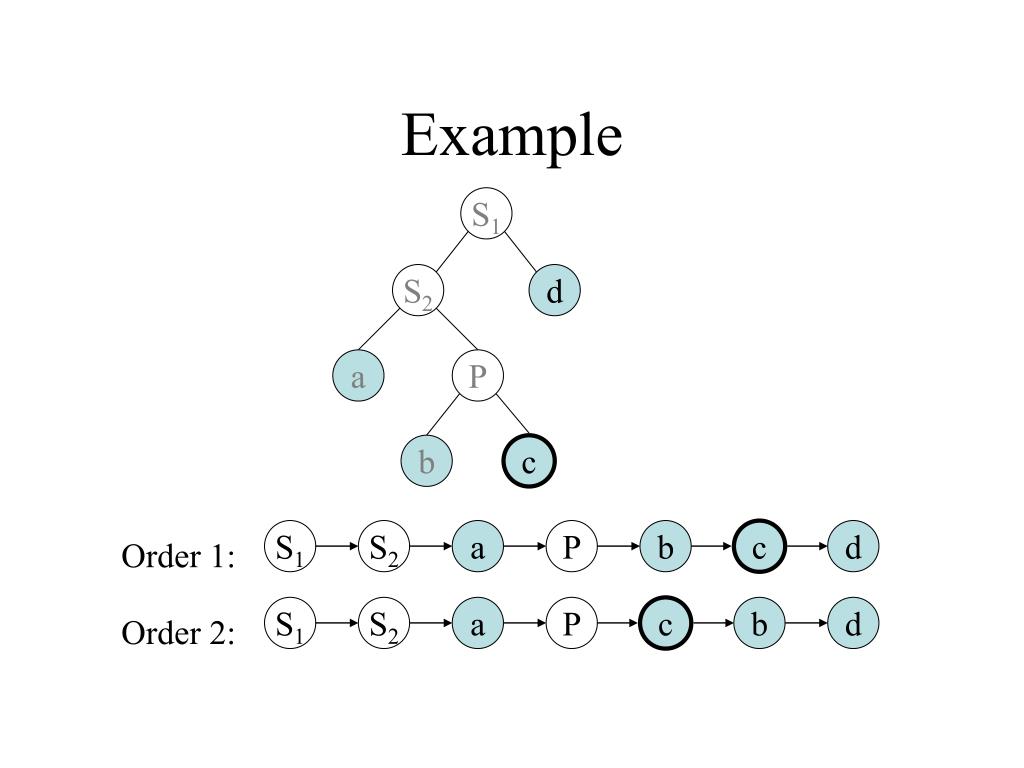

  29. Example S1 S2 d a P b c S1 S2 a P b c d Order 1: S1 S2 a P c b d Order 2:

  30. Analysis • Correctness does not depend on execution • Any valid serial or parallel execution produces correct results. • Inserts after x in orders only happen when x executes. • Only one processor will ever insert after x. • Running time depends on implementation of order maintenance data structure.

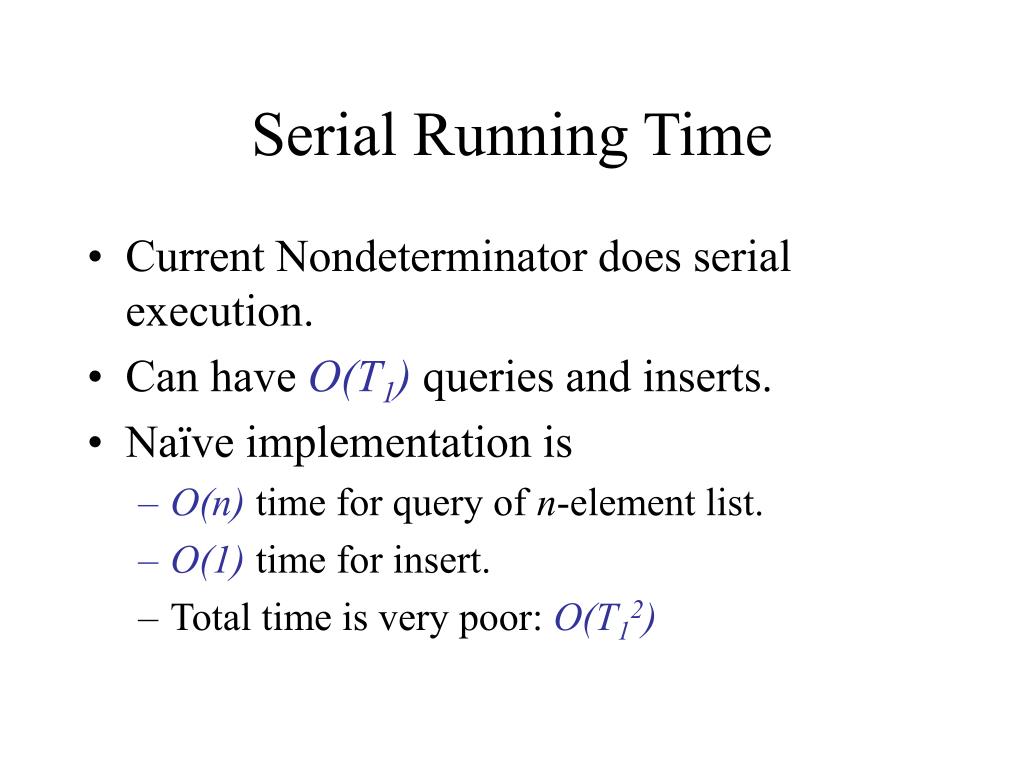

  31. Serial Running Time • Current Nondeterminator does serial execution. • Can have O(T1) queries and inserts. • Naïve implementation is • O(n) time for query of n-element list. • O(1) time for insert. • Total time is very poor: O(T12)

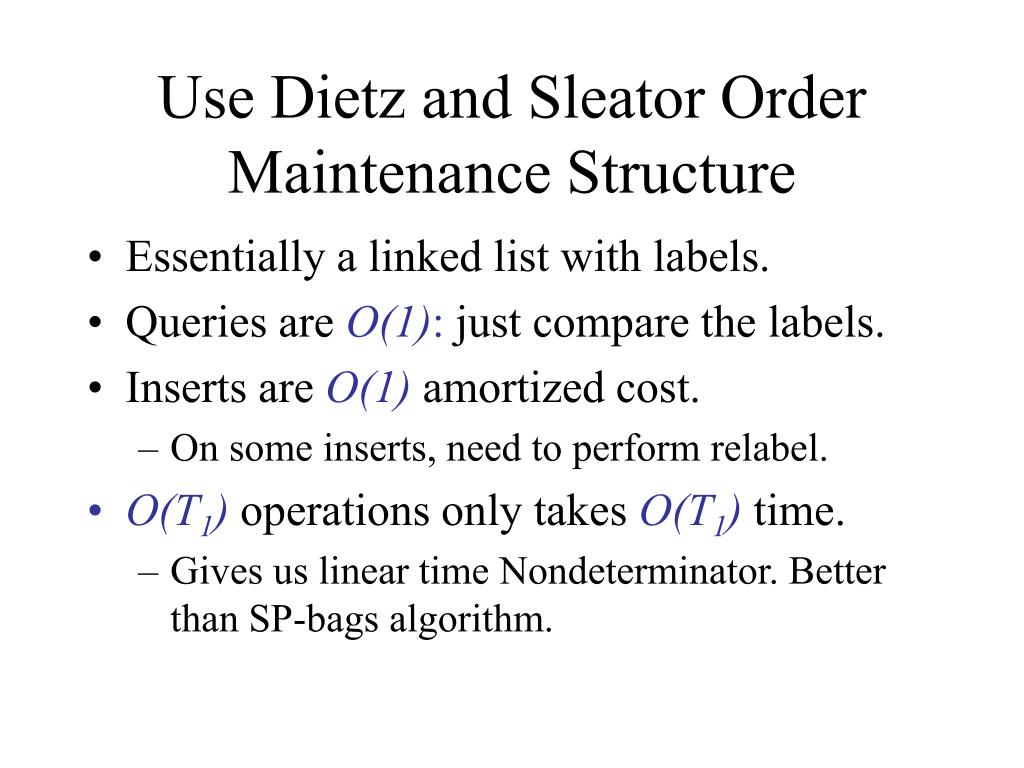

  32. Use Dietz and Sleator Order Maintenance Structure • Essentially a linked list with labels. • Queries are O(1): just compare the labels. • Inserts are O(1) amortized cost. • On some inserts, need to perform relabel. • O(T1) operations only takes O(T1) time. • Gives us linear time Nondeterminator. Better than SP-bags algorithm.

  33. Parallel Problem • Dietz and Sleator relabels on inserts • Does not work concurrently. • Lock entire structure on insert? • Query is still O(1). • Single relabel can cost O(T1) operations. • Critical path increases to O(T1) • Running time is O(T1/p + T1).

  34. Parallel Problem Solution • Leverage the Cilk scheduler: • There are only O(pT) steals • There is no contention on subcomputations done by single processor between steals. • We do not need to lock every insert.

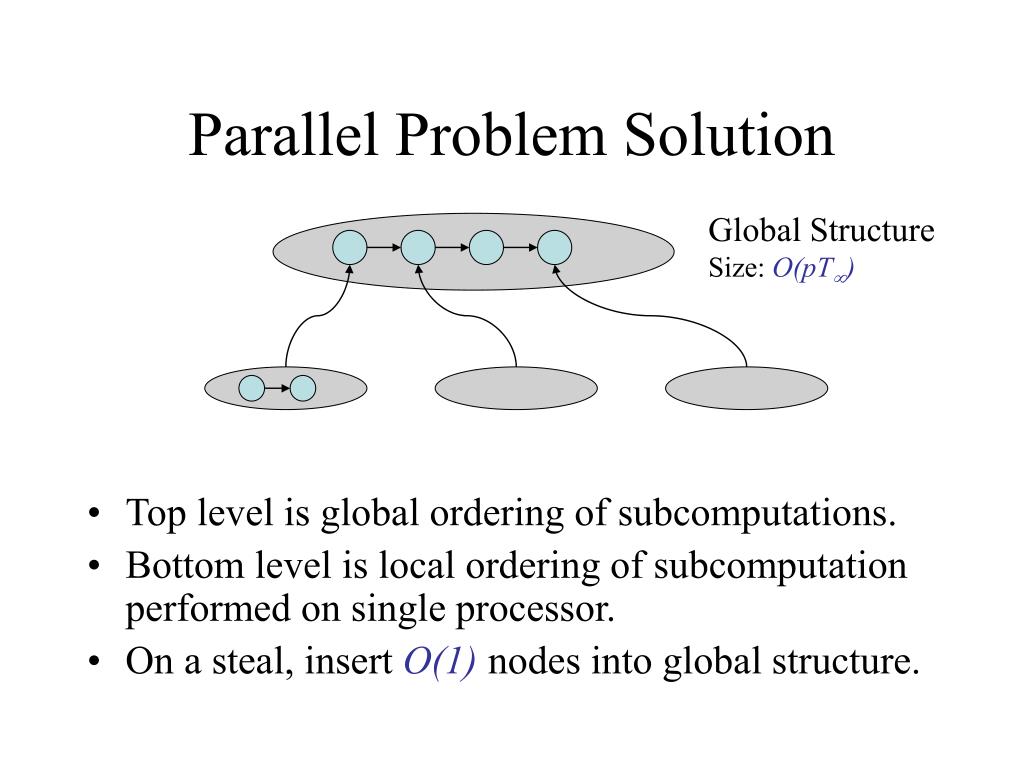

  35. Parallel Problem Solution Global Structure Size: O(pT) • Top level is global ordering of subcomputations. • Bottom level is local ordering of subcomputation performed on single processor. • On a steal, insert O(1) nodes into global structure.

  36. Parallel Running Time • An insert into a local order structure is still O(1). • An insert into the global structure involves locking the entire global structure. • May need to wait for p processors to insert serially. • Amortized cost is O(p) per insert. • Only O(pT) inserts into global structure. • Total work and waiting time is O(T1 + p2T) • Running time is O(T1/p + pT)

  37. Questions?
