  1. Driver Workload Guidelines applied to MirrorLink™ Mobile Applications Dr. Matthias Henning HMI Specialist, Carmeq - Volkswagen Group Driver Distraction Task Group, CCC

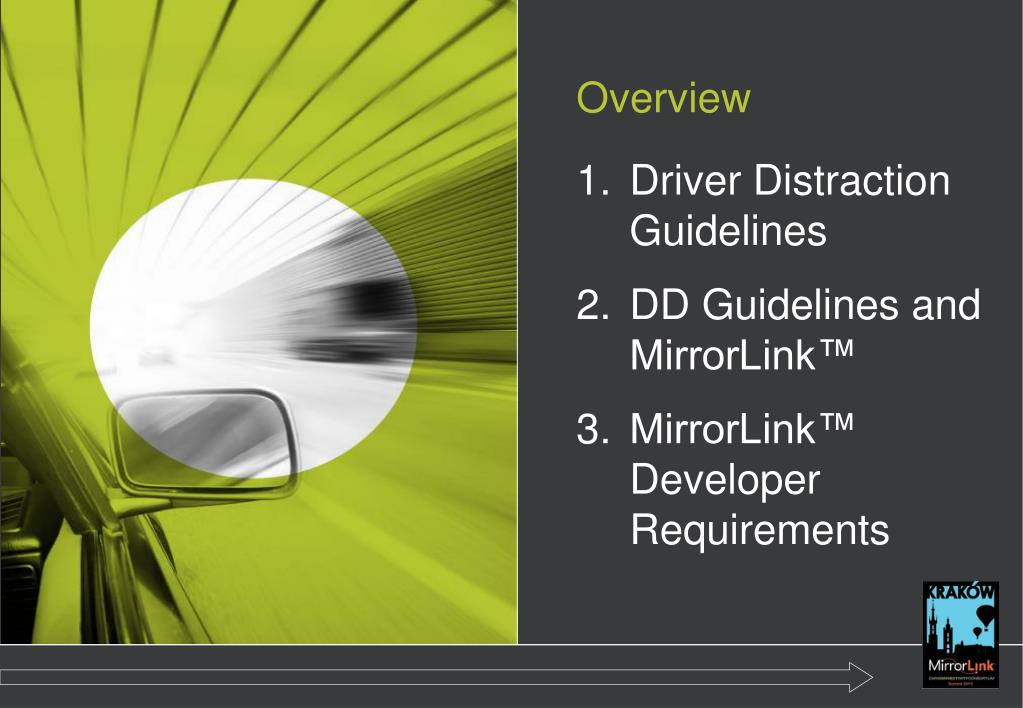

  2. Overview • Driver Distraction Guidelines • DD Guidelines and MirrorLink™ • MirrorLink™ Developer Requirements

  3. Phone Applications in the Car Phone applications are not designed for use in cars!

  4. Phone World vs. Car World Phone Mode Car Mode Driver Distraction Guidelines

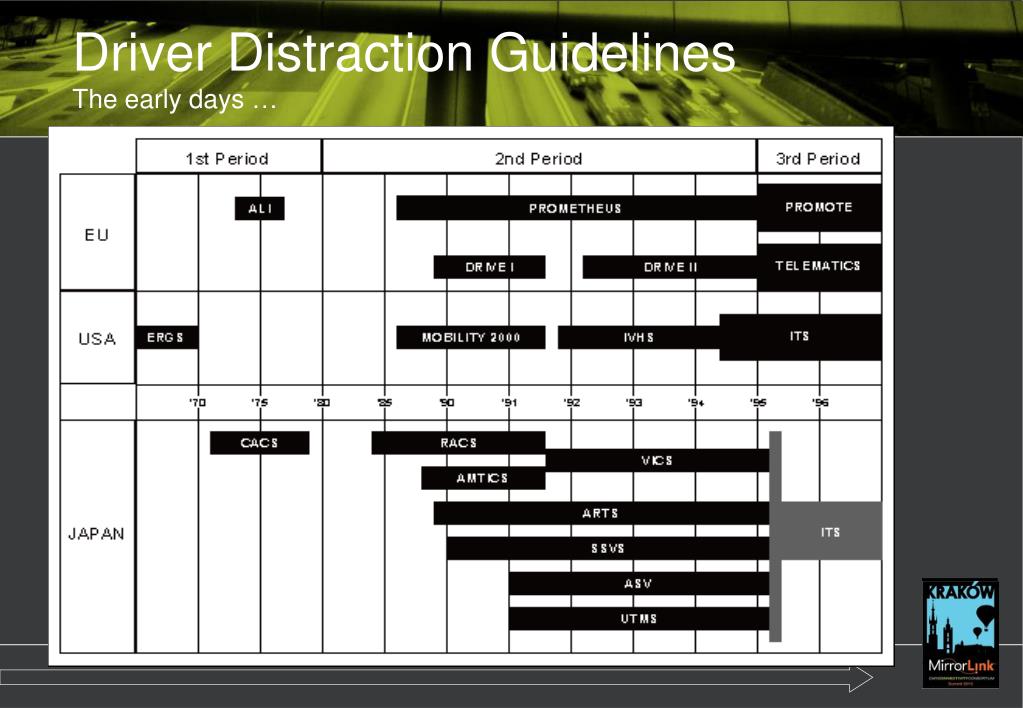

  5. Driver Distraction GuidelinesThe earlydays …

  6. Workshop Driver Distraction Guidelines, V01.0 Driver DistractionCertificationExistingRegional Guidelines

  7. DD Guidelines and MirrorLink™

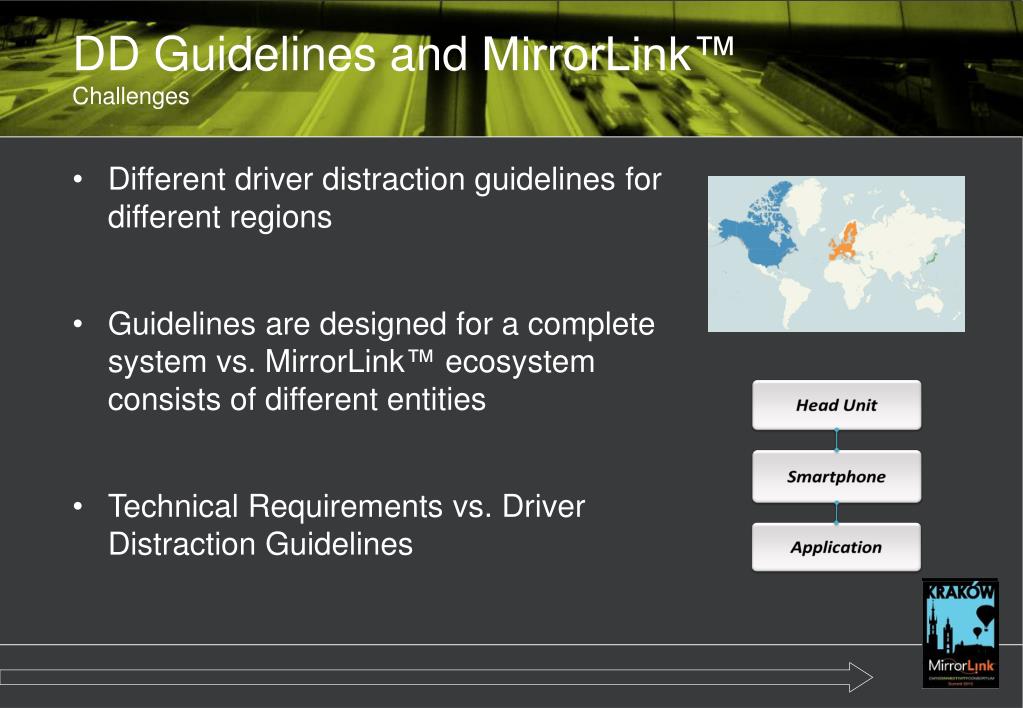

  8. DD Guidelines and MirrorLink™Challenges • Different driver distraction guidelines for different regions • Guidelines are designed for a complete system vs. MirrorLink™ ecosystemconsists of different entities • Technical Requirements vs. Driver Distraction Guidelines

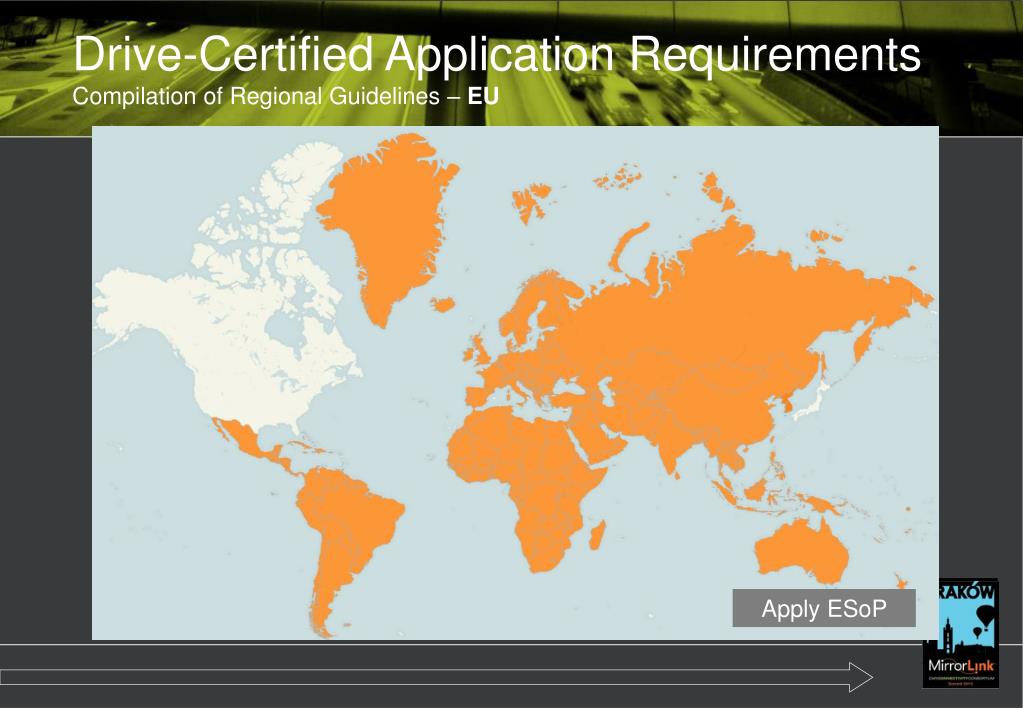

  9. Drive-Certified Application RequirementsCompilation of Regional Guidelines – EU ApplyESoP

  10. Drive-Certified Application RequirementsCompilation of Regional Guidelines – EU & NA Combine AAM andESoP

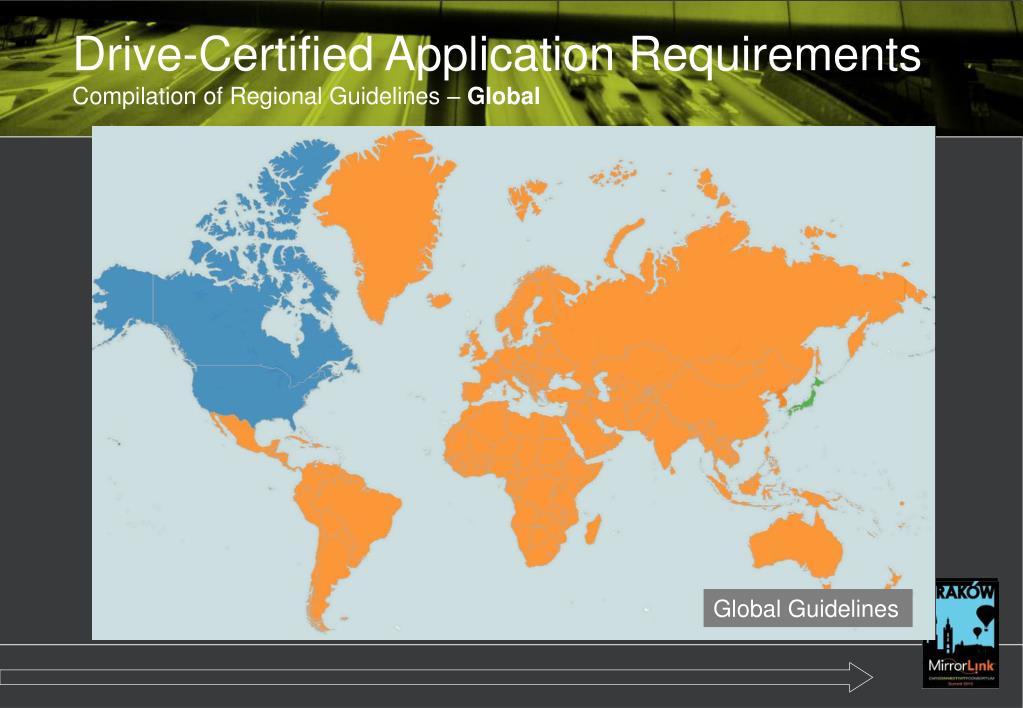

  11. Drive-Certified Application RequirementsCompilation of Regional Guidelines – Global Global Guidelines

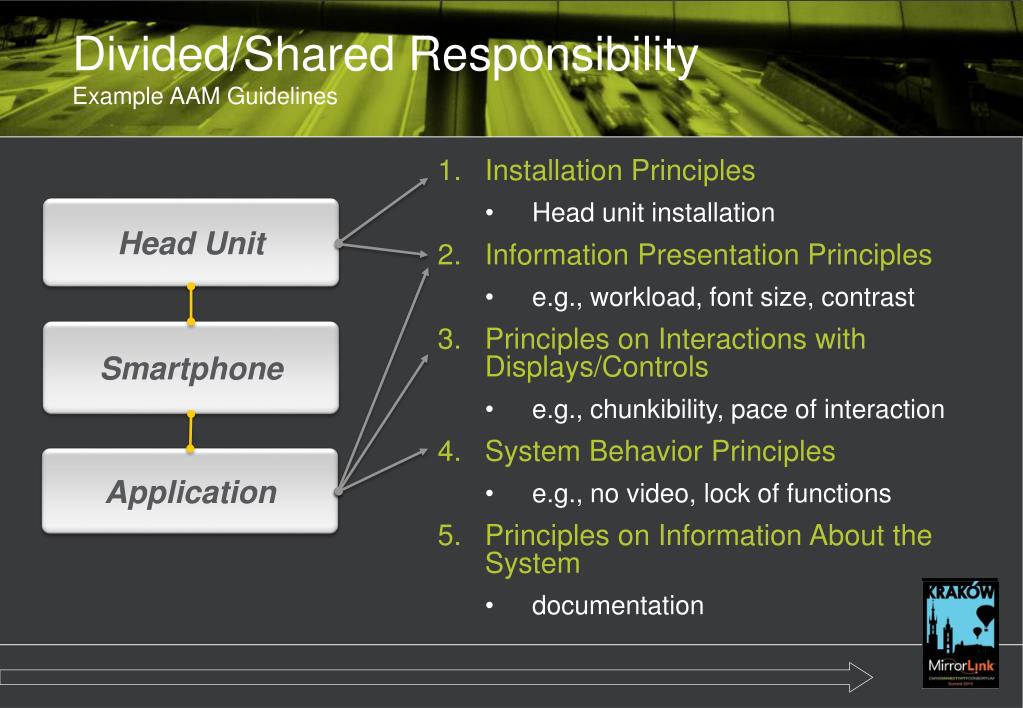

  12. Divided/Shared Responsibility Example AAM Guidelines • Installation Principles • Head unit installation • Information Presentation Principles • e.g., workload, font size, contrast • Principles on Interactions with Displays/Controls • e.g., chunkibility, pace of interaction • System Behavior Principles • e.g., no video, lock of functions • Principles on Information About the System • documentation Head Unit Smartphone Application

  13. MirrorLink™ Developer Requirements

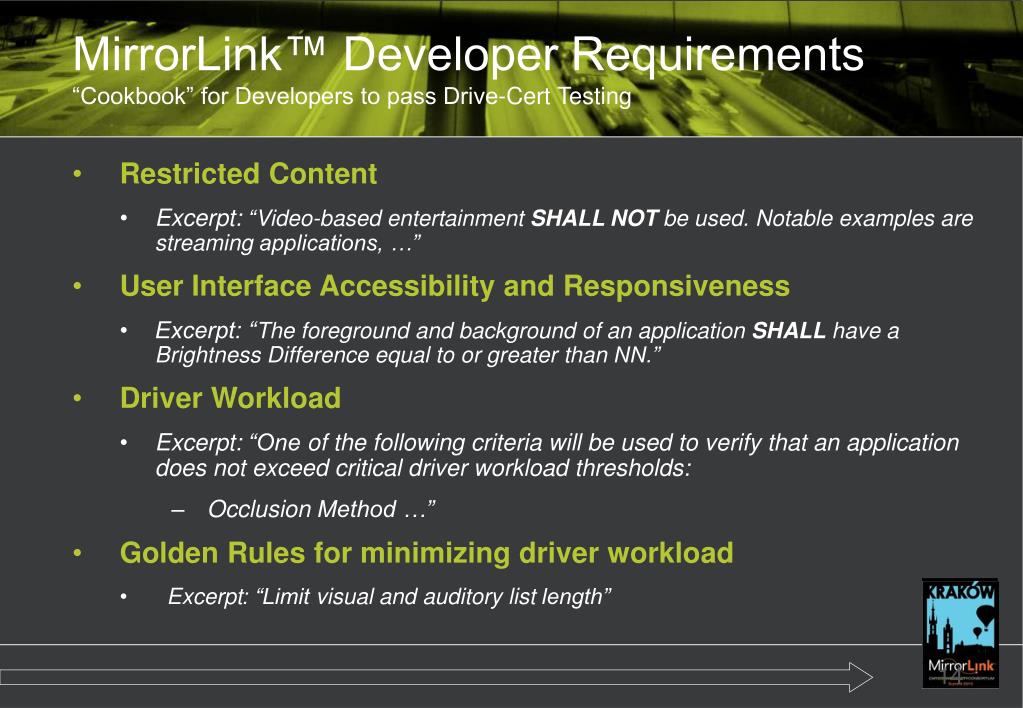

  14. MirrorLink™ Developer Requirements“Cookbook” for Developers to pass Drive-Cert Testing • Restricted Content • Excerpt: “Video-based entertainment SHALL NOT be used. Notable examples are streaming applications, …” • User Interface Accessibility and Responsiveness • Excerpt: “The foreground and background of an application SHALL have a Brightness Difference equal to or greater than NN.” • Driver Workload • Excerpt:“One of the following criteria will be used to verify that an application does not exceed critical driver workload thresholds: • Occlusion Method …” • Golden Rules for minimizing driver workload • Excerpt: “Limit visual and auditory list length”

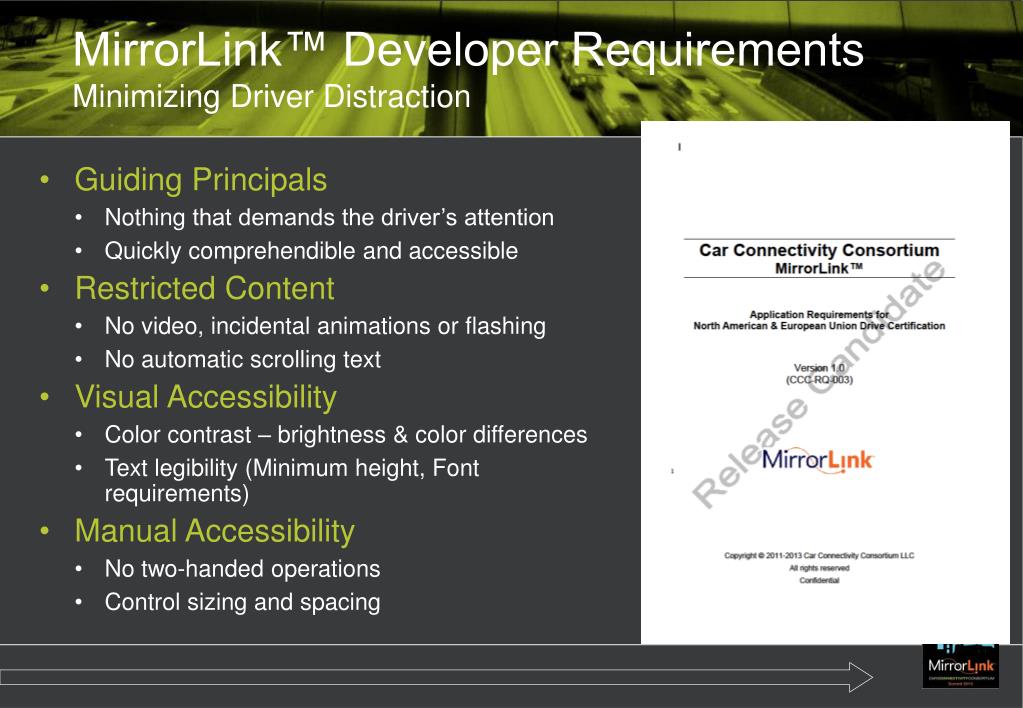

  15. MirrorLink™ Developer RequirementsMinimizing Driver Distraction • Guiding Principals • Nothing that demands the driver’s attention • Quickly comprehendible and accessible • Restricted Content • No video, incidental animations or flashing • No automatic scrolling text • Visual Accessibility • Color contrast – brightness & color differences • Text legibility (Minimum height, Font requirements) • Manual Accessibility • No two-handed operations • Control sizing and spacing

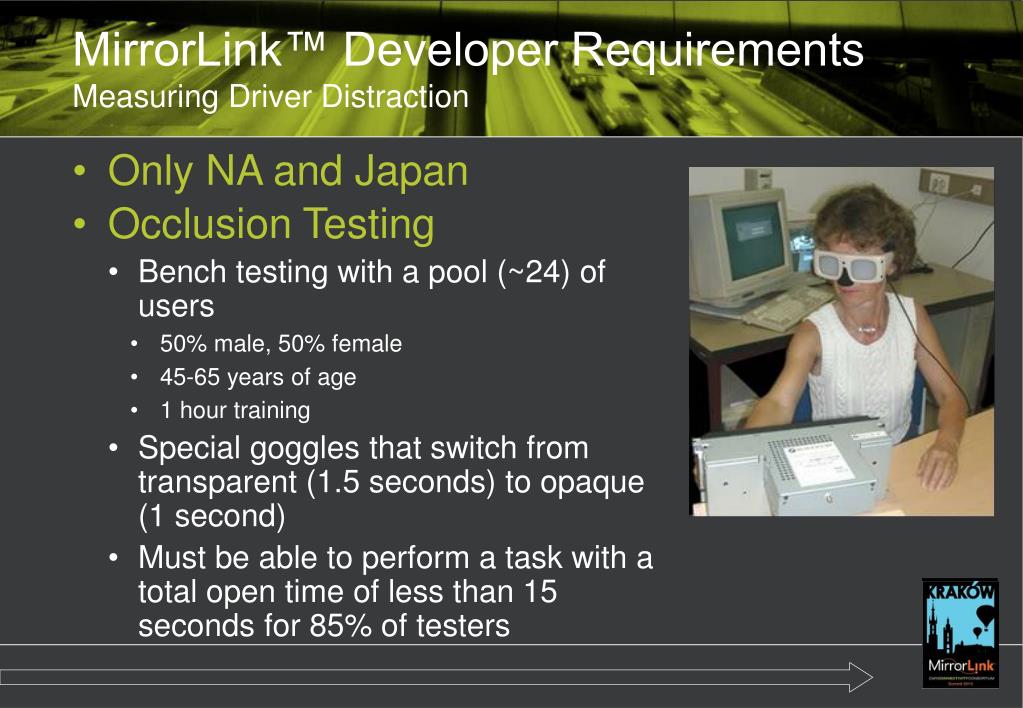

  16. MirrorLink™ Developer RequirementsMeasuring Driver Distraction • Only NAand Japan • Occlusion Testing • Bench testing with a pool (~24) of users • 50% male, 50% female • 45-65 years of age • 1 hour training • Special goggles that switch from transparent (1.5 seconds) to opaque (1 second) • Must be able to perform a task with a total open time of less than 15 secondsfor 85% of testers

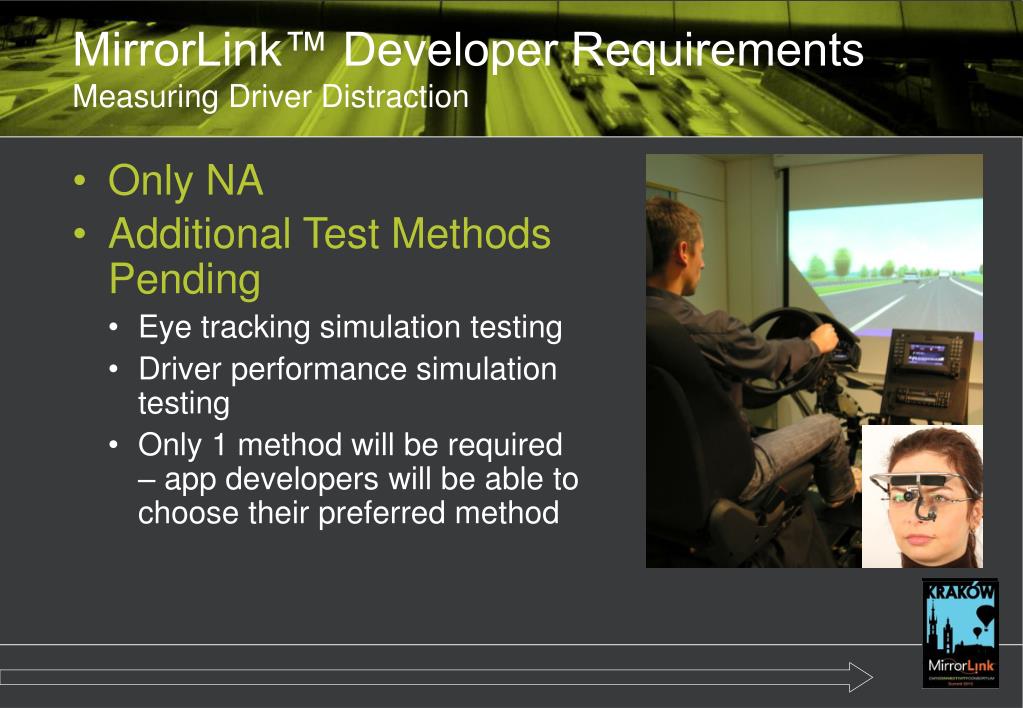

  17. MirrorLink™ Developer RequirementsMeasuring Driver Distraction • Only NA • Additional Test Methods Pending • Eye tracking simulation testing • Driver performance simulation testing • Only 1 method will be required – app developers will be able to choose their preferred method

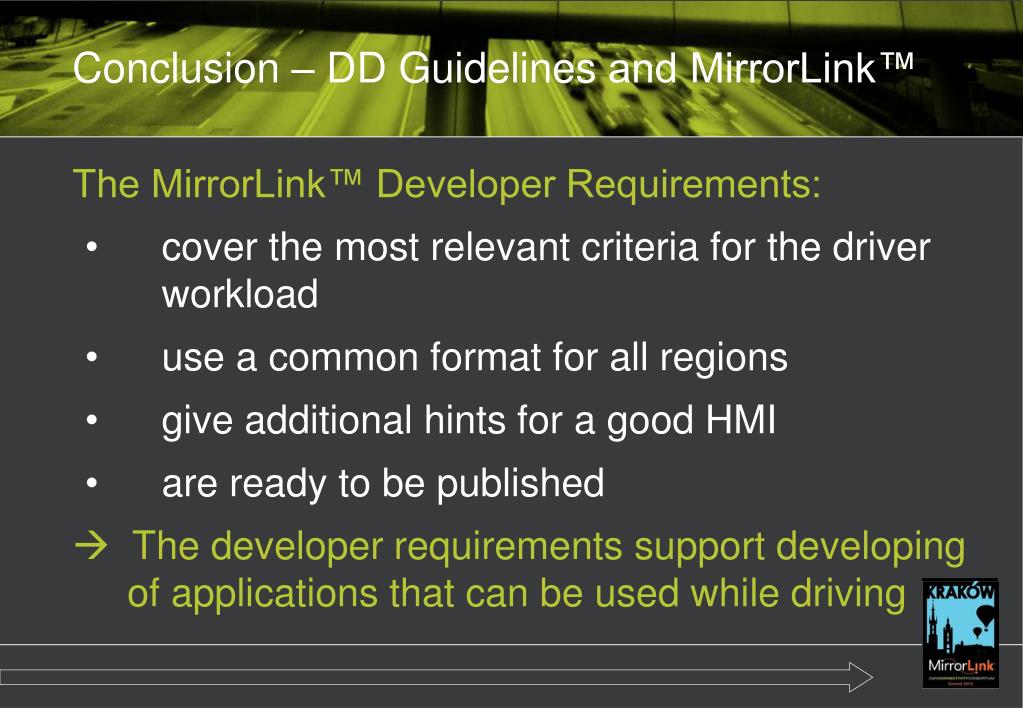

  18. Conclusion – DD Guidelines and MirrorLink™ • The MirrorLink™ Developer Requirements: • cover the most relevant criteria for the driver workload • use a common format for all regions • give additional hints for a good HMI • are ready to be published • The developer requirements support developing of applications that can be used while driving

  19. Thank You
