Paper Air Permeability Tester 28kg

Labmate Paper Air Permeability Tester for ultra-thin sheets. This fully automated device supports Schopper, Bentsen, and Gurley methods, with a range of 0-400 ml/min and 1KPa pressure. It features an LCD screen, micro-printer, and precise accuracy, ensuring reliable results every time.<br>

hannacurry
Download Presentation

Paper Air Permeability Tester 28kg

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

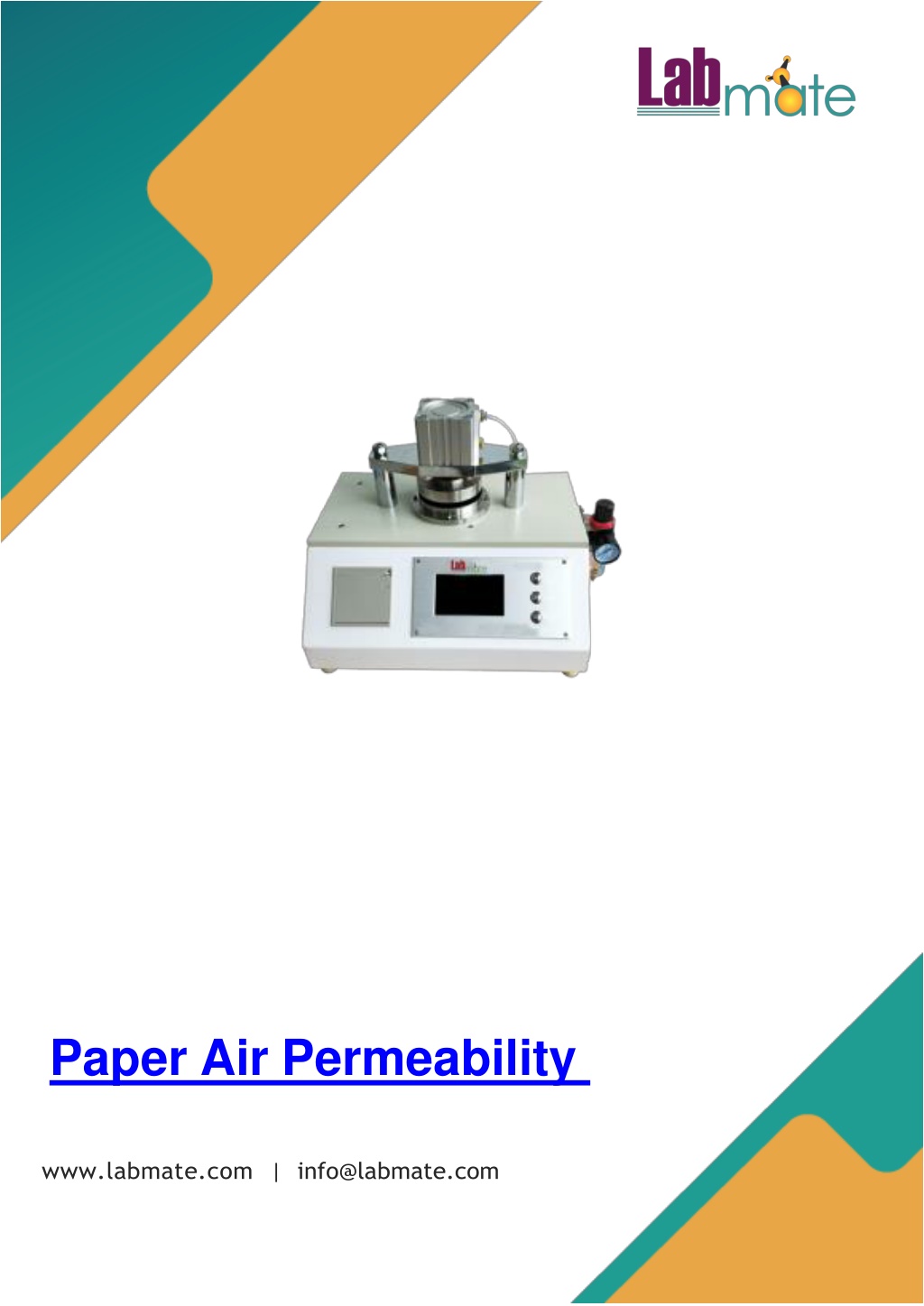

  1. Paper Air Permeability www.labmate.com|info@labmate.com

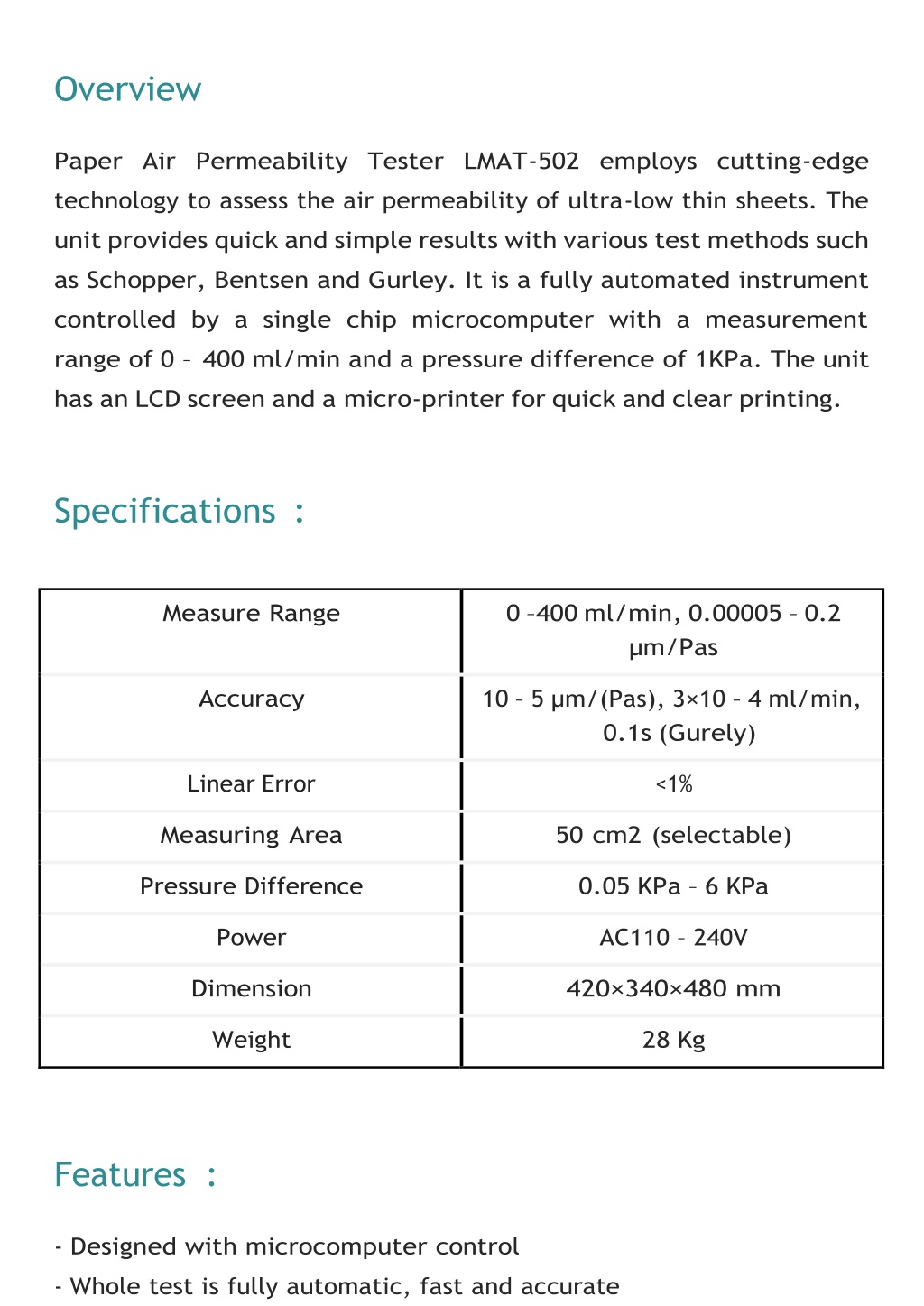

  2. Overview Paper Air Permeability Tester LMAT-502 employs cutting-edge technology to assess the air permeability of ultra-low thin sheets. The unit provides quick and simple results with various test methods such as Schopper, Bentsen and Gurley. It is a fully automated instrument controlled by a single chip microcomputer with a measurement range of 0 – 400 ml/min and a pressure difference of 1KPa. The unit has an LCD screen and a micro-printer for quick and clear printing. Specifications : Measure Range 0 –400 ml/min, 0.00005 – 0.2 µm/Pas Accuracy 10 – 5 µm/(Pas), 3×10 – 4 ml/min, 0.1s (Gurely) Linear Error <1% Measuring Area 50 cm2 (selectable) Pressure Difference 0.05 KPa – 6 KPa Power AC110 – 240V Dimension 420×340×480 mm Weight 28 Kg Features: -Designed with microcomputer control -Whole test is fully automatic, fast and accurate

  3. -Adopts an intelligent chip and load sensor to increase the test accuracy -Equipped with English menu LCD screen with soft touch buttons -Micro-printer, fast and clear printing -It can set pressure difference based on the permeability of the product -Data recording and processing functions Applications: It is a special instrument widely used in testing the permeability ultra- low thin sheets of variety materials, such as paper, mica tape, thin film or other sheet objects etc. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
