Fabric Air Permeability

Labtron Fabric Air Permeability Tester offers precise and automated air permeability measurement for flat materials, featuring a 0-200 Pa/cm2 range and 0-2 KPa pressure difference. It includes an LCD screen, micro-printer, and selectable measuring areas with <1% linear error and high accuracy.<br>

hannacurry
Download Presentation

Fabric Air Permeability

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

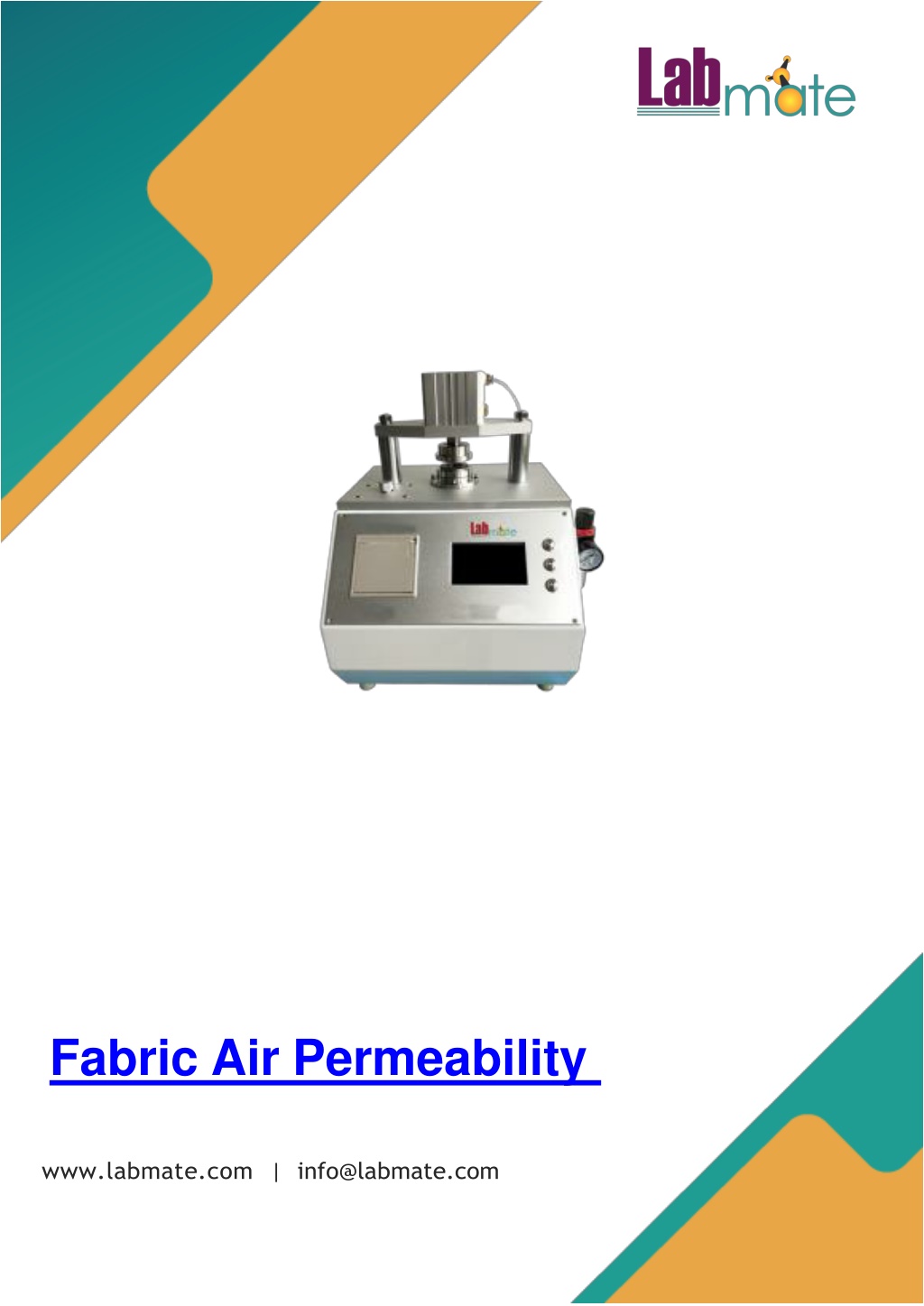

  1. Fabric Air Permeability www.labmate.com|info@labmate.com

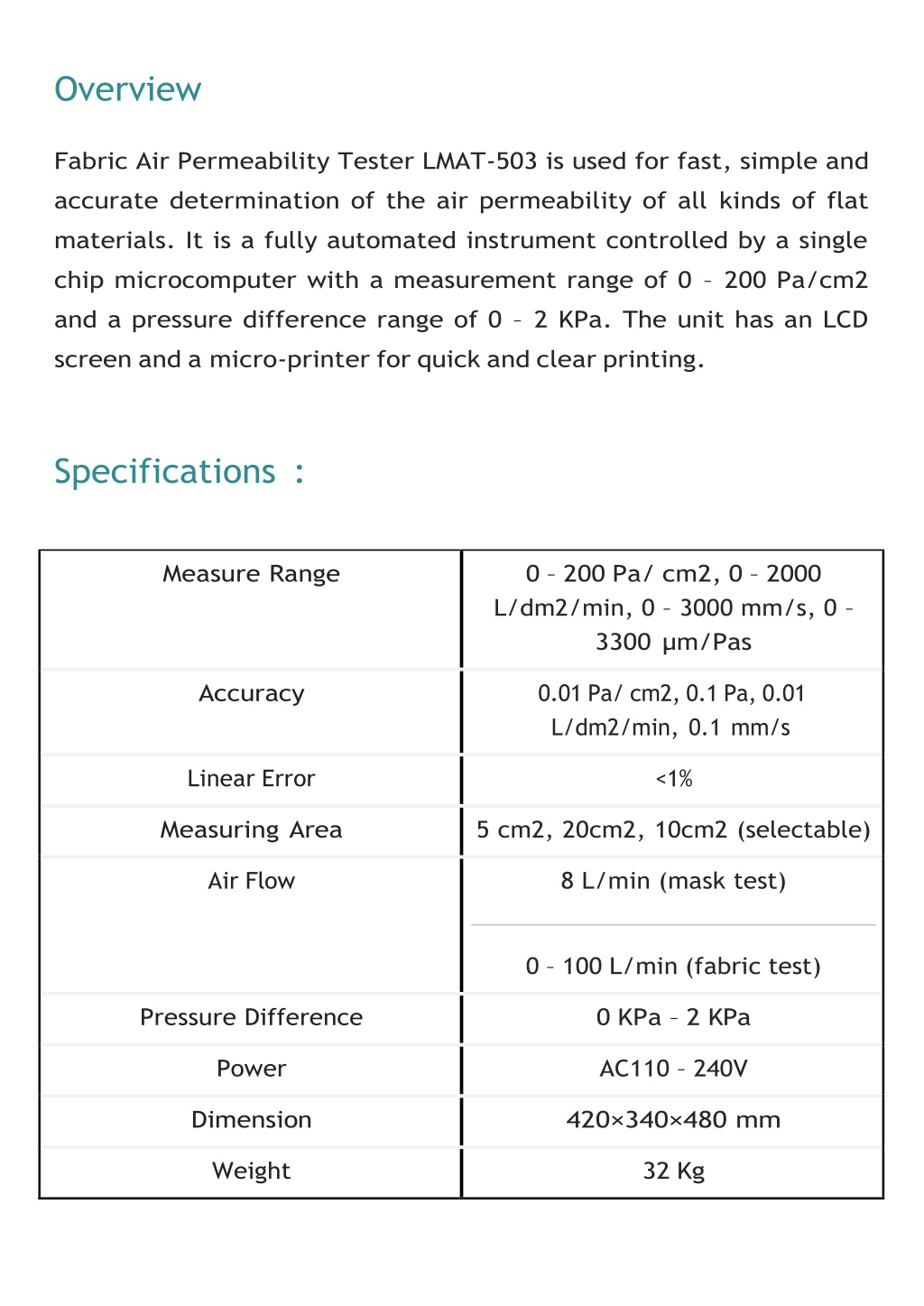

  2. Overview Fabric Air Permeability Tester LMAT-503 is used for fast, simple and accurate determination of the air permeability of all kinds of flat materials. It is a fully automated instrument controlled by a single chip microcomputer with a measurement range of 0 – 200 Pa/cm2 and a pressure difference range of 0 – 2 KPa. The unit has an LCD screen and a micro-printer for quick and clear printing. Specifications : Measure Range 0 – 200 Pa/ cm2, 0 – 2000 L/dm2/min, 0 – 3000 mm/s, 0 – 3300 µm/Pas Accuracy 0.01 Pa/ cm2, 0.1 Pa, 0.01 L/dm2/min, 0.1 mm/s Linear Error <1% Measuring Area 5 cm2, 20cm2, 10cm2 (selectable) Air Flow 8 L/min (mask test) 0 – 100 L/min (fabric test) Pressure Difference 0 KPa – 2 KPa Power AC110 – 240V Dimension 420×340×480 mm Weight 32 Kg

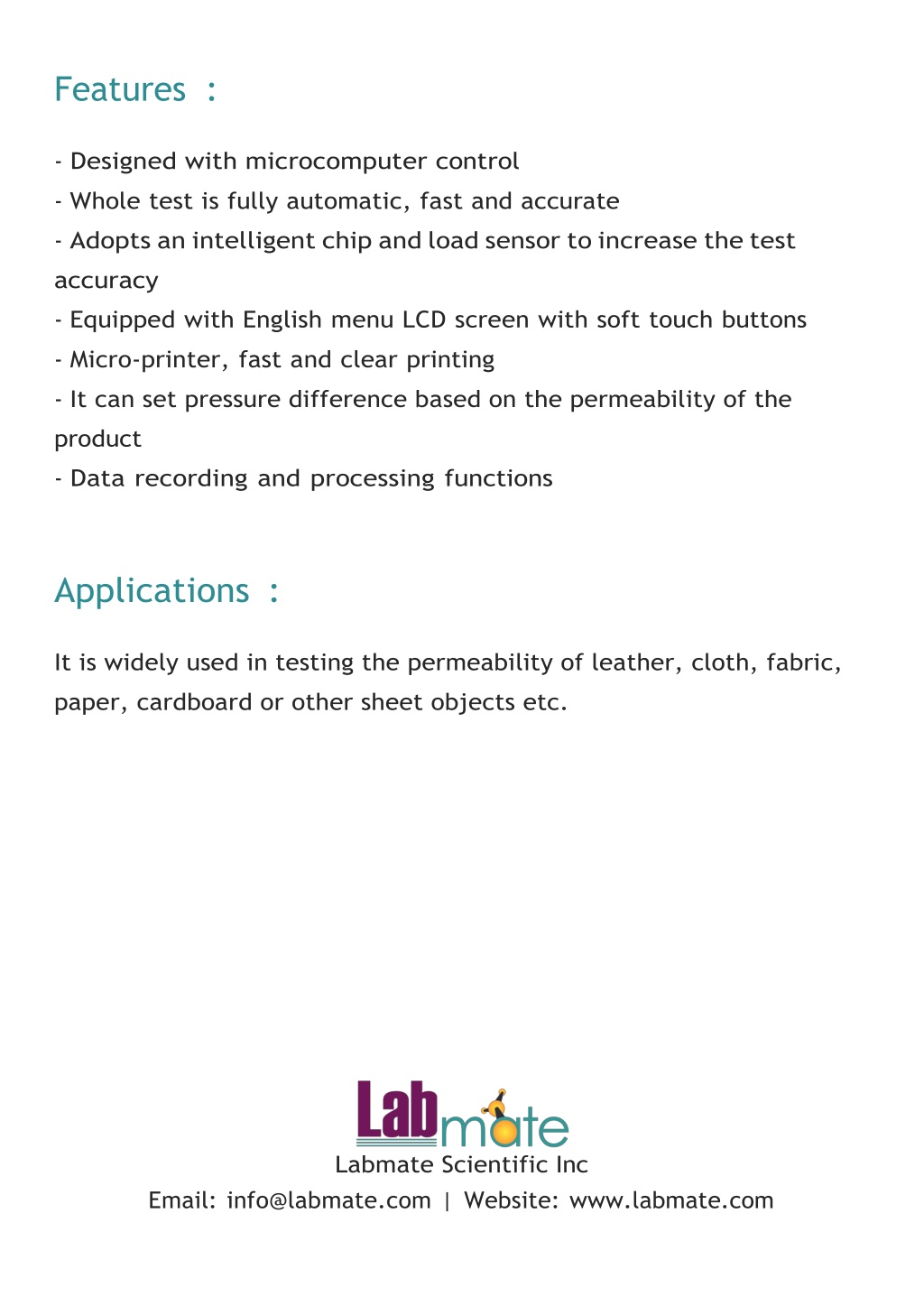

  3. Features: -Designed with microcomputer control -Whole test is fully automatic, fast and accurate -Adopts an intelligent chip and load sensor to increase the test accuracy -Equipped with English menu LCD screen with soft touch buttons -Micro-printer, fast and clear printing -It can set pressure difference based on the permeability of the product -Data recording and processing functions Applications: It is widely used in testing the permeability of leather, cloth, fabric, paper, cardboard or other sheet objects etc. Labmate Scientific Inc Email: info@labmate.com | Website: www.labmate.com
