single isa heterogeneous multi core architectures the potential for processor power reduction

Single-ISA Heterogeneous Multi-Core Architectures:The Potential for Processor Power Reduction

Rakesh Kumar, Keith I. Farkas, Norman P. Jouppi, Parthasarathy Ranganathan, Dean M. Tullsen

Presenter: Borys Bradel

introduction
Introduction
  • Different programs have different requirements (e.g. ILP)
    • Extends to phases of a single program
    • Heterogeneous cores
    • Use core that matches the requirements
  • Reuse existing cores
    • Use multiple generations of the same family of processors
outline
Outline
  • Methodology
    • Hardware
    • Assumptions
    • Power
  • Experiments
    • Optimal – energy/energy delay product
    • Heuristic based – static/dynamic
  • Related Work
  • Conclusion
single isa multi core benefits
Single ISA Multi-Core Benefits
  • Small area overhead because of the growth in core sizes between generations
  • Clock frequencies of older cores would scale with technology
    • P3 1 GHz = P4 1.4 GHz
    • Increased pipeline depth precisely because could not scale
hardware alpha family
Hardware – Alpha Family
  • 2 in order cores
    • EV4=21064
    • EV5=21164
  • 2 out of order cores
    • EV6=21264
    • EV8-=21464 (multi thread support removed)
hardware size
Hardware Size
  • 15% more area than just using 21464
assumptions
Assumptions
  • Can switch cores dynamically
  • Private L1 cache and common L2 cache
  • All cores use 0.10 micron technology
  • Single process executing on a single core at any one time
  • 2.1 GHz clock (=21264 0.35 micron 600 MHz)
  • Input voltage 1.2V
  • Cores shut down when idle
  • 1000 cycle restart cost (staged, phase lock loop left alone)
  • 150 ms memory access
  • Stall cycles through CACTI
power model
Power Model
  • Use Wattch to account for activity based dissipation
  • Use scaling and offset factors to account for other factors
  • This hybrid model is closer to manufacturer’s data points
  • Peak power: data sheets less L2 cache and output pins
  • Typical power: scaled based on Intel chips
performance modeling

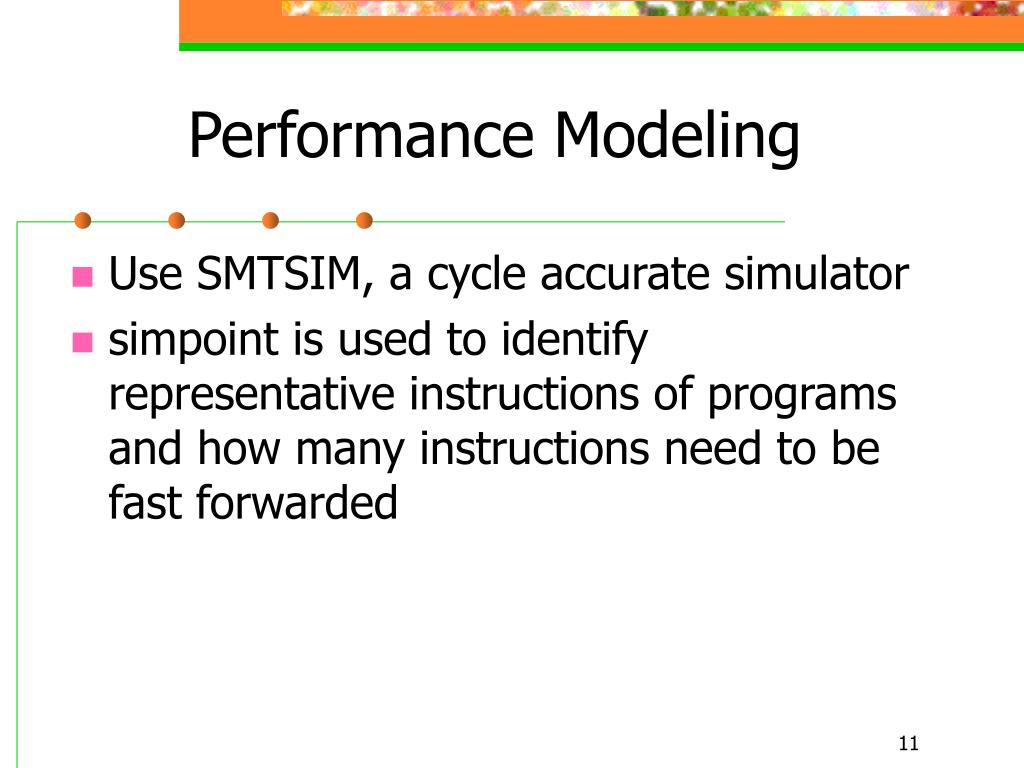

Performance Modeling
  • Use SMTSIM, a cycle accurate simulator
  • simpoint is used to identify representative instructions of programs and how many instructions need to be fast forwarded
oracle switching for energy

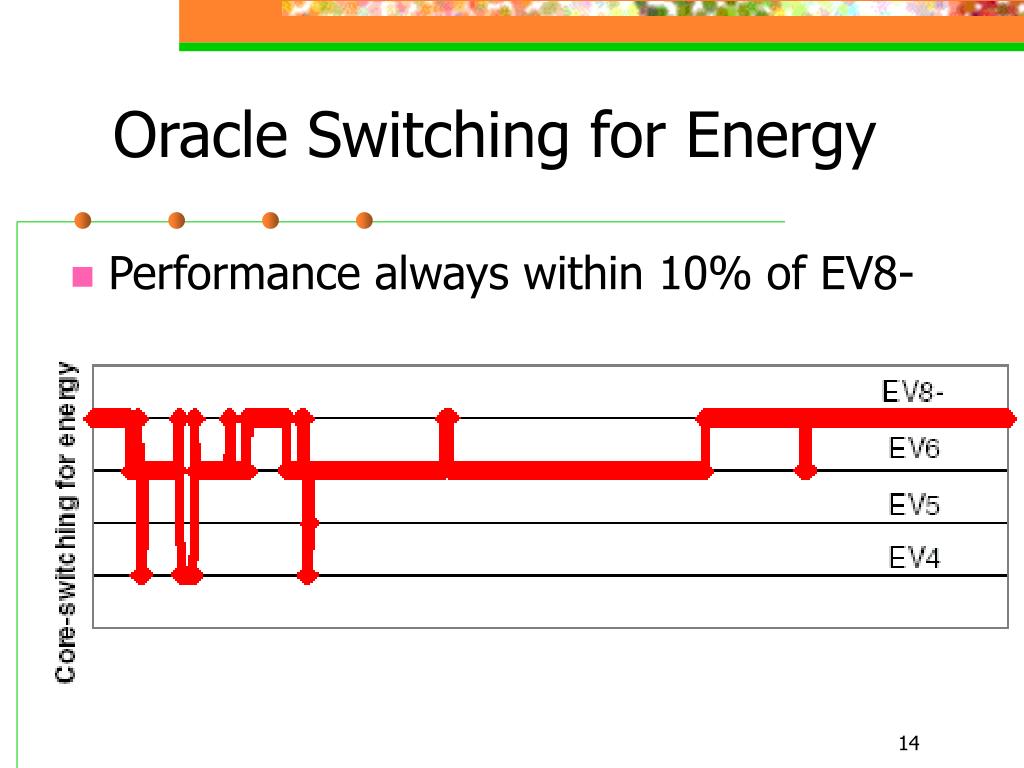

Oracle Switching for Energy
  • Performance always within 10% of EV8-
oracle switching for energy delay product

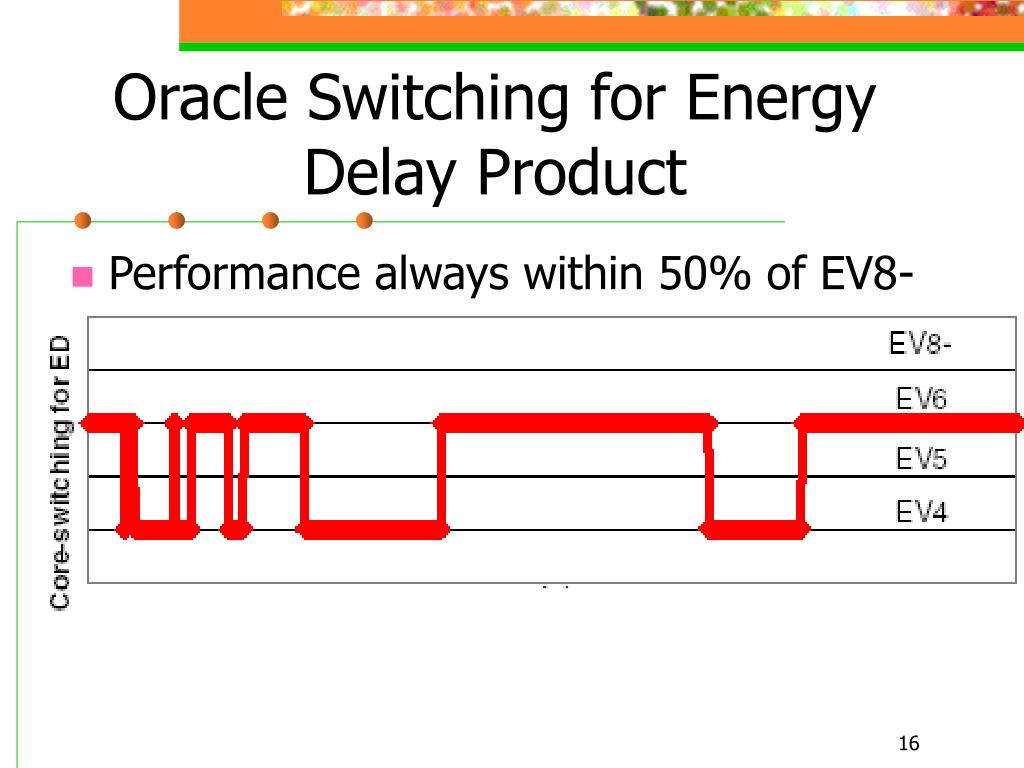

Oracle Switching for Energy Delay Product
  • Performance always within 50% of EV8-
others
Others
  • Voltage/frequency scaling – not as good
  • Static core selection
    • only EV6 and EV8- are used
  • Dynamic heuristic
    • Running average performance within 10%
    • Every 100 time intervals (100 million instructions) cores are sampled for 5 intervals
    • Select best core based on sampling
related work
Related Work
  • Gating based power optimization
    • Cannot gate at a fine enough granularity
    • May still have leakage
    • This could be thought of as gating to reduce capabilities of different units
  • Voltage and frequency scaling
    • Chip wide – one size does not fit all
    • Fine grained – granularity problems
conclusions
Conclusions
  • Heterogeneous multi core architectures reduce the energy-delay product
    • More fine grained than other approaches
  • Using several cores from the same family is good
    • Reduces development/testing costs
    • Is it scalable?
  • Just use EV6??
