Impact of Iodine and Cesium on Pb-Bi Liquid Metal System: Experimental Insights

This study investigates the effects of iodine (I) and cesium (Cs) on the liquid metal Pb-Bi. The objective is to determine how I and Cs interact within this system and to identify potential vaporized substances and their deposition locations. Experiments were conducted at varying temperatures of 400°C, 600°C, 700°C, 800°C, and 900°C. Results indicate that at lower temperatures, I and Cs remain within the Pb-Bi, whereas at higher temperatures, no I or Cs were found in gas phases, with deposition occurring on cooler surfaces. Future investigations are planned for further analysis.

haile
Download Presentation

Impact of Iodine and Cesium on Pb-Bi Liquid Metal System: Experimental Insights

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Studies on the impact of I and Cs on the Pb-Bi liquid-metal system

  2. Introduction • Objective - to experimentally determine the impact of I and Cs on Pb-Bi liquid metal. And at the same time see which quantities of which substances could arise as vapours and where they deposit. • Experiments were executed at FZK

  3. Overview • Reiterate results from experiments at 400/600/700C. • Results from experiments at 800 and 900C • Conclusions

  4. Test setup at 400/600/700C • Heating causes the Pb-Bi to melt • Further heating causes the Pb membrane to melt • The steel crucible is flushed with inert gas (Ar), which passes through two serially connected gas washing bottles

  5. Tests performed at 400/600/700C

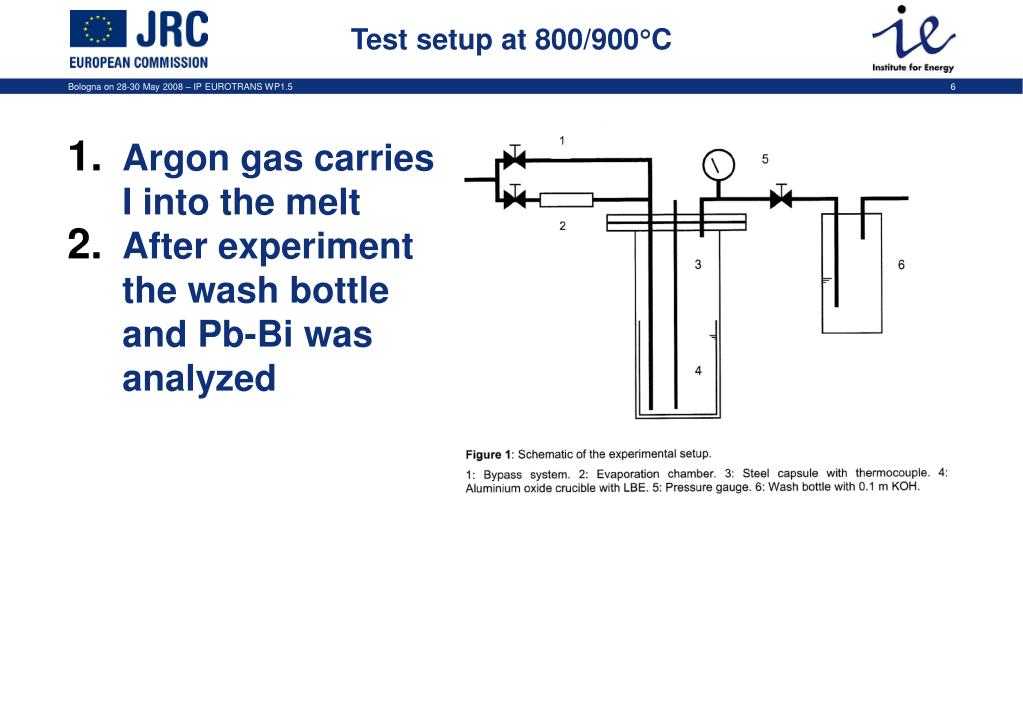

  6. Test setup at 800/900C • Argon gas carries I into the melt • After experiment the wash bottle and Pb-Bi was analyzed

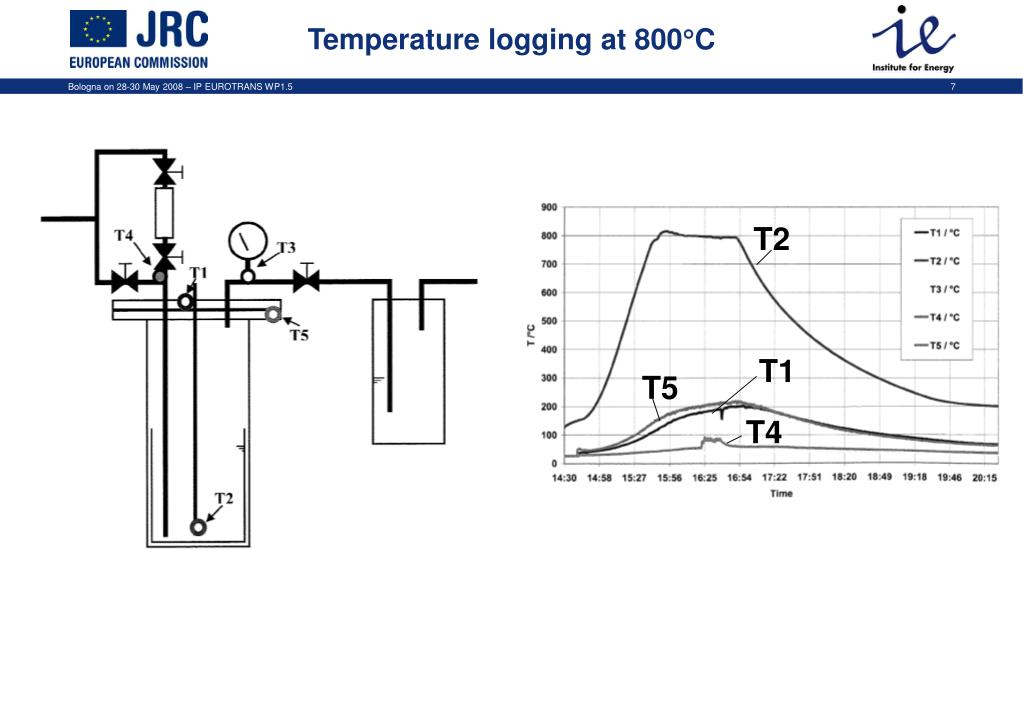

  7. Temperature logging at 800C T2 T1 T5 T4

  8. Tests performed at 800/900C *substances wt.%

  9. Conclusions 400/600/700C • The tests up to 600ºC indicates that I, CsI, and Cs remain in the Pb-Bi and probably form lead iodide and bismuth iodide. Cs probably forms intermetallic compounds with Pb and Bi. • No removal of I nor Cs by gas phase was found. • Because of experimental limitations, no demonstration of I retention at 600 ºC was possible.

  10. Conclusions 800/900C • Neither I nor Cs were found in the gas wash bottles • I and Cs deposited on colder regions (capsule lid) • Structural examination did not reveal any inclusions in the solidified melts except for I-800C which showed oxidic inclusions in the region close to the surface • For the Cs experiments it is assumed that part of the cesium was dissolved in the melt (borne by the alkaline reaction of the melt)

  11. Planned tests • More experiments are planned NRG in the hot cells of the HFR. A fuel pellet shall be melted. And it would be covered by Pb. All volatile fission products would be investigated.
