packing contents

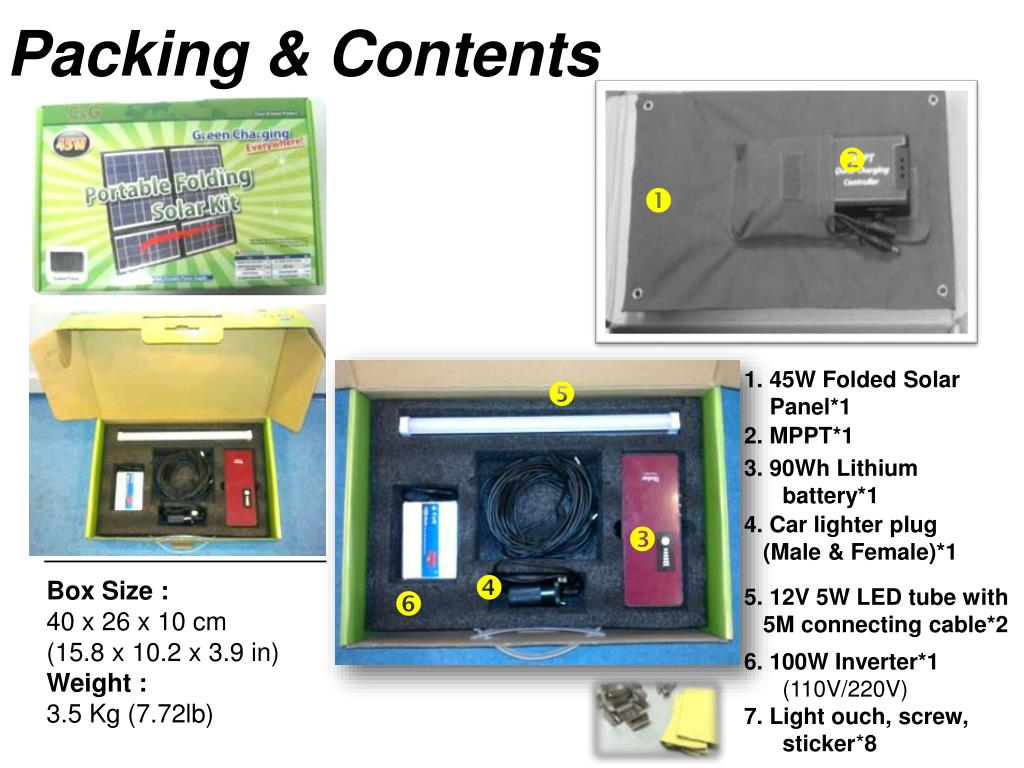

Packing & Contents

1. 45W Folded Solar

Panel*1

2. MPPT*1

3. 90Wh Lithium battery*1

4. Car lighter plug

(Male & Female)*1

Box Size :

40 x 26x 10 cm

(15.8 x 10.2 x 3.9 in)

Weight :

3.5 Kg(7.72lb)

5. 12V 5W LED tube with

5M connecting cable*2

6. 100W Inverter*1 (110V/220V)

7.Light ouch, screw, sticker*8

slide2

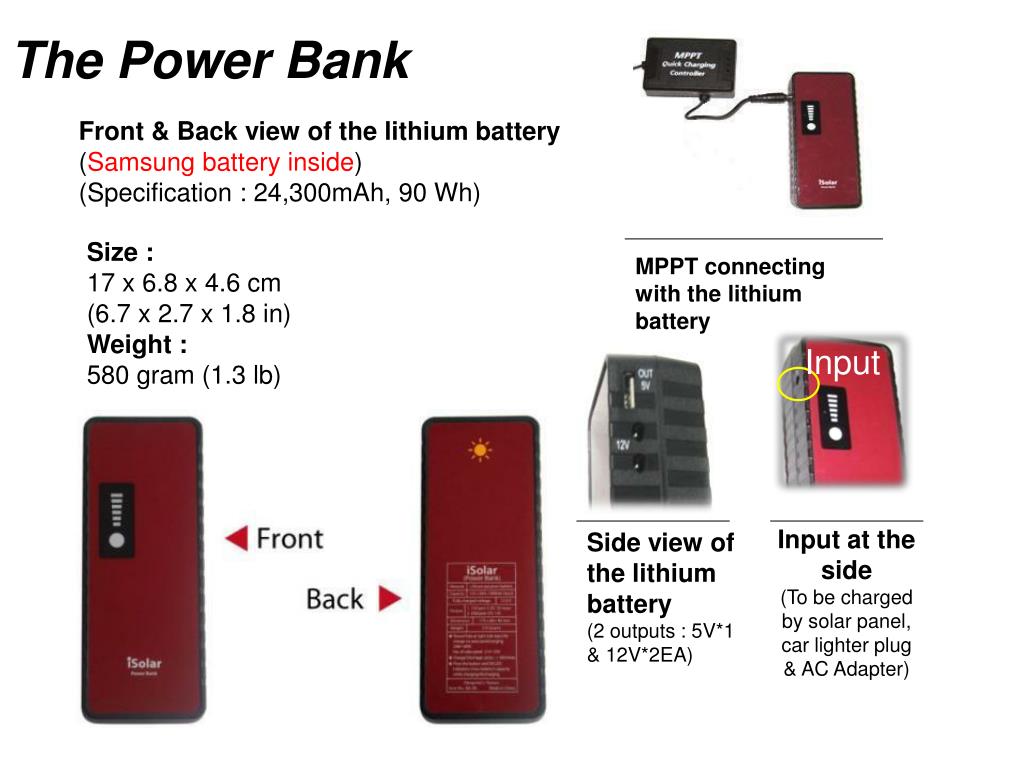

The Power Bank

Front & Back view of the lithium battery(Samsung battery inside)

(Specification : 24,300mAh, 90 Wh)

Size :

17 x 6.8 x 4.6 cm

(6.7 x 2.7 x 1.8 in)

Weight :

580 gram (1.3 lb)

MPPT connecting with the lithium battery

Input

Side view of the lithium battery(2 outputs : 5V*1 & 12V*2EA)

Input at the side(To be charged by solar panel, car lighter plug & AC Adapter)

slide3

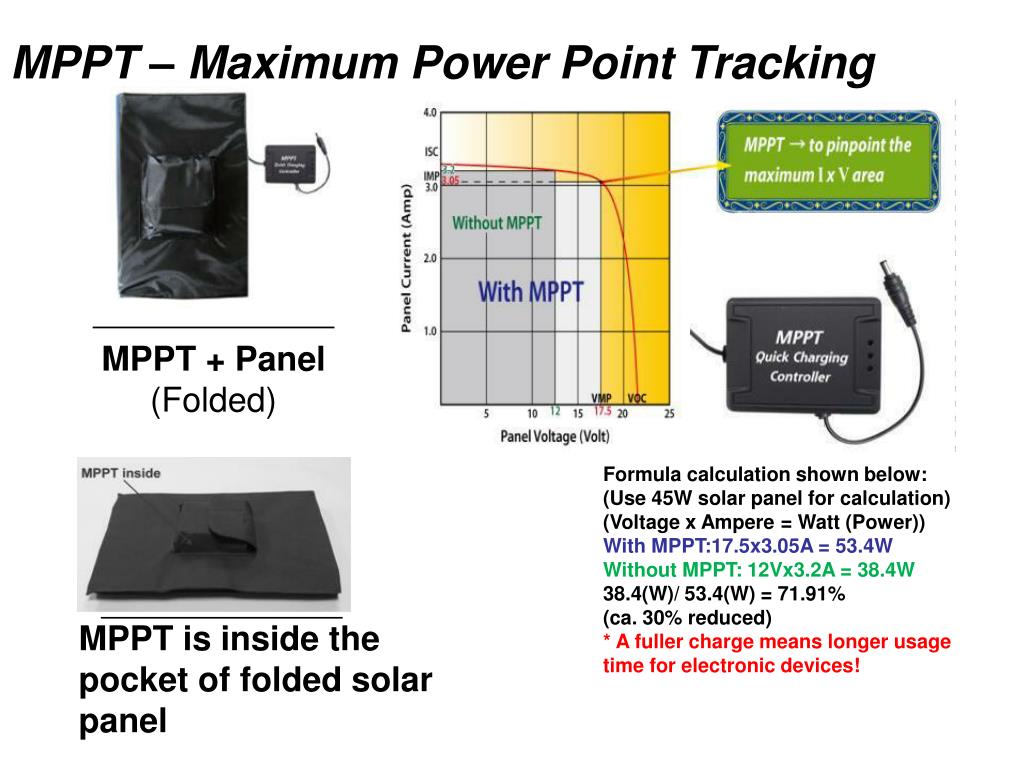

MPPT – Maximum Power Point Tracking

MPPT + Panel (Folded)

Formula calculation shown below: (Use 45W solar panel for calculation)

(Voltage x Ampere = Watt (Power))

With MPPT:17.5x3.05A = 53.4W

Without MPPT: 12Vx3.2A = 38.4W

38.4(W)/ 53.4(W) = 71.91%

(ca. 30% reduced)

* A fuller charge means longer usage time for electronic devices!

MPPT is inside the pocket of folded solar panel

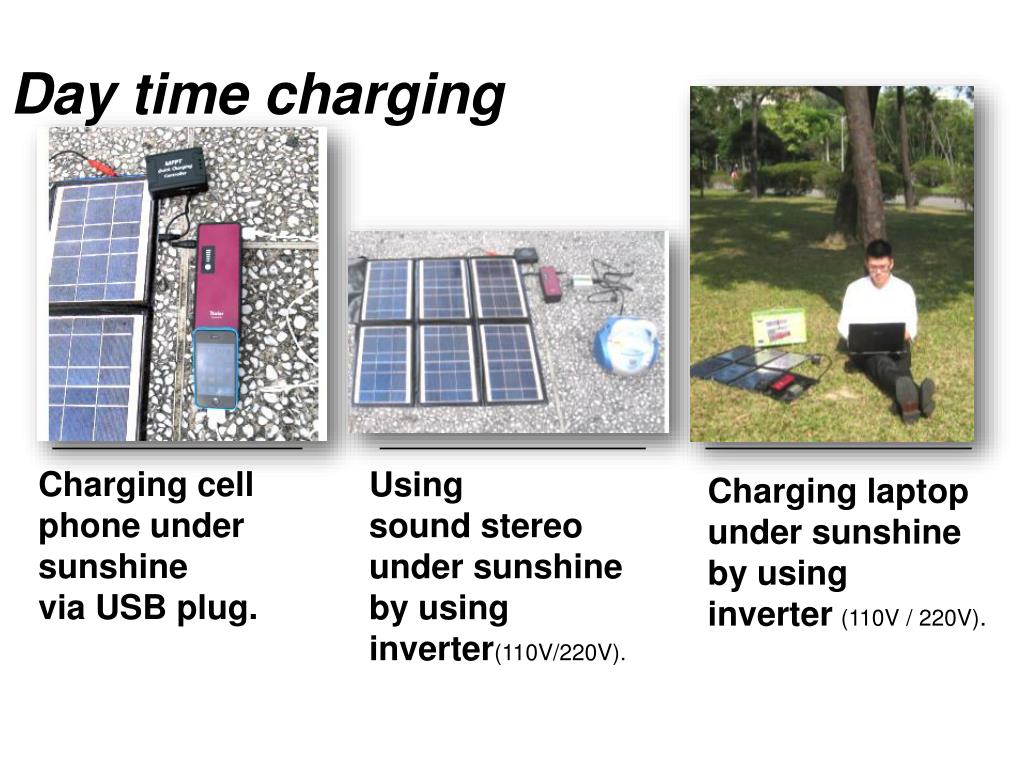

charging cell phone under sunshine via usb plug
Charging cell phone under sunshine via USB plug.

Day time charging

Using sound stereo under sunshine by using inverter(110V/220V).

Charging laptop under sunshine by using

inverter(110V / 220V).

charging iphone cellphone by connecting to the 5v output
Charging iPhone(cellphone) by connecting to the 5V output

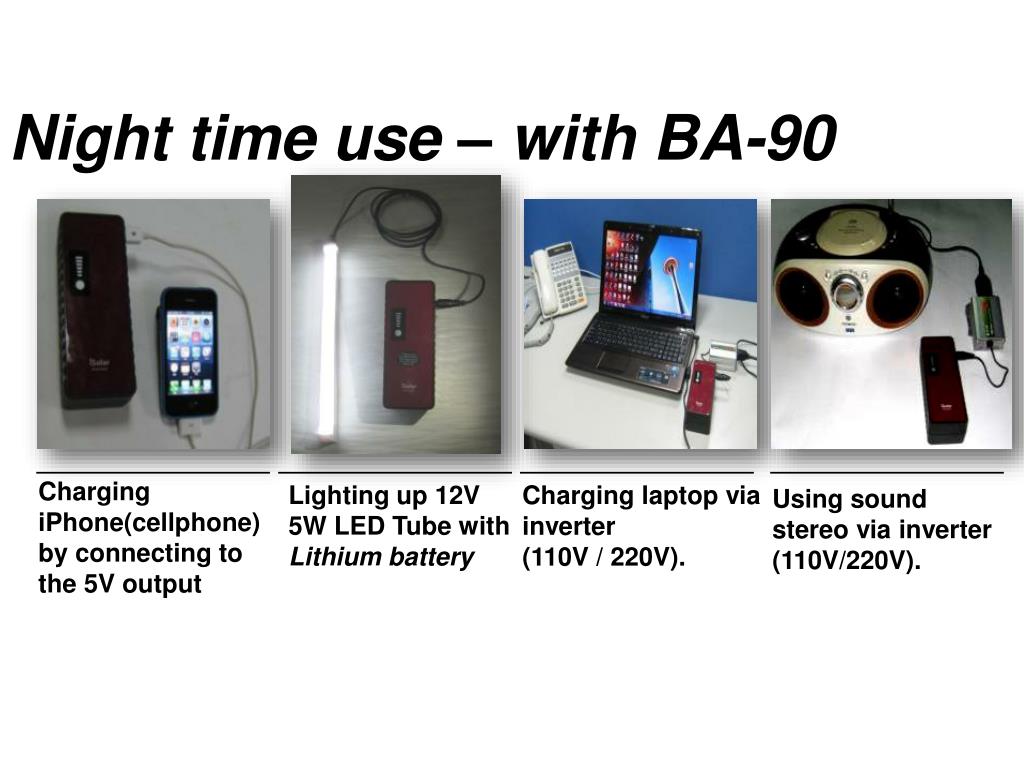

Night time use – with BA-90

Charging laptop via inverter (110V / 220V).

Using sound stereo via inverter (110V/220V).

Lighting up 12V 5W LED Tube with

Lithium battery

slide6

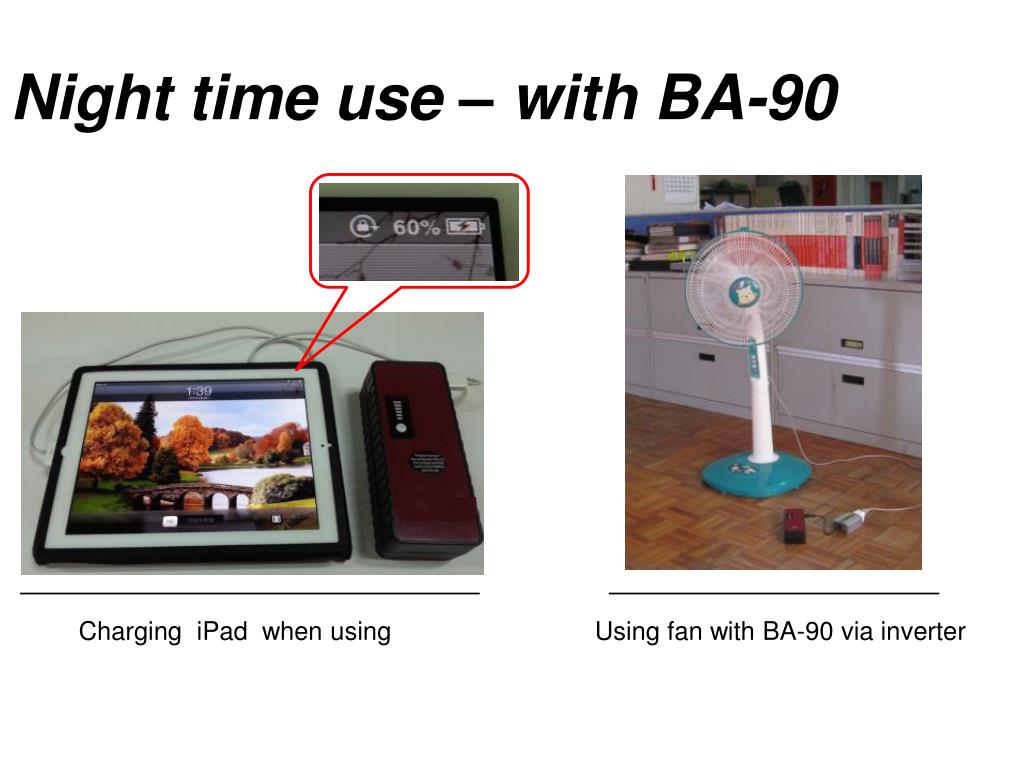

Night time use – with BA-90

Charging iPad when using

Using fan with BA-90 via inverter
