STAIRS. STAIR PARTS. Drop newel. Kite winder. Wall string. Landing nosing. Riser board. Cut out for joist trimmer. nosing. Well string. Split landing. Newel post. = Balustrade. Baluster and handrail. Tread. Landing bearer. skirting. ¼ space landing. MORE STAIR PARTS.

gyan
Download Presentation

STAIRS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. STAIRS

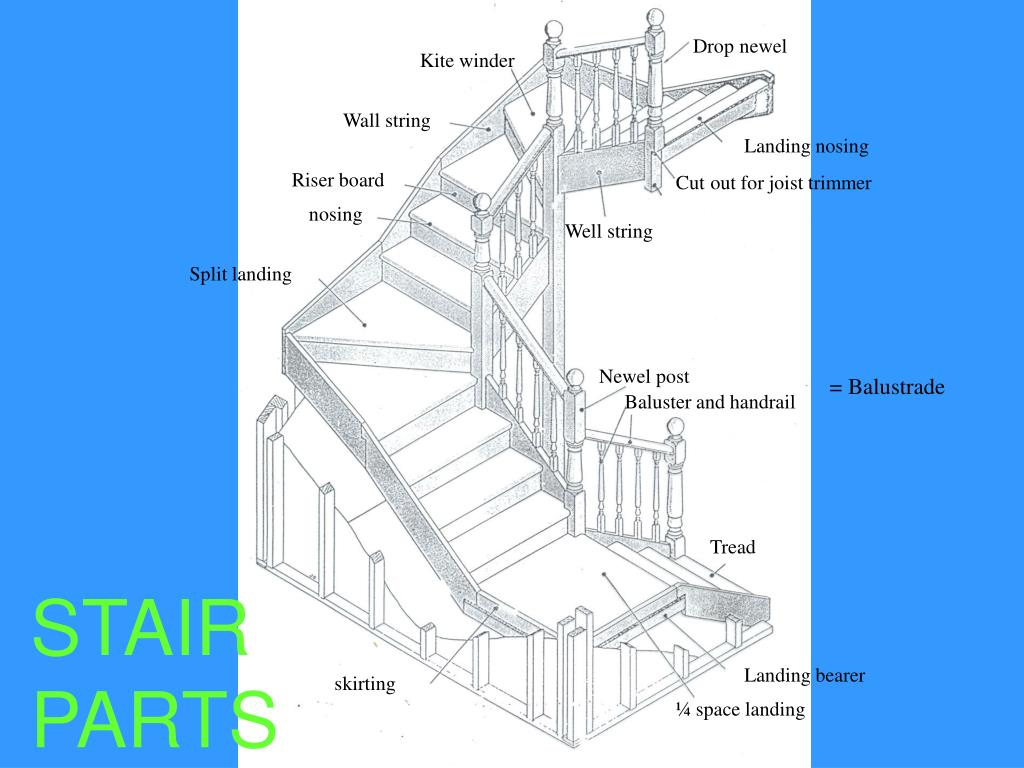

  2. STAIR PARTS Dropnewel Kite winder Wall string Landing nosing Riser board Cutout for joist trimmer nosing Well string Split landing Newel post = Balustrade Baluster and handrail Tread Landing bearer skirting ¼ space landing

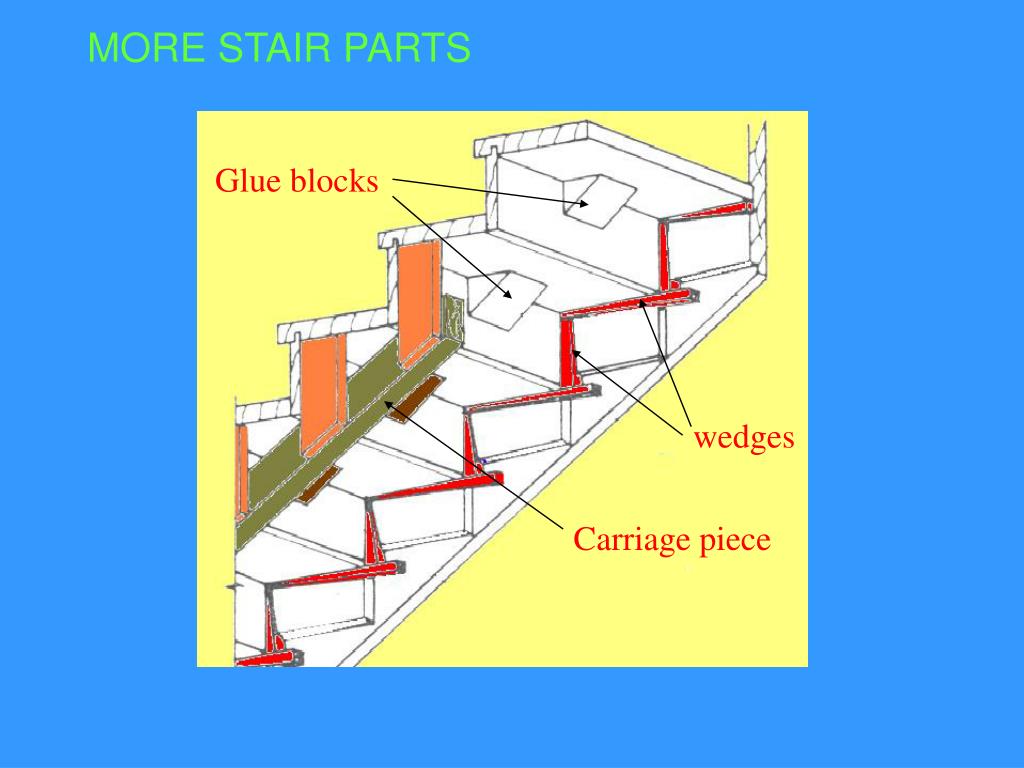

  3. MORE STAIR PARTS Glue blocks wedges Carriage piece

  4. CUT AND BRACKETED STRINGS BRACKETS CUT STRING

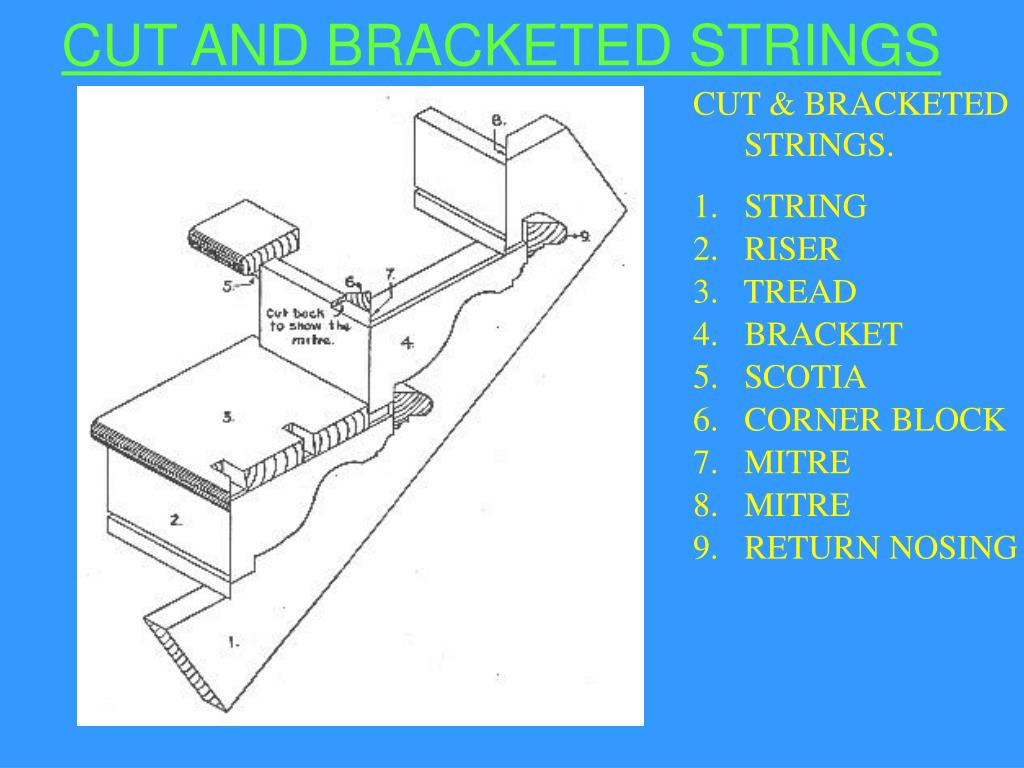

  5. CUT AND BRACKETED STRINGS • CUT & BRACKETED STRINGS. • STRING 2. RISER 3. TREAD • BRACKET 5. SCOTIA 6. CORNER BLOCK 7. MITRE 8. MITRE 9. RETURN NOSING

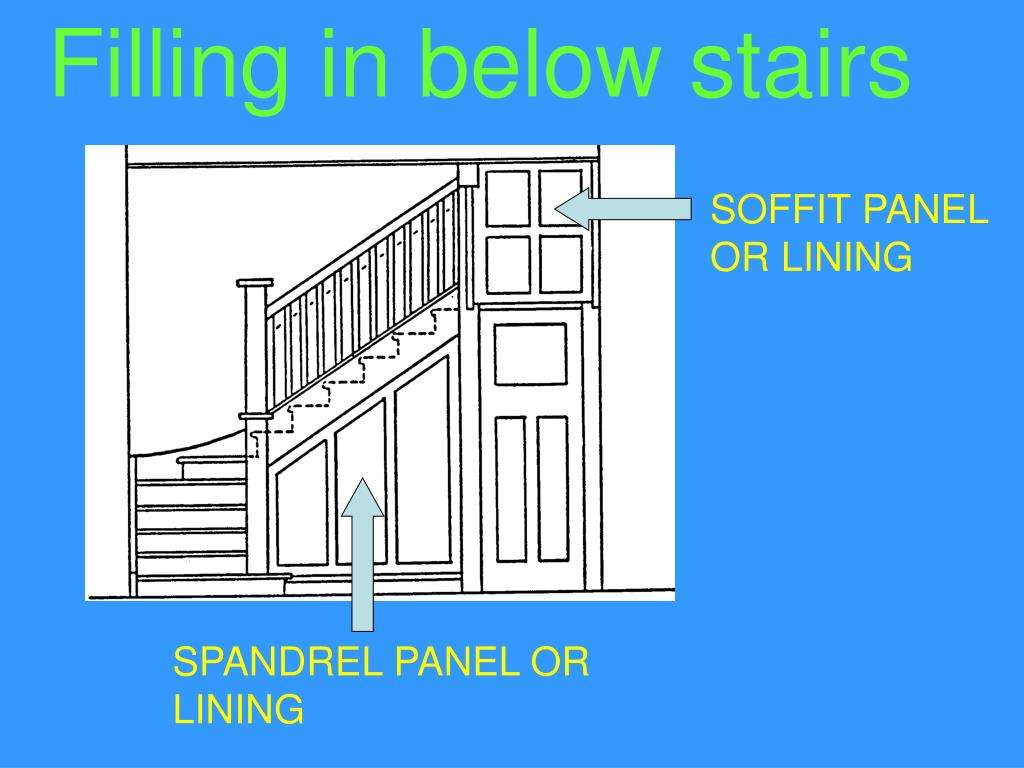

  6. Fillingin below stairs SOFFIT PANEL OR LINING SPANDREL PANEL OR LINING

  7. STAIR TYPES • Straight flight: No more than 18 rises without a change in direction.

  8. STAIR TYPES • Quarter turn with landing.

  9. STAIR TYPES • Half turn with landing.

  10. STAIRTYPES • Quarter turn with kite winders

  11. STAIR TYPES • Half turn with winders

  12. STAIR TYPES • Circular and spiral stairs
