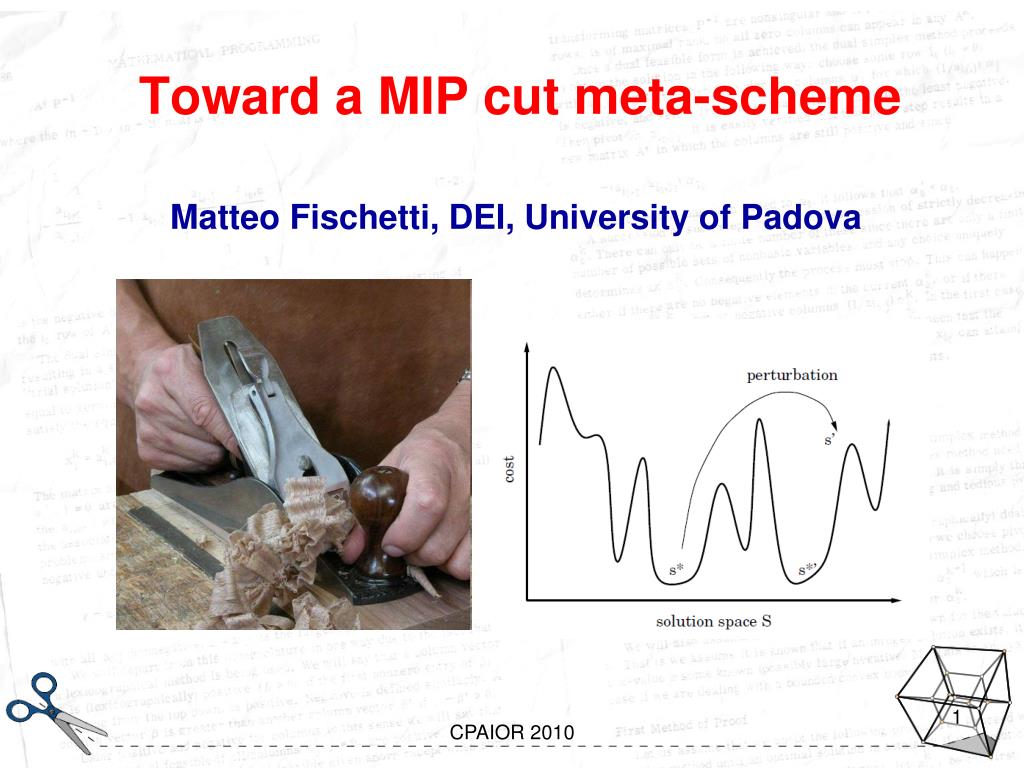

  1. Toward a MIP cut meta-scheme Matteo Fischetti, DEI, University of Padova

  2. Mixed-Integer Programs (MIPs) We will concentrate on general MIPs of the form min { c x : A x = b, x ≥ 0, xj integer for some j } Two main story characters The LP relaxation (beauty): easy to solve The integer hull (the beast): convex hull of MIP sol.s, hard to describe

  3. Cutting planes (cuts) Cuts: linear inequalities valid for the integer hull (but not for the LP relaxation) Questions: How to compute? Are they really useful? If potentially useful, how to use them?

  4. How to compute the cuts? Problem-specific classes of cuts (with nice theoretical properties) Knapsack: cover inequalities, … TSP: subtour elimination, comb, clique tree, … General MIP cuts only derived from the input model Cover inequalities Flow-cover inequalities … Gomory cuts (perhaps the most famous class of MIP cuts)

  5. Gomory cuts: basic version Basic version for pure-integer MIPs (no continuous var.s): Gomory fractionalcuts, also known as Chvàtal-Gomory cuts Given any equation satisfied by the LP-relaxation points 1. relax to its ≤ form 2. relax again by rounding down all left-hand-side coeff.s 3. improve by rounding down the right-hand-side value Note: all-integer coefficients (good for numerical stability)

  6. Gomory cuts: improved version Gomory Mixed-Integer Cuts (GMICs): Some left-hand side coefficients can be increased by a fractional quantity εj ≥ 0  better cuts, though potentially less numerically stable Can handle continuous variables, if any (a must for MIPs)

  7. GMICs read from LP tableaux GMICs apply a simple formula to the coefficients of a starting equation Q. How to define this starting equation (crucial step)? A. The LP optimal tableau is plenty of equations, just use them!

  8. The two available modules The LP solver Input: a set of linear constraints & objective function Output: an optimal LP tableau (or basis) The GMIC generator Input: an LP tableau (or a vertex x* with its associated basis) Output: a round of GMICs (potentially, one for each tableau row with fractional right-hand side)

  9. How to combine the two modules? A natural (??) interconnection scheme (Kelley, 1960): In theory, this scheme could produce a finitely-convergent cutting plane scheme, i.e., an exact solution alg. only based on cuts (no branching)

  10. In theory, but … in practice? • Stein15: toy set covering instance from MIPLIB • LP bound = 5 • MIP optimum = 8 • multi cut generates rounds of cuts before each LP reopt. 10

  11. LP solution trajectories • Plot of the LP-sol. trajectories for single-cut (red) and multi-cut (blue) versions (multidimensional scaling) • (X,Y) = 2D representation of the x-space (multidimensional scaling) • Both versions collapse after a while  why? 11

  12. LP-basis determinant • Exponential growth  unstable behavior! 12

  13. Intuition about saturation • Cuts work reasonably well on the initial LP polyhedron • … however they create artificial vertices • … that tend to be very close one to each other • … hence they differ by small quantities and • have “weird entries” •  very like using a smoothing plane on wood • LP theory tells that small entries in LP basic sol.s x* • … require a large basis determinant to be described • … and large determinants amplify the issue and create numerically unstable tableaux • Kind of driving a car on ice with flat tires : • Initially you have some grip • … but soon wheels warm the ice and start sliding • … and the more gas you give the worse! 13

  14. Gomory’s convergent method For pure integer problems (all-integer data) Gomory proved the existence of a finitely-convergent solution method only based on cuts, but one has to follow a rigid recipe: use lexicographic optimization (a must!) use the objective function as a source for GMICs be really patient (don’t unplug your PC if nothing seems to happen…) Finite convergence guaranteed by an enumeration scheme hidden in lexicographic reoptimization (this adds anti-slip chains to Gomory’s wheels…)  safe but slow (like driving on a highway with chains…)

  15. The underlying enumeration tree • Any LP solution x* can be visualized on a lex-tree (xo= c x = objective) • The structure of the tree is fixed (for a given lex-order of the var.s) • Leaves correspond to integer sol.s of increasing lex-value (left to right) 15

  16. The “good” Gomory (+ lex) 16

  17. The “bad” Gomory (no lex) lex-value z may decrease  risk of loop in case of naïve cut purging! 17

  18. Good Gomory: Stein15 (LP bound) • LP bound = 5; ILP optimum = 8 • TB = no-lex multi-cut vers. (as before) • LEX = single-cut with lex-optimization 18

  19. Good Gomory: Stein15 (LP sol.s) Plot of the LP-sol. trajectories for TB(red) and LEX(black) versions 19

  20. Good Gomory: Stein15 (determinant) • TB = multi-cut vers. (as before) LEX = single-cut with lex-opt. 20

  21. So, what is wrong with Gomory? GMICs are not bad by themselves What is problematic is their use in a naïve Kelley’s scheme A main issue with Kelley is the closed-loop nature of the interconnection scheme Closed-loop systems are intrinsically prone to instability… … unless a filter (like lex-reopt) is used for input-output decoupling

  22. Brainstorming about GMICs Ok, let’s think “laterally” about this cutting plane stuff We have a cut-generation module that needs an LP tableau on input … but we cannot short-cut it directly onto the LP-solver module (soon the LP determinant burns!) Shall we forget about GMICs and look for more fancy cuts, … or we better design a different scheme to exploit them?

  23. Brainstorming about GMICs This sounds like déjà vu… … we have a simple module that works well in the beginning … but soon it gets stuck in a corner … Where did I hear this? Oh yeah! It was about heuristics and metaheuristics… We need a META-SCHEME for cut generation !

  24. Toward a meta-scheme for MIP cuts We stick with simple cut-generation modules; if we get into trouble… … we don’t give-up but apply a diversification step (isn’t this the name, Fred?) to perturb the problem and explore a different “cut neighborhood”

  25. A diving meta-scheme for GMICs A kick-off (very simple) scheme: Dive & Gomory Idea: Simulate enumeration by adding/subtracting a bigM to the cost of some var.s and apply a classical GMIC generator to each LP … but don’t add the cuts to the LP (just store them in a cut pool for future use…) • A main source of feedback is the presence of previous GMICs in the LP  avoid modifying the input constr.s, use the obj. function instead

  26. D&G results cl.gap = integrality gap (MIP opt. – LP opt.) closed by the methods

  27. A Lagrangian filter for GMICs • As in Dive&Gomory, diversification can • be obtained by changing the objective • function passed to the LP-solver module • so as to produce LP tableaux that are • only weakly correlated with the LP • optimal solution x* that we want to cut • A promising framework is relax-and-cut • where GMICs are not added to the LP but • immediately relaxed in a Lagrangian fashion • very interesting results to be reported by Domenico (Salvagnin) in his Friday’s talk about “LaGromory cuts”…

  28. Thank you for your attention…

  29. … and of course for not sleeping…

  30. … (is it over … already?)
