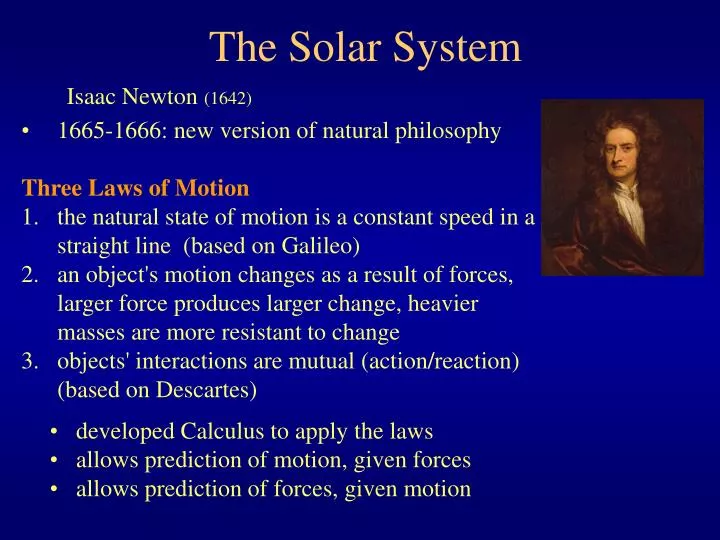

  1. The Solar System Isaac Newton (1642) • 1665-1666: new version of natural philosophy • Three Laws of Motion • the natural state of motion is a constant speed in a straight line (based on Galileo) • an object's motion changes as a result of forces, larger force produces larger change, heavier masses are more resistant to change • objects' interactions are mutual (action/reaction) (based on Descartes) • developed Calculus to apply the laws • allows prediction of motion, given forces • allows prediction of forces, given motion

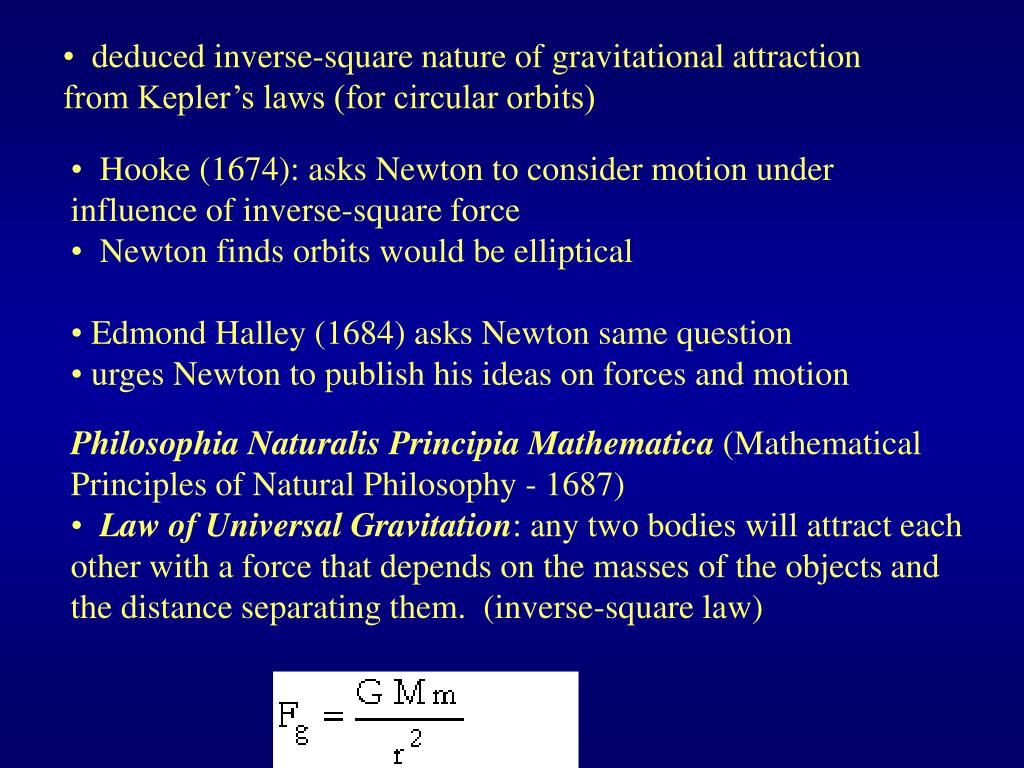

  2. deduced inverse-square nature of gravitational attraction from Kepler’s laws (for circular orbits) • Hooke (1674): asks Newton to consider motion under influence of inverse-square force • Newton finds orbits would be elliptical • Edmond Halley (1684) asks Newton same question • urges Newton to publish his ideas on forces and motion • Philosophia Naturalis Principia Mathematica(Mathematical Principles of Natural Philosophy - 1687) • Law of Universal Gravitation: any two bodies will attract each other with a force that depends on the masses of the objects and the distance separating them. (inverse-square law)

  3. inverse-square law leads to elliptical orbits • also reproduces Kepler’s Laws Gravity is the underlying force that governs the motions in the solar system

  4. Advances in Instruments • Refracting Telescope • use refraction (bending of path of light by glass) to concentrate light • two lenses gives greatly magnified image • improved by increasing diameter and focal length of lens (increases length of telescope)

  5. 17th century – Solar system observations • Huygens: (1656) resolves rings around Saturn, moon of Saturn • Cassini:  rotation of Jupiter (1663), rotation of Mars, moons of Saturn • Micrometer: adjustable scale and pointer attached to telescope (1638-1666) • allows accurate measurement of position within telescope field of view

  6. Pendulum clock: (1656 Huygens) • pendulum regulates movement of clock mechanism • allowed more precise timing of observations • critical when examining motion • Size of Solar System • Cassini and Richer  (1670's) • based on observations of position of Mars • observations made at same time from different places • once distance to Mars known, other distances follow Earth-Sun distance = 150 million km = 1 Astronomical Unit (AU)

  7. Sizes of Planets • determined from known distances and apparent size (from micrometer) Speed of Light (Roemer 1675) • eclipses of Jupiter's moons occur slightly later than expected when Earth moving away from Jupiter, slightly earlier when Earth moving towards Jupiter • changes are a result of light having to travel further to reach Earth as Earth moves in orbit • c = 3108 m/s = 300,000 km/s

  8. Reflectors: • light is concentrated using reflection from curved mirror (1668, Newton) • improved by making mirror larger, smoother • became more popular towards end of 1600's due to lighter weight and high magnification • Equatorial mount: • one axis is parallel to Earth's axis • telescope only has to rotate around one axis to compensate for Earth's rotation • much more stable

  9. Titius-Bode "Law" The Discovery of New Members of the Solar System • William Herschel discovers Uranus, 1781 • The Asteroids • 1766 - Titius Law : radii of planets' orbits (up to Saturn) described by numerical sequence • gap at 2.8 AU • Uranus fit into sequence when discovered Titius-Bode "Law"

  10. Von Zach (~1800) calculates orbital path for hypothetical object at 2.8 AU, initiates search  • Piazzi (Jan 1, 1801) notes movement of 8th mag. object in Taurus • observes until Feb. 11 - motion appears more planetary than cometary • notifies Bode in Germany (March 20 1801), object no longer visible • orbital calculations too primitive - object lost • Gauss develops method for finding orbits on basis of 3 observations, applies to Piazzi's data and produces ephemeris • Von Zach uses ephemeris to re-locate object (Dec 31 1801) • Piazzi names object (planet) "Ceres" • location at 2.77 AU reinforces Titius-Bode Law

  11. Herschel determines size of Ceres ~260 km  (modern value ~1000 km) • "asteroid"  (star-like in appearance - much smaller than planet) • Olbers discovers another object in similar orbit - 2.67 AU (Pallas) • Juno (1804) and Vesta (1807) in similar orbits • many smaller ones discovered through 19th and 20th cent. • Asteroid belt: large pieces of rock (10 - 100 km diameter) orbiting between 2.2 and 3.3 AU • left over material from formation of solar system

  12. Celestial Mechanics • can predict motion of planets, comets, asteroids etc. using Newton's Laws of Motion and Law of Universal Gravitation • position and velocity at initial time can be used to predict future • need 6 pieces of data + knowledge of forces • 3 observations of location in sky (R.A. and dec.) • data transformed into 6 orbital elements Mars • orbital elements change over time due to gravitational influences of other planets and shapes of planets • osculating orbit: the elements of the ellipse that best describes orbit at given time • Kepler's Laws are approximations
