Presentation Transcript
slide1

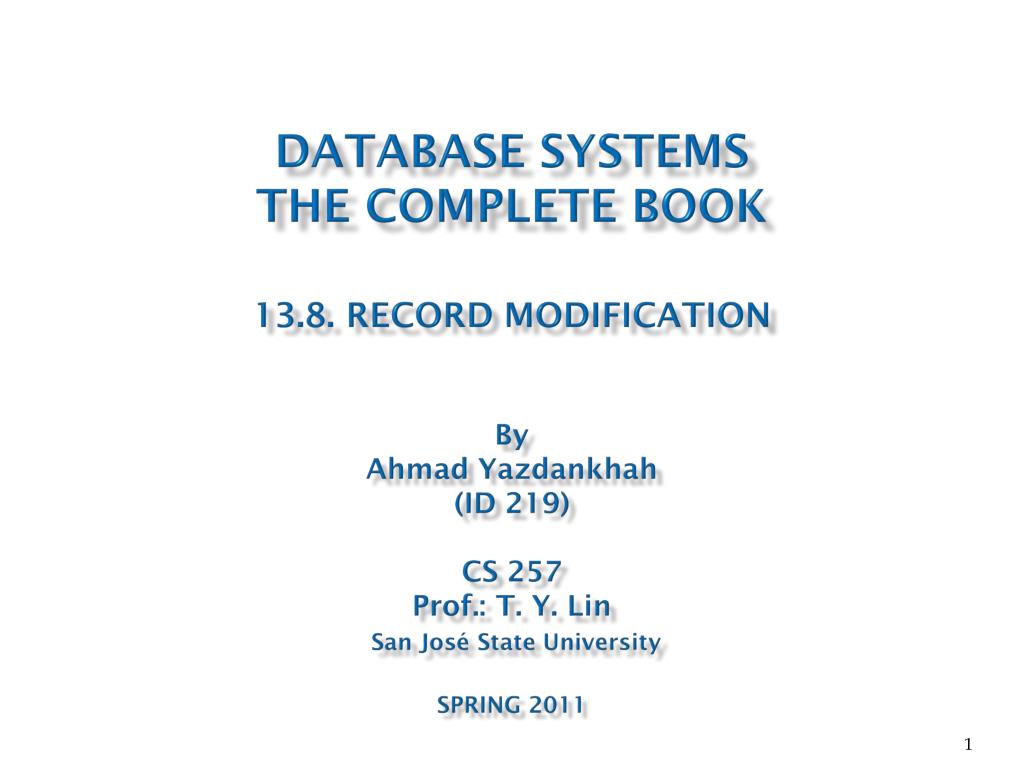

Database systemsthe complete book13.8. record modificationByAhmad Yazdankhah(ID 219)CS 257Prof.: T. Y. LinSan José State UniversitySPRING 2011

overview

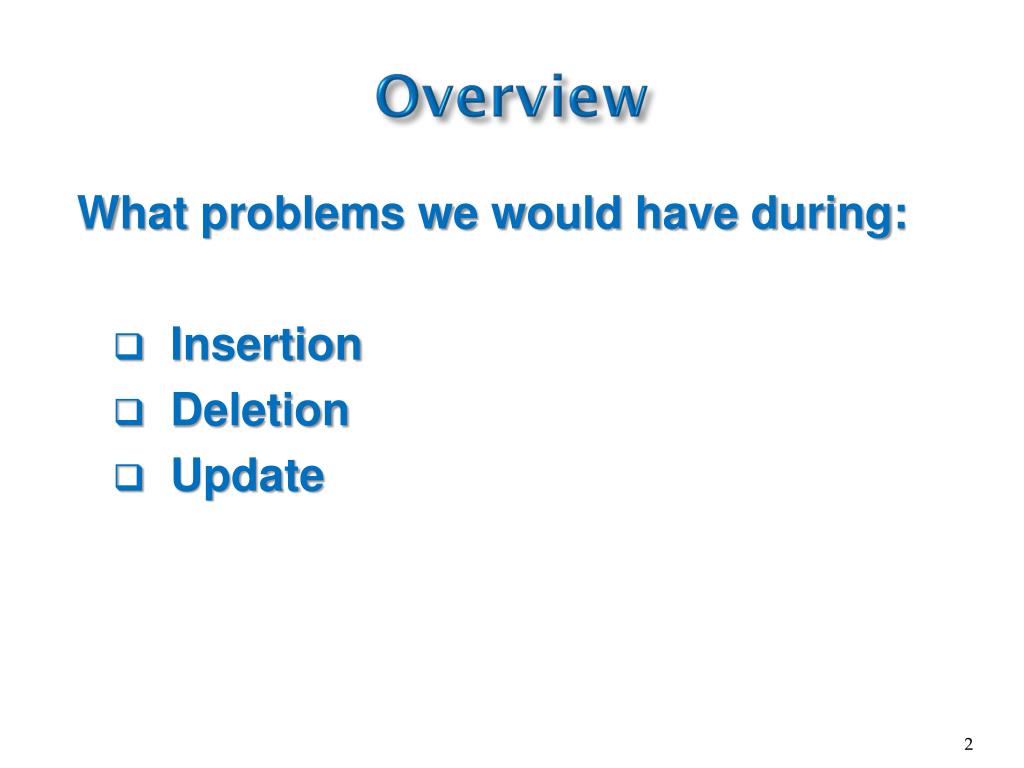

Overview

What problems we would have during:

  • Insertion
  • Deletion
  • Update
13 8 1 insertion
13.8.1. Insertion
  • What would we do for record insertion?
    • Find a block with enough empty space
    • Get a new block
  • But what would happen if we should insert the record in a specific block?
13 8 1 insertion cont d

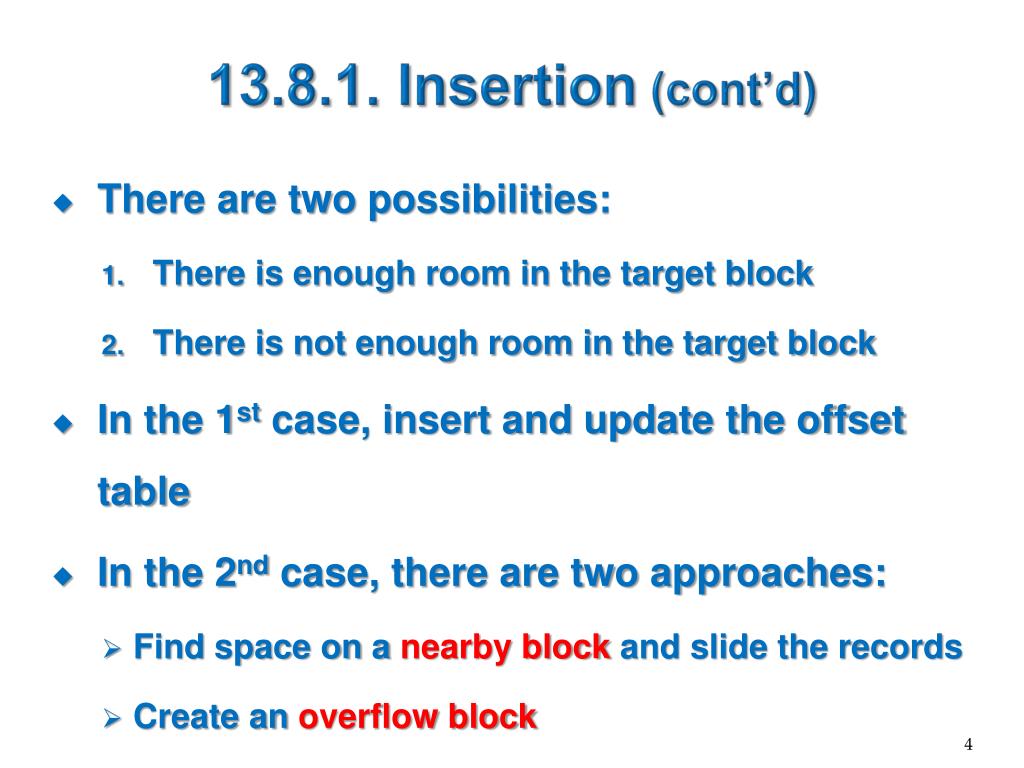

13.8.1. Insertion (cont’d)
  • There are two possibilities:
    • There is enough room in the target block
    • There is not enough room in the target block
  • In the 1st case, insert and update the offset table
  • In the 2nd case, there are two approaches:
    • Find space on a nearby block and slide the records
    • Create an overflow block
13 8 1 insertion cont d1
13.8.1. Insertion (cont’d)
  • What is an overflow block?
    • It is another block in which we put the records that theoretically belong to this block.
    • In block’s header, there is a pointer to an overflow.
13 8 2 deletion
13.8.2. Deletion
  • The usual technique is to put a tombstone in place of the record.
  • This is not the case that we delete the record physically.
  • This is a permanent tombstone until the database is reconstructed.
13 8 2 deletion cont d
13.8.2. Deletion (cont’d)
  • Where to put the sign of deletion?
    • If using offset table in the block header, put null in the pointer’s place
    • If using a map table, put null in physical address
13 8 3 update
13.8.3. Update
  • No problem if fixed length records
  • The problems arise for variable length records
  • We have all problems mentioned for insertion and deletion
13 8 3 update cont d
13.8.3. Update (cont’d)
  • If the new record is shorter:
    • Slide down the records to consolidate the free spaces
  • If the new record is longer:
    • Slide down the records to make room
    • Create an overflow block
