ece 331 digital system design
ECE 331 – Digital System Design

Power Dissipation

and

Additional Design Constraints

(Lecture #14)

The slides included herein were taken from the materials accompanying

Fundamentals of Logic Design, 6th Edition, by Roth and Kinney,

and were used with permission from Cengage Learning.

material to be covered
ECE 331 - Digital System DesignMaterial to be covered …

Supplemental

Chapter 8: Sections 1 – 5

power dissipation
ECE 331 - Digital System DesignPower Dissipation

Each integrated circuit (IC) dissipates power

PT = PS + PD

PT = total power dissipated by IC

PS = static or quiescent power dissipation

PD = dynamic power dissipation

static power dissipation
ECE 331 - Digital System DesignStatic Power Dissipation

PS = VCC * ICC

VCC = supply voltage

ICC = quiescent supply current

PS = static power consumption

ICC and VCC are specified in the datasheet for the integrated circuit (IC).

For CMOS devices, PS is very small.

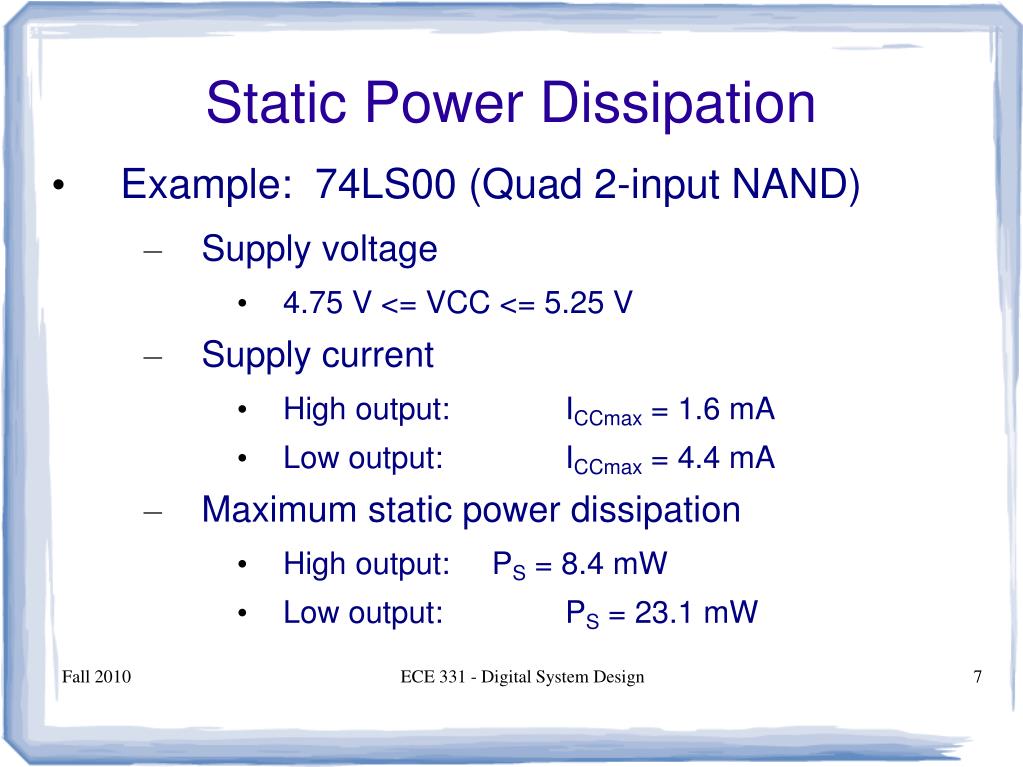

static power dissipation1
ECE 331 - Digital System DesignStatic Power Dissipation

Example: 74LS00 (Quad 2-input NAND)

Supply voltage

4.75 V <= VCC <= 5.25 V

Supply current

High output: ICCmax = 1.6 mA

Low output: ICCmax = 4.4 mA

Maximum static power dissipation

High output: PS = 8.4 mW

Low output: PS = 23.1 mW

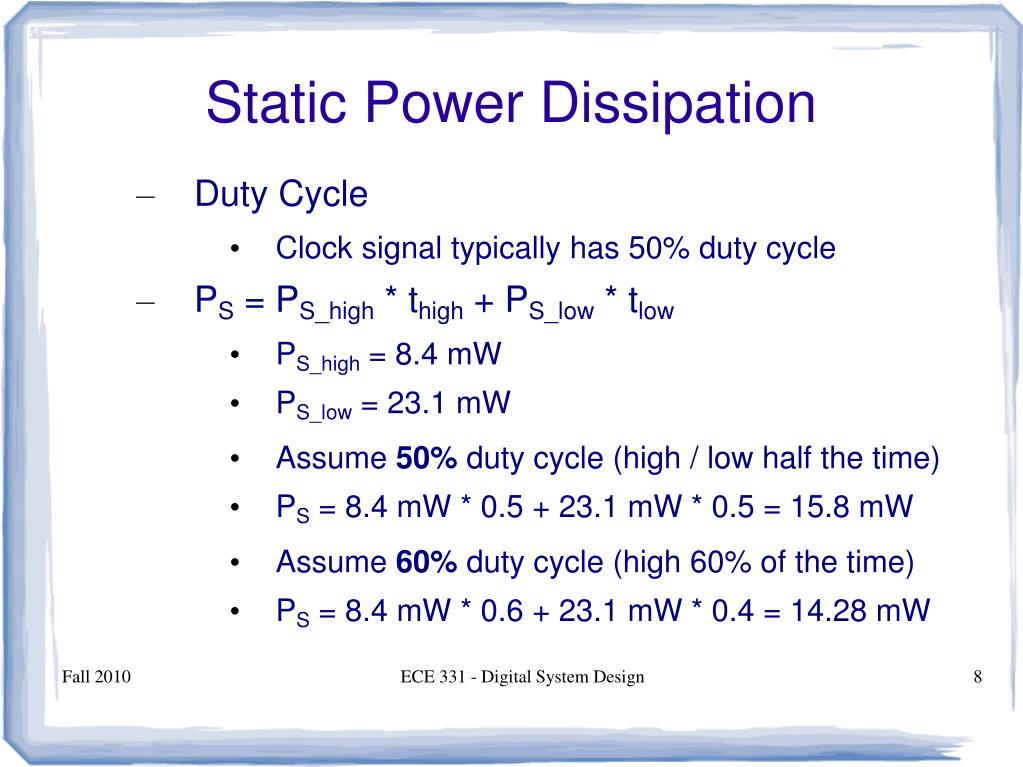

static power dissipation2
ECE 331 - Digital System DesignStatic Power Dissipation

Duty Cycle

Clock signal typically has 50% duty cycle

PS = PS_high * thigh + PS_low * tlow

PS_high = 8.4 mW

PS_low = 23.1 mW

Assume 50% duty cycle (high / low half the time)

PS = 8.4 mW * 0.5 + 23.1 mW * 0.5 = 15.8 mW

Assume 60% duty cycle (high 60% of the time)

PS = 8.4 mW * 0.6 + 23.1 mW * 0.4 = 14.28 mW

dynamic power dissipation
ECE 331 - Digital System DesignDynamic Power Dissipation

For TTL devices, PD is negligible compared to PS.

Assume PS = 0

For CMOS devices, PD dominates PT.

PD >> PS

PD in CMOS circuits arises from the movement of charge into and out of the device capacitance.

dynamic power dissipation1
ECE 331 - Digital System DesignDynamic Power Dissipation

In CMOS devices, charge is stored in the

CPD = power dissipation capacitance (internal)

CL = capacitance of the load and wires (external)

These capacitors are in parallel

CT = CPD + CL

The stored charge (on these capacitors) is

QT = CT * VDD = (CPD + CL) * VDD

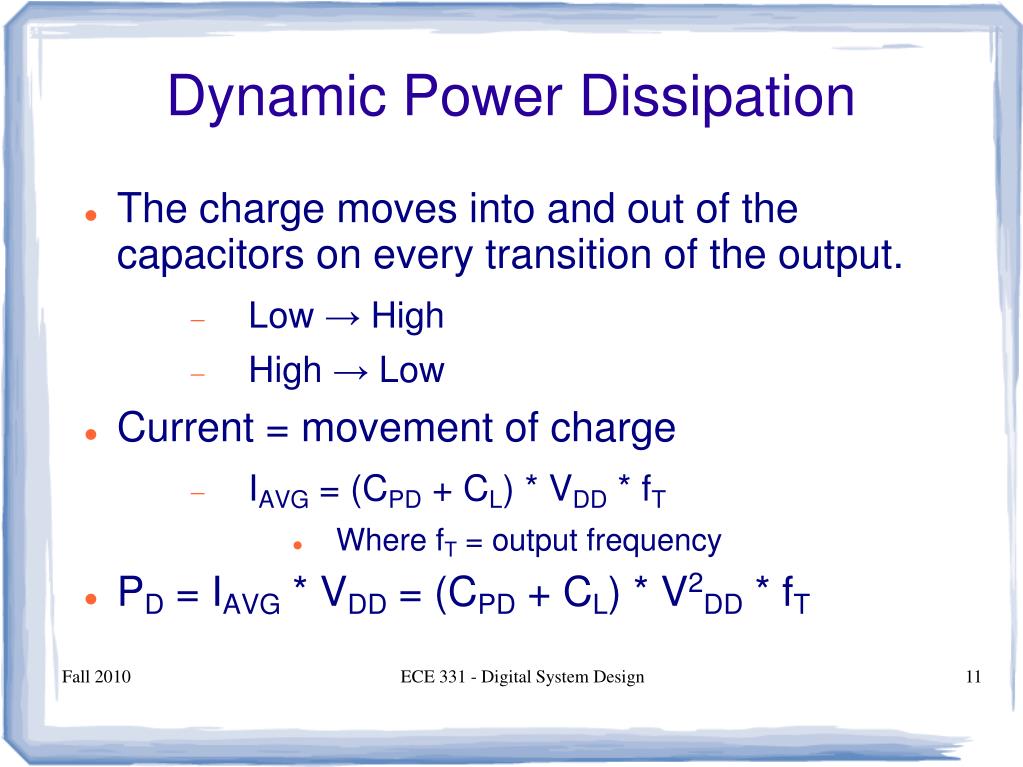

dynamic power dissipation2
ECE 331 - Digital System DesignDynamic Power Dissipation

The charge moves into and out of the capacitors on every transition of the output.

Low → High

High → Low

Current = movement of charge

IAVG = (CPD + CL) * VDD * fT

Where fT = output frequency

PD = IAVG * VDD = (CPD + CL) * V2DD * fT

dynamic power dissipation3
ECE 331 - Digital System DesignDynamic Power Dissipation

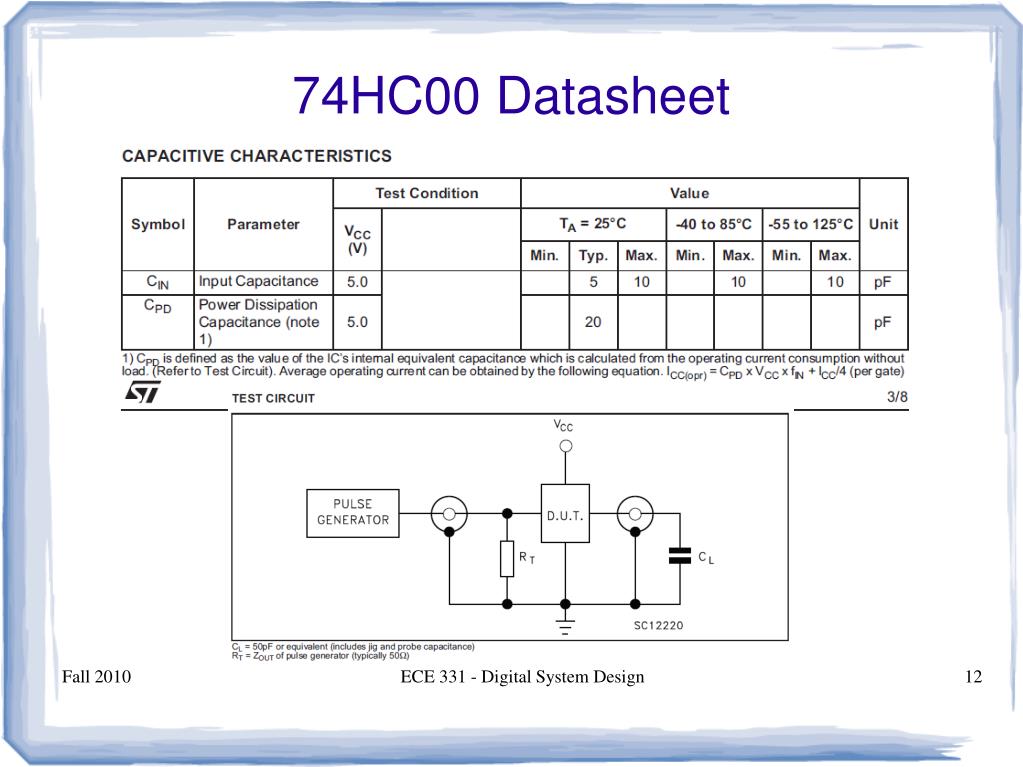

Example: 74HC00 (Quad 2-input NAND)

VDD = 5V

CPD = 20 pF, CL = 50 pF

PD = (20 + 50 pF) * (5V)2 * fT

fT (Hz) PD

1K 1.8 mW

1M 1.8 mW

100M 180 mW

total power dissipation
ECE 331 - Digital System DesignTotal Power Dissipation

For the 74HC00, PS is determined as follows

VCC = 5V

ICC = 20 mA

PS = VCC * ICC = 5V * 20 mA = 100 mA

The PT is then determined from

PT = PS + PD

where PD is a function of fT

total power dissipation1
ECE 331 - Digital System DesignTotal Power Dissipation

PT = PS + PD

Compare PT for Quad 2-input NAND (74xx00)

0 Hz 1 MHz 100 MHz

TTL 15.8 mW 15.8 mW 15.8 mW

CMOS 100 W 1.805 mW 180 mW

Compare TTL and CMOS

TTL CMOS

PS VCC * ICC VDD * IDD

PD ~ 0 W (CPD + CL) * V2DD * fT

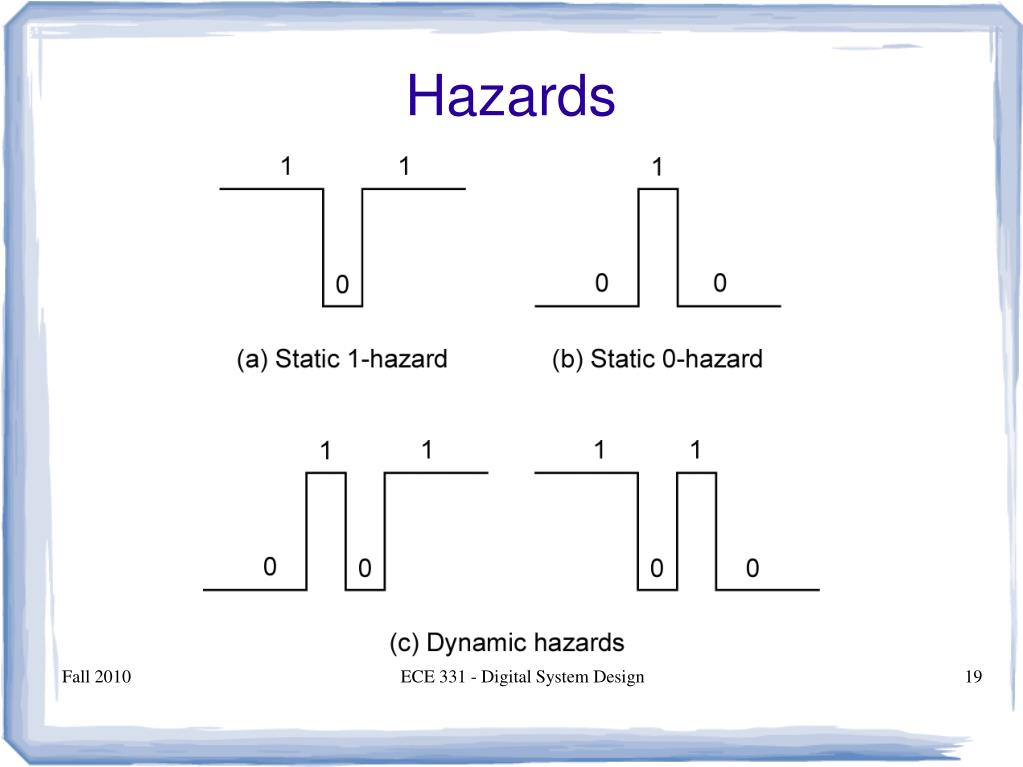

hazards
ECE 331 - Digital System DesignHazards

When the input to a combinational logic circuit changes, unwanted switching transients may appear on the output.

These transients occur when different paths from input to output have different propagation delays.

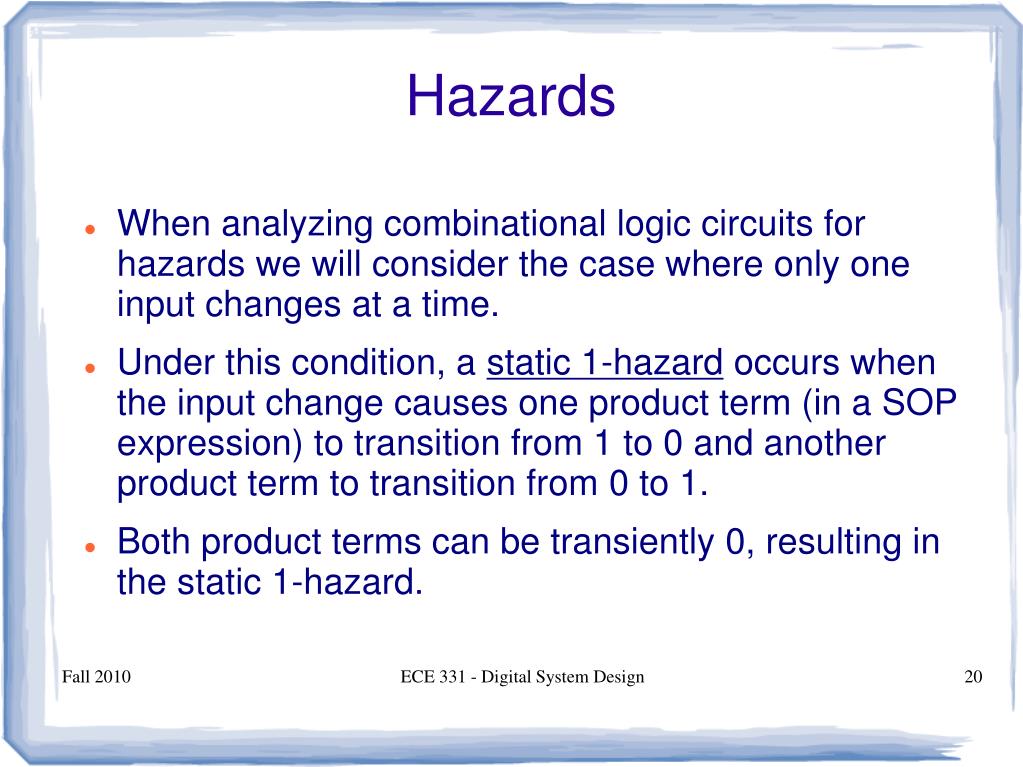

hazards2
ECE 331 - Digital System DesignHazards

When analyzing combinational logic circuits for hazards we will consider the case where only one input changes at a time.

Under this condition, a static 1-hazard occurs when the input change causes one product term (in a SOP expression) to transition from 1 to 0 and another product term to transition from 0 to 1.

Both product terms can be transiently 0, resulting in the static 1-hazard.

hazards3
ECE 331 - Digital System DesignHazards

Under the same condition, a static 0-hazard occurs when the input change causes one sum term (in a POS expression) to transition from 0 to 1 and another sum term to transition from 1 to 0.

Both sum terms can be transiently 1, resulting in the static 0-hazard.

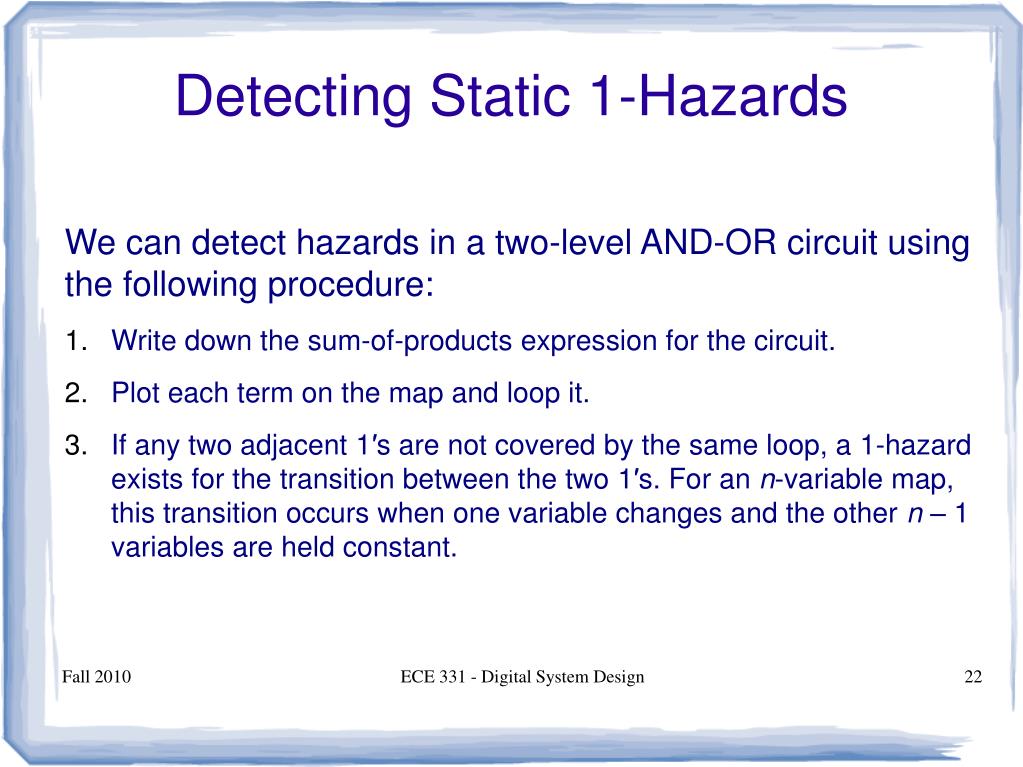

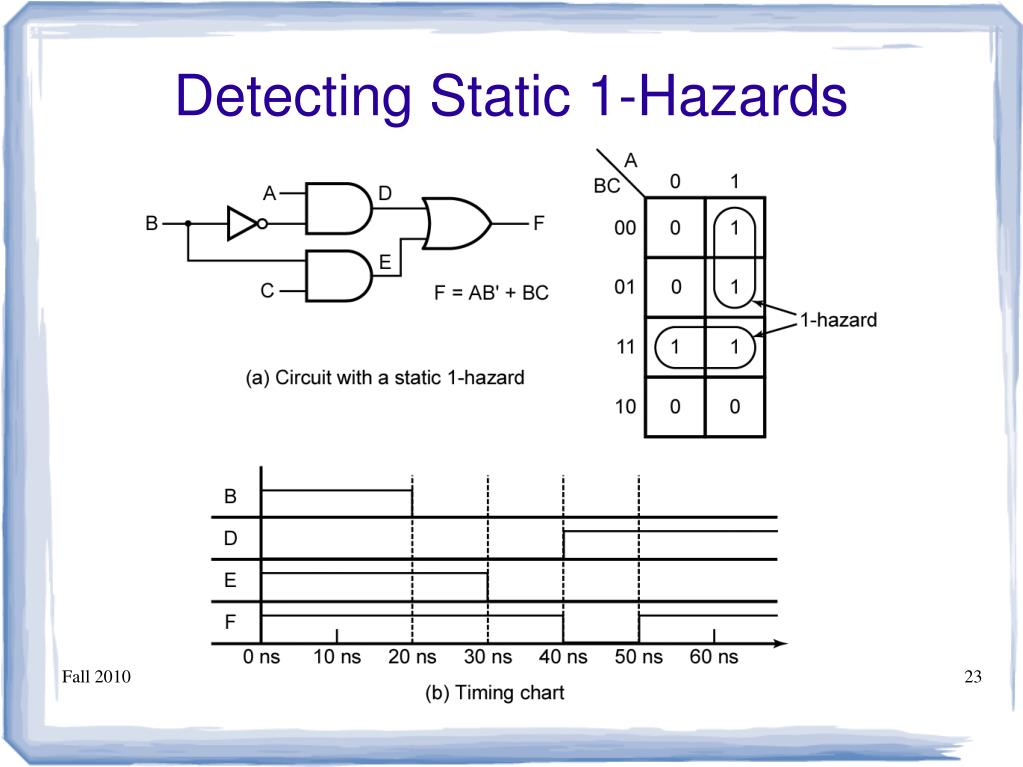

detecting static 1 hazards
ECE 331 - Digital System DesignDetecting Static 1-Hazards

We can detect hazards in a two-level AND-OR circuit using the following procedure:

Write down the sum-of-products expression for the circuit.

Plot each term on the map and loop it.

If any two adjacent 1′s are not covered by the same loop, a 1-hazard exists for the transition between the two 1′s. For an n-variable map, this transition occurs when one variable changes and the other n – 1 variables are held constant.

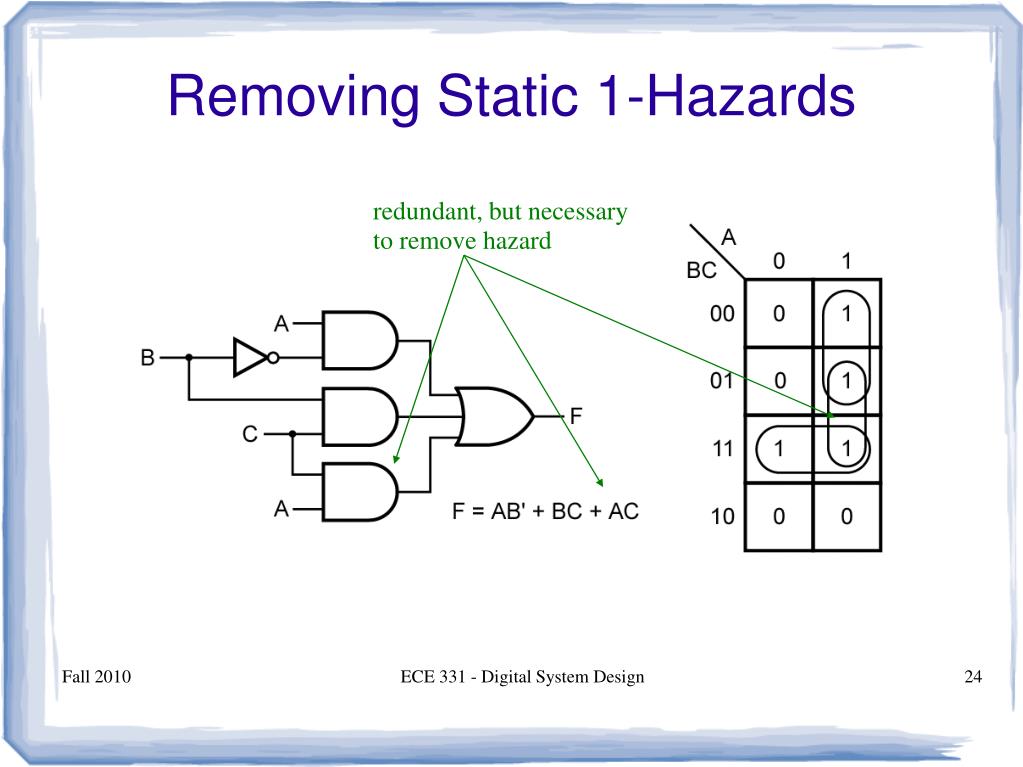

removing static 1 hazards
ECE 331 - Digital System DesignRemoving Static 1-Hazards

redundant, but necessary

to remove hazard

detecting static 0 hazards
ECE 331 - Digital System DesignDetecting Static 0-Hazards

We can detect hazards in a two-level OR-AND circuit using the following procedure:

Write down the product-of-sums expression for the circuit.

Plot each sum term on the map and loop the zeros.

If any two adjacent 0′s are not covered by the same loop, a 0-hazard exists for the transition between the two 0′s. For an n-variable map, this transition occurs when one variable changes and the other n – 1 variables are held constant.

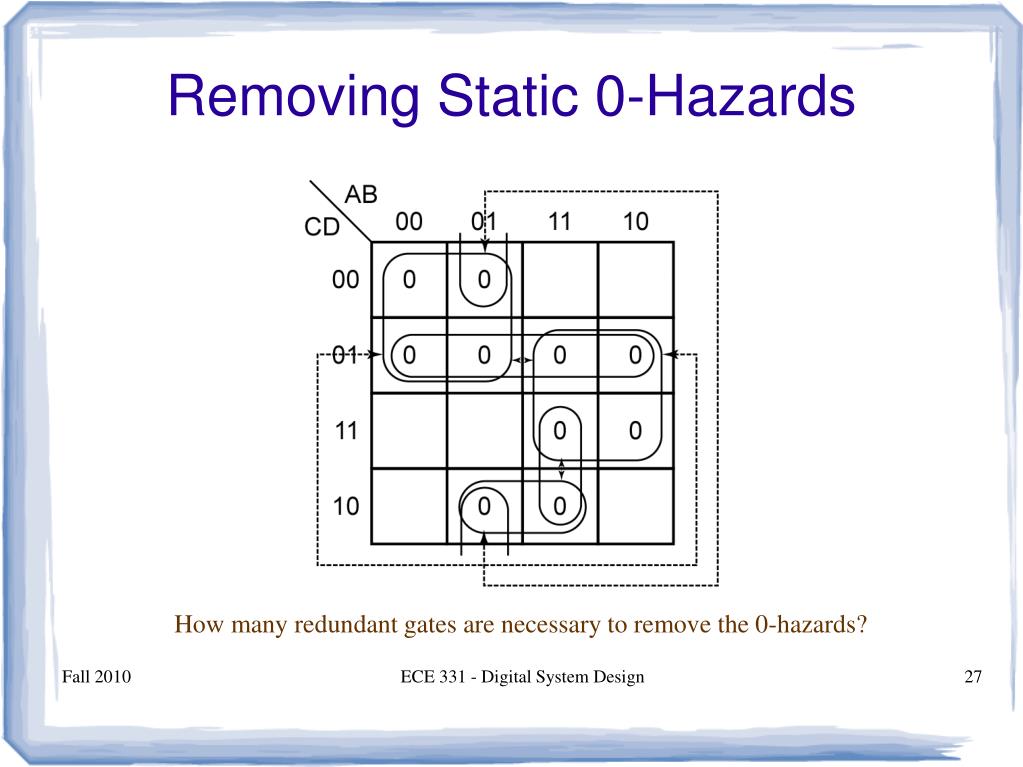

removing static 0 hazards
ECE 331 - Digital System DesignRemoving Static 0-Hazards

How many redundant gates are necessary to remove the 0-hazards?

hazards4
ECE 331 - Digital System DesignHazards

Exercise:

Design a hazard-free combinational logic circuit to implement the following logic function

F(A,B,C) = A'.C' + A.D + B.C.D'

hazards5
ECE 331 - Digital System DesignHazards

Exercise:

Design a hazard-free combinational logic circuit to implement the following logic function

F(A,B,C) = (A'+C').(A+D).(B+C+D')

hazards6
ECE 331 - Digital System DesignHazards

Two-level AND-OR circuits (SOP) cannot have static 1-Hazards.

Why?

Two-level OR-AND circuits (POS) cannot have static 0-Hazards.

Why?
