    1. SOUTHCOVibration Fatigue Tester TEAM 14 John Armitage Douglas DeVoto Brian Polkowski Marykate Wioncek

    2. Southco • Global manufacturer of access hardware solutions • Fasteners, latches, hinges, handles, etc. • Industries served: • Computers, electronics, automotive, aerospace, marine, etc.

    3. Project Goal • Design and build a vibration fatigue tester • Simulate off-highway service environment • Test compression latches

    4. Compression Latches CUSTOM COLORS T-HANDLE HOUSING LOCK PLUG LOCK PLUG CUP PAWL CUP VERSIONS

    5. BusinessBenefit • Quality assurance • Provide quality test data to customer • Aids in proper latch selection • Product improvement • Accurate data on failure conditions

    6. Top 3 Wants: - Accurate Data - Adaptable to Different Kinds of Latches - Adjustable Forces and Hz Customers/Wants

    7. Metrics

    8. Current State/Future State • Outsourced to testing company • Used linear actuators (not designed for high speed testing)

    9. Benchmarking • Existing vibration testers • Shaker tables • Instron machines • Other benchmarking • Actuators • Hammer drills

    10. Concept Selection Cam and Follower Shaker Table Instron Actuator

    11. Final Concept

    12. How It Works

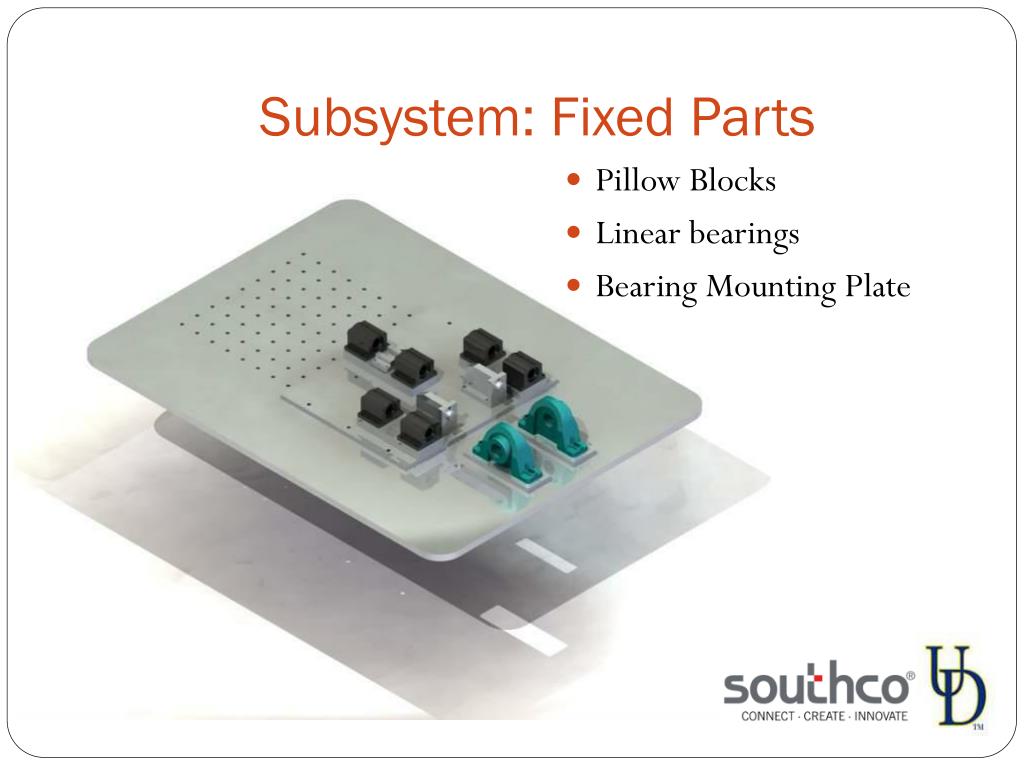

    13. Subsystem: Fixed Parts • Pillow Blocks • Linear bearings • Bearing Mounting Plate

    14. Subsystem: Motor system • Baldor Motor • Drive Belt • Sprockets • Cam • Cam Shaft

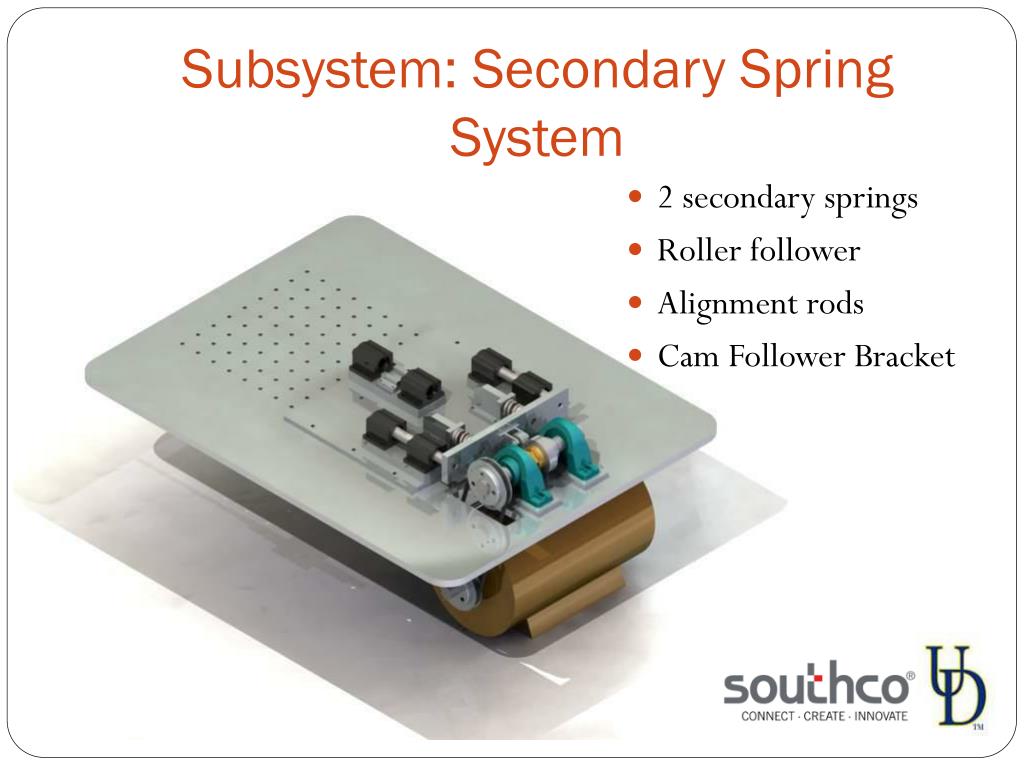

    15. Subsystem: Secondary Spring System • 2 secondary springs • Roller follower • Alignment rods • Cam Follower Bracket

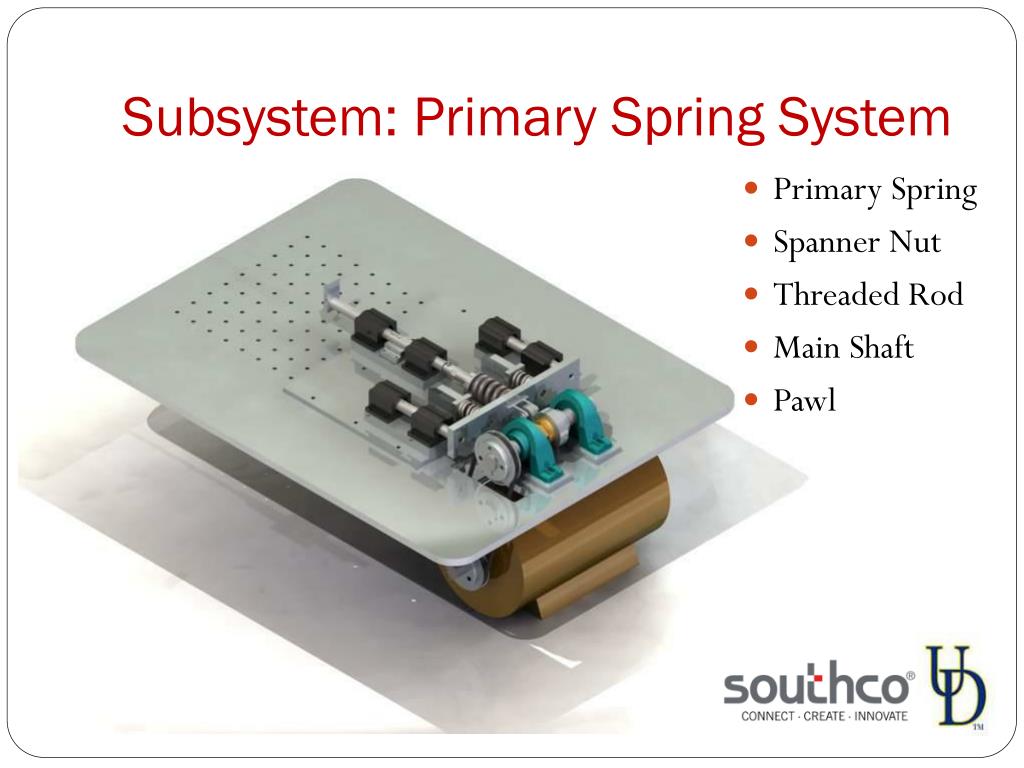

    16. Subsystem: Primary Spring System • Primary Spring • Spanner Nut • Threaded Rod • Main Shaft • Pawl

    17. Subsystem: Latch • Latch • Latch Plate • Latch Plate Mount • Base Plate

    18. Subsystem: Frame • Safety Shield • Polycarbonate • 80/20 • Machine Base • Base Plate • Frame • Motor Mount • Alumilite Covers

    19. Measurement and Control System

    20. Prototype

    21. Functioning Prototype

    22. Prototype Testing Procedure • Used dummy latch with built in force sensor • Adjusted to 100lb preload • Ran machine with calibrated sensors at several speeds up to 3600 rpm to verify that the prototype achieved 3000N of force

    23. Latch Testing Procedure • Bolt latch plate to base • Adjust spanner nut to apply the appropriate initial load • Confirm correct load using labview software • Turn on motor and change to correct speed • Record number of cycles to failure

    24. Validation of Metrics

    25. Metric: Adjustability

    26. Additional Test Results • Measurement of Decibels • OSHA standards state that a worker can be exposed to 90 dB for an 8 hour work day. • Hearing Equipment is required in Southco testing facility

    27. Project Management Schedule

    28. Project Costs

    29. Cost Analysis • Final cost of testing mechanism to Southco $15000 • Cost of latch testing • Previous testing - $625 per latch • Current testing – Cost of Latch • Save on shipping costs • Faster data acquisition

    30. Implementation Plan • Hand off of Prototype to Southco Representatives: 12/4 • Plans: • Move Prototype to Southco facility • Begin testing of latches as soon as possible • Produce machines for other Southco facilities

    31. Acknowledgements • Thank you to our Southco Sponsors: • Ratnesh Dwivedi • Ron Magidson • Mark DiAntonio • Jesus Albillos • Al Frattarola • Thank you to our Advisor: • Mr. Nate Cloud • Special Thanks to: • Ed Cicutti

    32. Questions?

    33. Resonance

    34. Cam Torque

    35. Cam Shaft Calculations

    36. Cam Shaft Calculations Continued
