slide1

NERCICT

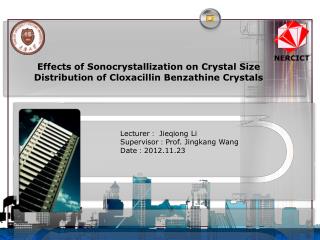

Effects of Sonocrystallization on Crystal Size Distribution of CloxacillinBenzathine Crystals

Lecturer:Jieqiong Li

Supervisor:Prof. Jingkang Wang

Date:2012.11.23

slide2

NERCICT

Introduction

Content

Experimental Sections

Results and Discussion

Conclusions

introduction
Introduction
  • Applications

NERCICT

introduction1
Introduction

NERCICT

proteins/peptides

sugars

Fig.1Effect of sonication on supersaturation.

introduction2
Introduction
  • Sonofragmentation of Needle Crystals

NERCICT

transient cavitation

buble collapse

buble growth

shockwave emerge

shockwave impact

seeding

introduction3
Introduction
  • reaction crystallization

NERCICT

Small Crystals

  • Final CSD

primary nucleation rate

  • ultrasound

crystal fragmentation rate

experimental sections
Experimental Sections

NERCICT

  • Different process conditions
  • Different lengths of insonated periods
  • Different seeding load
  • Different feeding rate

Conventional seeding

Seeding & ultrasonic interruption

Seeding in situ

Fig. 2 Schematic Diagram of The Experimental Setup: (A) jacketed reactor; (B) stirrer driver; (C) propeller; (D and E) peristaltic pump; (F and G) feed tanks; (H) thermostatic bath; (I) ultrasonic bath.

results discussion
Results & Discussion
  • Effect of Different Process Conditions

NERCICT

Fig.3 Optical photographs of cloxacillinbenzathine crystals just precipitate from the solution under different process conditions. (1) non-insonated experiment; (2) insonated experiment.

Fig. 4 Crystal size distribution (left) and optical photographs (right) of cloxacillinbenzathine under different process conditions. (A) non-insonated control experiment; (B) continuous insonation; (C) a short period of insonation interruption.(100×)

slide9

Results & Discussion

  • Effect of Different Lengths of Insonated Periods

NERCICT

  • Fig. 5 Optical photos of cloxacillinbenzathine with different lengths of insonation periods (200W): (A & a) seeding & without insonation; (B & b) seeding & insonated for 2min; (C & c) seeding & insonated for 4min.

Fig. 6 Effect of different lengths of insonation periods on the final crystal size distribution: (left) at ultrasound nominal power of 100W;(right) at ultrasound nominal power of 200W.

slide10

Results & Discussion

  • Effect of Different Seeding Load

NERCICT

Fig. 7 Effect of seeding load on the final crystal size distribution.

slide11

Results & Discussion

  • Effect of Different Feeding Rate

NERCICT

f

e

d

c

b

a

Fig. 8 Effect of feeding rate of the reaction material solutions on the cloxacillinbenzathine crystals : (left) the concentration of the solution when the crystals were detectable; (right) optical photographs of the crystals after precipitation from the solution under different feeding rate.

Fig. 9 Effect of feeding rate of the reaction material solutions on the final crystal size distribution.

conclusions
Conclusions
  • The longer the ultrasound performed and the more powerful the ultrasound was, the smaller the needle crystals were.
  • Crystals produced with low seeding loads present widespread and bimodal PSD, while the CSD was narrower and approaching to unimodal with increased seeding load.
  • Relatively slower feeding rate is favorable to produce products with improved properties.
  • Prolonged application of ultrasound after the nucleation onset has the potential to improve the final CSD and produce crystals with regular shape.

NERCICT

slide13

NERCICT

Thank You for Your Attention
