ABDOMEN & PELVIS PATHOLOGY & SCANNING PROTOCOLS

Loading in 2 Seconds...

play fullscreen
1 / 53

ABDOMEN & PELVIS PATHOLOGY & SCANNING PROTOCOLS - PowerPoint PPT Presentation


  • 119 Views
  • Uploaded on

ABDOMEN & PELVIS PATHOLOGY & SCANNING PROTOCOLS. PATHOLOGIES. ABDOMINAL MESENTERIC CYST. ABDOMINAL CYST.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'ABDOMEN & PELVIS PATHOLOGY & SCANNING PROTOCOLS' - ginger-lyons


Download Now An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
abdominal cyst
ABDOMINAL CYST

An abdominal CT scan revealed a large right upper quadrant cyst measuring 14x17x21 cm ( lateral, anteroposterior and craniocaudal)There was mass effect upon the liver and duodenum. The cyst had a thin smooth wall with internal fluid and high density material consistent with a blood clot.

renal cyst
RENAL CYST

NO CONTRAST

CONTRAST

polycystic kidney disease

In PKD fluid-filled cysts develop giving the kidneys a honeycomb appearance. It is one of the most common inherited disorders, and the fourth commonest cause of kidney failure.

POLYCYSTIC KIDNEY DISEASE

In polycystic kidney disease many fluid-filled cysts develop in the kidneys. Gradually these cysts replace the normal kidney tissue enlarging the kidneys but making them less and less able to function normally. Eventually the kidneys fail completely

ascites

Ascites is the abnormal collection of fluid in the abdominal cavity, most often as a result of chronic liver disease.

ASCITES
appendicits
APPENDICITS

An axial slice of a CT scan done with the use of intravenous and oral contrast is presented. The arrow points to an area of soft tissue induration within the retrocecal fat. There is a rim like area of higher attenuation within this area. The structure is fluid filled. These features are compatible with a diagnosis of acute appendicitis and the presence of rupture cannot be excluded.

diverticulits
DIVERTICULITS

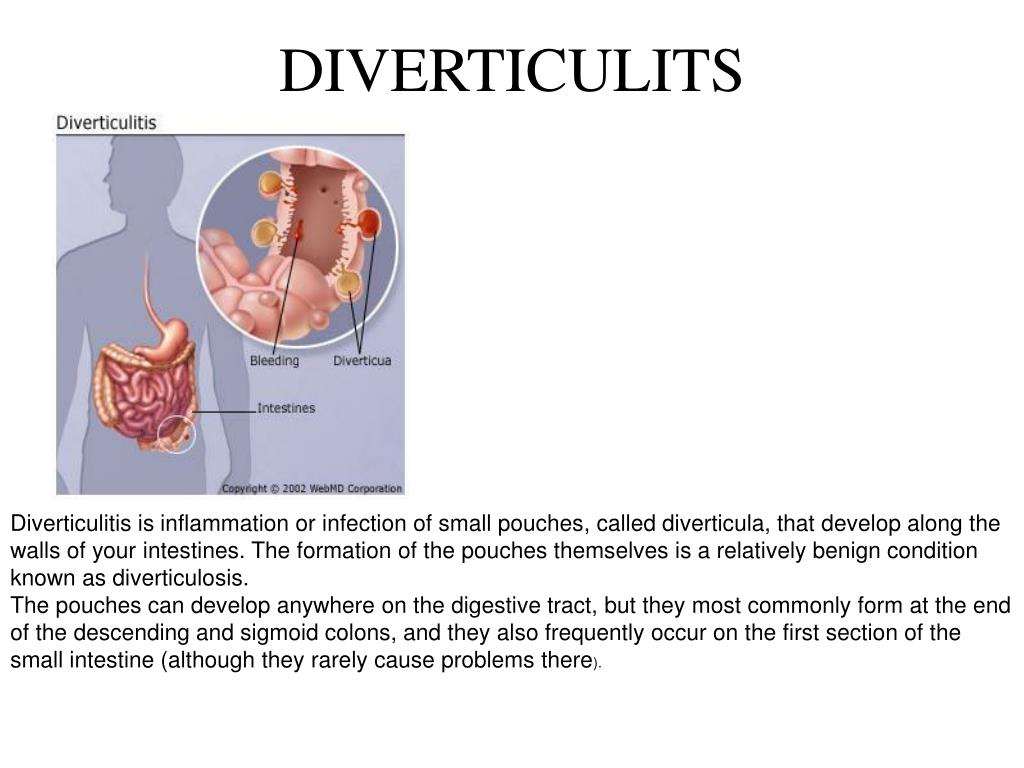

Diverticulitis is inflammation or infection of small pouches, called diverticula, that develop along the walls of your intestines. The formation of the pouches themselves is a relatively benign condition known as diverticulosis.

The pouches can develop anywhere on the digestive tract, but they most commonly form at the end of the descending and sigmoid colons, and they also frequently occur on the first section of the small intestine (although they rarely cause problems there).

abdominal abscess
ABDOMINAL ABSCESS

Psoas abscess (blue arrow), and abscess dissecting anteriorly in transversalis fascia.

liver mets
LIVER METS

Lung cancer, small cell. Contrast-enhanced CT scan of the abdomen. Axial section through the liver shows multiple hypoattenuating areas in the liver. Poorly defined margins, attenuation greater than that of water, and scattered distribution in a patient with known lung cancer is most consistent with metastatic disease.

wilms tumor

Wilms tumor, also called nephroblastoma, is a cancer that originates in the kidney. The disease gets its name from a German doctor, Max Wilms, who wrote one of the first medical articles about it in 1899.

Ninety percent of all kidney cancers in children are Wilms tumor. The remaining ten percent are rare forms of childhood kidney cancers: clear cell sarcoma of the kidney, malignant rhabdoid tumor of the kidney, and occasionally renal cell carcinoma

WILMS TUMOR
kidney cancer
KIDNEY CANCER

Kidney cancer affects some 30,000 people in the United States each year, and close to 12,000 die from the disease. It is the eighth most common cancer in men and the tenth most common in women. Smoking is the major risk factor,

pheochromocytoma
PHEOCHROMOCYTOMA

Pheochromocytoma is a tumor of the adrenal gland that causes excess release of epinephrine and norepinephrine, hormones that regulate heart rate and blood pressure

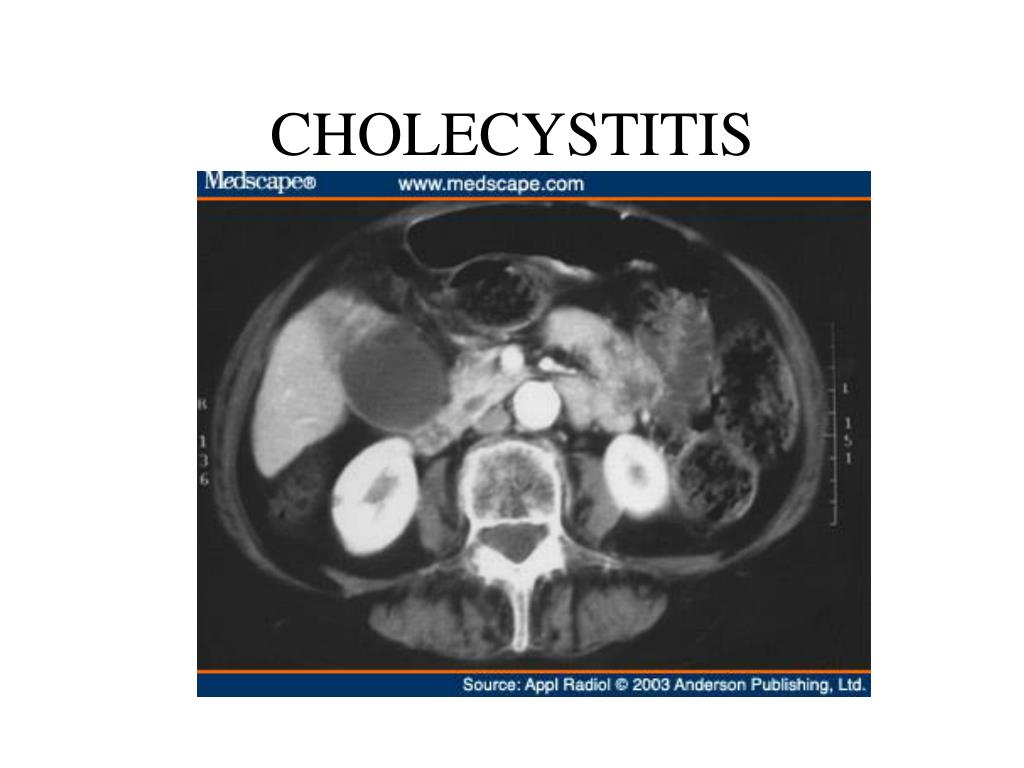

slide29

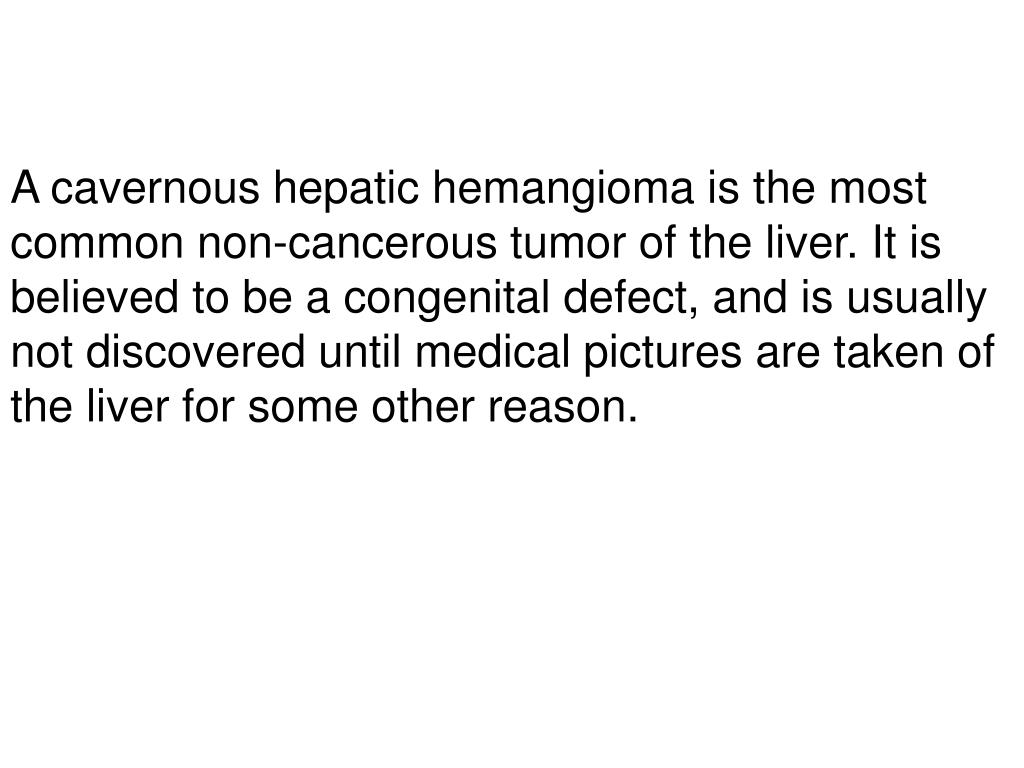

A cavernous hepatic hemangioma is the most common non-cancerous tumor of the liver. It is believed to be a congenital defect, and is usually not discovered until medical pictures are taken of the liver for some other reason.

abdomen standard

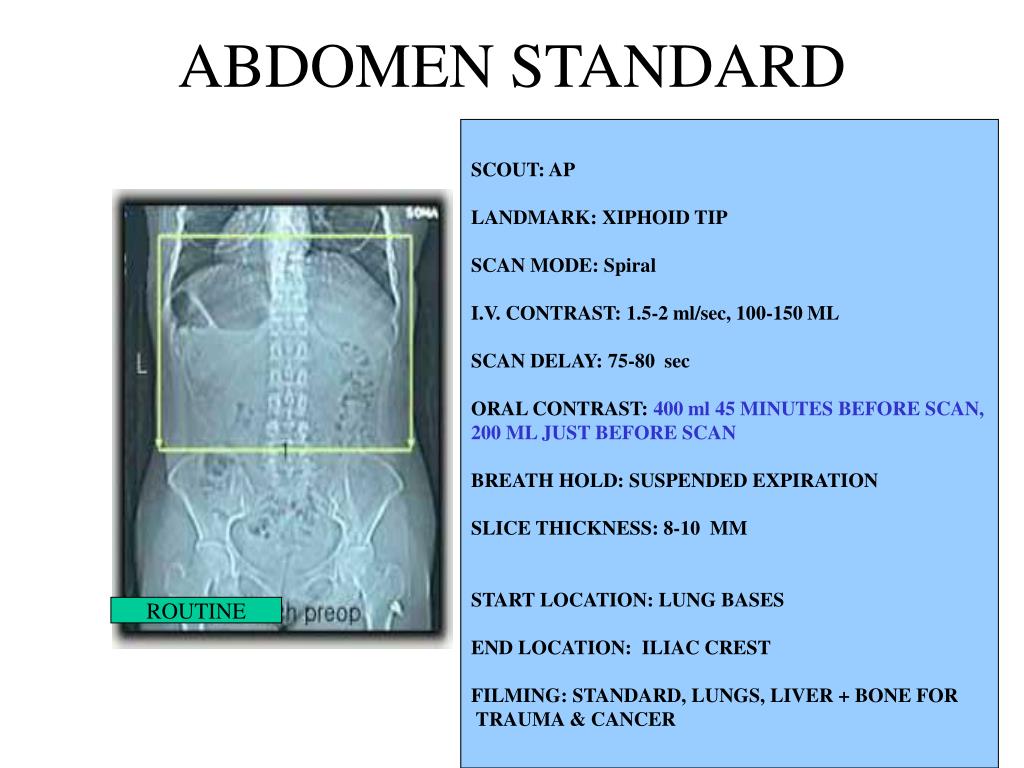

ABDOMEN STANDARD

SCOUT: AP

LANDMARK: XIPHOID TIP

SCAN MODE: Spiral

I.V. CONTRAST: 1.5-2 ml/sec, 100-150 ML

SCAN DELAY: 75-80 sec

ORAL CONTRAST: 400 ml 45 MINUTES BEFORE SCAN,

200 ML JUST BEFORE SCAN

BREATH HOLD: SUSPENDED EXPIRATION

SLICE THICKNESS: 8-10 MM

START LOCATION: LUNG BASES

END LOCATION: ILIAC CREST

FILMING: STANDARD, LUNGS, LIVER + BONE FOR

TRAUMA & CANCER

ROUTINE

abdomen kidney stone
ABDOMEN-KIDNEY STONE

SCOUT: AP

LANDMARK: XIPHOID TIP

SCAN MODE: Spiral

NO ORAL CONTRAST

NO IV CONTRAST

BREATH HOLD: SUSPENDED EXPIRATION

SLICE THICKNESS: 5MM

START LOCATION: ABOVE KIDNEYS

END LOCATION: S. PUBIS

FILMING: STANDARD

abdomen liver mass 3 phase
ABDOMEN LIVER MASS-3 PHASE

SCOUT: AP

LANDMARK: XIPHOID TIP

SCAN MODE: SPIRAL

I.V. CONTRAST: 4-5 ml/sec, 100-150 ML

SCAN DELAY: 1. NON-CONTRAST, 2. ARTERIAL 30 SEC.

3. PORTAL 70 SEC.

ORAL CONTRAST: 400 ml 45 MINUTES BEFORE SCAN,

200 ML JUST BEFORE SCAN

BREATH HOLD: SUSPENDED EXPIRATION

SLICE THICKNESS: 4-5 MM

START LOCATION: LUNG BASES

END LOCATION: ILIAC CREST

FILMING: STANDARD + LIVER

slide40

NON-CONTRAST

ARTERIAL

PORTAL

liver single phase
LIVER SINGLE PHASE

SCOUT: AP

LANDMARK: XIPHOID TIP

SCAN MODE: Spiral

I.V. CONTRAST: 1.5-2 ml/sec, 100-150 ML

SCAN DELAY: 45 SEC

ORAL CONTRAST: 400 ml 45 MINUTES BEFORE SCAN,

200 ML JUST BEFORE SCAN

BREATH HOLD: SUSPENDED EXPIRATION

SLICE THICKNESS: 8-10 MM

START LOCATION: LUNG BASES

END LOCATION: ILIAC CREST

FILMING: STANDARD + LIVER + BONE FOR

TRAUMA & CANCER

abdomen pancreas
ABDOMEN- PANCREAS

SCOUT: AP

LANDMARK: XIPHOID TIP

SCANNING MODE: SPIRAL

I.V. CONTRAST: 2-4 ml/sec, 100-150 ML

SCAN DELAY: 30-35 sec

ORAL CONTRAST: 400 ml 45 MINUTES BEFORE SCAN,

200 ml 15 MINUTES BEFORE SCAN

BREATH HOLD: SUSPENDED EXPIRATION

SLICE THICKNESS: 3-5 MM THROUGH

PANCREAS

START LOCATION: LUNG BASES

END LOCATION: ILIAC CREST

FILMING: STANDARD + LIVER + BONE FOR

TRAUMA & CANCER

abdomen kidneys
ABDOMEN- KIDNEYS

SCOUT: AP

LANDMARK: XIPHOID TIP

SCANNING MODE: SPIRAL

I.V. CONTRAST: 2-4 ml/sec

SCAN DELAY:1. NONCONTRAST: 2. ARTERIAL 30 SEC.

3. NEPHROGRAM 90 SEC.:

4. PYELOGRAM 3-5 MIN.

ORAL CONTRAST: 400 ml 45 MINUTES BEFORE SCAN,

200 ml JUST BEFORE SCAN

BREATH HOLD: SUSPENDED EXPIRATION

SLICE THICKNESS: 8-10 MM , 5 MM THROUGH

KIDNEYS

START LOCATION: LUNG BASES

END LOCATION: ILIAC CREST

FILMING: STANDARD

cta of the abdomen

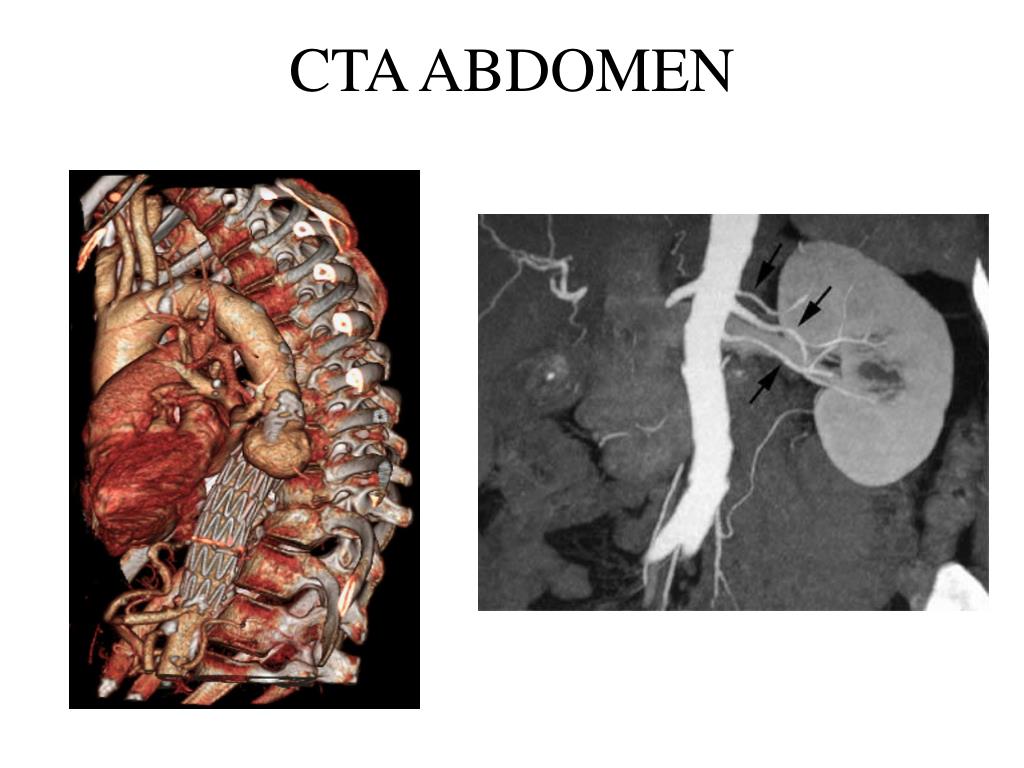

CTA OF THE ABDOMEN

SCOUT: AP

LANDMARK: XIPHOID TIP

SCAN MODE: Spiral

I.V. CONTRAST: 4-5 ml/sec, 100-150 ML

SCAN DELAY: 25 sec

BREATH HOLD: SUSPENDED EXPIRATION

SLICE THICKNESS: 3 MM

START LOCATION: ABOVE AORTIC ARCH

END LOCATION: BELOW ILIAC CREST

FILMING: STANDARD + 3D + MPR

abdomen pelvis appendicitis or diverticulitis
ABDOMEN + PELVISAPPENDICITIS OR DIVERTICULITIS

SCOUT: AP

LANDMARK: XIPHOID TIP

SCAN MODE: Spiral

I.V. CONTRAST: 1.5-2 ml/sec, 100-150 ML

SCAN DELAY: 75-80 sec

ORAL CONTRAST: 500 cc 60-120 MINUTES BEFORE SCAN,

200 ML JUST BEFORE SCAN

BREATH HOLD: SUSPENDED EXPIRATION

SLICE THICKNESS: 8 MM + 3-5MM LOWER

START LOCATION: LUNG BASES

END LOCATION: S.PUBIS

FILMING: STANDARD

SCOUT: AP

LANDMARK: XIPHOID TIP

SCAN MODE: Spiral

I.V. CONTRAST: 1.5-2 ml/sec, 100-150 ML

SCAN DELAY: 75-80 sec

ORAL CONTRAST: 400 ml 45 MINUTES BEFORE SCAN,

200 ML JUST BEFORE SCAN

BREATH HOLD: SUSPENDED EXPIRATION

SLICE THICKNESS: 8-10 MM UPPER + 5 MM LOWER

START LOCATION: LUNG BASES

END LOCATION: S. PUBIS

FILMING: STANDARD

8 MM

5 MM

ct colonoscopy
CT COLONOSCOPY

2 SCANS- PRONE + SUPINE

pelvis
PELVIS

SCOUT: AP

LANDMARK: ILIAC CREST

SLICE PLANE: AXIAL OR SPIRAL

I.V. CONTRAST: 1.5-2 ml/sec, 100-120 ml

SCAN DELAY: 120-180 sec (FULL BLADDER)

ORAL CONTRAST: 300-500 ml 1-2 HOURS BEFORE SCAN

500 cc NIGHT BEFORE

BREATH HOLD: SUSPENDED EXPIRATION

SLICE THICKNESS: 8-10 MM,

3-5 MM IF AP OR DIVERTICULITIS

START LOCATION: ILIAC CREST

END LOCATION: SYMPHYSIS PUBIS

FILMING: STANDARD

detection of prostate gland and seminal vesicles abnormalities
DETECTION OF PROSTATE GLAND AND SEMINAL VESICLES ABNORMALITIES

BLADDER OPACIFIED

+

RECTOSIGMOID COLON AND RECTUM OPACIFIED

visualization of vaginal canal cervix and uterus
VISUALIZATION OF VAGINAL CANAL + CERVIX AND UTERUS

TAMPON INSERTED IN THE VAGINA

DURING CT SCAN OF THE PELVIS
