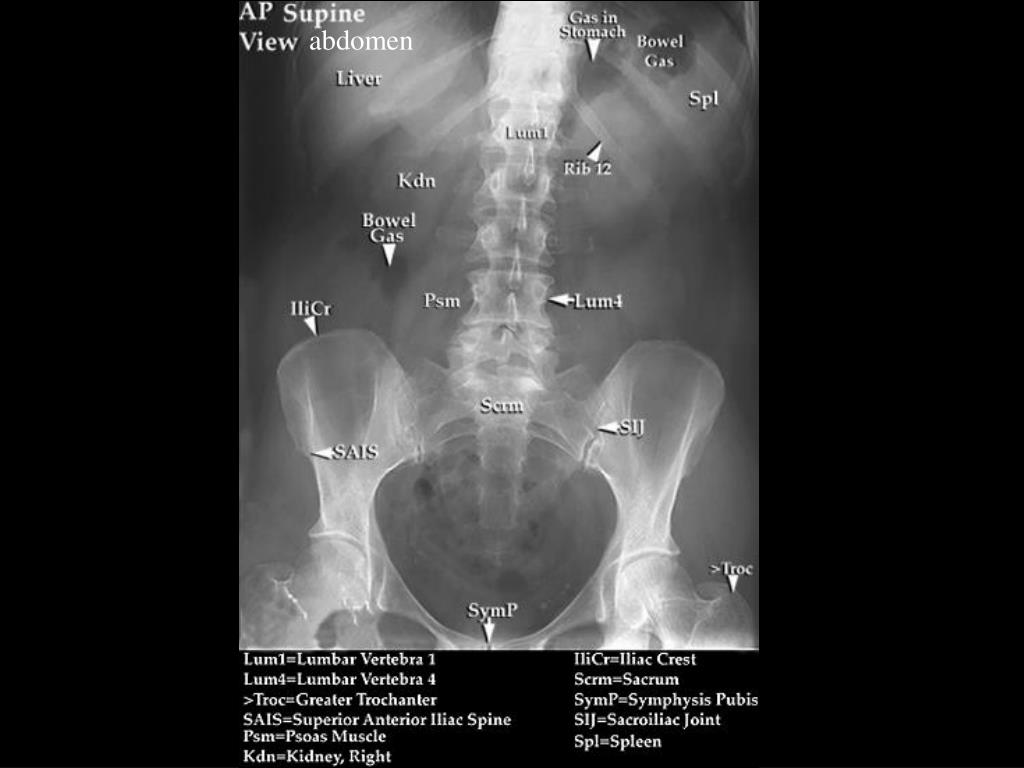

abdomen. AP Abdomen. Naso-gastric (NG tube). Iodonated contrast in Left kidney. Inferior vena cava filter. AP View UGI. Oblique View UGI. Small Bowel Follow Through (Early). Ligament Of Treitz. Duodenal c-loop. Jejunum. Pancreatic head. Small Bowel Follow Through (1 hour later).

rashad
Download Presentation

abdomen

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. abdomen

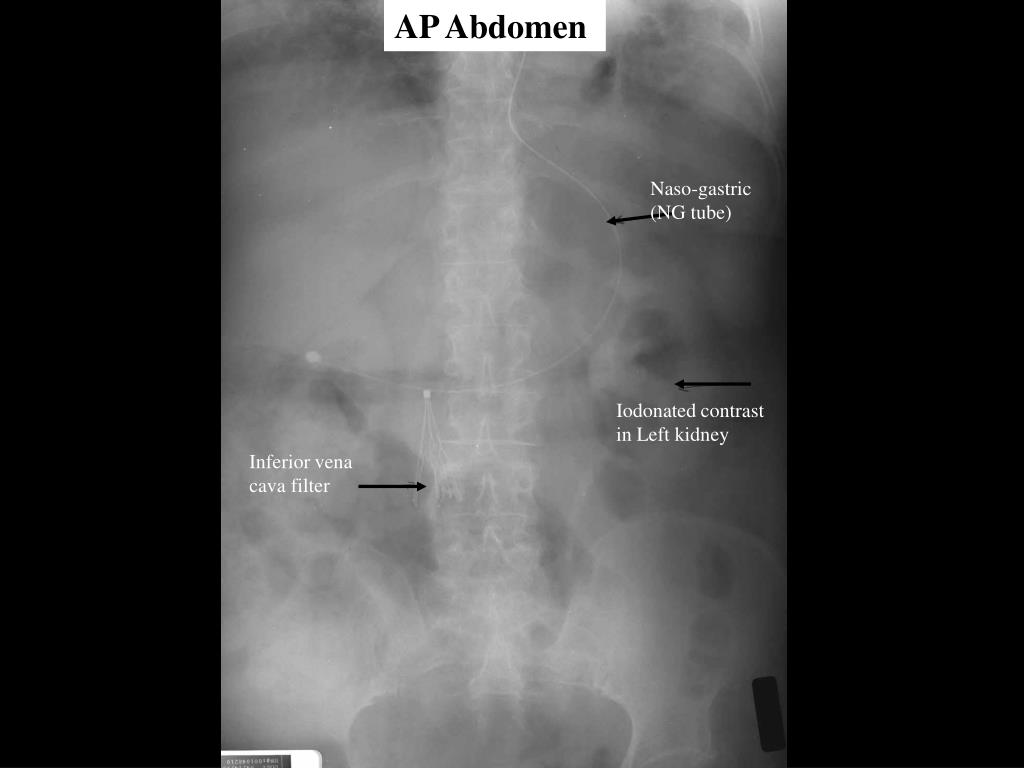

  2. AP Abdomen Naso-gastric (NG tube) Iodonated contrast in Left kidney Inferior vena cava filter

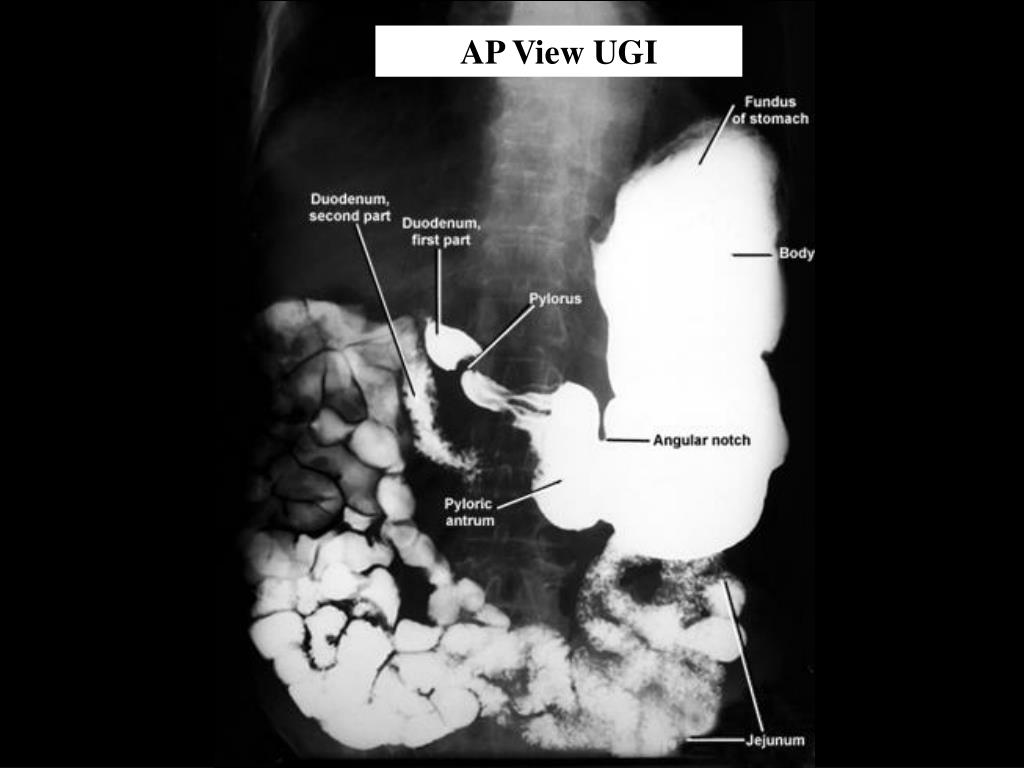

  3. AP View UGI

  4. Oblique View UGI

  5. Small Bowel Follow Through (Early) Ligament Of Treitz Duodenal c-loop Jejunum Pancreatic head

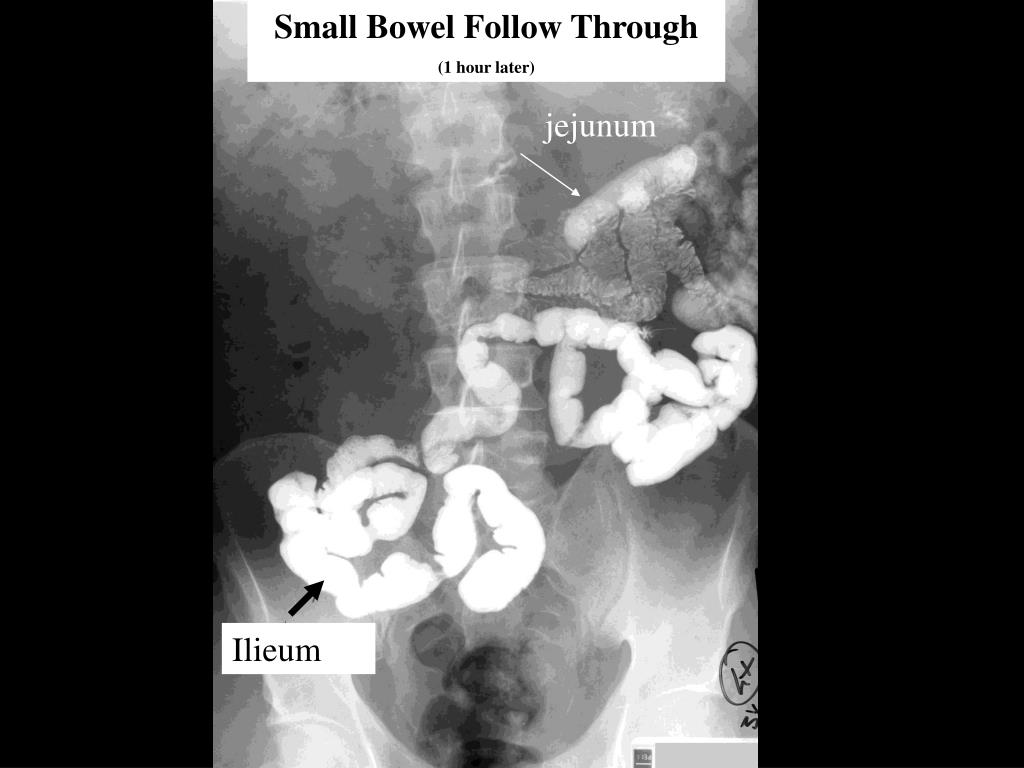

  6. Small Bowel Follow Through (1 hour later) jejunum Ilieum

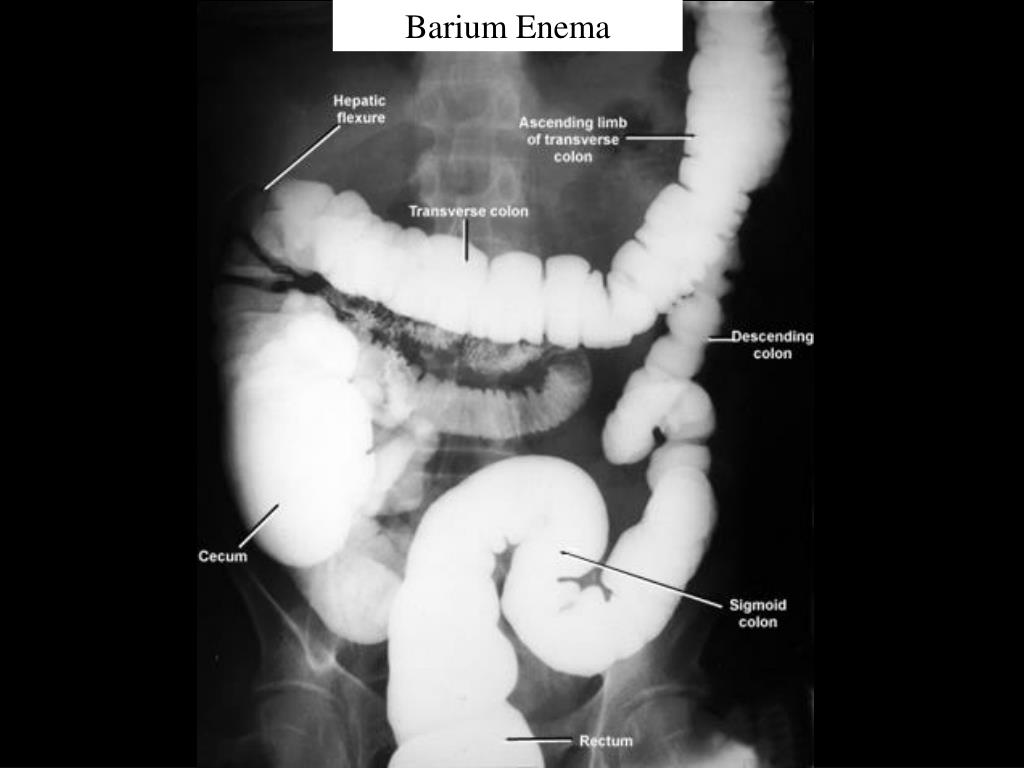

  7. Barium Enema

  8. AP Abdomen Naso-gastric (NG tube) Iodonated contrast in Left kidney Inferior vena cava filter

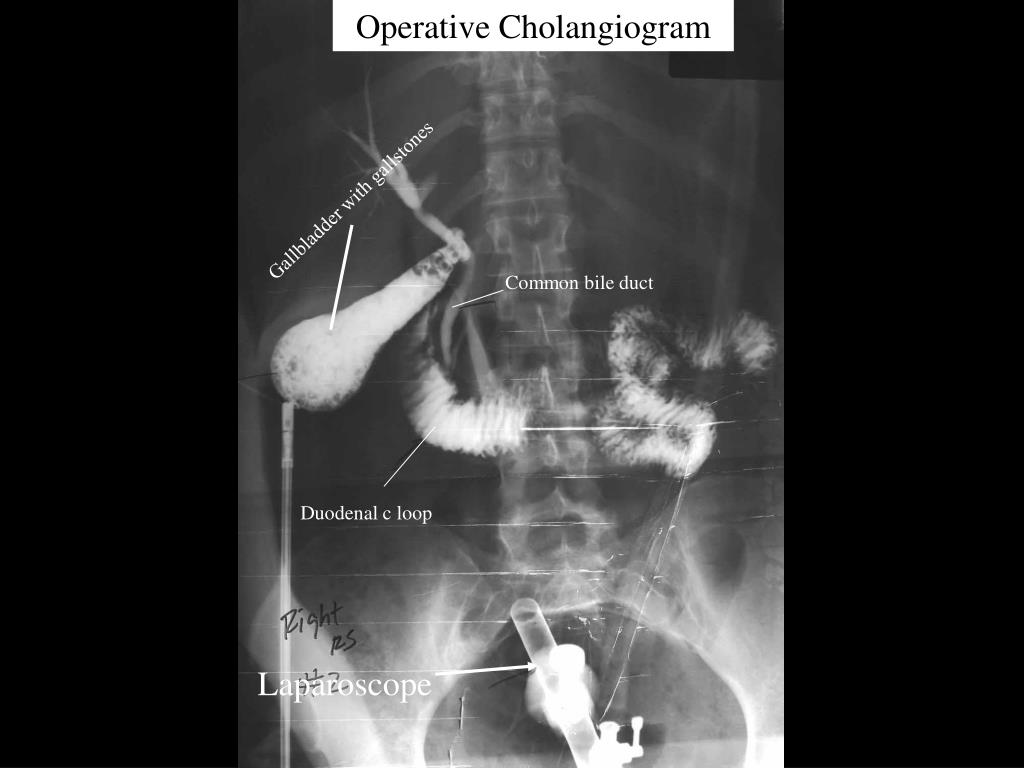

  9. Operative Cholangiogram Gallbladder with gallstones Common bile duct Duodenal c loop Laparoscope

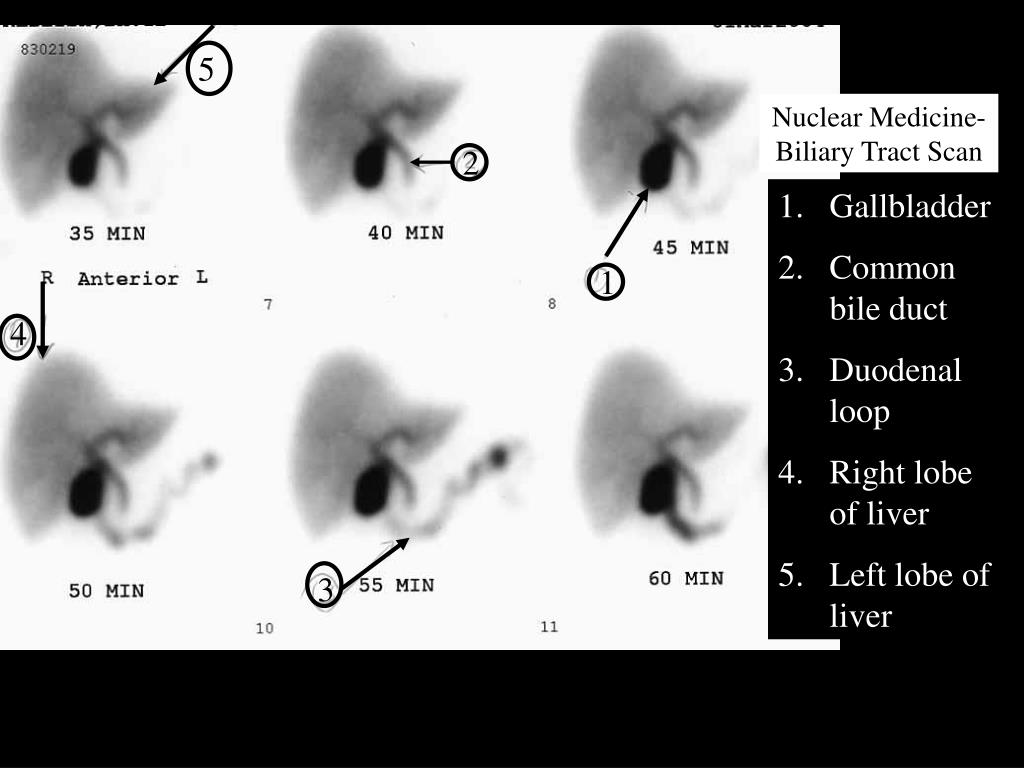

  10. 5 Nuclear Medicine-Biliary Tract Scan 2 • Gallbladder • Common bile duct • Duodenal loop • Right lobe of liver • Left lobe of liver 1 4 3

  11. Intravenous Pyleogram Opacified renal parenchyma Minor calyx Renal pelvis Renal pelvis Renal papilla Inferior Inferior major calyx Peristaltic contraction Bladder

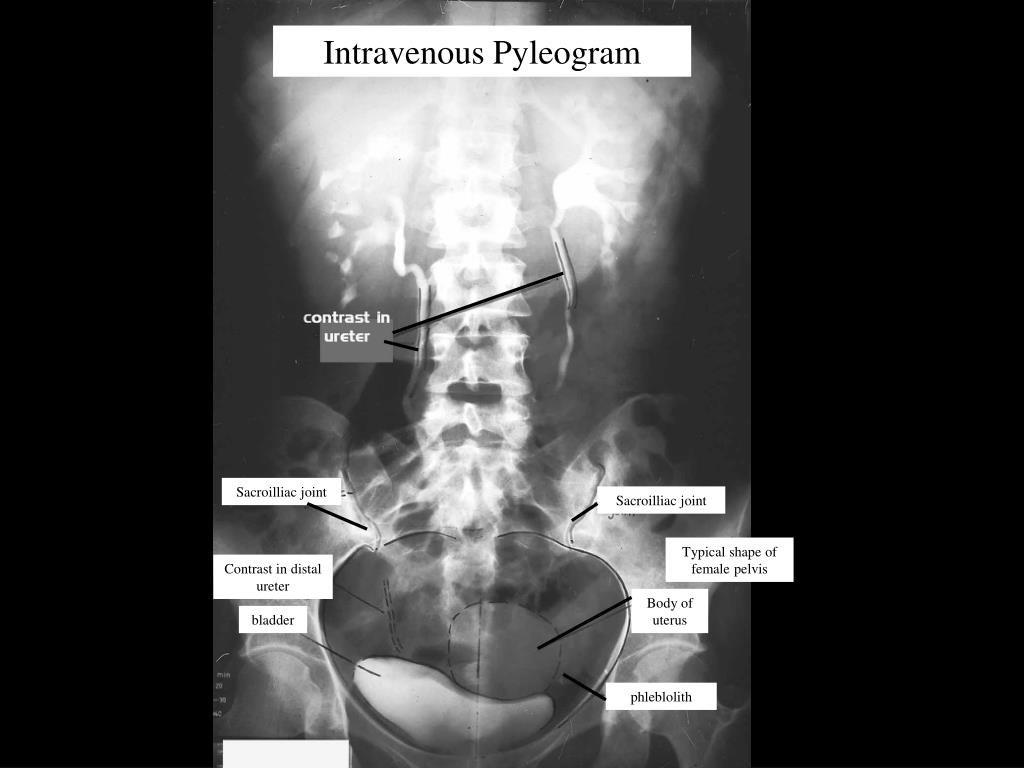

  12. Intravenous Pyleogram Sacroilliac joint Sacroilliac joint Typical shape of female pelvis Contrast in distal ureter Body of uterus bladder phleblolith

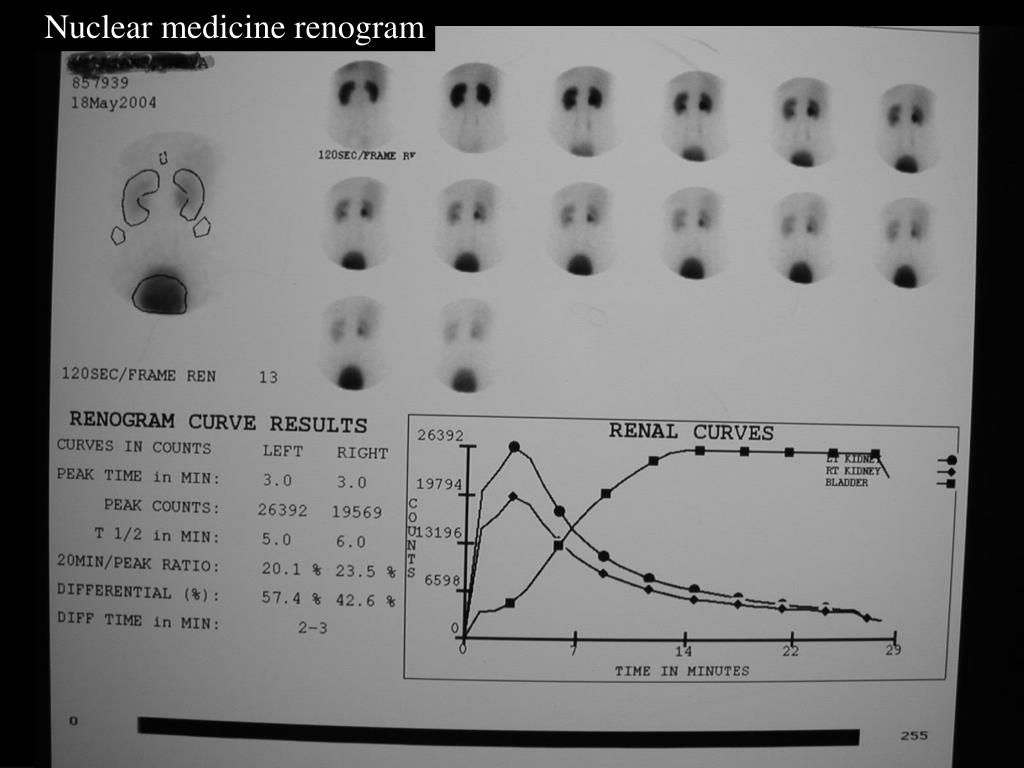

  13. Nuclear medicine renogram

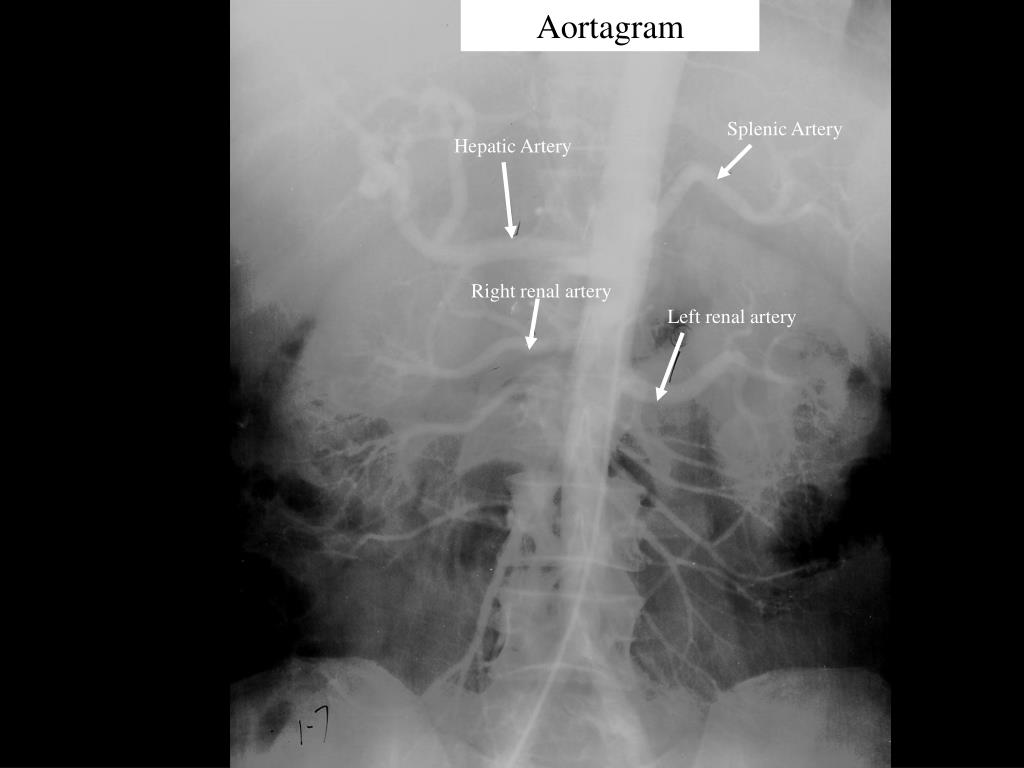

  14. Aortagram Splenic Artery Hepatic Artery Right renal artery Left renal artery

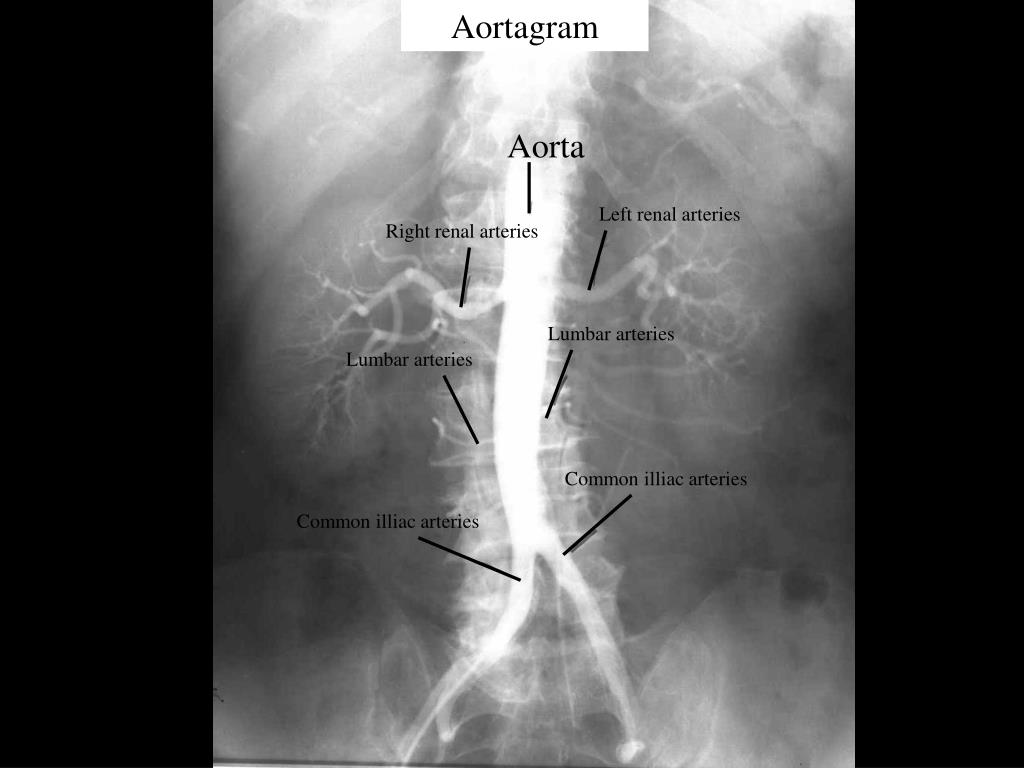

  15. Aortagram Aorta Aorta Left renal arteries Right renal arteries Lumbar arteries Lumbar arteries Common illiac arteries Common illiac arteries

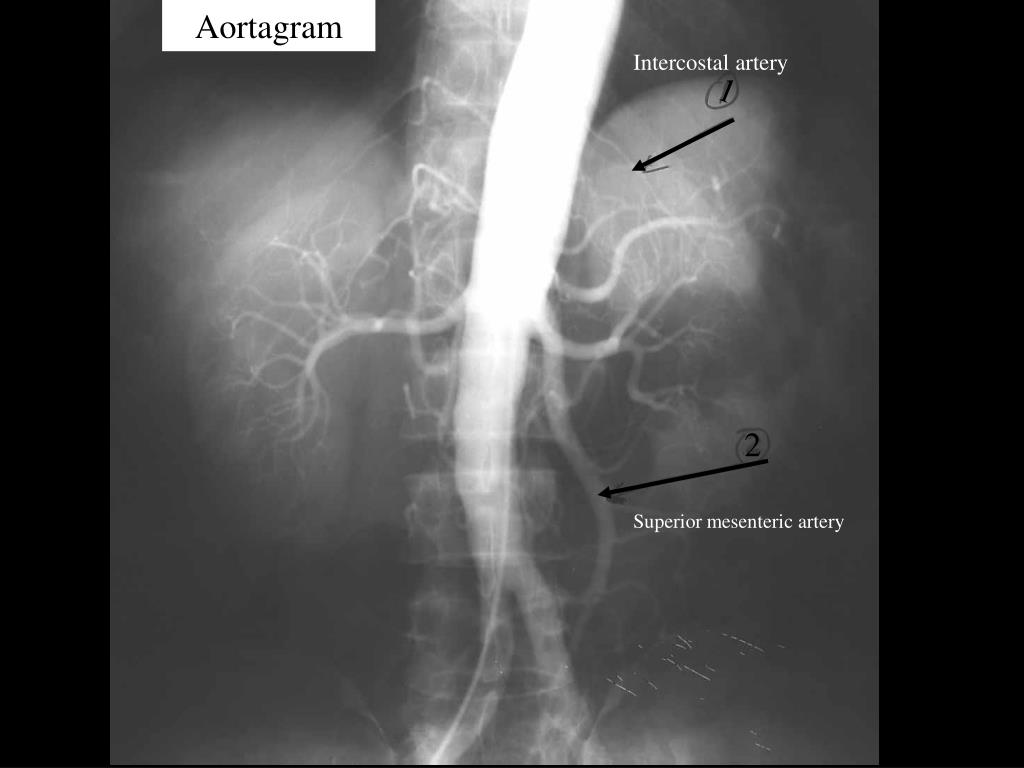

  16. Aortagram Intercostal artery 1 2 Superior mesenteric artery

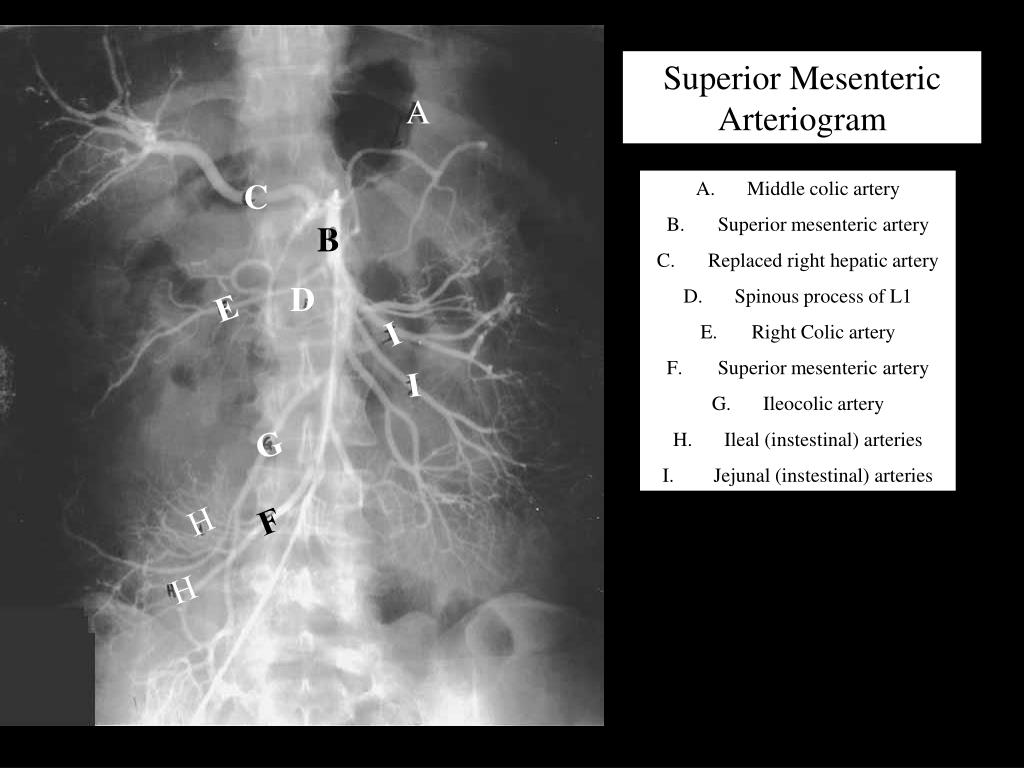

  17. Superior Mesenteric Arteriogram A C • Middle colic artery • Superior mesenteric artery • Replaced right hepatic artery • Spinous process of L1 • Right Colic artery • Superior mesenteric artery • Ileocolic artery • Ileal (instestinal) arteries • Jejunal (instestinal) arteries B D E I I G H F H

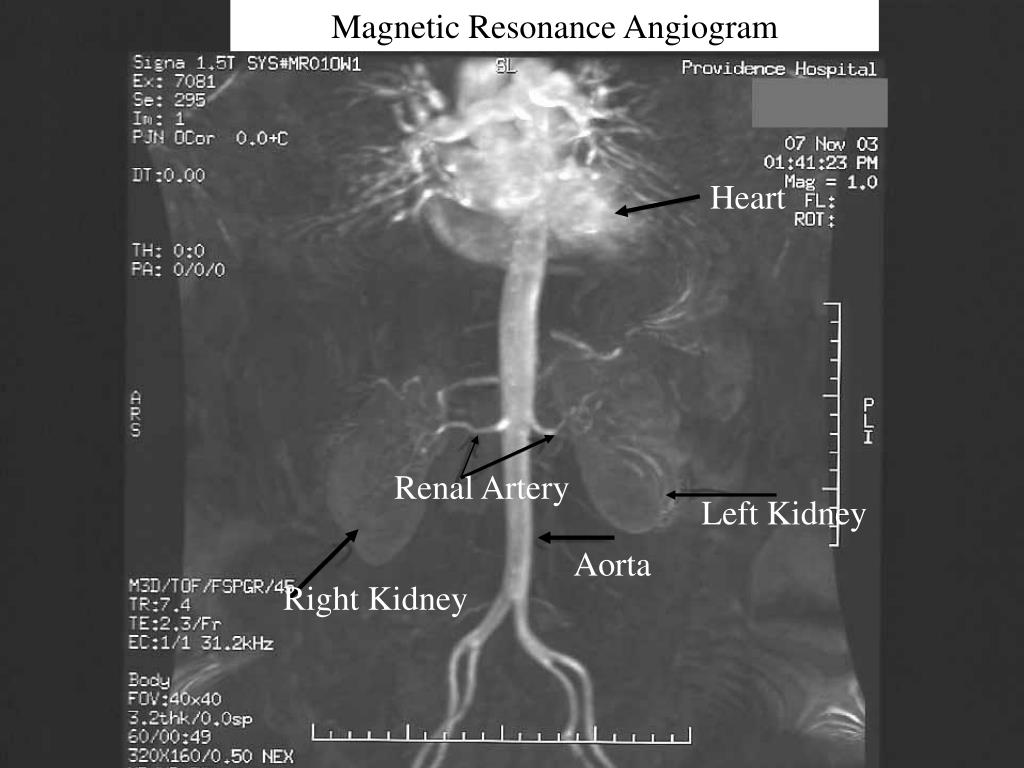

  18. Magnetic Resonance Angiogram Heart Renal Artery Left Kidney Aorta Right Kidney

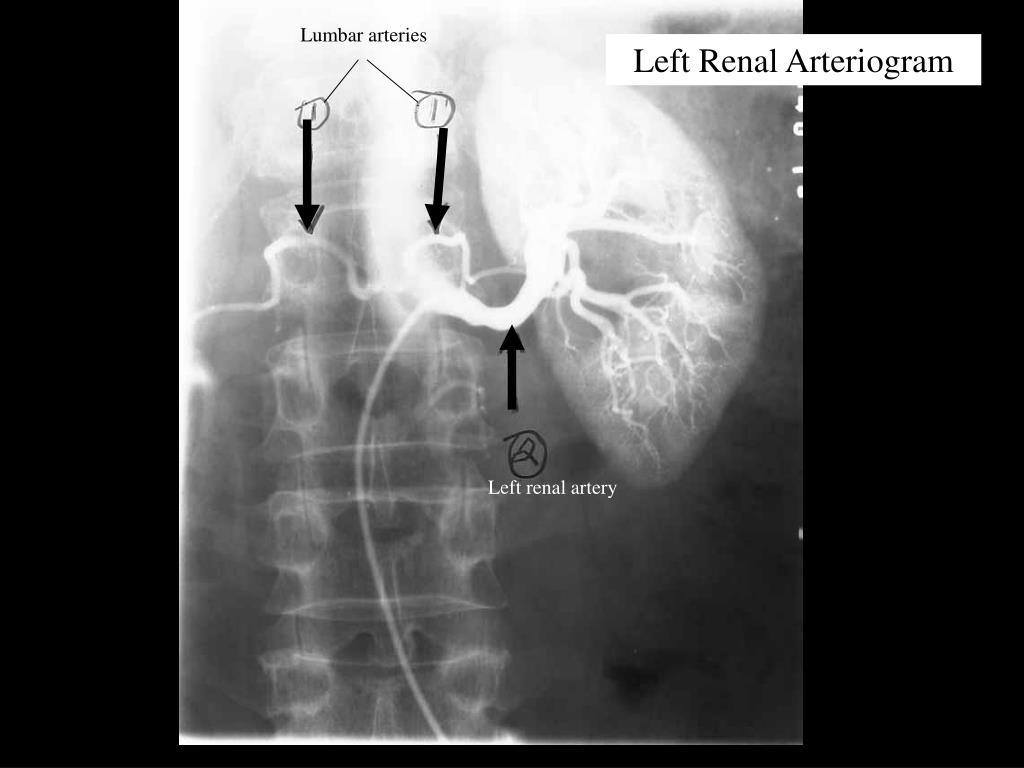

  19. Lumbararteries LeftRenal Arteriogram Left renal artery

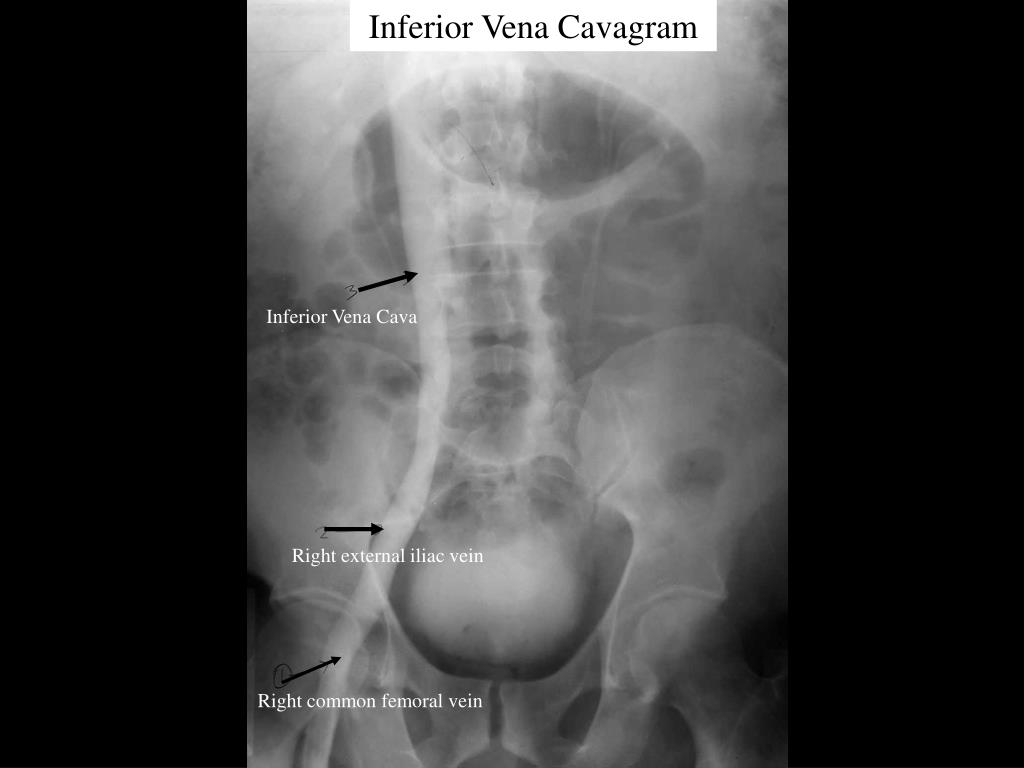

  20. Inferior Vena Cavagram Inferior Vena Cava Right external iliac vein Right common femoral vein

  21. IS IS IS= Ischial Spine

  22. Lymphangiogram Opacifying external illiac lymph nodes

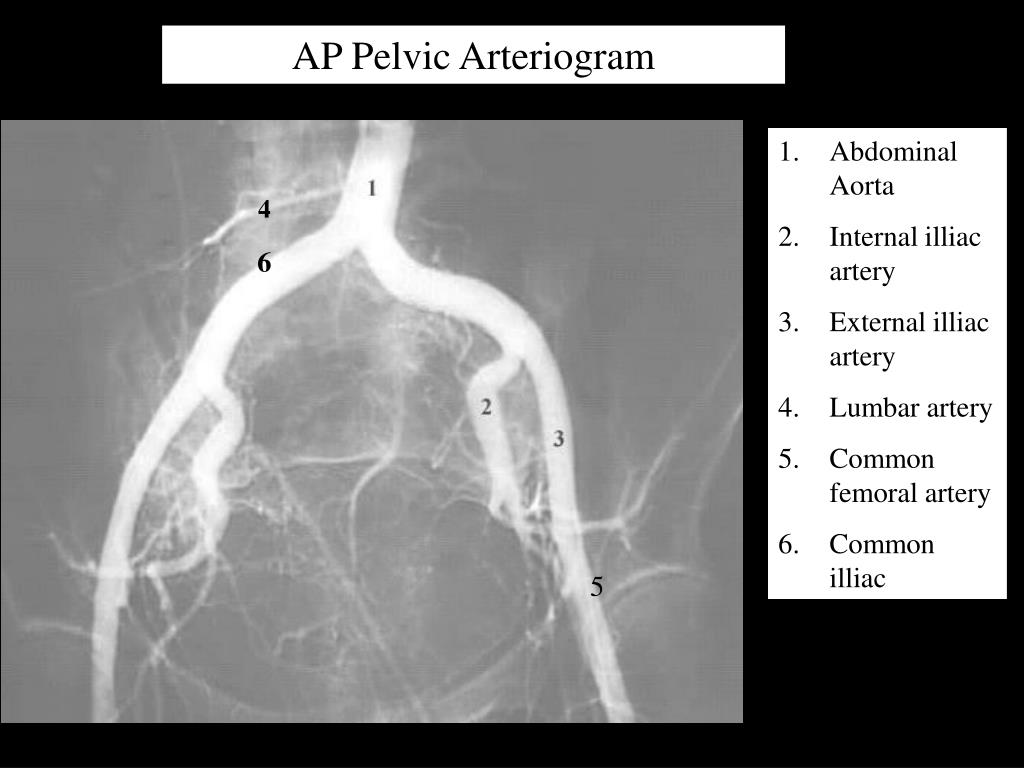

  23. AP Pelvic Arteriogram • Abdominal Aorta • Internal illiac artery • External illiac artery • Lumbar artery • Common femoral artery • Common illiac 4 6 5

  24. RA RA RA= Rectus Abdominus

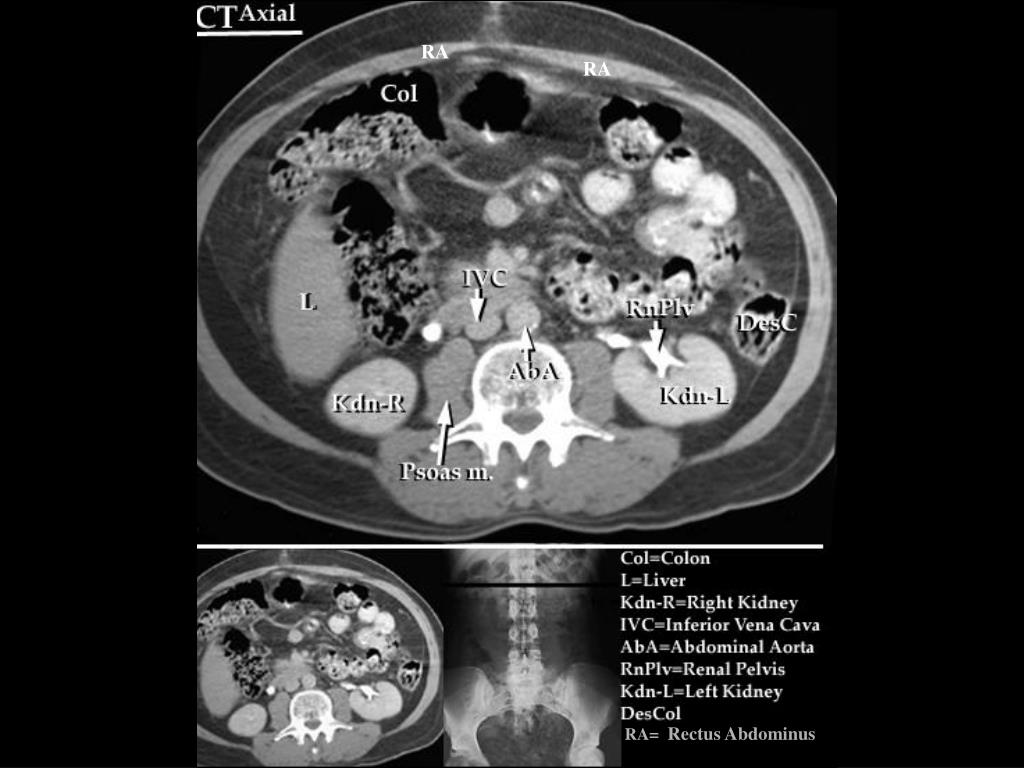

  25. CT Axial

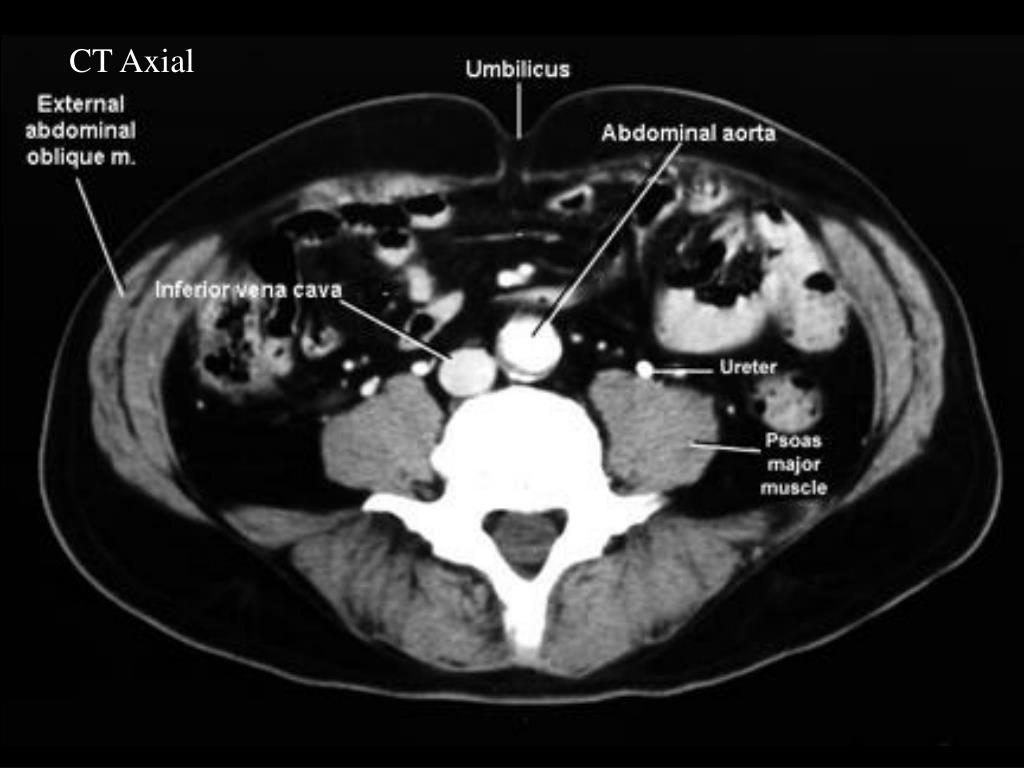

More Related
