B. Heating Curves

Gas - KE . Boiling - PE . Liquid - KE . Melting - PE . Solid - KE . B. Heating Curves. B. Heating Curves. Temperature Change change in KE (molecular motion) depends on heat capacity. Heat Capacity energy required to raise the temp of 1 gram of a substance by 1°C

ghalib
Download Presentation

B. Heating Curves

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

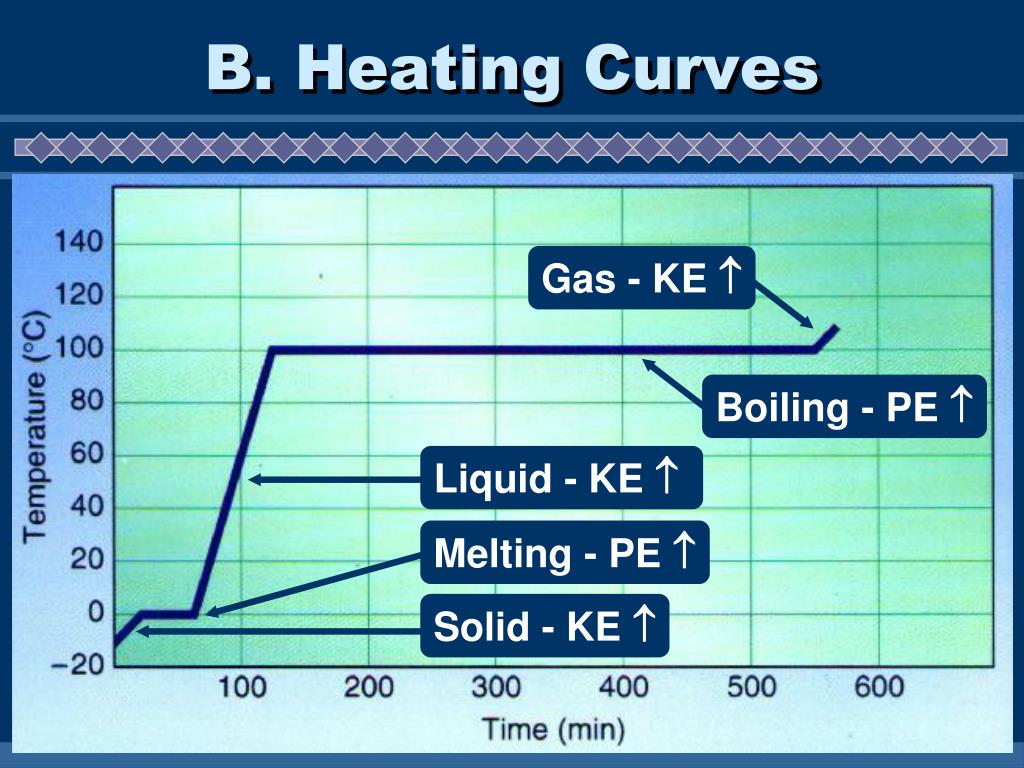

  1. Gas - KE  Boiling - PE  Liquid - KE  Melting - PE  Solid - KE  B. Heating Curves

  2. B. Heating Curves • Temperature Change • change in KE (molecular motion) • depends on heat capacity • Heat Capacity • energy required to raise the temp of 1 gram of a substance by 1°C • Specific heat - different values for each substance

  3. B. Heating Curves • Phase Change • change in PE (molecular arrangement) • temp remains constant • Heat of Fusion (Hfus) • energy required to melt 1 gram of a substance at its m.p. • Hfus of ice = 6.009 kJ/mol

  4. B. Heating Curves • Heat of Vaporization (Hvap) • energy required to boil 1 gram of a substance at its b.p. • Hvap for water = 40.79 kJ/mol • usually larger than Hfus…why? • EX: sweating, steam burns
