  1. Overview of USGS Groundwater Quality Assessment Activities and Related Data in Alabama2011 Alabama Water Resources ConferenceSeptember 9, 2011, Perdido Beach Resort, Orange Beach, AlabamaRichard Moreland, USGS, Montgomery, Alabama

  2. USGS Alabama WSC Groundwater Projects • National Studies • National Water Quality Assessment Program (NAWQA) • Cooperative Programs • Occurrence of Pesticides in Groundwater in Areas of Intense Row Crop Production in Alabama, 2009 • Alabama Department of Agriculture and Industries • Capitol City Plume • EPA

  3. Groundwater Projects • Cooperative Programs – cont. • Groundwater networks • Active ground-water levels • Real-time data • Climate Response Network

  4. National Water Quality Assessment Program • Montgomery Urban Land Use Study • 30 wells sampled in 1999 • Tape downs annually on all wells • Subset of five wells plus one reference well sampled biannually for trend analysis • Mobile Urban Land Use Study • 31 wells drilled in 2010 • Sampled in 2011 – full suite of QW constituents (Nutrients, trace metals, pesticides, VOCs, bacteria)

  5. National Water Quality Assessment Program • Lower Tennessee River Basin Agricultural groundwater study • 30 wells originally sampled in 1999 • Subset of 5 wells sampled biannually for trend analysis

  6. Montgomery Urban Land Use Study • Resampled this past May. • Waiting for results. 3 5 10 20 17 21

  7. Mobile Urban Land Use Study • 30 wells targeting residential/light commercial land use.

  8. First round of sampling ongoing • VOC’s, pesticides, nutrients, major ions, trace elements, DOC, age dating.

  9. Occurrence of Pesticides in GW in Areas of Intense Row Crop ProductionAlabama Department of Agriculture and Industries – Pesticide Management Branch

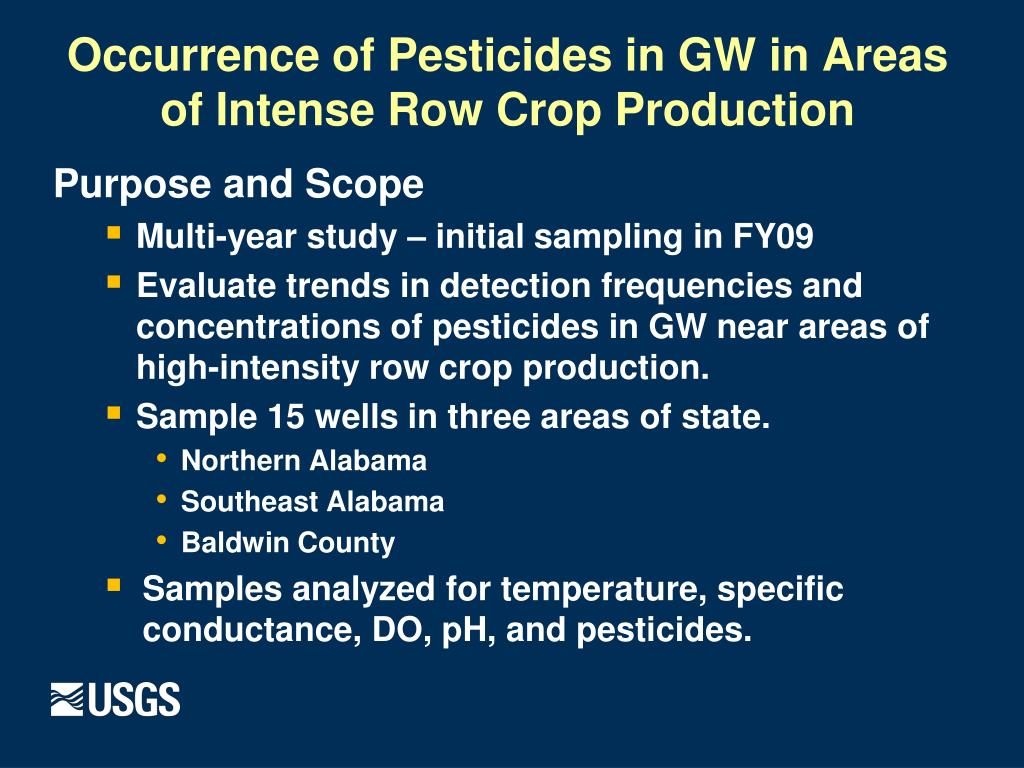

  10. Occurrence of Pesticides in GW in Areas of Intense Row Crop Production Purpose and Scope • Multi-year study – initial sampling in FY09 • Evaluate trends in detection frequencies and concentrations of pesticides in GW near areas of high-intensity row crop production. • Sample 15 wells in three areas of state. • Northern Alabama • Southeast Alabama • Baldwin County • Samples analyzed for temperature, specific conductance, DO, pH, and pesticides.

  11. Sampling sites – Southeast Alabama

  12. Occurrence of Pesticides in GW in Areas of Intense Row Crop Production Results • Samples analyzed for 87 filtered pesticides and pesticide degradates using GC/MS • Three most frequently detected cpds • Atrazine -- in 9 wells • CIAT2-Chloro-4-isopropylamino-6-amino-s-triazine - 9 wells • Metolachor – in 8 wells • Highest number of pesticides detected • Well 1 and 4 (13 cpd), Well 5 (10 cpd), Well 3 (9 cpd), & Well 2 and Well 6 (8cpd)

  13. Occurrence of Pesticides in GW in Areas of Intense Row Crop Production Results – continued • Highest concentration for any analyte – 4.30 ug/L for metolachlor in well 15 in Baldwin Co. (4.08 ug/L 2009)

  14. Capitol City Plume MonitoringU.S. Environmental Protection Agency

  15. Capitol City Plume Monitoring • Capitol City Plume is an area of groundwater contamination identified in downtown Montgomery, Alabama. • The main contaminant of concern in the plume is tetrachloroethylene (PCE). PCE is an organic compound commonly used in dry-cleaning and degreasing. • The site is listed on the National Priorities List and is currently being evaluated for potential remediation strategies by the U.S. Environmental Protection Agency. • USGS has provided Capitol City Plume monitoring data to the USEPA in support of the remediation investigation, led by Dr. James Landmeyer South Carolina WSC.

  16. Capitol City Plume Monitoring • USGS collected samples for analysis of dissolved gases for assessment of groundwater age. • Samples were collected from the same 13 wells sampled in 2009. • In 2011 numerous GORE passive vapor sampling modules were installed. • Five nested soil vapor monitor wells installed near one of suspected sources.

  17. Capitol City Plume Monitoring • 13 existing monitoring wells were sampled in spring 2010 • Samples collected for age dating

  18. SF6 and CFC data show groundwater ages range from 1952 to 2009. Atmospheric mixing ratios of CFC-11, CFC-12, CFC-113, and SF6 in North American air.

  19. PCE

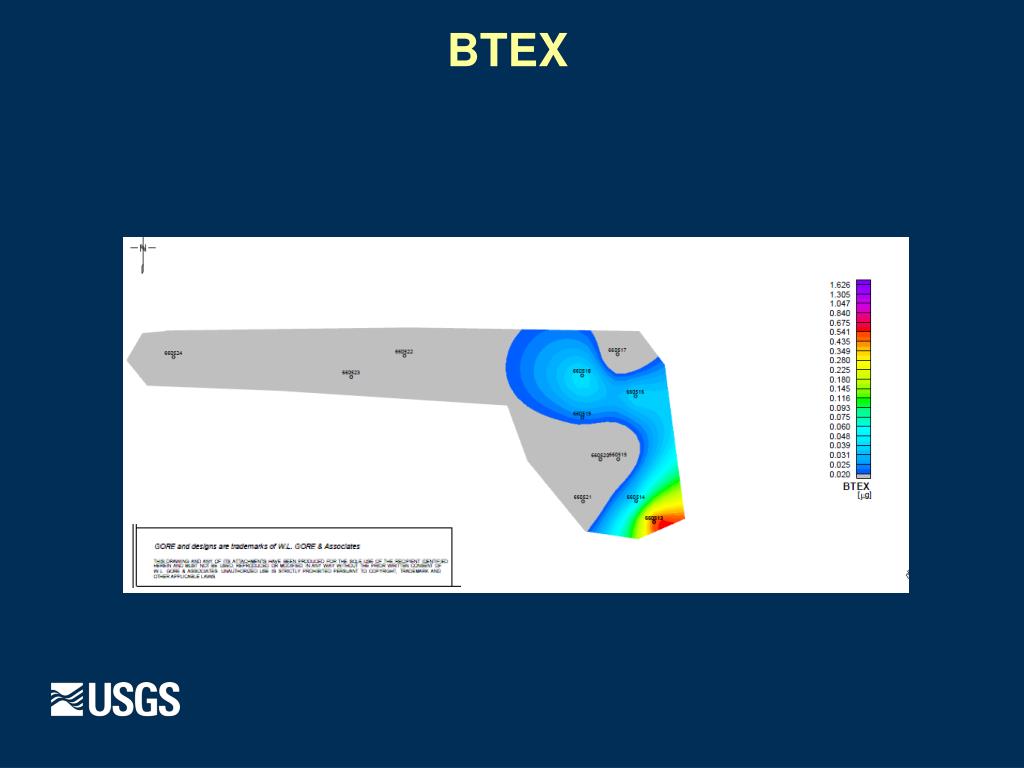

  20. BTEX

  21. Groundwater Networks

  22. Active Ground-Water Level Network

  23. Real-Time Ground-Water Level Network Real-Time Ground-Water Level Network Well Count: 1,222

  24. Alabama Real-Time Network

  25. Alabama Climate Response Network

  26. Alabama Real-Time Network MadisonCounty

  27. Alabama Real-Time Network Montgomery 3 Well Montgomery Water Works and Sanitary Sewer Board

  28. Daily Ground-Water Data Most recent Provisional daily data value: 30.12on 09/05/11

  29. Montgomery 3 Well Well Depth: 270 feet Local Aquifer: Eutaw Formation Current water level: 30.12 ft. below land surface (9-5-2011) Record low: 30.77 ft. below land surface Period of Record : August, 1952 to Present

  30. Questions?? Annual Data Reports http://wdr.water.usgs.gov/ Alabama WSC Web Address http://al.water.usgs.gov Richard Moreland USGS Alabama Water Science Center rsmore@usgs.gov
