Hydraulic fittings are components used to connect hydraulic hoses, tubes, and pipes in hydraulic systems. They play a crucial role in ensuring leak-free connections and proper fluid transfer within hydraulic machinery and equipment.

gem21
Download Presentation

Hydraulic fitting1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

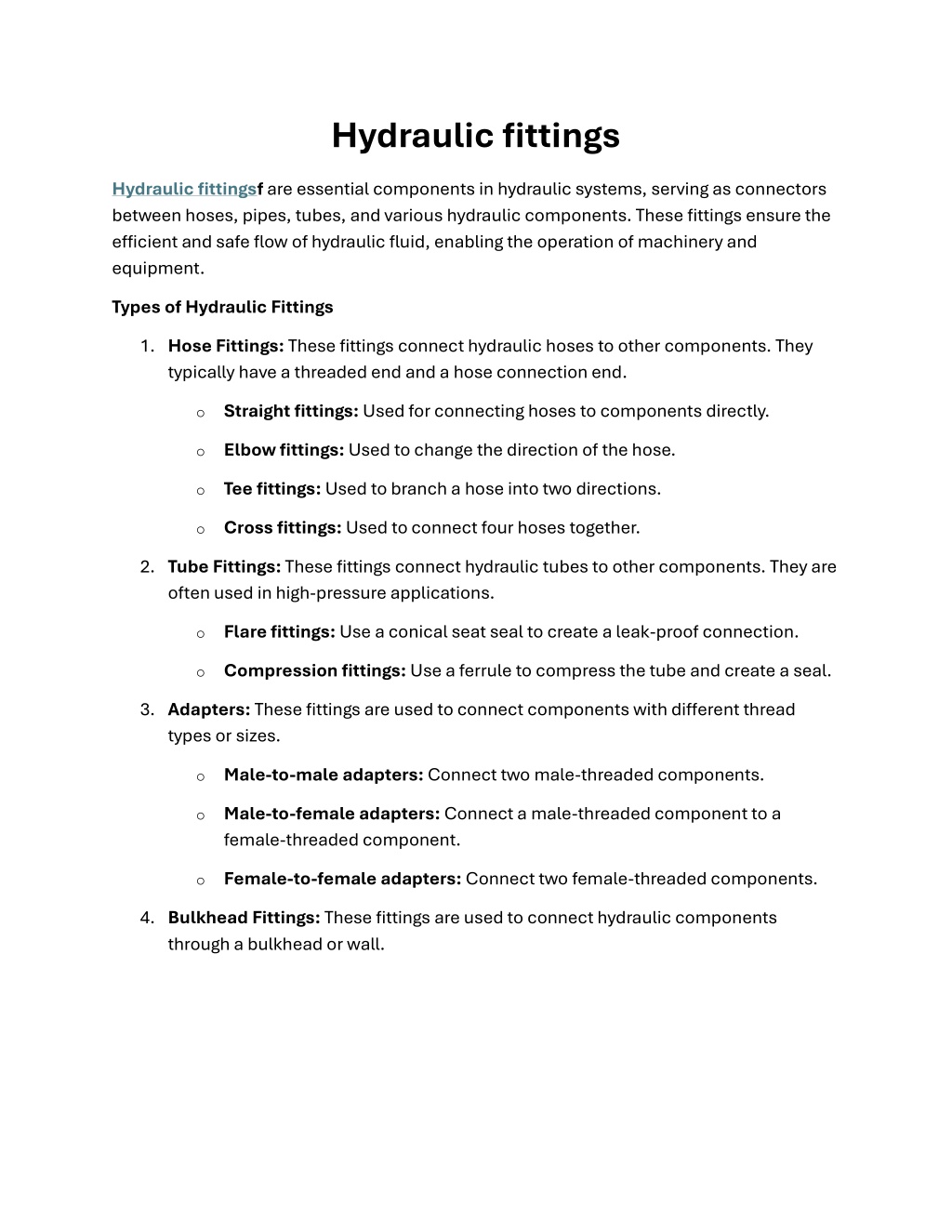

  1. Hydraulic fittings Hydraulic fittingsf are essential components in hydraulic systems, serving as connectors between hoses, pipes, tubes, and various hydraulic components. These fittings ensure the efficient and safe flow of hydraulic fluid, enabling the operation of machinery and equipment. Types of Hydraulic Fittings 1.Hose Fittings: These fittings connect hydraulic hoses to other components. They typically have a threaded end and a hose connection end. oStraight fittings: Used for connecting hoses to components directly. oElbow fittings: Used to change the direction of the hose. oTee fittings: Used to branch a hose into two directions. oCross fittings: Used to connect four hoses together. 2.Tube Fittings: These fittings connect hydraulic tubes to other components. They are often used in high-pressure applications. oFlare fittings: Use a conical seat seal to create a leak-proof connection. oCompression fittings: Use a ferrule to compress the tube and create a seal. 3.Adapters: These fittings are used to connect components with different thread types or sizes. oMale-to-male adapters: Connect two male-threaded components. oMale-to-female adapters: Connect a male-threaded component to a female-threaded component. oFemale-to-female adapters: Connect two female-threaded components. 4.Bulkhead Fittings: These fittings are used to connect hydraulic components through a bulkhead or wall.
