DAC Kabel

The Blue Optics and BlueLAN brands include the following products: Optical Transceivers, Active Optical Cable and Direct Attach Twinax Cable Solutions, MPO / MTP Solutions, SAS Solutions, Stacking Cables, Fiber Optic Patch Cords, PLC Splitters, Multiplexers, Demultiplexers, as well as other data center and cloud solutions.<br>

gbicfiber
Download Presentation

DAC Kabel

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. GBIC SHOP SUPERIOR FIBER SUPPLY https://www.gbic-shop.de/ https://www.gbic-shop.de/

  2. https://www.gbic-shop.de/ gbic-shop.de is a Manufacturer of active and passive network solutions.

  3. DAC Cables • Direct attach cables (DAC) are an alternative to the fiber optic transceivers, they eliminate the want of the usage of the transceivers by permanently attaching each ends of the cable with transceivers that may be terminated in the SFP+ slot in the communication device together with switches, routers, garage and servers. Figure 1 shows a typical direct attach cable.

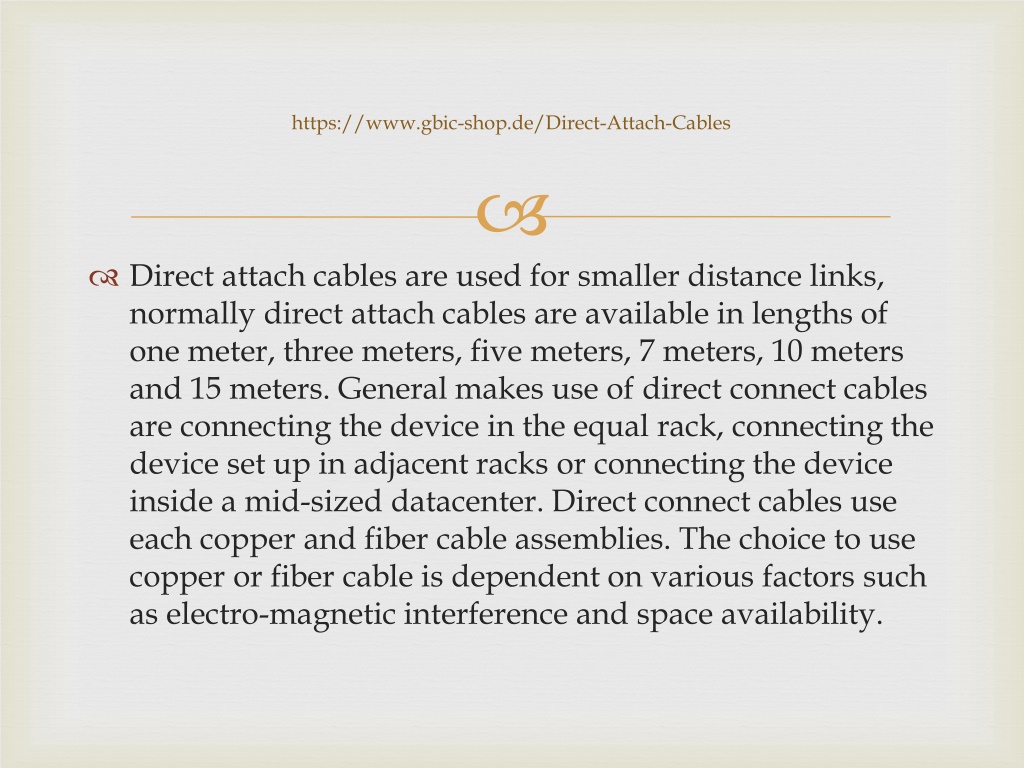

  4. https://www.gbic-shop.de/Direct-Attach-Cables • Direct attach cables are used for smaller distance links, normally direct attach cables are available in lengths of one meter, three meters, five meters, 7 meters, 10 meters and 15 meters. General makes use of direct connect cables are connecting the device in the equal rack, connecting the device set up in adjacent racks or connecting the device inside a mid-sized datacenter. Direct connect cables use each copper and fiber cable assemblies. The choice to use copper or fiber cable is dependent on various factors such as electro-magnetic interference and space availability.

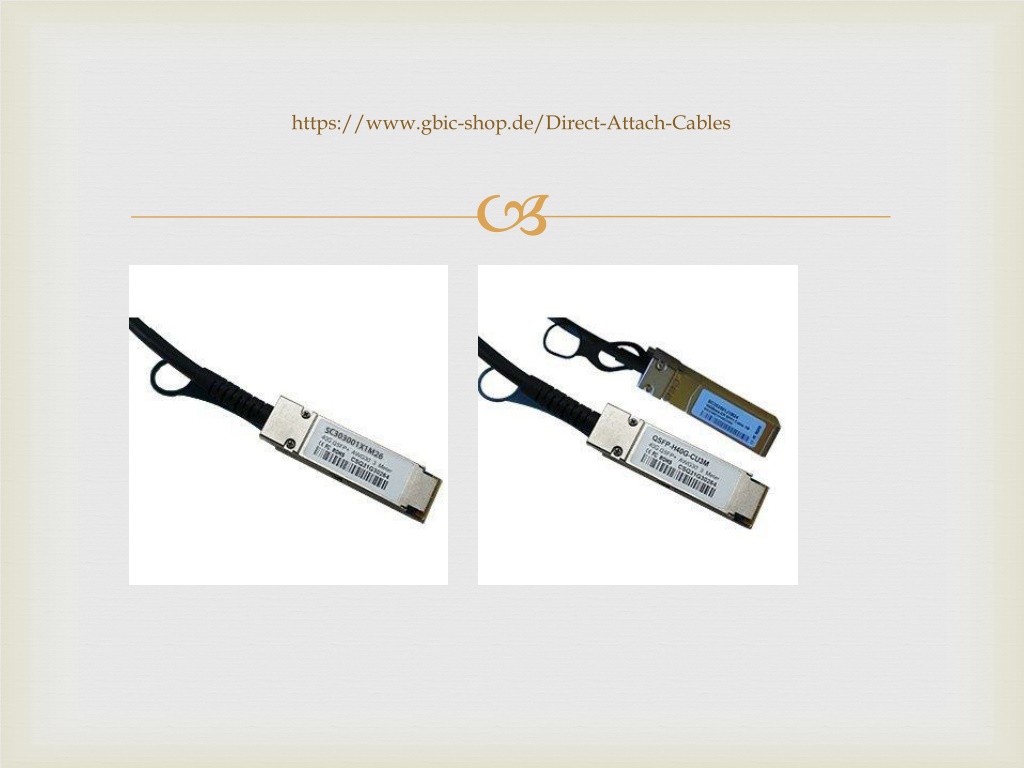

  5. https://www.gbic-shop.de/Direct-Attach-Cables

  6. OSFP DAC Kabel • A OSFP DAC Direct Attach Cable is a twinax cable solution with copper-based conductors for transmitting electric alerts at short distances. The OSFP DAC Direct Attach Cable transmit the alerts faster (i.e. with a lesser latency) and additionally require considerably much less current, in comparison to electric signals sent through a twisted pair cable. OSFP DAC Direct Attach Cables may be utilized in various hardware systems, e.g. in switches, servers, HBA's, etc. for the relationship of hardware in racks and throughout adjacent racks. OSFP DAC Direct Attach Cables are to be had in exceptional lengths and with exceptional transceiver connectors. Furthermore, OSFP DAC Direct Attach Cables are hot pluggable and consequently may be used or removed all through operation.

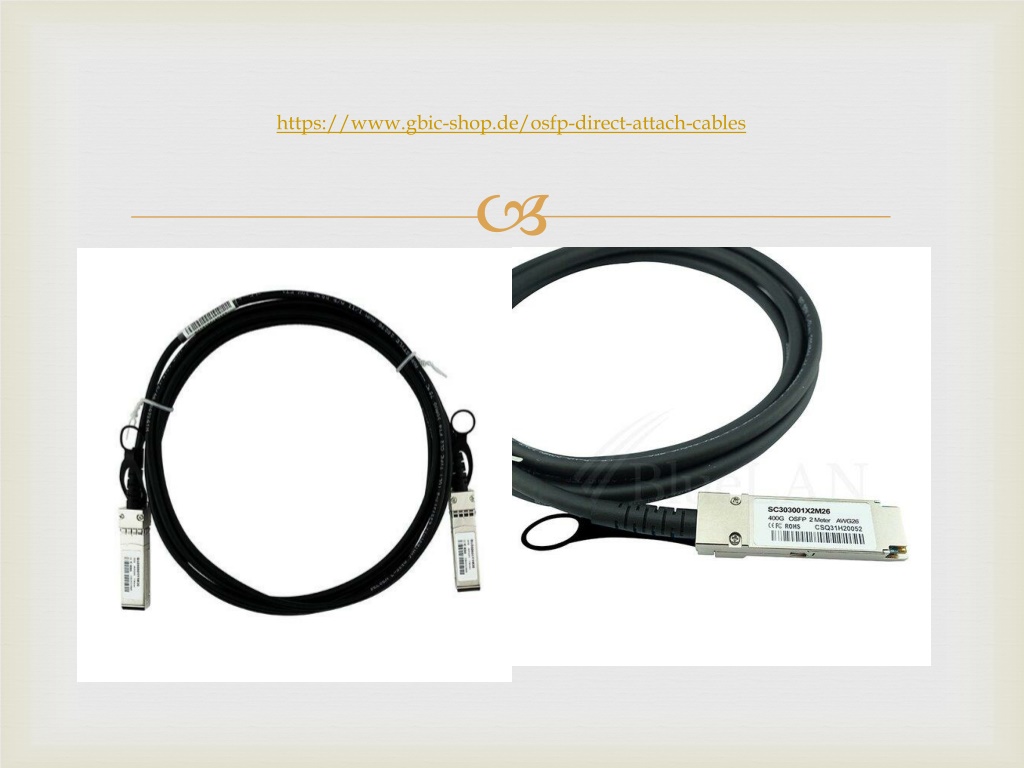

  7. https://www.gbic-shop.de/osfp-direct-attach-cables

  8. QSFP28 Direct Attach Kabel • BlueLAN QSFP28 Direct Attach Cables are suitable for the use in facts centers, networks and telecommunication installations, which require excessive velocity and reliable transmissions. This next generation which requires the equal connection interface as known QSFP+ form factors, also are backwards compatible with 40G QSFP+ ports. QSFP28 cables consequently additionally guide 10G and 40G applications with out sign integrity loss.

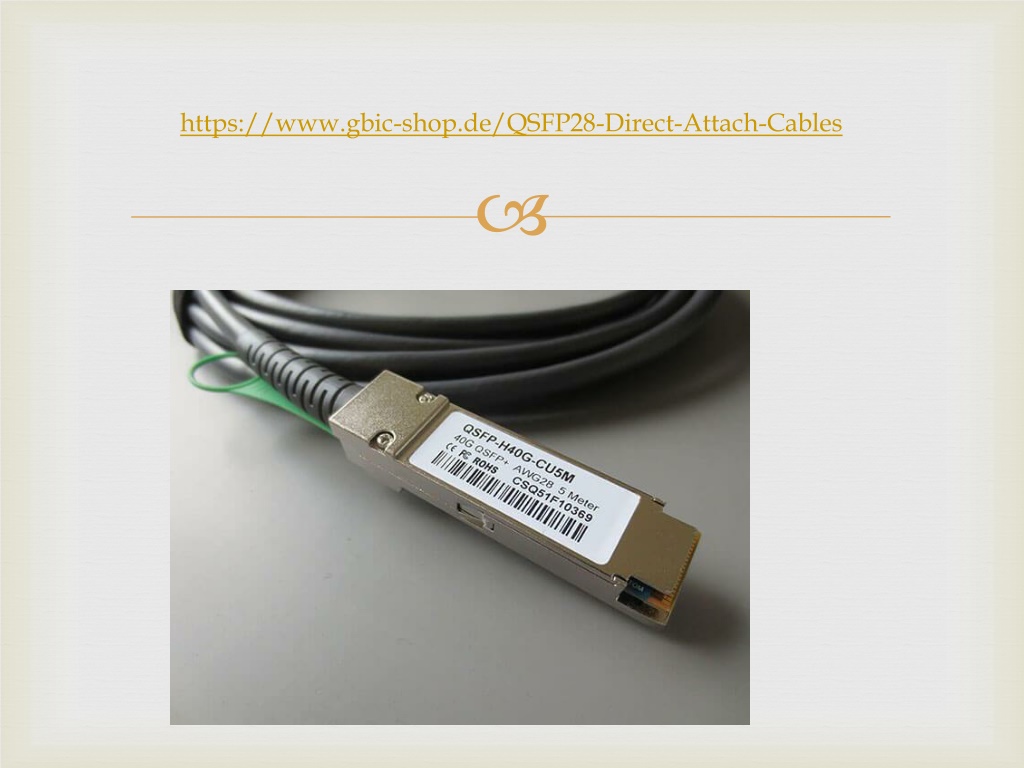

  9. https://www.gbic-shop.de/QSFP28-Direct-Attach-Cables

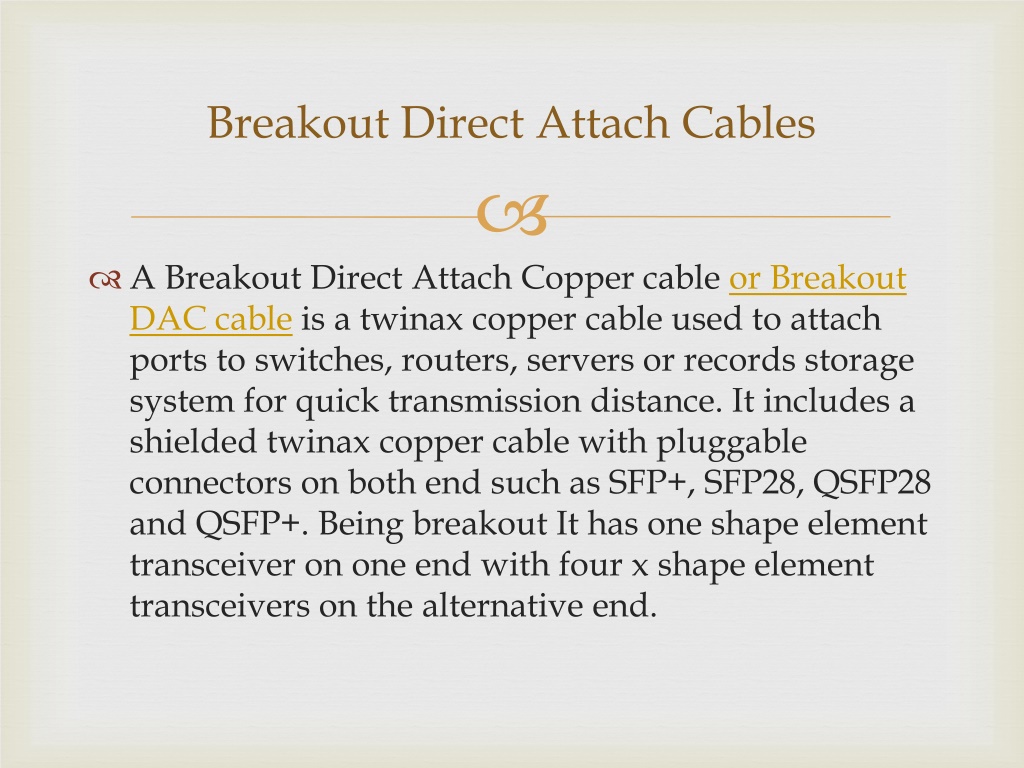

  10. Breakout Direct Attach Cables • A Breakout Direct Attach Copper cable or Breakout DAC cable is a twinax copper cable used to attach ports to switches, routers, servers or records storage system for quick transmission distance. It includes a shielded twinax copper cable with pluggable connectors on both end such as SFP+, SFP28, QSFP28 and QSFP+. Being breakout It has one shape element transceiver on one end with four x shape element transceivers on the alternative end.

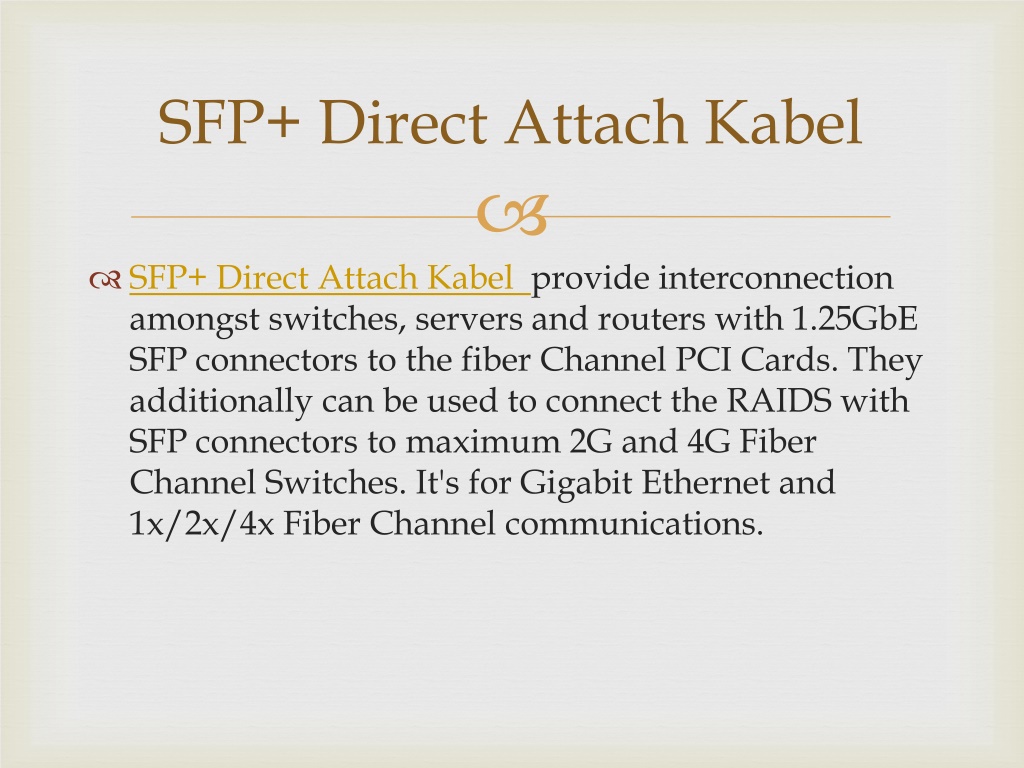

  11. SFP+ Direct Attach Kabel • SFP+ Direct Attach Kabelprovide interconnection amongst switches, servers and routers with 1.25GbE SFP connectors to the fiber Channel PCI Cards. They additionally can be used to connect the RAIDS with SFP connectors to maximum 2G and 4G Fiber Channel Switches. It's for Gigabit Ethernet and 1x/2x/4x Fiber Channel communications.

  12. https://www.gbic-shop.de/ CONTACT : Phone: 0208 - 777 247 - 0 Email: info@gbic-shop.de

  13. https://www.gbic-shop.de/ info@gbic-shop.de
