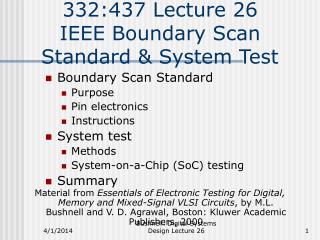

332:437 Lecture 26 IEEE Boundary Scan Standard & System Test
  • Boundary Scan Standard
    • Purpose
    • Pin electronics
    • Instructions
  • System test
    • Methods
    • System-on-a-Chip (SoC) testing
  • Summary

Material from Essentials of Electronic Testing for Digital, Memory and Mixed-Signal VLSI Circuits, by M.L. Bushnell and V. D. Agrawal, Boston: Kluwer Academic Publishers, 2000

Bushnell: Digital Systems Design Lecture 26

ieee 1149 1 boundary scan standard
IEEE 1149.1 Boundary Scan Standard

Bushnell: Digital Systems Design Lecture 26

motivation for standard
Motivation for Standard
  • Bed-of-nails printed circuit board (PCB) tester gone
    • We put components on both sides of PCB & replaced Dual In-line Packagess with flat packs to reduce inductance
      • Nails would hit components
    • Reduced spacing between PCB wires
      • Nails would short the wires
    • PCB Tester must be replaced with built-in test delivery system -- JTAG does that
    • Need standard System Test Port and Bus
    • Integrate components from different vendors
      • Test bus identical for various components
      • One chip has test hardware for other chips

Bushnell: Digital Systems Design Lecture 26

purpose of standard
Purpose of Standard
  • Lets test instructions and test data be serially fed into a component-under-test (CUT)
    • Allows reading out of test results
    • Allows RUNBIST command as an instruction
      • Too many shifts to shift in external tests
  • JTAG can operate at chip, PCB, & system levels
  • Allows control of tri-state signals during testing
  • Lets other chips collect responses from CUT
  • Lets system interconnect be tested separately from components
  • Lets components be tested separately from wires

Bushnell: Digital Systems Design Lecture 26

system test logic
System Test Logic

Bushnell: Digital Systems Design Lecture 26

instruction register loading with jtag
Instruction Register Loading with JTAG

Bushnell: Digital Systems Design Lecture 26

system view of interconnect
System View of Interconnect

Bushnell: Digital Systems Design Lecture 26

boundary scan chain view
Boundary Scan Chain View

Bushnell: Digital Systems Design Lecture 26

elementary boundary scan cell
Elementary Boundary Scan Cell

Bushnell: Digital Systems Design Lecture 26

serial board mcm scan
Serial Board / MCM Scan

Bushnell: Digital Systems Design Lecture 26

parallel board mcm scan
Parallel Board / MCM Scan

Bushnell: Digital Systems Design Lecture 26

tap controller signals
Tap Controller Signals
  • Test Access Port (TAP) includes these signals:
    • Test Clock Input(TCK) -- Clock for test logic
      • Can run at different rate from system clock
    • Test Mode Select(TMS) -- Switches system from functional to test mode
    • Test Data Input(TDI) -- Accepts serial test data and instructions -- used to shift in vectors or one of many test instructions
    • Test Data Output(TDO) -- Serially shifts out test results captured in boundary scan chain (or device ID or other internal registers)
    • Test Reset(TRST) -- Optional asynchronous TAP controller reset

Bushnell: Digital Systems Design Lecture 26

sample preload instruction sample
SAMPLE / PRELOAD Instruction -- SAMPLE

Purpose:

Get snapshot of normal chip output signals

Put data on bound. scan chain before next instr.

Bushnell: Digital Systems Design Lecture 26

sample preload instruction preload
SAMPLE / PRELOAD Instruction -- PRELOAD

Bushnell: Digital Systems Design Lecture 26

extest instruction
EXTEST Instruction
  • Purpose: Test off-chip circuits and board-level interconnections

Bushnell: Digital Systems Design Lecture 26

intest instruction
INTEST Instruction
  • Purpose:
    • Shifts external test patterns onto component
    • External tester shifts component responses out

Bushnell: Digital Systems Design Lecture 26

runbist instruction
RUNBIST Instruction
  • Purpose: Allows you to issue BIST command to component through JTAG hardware
  • Optional instruction
  • Lets test logic control state of output pins
    • Can be determined by pin boundary scan cell
    • Can be forced into high impedance state
  • BIST result (success or failure) can be left in boundary scan cell or internal cell
    • Shift out through boundary scan chain
  • May leave chip pins in an indeterminate state (reset required before normal operation resumes)

Bushnell: Digital Systems Design Lecture 26

clamp instruction
CLAMP Instruction
  • Purpose: Forces component output signals to be driven by boundary-scan register
  • Bypasses the boundary scan chain by using the one-bit Bypass Register
  • Optional instruction
  • May have to add RESET hardware to control on-chip logic so that it does not get damaged (by shorting 0’s and 1’s onto an internal bus, etc.)

Bushnell: Digital Systems Design Lecture 26

idcode instruction
IDCODE Instruction
  • Purpose: Connects the component device identification register serially between TDI and TDO
    • In the Shift-DR TAP controller state
  • Allows board-level test controller or external tester to read out component ID
  • Required whenever a JEDEC identification register is included in the design

Bushnell: Digital Systems Design Lecture 26

device id register jedec code

MSB

LSB

31 28

Version

(4 bits)

27 12

Part

Number

(16 bits)

11 1

Manufacturer

Identity

(11 bits)

0

‘1’

(1 bit)

Device ID Register --JEDEC Code

Bushnell: Digital Systems Design Lecture 26

usercode instruction
USERCODE Instruction
  • Purpose: Intended for user-programmable components (FPGA’s, EEPROMs, etc.)
    • Allows external tester to determine user programming of component
  • Selects the device identification register as serially connected between TDI and TDO
  • User-programmable ID code loaded into device identification register
    • On rising TCK edge
  • Switches component test hardware to its system function
  • Required when Device ID register included on user-programmable component

Bushnell: Digital Systems Design Lecture 26

highz instruction
HIGHZ Instruction
  • Purpose: Puts all component output pin signals into high-impedance state
  • Control chip logic to avoid damage in this mode
  • May have to reset component after HIGHZ runs
  • Optional instruction

Bushnell: Digital Systems Design Lecture 26

bypass instruction
BYPASS Instruction
  • Purpose: Bypasses scan chain with 1-bit register

Bushnell: Digital Systems Design Lecture 26

summary
Summary
  • Boundary Scan Standard has become absolutely essential --
    • No longer possible to test printed circuit boards with bed-of-nails tester
    • Not possible to test multi-chip modules at all without it
    • Supports BIST, external testing with Automatic Test Equipment, and boundary scan chain reconfiguration as BIST pattern generator and response compacter
    • Now getting widespread usage

Bushnell: Digital Systems Design Lecture 26

system test
System Test

Bushnell: Digital Systems Design Lecture 26

a system and its testing
A System and Its Testing
  • A system is an organization of components (hardware/software parts and subsystems) with capability to perform useful functions.
  • Functional test verifies integrity of system:
      • Checks for presence and sanity of subsystems
      • Checks for system specifications
      • Executes selected (critical) functions
  • Diagnostic test isolates faulty part:
      • For field maintenance isolates lowest replaceable unit (LRU), e.g., a board, disc drive, or I/O subsystem
      • For shop repair isolates shop replaceable unit (SRU), e.g., a faulty chip on a board
      • Diagnostic resolution is the number of suspected faulty units identified by test; fewer suspects mean higher resolution

Bushnell: Digital Systems Design Lecture 26

system test partitioning for test
System Test: Partitioning for Test
  • Partition according to test methodology:
    • Logic, Memory, and Analog blocks
  • Provide test access:
    • Boundary scan
    • Analog test bus
  • Provide test-wrappers (also called collars) for cores
    • Core is a chip layout part
    • System-on-a-chip made up of multiple cores

Bushnell: Digital Systems Design Lecture 26

test wrapper for a core
Test-Wrapper for a Core
  • Test-wrapper (or collar) is the logic added around a core to provide test access to the embedded core.
  • Test-wrapper provides:
    • For each core input terminal
      • A normal mode – Core terminal driven by host chip
      • An external test mode – Wrapper element observes core input terminal for interconnect test
      • An internal test mode – Wrapper element controls state of core input terminal for testing the logic inside core
    • For each core output terminal
      • A normal mode – Host chip driven by core terminal
      • An external test mode – Host chip is driven by wrapper element for interconnect test
      • An internal test mode – Wrapper element observes core outputs for core test

Bushnell: Digital Systems Design Lecture 26

a test wrapper

Wrapper

elements

Core

Functional

core inputs

Functional

core outputs

Scan chain

Scan chain

from/to

External

Test pins

Scan chain

to/from TAP

A Test-Wrapper

Wrapper

test

controller

Bushnell: Digital Systems Design Lecture 26

dft architecture for soc
DFT Architecture for SOC

Test

source

Test

sink

User defined test access mechanism (TAM)

Func.

outputs

Functional

outputs

Functional

inputs

Func.

inputs

Module

1

Module

N

Test

Test

wrapper

wrapper

Instruction register control

Test access port (TAP)

Serial instruction data

TDI

SOC outputs

TMS

TCK

TDO

SOC inputs

TRST

Bushnell: Digital Systems Design Lecture 26

summary31
Summary
  • Functional test: verify system hardware, software, function and performance; pass/fail test with limited diagnosis; high (~100%) software coverage metrics; low (~70%) structural fault coverage.
  • Diagnostic test: High structural coverage; high diagnostic resolution; procedures use fault dictionary or diagnostic tree.
  • SOC design for testability:
      • Partition SOC into blocks of logic, memory and analog circuitry, often on architectural boundaries.
      • Provide external or built-in tests for blocks.
      • Provide test access via boundary scan and/or analog test bus.
      • Develop interconnect tests and system functional tests.
      • Develop diagnostic procedures.

Bushnell: Digital Systems Design Lecture 26

references
References
  • For a course on testing taught at Rutgers University, see website:

http://www.caip.rutgers.edu/~bushnell/rutgers.html

Bushnell: Digital Systems Design Lecture 26
