332:437 Lecture 17 FSM Hardware Modification for Reliability

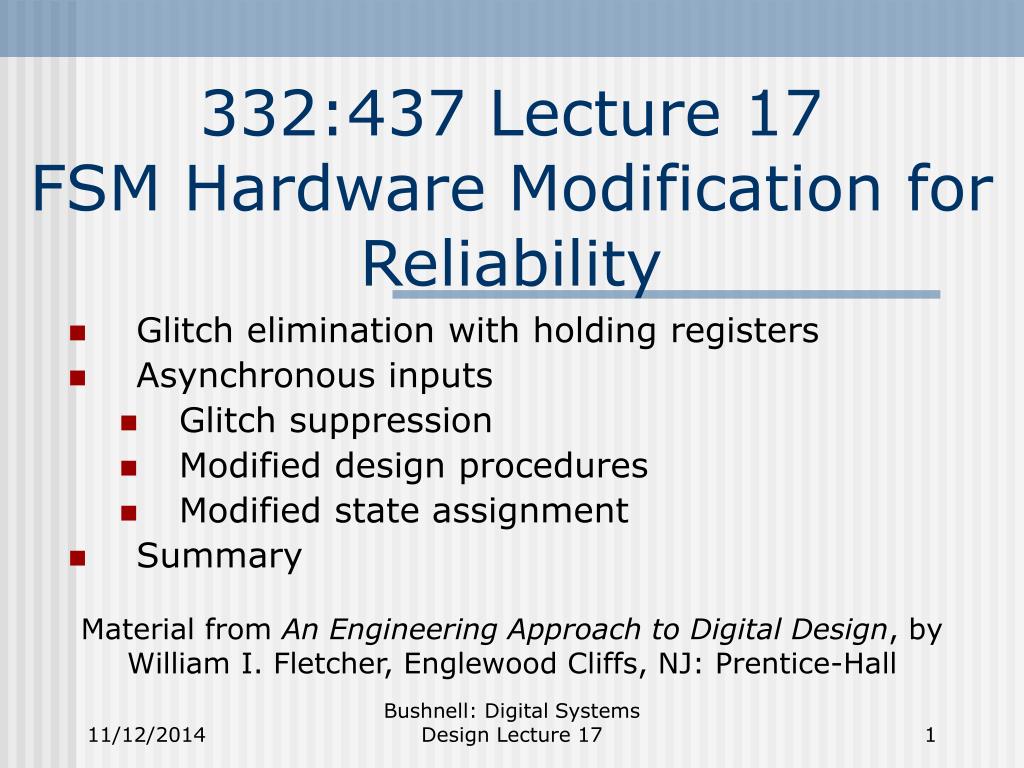

1. 332:437 Lecture 17 FSM Hardware Modification for Reliability • Glitch elimination with holding registers • Asynchronous inputs • Glitch suppression • Modified design procedures • Modified state assignment • Summary Material from An Engineering Approach to Digital Design, by William I. Fletcher, Englewood Cliffs, NJ: Prentice-Hall Bushnell: Digital Systems Design Lecture 17

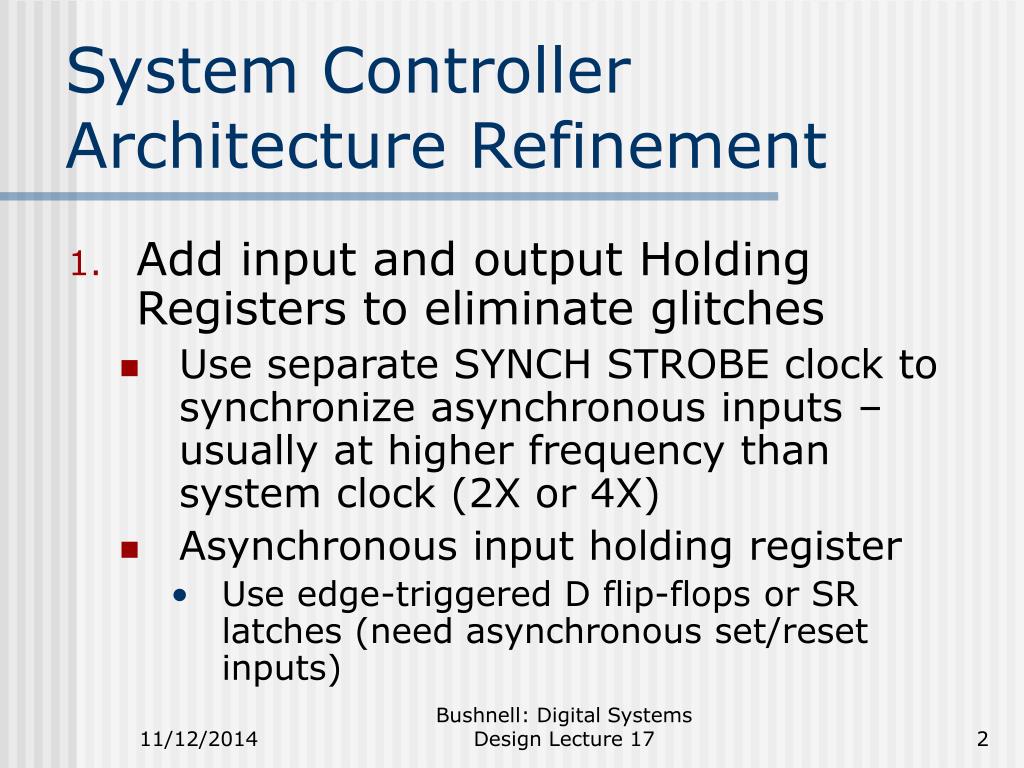

2. System Controller Architecture Refinement • Add input and output Holding Registers to eliminate glitches • Use separate SYNCH STROBE clock to synchronize asynchronous inputs – usually at higher frequency than system clock (2X or 4X) • Asynchronous input holding register • Use edge-triggered D flip-flops or SR latches (need asynchronous set/reset inputs) Bushnell: Digital Systems Design Lecture 17

3. Example of Unwanted Glitches Bushnell: Digital Systems Design Lecture 17

4. State Machine Without Holding Registers Bushnell: Digital Systems Design Lecture 17

5. State Machine with Input & Output Holding Registers Bushnell: Digital Systems Design Lecture 17

6. State Machine with Holding & Async. Set/Reset Registers Bushnell: Digital Systems Design Lecture 17

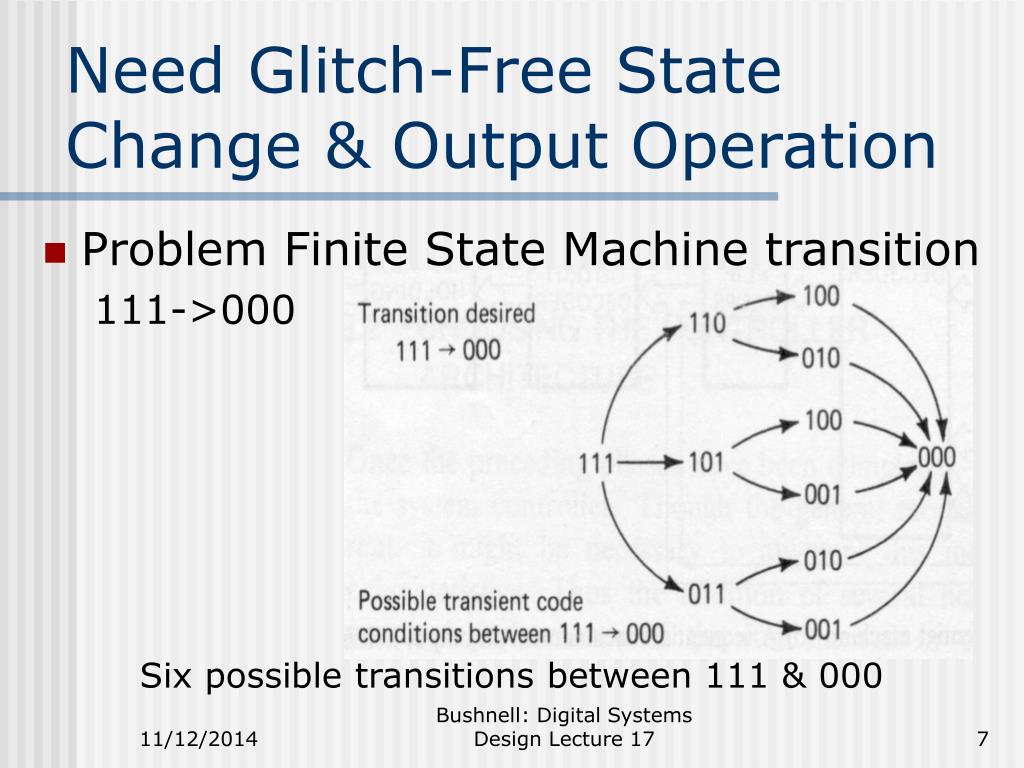

7. Need Glitch-Free State Change & Output Operation • Problem Finite State Machine transition 111->000 Six possible transitions between 111 & 000 Bushnell: Digital Systems Design Lecture 17

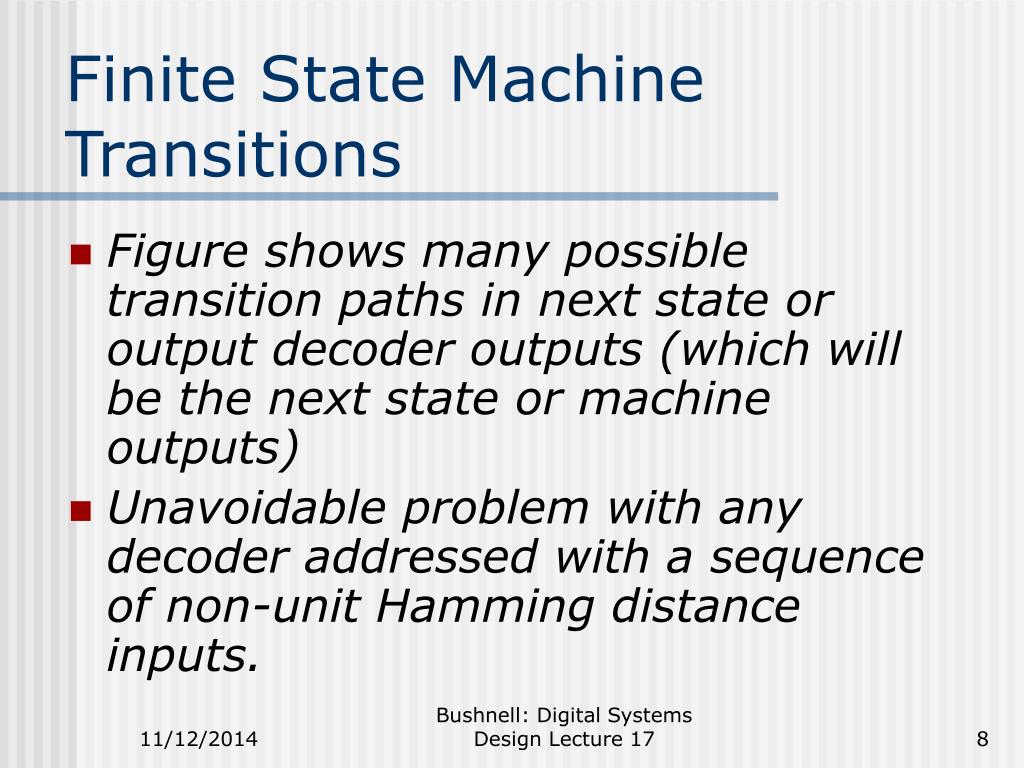

8. Finite State Machine Transitions • Figure shows many possible transition paths in next state or output decoder outputs (which will be the next state or machine outputs) • Unavoidable problem with any decoder addressed with a sequence of non-unit Hamming distance inputs. Bushnell: Digital Systems Design Lecture 17

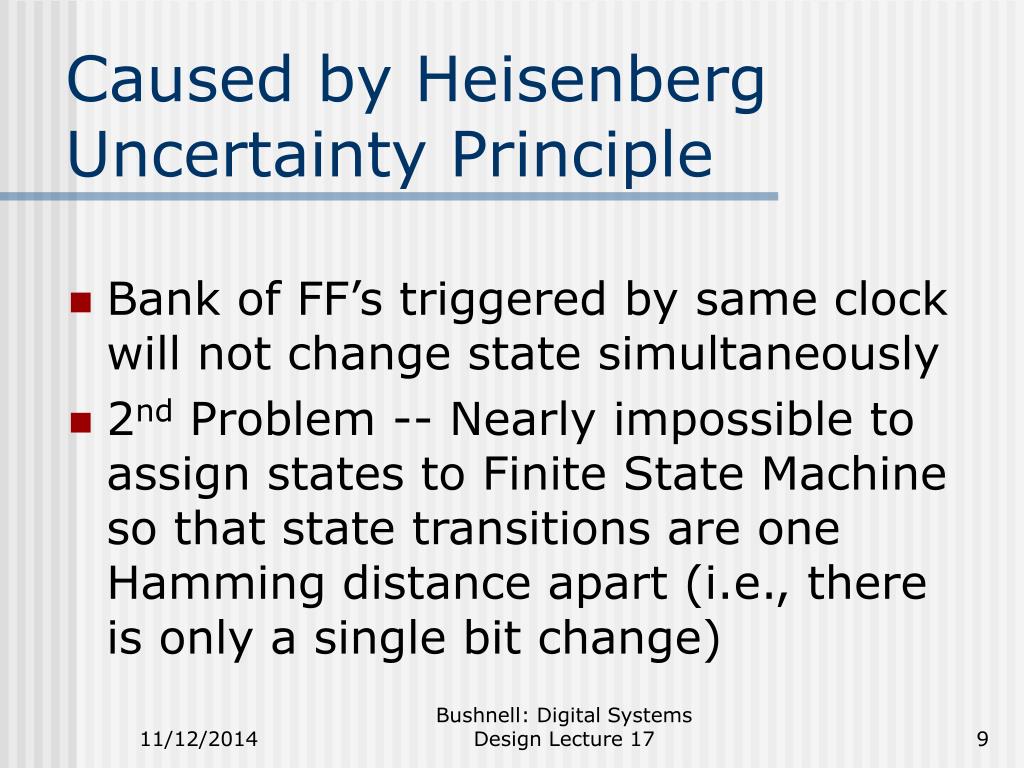

9. Caused by Heisenberg Uncertainty Principle • Bank of FF’s triggered by same clock will not change state simultaneously • 2nd Problem -- Nearly impossible to assign states to Finite State Machine so that state transitions are one Hamming distance apart (i.e., there is only a single bit change) Bushnell: Digital Systems Design Lecture 17

10. Glitch-Suppression Methods • Fix output decoder • Disable O/P decoder prior to state change • Maintain disabled condition for some Dt after state change, to allow state change & transient to settle out • Main Problem: Outputs that must remain asserted through several clock cycles are not allowed Bushnell: Digital Systems Design Lecture 17

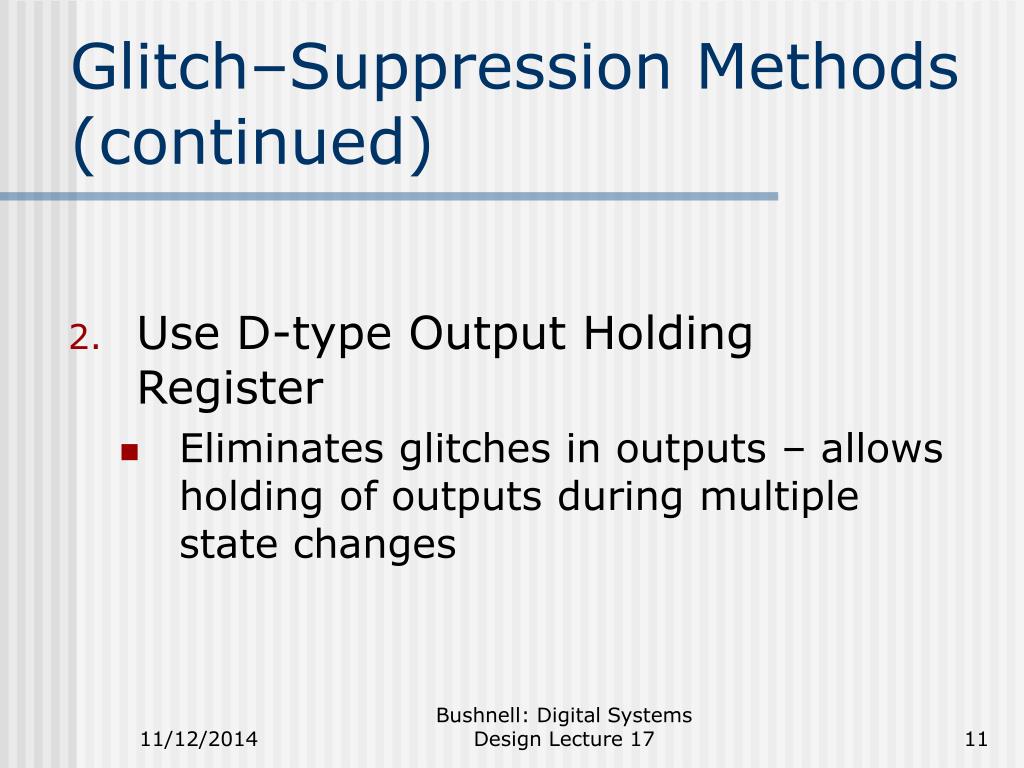

11. Glitch–Suppression Methods (continued) • Use D-type Output Holding Register • Eliminates glitches in outputs – allows holding of outputs during multiple state changes Bushnell: Digital Systems Design Lecture 17

12. Glitch-Free Timing with Output Holding Register Bushnell: Digital Systems Design Lecture 17

13. Output Holding Register • Uses special OUTSTROBE pulse to clock Holding Register some phase delay after clock goes high Bushnell: Digital Systems Design Lecture 17

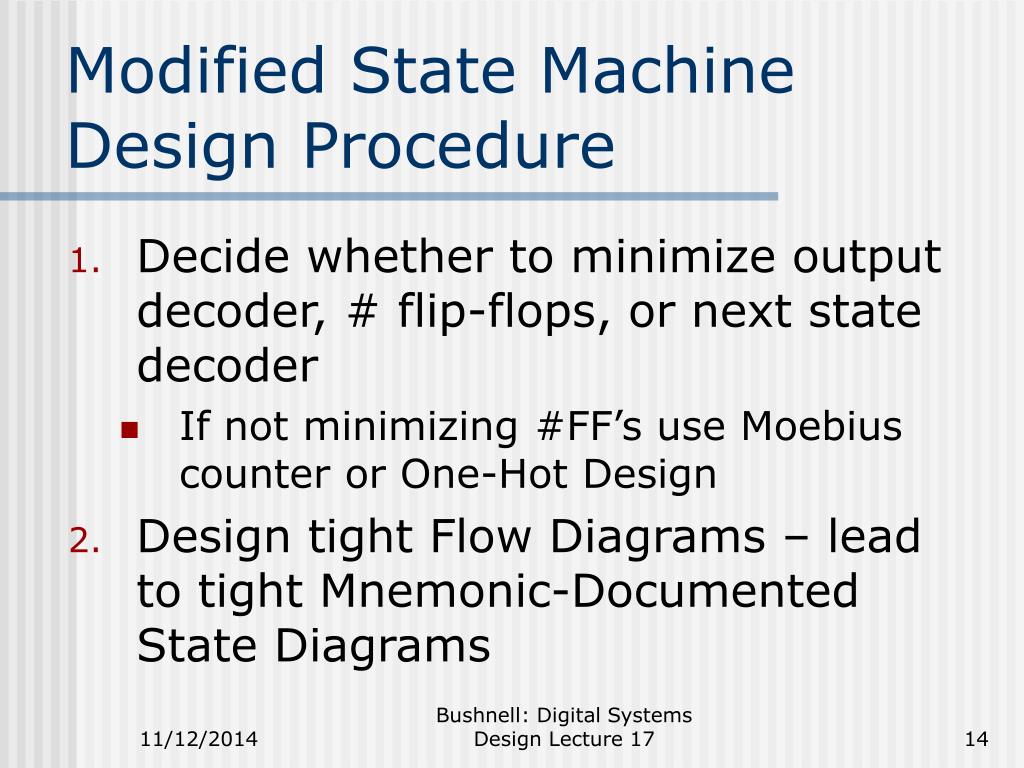

14. Modified State Machine Design Procedure • Decide whether to minimize output decoder, # flip-flops, or next state decoder • If not minimizing #FF’s use Moebius counter or One-Hot Design • Design tight Flow Diagrams – lead to tight Mnemonic-Documented State Diagrams Bushnell: Digital Systems Design Lecture 17

15. Modified State Machine Design Procedure (continued) • Use “minimal locus” & “reduced “input dependency” state assignment procedures Bushnell: Digital Systems Design Lecture 17

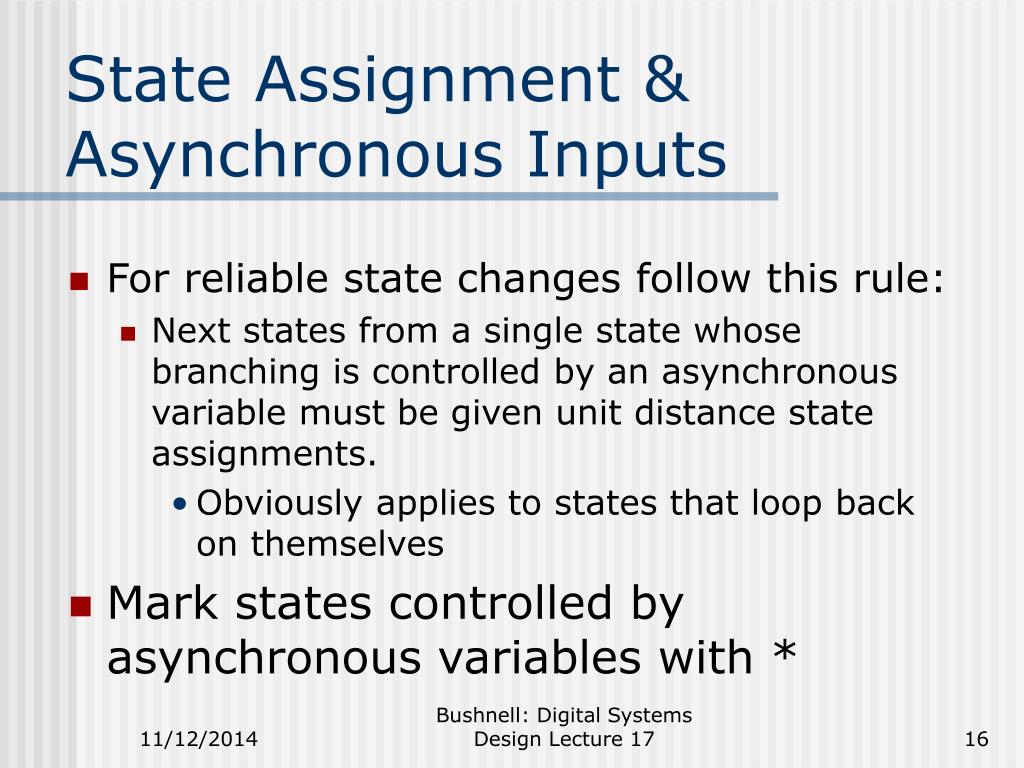

16. State Assignment & Asynchronous Inputs • For reliable state changes follow this rule: • Next states from a single state whose branching is controlled by an asynchronous variable must be given unit distance state assignments. • Obviously applies to states that loop back on themselves • Mark states controlled by asynchronous variables with * Bushnell: Digital Systems Design Lecture 17

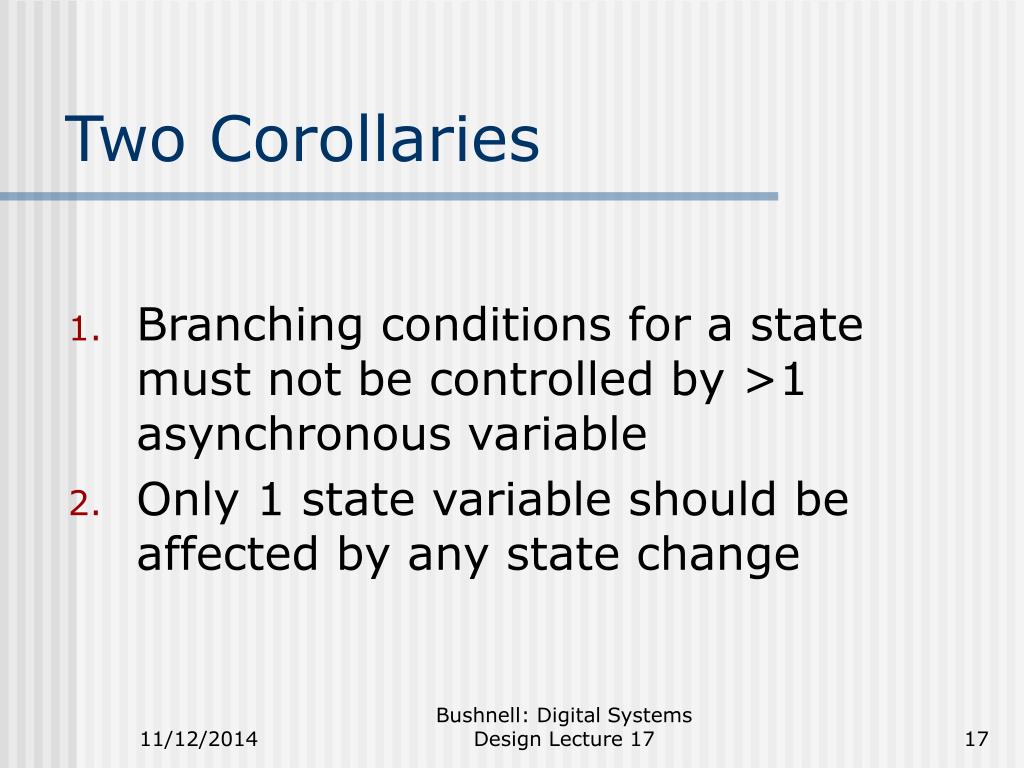

17. Two Corollaries • Branching conditions for a state must not be controlled by >1 asynchronous variable • Only 1 state variable should be affected by any state change Bushnell: Digital Systems Design Lecture 17

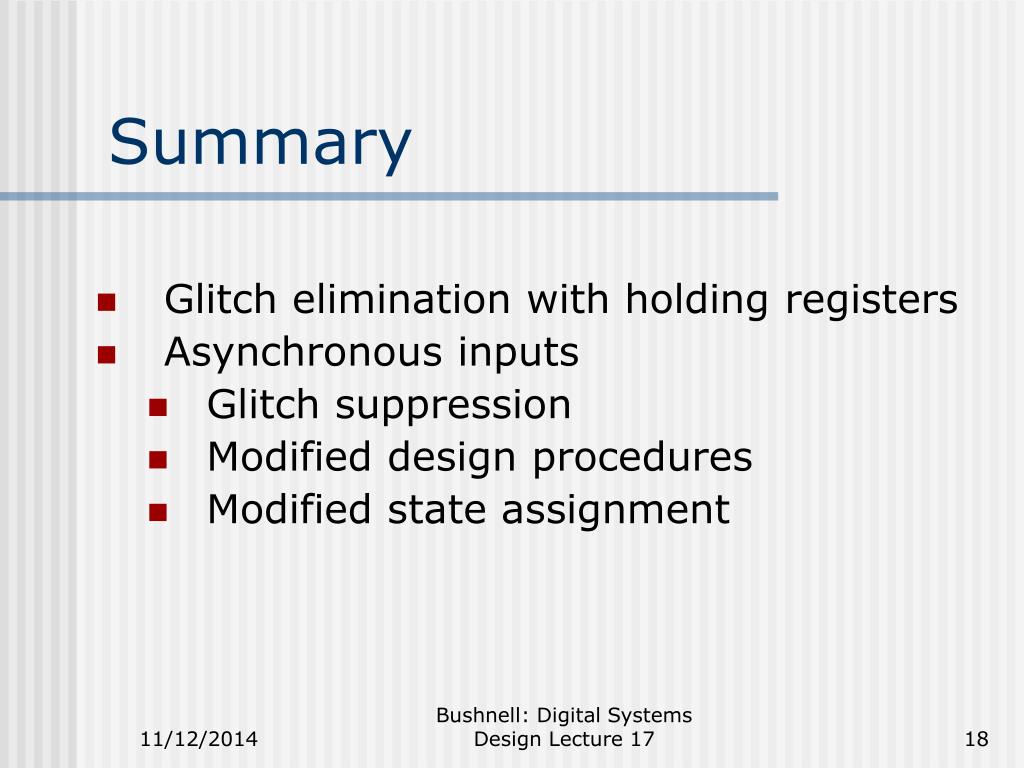

18. Summary • Glitch elimination with holding registers • Asynchronous inputs • Glitch suppression • Modified design procedures • Modified state assignment Bushnell: Digital Systems Design Lecture 17
