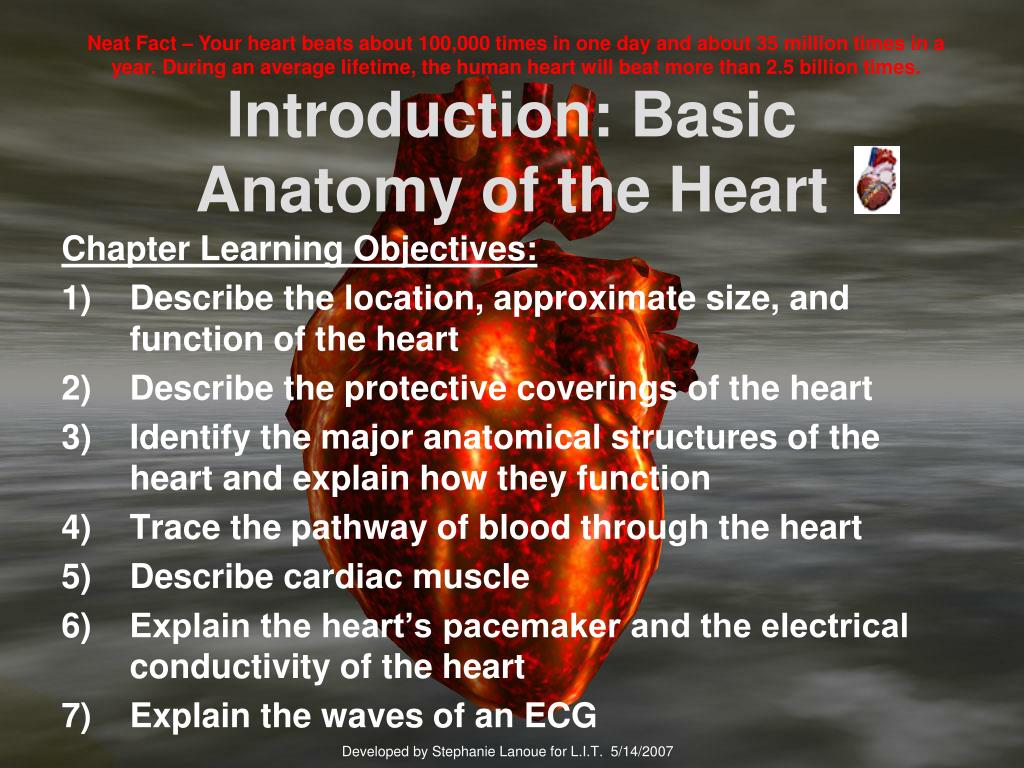

introduction basic anatomy of the heart

Neat Fact – Your heart beats about 100,000 times in one day and about 35 million times in a year. During an average lifetime, the human heart will beat more than 2.5 billion times.

Introduction: Basic Anatomy of the Heart

Chapter Learning Objectives:

Describe the location, approximate size, and function of the heart

Describe the protective coverings of the heart

3) Identify the major anatomical structures of the heart and explain how they function

Trace the pathway of blood through the heart

Describe cardiac muscle

Explain the heart’s pacemaker and the electrical conductivity of the heart

Explain the waves of an ECG

Developed by Stephanie Lanoue for L.I.T. 5/14/2007

slide2

Where is Your Heart Located?

Try this:

1)Stand up.

2)Put your hand on your heart (keep it there).

Neat Fact: The heart pumps about 1 million barrels of blood during an average lifetime--that's enough to fill more than 3 super tankers.

slide3

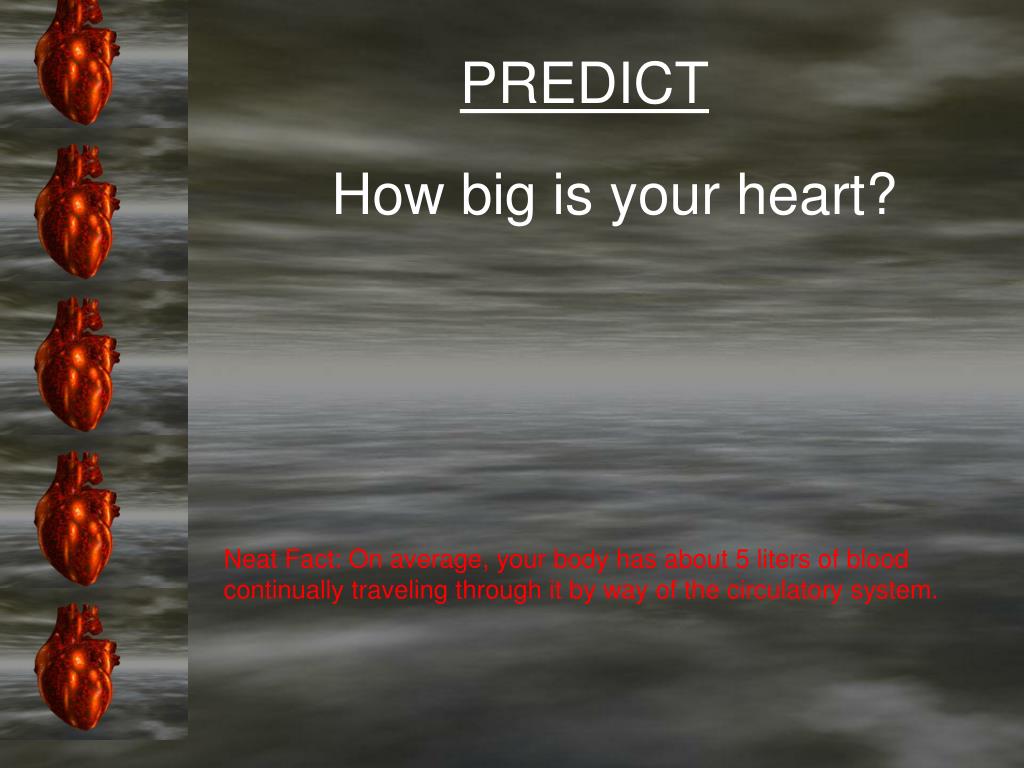

PREDICT

How big is your heart?

Neat Fact: On average, your body has about 5 liters of blood continually traveling through it by way of the circulatory system.

slide4

How Would You Describe the Heart? What Do You Already Know About It?

Class Activity: Appreciating Your Heart as a Pump.

slide5

The Heart’s Protective Coverings

▪ Do you know that the heart has 2 protective membranes around it?

Heart enclosed in double-walled sac called the ________________.

Superficial – fibrous pericardium

Deep – serous pericardium

*between the 2 layers is some fluid

slide6

Remember the number…

4

Next, we are going to learn basic heart anatomy:

▪ 4 chambers

▪ 4 valves

▪ 4 main blood vessels coming into/ exiting the heart

slide7

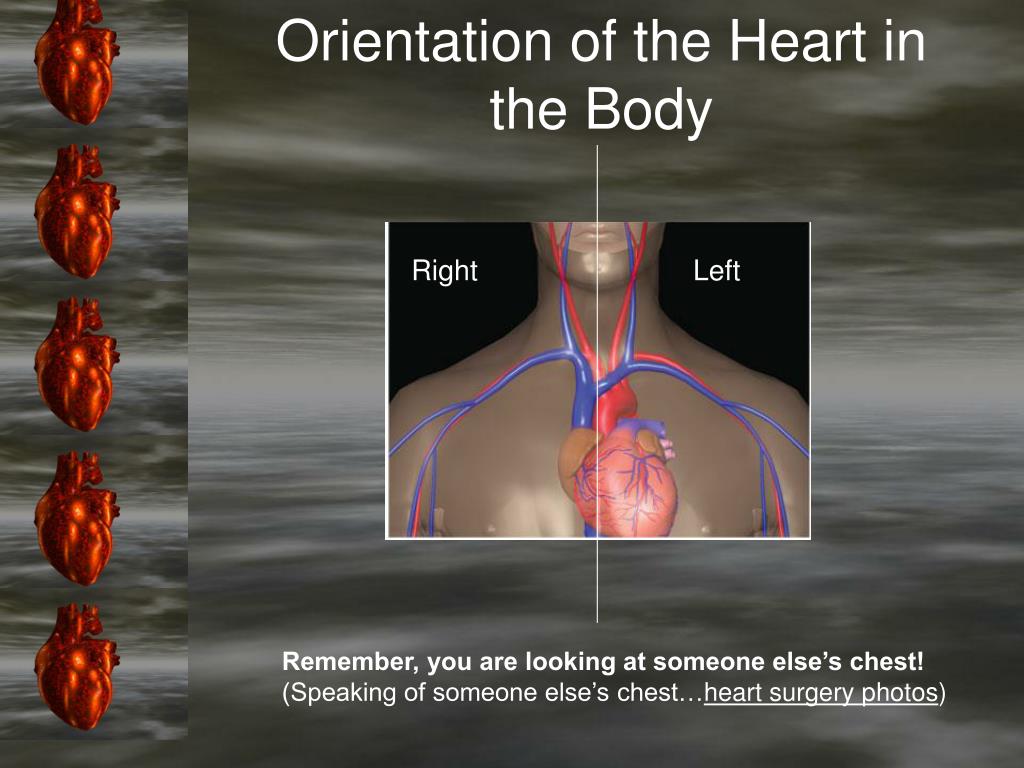

Orientation of the Heart in the Body

Right

Right

Left

Left

Remember, you are looking at someone else’s chest!

(Speaking of someone else’s chest…heart surgery photos)

slide9

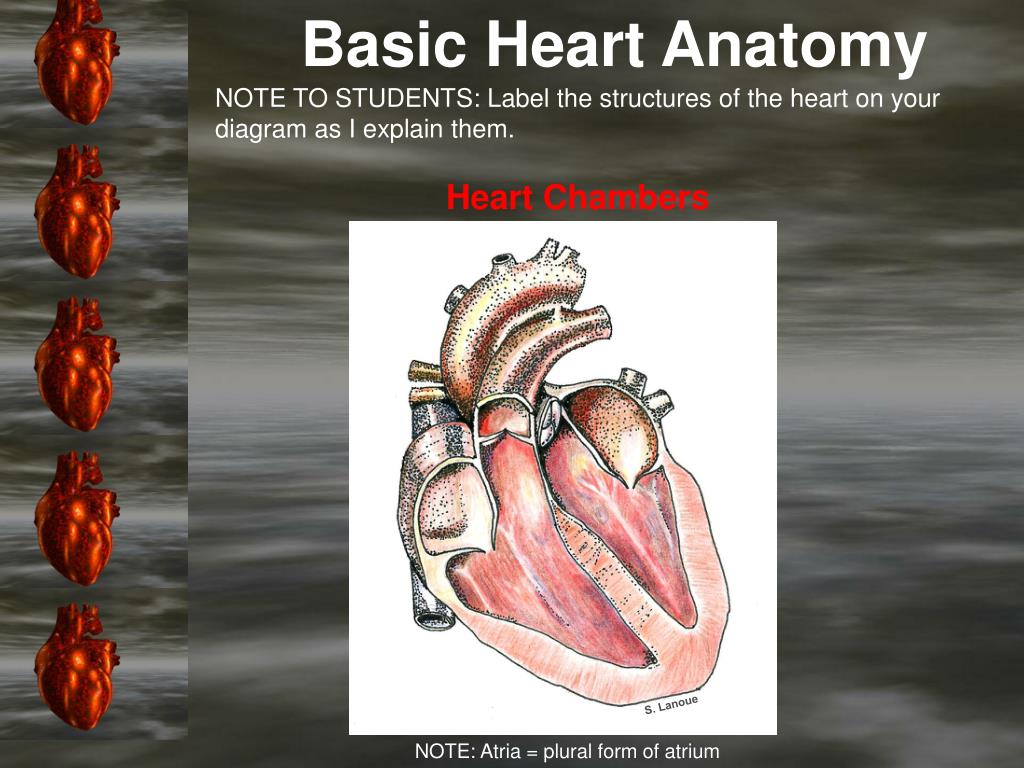

Basic Heart Anatomy

NOTE TO STUDENTS: Label the structures of the heart on your diagram as I explain them.

Heart Chambers

S. Lanoue

NOTE: Atria = plural form of atrium

slide10

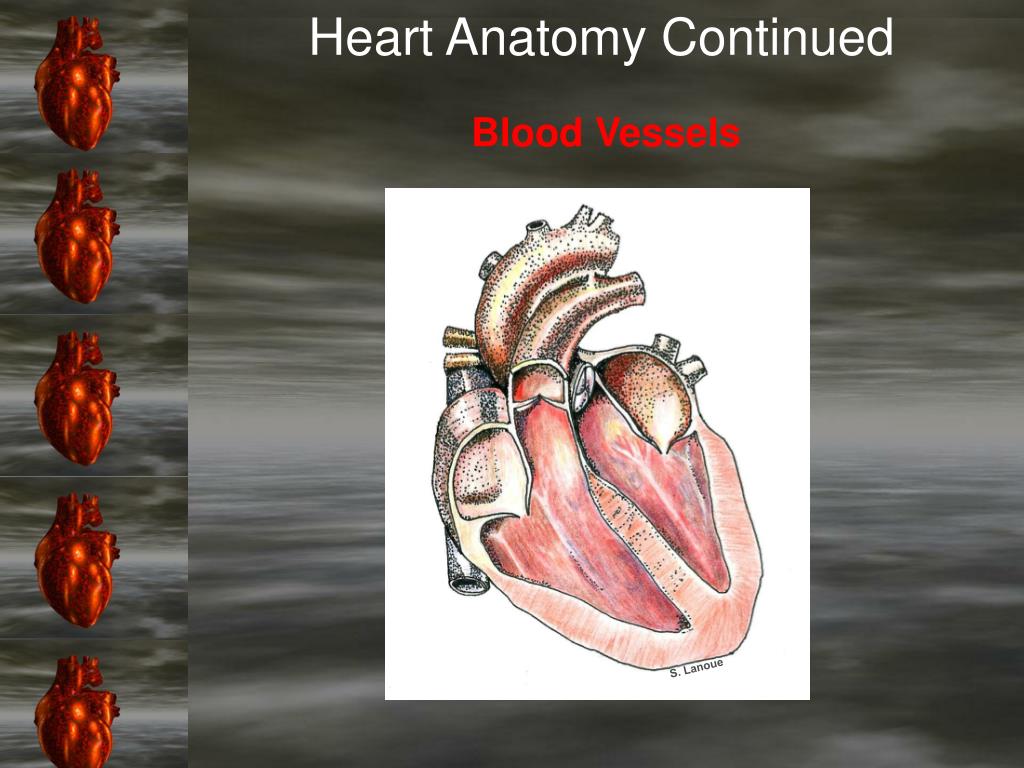

Heart Anatomy Continued

Blood Vessels

S. Lanoue

slide11

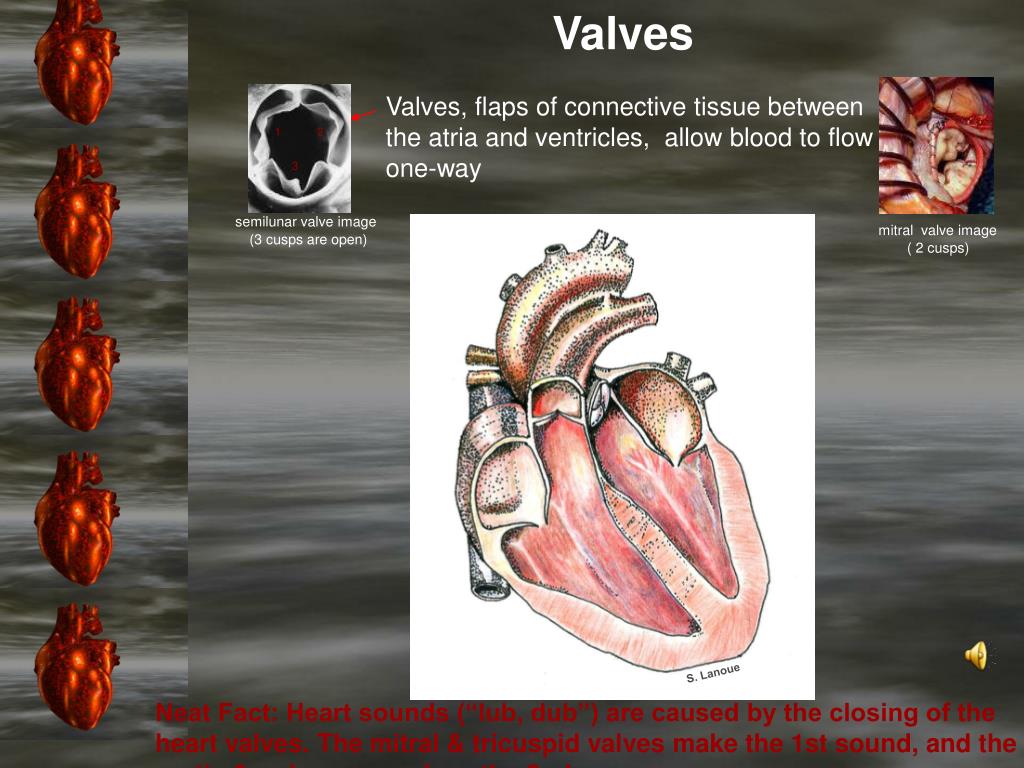

Valves

Valves, flaps of connective tissue between the atria and ventricles, allow blood to flow one-way

1

2

3

semilunar valve image

(3 cusps are open)

mitral valve image

( 2 cusps)

S. Lanoue

Neat Fact: Heart sounds (“lub, dub”) are caused by the closing of the heart valves. The mitral & tricuspid valves make the 1st sound, and the aortic & pulmonary valves the 2nd.

slide12

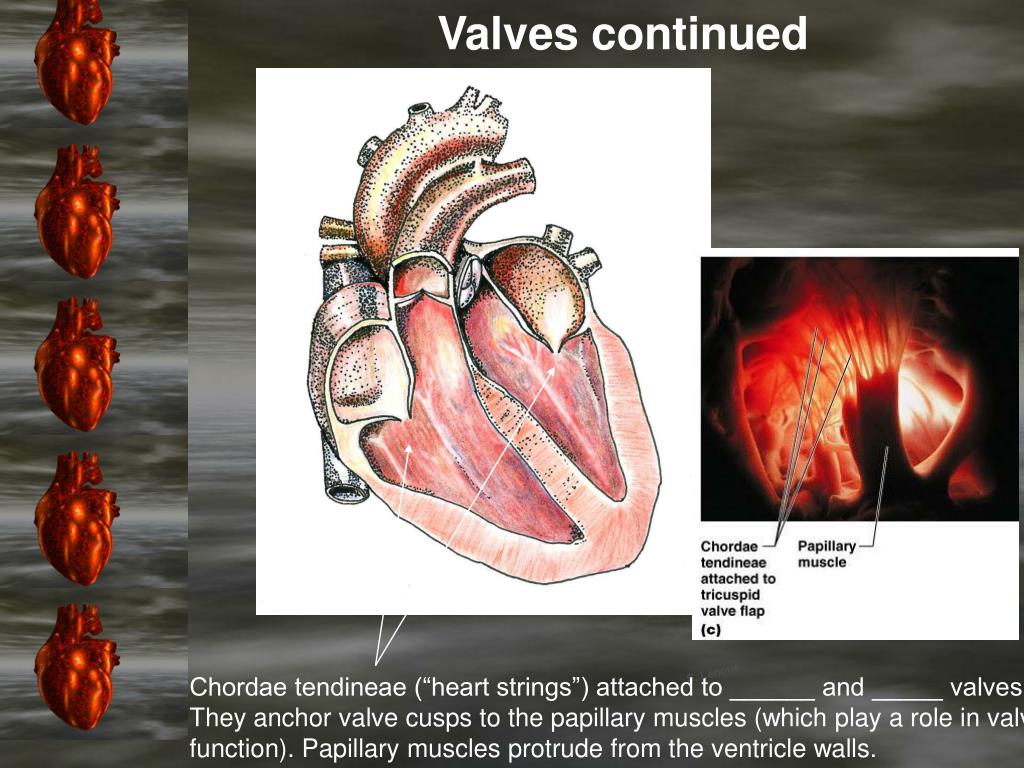

Valves continued

S. Lanoue

Chordae tendineae (“heart strings”) attached to ______ and _____ valves. They anchor valve cusps to the papillary muscles (which play a role in valve function). Papillary muscles protrude from the ventricle walls.

slide13

12

1

11

10

2

9

3

8

4

7

5

6

REVIEW

S. Lanoue

slide14

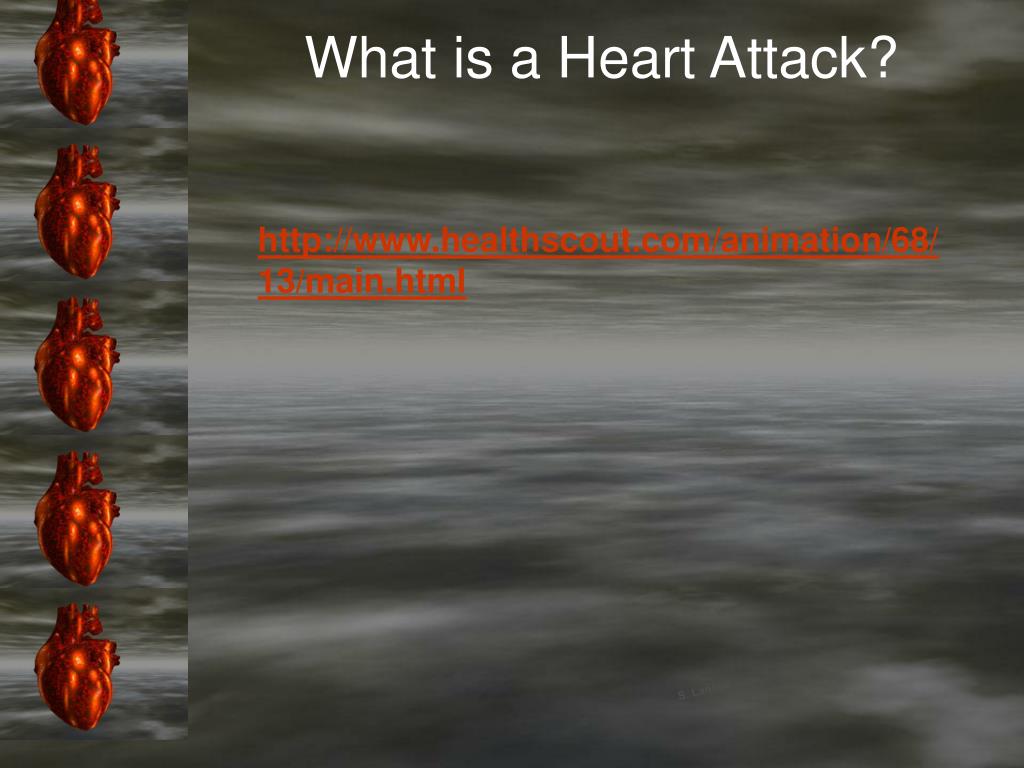

What is a Heart Attack?

http://www.healthscout.com/animation/68/13/main.html

S. Lanoue

slide15

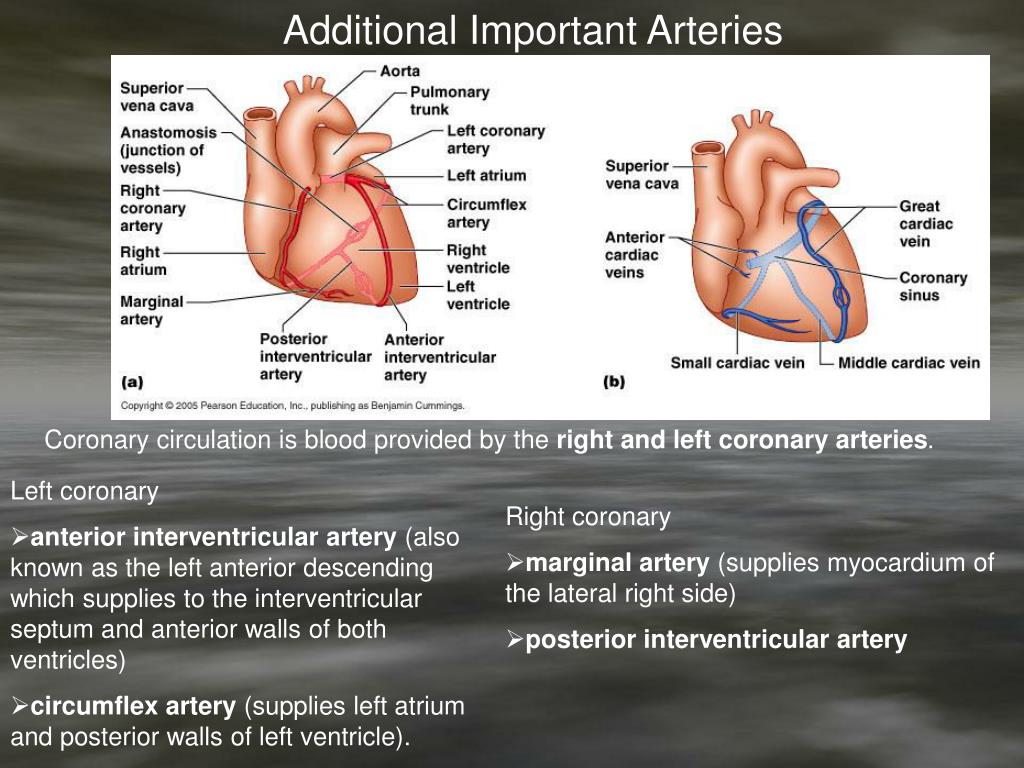

Additional Important Arteries

Coronary circulation is blood provided by the right and left coronary arteries.

  • Left coronary
  • anterior interventricular artery (also known as the left anterior descending which supplies to the interventricular septum and anterior walls of both ventricles)
  • circumflex artery (supplies left atrium and posterior walls of left ventricle).
  • Right coronary
  • marginal artery (supplies myocardium of the lateral right side)
  • posterior interventricular artery
slide16

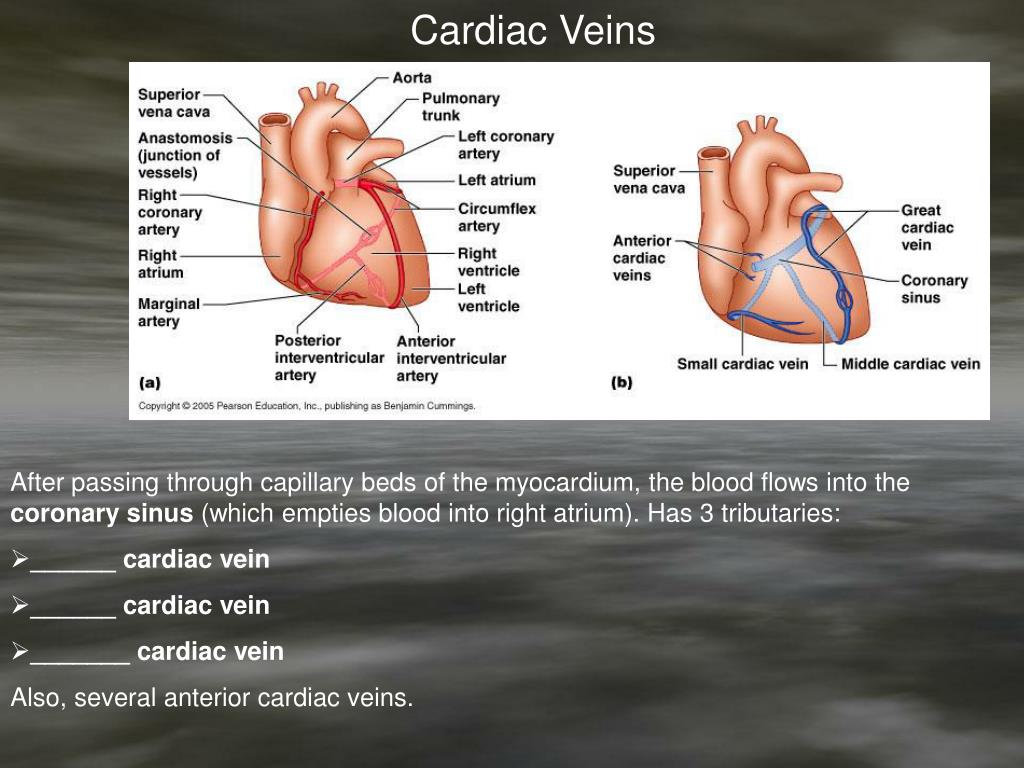

Cardiac Veins

  • After passing through capillary beds of the myocardium, the blood flows into the coronary sinus (which empties blood into right atrium). Has 3 tributaries:
  • ______ cardiac vein
  • ______ cardiac vein
  • _______ cardiac vein

Also, several anterior cardiac veins.

slide17

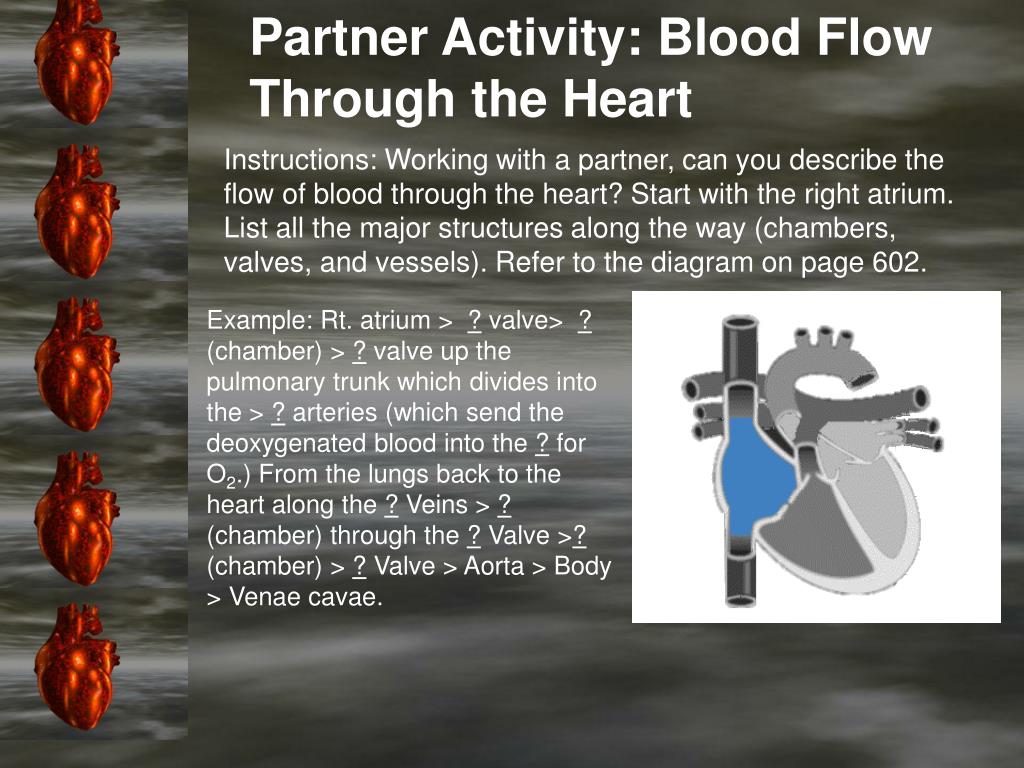

Partner Activity: Blood Flow Through the Heart

Instructions: Working with a partner, can you describe the flow of blood through the heart? Start with the right atrium. List all the major structures along the way (chambers, valves, and vessels). Refer to the diagram on page 602.

Example: Rt. atrium > ? valve> ? (chamber) > ? valve up the pulmonary trunk which divides into the > ? arteries (which send the deoxygenated blood into the ? for O2.) From the lungs back to the heart along the ? Veins > ? (chamber) through the ? Valve >? (chamber) > ? Valve > Aorta > Body > Venae cavae.

slide18

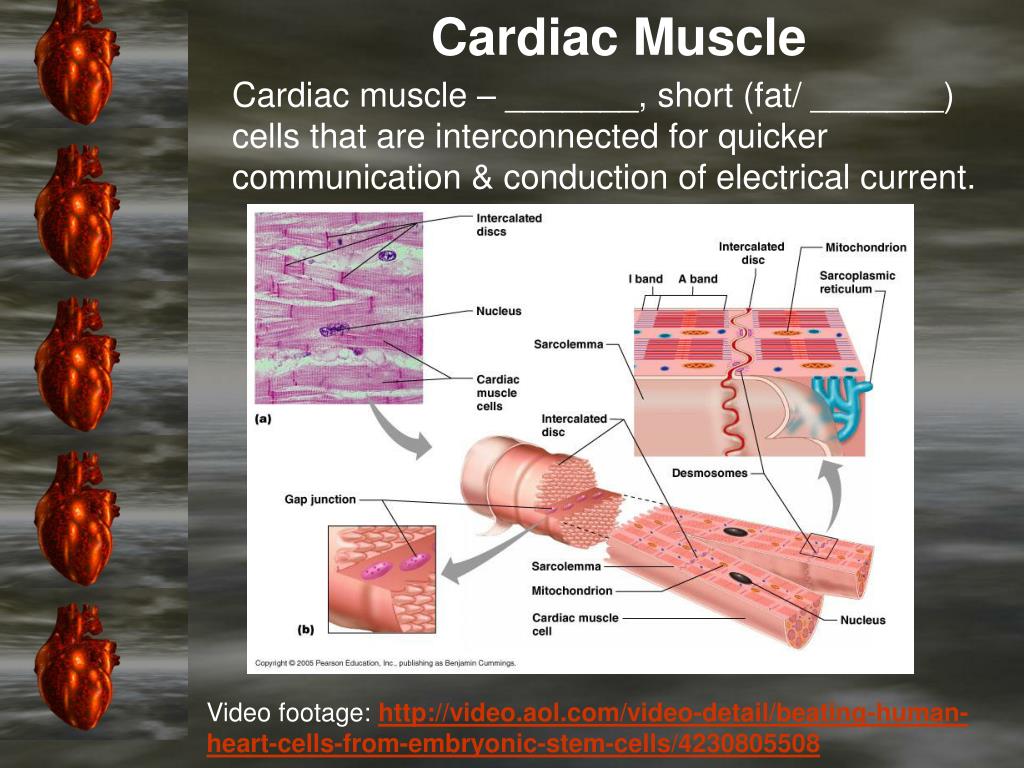

Cardiac Muscle

Cardiac muscle – _______, short (fat/ _______) cells that are interconnected for quicker communication & conduction of electrical current.

Video footage: http://video.aol.com/video-detail/beating-human-heart-cells-from-embryonic-stem-cells/4230805508

slide19

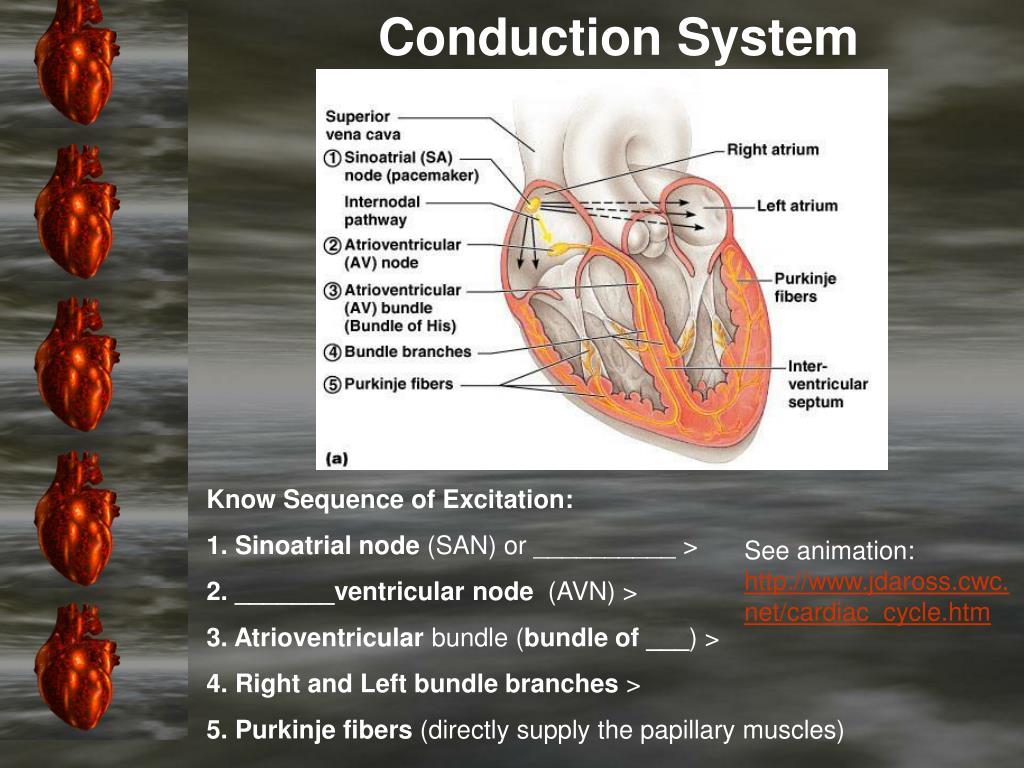

Conduction System

Know Sequence of Excitation:

1. Sinoatrial node (SAN) or __________ >

2. _______ventricular node (AVN) >

3. Atrioventricular bundle (bundle of ___) >

4. Right and Left bundle branches >

5. Purkinje fibers (directly supply the papillary muscles)

See animation: http://www.jdaross.cwc.net/cardiac_cycle.htm

slide20

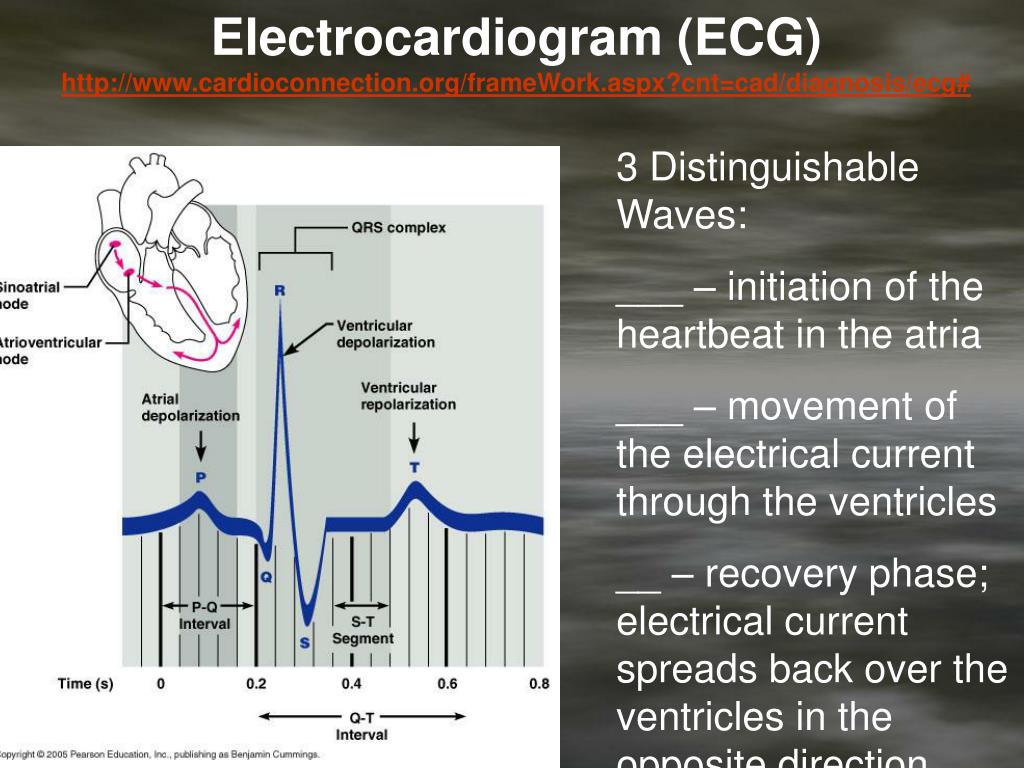

Electrocardiogram (ECG) http://www.cardioconnection.org/frameWork.aspx?cnt=cad/diagnosis/ecg#

3 Distinguishable Waves:

___ – initiation of the heartbeat in the atria

___ – movement of the electrical current through the ventricles

__ – recovery phase; electrical current spreads back over the ventricles in the opposite direction

slide22

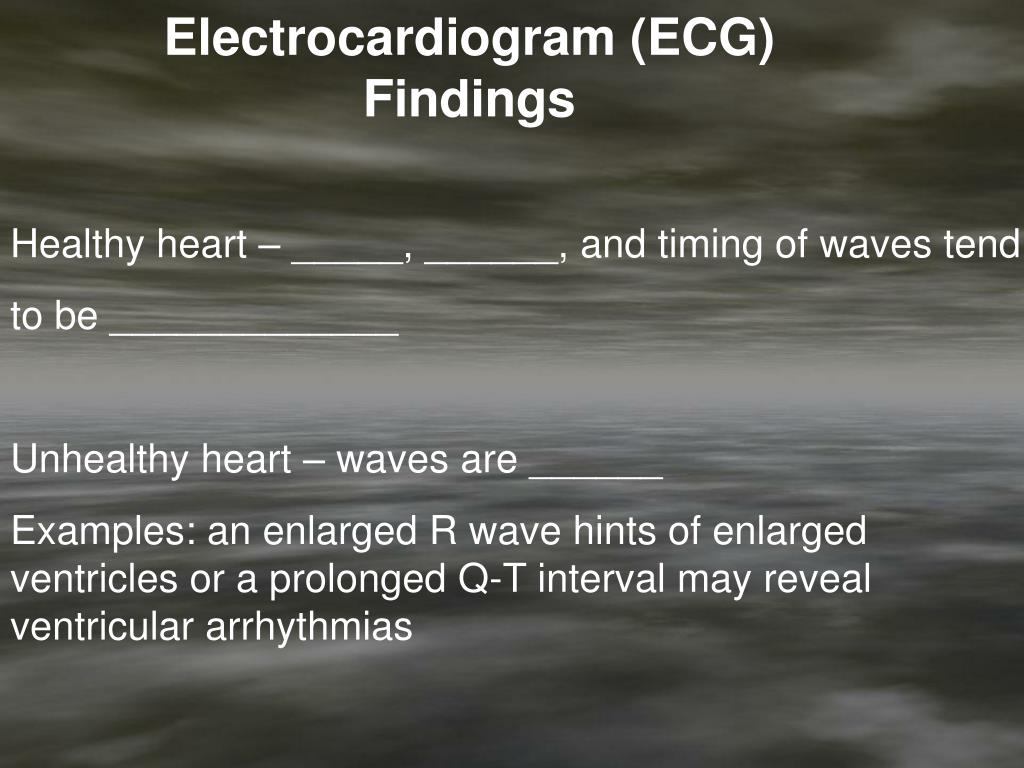

Electrocardiogram (ECG) Findings

Healthy heart – _____, ______, and timing of waves tend

to be _____________

Unhealthy heart – waves are ______

Examples: an enlarged R wave hints of enlarged ventricles or a prolonged Q-T interval may reveal ventricular arrhythmias

slide23

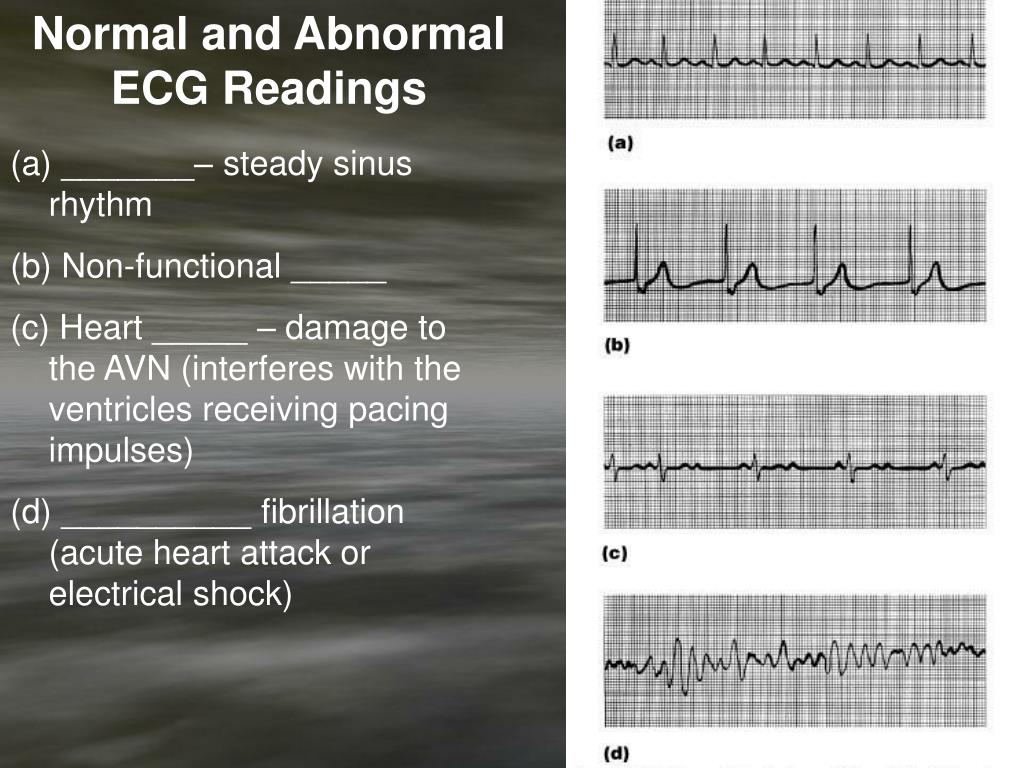

Normal and Abnormal ECG Readings

  • _______– steady sinus rhythm
  • Non-functional _____
  • Heart _____ – damage to the AVN (interferes with the ventricles receiving pacing impulses)
  • __________ fibrillation (acute heart attack or electrical shock)
slide24

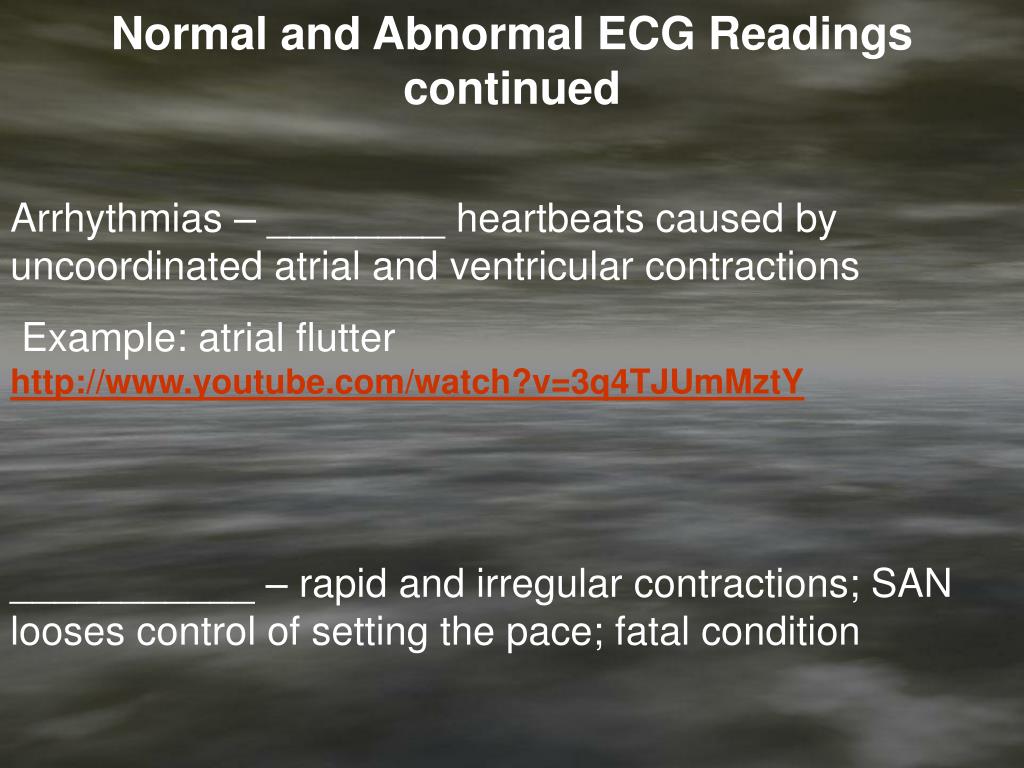

Normal and Abnormal ECG Readings continued

Arrhythmias – ________ heartbeats caused by uncoordinated atrial and ventricular contractions

Example: atrial flutter http://www.youtube.com/watch?v=3q4TJUmMztY

___________ – rapid and irregular contractions; SAN looses control of setting the pace; fatal condition

slide25

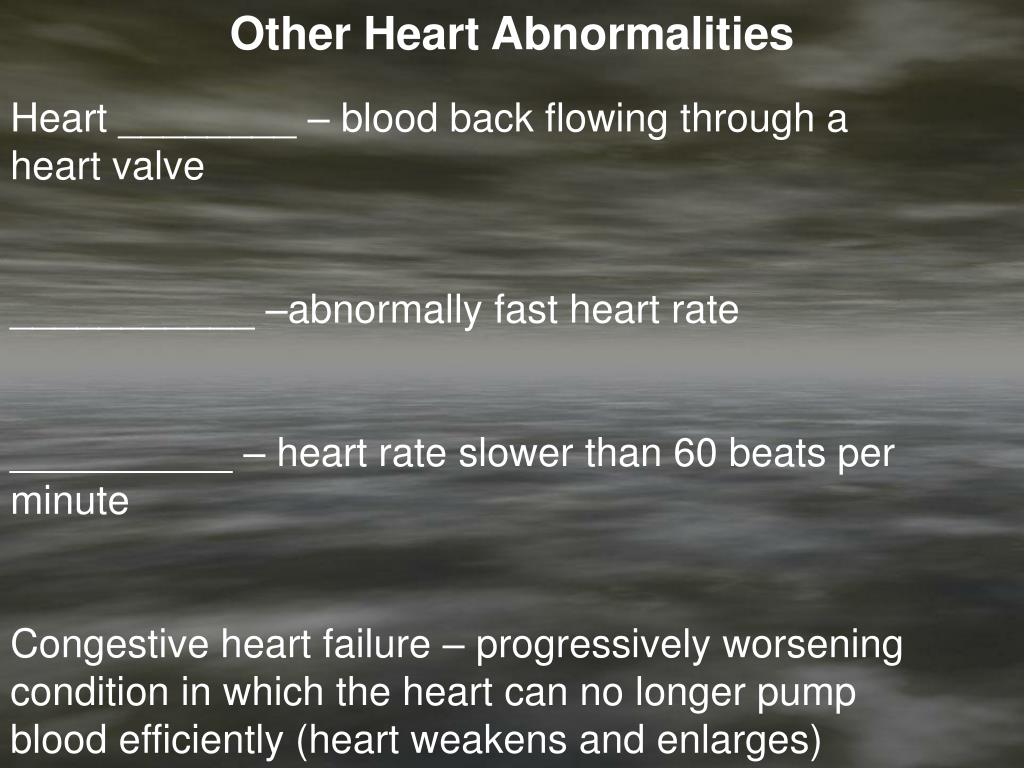

Other Heart Abnormalities

Heart ________ – blood back flowing through a heart valve

___________ –abnormally fast heart rate

__________ – heart rate slower than 60 beats per minute

Congestive heart failure – progressively worsening condition in which the heart can no longer pump blood efficiently (heart weakens and enlarges)
