  1. Pragmatic Mash-Ups Building POC of Web 2.0 application in one day with AJAX, Virtual Earth and Linq Andrew Filev Microsoft Certified Architect Murano Software

  2. Idea, scope • Implementation • Collecting data • Getting web page • Getting data with regular expressions • Using REST based XML pages • Selecting data: Linq, DLinq, XLinq • Displaying data • Displaying Virtual Earth map • Adding pushpins • Filtering pushpins • Future directions

  3. Idea • To help people find their house by: • Mashing-up real estate sales ads with house valuation service and displaying ones which are priced below valuation on the map

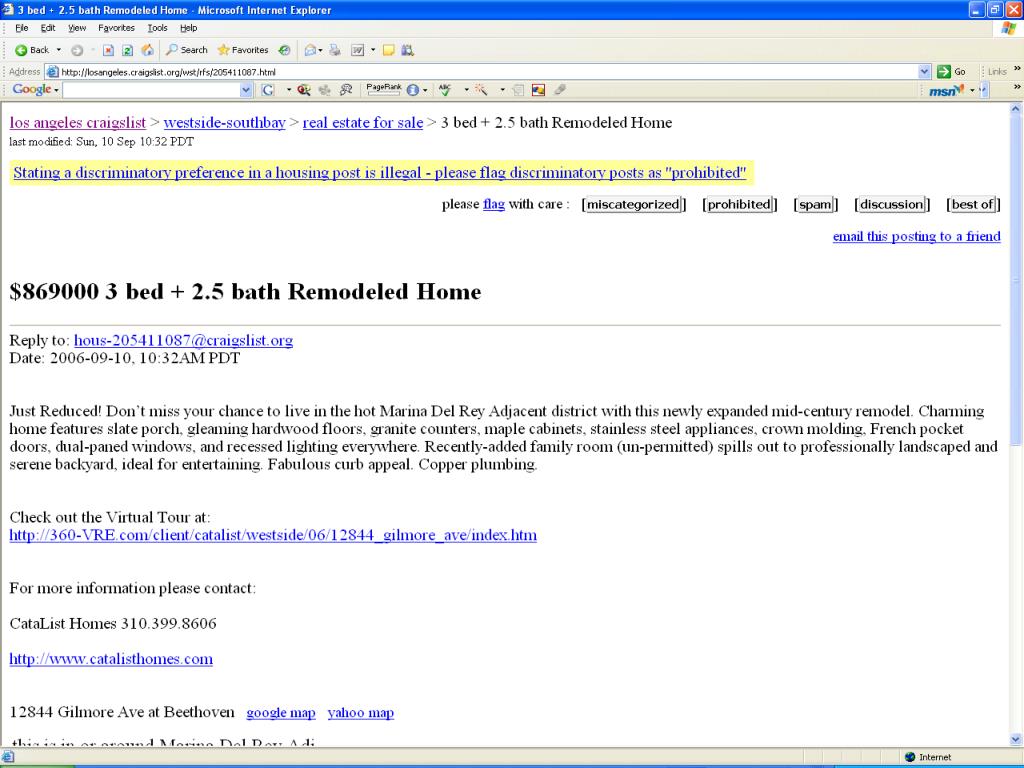

  4. Example listing

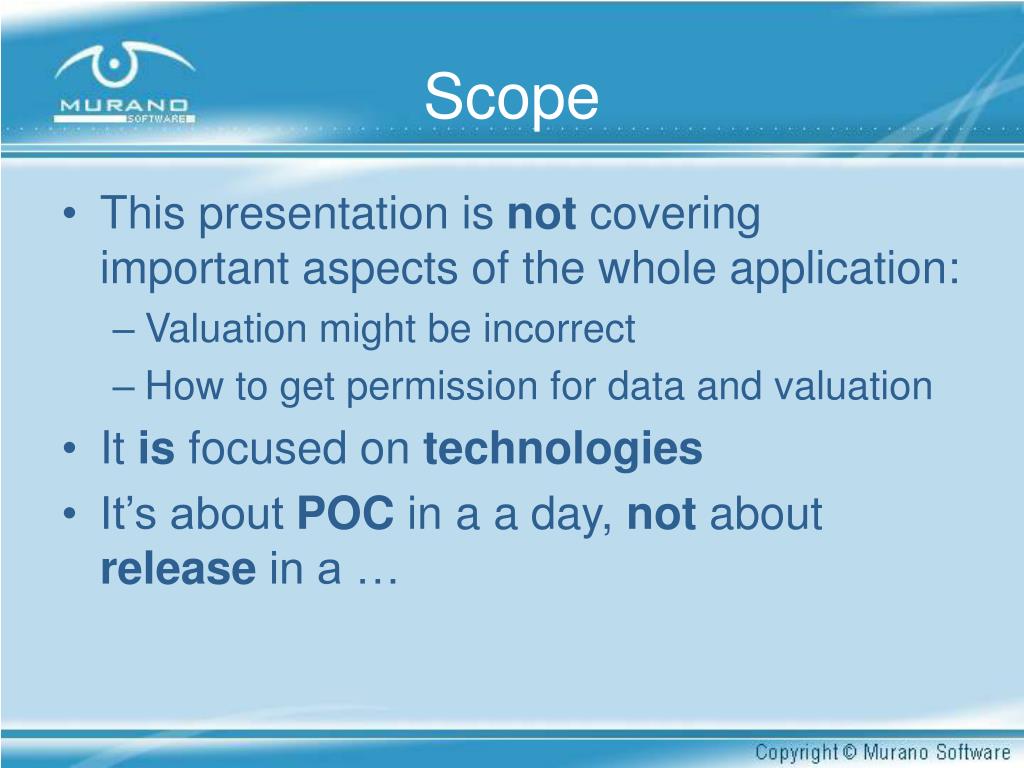

  5. Scope • This presentation is not covering important aspects of the whole application: • Valuation might be incorrect • How to get permission for data and valuation • It is focused on technologies • It’s about POC in a a day, not about release in a …

  6. Implementation at the high level • Take listings • Add valuation information • Provide web-site to access this information

  7. Getting web page • WebClient client = newWebClient(); • string pageContent = client.DownloadString(url)

  8. Getting data:HTML+Regex <a target="_new" href="http://maps.yahoo.com/maps_result?addr=[yahoo_address];csz=...&amp;country=US"> yahoo map</a> Regular Expression yahooStreetAddressParameter.Value = yahoo_address

  9. Getting data:REST+XML XDocumentdoc = newXDocument(); doc.Load(String.Format(“http://www.com/webservice/GetSearchResults.htm?address={0}&citystatezip={1}”, yahooStreetAddress, yahooCityStateZip)); var result = doc.Descendants(“address”) .First().Element(“street”); streetParameter.Value = (string)result;

  10. .NET LanguageIntegrated Query • Integration into programming language and IDE • Select, from, where, into, orderby … • XML (XLinq) and SQL (DLinq) support

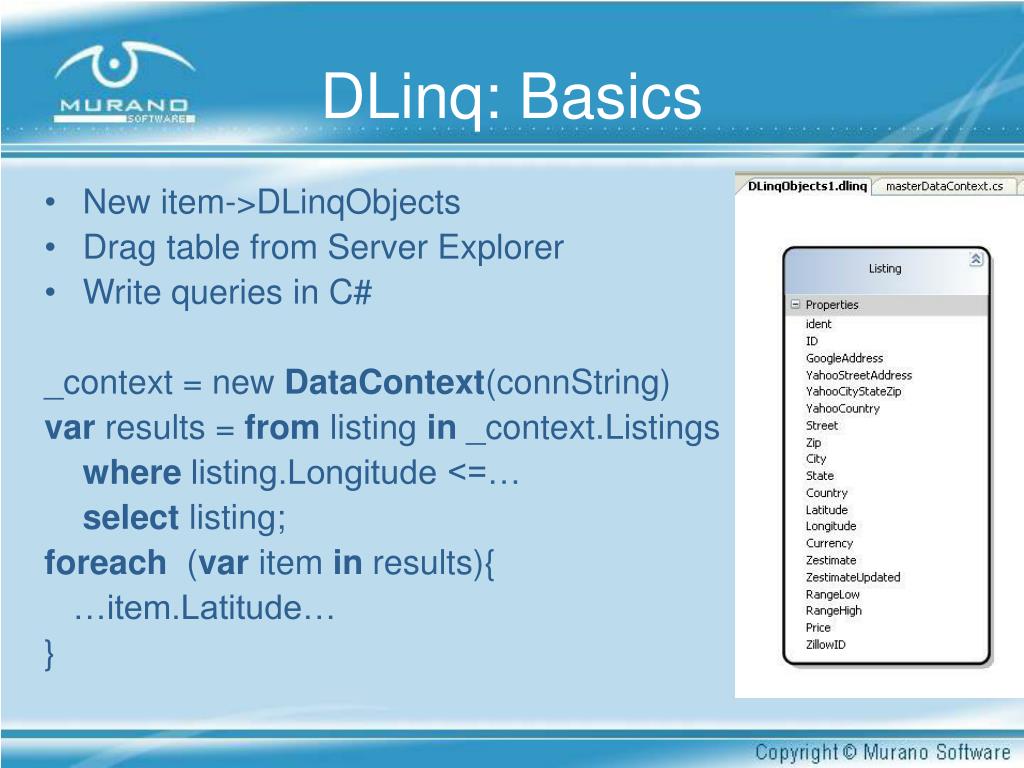

  11. DLinq: Basics • New item->DLinqObjects • Drag table from Server Explorer • Write queries in C# _context = new DataContext(connString) var results = from listing in _context.Listings where listing.Longitude <=… select listing; foreach (var item in results){ …item.Latitude… }

  12. DLinq: Attributes [System.Data.DLinq.Table(Name="Listings")] public partial class Listing : System.Data.DLinq.INotifyPropertyChanging, System.ComponentModel.INotifyPropertyChanged … [System.Data.DLinq.Column(Name="YahooStreetAddress",Storage="_YahooStreetAddress", DBType="varchar NOT NULL")] public virtual string YahooStreetAddress { get {return this._YahooStreetAddress;} set { if ((this._YahooStreetAddress != value)) { this.OnPropertyChanging("YahooStreetAddress"); this._YahooStreetAddress = value; this.OnPropertyChanged("YahooStreetAddress"); } } }

  13. Tip: how to pass connection string public partial class masterDataContext : System.Data.DLinq.DataContext { public masterDataContext(string connString) : base(connString) { } }

  14. DLinq+XLinq XDocument xmlDoc=new XDocument( new XDeclaration("1.0", "utf-8",null), new XElement("root", from listing in _context.Listings where listing.Longitude … select new XElement("item", new XAttribute("id",listing.ID), new XAttribute("lat",listing.Latitude), new XAttribute("long",listing.Longitude), new XAttribute("price",listing.Price), new XAttribute("est",listing.Zestimate), new XAttribute("details",listing.Street))));

  15. Displaying map <script type="text/javascript" src="http://dev.virtualearth.net/mapcontrol/v3/mapcontrol.js"> </script> <script type="text/javascript"> var map=null; function DrawMap(){ map = new VEMap('myMap'); map.LoadMap(new VELatLong(34, -118.5), 10 ,'r' , false); GetPushpins(); } … </script> <body onload="DrawMap()"> <div id="myMap" style="position:absolute; width:500px; height:400px; left: 69px; top: 117px;"></div>

  16. AJAX request var xhr = null; function CreateXHR(){ var xhr; try{xhr = new ActiveXObject("Microsoft.XMLHTTP");} catch(e){try{xhr=new ActiveXObject("Msxml2.XMLHTTP");} catch(ex){xhr = false;}} if (!xhr && typeof XMLHttpRequest != 'undefined') {xhr = new XMLHttpRequest();} return xhr; } function GetPushpins(){ map.DeleteAllPushpins(); xhr = CreateXHR(); xhr.onreadystatechange=ProcessPushpins; xhr.open("GET", "getInfo.aspx?action=getLocations"); xhr.send(); }

  17. Tip: move pushpinswith visible area function DrawMap(){…map.AttachEvent("onchangeview", GetPushpins);} function GetPushpins(){ … mapDiv = document.getElementById('myMap'); leftTopLatLong = map.PixelToLatLong(0, 0); rightBottomLatLong = map.PixelToLatLong(mapDiv.offsetWidth, mapDiv.offsetHeight); hr.open("GET", "getInfo.aspx?action=getVisibleLocations&left=" + leftTopLatLong.Longitude + "&top=" + leftTopLatLong.Latitude + "&right=" + rightBottomLatLong.Longitude + "&bottom=" + rightBottomLatLong.Latitude); … } public string GetItems(RectangleF LatLongBounds) { … from listing in _context.Listings where listing.Longitude <= LatLongBounds.Right && LatLongBounds.Left <=listing.Longitude && listing.Latitude <= LatLongBounds.Top && listing.Latitude>= LatLongBounds.Bottom

  18. What might be next • Atlas • RSS consumption • Intelligent data reload • Adding/changing sources of data

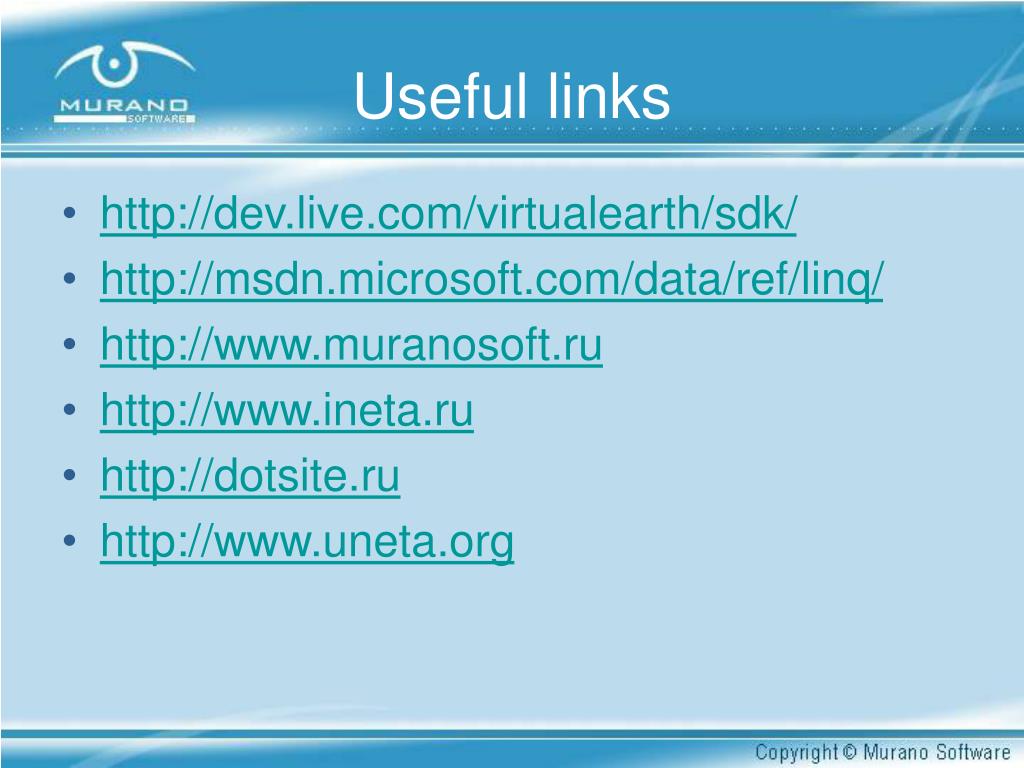

  19. Useful links • http://dev.live.com/virtualearth/sdk/ • http://msdn.microsoft.com/data/ref/linq/ • http://www.muranosoft.ru • http://www.ineta.ru • http://dotsite.ru • http://www.uneta.org
