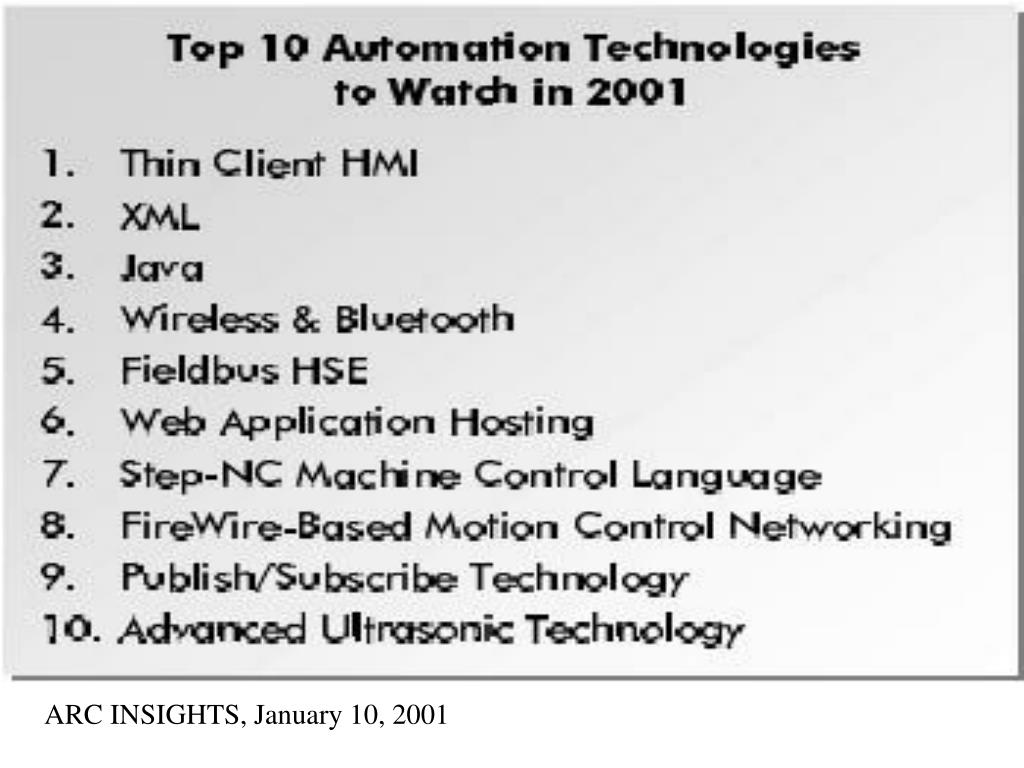

Boeing STEP Manufacturing Program. NASA’s STEP for Aerospace Workshop King G. Yee January 18, 2001. Agenda. Process Today Process Tomorrow Future Development Summery. ARC INSIGHTS, January 10, 2001.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Boeing STEP Manufacturing Program' - garfield


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
boeing step manufacturing program

Boeing STEP Manufacturing Program

NASA’s STEP for

Aerospace Workshop

King G. Yee

January 18, 2001

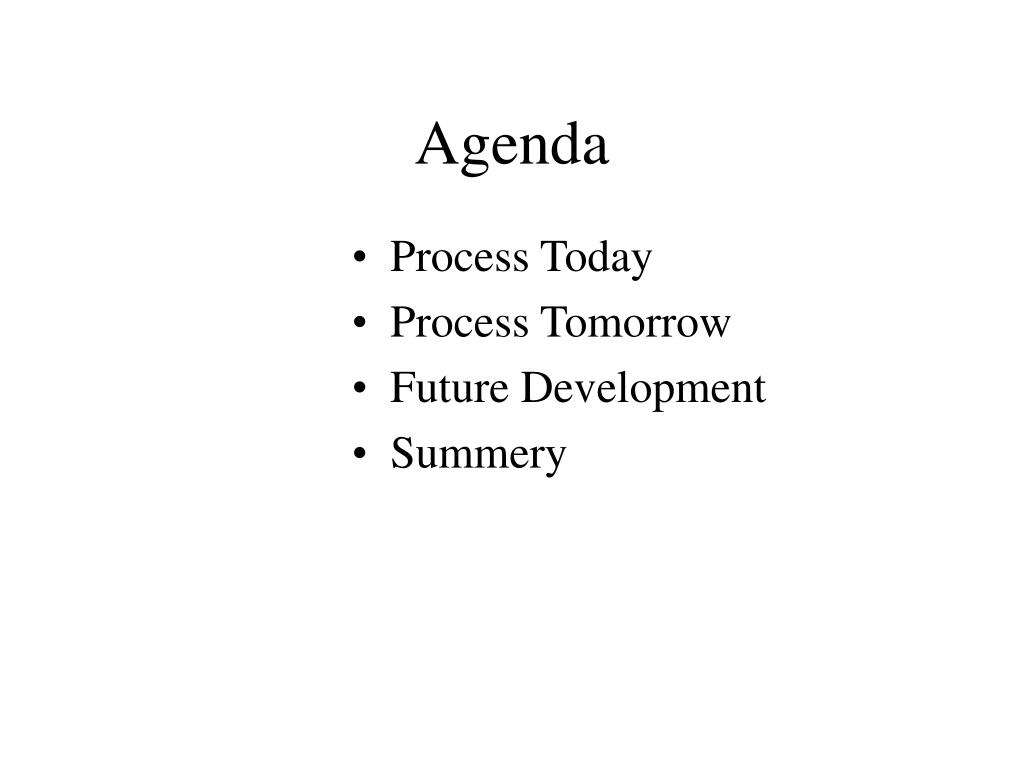

agenda

Agenda

Process Today

Process Tomorrow

Future Development

Summery

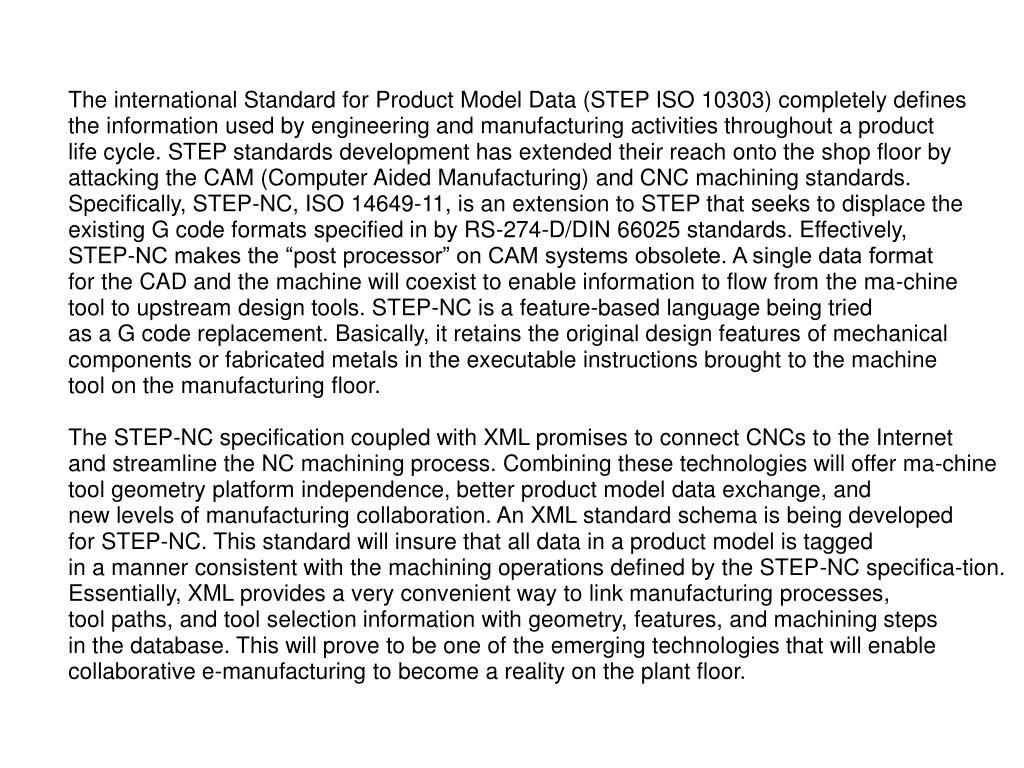

slide4

The international Standard for Product Model Data (STEP ISO 10303) completely defines

the information used by engineering and manufacturing activities throughout a product

life cycle. STEP standards development has extended their reach onto the shop floor by

attacking the CAM (Computer Aided Manufacturing) and CNC machining standards.

Specifically, STEP-NC, ISO 14649-11, is an extension to STEP that seeks to displace the

existing G code formats specified in by RS-274-D/DIN 66025 standards. Effectively,

STEP-NC makes the “post processor” on CAM systems obsolete. A single data format

for the CAD and the machine will coexist to enable information to flow from the ma-chine

tool to upstream design tools. STEP-NC is a feature-based language being tried

as a G code replacement. Basically, it retains the original design features of mechanical

components or fabricated metals in the executable instructions brought to the machine

tool on the manufacturing floor.

The STEP-NC specification coupled with XML promises to connect CNCs to the Internet

and streamline the NC machining process. Combining these technologies will offer ma-chine

tool geometry platform independence, better product model data exchange, and

new levels of manufacturing collaboration. An XML standard schema is being developed

for STEP-NC. This standard will insure that all data in a product model is tagged

in a manner consistent with the machining operations defined by the STEP-NC specifica-tion.

Essentially, XML provides a very convenient way to link manufacturing processes,

tool paths, and tool selection information with geometry, features, and machining steps

in the database. This will prove to be one of the emerging technologies that will enable

collaborative e-manufacturing to become a reality on the plant floor.

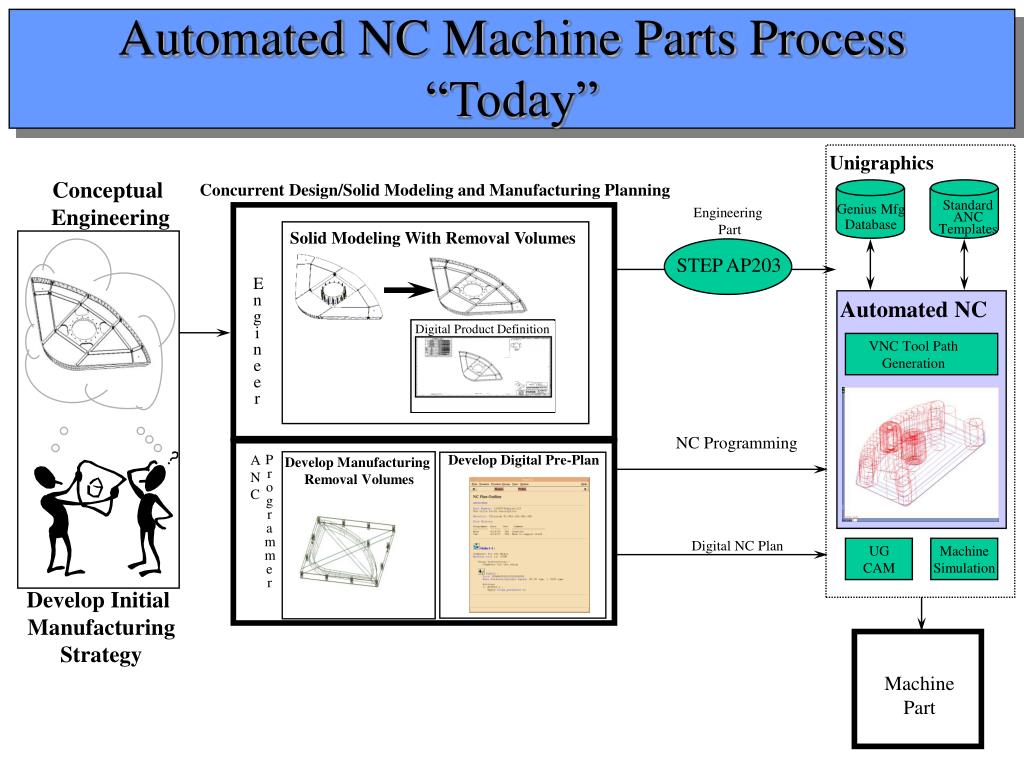

slide5

Automated NC Machine Parts Process

“Today”

Unigraphics

Conceptual

Engineering

Concurrent Design/Solid Modeling and Manufacturing Planning

Standard

ANC Templates

Genius Mfg

Database

Engineering

Part

Solid Modeling With Removal Volumes

STEP AP203

Engineer

Automated NC

Digital Product Definition

VNC Tool Path

Generation

NC Programming

Develop Digital Pre-Plan

ANC

Develop Manufacturing

Removal Volumes

Programmer

Digital NC Plan

UG

CAM

Machine

Simulation

Develop Initial

Manufacturing

Strategy

Machine Part

slide6

Automated NC Machine Parts Process

“Tomorrow”

Unigraphics

Conceptual

Engineering

Concurrent Design/Solid Modeling and Manufacturing Planning

Standard

ANC Templates

Genius Mfg.

Database

Engineering

Part

Solid Modeling With Feature Identification

Pocket

Hole

Profile

STEP AP203

Engineer

Automated NC

Digital Product Definition

VNC Tool Path

Generation

Manufacturing

Features

STEP AP224

Develop Digital Pre-Plan

ANC

Develop Manufacturing

Features

Programmer

Hole

Tool Tab

Slab

Digital NC Plan

UG

CAM

Machine

Simulation

Develop Initial

Manufacturing

Strategy

Machine Part

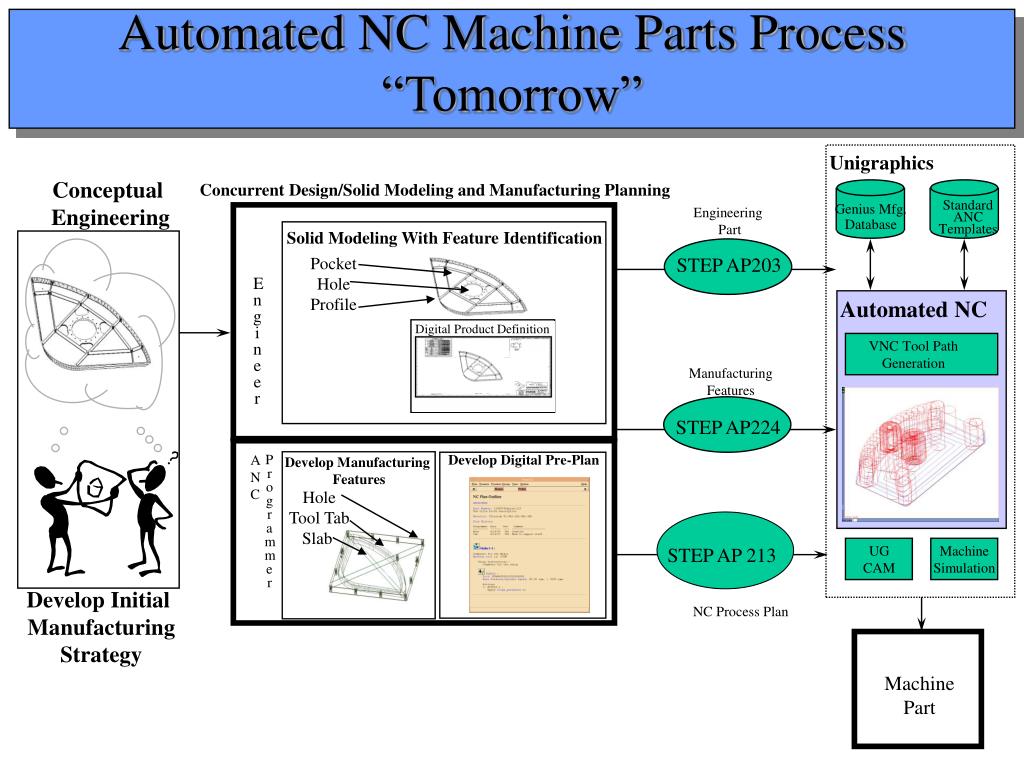

slide7

Automated NC Machine Parts Process

“Tomorrow”

Unigraphics

Conceptual

Engineering

Concurrent Design/Solid Modeling and Manufacturing Planning

Standard

ANC Templates

Genius Mfg.

Database

Engineering

Part

Solid Modeling With Feature Identification

Pocket

Hole

Profile

STEP AP203

Engineer

Automated NC

Digital Product Definition

VNC Tool Path

Generation

Manufacturing

Features

STEP AP224

Develop Digital Pre-Plan

ANC

Develop Manufacturing

Features

Programmer

Hole

Tool Tab

Slab

UG

CAM

Machine

Simulation

STEP AP 213

Develop Initial

Manufacturing

Strategy

NC Process Plan

Machine Part

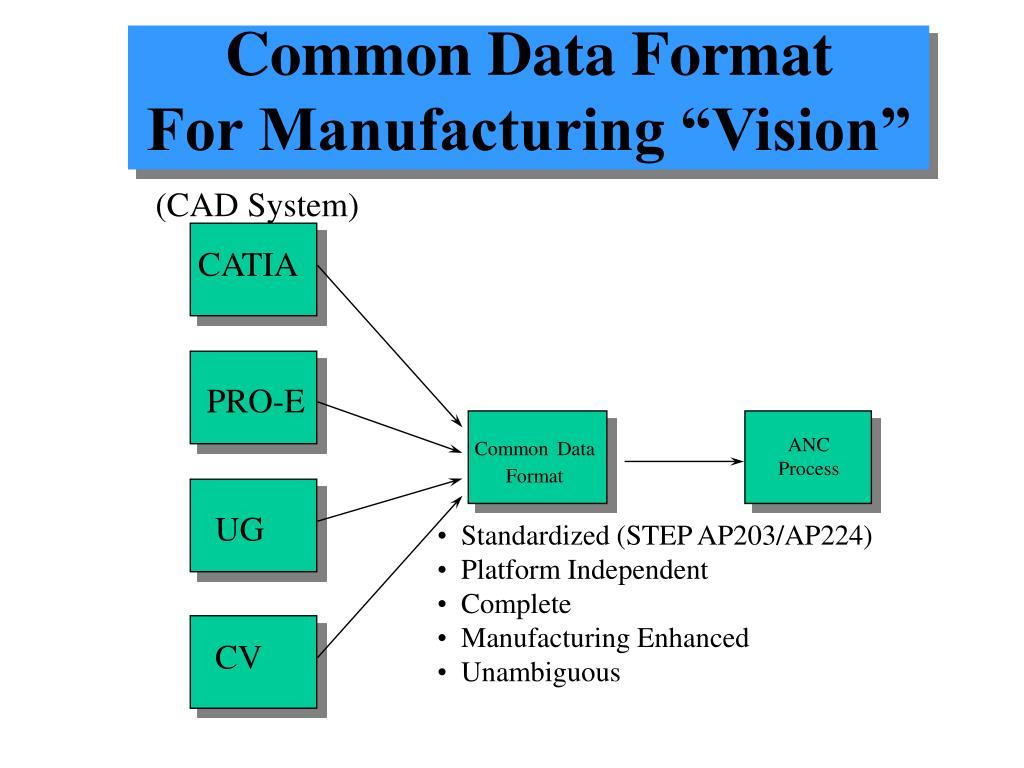

slide8

Common Data Format

For Manufacturing “Vision”

(CAD System)

CATIA

PRO-E

CommonData

Format

ANC

Process

UG

  • Standardized (STEP AP203/AP224)
  • Platform Independent
  • Complete
  • Manufacturing Enhanced
  • Unambiguous

CV

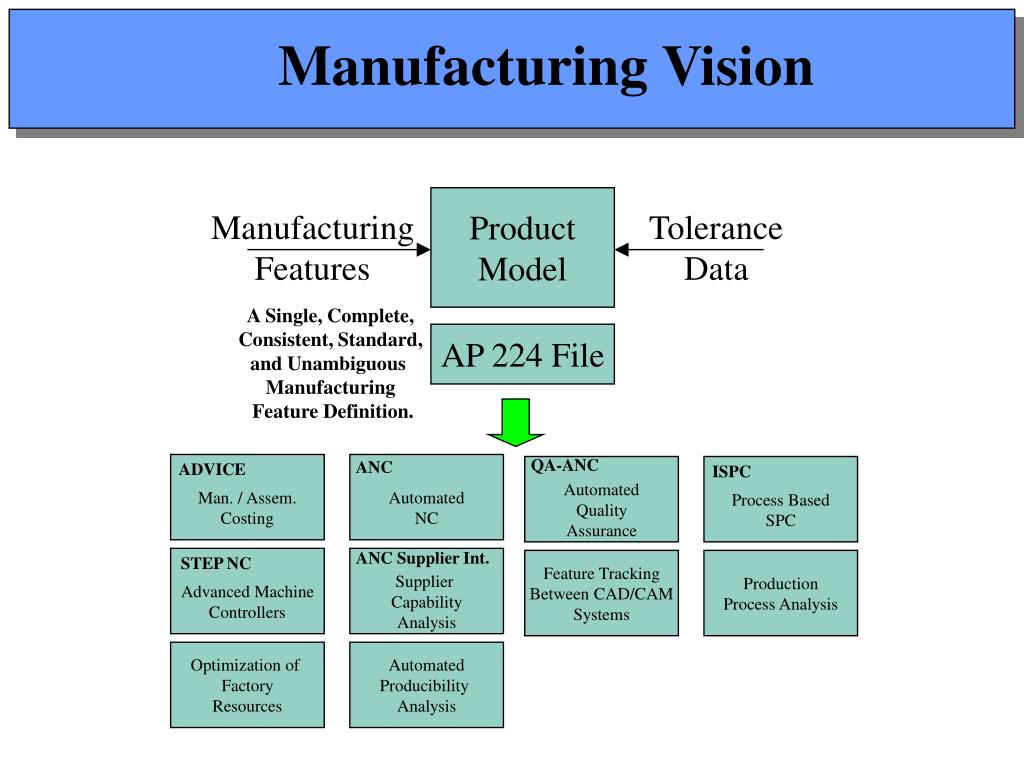

slide9

Product

Model

Manufacturing

Features

Tolerance

Data

A Single, Complete,

Consistent, Standard,

and Unambiguous

Manufacturing

Feature Definition.

AP 224 File

QA-ANC

ANC

ADVICE

Man. / Assem.

Costing

Automated

NC

ISPC

Automated

Quality

Assurance

Process Based

SPC

ANC Supplier Int.

STEP NC

Advanced Machine

Controllers

Supplier

Capability

Analysis

Feature Tracking

Between CAD/CAM

Systems

Production

Process Analysis

Optimization of

Factory

Resources

Automated

Producibility

Analysis

Manufacturing Vision

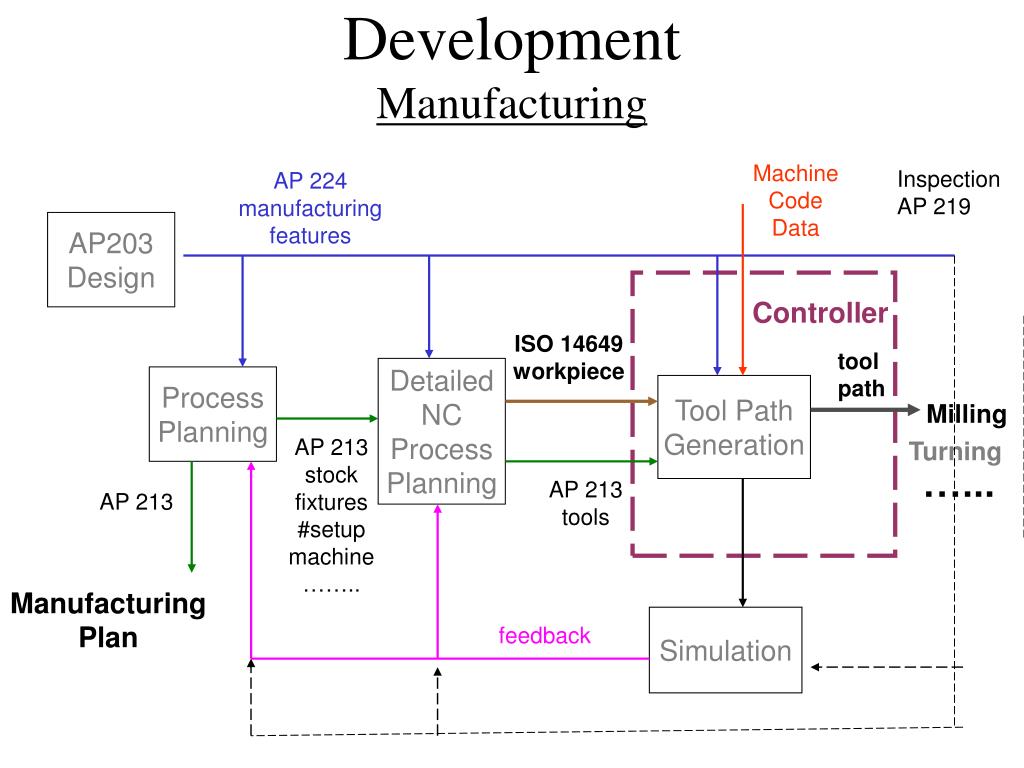

development manufacturing

Inspection

AP 219

AP 224

manufacturing

features

AP203

Design

Controller

ISO 14649

workpiece

tool

path

Detailed

NC

Process

Planning

Process

Planning

Tool Path

Generation

Milling

AP 213

stock

fixtures

#setup

machine

……..

…...

AP 213

tools

AP 213

Simulation

feedback

Development Manufacturing

Machine

Code

Data

Turning

Manufacturing

Plan

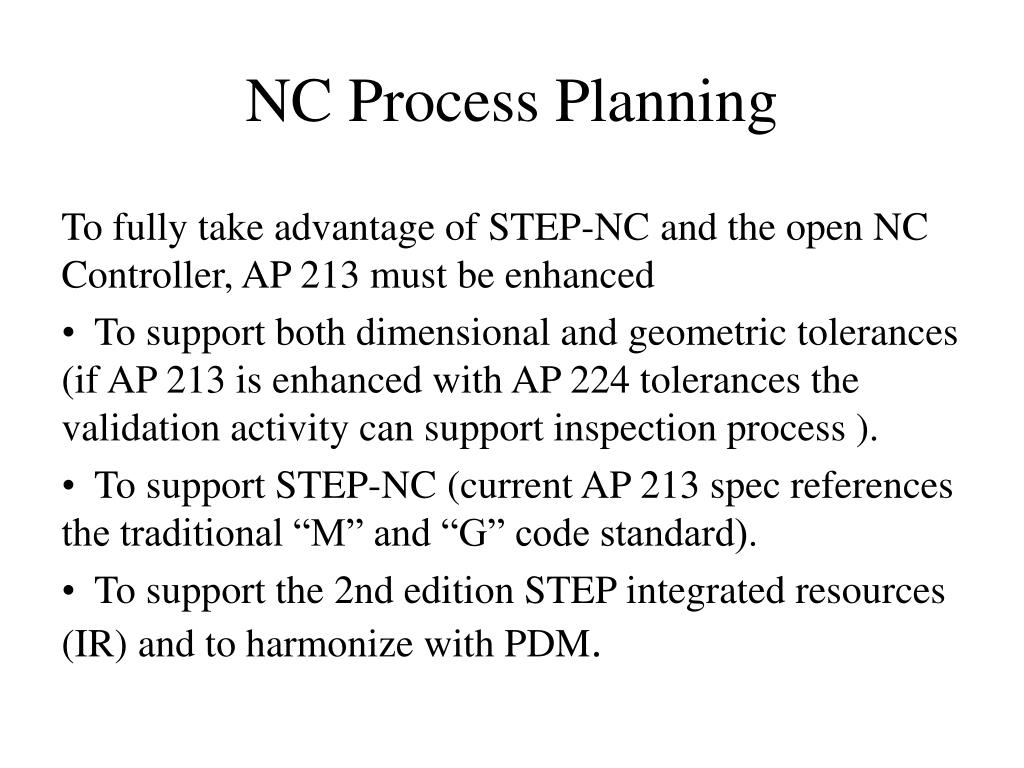

nc process planning

NC Process Planning

To fully take advantage of STEP-NC and the open NC Controller, AP 213 must be enhanced

To support both dimensional and geometric tolerances (if AP 213 is enhanced with AP 224 tolerances the validation activity can support inspection process ).

To support STEP-NC (current AP 213 spec references the traditional “M” and “G” code standard).

To support the 2nd edition STEP integrated resources (IR) and to harmonize with PDM.

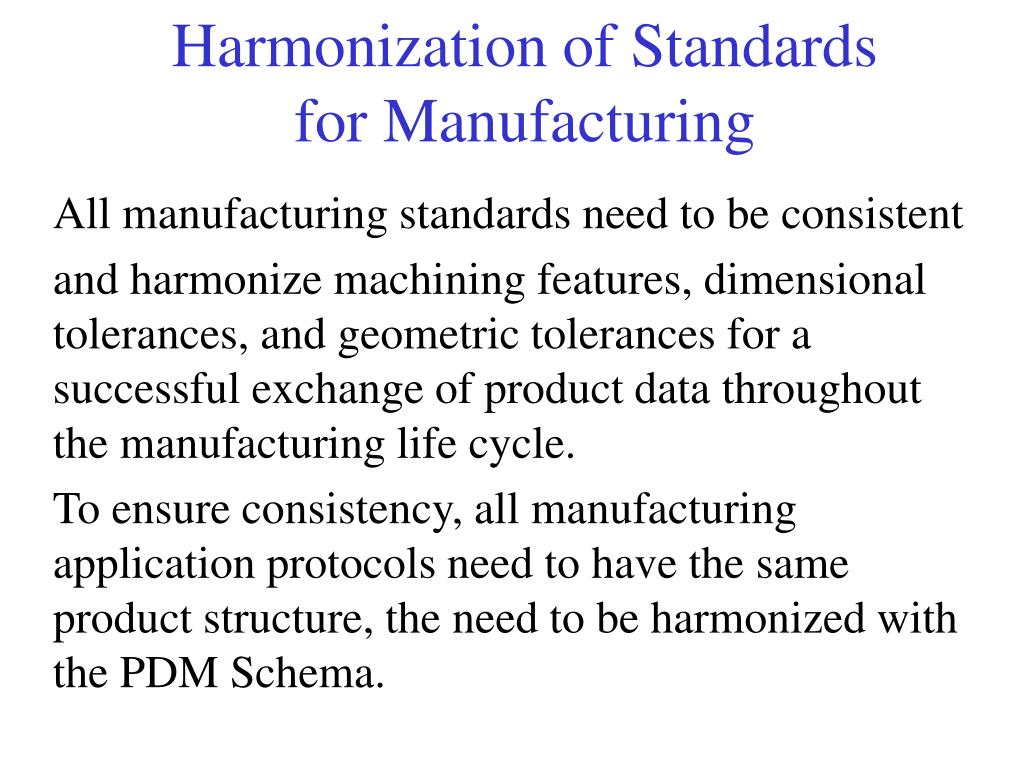

harmonization of standards for manufacturing

Harmonization of Standardsfor Manufacturing

All manufacturing standards need to be consistent

and harmonize machining features, dimensional tolerances, and geometric tolerances for a successful exchange of product data throughout the manufacturing life cycle.

To ensure consistency, all manufacturing application protocols need to have the same product structure, the need to be harmonized with the PDM Schema.

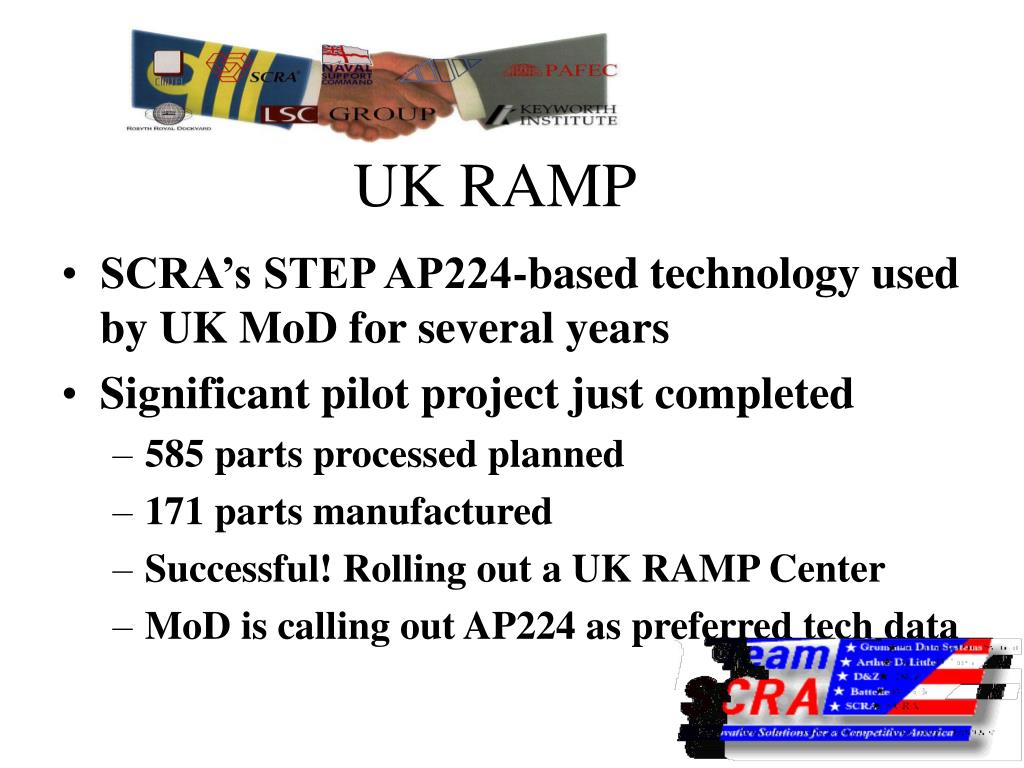

uk ramp
UK RAMP
  • SCRA’s STEP AP224-based technology used by UK MoD for several years
  • Significant pilot project just completed
    • 585 parts processed planned
    • 171 parts manufactured
    • Successful! Rolling out a UK RAMP Center
    • MoD is calling out AP224 as preferred tech data

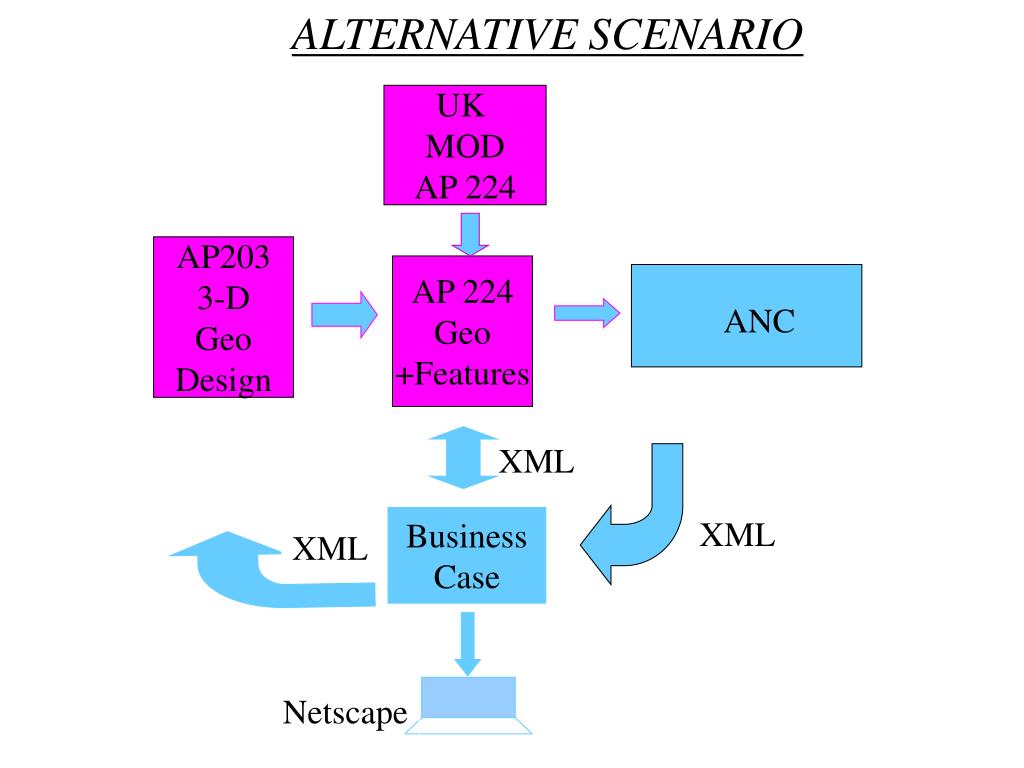

slide15

ALTERNATIVE SCENARIO

UK

MOD

AP 224

XML

Business

Case

XML

XML

Netscape

AP203

3-D

Geo

Design

AP 224

Geo

+Features

ANC
