electricity generation

Electricity Generation

with

Magnets or Lemons

if you want to do something useful you need energy

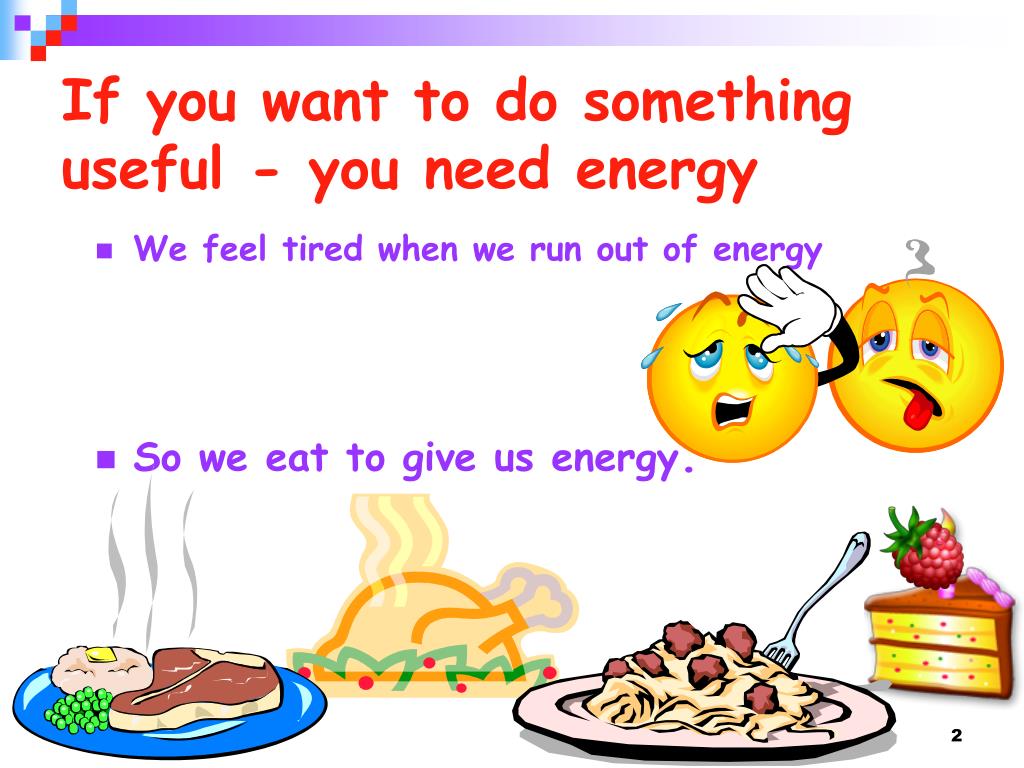

If you want to do something useful - you need energy
  • We feel tired when we run out of energy
  • So we eat to give us energy.
our energy comes from food

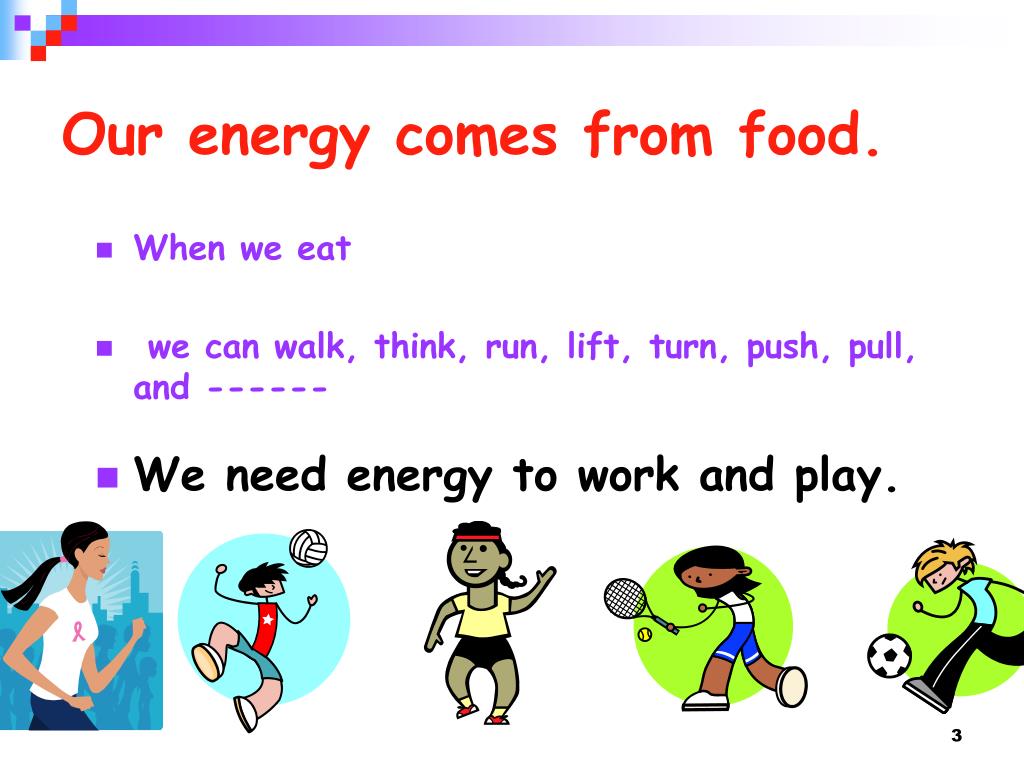

Our energy comes from food.
  • When we eat
  • we can walk, think, run, lift, turn, push, pull, and ------
  • We need energy to work and play.
without electricity
Without electricity - -

We might use

  • Candles
  • Coal fires
  • Semaphore to send messages
  • Piano
  • - - -

Without electricity our lives would be very different.

slide7

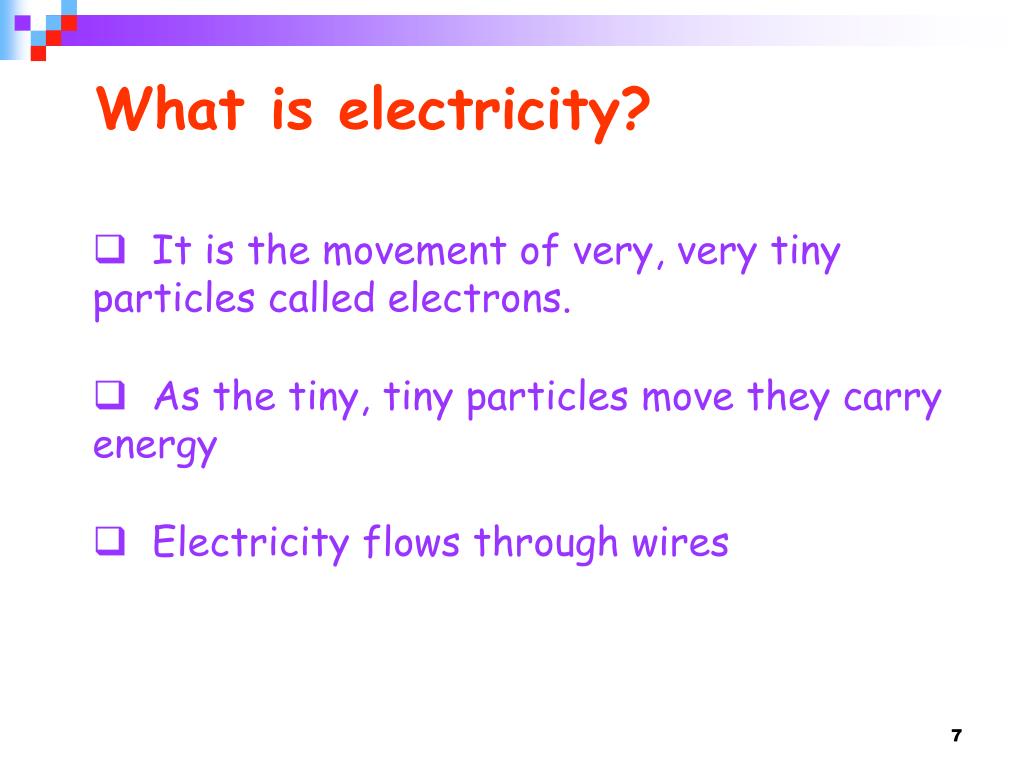

What is electricity?

  • It is the movement of very, very tiny particles called electrons.
  • As the tiny, tiny particles move they carry energy
  • Electricity flows through wires
  • -

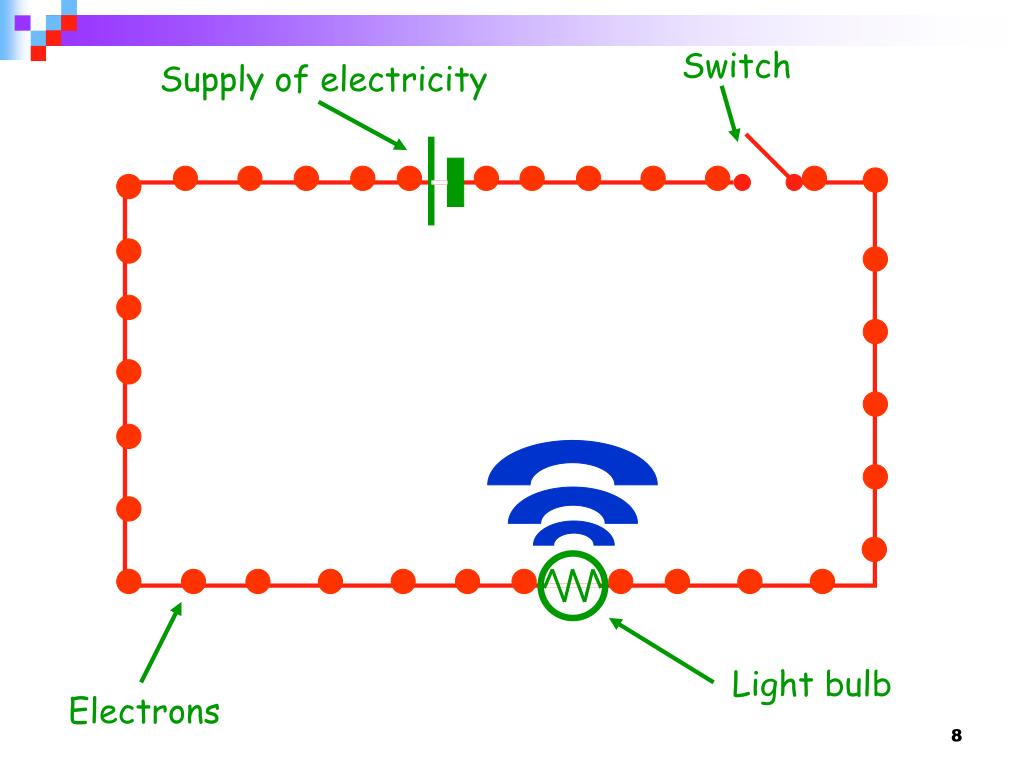

slide8

Switch

Supply of electricity

Light bulb

Electrons

slide9

How big are electrons?

  • How many electrons in a piece of copper wire 1mm thick and 10cm long?

100,000,000,000,000,000,000

One hundred million million million

or one hundred billion billion

Electrons are very, very small

slide10

Electricity transports energy from one place to another

  • For this we need:
  • A complete circuit made of conductors with lots of electrons
  • Something to provide energy to push the electrons round the circuit
  • To where we want to use it.
why is electricity important
Why is electricity important?
  • It can make things work.
  • It is easy to move the energy around using wires
  • to just where you want it!
how is electricity made
How is electricity made?

We need something to provide energy to push the electrons around the circuit.

2 main choices:

or

A battery

A generator

slide14

A battery

- uses chemistry to release energy

  • Portable
  • Cheap
  • only store a fixed amount of energy
  • big, heavy batteriesare needed to store lots of energy

In a car

a large battery is used

to start the engine and light the lamps.

generators

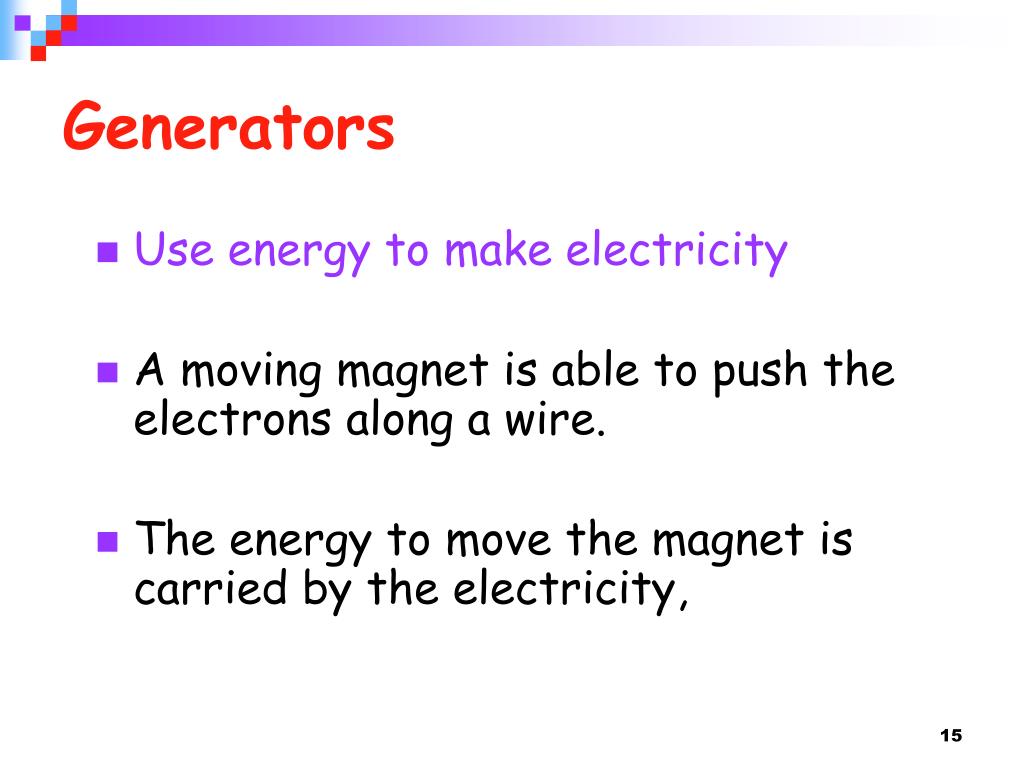

Generators
  • Use energy to make electricity
  • A moving magnet is able to push the electrons along a wire.
  • The energy to move the magnet is carried by the electricity,

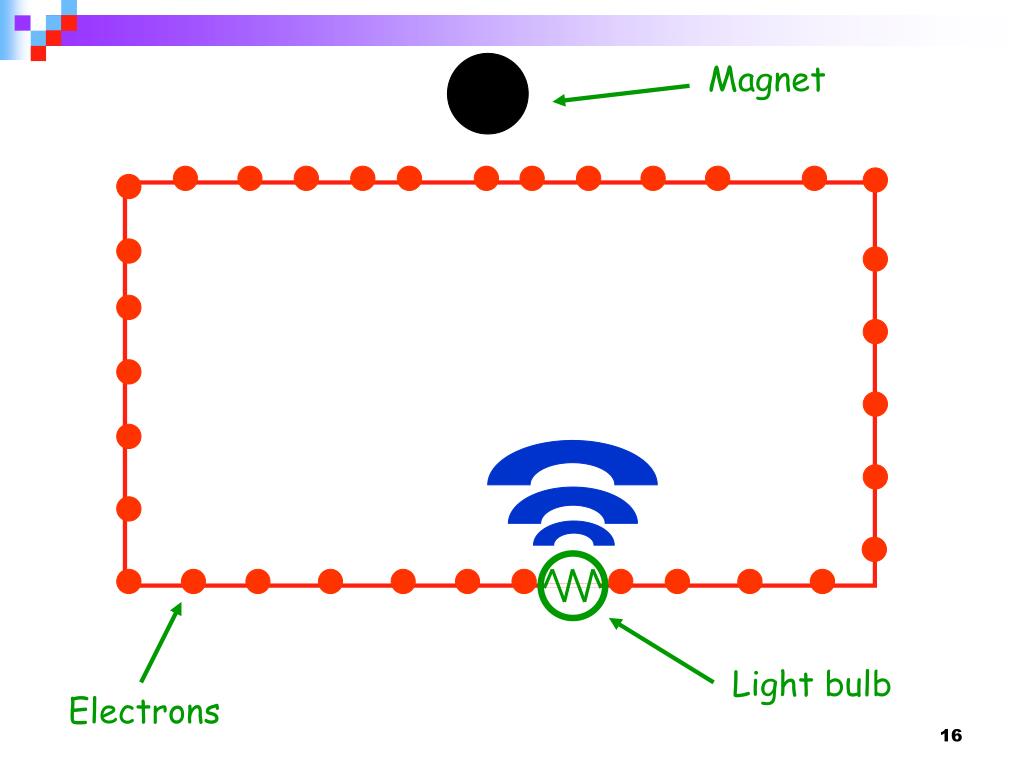

slide16

Magnet

Light bulb

Electrons

slide17

Magnet

Magnet has to move to make electricity

Light bulb

Electrons

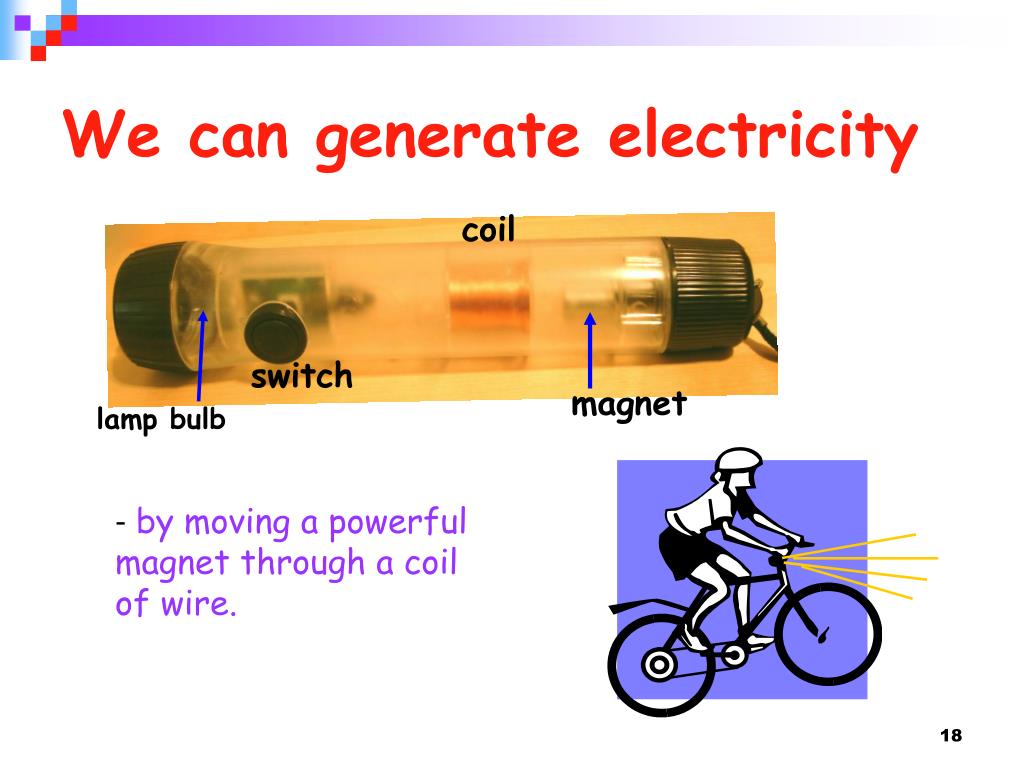

we can generate electricity

coil

switch

magnet

lamp bulb

We can generate electricity

- by moving a powerful magnet through a coil of wire.

what have we learned

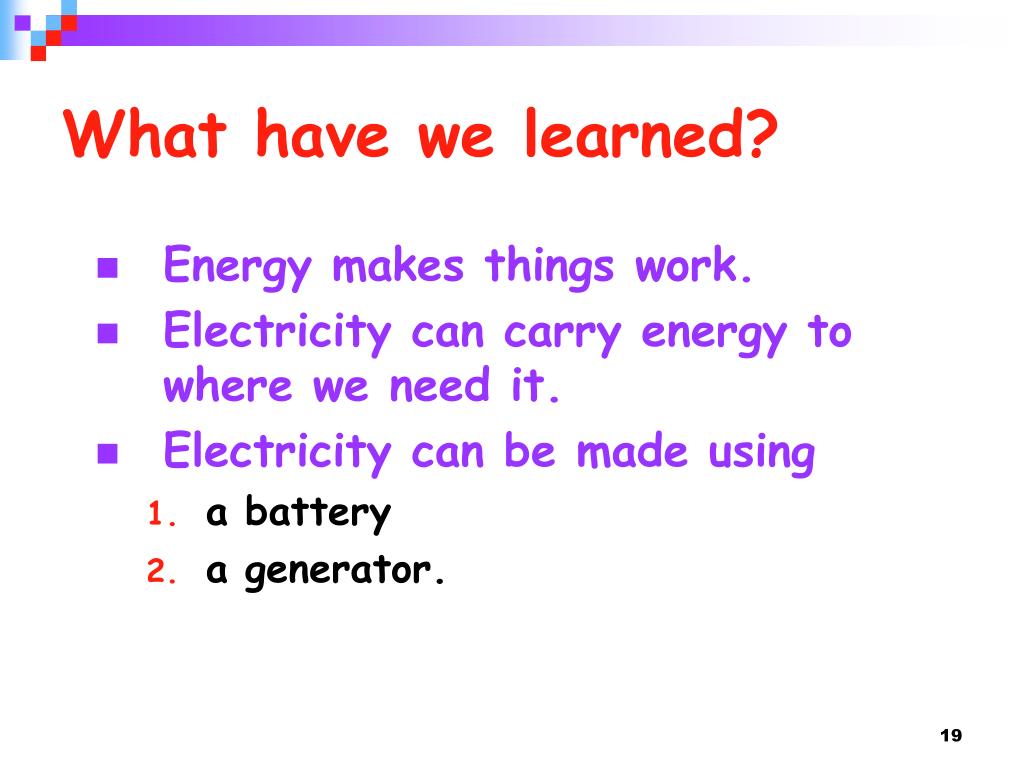

What have we learned?
  • Energy makes things work.
  • Electricity can carry energy to where we need it.
  • Electricity can be made using
    • a battery
    • a generator.
huge generators as big as houses are needed to generate electricity for homes factories and schools
Huge generators as big as houses are needed to generate electricity for homes, factories and schools.
  • We can generate electricity -
  • but only small amounts

- even when we work hard.
