slide1

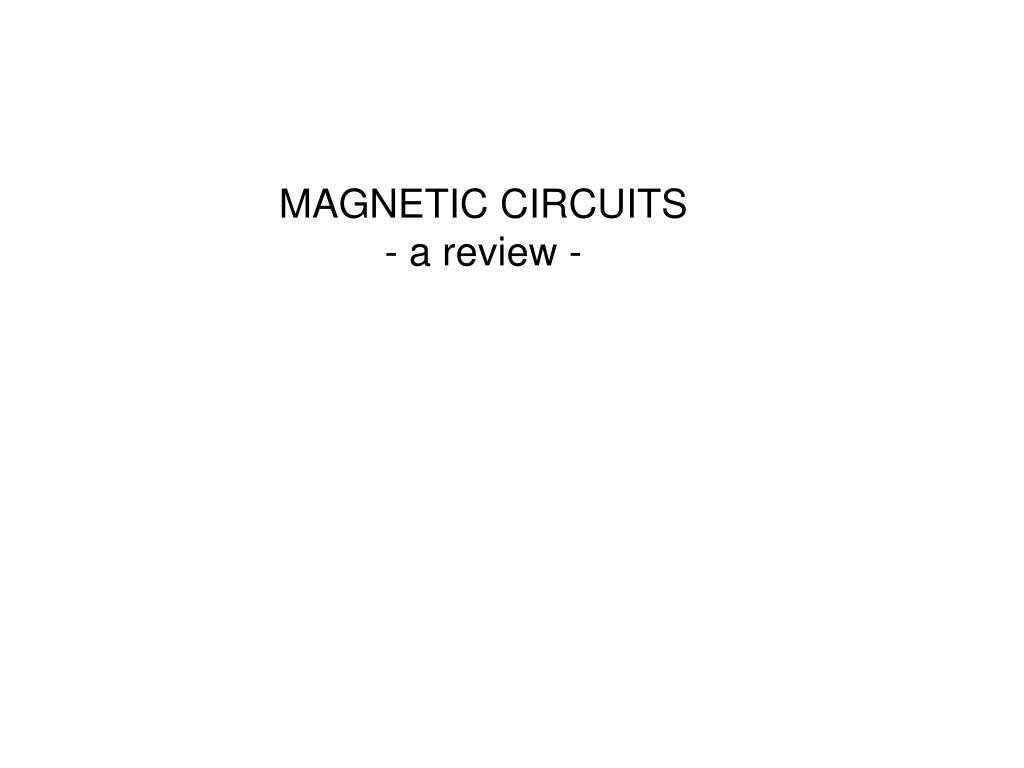

MAGNETIC CIRCUITS

- a review -

slide2

i

H

r

r

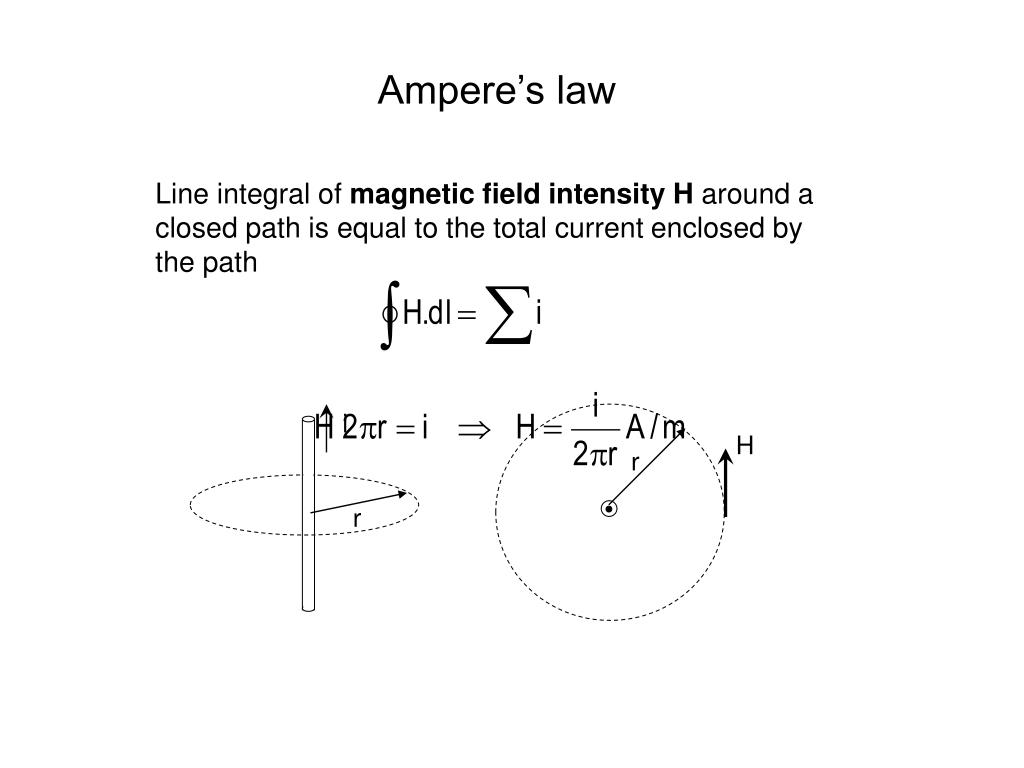

Ampere’s law

Line integral of magnetic field intensity H around a closed path is equal to the total current enclosed by the path

slide3

Wb/m2 or T

 1 for air

Several hundreds to thousands for ferromagnetic materials

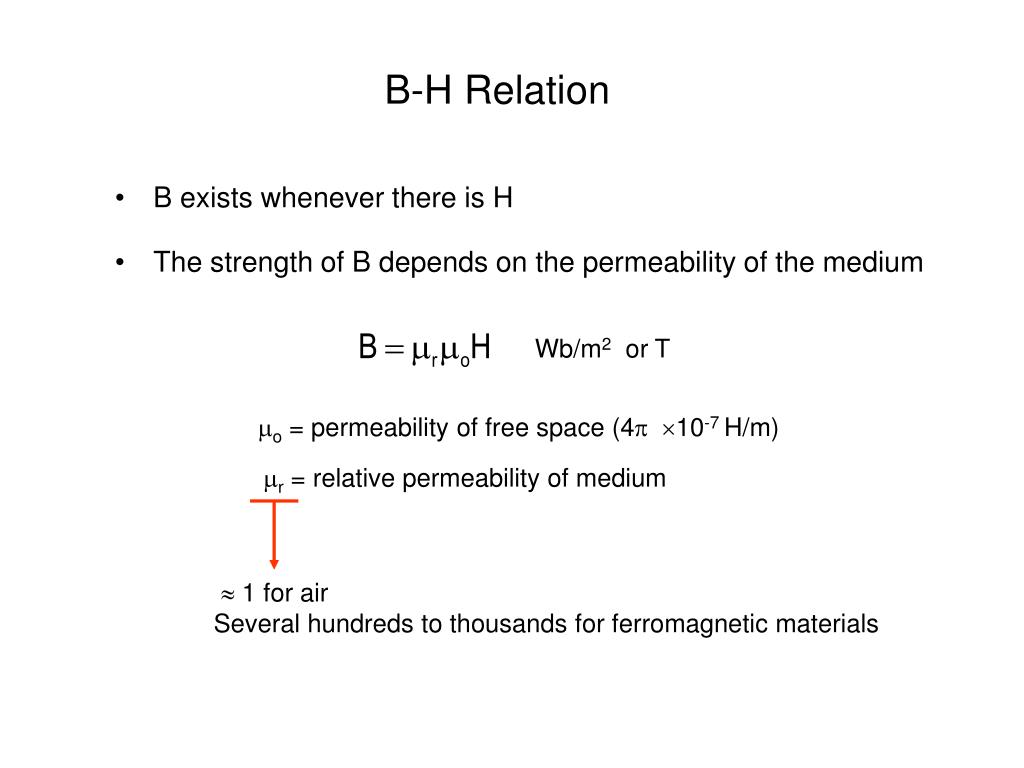

B-H Relation

  • B exists whenever there is H
  • The strength of B depends on the permeability of the medium

o = permeability of free space (4 10-7 H/m)

r = relative permeability of medium

slide4

l

r

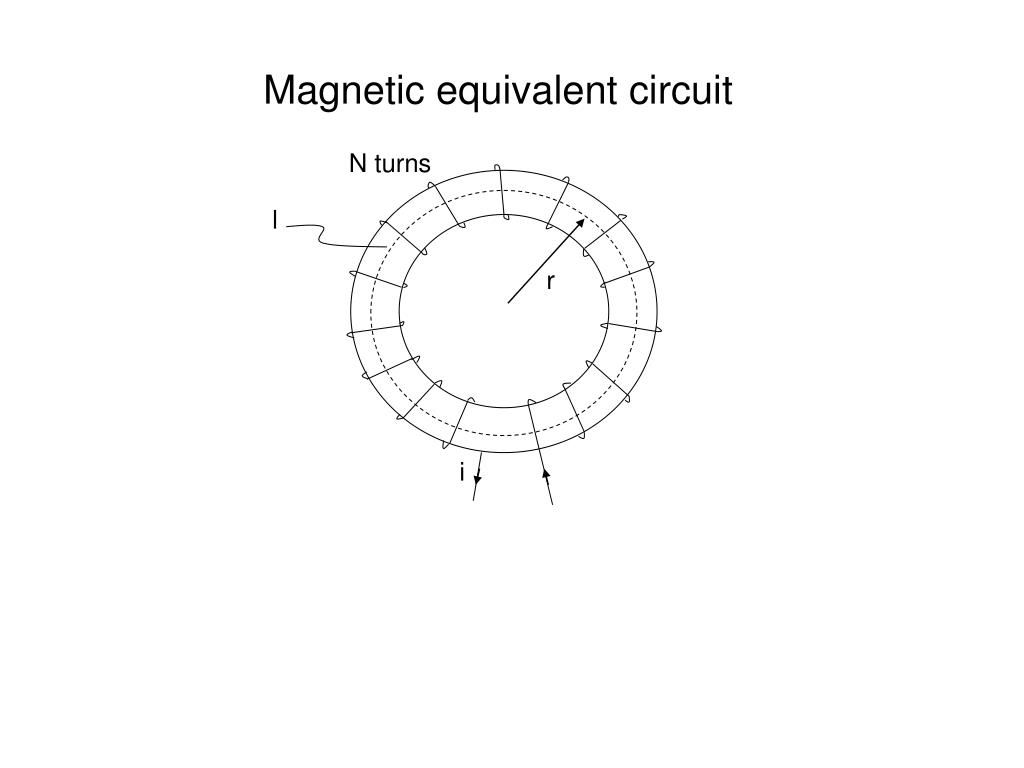

Magnetic equivalent circuit

N turns

i

slide5

l

r

A

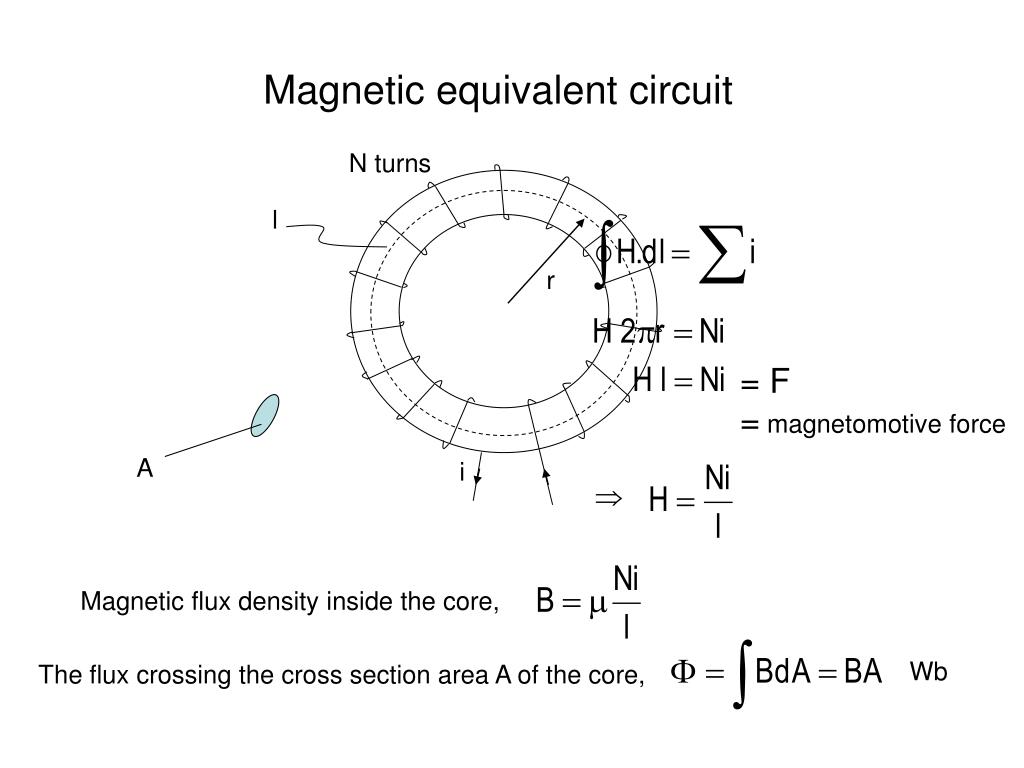

Magnetic flux density inside the core,

Wb

The flux crossing the cross section area A of the core,

Magnetic equivalent circuit

N turns

= F

= magnetomotive force

i

slide6

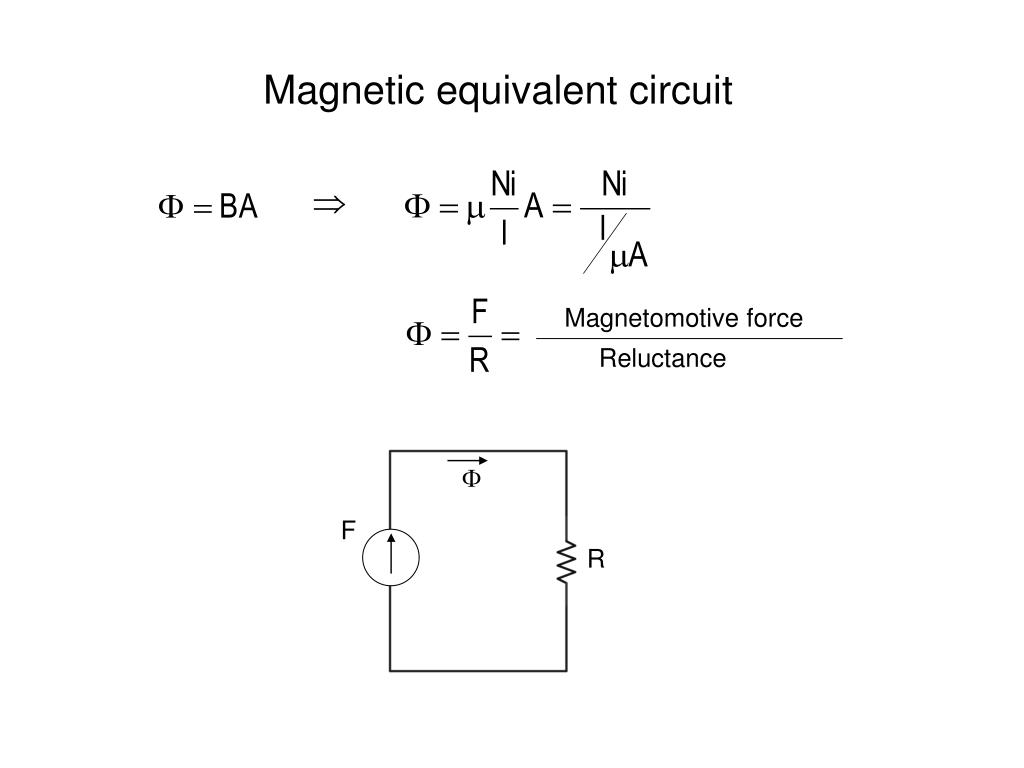

Magnetomotive force

Reluctance

F

R

Magnetic equivalent circuit

slide7

lc

Rc

i

lg

N

Rg

if Rg>> Rc

Magnetic equivalent circuit

slide8

if Rg>> Rc

Magnetic equivalent circuit

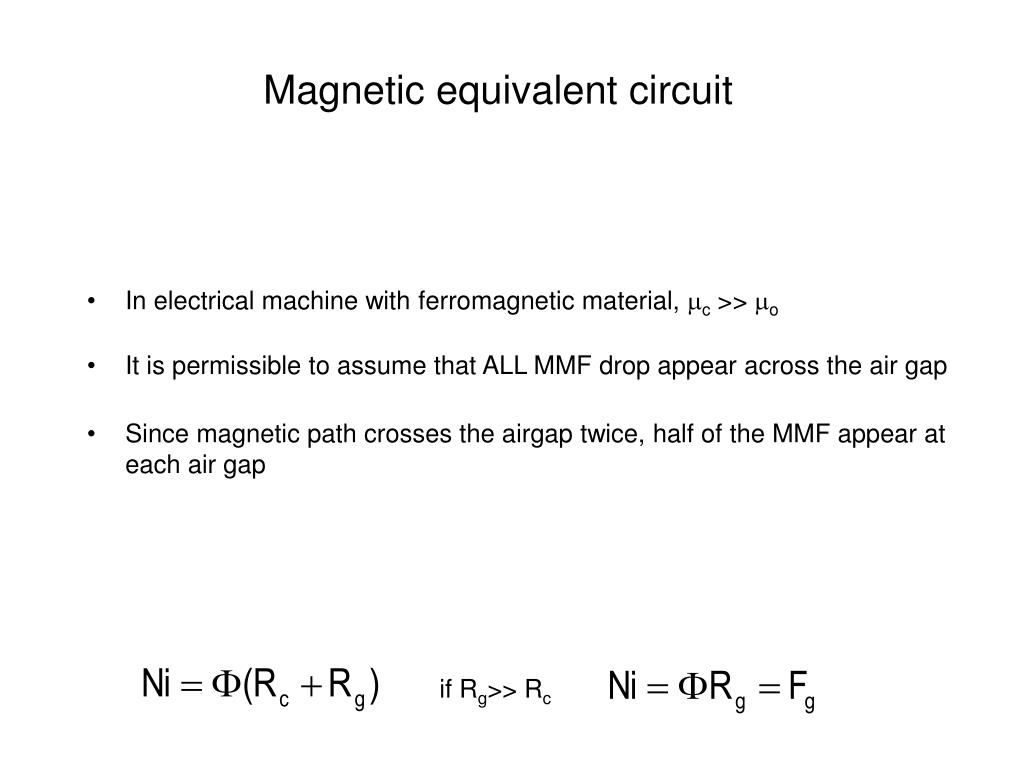

  • In electrical machine with ferromagnetic material, c >> o
  • It is permissible to assume that ALL MMF drop appear across the air gap
  • Since magnetic path crosses the airgap twice, half of the MMF appear at each air gap
slide9

Ni / 2

-

/2

-/2

-Ni / 2

Magnetic equivalent circuit

a

a’
