Chapter 19: Interfaces and Components

1. CS 426/CPE 426 Senior Projects Chapter 19: Interfaces and Components [Arlow and Neustadt, 2005] University of Nevada, Reno Department of Computer Science & Engineering

2. Outline • Interfaces and subsystems: • Introduction • Interfaces • Interface realization vs. inheritance • Components • Subsystems • Finding interfaces • The layering pattern • Advantages and disadvantages of interfaces Interfaces and Components

3. 1 Introduction • Chapter 19 roadmap, Fig. 19.1 [Arlow & Neustadt, 2005]

4. 1 Introduction • Designing large software applications is concerned with breaking a system up into subsystems(as independent as possible) • Interactions between subsystems are mediated by interfaces Fig. 19.2 [Arlow & Neustadt, 2005]

5. 2 Interfaces • An interfacespecifies a named set of public features • It defines a contract to be implemented by a classifier • In other words, an interface defines a service offered by a class, component, or system • It also separates specification from implementation • An interface cannot be instantiated • Anything that realizes an interface (e.g., a class) must accept and agree by the contract defined by the interface Interfaces and Components

6. 2 Interfaces • Interface features that need to be realized, Table 19.1 [Arlow & Neustadt 2005] Interfaces and Components

7. 2 Interfaces • Interfaces allow “design to a contract” as compared to “design to an implementation” supported by classes • This provides a high degree of flexibility • Modern software architectures are based on the concept of “service”, supported by interfaces • The attributes and operations of an interface should be fully specified, with: • Complete operation signature • The semantics of the operation (text or pseudocode) • Name and type of the attributes • Any operation or attribute stereotypes, constraints, tagged values Interfaces and Components

8. 2 Interfaces • The set of interfaces realized by a classifier is known as provided interfaces, withUML syntax (two styles) shown in Fig. 19.3 [Arlow & Neustadt 2005] • Note that the two different notations for the realization relationship Interfaces and Components

9. 2 Interfaces • The set of interfaces needed by a classifier for its operations are called required interfaces, as shown in Fig. 19.4 [Arlow & Neustadt 2005] • Note that the two different notations for the dependency relationship, with the socket symbol in the right-hand side Interfaces and Components

10. 2 Interfaces • Fig. 19.5 [Arlow & Neustadt 2005] shows an example of an assembled system Interfaces and Components

11. 2 Interfaces Interfaces in Java: the collection classes, Fig. 19.6 [Arlow & Neustadt 2005] Interfaces and Components

12. 3 Interface realization vs. inheritance • Interface: “realizes contract specified by” • Inheritance: “is a” • Both can generate polymorphism • Fig. 19.7 [Arlow & Neustadt 2005] shows an inheritance-based solution Interfaces and Components

13. 3 Interface realization vs. inheritance • Adding non-borrowable items such as journal needs further modeling Fig. 19.8 [Arlow & Neustadt 2005] Interfaces and Components

14. 3 Interface realization vs. inheritance • A more elegant solution is shown in Fig. 19.9 [Arlow & Neustadt 2005] Interfaces and Components

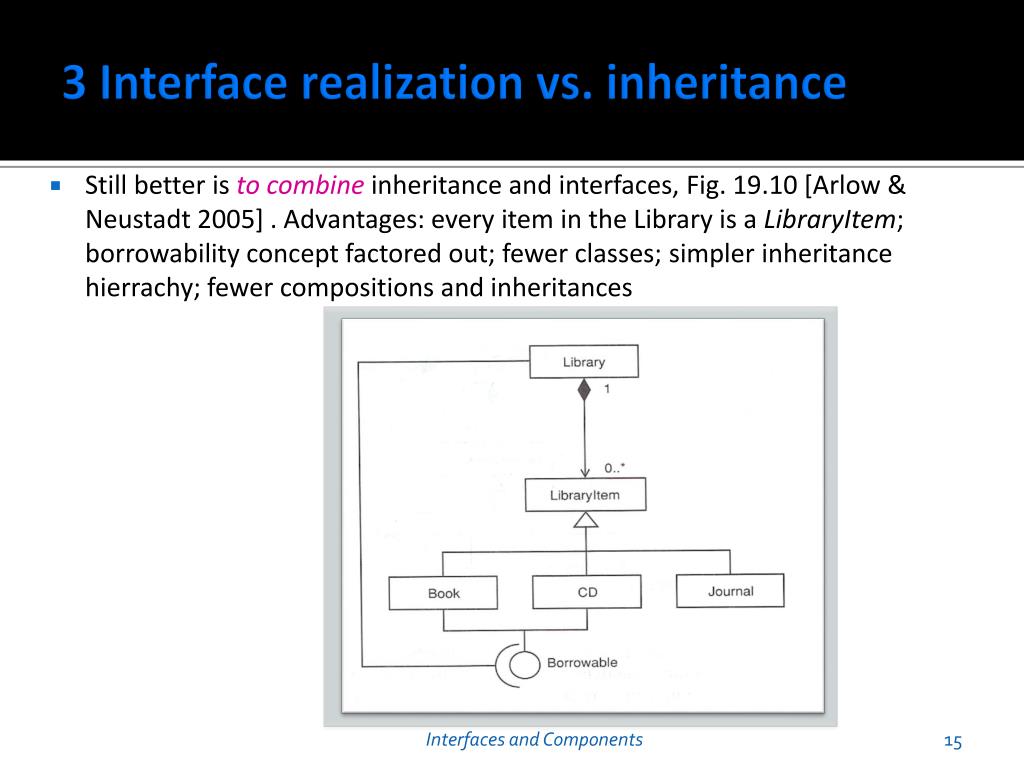

15. 3 Interface realization vs. inheritance • Still better is to combine inheritance and interfaces, Fig. 19.10 [Arlow & Neustadt 2005] . Advantages: every item in the Library is a LibraryItem; borrowability concept factored out; fewer classes; simpler inheritance hierrachy; fewer compositions and inheritances Interfaces and Components

16. 4 Interfaces and component-based development • Interfaces are key elements for component-based development (CBD) • They allow addition of plug-inparts (with varied implementations) without changing the specification • Both with components and subsystems, interfaces support low coupling and provide high architectural flexibility Interfaces and Components

17. 4 Components • A component is a “modular part of the system that encapsulates its contents and whose manifestation is replaceable within its environment” • It acts as a black box whose external behaviour is completely defined by its interfaces (provided and required); hence, it can be replaced by any other component that supports the same protocol • Fig. 19.15 [Arlow & Neustadt 2005] shows the UML notation Interfaces and Components

18. 4 Components • Components may depend on other components • To decouple components, always mediate the dependency with interfaces, Fig. 19.17 [Arlow & Neustadt 2005] Interfaces and Components

19. 4 Components Component stereotypes, Table 19.2 [Arlow & Neustadt 2005]

20. 5 Subsystems • A subsystemis a component that acts as unit of decomposition for a larger system • Interfaces connect subsystems to create a system architecture • Subsystems are used to: • Separate design concerns • Represent large-grained components • Wrap legacy systems • A system example is shown in Fig. 19.19 [Arlow & Neustadt 2005] Interfaces and Components

21. 6 Finding Interfaces • Techniques for finding interfaces in a system or subsystem: • Challenge each association • Challenge each message sent • Factor out groups of operations reusable elsewhere • Factor out sets of operations that repeat in classes • Factor out sets of attributes that repeat in classes • Look at classes that have similar roles in the system • Consider future extensions Interfaces and Components

22. 7 Architecture and the layering pattern

23. 7 Architecture and the layering pattern: HEDC
