  1. Components of Image Quality & Radiographic Artifacts Radiologic Technology A Spring 2010 Final

  2. X-ray Exposure Factors • Radiographic Density & Contrast • Components of Image Quality • Radiographic Artifacts

  3. Review Chapter 7 • Primary radiation exits the tube • Interacts with various densities in the body • Photons may be absorbed • Scattered • Passed through without any interference to the cassette or image receptor (IR)

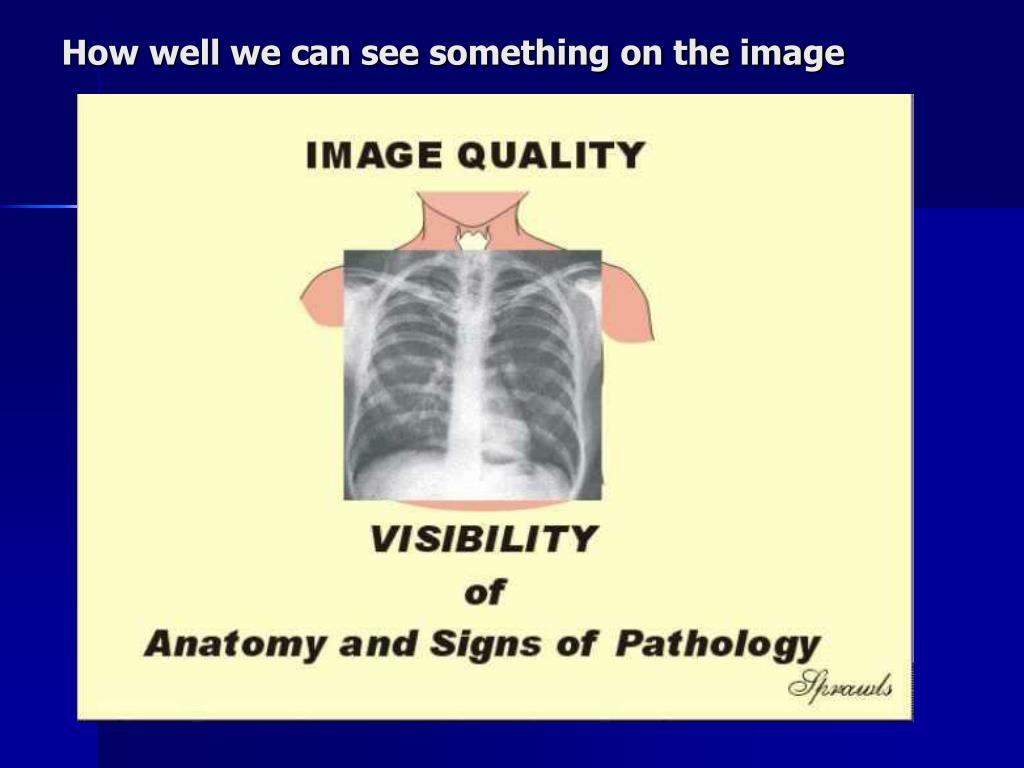

  4. How well we can see something on the image

  5. Image detail is affected by:

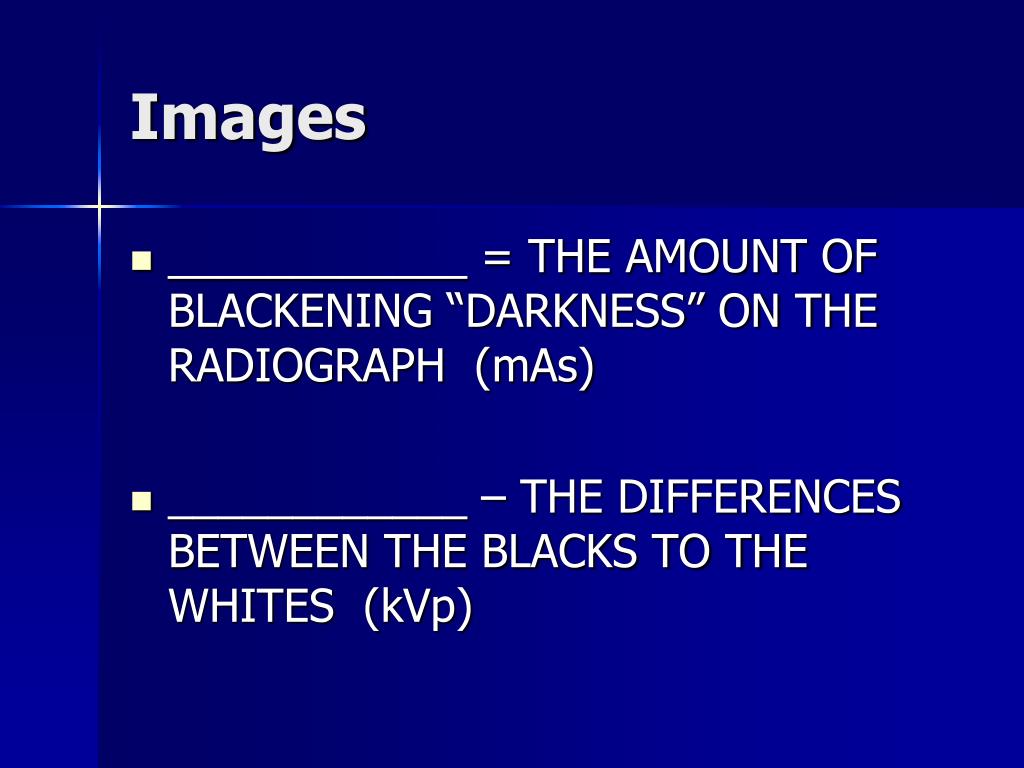

  6. Photographic Properties 1 2

  7. X-ray Exposure Factors • TECHNIQUE SELECTION: • Radiographer selects the • Kilovoltage peak (kVp) • Milliamperage (mA) & time (s) • Milliamperage x time = mAs (milliamperage multiplied by a set time measured in seconds)

  8. Kilovoltage Peak • kVp • One kilovolt = 1000 volts • The amount of voltage selected for the x-ray tube. • Range 30 to 150 kVp • kVp controls __________ ?

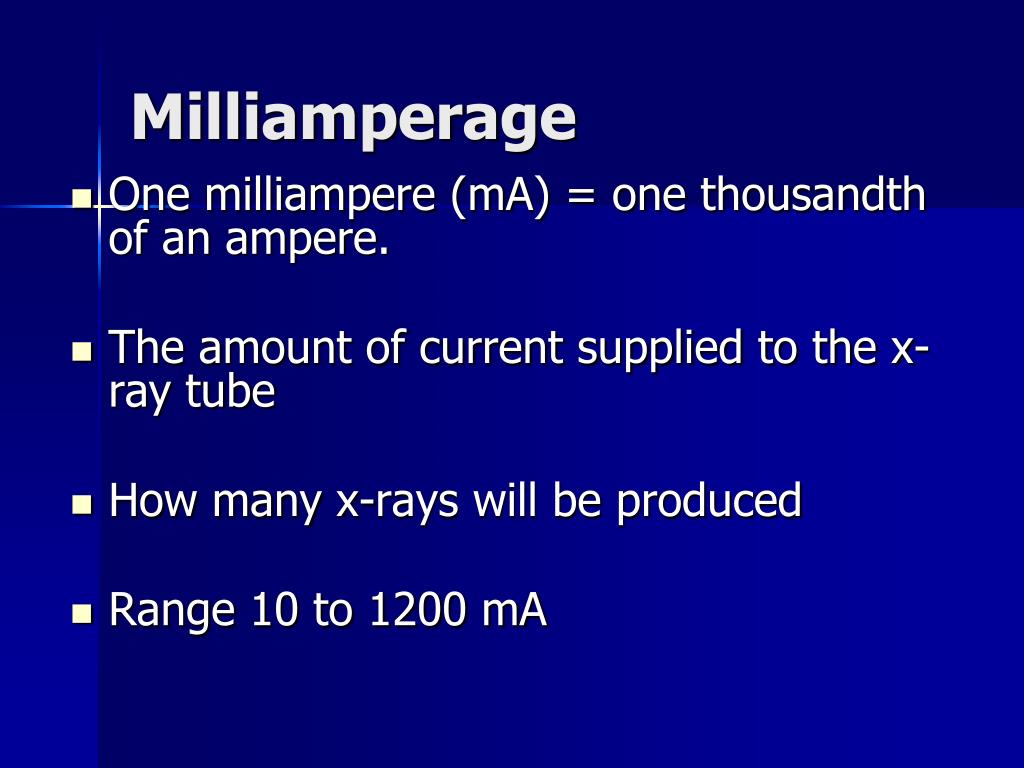

  9. Milliamperage • One milliampere (mA) = one thousandth of an ampere. • The amount of current supplied to the x-ray tube • How many x-rays will be produced • Range 10 to 1200 mA

  10. Time • In seconds • How long x-rays will be produced • 0.001 to 6 seconds

  11. Milliampere Seconds • Technologists think in terms of mAs • Calculated by mA x seconds • Ex: 100mA X 0.2s = 20 mAs • How many x-rays will be produced and for how long. • Modern x-ray machines only allow control of • mAs controls _______________ ?

  12. Factors Affecting Density • Primary control factor: • Influencing factors:

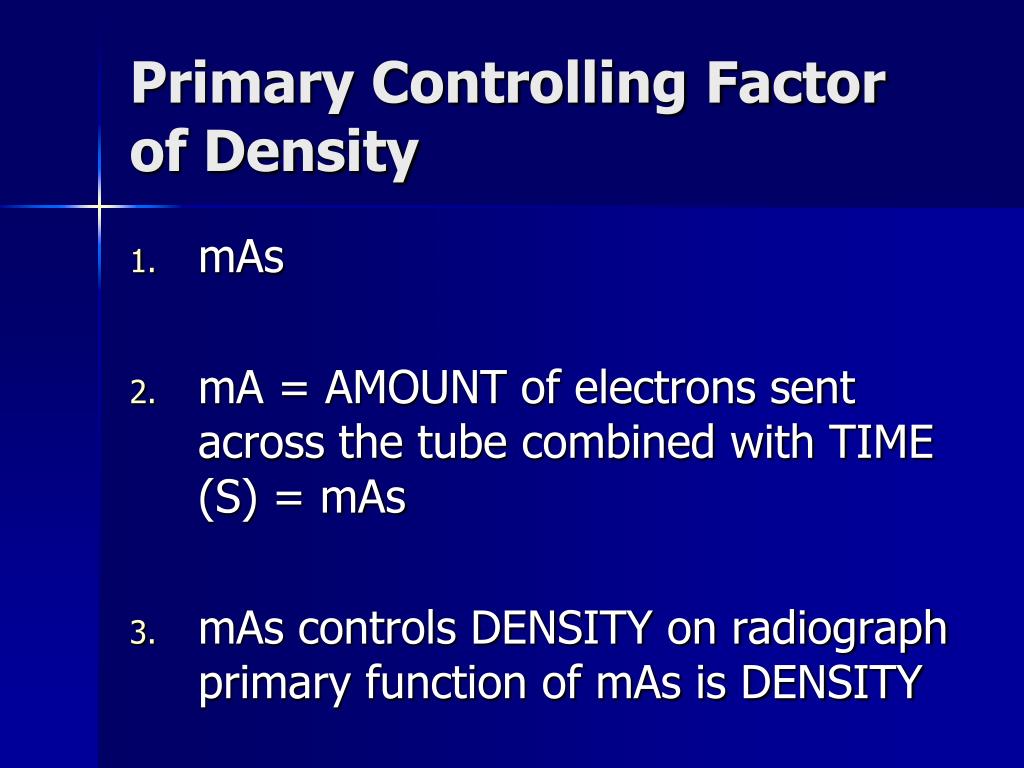

  13. Primary Controlling Factor of Density • mAs • mA = AMOUNT of electrons sent across the tube combined with TIME (S) = mAs • mAs controls DENSITY on radiograph primary function of mAs is DENSITY

  14. Imagine this… • If the mA station is changed from 200 to 400 mA, twice as many electrons will flow from the cathode to the anode. • From 10 mA to 1000 mA = 100 x more • mA controls how many electrons are coming at the target • mAs is a combination of how many and for how long(seconds)

  15. 10 mA 1000 mA

  16. Changing Mas – Changes Density+ 25 % + 50 % mas

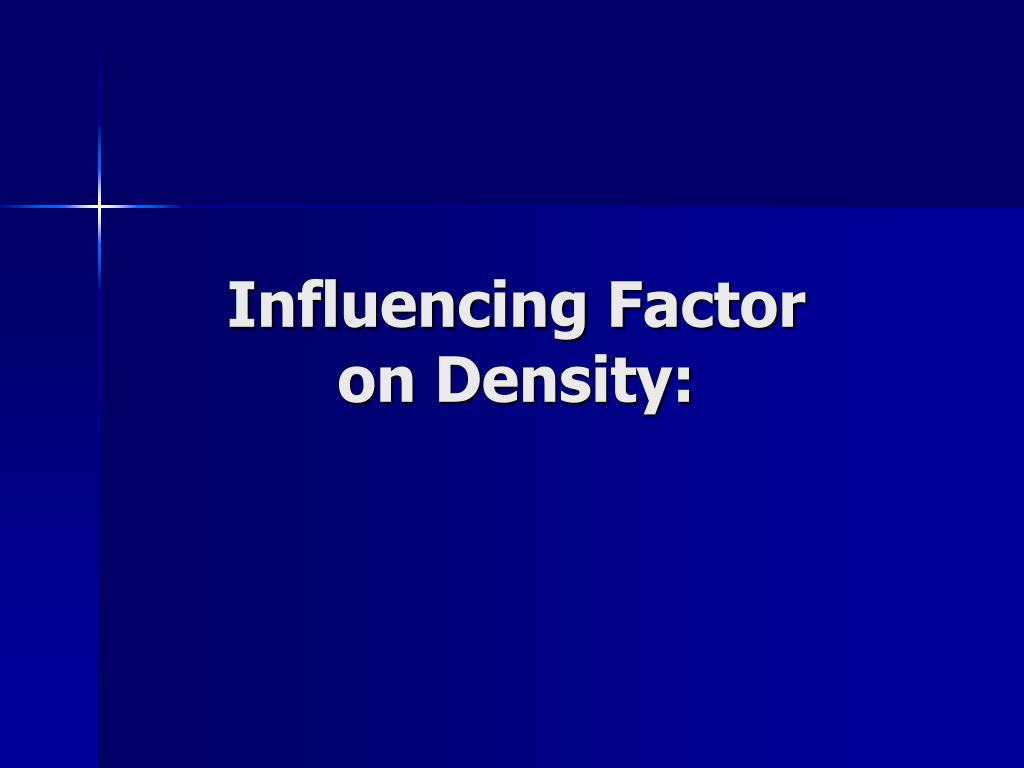

  17. Influencing Factor on Density:

  18.  kVpmore energy = more photons passing though tissue & striking the image • ____________ = doubling of exposure to the film _____________ = halving of exposure to the film _____ rule will also change the contrast of the image because kV is the primary method of changing image contrast. Remember : ___ change ( ) KVP has the same effect as doubling or ½ the MAS on density

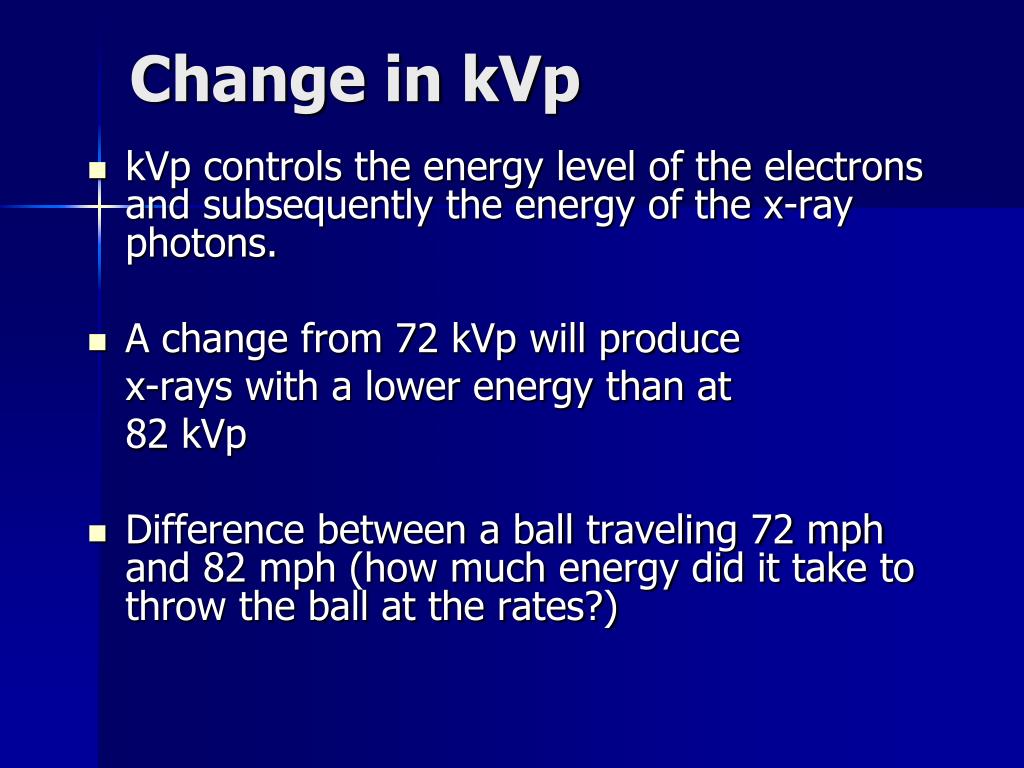

  19. Change in kVp • kVp controls the energy level of the electrons and subsequently the energy of the x-ray photons. • A change from 72 kVp will produce x-rays with a lower energy than at 82 kVp • Difference between a ball traveling 72 mph and 82 mph (how much energy did it take to throw the ball at the rates?)

  20. + 15% kvp - 15% kvp

  21. Radiolucent vs. Radiopaque • ___________ materials allow x-ray photons to pass through easily (soft tissue). • __________materials are not easily penetrated by x-rays (bones)

  22. Transmission (no interaction) Responsible for dark areas Scatter (grays) – produces no diagnostic info Absorption (photoelectric effect) Responsible for light areas Creating the Image


  24. Why you see what you see… • The films or images have different levels of density – different shades of gray • X-rays show different features of the body in various shades of gray. • The gray is darkest in those areas that do not absorb X-rays well – and allow it to pass through • The images are lighter in dense areas (like bones) that absorb more of the X-rays.

  25. Image Production • _____________ – The beam of photons, B4 it interacts with the pt’s body. • _____________ – The resulting beam that is able to exit from the patient. • _____________ – Radiation that interacts with matter & only continues in a different direction – not useful for image production. • _____________ – Primary radiation that is changed (partially absorbed) as it travels through the pt.

  26. Patient Body Size and Pathology

  27. 3 Different Body HabitusHypersthenic Sthenic Hyposthenic Dr. Charman, Eric Guzman, Adam Guzman Thank you to the 3 men in my life !  DCharman

  28. Density and Images

  29. Goal: Producing optimal radiographsDENSITY Too dark Too light

  30. Controlling Factor ofContrast

  31. Controlling Factor of Contrast • Kilovolts to anode side – kVp • Kilovolts controls how fast the electrons are sent across the tube • _______ – controls CONTRAST on images

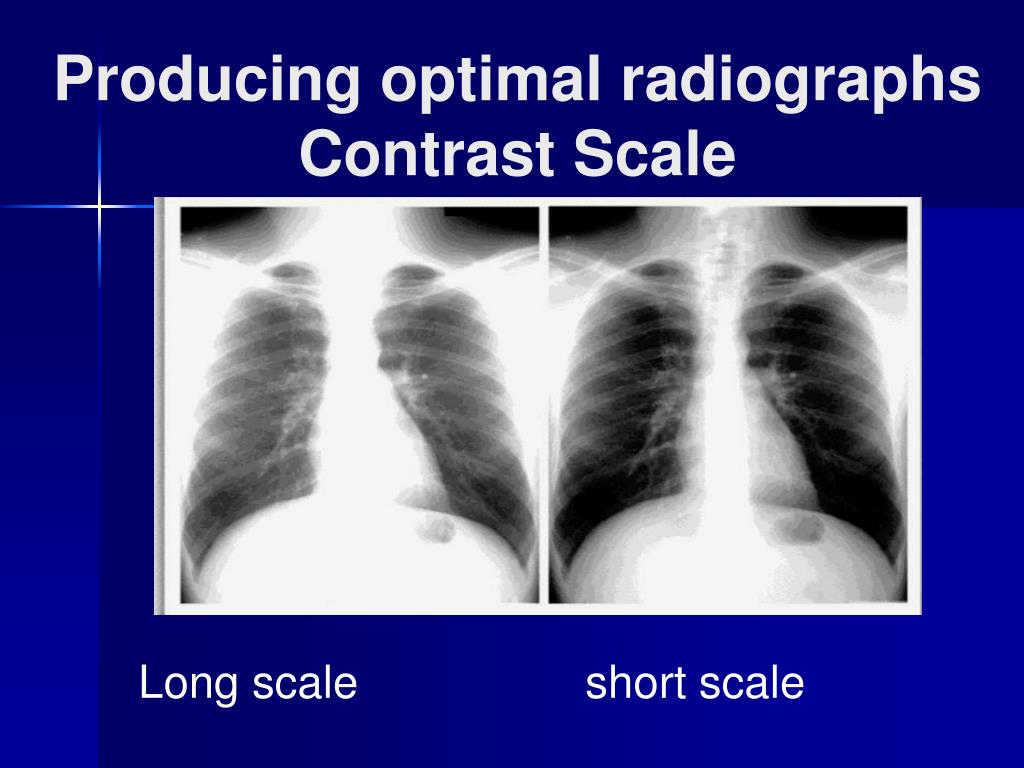

  32. Producing optimal radiographsContrast Scale Long scale short scale

  33. Scale of Contrast? Which one is “better” How does the kVp affect these images?

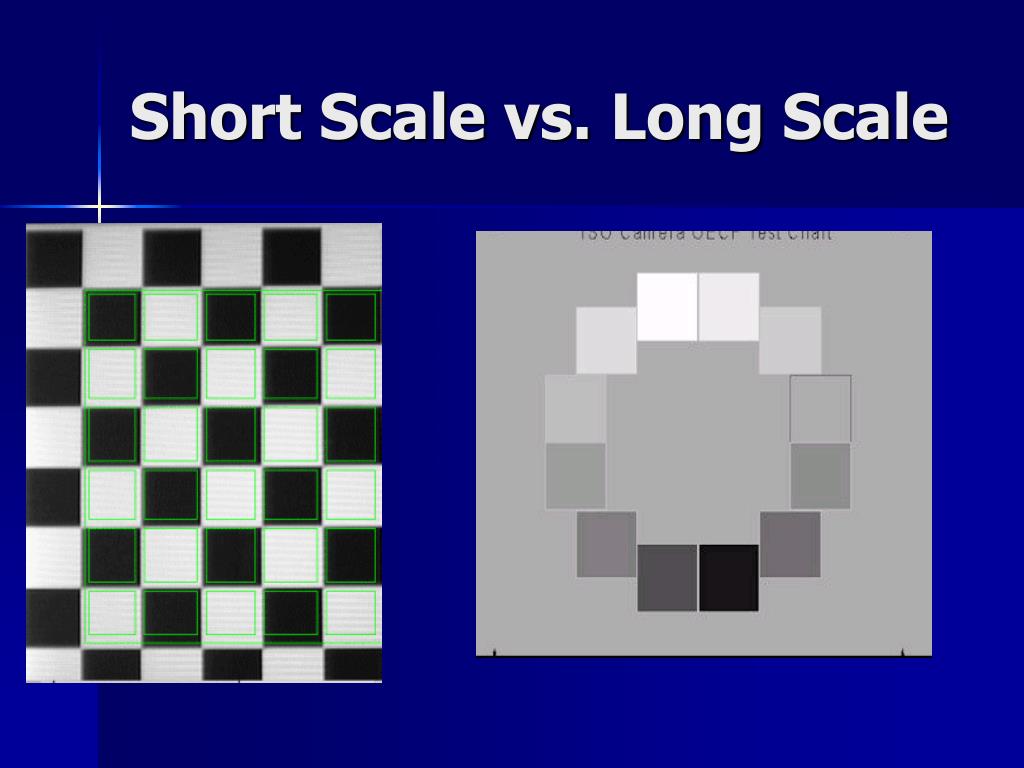

  34. Short Scale vs. Long Scale

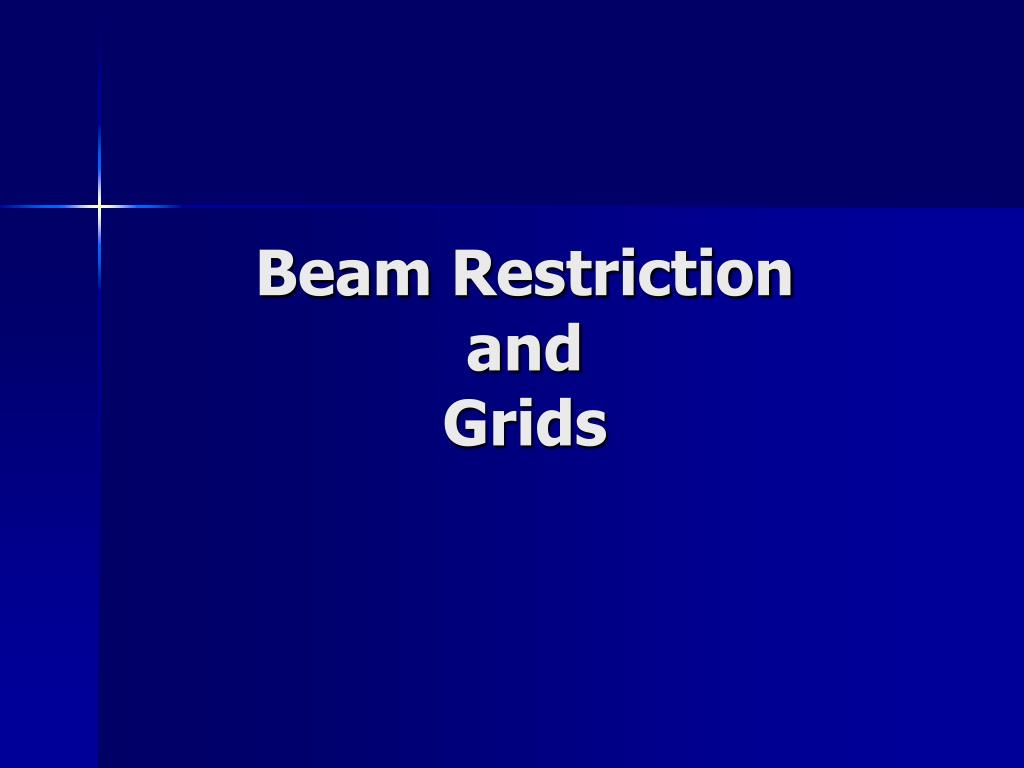

  35. Beam Restriction and Grids

  36. Creates fog Lowers contrast (more grays) Increases as: Scatter

  37. Effects of collimation (beam restriction) on scatter

  38. Collimate to area of interest -reduces scatter and radiation dose to the patient
