Presentation Transcript
introduction

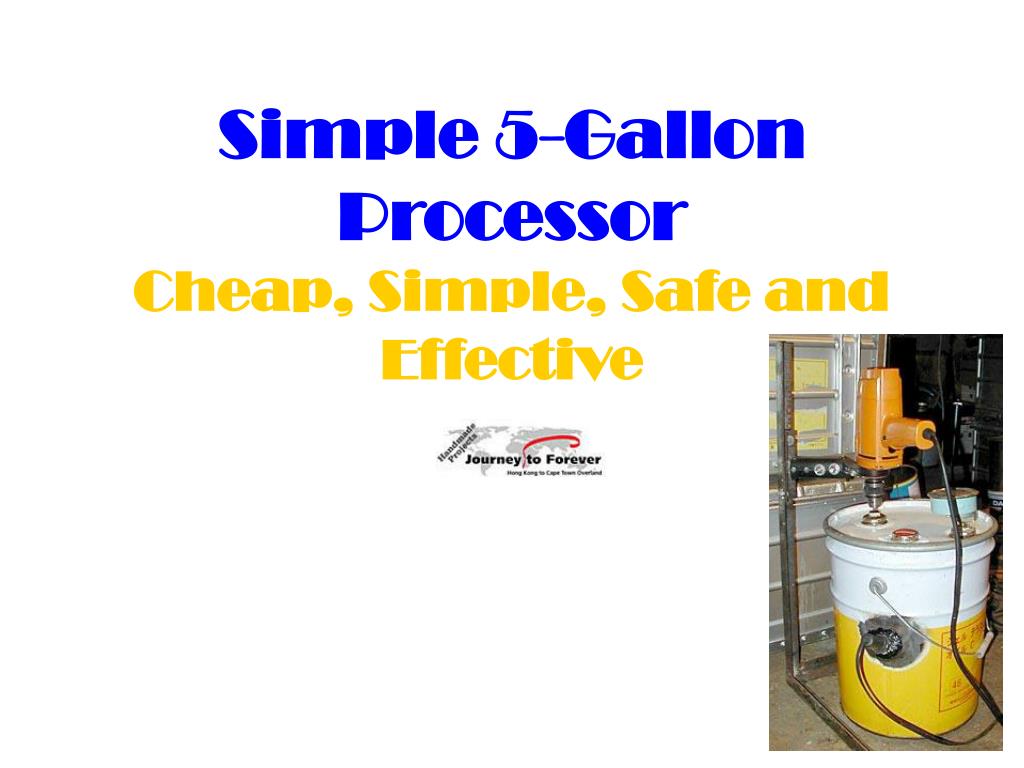

Introduction

Use it once a week and this 5-gallon (20-litre) processor will make you 200 gallons of quality biodiesel a year. We made hundreds of gallons with it before scaling up to bigger batches, and we still use it for small batches and demonstrations. Like our test-batch processor, it's easy to make from not very much, mostly scrap and junk.

It's effective and safe, closed and air-tight, with no splashing or leaking of hot fumes. It's suitable for single-stage or two-stage processes. And you can take it anywhere.

Cost -- little or nothing, depending on what you can salvage, scavenge or scrounge, but even if you buy everything you'll soon get your money back in saved fuel costs.

materials

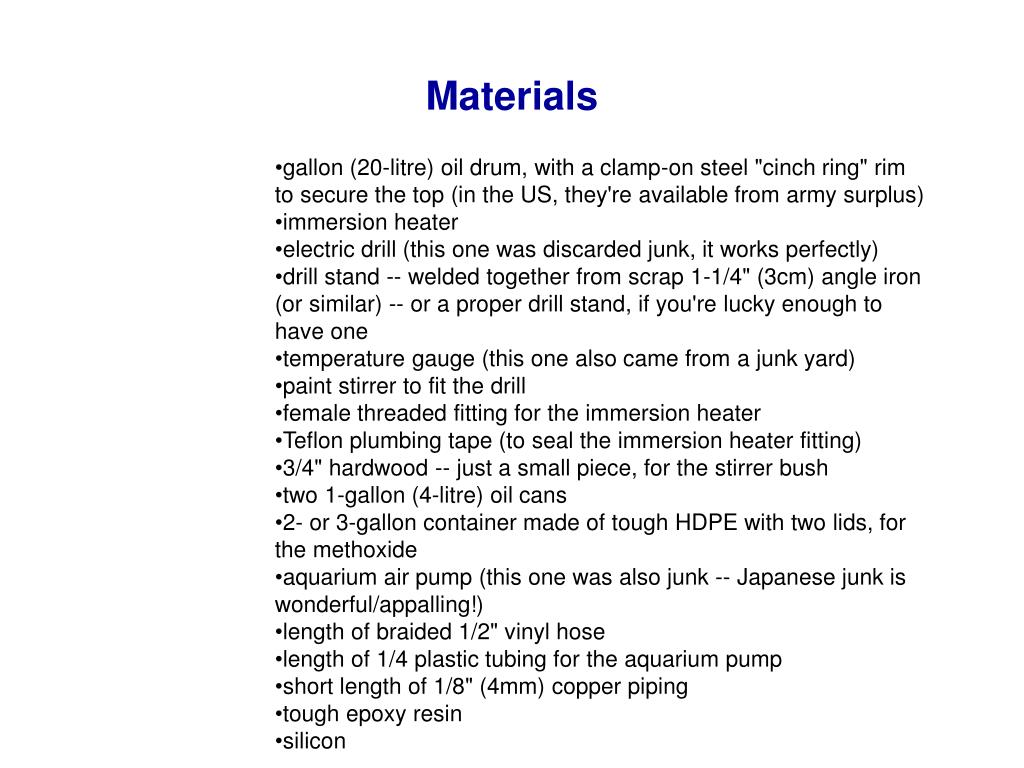

Materials
  • gallon (20-litre) oil drum, with a clamp-on steel "cinch ring" rim to secure the top (in the US, they're available from army surplus)
  • immersion heater
  • electric drill (this one was discarded junk, it works perfectly)
  • drill stand -- welded together from scrap 1-1/4" (3cm) angle iron (or similar) -- or a proper drill stand, if you're lucky enough to have one
  • temperature gauge (this one also came from a junk yard)
  • paint stirrer to fit the drill
  • female threaded fitting for the immersion heater
  • Teflon plumbing tape (to seal the immersion heater fitting)
  • 3/4" hardwood -- just a small piece, for the stirrer bush
  • two 1-gallon (4-litre) oil cans
  • 2- or 3-gallon container made of tough HDPE with two lids, for the methoxide
  • aquarium air pump (this one was also junk -- Japanese junk is wonderful/appalling!)
  • length of braided 1/2" vinyl hose
  • length of 1/4 plastic tubing for the aquarium pump
  • short length of 1/8" (4mm) copper piping
  • tough epoxy resin
  • silicon
the drill stand

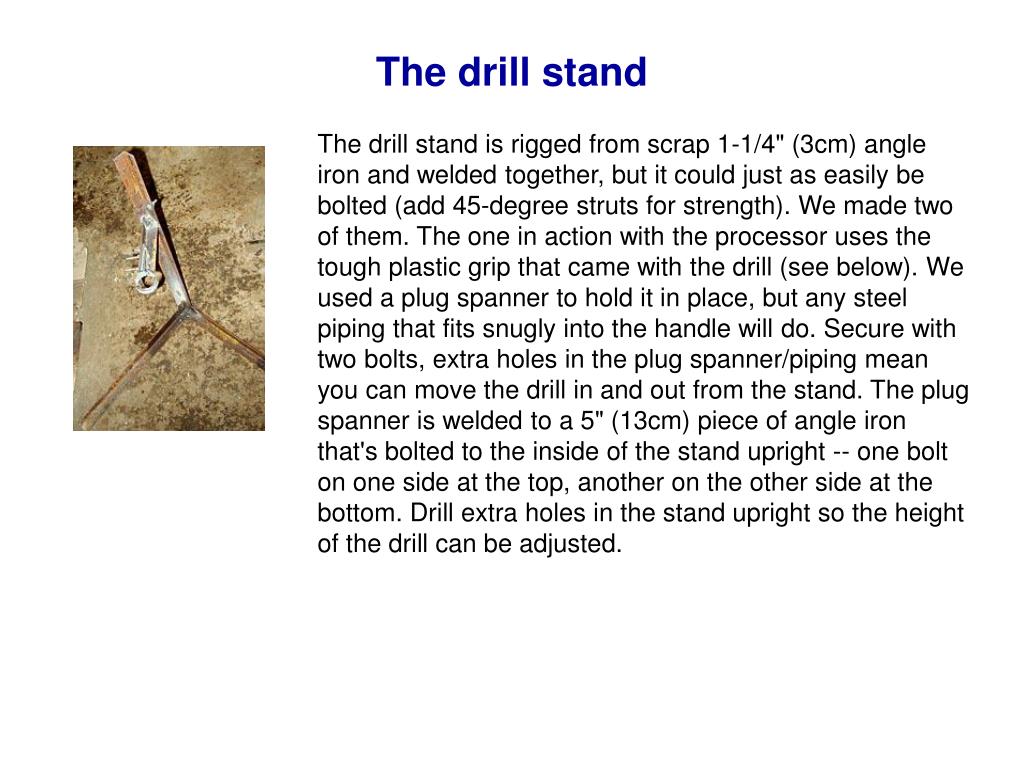

The drill stand

The drill stand is rigged from scrap 1-1/4" (3cm) angle iron and welded together, but it could just as easily be bolted (add 45-degree struts for strength). We made two of them. The one in action with the processor uses the tough plastic grip that came with the drill (see below). We used a plug spanner to hold it in place, but any steel piping that fits snugly into the handle will do. Secure with two bolts, extra holes in the plug spanner/piping mean you can move the drill in and out from the stand. The plug spanner is welded to a 5" (13cm) piece of angle iron that's bolted to the inside of the stand upright -- one bolt on one side at the top, another on the other side at the bottom. Drill extra holes in the stand upright so the height of the drill can be adjusted.

the drill stand5

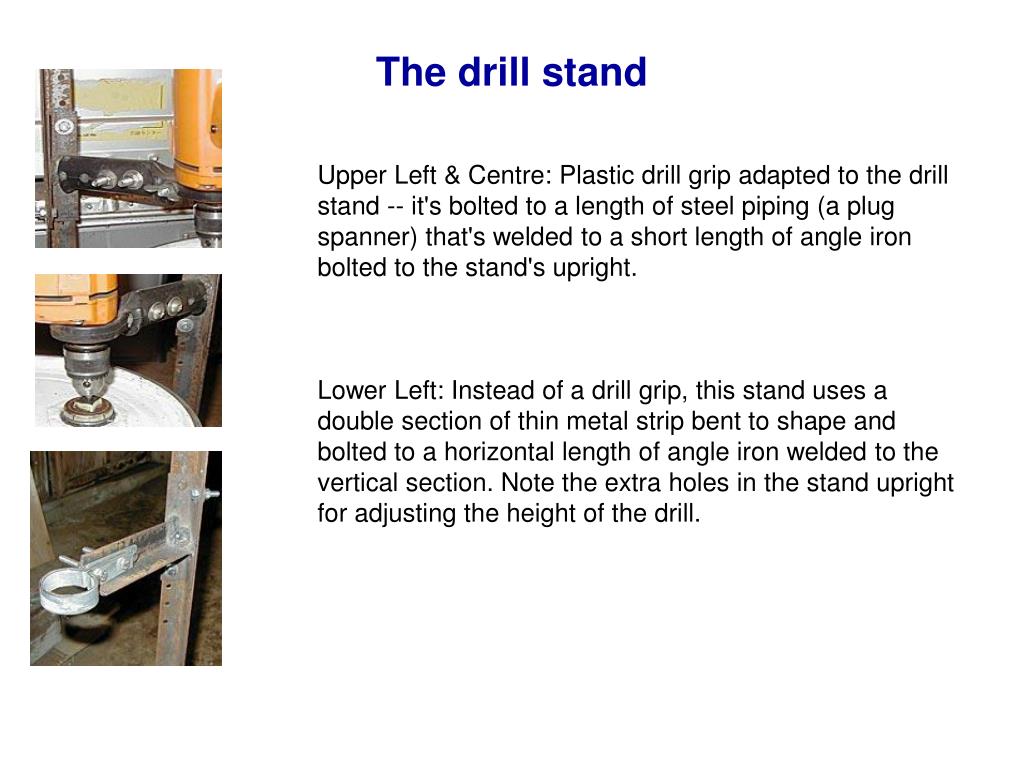

The drill stand

Upper Left & Centre: Plastic drill grip adapted to the drill stand -- it's bolted to a length of steel piping (a plug spanner) that's welded to a short length of angle iron bolted to the stand's upright.

Lower Left: Instead of a drill grip, this stand uses a double section of thin metal strip bent to shape and bolted to a horizontal length of angle iron welded to the vertical section. Note the extra holes in the stand upright for adjusting the height of the drill.

the cinch ring

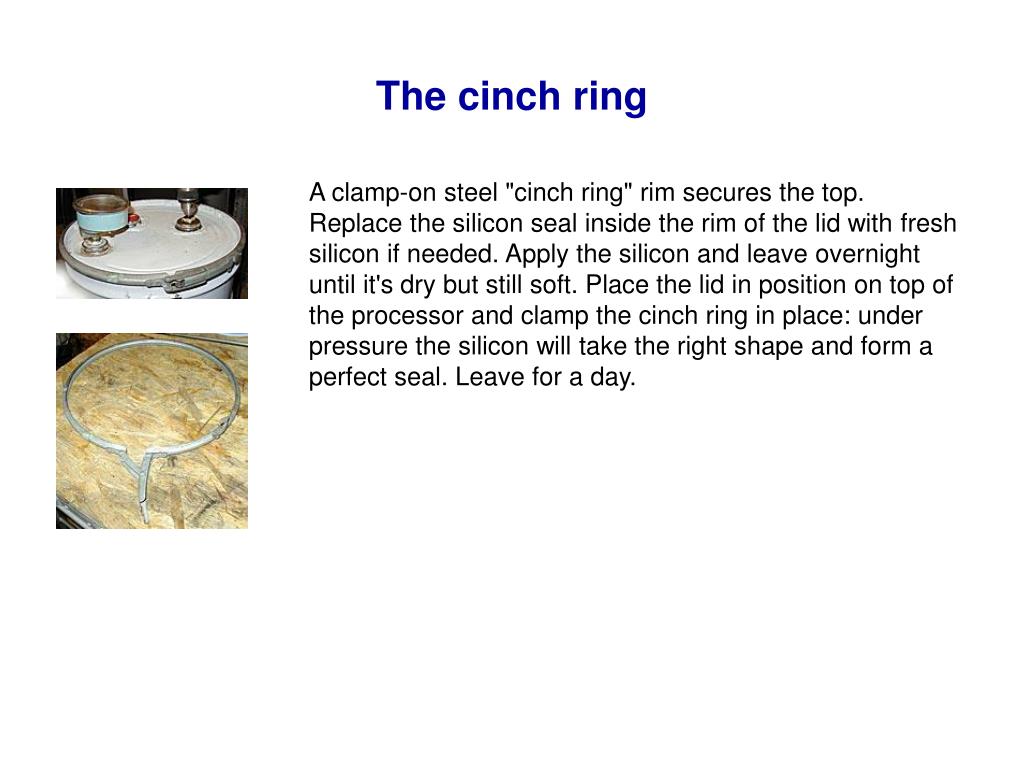

The cinch ring

A clamp-on steel "cinch ring" rim secures the top. Replace the silicon seal inside the rim of the lid with fresh silicon if needed. Apply the silicon and leave overnight until it's dry but still soft. Place the lid in position on top of the processor and clamp the cinch ring in place: under pressure the silicon will take the right shape and form a perfect seal. Leave for a day.

stirrer bush

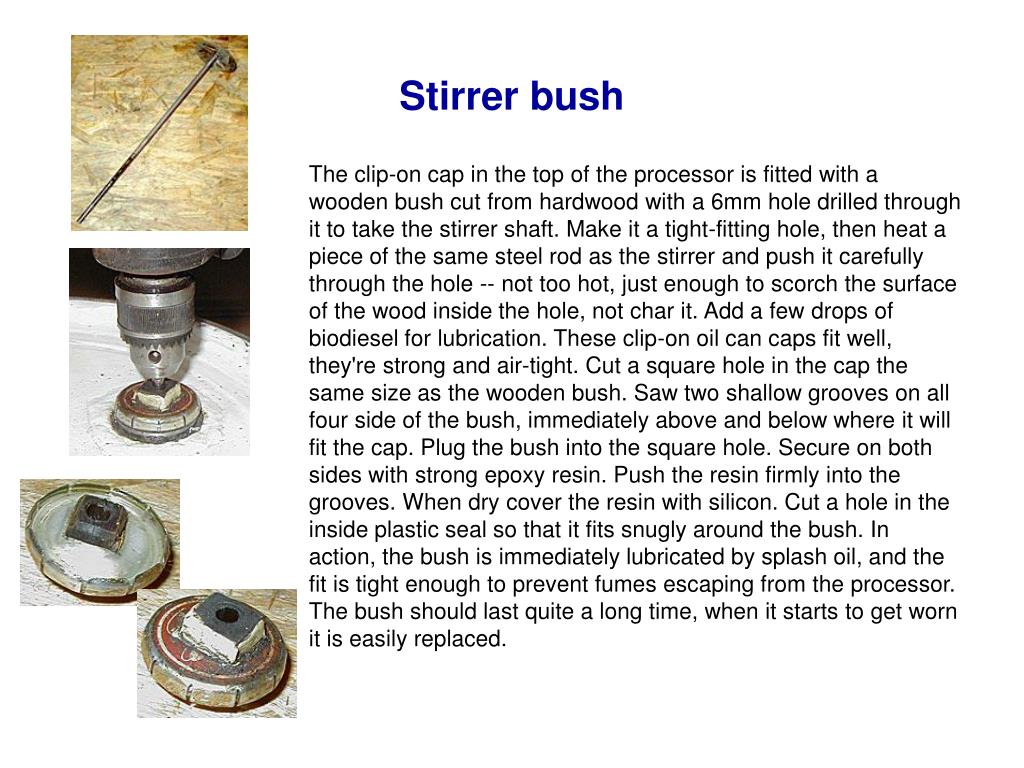

Stirrer bush

The clip-on cap in the top of the processor is fitted with a wooden bush cut from hardwood with a 6mm hole drilled through it to take the stirrer shaft. Make it a tight-fitting hole, then heat a piece of the same steel rod as the stirrer and push it carefully through the hole -- not too hot, just enough to scorch the surface of the wood inside the hole, not char it. Add a few drops of biodiesel for lubrication. These clip-on oil can caps fit well, they're strong and air-tight. Cut a square hole in the cap the same size as the wooden bush. Saw two shallow grooves on all four side of the bush, immediately above and below where it will fit the cap. Plug the bush into the square hole. Secure on both sides with strong epoxy resin. Push the resin firmly into the grooves. When dry cover the resin with silicon. Cut a hole in the inside plastic seal so that it fits snugly around the bush. In action, the bush is immediately lubricated by splash oil, and the fit is tight enough to prevent fumes escaping from the processor. The bush should last quite a long time, when it starts to get worn it is easily replaced.

extra lids

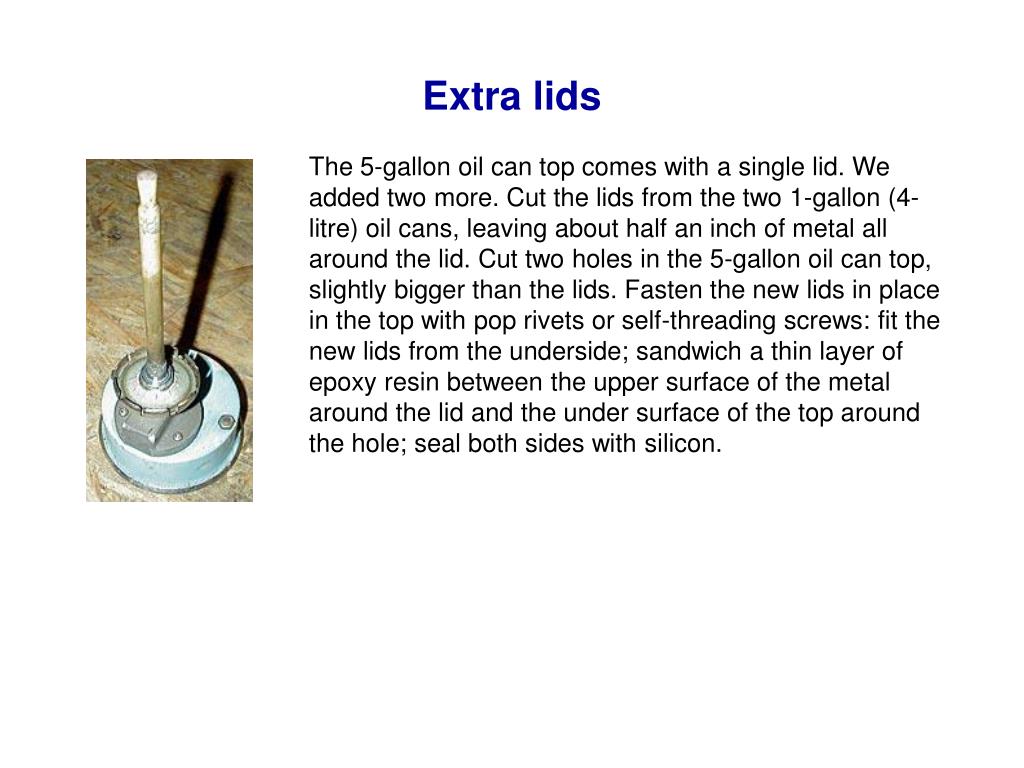

Extra lids

The 5-gallon oil can top comes with a single lid. We added two more. Cut the lids from the two 1-gallon (4-litre) oil cans, leaving about half an inch of metal all around the lid. Cut two holes in the 5-gallon oil can top, slightly bigger than the lids. Fasten the new lids in place in the top with pop rivets or self-threading screws: fit the new lids from the underside; sandwich a thin layer of epoxy resin between the upper surface of the metal around the lid and the under surface of the top around the hole; seal both sides with silicon.

fitting the heater

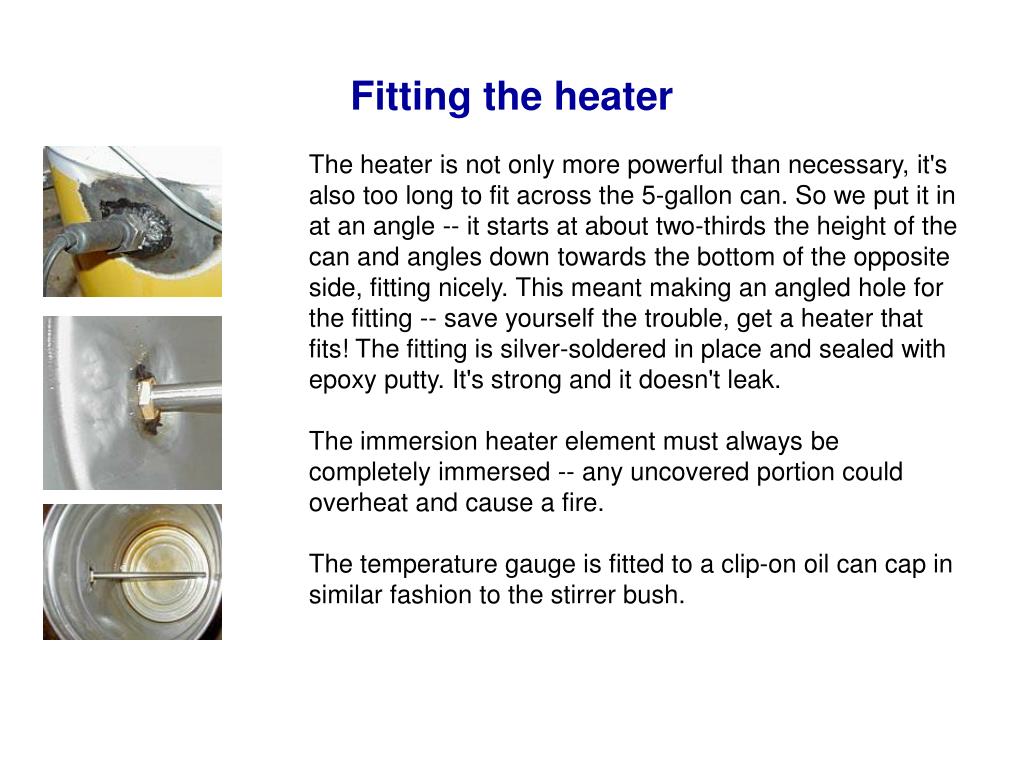

Fitting the heater

The heater is not only more powerful than necessary, it's also too long to fit across the 5-gallon can. So we put it in at an angle -- it starts at about two-thirds the height of the can and angles down towards the bottom of the opposite side, fitting nicely. This meant making an angled hole for the fitting -- save yourself the trouble, get a heater that fits! The fitting is silver-soldered in place and sealed with epoxy putty. It's strong and it doesn't leak.

The immersion heater element must always be completely immersed -- any uncovered portion could overheat and cause a fire.

The temperature gauge is fitted to a clip-on oil can cap in similar fashion to the stirrer bush.

adding the methoxide

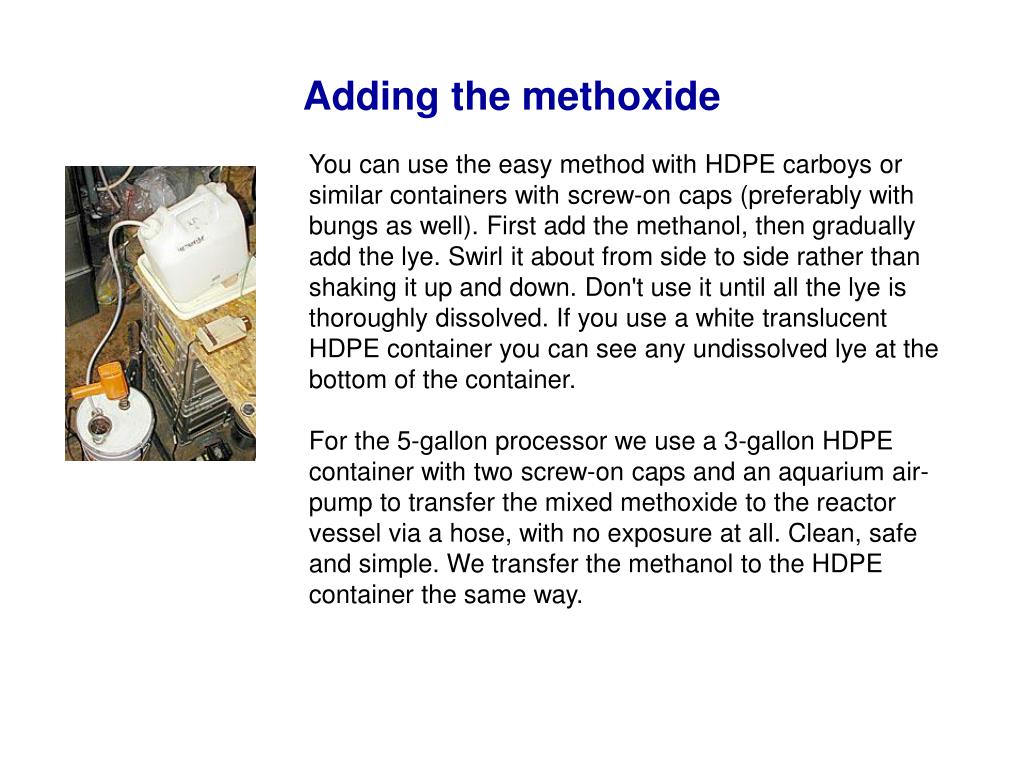

Adding the methoxide

You can use the easy method with HDPE carboys or similar containers with screw-on caps (preferably with bungs as well). First add the methanol, then gradually add the lye. Swirl it about from side to side rather than shaking it up and down. Don't use it until all the lye is thoroughly dissolved. If you use a white translucent HDPE container you can see any undissolved lye at the bottom of the container.For the 5-gallon processor we use a 3-gallon HDPE container with two screw-on caps and an aquarium air-pump to transfer the mixed methoxide to the reactor vessel via a hose, with no exposure at all. Clean, safe and simple. We transfer the methanol to the HDPE container the same way.

adding the methoxide11

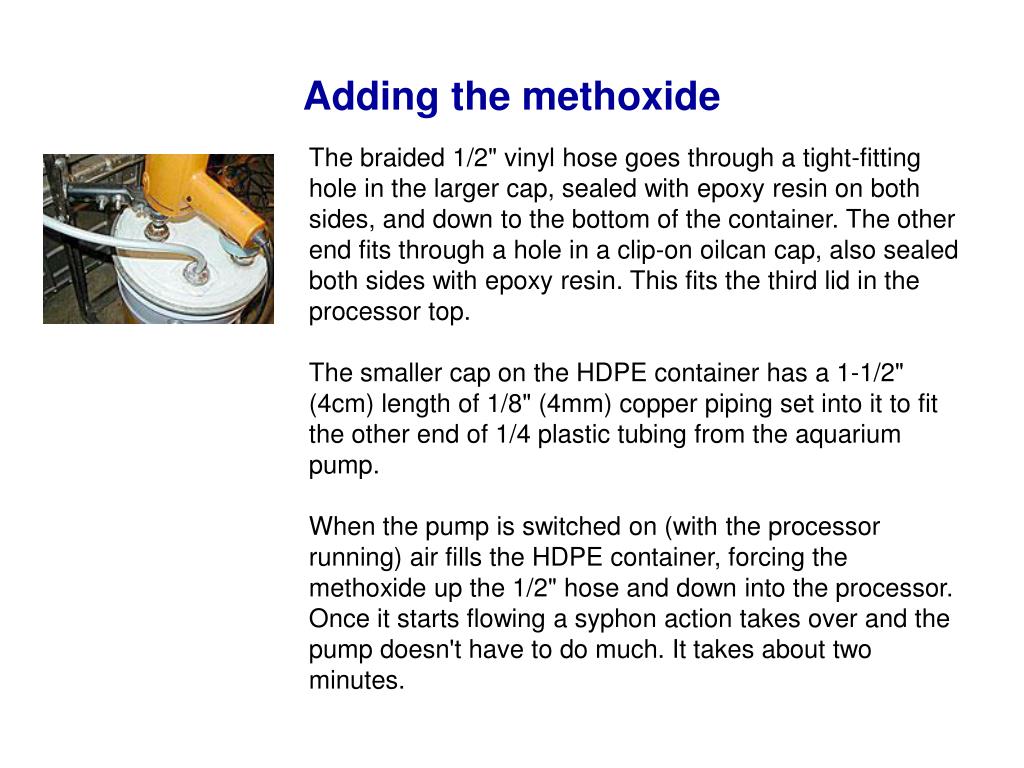

Adding the methoxide

The braided 1/2" vinyl hose goes through a tight-fitting hole in the larger cap, sealed with epoxy resin on both sides, and down to the bottom of the container. The other end fits through a hole in a clip-on oilcan cap, also sealed both sides with epoxy resin. This fits the third lid in the processor top.The smaller cap on the HDPE container has a 1-1/2" (4cm) length of 1/8" (4mm) copper piping set into it to fit the other end of 1/4 plastic tubing from the aquarium pump.When the pump is switched on (with the processor running) air fills the HDPE container, forcing the methoxide up the 1/2" hose and down into the processor. Once it starts flowing a syphon action takes over and the pump doesn't have to do much. It takes about two minutes.

using the processor

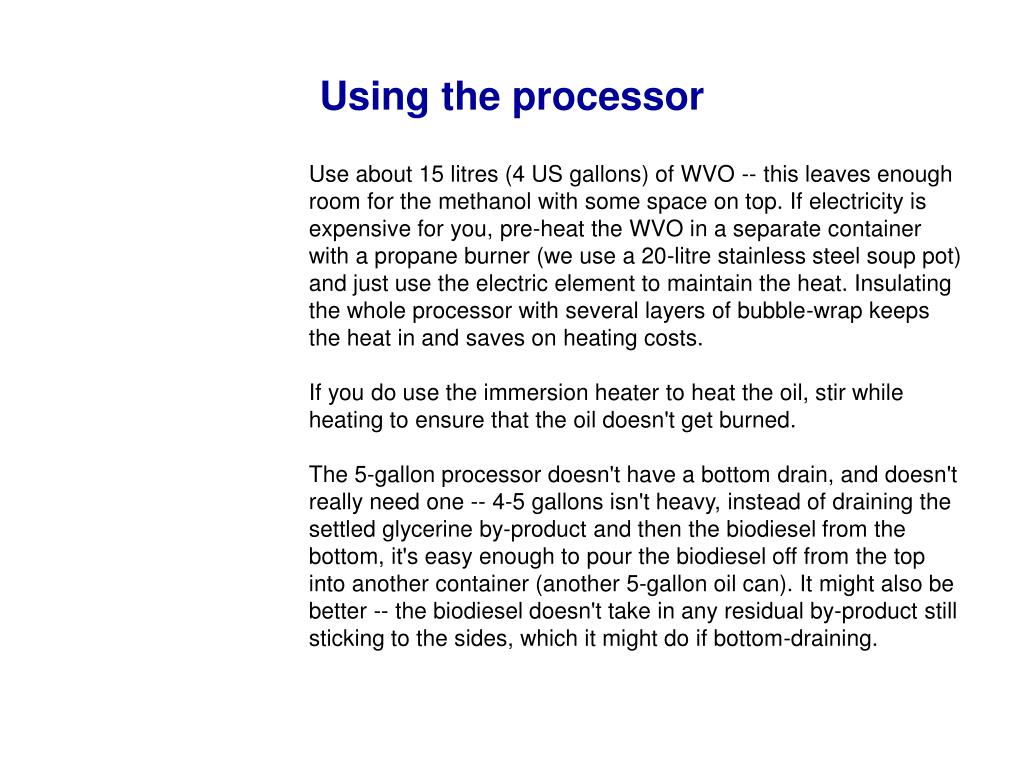

Using the processor

Use about 15 litres (4 US gallons) of WVO -- this leaves enough room for the methanol with some space on top. If electricity is expensive for you, pre-heat the WVO in a separate container with a propane burner (we use a 20-litre stainless steel soup pot) and just use the electric element to maintain the heat. Insulating the whole processor with several layers of bubble-wrap keeps the heat in and saves on heating costs.If you do use the immersion heater to heat the oil, stir while heating to ensure that the oil doesn't get burned.The 5-gallon processor doesn't have a bottom drain, and doesn't really need one -- 4-5 gallons isn't heavy, instead of draining the settled glycerine by-product and then the biodiesel from the bottom, it's easy enough to pour the biodiesel off from the top into another container (another 5-gallon oil can). It might also be better -- the biodiesel doesn't take in any residual by-product still sticking to the sides, which it might do if bottom-draining.

using the processor13
Using the processor

Also, the "girth rib" about an inch from the top makes top draining quite precise -- pour slowly as you get down towards the by-product, the first bit of by-product gathers in the rib and the remaining biodiesel flows over it. You can get nearly all the biodiesel out this way without any by-product coming with it.There's no exposure to methanol fumes doing it this way unless the weather's really hot. At normal room temperature the excess methanol doesn't fume, vapour isn't a problem. If you're worried about it, make another clip-on lid assembly, like the one shown for transferring the methoxide, with only a short stub of piping inside the lid, just enough to secure it tightly; use translucent hose and pour the biodiesel out via the hose. The other end of the hose can be fixed to another clip-on cap fitted to whatever you're pouring it into. You'll see the dark glycerine by-product starting to enter the pipe and be able to stop pouring in time. Pour the rest -- glycerine by-product and some residual biodiesel -- into a by-product holding tank with a bottom drain and a tight lid. When it's nearly full drain off the glycerine and add the biodiesel floating on top to the next wash.

methanol condenser

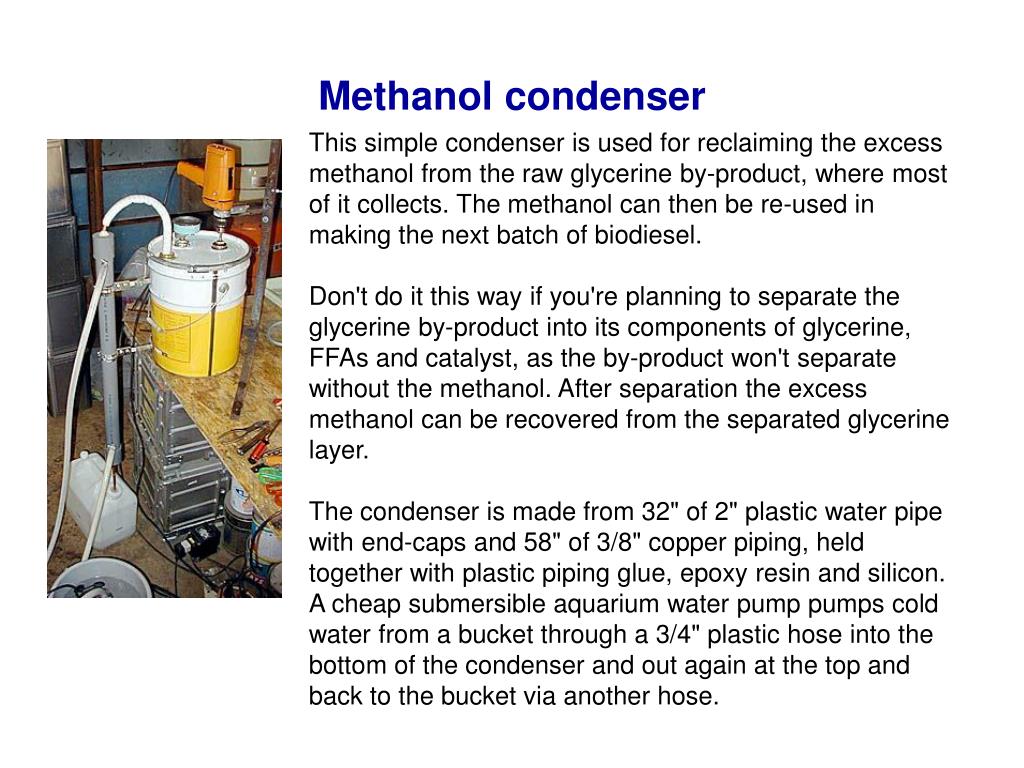

Methanol condenser

This simple condenser is used for reclaiming the excess methanol from the raw glycerine by-product, where most of it collects. The methanol can then be re-used in making the next batch of biodiesel.

Don't do it this way if you're planning to separate the glycerine by-product into its components of glycerine, FFAs and catalyst, as the by-product won't separate without the methanol. After separation the excess methanol can be recovered from the separated glycerine layer.

The condenser is made from 32" of 2" plastic water pipe with end-caps and 58" of 3/8" copper piping, held together with plastic piping glue, epoxy resin and silicon. A cheap submersible aquarium water pump pumps cold water from a bucket through a 3/4" plastic hose into the bottom of the condenser and out again at the top and back to the bucket via another hose.

methanol condenser15

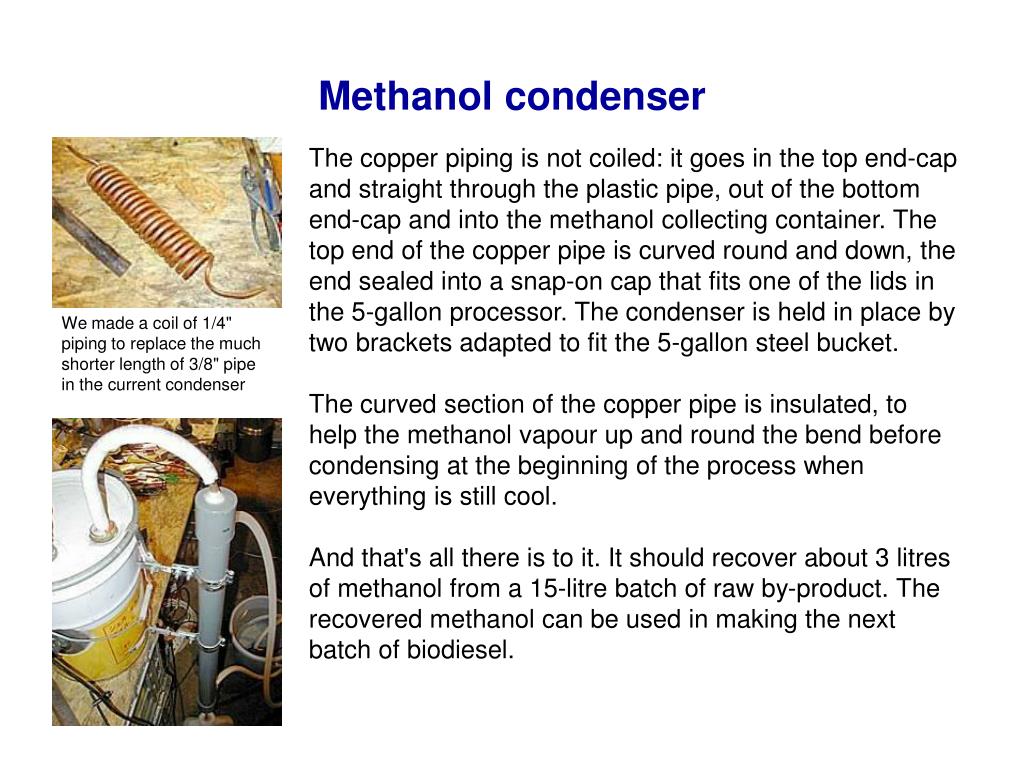

Methanol condenser

The copper piping is not coiled: it goes in the top end-cap and straight through the plastic pipe, out of the bottom end-cap and into the methanol collecting container. The top end of the copper pipe is curved round and down, the end sealed into a snap-on cap that fits one of the lids in the 5-gallon processor. The condenser is held in place by two brackets adapted to fit the 5-gallon steel bucket.

The curved section of the copper pipe is insulated, to help the methanol vapour up and round the bend before condensing at the beginning of the process when everything is still cool.And that's all there is to it. It should recover about 3 litres of methanol from a 15-litre batch of raw by-product. The recovered methanol can be used in making the next batch of biodiesel.

We made a coil of 1/4" piping to replace the much shorter length of 3/8" pipe in the current condenser

how it works

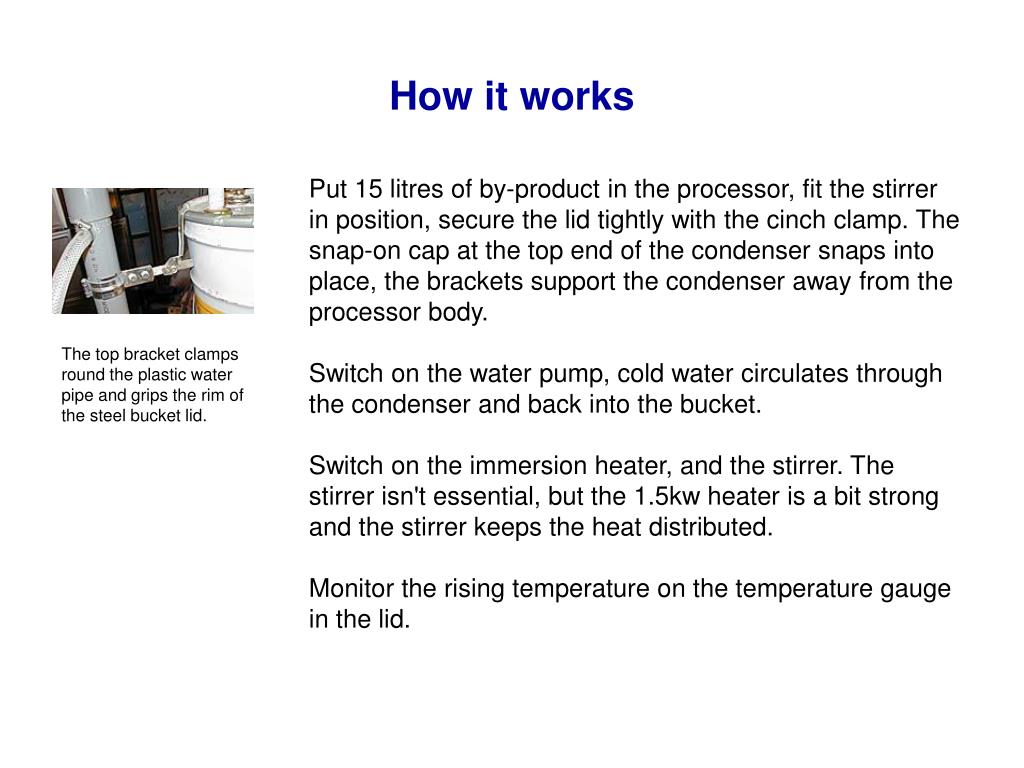

How it works

Put 15 litres of by-product in the processor, fit the stirrer in position, secure the lid tightly with the cinch clamp. The snap-on cap at the top end of the condenser snaps into place, the brackets support the condenser away from the processor body.Switch on the water pump, cold water circulates through the condenser and back into the bucket.Switch on the immersion heater, and the stirrer. The stirrer isn't essential, but the 1.5kw heater is a bit strong and the stirrer keeps the heat distributed.Monitor the rising temperature on the temperature gauge in the lid.

The top bracket clamps round the plastic water pipe and grips the rim of the steel bucket lid.

how it works17

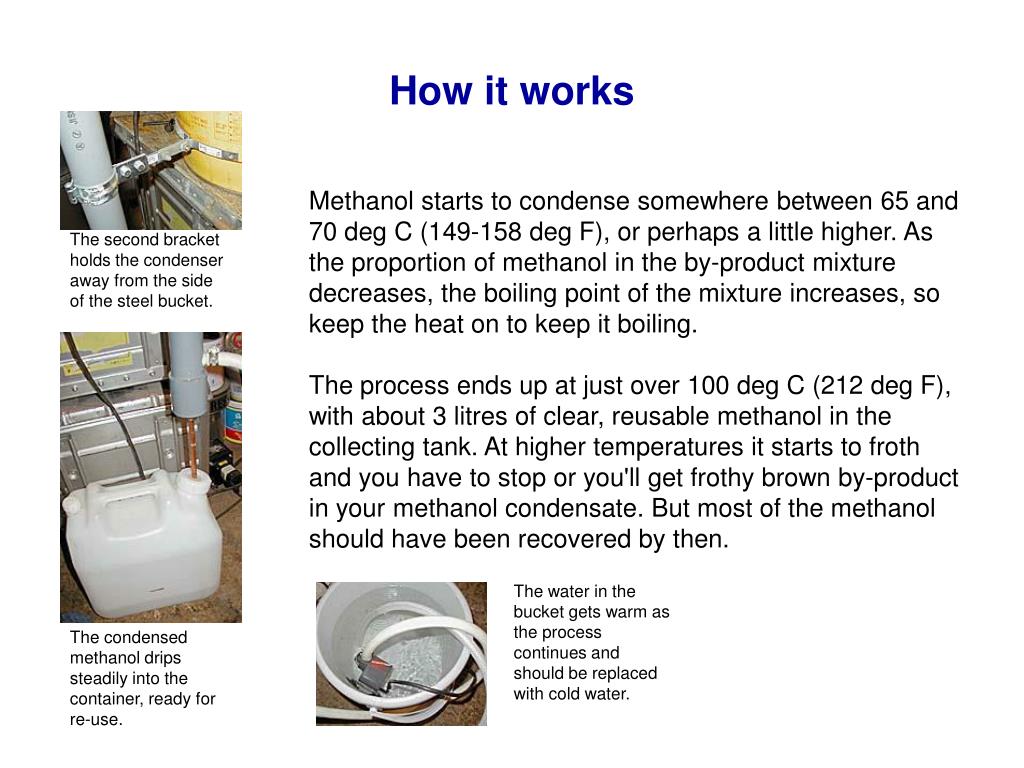

How it works

Methanol starts to condense somewhere between 65 and 70 deg C (149-158 deg F), or perhaps a little higher. As the proportion of methanol in the by-product mixture decreases, the boiling point of the mixture increases, so keep the heat on to keep it boiling.The process ends up at just over 100 deg C (212 deg F), with about 3 litres of clear, reusable methanol in the collecting tank. At higher temperatures it starts to froth and you have to stop or you'll get frothy brown by-product in your methanol condensate. But most of the methanol should have been recovered by then.

The second bracket holds the condenser away from the side of the steel bucket.

The water in the bucket gets warm as the process continues and should be replaced with cold water.

The condensed methanol drips steadily into the container, ready for re-use.

how it works18
How it works

Methanol starts to condense somewhere between 65 and 70 deg C (149-158 deg F), or perhaps a little higher. As the proportion of methanol in the by-product mixture decreases, the boiling point of the mixture increases, so keep the heat on to keep it boiling.The process ends up at just over 100 deg C (212 deg F), with about 3 litres of clear, reusable methanol in the collecting tank. At higher temperatures it starts to froth and you have to stop or you'll get frothy brown by-product in your methanol condensate. But most of the methanol should have been recovered by then.
