  1. Cache Optimization for Coarse Grain Task Parallel Processing Using Inter-Array Padding K. Ishizaka, M. Obata, H. KasaharaWaseda University, Tokyo, Japan

  2. Research Background • Wide use of SMP machine • From chip multiprocessors to high performance computers • Increasing the number of processors • Gap between peak and effective performance is getting larger • Automatic parallelizing compiler is important • To increase effective performance further • Multilevel parallel processing • Beyond limitation of loop parallelization • Locality Optimization • Cope with the speed gap between processor and memory • To improve cost performance and usability of SMP

  3. Multigrain Parallelization • Improvement of effective performance and scalability • In addition to the loop parallelism • Coarse grain task parallelism: • subroutines, loops, basic blocks • Near fine grain parallelism: • statements • OSCAR multigrain parallelizing compiler

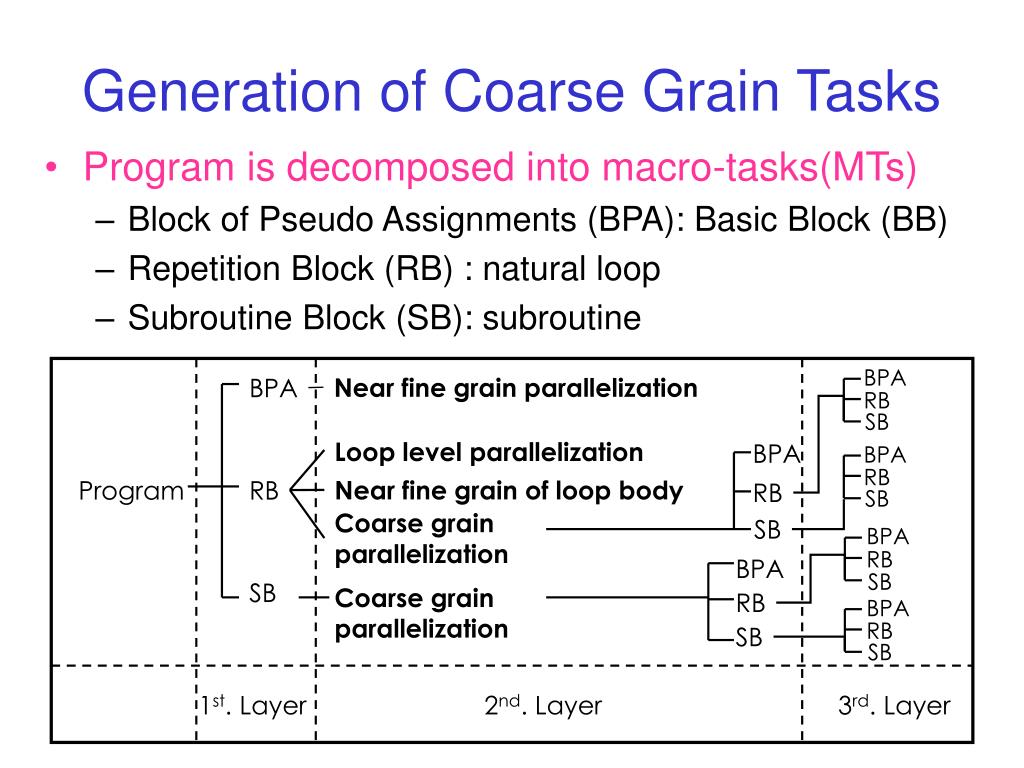

  4. BPA Near fine grain parallelization BPA RB SB Loop level parallelization BPA BPA RB Near fine grain of loop body Program RB RB SB Coarse grain parallelization SB BPA RB BPA SB SB Coarse grain parallelization RB BPA RB SB SB 1st. Layer 2nd. Layer 3rd. Layer Generation of Coarse Grain Tasks • Program is decomposed into macro-tasks(MTs) • Block of Pseudo Assignments (BPA): Basic Block (BB) • Repetition Block (RB) : natural loop • Subroutine Block (SB): subroutine

  5. MT2 takes a branchthat guarantees MT4 will be executed OR MT3 completes execution Earliest Executable Condition Analysis (Condition for determination of MT Execution)AND(Condition for Data access) • Conditions on which macro-task may begin its execution earliest Ex. Earliest Executable Condition of MT6 Macro-Flow Graph Macro-Task Graph


  6. Data dependency Control flow Cache Optimization among Macro-Tasks • To effectively use cache for data passing among macro-tasks • Macro-tasks accessing the same shared data are assigned to the same processor consecutively Macro Flow Graph Macro Task Graph

  7. Loop Align Decomposition (LAD) • If loops access larger data than cache size • Divide the loops to smaller loops considering data dependencies among loops • Define Data Localizable Group (DLG) • DLG: group of macro-tasks to be assigned to the same processor for passing the shared data through cache • Gray macro-tasks are generated by LAD • Colored bands show DLG Loop Align Decomposition Loops 2,3,7 are divided into 4 smaller loops respectively dlg1 dlg0 dlg2 dlg3 (a) Before loop decomposition (b) after loop decomposition

  8. Consecutive Execution Macro-tasks in a DLG are assigned to the same processor as consecutively as possible considering EEC time time dlg1 dlg0 dlg2 dlg3 Original execution orderon single processor Scheduling resulton single processor Effective cache usage

  9. Data Layout on a Cache for a Part of SPEC95 Swim loop1 cache size DO 200 J=1,N DO 200 I=1,M UNEW(I+1,J) = UOLD(I+1,J)+ 1 TDTS8*(Z(I+1,J+1)+Z(I+1,J))*(CV(I+1,J+1)+CV(I,J+1)+CV(I,J) 2 +CV(I+1,J))-TDTSDX*(H(I+1,J)-H(I,J)) VNEW(I,J+1) = VOLD(I,J+1)-TDTS8*(Z(I+1,J+1)+Z(I,J+1)) 1 *(CU(I+1,J+1)+CU(I,J+1)+CU(I,J)+CU(I+1,J)) 2 -TDTSDY*(H(I,J+1)-H(I,J)) PNEW(I,J) = POLD(I,J)-TDTSDX*(CU(I+1,J)-CU(I,J)) 1 -TDTSDY*(CV(I,J+1)-CV(I,J)) 200 CONTINUE 0 1 2 3 4MB UN VN PN UO VO PO CU CV Z H UN VN PN loop2 DO 210 J=1,N UNEW(1,J) = UNEW(M+1,J) VNEW(M+1,J+1) = VNEW(1,J+1) PNEW(M+1,J) = PNEW(1,J) 210 CONTINUE U V P UN VN PN UO VO PO loop3 DO 300 J=1,N DO 300 I=1,M UOLD(I,J) = U(I,J)+ALPHA*(UNEW(I,J)-2.*U(I,J)+UOLD(I,J)) VOLD(I,J) = V(I,J)+ALPHA*(VNEW(I,J)-2.*V(I,J)+VOLD(I,J)) POLD(I,J) = P(I,J)+ALPHA*(PNEW(I,J)-2.*P(I,J)+POLD(I,J)) 300 CONTINUE Cache line conflicts among arrays on the same vertical location (b) Image of alignment of arrays on cache accessed by target loops (a) An example of target loops for data localization

  10. Partial Arrays Accessed inside a DLG0 by Data Localization loop1 cache size DO 200 J=1,N DO 200 I=1,M UNEW(I+1,J) = UOLD(I+1,J)+ 1 TDTS8*(Z(I+1,J+1)+Z(I+1,J))*(CV(I+1,J+1)+CV(I,J+1)+CV(I,J) 2 +CV(I+1,J))-TDTSDX*(H(I+1,J)-H(I,J)) VNEW(I,J+1) = VOLD(I,J+1)-TDTS8*(Z(I+1,J+1)+Z(I,J+1)) 1 *(CU(I+1,J+1)+CU(I,J+1)+CU(I,J)+CU(I+1,J)) 2 -TDTSDY*(H(I,J+1)-H(I,J)) PNEW(I,J) = POLD(I,J)-TDTSDX*(CU(I+1,J)-CU(I,J)) 1 -TDTSDY*(CV(I,J+1)-CV(I,J)) 200 CONTINUE 0 1 2 3 4MB UN VN PN UO VO PO CU CV Z H UN VN PN loop2 DO 210 J=1,N UNEW(1,J) = UNEW(M+1,J) VNEW(M+1,J+1) = VNEW(1,J+1) PNEW(M+1,J) = PNEW(1,J) 210 CONTINUE U V P UN VN PN UO VO PO loop3 DO 300 J=1,N DO 300 I=1,M UOLD(I,J) = U(I,J)+ALPHA*(UNEW(I,J)-2.*U(I,J)+UOLD(I,J)) VOLD(I,J) = V(I,J)+ALPHA*(VNEW(I,J)-2.*V(I,J)+VOLD(I,J)) POLD(I,J) = P(I,J)+ALPHA*(PNEW(I,J)-2.*P(I,J)+POLD(I,J)) 300 CONTINUE Cache line conflicts among arrays on the same vertical location (b) Image of alignment of arrays on cache accessed by target loops (a) An example of target loops for data localization

  11. Padding to Remove Conflict Miss cache size Example: spec95 swim: 1MB x 13 Arrays Cache: 4MB direct map 4MB U V P UN VN PN UO VO PO CU CV Z : accessed inside a DLG0 H Loop division : padding 4MB 4MB padding by increasing array size partial arrays are allocated to the limited part of cache arrays are allocated to the whole cache many conflict misses

  12. Page Replacement Policy • Operating System maps virtual address to physical address • Compiler works on virtual address • Cache uses physical address (ex. L2 of Ultra SPARC II) Cache performance and efficiency of compiler data layout transformation depend on OS policy • Sequential addresses on virtual address are • Hashed VA of Solaris8, Page Coloring of AIX4.3 • sequential on physical address • Bin Hopping • not sequential on physical address

  13. SMP Machines for Performance Evaluation • Sun Ultra 80 • Four 450MHz Ultra SPARC IIs • 4MB direct map L2 cache • Solaris8 (Hashed VA and Bin Hopping) • Sun Forte 6 update 2 • IBM RS/6000 44p-270 • Four 375MHz Power3s • 4MB 4-way set associative L2 cache(LRU) • AIX 4.3 (Page Coloring and Bin Hopping) • XL FORTRAN compiler 7.1 (underline: default page replacement policy)

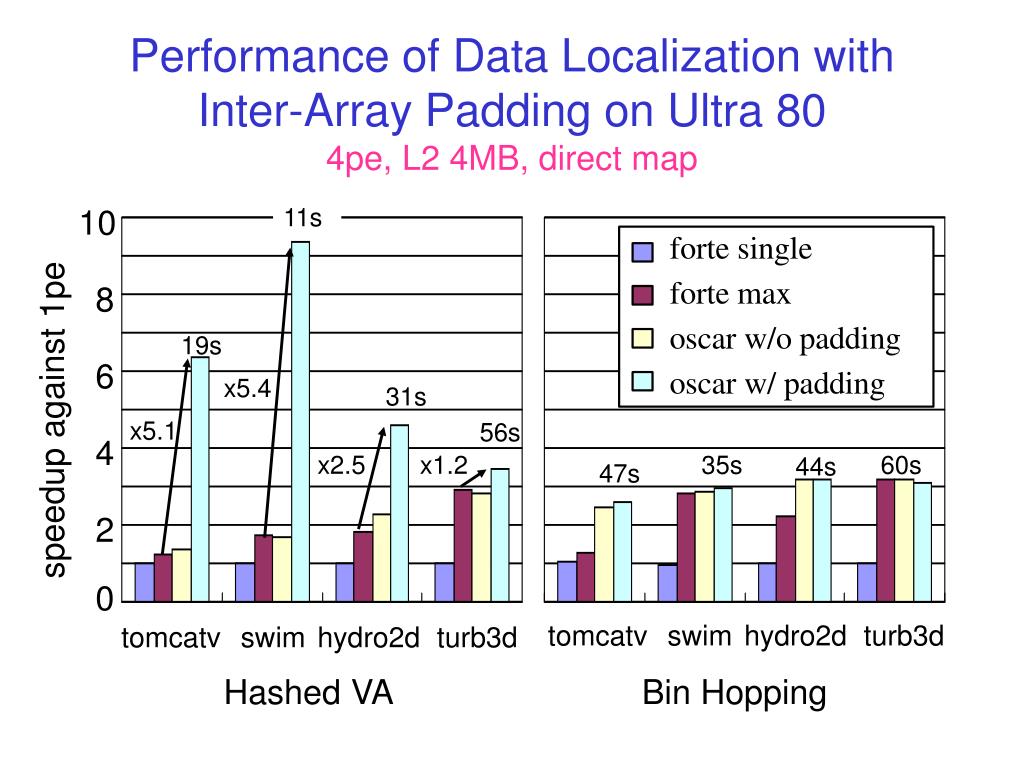

  14. Performance of Data Localization with Inter-Array Padding on Ultra 804pe, L2 4MB, direct map 10 11s 8 19s 6 x5.4 31s speedup against 1pe x5.1 56s 4 x2.5 x1.2 35s 60s 44s 47s 2 0 tomcatv swim hydro2d turb3d tomcatv swim hydro2d turb3d Hashed VA Bin Hopping

  15. Performance of Data Localization with Inter-Array Padding on RS/6000 44p-2704pe, L2 4MB, 4-way set associative(LRU) 8.0s 8 6 x5.3 12s 16s 17s speedup against 1pe 4 25s 22s 25s x3.3 x1.02 26s x2.0 2 0 tomcatv swim hydro2d turb3d tomcatv swim hydro2d turb3d Page Coloring Bin Hopping

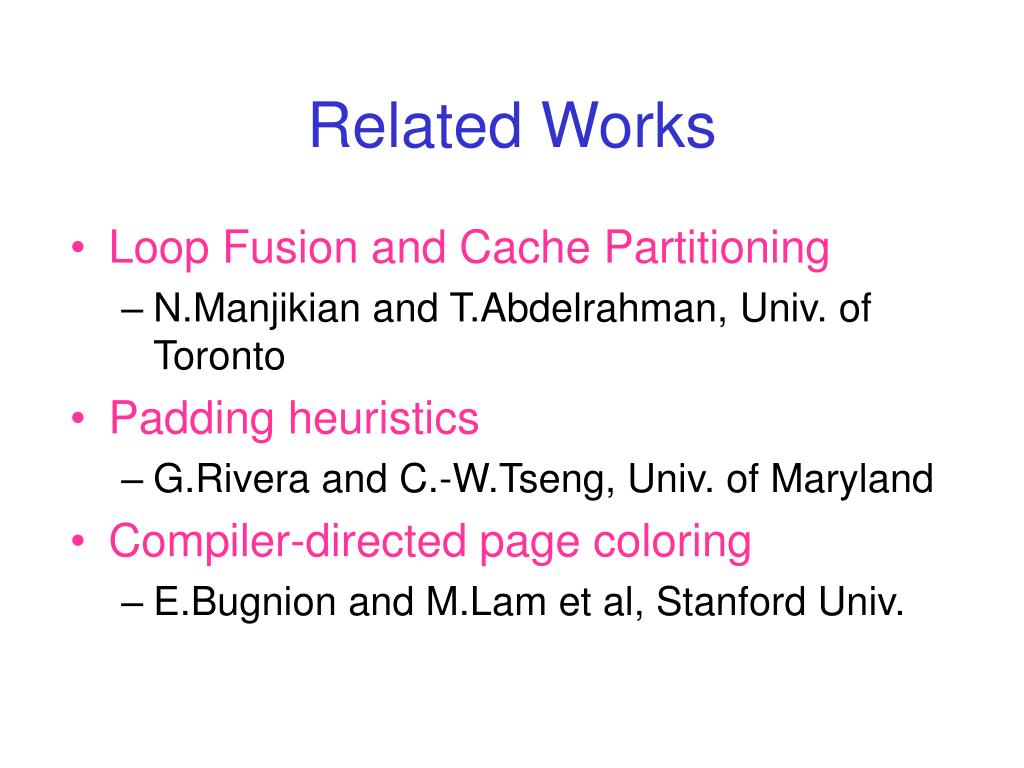

  16. Related Works • Loop Fusion and Cache Partitioning • N.Manjikian and T.Abdelrahman, Univ. of Toronto • Padding heuristics • G.Rivera and C.-W.Tseng, Univ. of Maryland • Compiler-directed page coloring • E.Bugnion and M.Lam et al, Stanford Univ.

  17. Conclusions • Cache optimization among coarse grain task using inter-array padding with Data Localization • Improve data locality over loops by Data Localization composed of Loop Division and Consecutive Execution • Decrease cache misses by Inter-Array Padding • In the evaluation using SPEC95 tomcatv, swim, hydro2d and turb3d • on Sun Ultra 80 4processors workstation • 5.1 times speedup for tomcatv, 5.4 times speedup for swim compared with Sun Forte 6u2 on Hashed VA • on IBM RS/6000 4processors workstation • 5.3 times speedup for swim, 3.3 times speedup for hydro2d compared with IBM XLF 7.1 on page coloring
