formal methods three suggestions for rapid adoption

Formal Methods: Three suggestions for rapid adoption

Wolfram Schulte

RiSE, MSR

Workshop on Usable Verification

11/15/2010

from program analysis tools in 2000 2003
From Program analysis tools in 2000-2003…

Slam

Model-checker

SimpleDecision

Procedure

Fugue

Dataflow

Analyzer

Abstract

Domains

Prefix/Prefast

SymbolicInterpret.

CustomDecision

Procedure

ESP

Dataflow Analyzer

Abstract

Domains

to formal methods tools in 2004 2010
… to formal methods tools in 2004-2010…

Formula

Fine

Bek

SymDiff

VCC

Spec#

Poirot

Havoc

Pex

CodeContracts

Sage

Daphne

Chalice

Rex

Boogie

SymAutom

Z3

Isabelle

Simplify

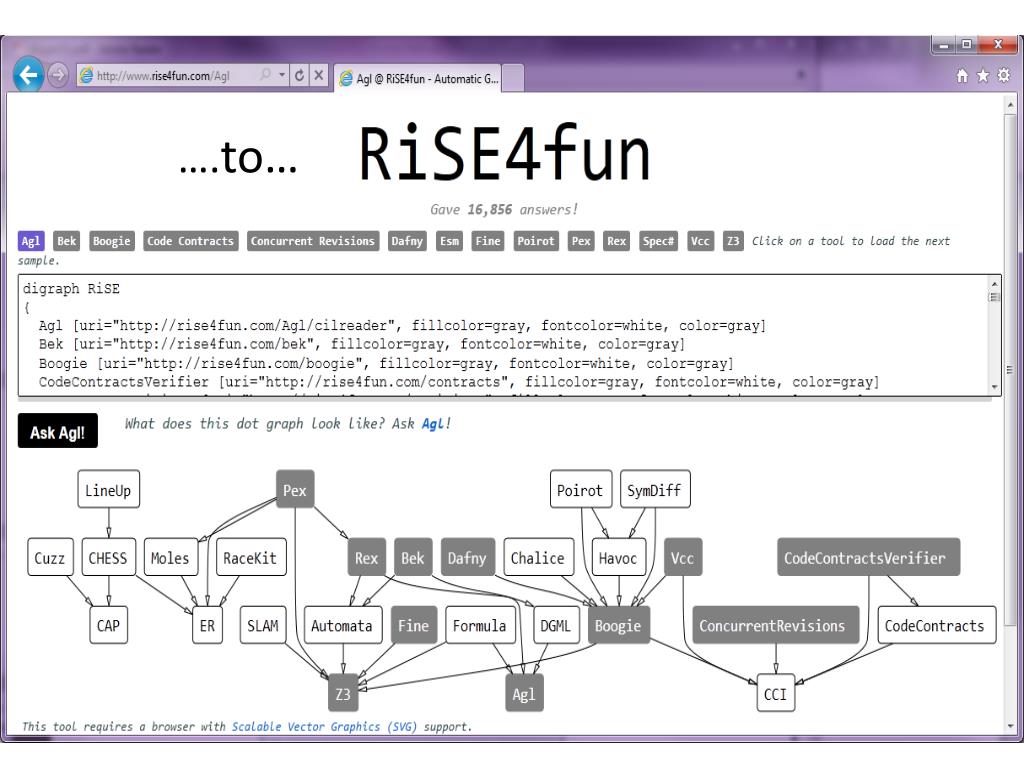

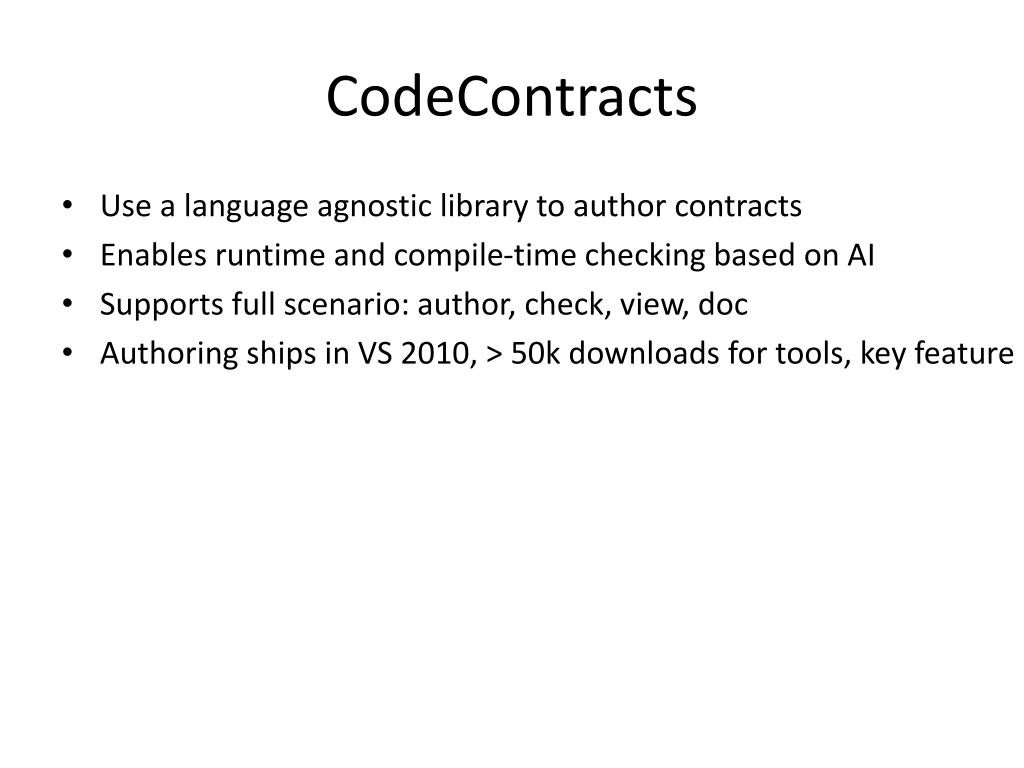

codecontracts
CodeContracts
  • Use a language agnostic library to author contracts
  • Enables runtime and compile-time checking based on AI
  • Supports full scenario: author, check, view, doc
  • Authoring ships in VS 2010, > 50k downloads for tools, key feature
codecontracts code as specifications
CodeContracts: Code as Specifications
  • Use a language agnostic library to author contracts
  • Enables static and dynamic checking
  • Contracts support “squiggles”, views, doc.- generation
  • Authoring ships in VS 2010, > 50k downloads for tools

static intMinIndex(int[] data) {

Contract.Requires(data != null);

Contract.Ensures(Contract.Result<int>() >= -1);

Contract.Ensures(Contract.Result<int>() < data.Length);

var result = -1;

for (int i = 0; i < data.Length; i++)

result = (result<0 || data[i]<data[result]) i: result;

return result;

}

pex tests as specifications
Pex: Tests as Specifications
  • Embrace Unit Tests/Test Driven Development
  • Supports auto. test case gen./environment isolation (Moles)
  • Uses extended reflection and dynamic symbolic execution
  • Pex as powertools for VS 2010, Moles for VS 2012, >70k downloads

void ReadWrite(string name, string data) {Assume.IsTrue(name != null && data != null);

Write(name, data);varreadData = Read(name);

Assert.AreEqual(data, readData);

}

 string name, string data:

name ≠ null ⋀ data ≠ null ⇒

equals(

ReadResource(name,WriteResource(name,data)),data)

symdiff programs as specifications
SymDiff: Programs as Specifications
  • Addresses AppCompat/Versioning problem
  • Performs static semantic diff of closely related programs
  • Uses boogie, etc to check where programs are different
formula for modeling

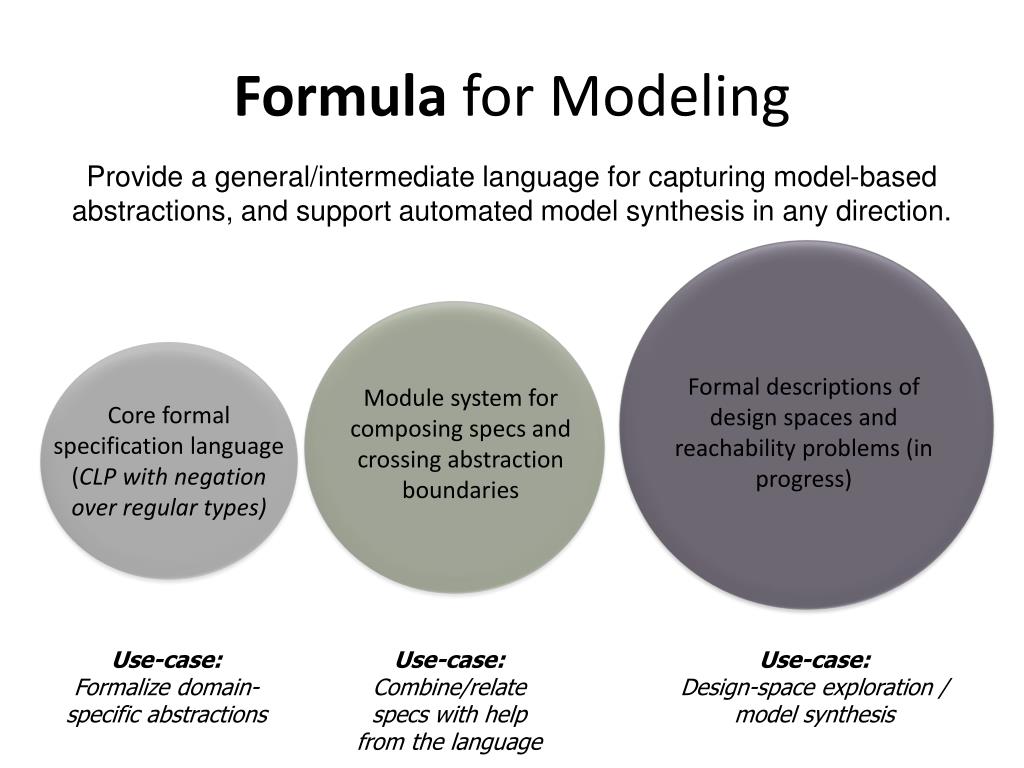

Formulafor Modeling

Provide a general/intermediate language for capturing model-based abstractions, and support automated model synthesis in any direction.

Formal descriptions of design spaces and reachability problems (in progress)

Module system for composing specs and crossing abstraction boundaries

Core formal specification language (CLP with negation over regular types)

Use-case:

Formalize domain-specific abstractions

Use-case:

Combine/relate specs with help from the language

Use-case:

Design-space exploration / model synthesis

formula s model synthesis

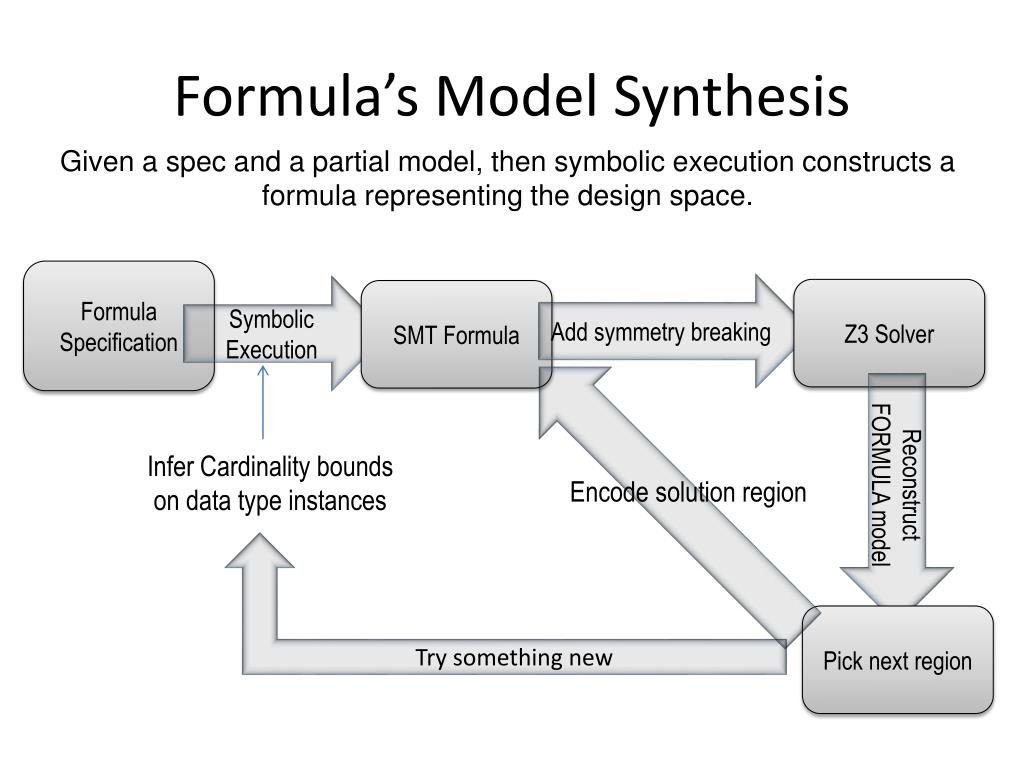

Formula’s Model Synthesis

Given a spec and a partial model, then symbolic execution constructs a formula representing the design space.

Formula Specification

Add symmetry breaking

Symbolic Execution

Z3 Solver

SMT Formula

Reconstruct FORMULA model

Infer Cardinality bounds on data type instances

Encode solution region

Try something new

Pick next region

formula applications
Formula: Applications

Translate your logic/configuration/constraint /… problem into Formula:

  • Software/Hardware Mappings: Autozar/Muscle controller
  • Architectures for the cloud: ECM
  • Policy management and generic policy engines: Dkal, SecPal, etc
  • VM provisioning for the cloud: Systemcenter
  • UML/DSL mappings…
summary usable verification
Summary: Usable Verification

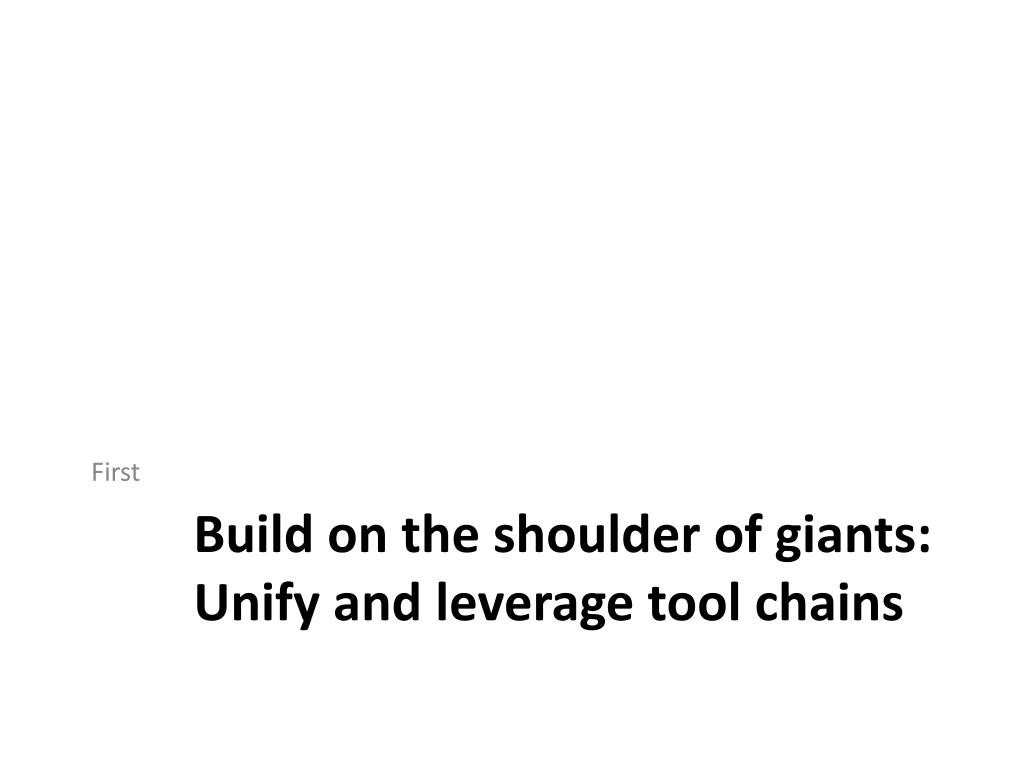

  • Build on the shoulder of giants: Unify and leverage tool chains

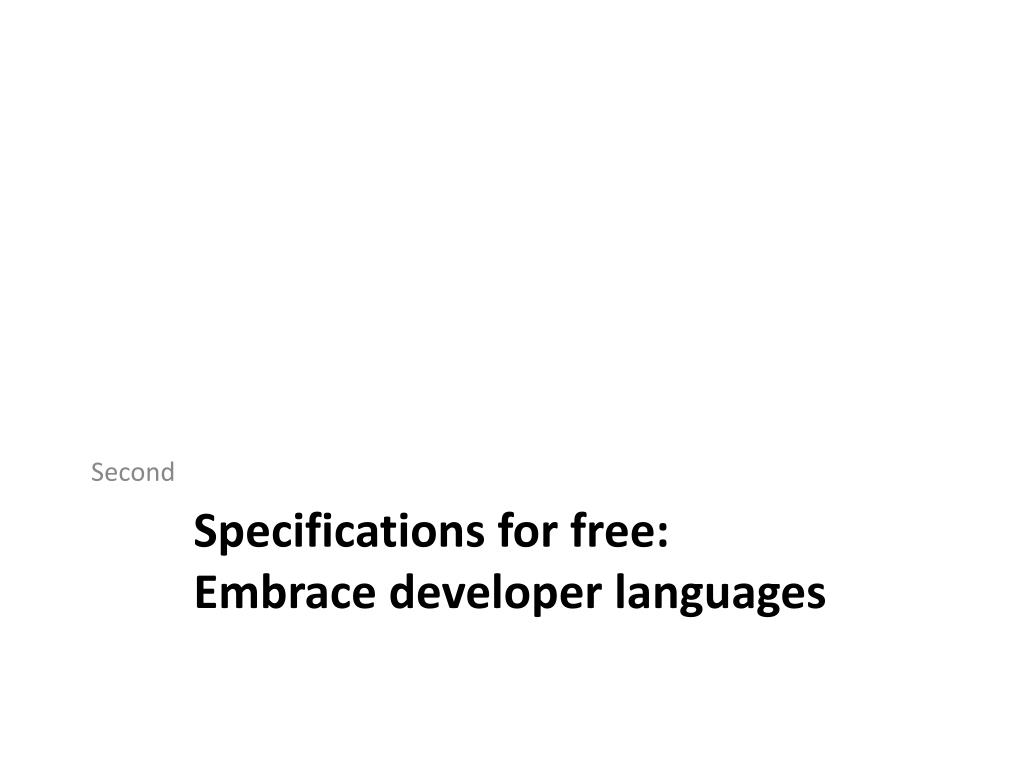

  • Specifications for free: Embrace developer languages
  • Catch flaws early:From code to design analysis
